Omnis Bike 22 - Bag Vaude - Free user manual and instructions

Product type	Bicycle backpack
Brand	Vaude
Model	Omnis Bike 22
Volume	22 liters
Weight	Approximately 650 g
Dimensions	Approximately 50 x 30 x 20 cm
Carrying system	Adjustable with F.L.A.S.H. system (shoulder strap length adjustment)
Hip belt	Yes, with tightening buckle for load transfer to hips
Helmet holder	Yes, 4 variants: hooks, straps, net, integrated flap
Rear light attachment	Yes, on the lower part of the backpack
Tool compartment	Yes, with pump loop
Rain cover	Yes, integrated in a zippered compartment at the bottom of the backpack
Volume expansion	Yes, allows capacity increase of 3 to 5 liters
Map pocket	Yes, on the front of the backpack
Hydration system	Compatible, hose outlet in the flap or zipper
Protector attachment	Yes, on the side compression straps (for All Mountain models)
Care	Hand wash with damp cloth, air dry

Frequently Asked Questions - Omnis Bike 22 Vaude

How to adjust the shoulder strap length with the F.L.A.S.H. system?

Open the velcro strip located under the back system to unlock the locking device. Pull or push the strap to adjust its length, then close the velcro by pressing. The size indications on the velcro help determine the correct length.

How to install a hydration system in the backpack?

Place the reservoir in the compartment near the back. Secure it with velcro or a hook. Pass the hose through the outlet provided in the flap or zipper depending on the model.

How to attach a helmet to the backpack?

Depending on the variant: use the hooks for the chinstraps, the straps on top of the backpack, the provided net, or the integrated flap. For the flap, detach the clips, slide the helmet into the pocket and close.

How to use the rain cover?

The cover is in a zippered compartment at the bottom of the backpack. Take it out and wrap the backpack. The lower part has notches for the hip belt to fit perfectly.

How to expand the volume of the backpack?

Some models have a volume expansion that increases interior space by about 3 to 5 liters. Consult the manual to activate this extension.

How to store tools in the designated compartment?

The tool compartment is on the front of the backpack. Slide the tools into the main compartment and use the additional loop for larger pumps.

How to attach a flashing rear light?

Clip the rear light's clamp onto the woven band or material cutout on the lower part of the backpack. The rain cover also has a band for this purpose.

How to clean the Vaude Omnis Bike 22 backpack?

Use a damp cloth to clean the exterior. Avoid harsh detergents. Let it air dry away from heat sources.

How to adjust the carrying system for optimal fit?

Put the loaded backpack on your back. Pull on the shoulder straps (1) and the load adjustment straps (2). Close and tighten the hip belt (3) on the upper edge of your hip bone. Loosen the shoulder straps until 80% of the weight rests on your hips, then slightly retighten.

How to attach protectors (knee pads, elbow pads) to the backpack?

Use the side compression straps to secure the protectors. Pass the straps around the protectors and tighten.

USER MANUAL Omnis Bike 22 Vaude

bike hardWare backpacks

deuTsch....1

ENGLISH....9

Français....17

iTaliano....25

español....33

中文....41

INHALT

DEUTSCH

DEUTSCH

General Instructions 9

How to pack your backpack correctly....9

Hydration system....10

F.L.A.S.H. strap length adjustment .....11

Carrying system settings and adjustment....12

Features ....13

Helmet carriers....13

Features....13

Blinker holder....14

Tool compartment / Pump compartment .....14

Rain cover....15

Volume expansion 15

Map compartment / Inner compartment Moab....16

Securing protective gear....16

GENERAL INSTRUCTIONS HOW TO PACK YOUR BACKPACK CORRECTLY

The rule of thumb is to make sure the loaded pack's center of gravity lies directly above your own. Heavy items should therefore be packed as close to your back as possible.

1. Lid Compartment: small, lightweight items of gear that need to be close at hand, e.g. mobile phones, GPS, compass.

ENGLISH

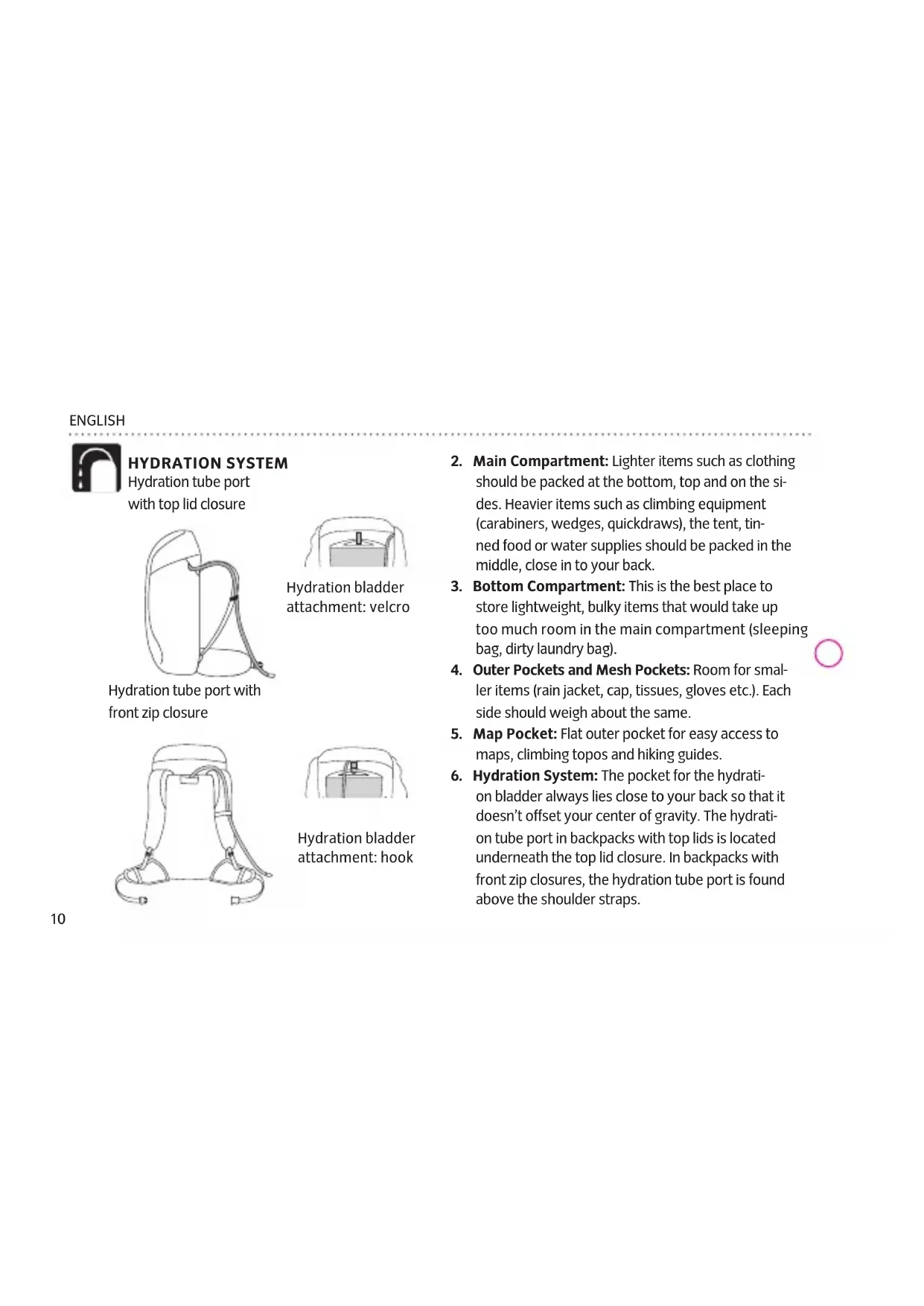

HYDRATION SYSTEM

Hydration tube port with top lid closure

Hydration bladder attachment: velcro

Hydration tube port with front zip closure

Hydration bladder attachment: hook

1. Main Compartment: Lighter items such as clothing should be packed at the bottom, top and on the sides. Heavier items such as climbing equipment (carabiners, wedges, quickdraws), the tent, tinned food or water supplies should be packed in the middle, close in to your back.

2. Bottom Compartment: This is the best place to store lightweight, bulky items that would take up too much room in the main compartment (sleeping bag, dirty laundry bag).

3. Outer Pockets and Mesh Pockets: Room for smaller items (rain jacket, cap, tissues, gloves etc.). Each side should weigh about the same.

4. Map Pocket: Flat outer pocket for easy access to maps, climbing topos and hiking guides.

5. Hydration System: The pocket for the hydration bladder always lies close to your back so that it doesn't offset your center of gravity. The hydration tube port in backpacks with top lids is located underneath the top lid closure. In backpacks with front zip closures, the hydration tube port is found above the shoulder straps.

f.l.a.s.h. straP lenGth adJustment

Some VAUDE Bike backpacks are equipped with the F.L.A.S.H. strap length adjustment system. Every person has an individual back length and shape, and this strap system can be adjusted to optimally fi t any upper body proportions: the backpack fi ts as if it were custom tailored.

For an optimal fit, the end of the shoulder strap should be just below the chest (see figure).

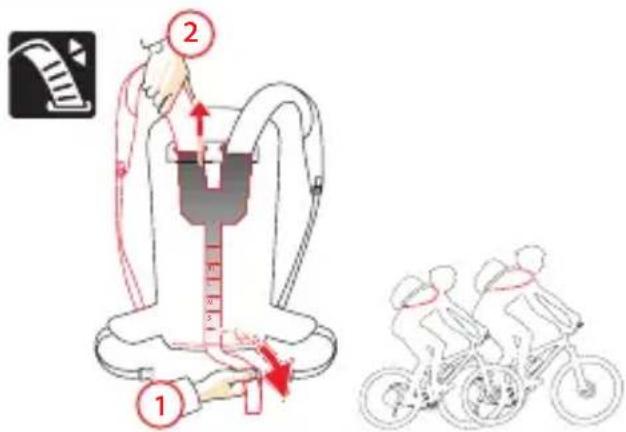

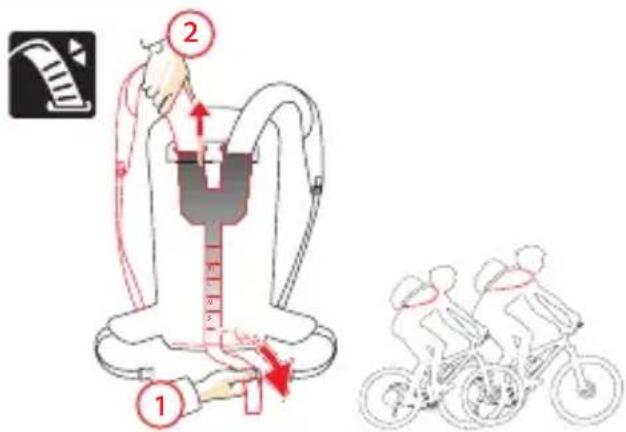

adJustment: You can adjust the length of the shoulder straps quickly and conveniently to any body size using the Velcro strip at the rear of the back system. By opening the Velcro, you release the shoulder strap lock (1). Pull out the shoulder strap or push it in to adjust its length (2). When the shoulder straps are the ideal length, close the Velcro again. Mark the position on the outer side of the Velcro to correct the shoulder strap length in future.

Quick Guide

ENGLISH

carrYinG sYstem settinGs and adJustment

If your VAUDE Bike backpack is equipped with strap length adjustment, adjust it first.

Shoulder the packed backpack and adjust as follows:

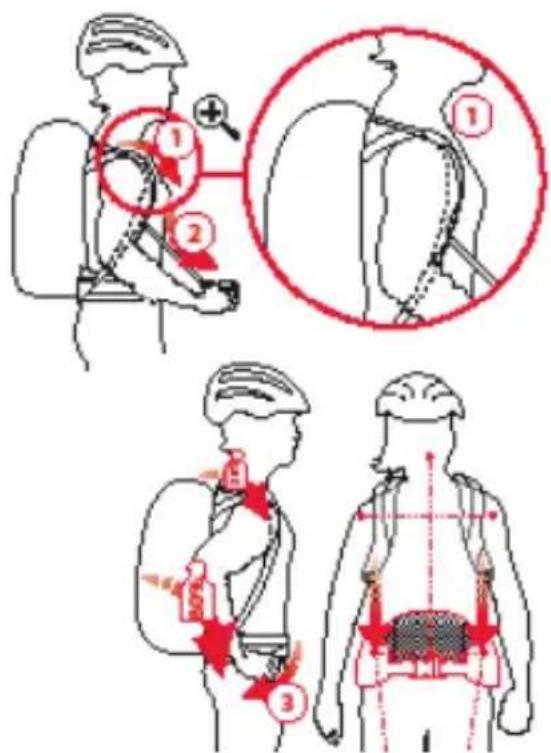

1. Gently tighten the shoulder straps and load adjustment straps (1 and 2). The ladder-lock buckles and the load adjustment straps must be positioned between your collar bone and the bony prominence at the top of your shoulder blade.

2. Lift your shoulders, then close and pull the hip belt to create a snug fit (3). The hip belt must ride on the upper edge of your pelvic bone. Your hips should bear approx. 80% of the load.

3. Loosen the shoulder straps until all of the weight is resting on your hips. Gently tighten the shoulder straps again to stabilize the backpack on your shoulders.

FEATURES

HELMET CARRIERS

Every VAUDE Bike backpack is equipped with a helmet carrier. We use a few different systems.

Variant 1: Brackets with hooks allow you to hook the helmet chin band to the backpack, or you can loop the straps behind the brackets and close them.

Variant 2: Use the two loops on the upper section of the backpack as the helmet carrier. To do this, simply open the helmet chin band, thread each side through a loop and close the chin band again.

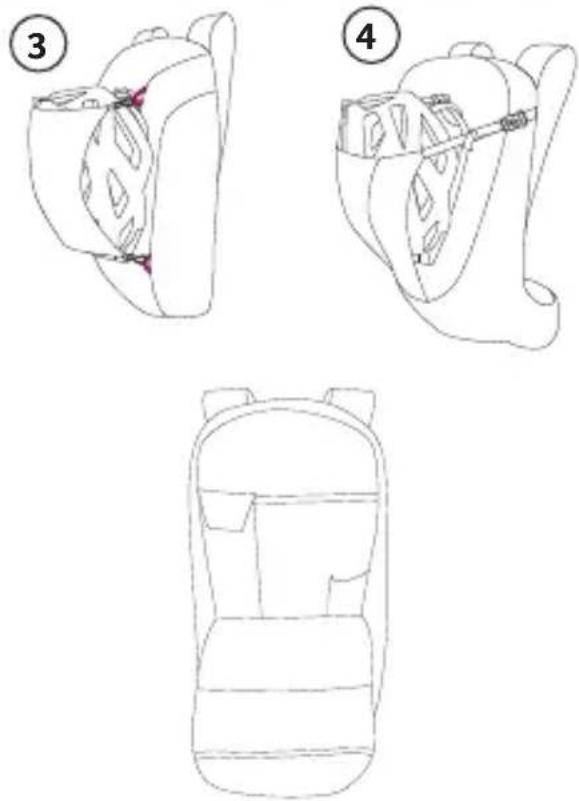

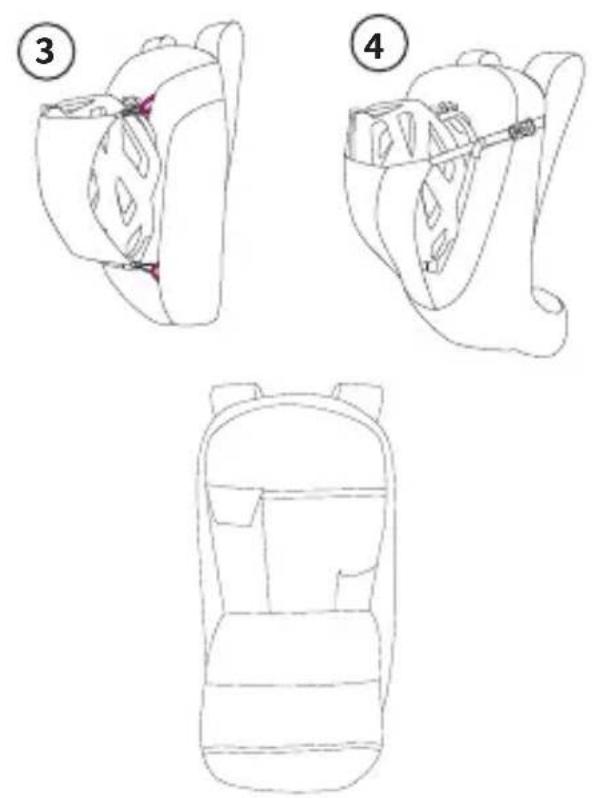

Variant 3: Fasten the helmet net included to the two loops on both the upper and lower sections of the backpack. To do this, place the helmet on the backpack, place the net on top of it and put the plastic hooks through the loops.

Variant 4: Integrated helmet straps provide room for cross country and full face helmets. To use them, re-

QUICK GUIDE

ENGLISH

lease the two buckles on the upper section of the back-pack, push the helmet into the pocket and close the buckles again. For full face helmets, simply loop the straps and buckles through the chin guard, close them again and pull them tight.

Blinker holder

Every VAUDE Bike backpack is equipped with a blinker holder in the lower section. You can either clip the blinker to the attached piece of webbing or a cutout in the material. There is also a piece of webbing for this on the lower section of the rain cover.

tool comPartment / PumP comPartment

Some VAUDE Bike backpacks are equipped with extra tool compartments. Applied to the front of the back-pack, they provide you with quick, convenient access to key tools. An extra loop even keeps larger pumps firmly in place.

rain coVer

Every VAUDE Bike backpack is equipped with a rain cover. It is located in a zip compartment under the floor of the backpack. To allow the rain cover to enclose the backpack as completely as possible, it has small cutouts on the bottom for the carrier system hip fins.

Volume exPansion

Some VAUDE Bike backpacks have a volume expansion function that enlarges the backpack by approx. 3-5 l.

ENGLISH

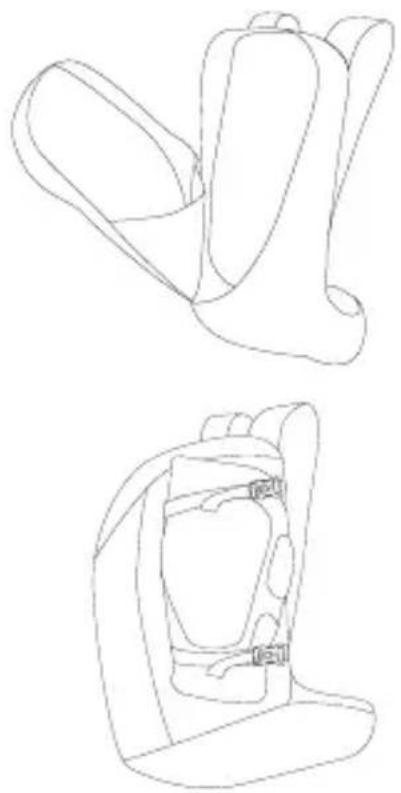

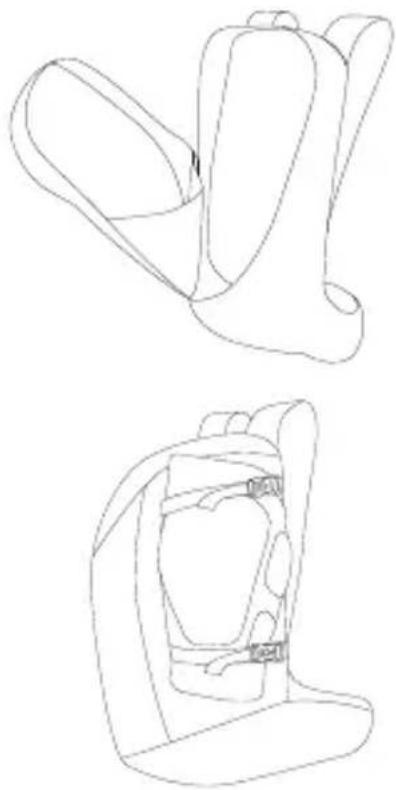

maP comPartment / inner comPartment moaB

The touring backpacks in the VAUDE Bike collection are equipped with an easy-access map compartment at the front. Use it to store your maps securely.

The backpacks in the Moab series have an extra 3-way inner compartment. In it, you can stow key pieces of equipment separately from the main compartment.

securinG ProtectiveGear

With some of the All Mountain backpacks in the VAUDE Bike collection, you can use the compression straps at the sides to secure your protective gear.
