Introduction

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Note

• Before operating the TV, please read the "Safety Information" (page 2).
• Read the supplied Safety Information for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Help Guide (Manual)

For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu. You can also check the Help Guide from your PC or smartphone (information provided on the back cover of this manual).

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.

For models with supplied mains adaptor: Labels for mains adaptor Model No. and Serial No. are located at the bottom of mains adaptor.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Visual Products Inc. declares that the radio equipment types KD-65XG7096, KD-65XG7093, KD-65XG7077, KD-65XG7073,

KD-65XG7005, KD-65XG7004, KD-65XG7003, KD-65XG7002, KD-55XG7096, KD-55XG7093, KD-55XG7077, KD-55XG7073, KD-55XG7005, KD-55XG7004, KD-55XG7003, KD-55XG7002, KD-49XG7096, KD-49XG7093, KD-49XG7077, KD-49XG7073, KD-49XG7005, KD-49XG7004, KD-49XG7003, KD-49XG7002, KD-43XG7096, KD-43XG7093, KD-43XG7077, KD-43XG7073, KD-43XG7005, KD-43XG7004, KD-43XG7003, KD-43XG7002 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.de/

This radio equipment can be operated in the EU without infringing applicable requirements on the use of radio spectrum.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

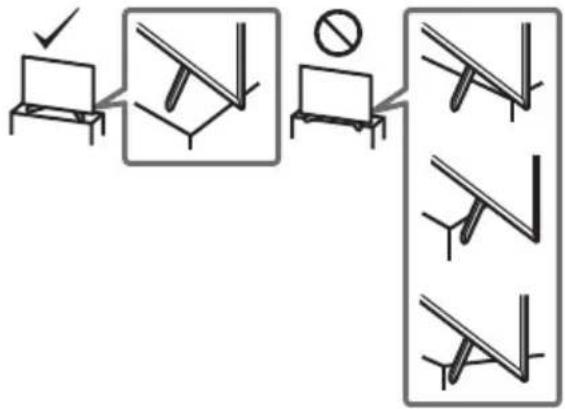

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
  • Install the TV where it cannot be pulled, pushed, or knocked over.

- Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:

Wall-Mount Bracket: SU-WL450

- Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model.

Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8 mm - 12 mm

Screw (M6) Wall-Mount Bracket TV's rear cover

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or three people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the bottom.

Illustration of two human figures carrying a rectangular box with internal compartments (no text or symbols)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Topple prevention

KD-65XG70xx / 55XG70xx

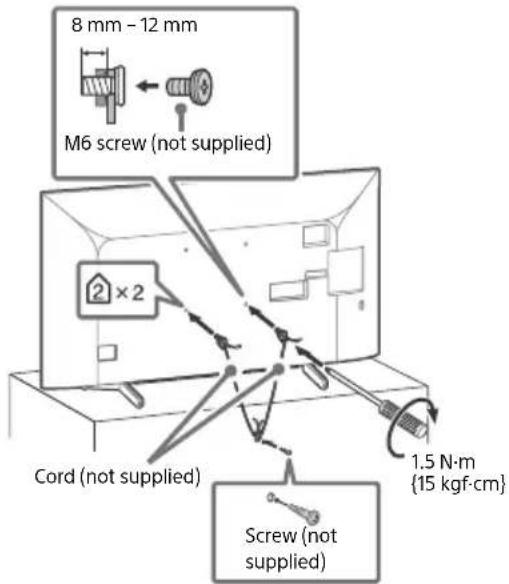

8 mm - 12 mm M6 screw (not supplied) 2 × 2 Cord (not supplied) Screw (not supplied) 1.5 N·m {15 kgf·cm}

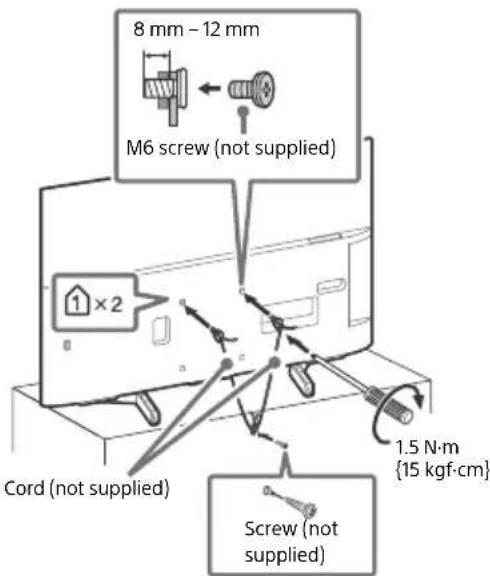

KD-49XG70xx / 43XG70xx

8 mm - 12 mm M6 screw (not supplied) 1 × 2 Cord (not supplied) Screw (not supplied) 1.5 N·m {15 kgf·cm}

Remote Control and TV

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

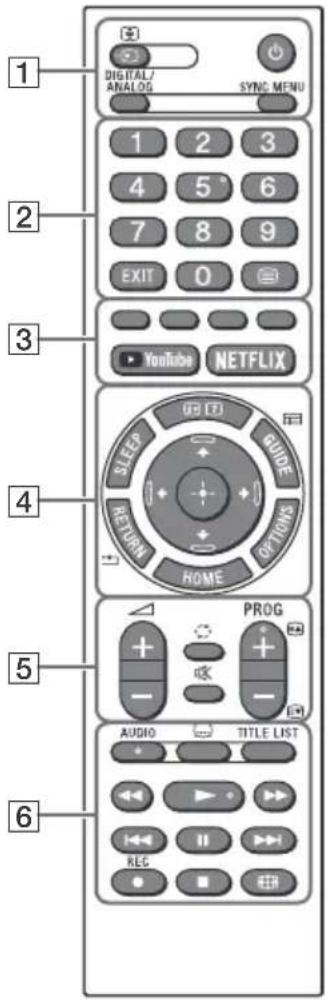

1 DIGITAL/ ANALOG SYNC MENU 2 1 2 3 4 5° 6 7 8 9 EXIT 0 3 YouTube NETFLIX 4 SLEEP GUIDE RETURN OPTIONS HOME 5 PROG - - AUDIO TITLE LIST 6

Note

- The number 5, ▶, PROG + and AUDIO buttons have tactile dots. Use the tactile dots as references when operating the TV.

1 - (Input select/Text hold)

In TV mode: Display and select the input source.

In Text mode: Hold the current page.

(TV standby)

DIGITAL/ANALOG

Switch between digital and analogue input.

SYNC MENU

Display the BRAVIA Sync Menu.

For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu.

2 Number buttons

EXIT

(Text)

Display text information.

3 Colour buttons

YouTube (Only on limited region/country/TV model)

NETFLIX (Only on limited region/ country/TV model)

4 i? I n f o / T e x t r e v

Display information.

SLEEP

Press repeatedly until the TV displays the time in minutes ([Off]/[15 min]/[30 min]/[45 min]/[60 min]/[90 min]/[120 min]) that you want the TV to remain on before shutting off. To cancel the sleep timer, press

SLEEP repeatedly until [Off] appears.

GUIDE/

Display the Digital EPG (Electronic Programme Guide).

RETURN/

OPTIONS

Display a list that contain shortcuts to some setting menus.

The listed options vary depending on the current input and content.

HOME

↑/↓/←/→/⊕

On screen menu navigation and selection.

5 ∠+/- (Volume)

(Jump)

呂 (Mute)

PROG +/-/▲/▼

In TV mode: Select the channel.

In Text mode: Select the next (▲) or previous (▼) page.

6 AUDIO

Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

TITLE LIST (Not available for Italy)

Display the Title list.

◀/▶/▶/◀/■/▶/■

Operate media contents on the TV and connected BRAVIA Sync-compatible device.

This key also can be used to operate VOD (Video on Demand) service playback.

Availability is depend on VOD service.

● REC (Not available for Italy)

Record the currently viewed programme on the USB HDD.

(Wide Mode)

Adjust the screen display. Press repeatedly to select the desired wide mode.

KD-65XG70xx

7 8

KD-55XG70xx / 49XG70xx / 43XG70xx

8 7

7 ⏻ (Power)

8 Remote Control sensor / LED indicator

Note

• If subtitles are selected and the user launches a digital text application via 'text' key, subtitles may, under certain circumstance stop being displayed. When the user exits the digital text application, subtitle decoding will resume automatically.
• Make sure that the TV is completely turned off before unplugging the mains lead.
• To disconnect the TV from the mains completely, pull the plug from the mains socket.
• Please wait for a while when perform input selection to change to other input.

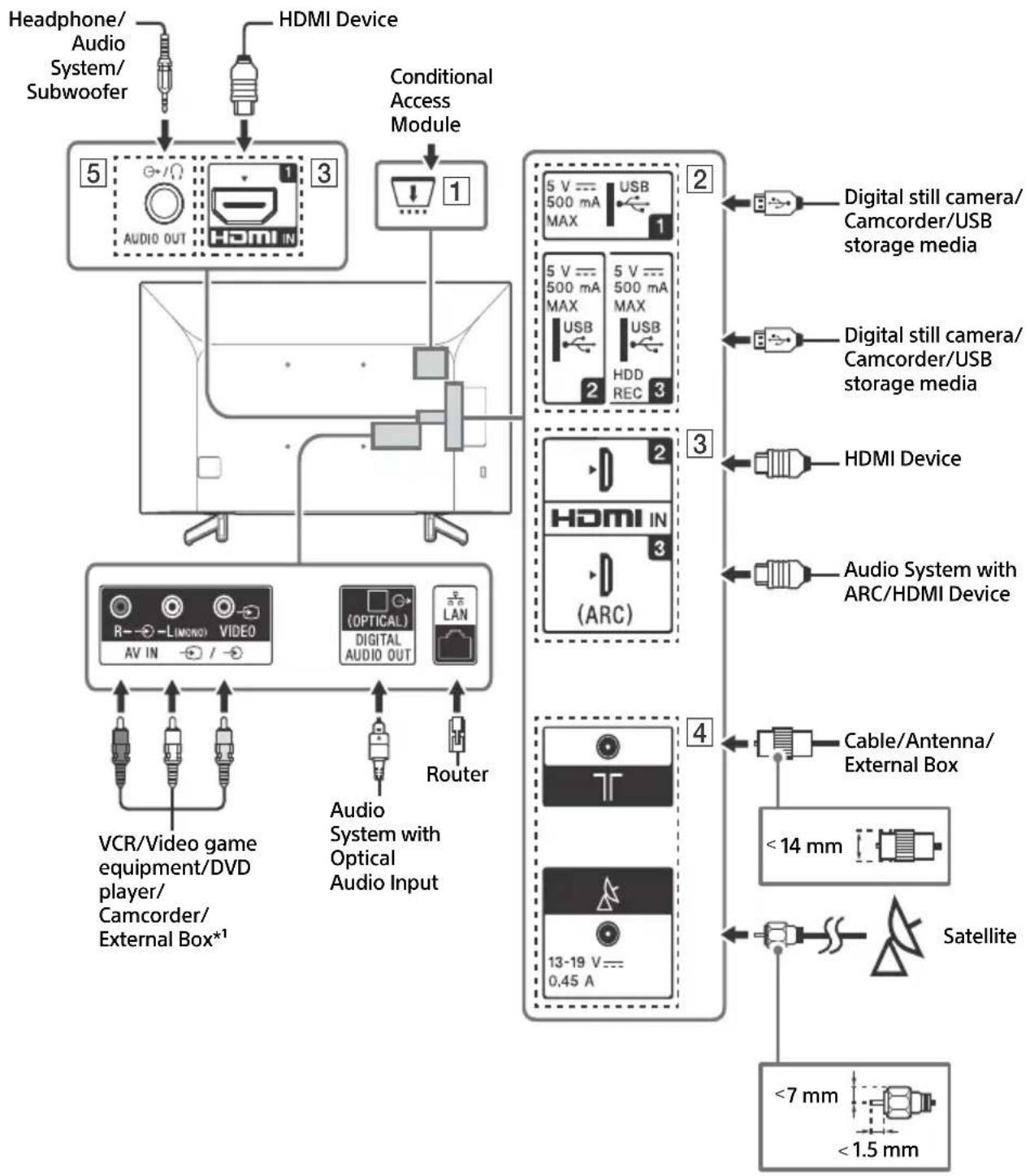

Connection Diagram

You can connect a wide range of optional equipment to your TV.

Note

- Terminals, labels and functions may vary depending on region/country/TV model.

1 CAM (Conditional Access Module)

• Provides access to pay TV services. For details, refer to the instruction manual supplied with your CAM.
• Do not insert the smart card directly into the TV CAM slot. It must be fitted into the Conditional Access Module provided by your authorised dealer.
• CAM is not supported in some countries/areas. Check with your authorised dealer.
• A CAM message may appear when you switch to a digital programme after using the Internet video.

2 USB1/2, USB3 (HDD)

• Connecting a large USB device may interfere with other connected devices beside it.
• When connecting a large USB device, connect to the USB 1 port.
• Connect a USB HDD device to the USB 3 port.

3 HDMI IN 1/2/3

- HDMI interface can transfer the digital video and audio on a single cable.

< 12 mm < 21 mm

- HDMI IN 2/3

To enjoy high quality 4K 50p/60p contents, connect a Premium High Speed HDMI cable to the HDMI IN 2/3 and set the [HDMI signal format] to [Enhanced format].

For details of supported formats, refer to the "Specifications" in this manual (page 10-11).

- HDMI IN 3 ARC (Audio Return Channel) Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

HDMI OUT (ARC)

REC)\*

4 (RF input), (Satellite input) ^* 2

- Connections for terrestrial/cable and satellite.

5 AUDIO OUT

• Supports 3-pole stereo mini jack only.

- To listen to the TV's sound through the connected equipment, press HOME, then select [System Settings] → [Setup] → [AV Setup] → [Headphone/Audio Out] and then select the desired item.

Note

*1 For an external device which has only SCART AV OUT, use a SCART-RCA adaptor.
*2 Only on limited region/country/TV model.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket

This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall.

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall.

When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

Note

• Be sure to store the removed screws in a safe place, keeping them away from children.
• If the Table-Top Stand is attached to the TV, detach the Table-Top Stand beforehand. See the Setup Guide and follow in reverse order the steps to detach the Table-Top Stand.
• Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth when removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display. (KD-49/43XG70xx only)

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model. www.sony.eu/support/

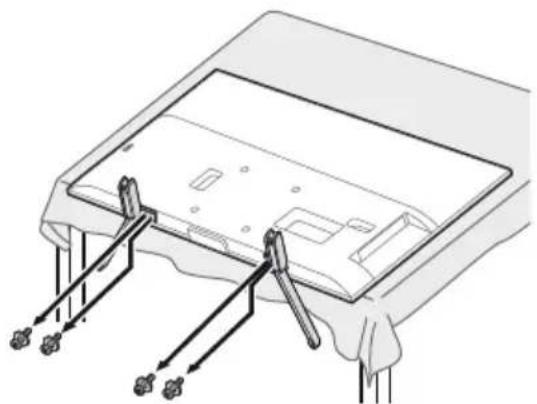

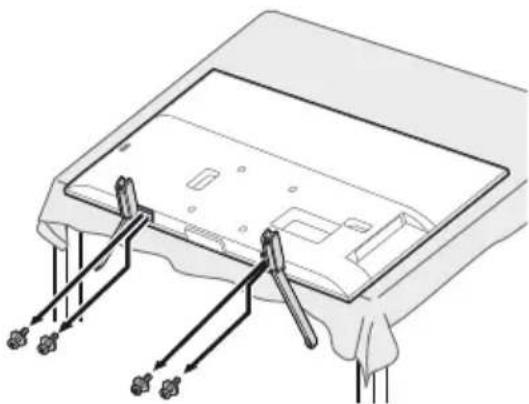

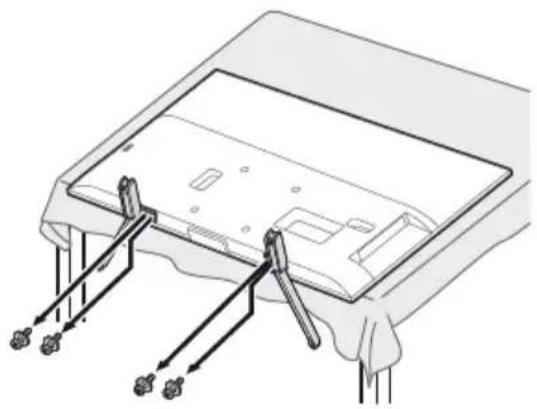

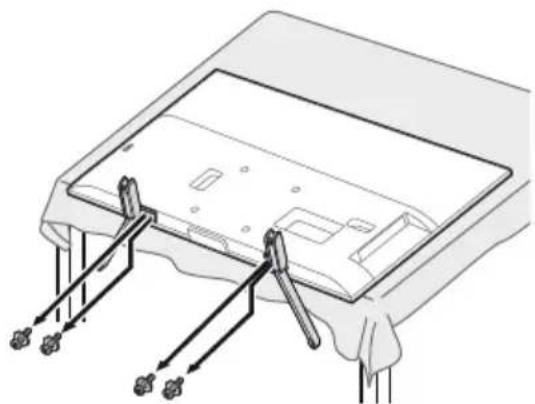

Detaching the Table-Top Stand from the TV

KD-65XG70xx

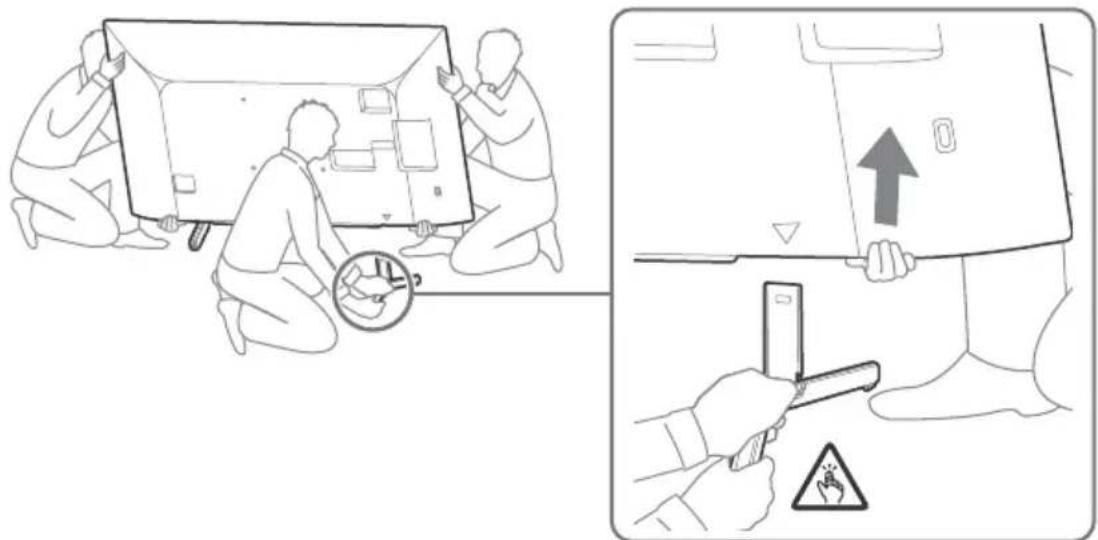

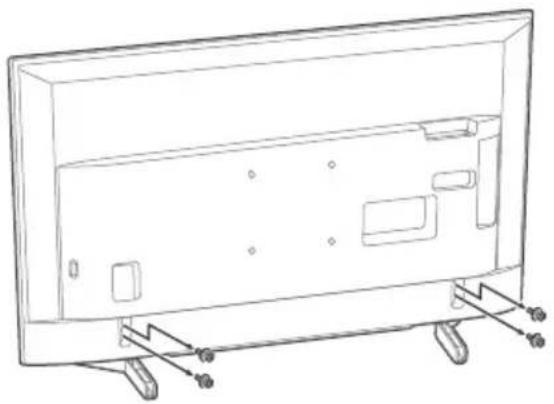

1 Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

Technical illustration showing two steps of installing a device, with one being opened and the other using a tool to prevent collision risk.

2 Repeat the previous step and remove the other side of the Table-Top Stand.

Note

• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.
  • Take care when handling the Table-Top Stand to prevent damage to the TV.
• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.
• Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

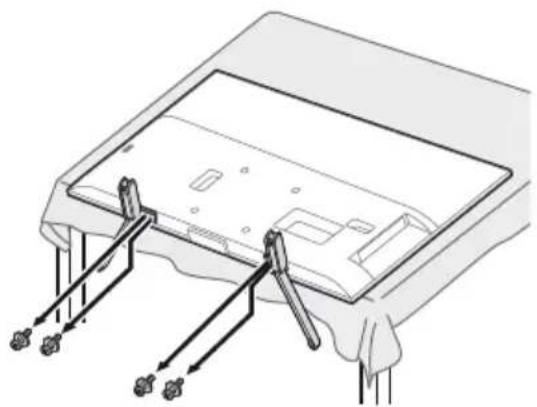

KD-55XG70xx KD-49XG70xx / 43XG70xx

Line drawing of a flat-screen TV rear panel with mounting feet and internal compartments (no text or symbols)

Technical line drawing of a device rear panel with connectors and wiring (no text or symbols)

Troubleshooting

When the LED indicator is flashing red, count how many times it flashes (interval time is three seconds).

If the LED indicator flashes red, reset the TV by disconnecting the mains lead from the TV for two minutes, then turn on the TV.

If the problem persists, contact your dealer or Sony service centre with the number of times the LED indicator flashes red (interval time is three seconds). Press ⏻ on the TV to turn it off, disconnect the mains lead, and inform your dealer or Sony service centre.

Troubles and Solutions

No picture (screen is dark) and no sound

• Check the antenna (aerial)/cable connection.
• Connect the TV to the mains socket, and press ⏻ on the TV or the remote control.

Picture contours are distorted

- Change the current setting of [Film Mode]* to other settings.

The TV turns off automatically (the TV enters standby mode)

• Check if the [Sleep Timer]* is activated.
• Check if the [Duration]* is activated by [On Timer]* or [Photo Frame Settings]*.
• Check if the [Idle TV Standby]* is activated.

Some input sources cannot be selected

- Select [AV Preset]* and select [Always]* of the input source.

Some programmes cannot be tuned

- Check the antenna (aerial)/cable connection.

The remote control does not function

- Replace the batteries.

The TV surrounds become warm

• When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand.
  * For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Depending on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C DVB-T2 ^*1

Analogue: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Digital: MPEG-2 MP@ML/HL, H.264/MPEG-4 AVC MP/HP@L5.0, H.265/HEVC MP/Main10@L5.1 (4K 60fps)

Channel coverage

Depending on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite ^*1 : IF Frequency 950-2,150 MHz

Sound output

10 W + 10 W

Wireless technology

Protocol IEEE 802.11b/g/n

Frequency band(s)

Wireless LAN (IEEE 802.11b/g/n)
Frequency range Output	Power
2400-2483.5 MHz < 20.0 dBm

Software version

This radio equipment is intended to be used with the approved version(s) of software that are indicated in the EU Declaration of Conformity.

Refer to [Customer Support] under [Settings] menu.

The software loaded on this radio equipment is verified to comply with the essential requirements of the Directive 2014/53/EU.

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna*

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single Cable

Distribution EN50494

→/→A V I N

Video/Audio input (phono jacks)

HDMI IN 1/2/3 (support 4K resolution, HDCP

2.3-compatible)*2

Video:

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

Two channel linear PCM: 32/44.1/48 kHz 16/20/24 bits, Dolby Digital, Dolby Digital Plus, DTS

ARC (Audio Return Channel) (HDMI IN 3 only)

Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, Dolby

Digital Plus, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, DTS)

Headphone, Audio output, Subwoofer

1, 2, 3 (HDD REC) (Function not available in

Italy)

USB port 1, 2 and 3 support High Speed USB (USB 2.0)

CAM (Conditional Access Module) slot

- - + DC IN 19.5 V (models with supplied mains adaptor only)

Mains adaptor input

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Others

Optional accessories

Wall-Mount Bracket: SU-WL450

Operating temperature

0^ - 40^

Operating humidity

10% - 80% RH (non-condensing)

Power, Product Fiche and others

Power requirements

except models with supplied mains adaptor

220 V - 240 V AC, 50 Hz

models with supplied mains adaptor only

19.5 V DC with mains adaptor

Rating: Input 220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-65XG70xx: A

KD-55XG70xx: A

KD-49XG70xx: A

KD-43XG70xx: A

Screen size (measured diagonally) (Approx.)

KD-65XG70xx: 163.9 cm / 65 inches

KD-55XG70xx: 138.8 cm / 55 inches

KD-49XG70xx: 123.2 cm / 49 inches

KD-43XG70xx: 108.0 cm / 43 inches

Power consumption

In [Standard] mode

KD-65XG70xx: 151 W

KD-55XG70xx: 110 W

KD-49XG70xx: 75 W

KD-43XG70xx: 66 W

In [Vivid] mode

KD-65XG7096: 256 W

KD-65XG7093: 245 W

KD-65XG7077: 256 W

KD-65XG7073: 245 W

KD-65XG7005: 256 W

KD-65XG7004: 256 W

KD-65XG7003: 245 W

KD-65XG7002: 245 W

KD-55XG7096: 184 W

KD-55XG7093: 173 W

KD-55XG7077: 184 W

KD-55XG7073: 173 W

KD-55XG7005: 184 W

KD-55XG7004: 184 W

KD-55XG7003: 173 W

KD-55XG7002: 173 W

KD-49XG7096: 115 W

KD-49XG7093: 100 W

KD-49XG7077: 115 W

KD-49XG7073: 100 W

KD-49XG7005: 115 W

KD-49XG7004: 115 W

KD-49XG7003: 100 W

KD-49XG7002: 100 W

KD-43XG7096: 100 W

KD-43XG7093: 97 W

KD-43XG7077: 100 W

KD-43XG7073: 97 W

KD-43XG7005: 100 W

KD-43XG7004:100 W

KD-43XG7003: 97 W

KD-43XG7002: 97 W

Annual energy consumption ^4

KD-65XG70xx: 220 kWh per year

KD-55XG70xx: 161 kWh per year

KD-49XG70xx: 110 kWh per year

KD-43XG70xx: 96 kWh per year

Standby power consumption*4*5

0.50 W

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2/3

5V=500mA MAX

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

KD-65XG70xx: 146.3 × 90.9 × 33.6 cm

KD-55XG70xx: 124.1 × 78.5 × 33.6 cm

KD-49XG70xx: 110.1 × 70.4 × 26.0 cm

KD-43XG70xx: 97.0 × 63.0 × 26.0 cm

without Table-Top Stand

KD-65XG70xx: 146.3 × 84.5 × 8.0 cm

KD-55XG70xx: 124.1 × 72.1 × 7.9 cm

KD-49XG70xx: 110.1 × 64.5 × 5.7 cm

KD-43XG70xx: 97.0 × 57.0 × 5.7 cm

Mass (Approx.)

with Table-Top Stand

KD-65XG70xx: 21.6 kg

KD-55XG70xx: 16.5 kg

KD-49XG70xx: 12.5 kg

KD-43XG70xx: 10.3 kg

without Table-Top Stand

KD-65XG70xx: 20.5 kg

KD-55XG70xx: 15.4 kg

KD-49XG70xx: 11.9 kg

KD-43XG70xx: 9.7 kg

*1 Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal.

*2 HDMI IN 2 and HDMI IN 3 support High-Quality HDMI formats such as 4K 60p/50p 4:2:0 10 bit, 4:4:4, 4:2:2.

*3 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*4 Specified standby power is reached after the TV finishes necessary internal processes.

*5 Standby power consumption will increase when your TV is connected to the network.

Note

• Do not remove the dummy card or cover (availability depends on TV model) from TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM.
• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.

Notes on Digital TV function

- Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.

- This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Notes on HDR (High Dynamic Range) (Only on limited region/country/TV model)

• Compatible with all HDR PS4 Game titles via HDMI and HDR videos of built-in Netflix and YouTube App only. (See Sony support website for more information).
• HDR image signal specifically means HDR10 Media Profile format (commonly referred to as HDR10).
• Compatibility with all HDR content is not guaranteed.

Trademark information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

• Vewd® Core. Copyright 1995-2019 Vewd Software AS. All rights reserved.

• Wi-Fi®, Wi-Fi Alliance®, Wi-Fi Direct® and Miracast® are registered trademarks of Wi-Fi Alliance.

• Wi-Fi Protected Setup™ is a trademark of Wi-Fi Alliance.
• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance.
• Netflix is a registered trademark of Netflix, Inc.
• "YouTube" and the "YouTube logo" are registered trademarks of Google LLC.
• "BRAVIA", and BRAVIA Sync are trademarks or registered marks of Sony Corporation.
• "Blu-ray Disc", "Blu-ray" and "Blu-ray Disc" logo are trademarks of Blu-ray Disc Association.
• "PlayStation" is a registered trademark and "PS4" is a trademark of Sony Interactive Entertainment Inc.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

For satellite models only:

• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• All other trademarks are the property of their respective owners.

BONTE + - + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Two human silhouettes holding a rectangular device with internal components, no text or symbols visible

< 12 mm < 21 mm

- HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a phone.

Line drawing of a flat-screen TV rear panel with mounting feet and ventilation slots (no text or symbols)

Diagram of a device's internal structure with connectors and arrows indicating assembly or connection (no text or symbols present)

Dépannage

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio :

→ DIGITAL AUDIO OUT (OPTICAL)

10% - 80% HR (sans condensation)

KD-65XG70xx:163,9cm/65pouces

KD-55XG70xx : 138,8 cm / 55 pouces

KD-49XG70xx : 123,2 cm / 49 pouces

KD-43XG70xx : 108,0 cm / 43 pouces

KD-43XG70xx : 97,0 × 63,0 × 26,0 cm

Sans support de table

- Vewd® Core. Copyright 1995-2019 Vewd Software AS. All rights reserved.

Two human silhouettes holding a rectangular box with internal compartments (no text or symbols)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing or adjusting a device, with instructions and safety symbols present.

Line drawing of a flat-screen TV or monitor with visible rear panels and wheels (no text or symbols)

Diagram of a device rear panel with connectors and wiring, no text or symbols present

Digital: UHF/VHF/Cable

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

PCM lineal de dos canales: 32/44,1/48 kHz 16/20/24 bits,

Dolby Digital, Dolby Digital Plus, DTS

ARC (Audio Return Channel) (sólo HDMI IN 3)

PCM lineal de dos canales: 48 kHz 16 bits, Dolby Digital, Dolby

Digital Plus, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos canales: 48 kHz 16 bits,

Dolby Digital, DTS)

AUDIO OUT / (minitoma estéreo)

Auricular, salida de audio, Altavoz de graves

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

KD-65XG7093, KD-65XG7077, KD-65XG7073,

KD-65XG7005, KD-65XG7004, KD-65XG7003, KD-65XG7002,

KD-55XG7096, KD-55XG7093, KD-55XG7077, KD-55XG7073,

KD-55XG7005, KD-55XG7004, KD-55XG7003, KD-55XG7002,

KD-49XG7096, KD-49XG7093, KD-49XG7077, KD-49XG7073,

KD-49XG7005, KD-49XG7004, KD-49XG7003, KD-49XG7002,

KD-43XG7096, KD-43XG7093, KD-43XG7077, KD-43XG7073,

KD-43XG7005, KD-43XG7004, KD-43XG7003, KD-43XG7002

Two human silhouettes holding a rectangular object with internal compartments (no text or symbols)

< 12 mm < 21 mm

• HDMI IN 2/3

4 (RF-ingang), (satellietingang)\* ^2

Diagram illustrating a procedure for installing or adjusting a device, with labeled parts and warning symbols.

Line drawing of a flat-screen TV rear panel with mounting feet and control buttons (no text or symbols)

Technical line drawing of a device rear panel with connectors and mounting holes (no text or symbols)

Problemen oplossen

Tweekanaals lineaire PCM: 32/44,1/48 kHz 16/20/24 bits, Dolby Digital, Dolby Digital Plus, DTS

ARC (Audio Return Channel) (alleen HDMI IN 3)

Tweekanaals lineaire PCM: 48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

Opmerkingen over HDR (High Dynamic Range)

Two human silhouettes holding a rectangular device with internal components, no text or symbols visible

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating two steps of installing a device: one with tools and the other with a warning sign.

Line drawing of a flat-screen TV rear panel with mounting feet and visible doorways (no text or symbols)

Technical line drawing of a device rear panel with connectors and ports (no text or symbols)

Störungsbehebung

→ DIGITAL AUDIO OUT (OPTICAL)

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

ohne Tischständer

KD-65XG70xx: 146,3 × 84,5 × 8,0 cm

KD-55XG70xx: 124,1 × 72,1 × 7,9 cm

KD-49XG70xx: 110,1 × 64,5 × 5,7 cm

KD-43XG70xx: 97,0 × 57,0 × 5,7 cm

Gewicht (Ca.)

mit Tischständer

KD-65XG70xx: 21,6 kg

KD-55XG70xx: 16,5 kg

KD-49XG70xx: 12,5 kg

KD-43XG70xx: 10,3 kg

ohne Tischständer

KD-65XG70xx: 20,5 kg

KD-55XG70xx: 15,4 kg

KD-49XG70xx: 11,9 kg

KD-43XG70xx: 9,7 kg

- Vewd® Core. Copyright 1995–2019 Vewd Software AS. All rights reserved.

Illustration of two human figures carrying a rectangular device (no text or symbols visible)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing or adjusting a device, with instructions and safety symbols present.

2 Repita o passo anterior e remova o outro lado do Suporte de Mesa do Televisor.

Nota

Line drawing of a flat-screen TV or monitor with visible rear panels and wheels (no text or symbols)

Diagram of a device rear panel with connectors and wiring, no text or symbols present

→ DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais: 48 kHz 16 bits, Dolby Digital, DTS)

AUDIO OUT (Mini-tomada estéreo)

Auscultador, saída de áudio, subwoofer

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

Two human figures carrying a rectangular box with internal compartments (no text or symbols visible)

(Standby TV) DIGITAL/ANALC

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the device's internal structure and safety warning.

Line drawing of a flat-screen TV rear panel with mounting feet and wheels (no text or symbols)

Diagram of a device's internal structure with connectors and arrows indicating assembly or connection (no text or symbols present)

DIGITAL AUDIO OUT (OPTICAL)

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

Illustration of two human figures carrying a rectangular device (no text or symbols visible)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from handling a package to inspecting a device with warning symbols.

Line drawing of a flat-screen TV or monitor with visible rear panels and wheels (no text or symbols)

Technical line drawing of a device's internal structure with connectors and mounting holes (no text or symbols)

Felsökning

→ DIGITAL AUDIO OUT (OPTICAL)

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

utan bordsstativ

KD-65XG70xx: 146,3 × 84,5 × 8,0 cm

KD-55XG70xx: 124,1 × 72,1 × 7,9 cm

KD-49XG70xx: 110,1 × 64,5 × 5,7 cm

KD-43XG70xx: 97,0 × 57,0 × 5,7 cm

Vikt (Ca.)

med bordsstativ

KD-65XG70xx: 21,6 kg

KD-55XG70xx: 16,5 kg

KD-49XG70xx: 12,5 kg

KD-43XG70xx: 10,3 kg

utan bordsstativ

KD-65XG70xx: 20,5 kg

KD-55XG70xx: 15,4 kg

KD-49XG70xx: 11,9 kg

KD-43XG70xx: 9,7 kg

Illustration of two human figures carrying a rectangular object, no text or symbols present

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a phone.

Line drawing of a flat-screen TV rear panel with mounting legs and wheels, showing internal compartments and mounting holes (no text or symbols)

Technical line drawing of a device rear panel with connectors and mounting holes (no text or symbols)

Fejlfinding

→ DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM: 48 kHz 16 bit, Dolby Digital, DTS)

AUDIO OUT (Stereo-minijack)

Hovedtelefon, lydudgang, subwoofer

I [Standard] tilstand

KD-65XG70xx: 151 W

KD-55XG70xx: 110 W

KD-49XG70xx: 75 W

KD-43XG70xx: 66 W

I [Kraftig] tilstand

KD-65XG7096: 256 W

KD-65XG7093: 245 W

KD-65XG7077: 256 W

KD-65XG7073: 245 W

KD-65XG7005: 256 W

KD-65XG7004: 256 W

KD-65XG7003: 245 W

KD-65XG7002: 245 W

KD-55XG7096: 184 W

KD-55XG7093: 173 W

KD-55XG7077: 184 W

KD-55XG7073: 173 W

KD-55XG7005: 184 W

KD-55XG7004: 184 W

KD-55XG7003: 173 W

KD-55XG7002: 173 W

KD-49XG7096: 115 W

KD-49XG7093: 100 W

KD-49XG7077: 115 W

KD-49XG7073: 100 W

KD-49XG7005: 115 W

KD-49XG7004: 115 W

KD-49XG7003: 100 W

KD-49XG7002: 100 W

KD-43XG7096: 100 W

KD-43XG7093: 97 W

KD-43XG7077: 100 W

KD-43XG7073: 97 W

KD-43XG7005: 100 W

KD-43XG7004:100 W

KD-43XG7003: 97 W

KD-43XG7002: 97 W

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

Uden TV-fod

KD-65XG70xx: 146,3 × 84,5 × 8,0 cm

KD-55XG70xx: 124,1 × 72,1 × 7,9 cm

KD-49XG70xx: 110,1 × 64,5 × 5,7 cm

KD-43XG70xx: 97,0 × 57,0 × 5,7 cm

Vægt (Ca.)

Inkl. TV-fod

KD-65XG70xx: 21,6 kg

KD-55XG70xx: 16,5 kg

KD-49XG70xx: 12,5 kg

KD-43XG70xx: 10,3 kg

Uden TV-fod

KD-65XG70xx: 20,5 kg

KD-55XG70xx: 15,4 kg

KD-49XG70xx: 11,9 kg

KD-43XG70xx: 9,7 kg

Two human silhouettes holding a rectangular object, no text or symbols visible

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the device's internal structure and safety warning.

Line drawing of a flat-screen TV or monitor with visible rear panels and wheels (no text or symbols)

Diagram of a device's internal structure with connectors and arrows indicating assembly or connection (no text or symbols)

Vianmääritys

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

→ DIGITAL AUDIO OUT (OPTICAL)

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

ilman pöytäjalustaa

KD-65XG70xx: 146,3 × 84,5 × 8,0 cm

KD-55XG70xx: 124,1×72,1×7,9 cm

KD-49XG70xx: 110,1 × 64,5 × 5,7 cm

KD-43XG70xx: 97,0 × 57,0 × 5,7 cm

Paino (Noin)

Herved erklærer Sony Visual Products Inc. at radioutstyrstypene KD-65XG7096,

KD-65XG7093, KD-65XG7077, KD-65XG7073, KD-65XG7005, KD-65XG7004, KD-65XG7003, KD-65XG7002, KD-55XG7096, KD-55XG7093, KD-55XG7077, KD-55XG7073, KD-55XG7005, KD-55XG7004, KD-55XG7003, KD-55XG7002, KD-49XG7096, KD-49XG7093, KD-49XG7077, KD-49XG7073, KD-49XG7005, KD-49XG7004, KD-49XG7003, KD-49XG7002, KD-43XG7096, KD-43XG7093, KD-43XG7077, KD-43XG7073, KD-43XG7005, KD-43XG7004, KD-43XG7003, KD-43XG7002 samsvar med direktiv 2014/53/EU. EU-erklæring fulltekst finn på Internett under: http://www.compliance.sony.de/

Illustration of two human figures carrying a rectangular box with internal compartments (no text or symbols)

(Teksting-innstilling)

< 12 mm < 21 mm

- HDMI IN 2/3

Diagram illustrating a procedure for installing or adjusting a device, with instructions and safety symbols present.

Line drawing of a flat-screen TV or monitor with visible rear panels and wheels (no text or symbols)

Technical line drawing of a device's internal structure with connectors and arrows indicating assembly (no text or symbols)

NO

Feilsøking

Tokanals lineær PCM: 32/44,1/48 kHz

16/20/24 biter, Dolby Digital, Dolby Digital Plus, DTS

ARC (Audio Return Channel) (kun HDMI IN 3)

Tokanals lineær PCM: 48 kHz 16 biter, Dolby Digital, Dolby Digital Plus, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM: 48 kHz 16 biter, Dolby Digital, DTS)

AUDIO OUT (minijack, stereo)

Hodetelefon, lydutgang, subwoofer

Mål (ca.) (b × h × d)

med bordstativ

KD-65XG70xx: 146,3 × 90,9 × 33,6 cm

KD-55XG70xx: 124,1 × 78,5 × 33,6 cm

KD-49XG70xx: 110,1 × 70,4 × 26,0 cm

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

uten bordstativ

KD-65XG70xx: 146,3 × 84,5 × 8,0 cm

KD-55XG70xx: 124,1 × 72,1 × 7,9 cm

KD-49XG70xx: 110,1 × 64,5 × 5,7 cm

KD-43XG70xx: 97,0 × 57,0 × 5,7 cm

Vekt (ca.)

med bordstativ

KD-65XG70xx: 21,6 kg

KD-55XG70xx: 16,5 kg

KD-49XG70xx: 12,5 kg

KD-43XG70xx: 10,3 kg

uten bordstativ

KD-65XG70xx: 20,5 kg

KD-55XG70xx: 15,4 kg

KD-49XG70xx: 11,9 kg

KD-43XG70xx: 9,7 kg

*1 Ikke alle TV-apparater har DVB-T2-, eller DVB-S- / S2-teknologi eller satellittantenneterminal.

Illustration of two human figures carrying a rectangular object with internal compartments (no text or symbols)

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a phone.

Line drawing of a flat-screen TV rear panel with mounting feet and ventilation slots (no text or symbols)

Diagram of a device's internal structure with connectors and arrows indicating assembly or connection (no text or symbols present)

PL

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

DIGITAL AUDIO OUT (OPTICAL)

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

bez podstawy

KD-65XG70xx: 146,3 × 84,5 × 8,0 cm

KD-55XG70xx: 124,1 × 72,1 × 7,9 cm

KD-49XG70xx: 110,1 × 64,5 × 5,7 cm

KD-43XG70xx: 97,0 × 57,0 × 5,7 cm

Waga (przybliżona)

z podstawą

KD-65XG70xx: 21,6 kg

KD-55XG70xx: 16,5 kg

KD-49XG70xx: 12,5 kg

KD-43XG70xx: 10,3 kg

bez podstawy

KD-65XG70xx: 20,5 kg

KD-55XG70xx: 15,4 kg

KD-49XG70xx: 11,9 kg

KD-43XG70xx: 9,7 kg

- Vewd® Core. Copyright 1995-2019 Vewd Software AS. All rights reserved.

< 12 mm < 21 mm

- HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the device's internal structure and safety warning.

Line drawing of a flat-screen TV rear panel with mounting feet and wheels (no text or symbols)

Diagram of a device's internal structure with connectors and arrows indicating assembly or connection (no text or symbols present)

Řešení problémů

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

→ DIGITAL AUDIO OUT (OPTICAL)

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

Illustration of two human figures carrying a rectangular box with internal compartments (no text or symbols)

< 12 mm < 21 mm

- HDMI IN 2/3

Diagram illustrating a procedure for installing or adjusting a device, with instructions and safety symbols present.

Line drawing of a flat-screen TV rear panel with mounting feet and ventilation slots (no text or symbols)

Diagram of a device's internal structure with arrows indicating assembly or connection points (no text or symbols present)

Riešenie problémov

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

bez stolového stojana

KD-65XG70xx: 146,3 × 84,5 × 8,0 cm

KD-55XG70xx: 124,1 × 72,1 × 7,9 cm

KD-49XG70xx: 110,1 × 64,5 × 5,7 cm

KD-43XG70xx: 97,0 × 57,0 × 5,7 cm

Hmotnost (Pribl.)

Two human silhouettes holding a rectangular device with internal components, no text or symbols visible

< 12 mm < 21 mm

- HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a device with warning symbols.

Line drawing of a flat-screen TV or monitor with visible rear panels and wheels (no text or symbols)

Diagram of a device's internal structure with arrows indicating assembly or connection (no text or symbols present)

HU

Hibaelhárítás

/ A V I N Video/Audio bemenet (I

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

INFORMATIE IMPORTANTĂ

Illustration of two human figures carrying a rectangular object with internal compartments (no text or symbols)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the device's internal structure and safety warning.

Line drawing of a flat-screen TV rear panel with mounting feet and ventilation slots (no text or symbols)

Diagram of a device's internal structure with connectors and arrows indicating assembly or connection (no text or symbols present)

RO

Depanare

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

fără suport de masă

KD-65XG70xx: 146,3 × 84,5 × 8,0 cm

KD-55XG70xx: 124,1 × 72,1 × 7,9 cm

KD-49XG70xx: 110,1 × 64,5 × 5,7 cm

KD-43XG70xx: 97,0 × 57,0 × 5,7 cm

Masă (aprox.)

cu suport de masă

KD-65XG70xx: 21,6 kg

KD-55XG70xx: 16,5 kg

KD-49XG70xx: 12,5 kg

KD-43XG70xx: 10,3 kg

fără suport de masă

KD-65XG70xx: 20,5 kg

KD-55XG70xx: 15,4 kg

KD-49XG70xx: 11,9 kg

KD-43XG70xx: 9,7 kg

Two human silhouettes holding a rectangular device with internal components, no text or symbols visible

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a phone.

Line drawing of a flat-screen TV or monitor chassis with visible mounting feet and control panel (no text or symbols)

Diagram of a device's internal structure with arrows indicating assembly or connection points (no text or symbols present)

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Аудио:

ARC (Audio Return Channel) (camo HDMI IN 3)

Двуканален линеен PCM: 48 kHz 16 бита, Dolby Digital, Dolby

Digital Plus, DTS

DIGITAL AUDIO OUT (OPTICAL)

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

без поставка за маса

KD-65XG70xx: 146,3 × 84,5 × 8,0 cm

KD-55XG70xx: 124,1 × 72,1 × 7,9 cm

KD-49XG70xx: 110,1 × 64,5 × 5,7 cm

KD-43XG70xx: 97,0 × 57,0 × 5,7 cm

Тегло (прибл.)

с поставка за маса

KD-65XG70xx: 21,6 kg

KD-55XG70xx: 16,5 kg

KD-49XG70xx: 12,5 kg

KD-43XG70xx: 10,3 kg

без поставка за маса

KD-65XG70xx: 20,5 kg

KD-55XG70xx: 15,4 kg

KD-49XG70xx: 11,9 kg

KD-43XG70xx: 9,7 kg

Two human silhouettes holding a rectangular device with internal components, no text or symbols visible

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from handling a package to inspecting a device with warning symbols.

Line drawing of a flat-screen TV rear panel with mounting feet and control buttons (no text or symbols)

Diagram of a device's internal structure with connectors and arrows indicating assembly or connection (no text or symbols present)

GR

→ DIGITAL AUDIO OUT (OPTICAL)

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm

- Vewd® Core. Copyright 1995-2019 Vewd Software AS. All rights reserved.

Two human silhouettes holding a rectangular box with internal compartments (no text or symbols)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a phone.

Line drawing of a flat-screen TV rear panel with mounting feet and control buttons (no text or symbols)

Diagram of a device's internal structure with connectors and arrows indicating assembly or connection (no text or symbols present)

TR

Sorun Giderme

Dijital: DVB-T/DVB-C

DVB-T2*1

Uydu*1: DVB-S/DVB-S2

Renk/video sistemi

Analog: PAL/SECAM/NTSC3.58 (Sadece video)/NTSC4.43

(Sadece video)

Dijital: MPEG-2 MP@ML/HL, H.264/MPEG-4 AVC MP/HP@L5.0,

H.265/HEVC MP/Main10@L5.1 (4K 60fps)

Kanal kapsamı

Dijital: UHF/VHF/Kablolu

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Ses:

→ DIGITAL AUDIO OUT (OPTICAL)

Kulaklık, Ses Çıkışı, Subwoofer

KD-43XG70xx: 97,0 × 63,0 × 26,0 cm
