USER MANUAL X89464WV01 AEG

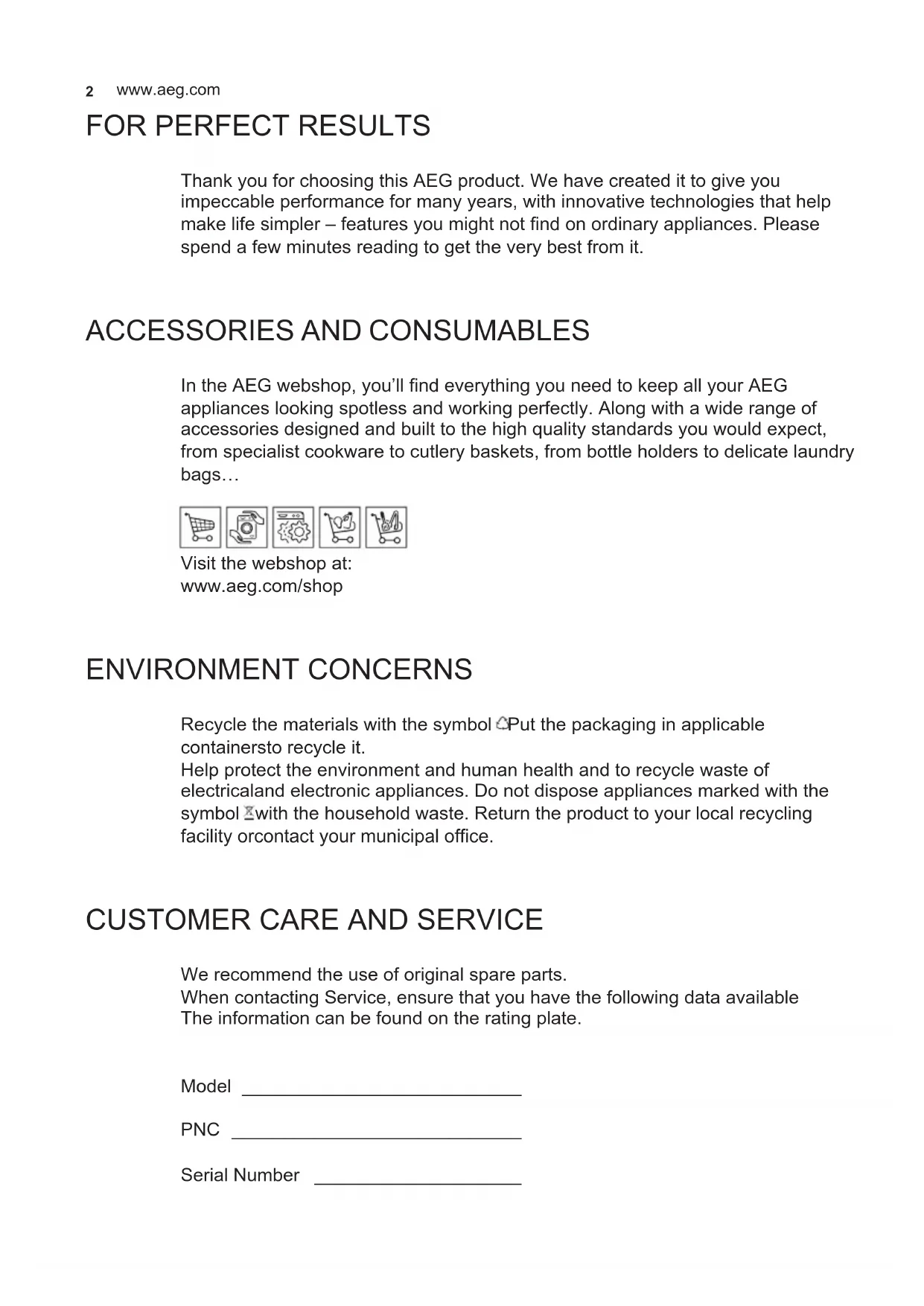

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help

spend a few minutes reading to get the very best from it.

appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags… Visit the webshop at: www.aeg.com/shop ENVIRONMENT CONCERNS Recycle the materials with the symbol Put the packaging in applicable containersto recycle it. Help protect the environment and human health and to recycle waste of electricaland electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available The information can be found on the rating plate. Model ___________________________ PNC ____________________________ Serial Number ____________________3 ENGLISH

• The Instructions for Use apply to several versions of this ap- pliance. Accordingly, you may

features that do not apply to

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).

• Check that the mains voltage corresponds to that indicated

• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the

as short as possible.

• Do not connect the extractor hood to exhaust ducts carry- ing combustion fumes (boilers,

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burn-

degree of aeration must be guaranteed in the room in or-

exhaust gas. The kitchen must have an opening communicat- ing directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service de- partment, in order to prevent any risks.

above, this has to be taken into account. Regulations concerning the discharge of

• Use only screws and small parts in support of the hood.

Warning: Failure to install

accordance with these instruc- tions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm.

• The extractor hood has been designed exclusively for do-4 www.aeg.com mestic use to eliminate kitchen smells.

• Never use the hood for pur- poses other than for which it has been designed.

under the hood when it is in operation.

direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be con- tinuously monitored during use: overheated oil can burst

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervi- sion or instruction concerning use of the appliance in a safe way and understand the haz- ards involved. Children shall not play with the appliance. Cleaning and user mainte- nance shall not be made by children without supervision.

• “CAUTION: Accessible parts may become hot when used with cooking appliances.”

• Switch off or unplug the ap- pliance from the mains sup- ply before carrying out any maintenance work.

is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particu- larly heavy usage (W).

cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dish- washer (Z).

• Clean the hood using a damp cloth and a neutral liquid de- tergent.5 ENGLISH

Button Function Led A Changes the intensity of the Lighting each time the Button is pressed, in cycle, passing via Off.

B Motor off. The Leds indicating the Speed of the motor turn off. Enables / Disables Keyboard Lock mode if pres- sed and held for 5 seconds. All the Leds light up in cycle and run a start-up sequence. C Activates speed one. The Leds indicating Speed one and Motor Off turn on. D Activates speed two. The Leds indicating Speed two and Motor Off turn on. E Activates the speed Intensive 1. This speed is ti- med to run for 10 minutes. At the end of this time the system will return to the speed set previously. It is disabled by pressing the Button or turning the Motor off.

F Activates the speed Intensive 2. This speed is timed to run for 8 minutes. At the end of this time the system will return to the speed set previously. It is disabled by pressing the Button or turning the Motor off.

G Activates / Deactivates Delay mode, with automa- tic shutdown of the Motor and the Lighting after 15 minutes. It is disabled by pressing the button or turning the motor off. The Led lights up. Pressing and holding the button for 5 seconds enables the remote control and the H2H function. Pressing and holding the button for 5 seconds disables the remote control and the H2H function.

Reset the alarm. These indications are only visible when the motor is turned off. When the procedure terminates, the indica- tion shown previously turns off: Led H on = Indicates the need to wash the

after the Hood has been in operation for 100 working hours.

alarm is triggered after the Hood has been in operation for 200 working hours. Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on/off.

lamp classed as 1M according to EN 60825-1:

optical power emitted @439nm: 7µW. Do not look directly at the light through optical devices (binoculars, magnifying glasses…).

• For replacement contact technical support ("To pur-chase contact technical support").7 GERMAN
