USER MANUAL TEC80 Infiniton

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

General Remark

• The installation and maintenance has to be carried out by qualified professionals or authorized technicians.
• The manufacturer shall not be held responsible for any damage or malfunction caused by wrong installation or failing to comply with following instructions included in this pamphlet.

TABLE OF CONTENTS

TITLE

1.Cautions (2)
2.Product introduction (3)
3. Unit installation (5)
4.Methods of using (7)
5.Maintenance. (7)
6.Troubleshooting (8)
7.Produce information with EU regulation (9)

1. CAUTIONS

Before installing this water heater, check and confirm that the earthing on the supply socket is reliably grounded. Otherwise, the electrical water heater can not be installed and used. Do not use extension boards. Incorrect installation and use of this electrical water heater may result in serious injuries and loss of property.

Special Cautions

• The water heater is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the heater.
• The wall in which the electrical water heater is installed must be able to bear the load more than two times of the heater filled fully with water without distortion and cracks. Otherwise, other strengthening measures must be adopted.
• The supply socket must be earthed reliably. The installation height of the supply socket must not be lower than 1.8m . The rated current of the socket must not be lower than 16A. The socket and plug must be kept dry to prevent electrical leakage. If the flexible power supply cord is damaged, the special supply cord provided by the manufacturer must be selected, and replaced by the professional maintenance personnel.
• The maximum inlet water pressure is 0.5MPa ; the minimum inlet water pressure is 0.1MPa , if this is necessary for the correct operation of the appliance.
• When using the heater for the first time (or the first use after maintenance), the heater can not be switched on until it has been filled fully with water. When filling the water, at least one of the outlet valves at the outlet of the heater must be opened to exhaust the air. This valve can be closed after the heater has been filled fully with water.

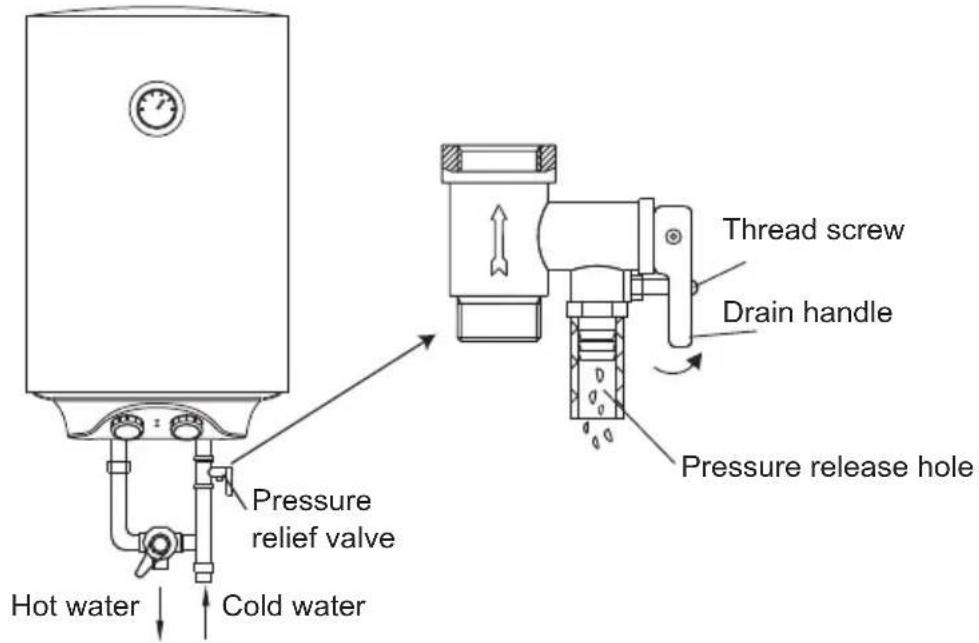

• The pressure relief valve attached with the heater must be installed at the cold water inlet of this heater, and make sure it is not exposed in the foggy. The water may be outflowed from pressure relief valve, so the outflow pipe must open wide in the air. In order to drain away the water inside the inner container, it can be drained away from the pressure release valve. Twist the thread screw of the pressure release valve off, and lift the drain handle upwards (See Fig.1). The drainage pipe connected to the pressure release hole must be kept sloping downwards and in a frost-free environment. The water may drip from the discharge pipe of the pressure-relief device and that this pipe must be left open to the atmosphere.
• During heating, there may be drops of water dripping from the pressure release hole of the pressure relief valve, this is a normal phenomenon. The pressure release hole shall not be blocked under no circumstances, otherwise, the heater may get damaged, even resulting in accidents. If there is a large amount of water leak, please contact customer care center for repair.
• The pressure relief valve need to be checked and cleaned regularly, so as to make sure it will not be blocked.
• Since the water temperature inside the heater can reach up to 75^ , the hot water must not be exposed to human bodies when it is initially used. Adjust the water temperature to a suitable temperature to avoid scalding.
• If any parts and components of this electrical water heater are damaged please contact customer care center for repair.

(Fig.1)

2.PRODUCT INTRODUCTION

2.1 Nomenclature

① is the product code of the storage electric water heater;
② is the capacity (L);

2.2 Technical Performance Parameters

Model	Volume (L)	Rated Power (W)	Rated Voltage (ACV)	Rated Pressure (MPa)	Max Of Water Temperature (℃)	Protection Class	Waterproof Grade
TEC-50					750.75220-2402000	50 IPX4
TEC-80					750.75220-2402000	80 IPX4
TEC-100					750.75220-2402000	100IPX4

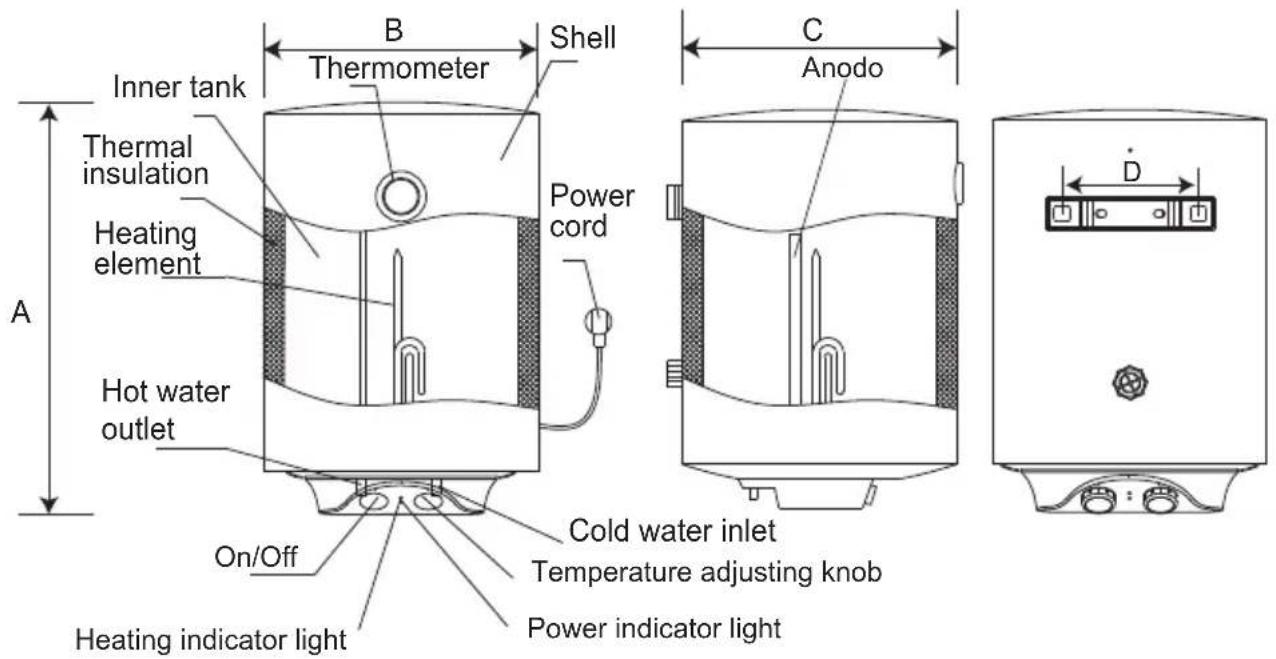

2.3 Brief introduction of product structure

	TEC-50	TEC-80	TEC-100
A	755	796	896
B	385	450	450
C	385	450	450
D	200	200	200

(Note:All dimensions are in mm)

2.4 Internal Wire Diagram

3. UNIT INSTALLATION

3.1 Installation Instruction

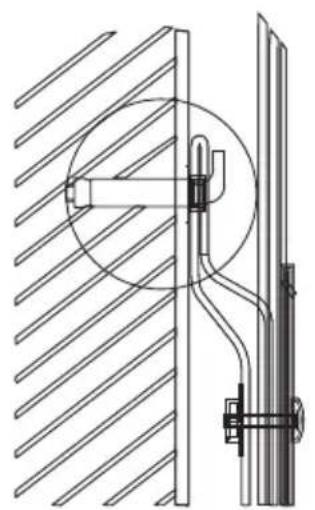

① This electrical water heater shall be installed on a solid wall. If the strength of the wall cannot bear the load equal to two times of the total weight of the heater filled fully with water, it is then necessary to install a special support.

Incase of hollow bricks wall, ensure to fill it with cement concrete completely.

② After selecting a proper location, determine the positons of the two install holes used for expansion bolts with hook. Make two holes in the wall with the corresponding depth by using a chopping bit with the size matching the expansion bolts attached with the machine, insert the screws, make the hook upwards, tighten the nuts to fix firmly, and then hang the electrical water heater on it (see Fig.2).

Expansion bolt (with hook)
(Fig.2)

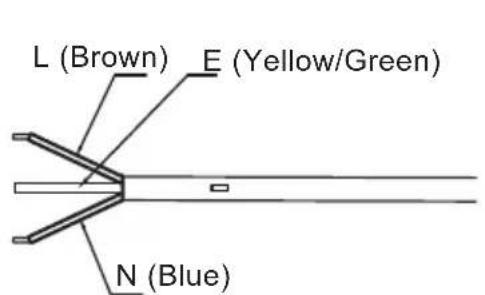

③ Install the supply socket in the wall. The supply socket be 220V. It is recommended to placed the socket on the right above the heater. The height of the socket to the ground shall not be less than 1.8m (see Fig.3). If there is fault on power cable, it should be replaced by the manufacturers, agencies or qualified person who is able to do this so as to ensure the safety.

(Fig.3)

④ If the bathroom is too small, the heater can be installed at another place. However, in order to reduce the pipeline heat losses, the installation position of the heater shall be closed to the location shall be as near as possible to the heater.

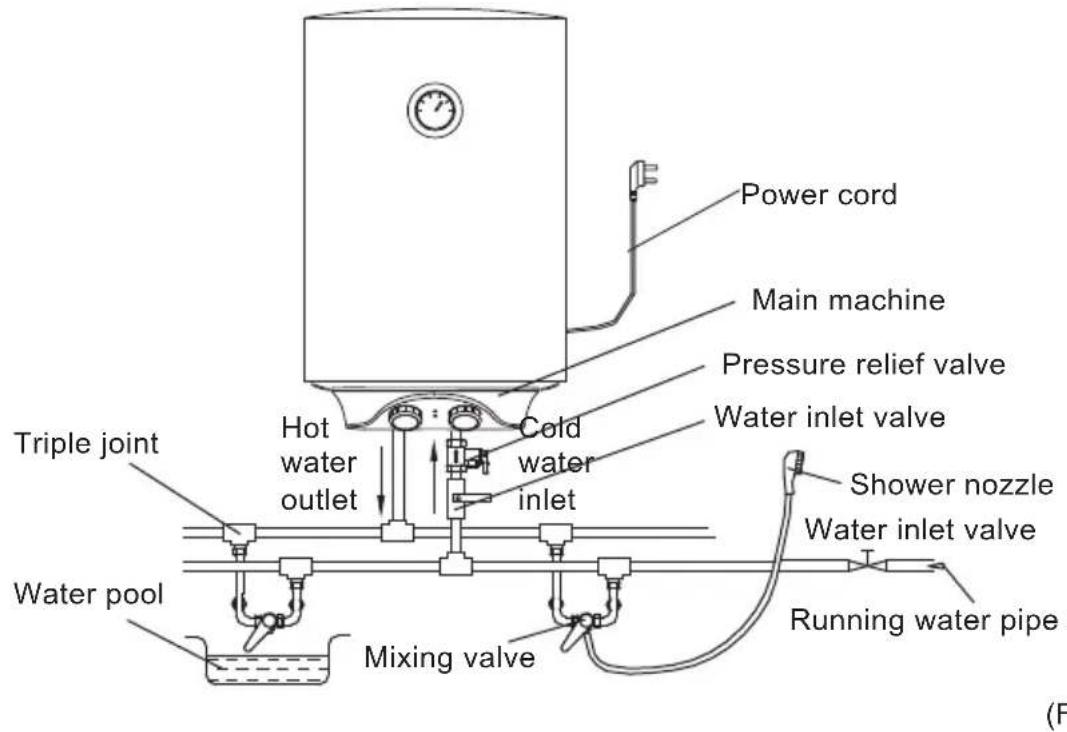

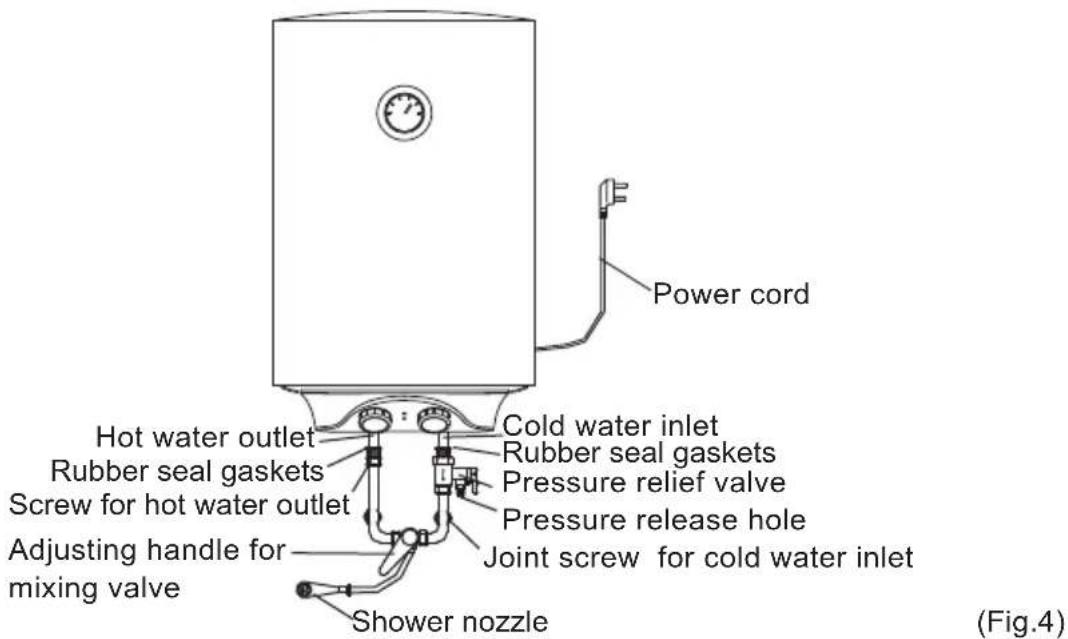

3.2 Pipelines Connection

① The dimension of each pipe part is G1/2 ; The massive pressure of inlet should use Pa as the unit; The minimum pressure of inlet should use Pa as the unit.
② Connection of pressure relief valve with the heater on the inlet of the water heater.
③ In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with the heater must be added at the end of the threads to ensure leak proof joints (see Fig.4).

④ If the users want to realize a multi-way supply system, refer to the method shown in fig.5 for connection of the pipelines.

NOTE

Please be sure to use the accessories provided by our company to install this electric water heater. This electric water heater can not be hung on the support until it has been confirmed to be firm and reliable. Otherwise, the electric water heater may drop off from the wall, resulting in damage of the heater, even serious accidents of injury. When determining the locations of the bolt holes, it shall be ensured that there is a clearance not less than 0.2m on the right side of the electric heater, to convenient the maintenance of the heater, if necessary.

4. METHODS OF USING

• First, open any one of the outlet valves at the outlet of the water heater, then, open the inlet valve. The water heater gets filled with water. When water flows out of the outlet pipe it implies that the heater has been filled fully with water, and the outlet valve can be closed.

NOTE

During normal operation, the inlet valve shall be always kept open.

• Insert the supply plug into the socket.

• Rotate the temperature adjusting knob, the "HEATING" indicator will light up. According to the marking on the knob to increase or decrease the setting temperature. The thermostat will automatically control the temperature. When the water temperature inside the heater has reached the set temperature, it will switch off automatically and light off the "Heating" indicator. When the water temperature falls below the set point, the heater will be turned on automatically to restore the heating, the indicator will light up again.

5. MAINTENANCE

WARNING

Before doing any maintenance, please cut off the power supply.

• Check the power plug and outlet as often as possible. Secure electrical contact and also proper grounding must be provided. The plug and outlet must not heat excessively.
• If the heater is not used for a long time, especially in regions with low air temperature (below 0^ ), it is necessary to drain water from the heater to prevent damage of the water heater, due to water freezing in the internal tank. (Refer Cautions in this manual for the method to drain away the water from the inner container).
• To ensure long reliable water heater operation, it is recommended to regularly clean the internal tank and remove deposits on the electric heating element of the water heater, as well as check condition (fully decomposed or not) of the magnesium anode and, if necessary, replace it with a new one in case of full decomposition. Tank cleaning frequency depends on hardness of water located in this territory. Cleaning must be performed by special maintenance services. You can ask the seller for address of the nearest service center.

• The water heater is equipped with a thermal switch, which cuts off power supply of the heating element upon water overheating or its absence in the water heater. If the water heater is connected to the mains, but water is not heated and the indicator doesn't light up, then the thermal switch was switched off or not switched on. To reset the water heater to the operating condition, it is necessary to:

• De-energize the water heater, remove the plate of the side/upper cover.

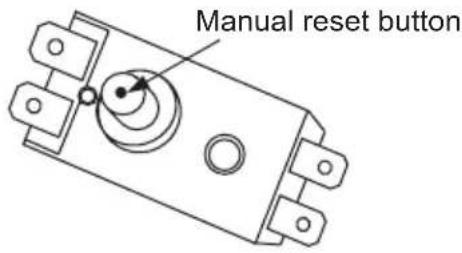

• Press the button, located at the center of the thermal switch, see Fig.6;
• If the button is not pressed and there is no clicking, then you should wait until the thermal switch cools down to the initial temperature.

(Fig.6)

WARNING

Non-professionals are not allowed to disassemble the thermal switch to reset. Please contact professionals to maintain. Otherwise our company will not take responsibility if any quality accident happens because of this.

6. TROUBLESHOOTING

Failures Reasons	Treatment
The heating indicator light is off.	Failures of the temperature controller.	Contact Assistance Service helping for repair.
No water coming out of the hot water outlet.	1. The running water supply is cut off. 2. The hydraulic pressure is too low. 3. The inlet valve of running water is not open.	1. Wait for restoration of running water supply. 2. Use the heater again when the hydraulic pressure is increased. 3. Open the inlet valve of running water.
The water temperature is too high.	Failures of the temperature control system.	Contact Assistance service helping for repair.
Water leak.	Seal problem of the joint of each pipe.	Seal up the joints.

NOTE

Parts illustrated in this use and care manual are indicative only, parts provided with the product may differ with illustrations. This product is intended for household use only. Specifications are subject to change without notice.

7. Produce information with EU regulation

The electrical storage water heater TEC-50 of the company MEGAEXIT S.L. was tested with a declared load profile of the size "M"

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of _wh = 36.1%

that correspond to the water heating efficiency class "C"

In accordance with AnnexII Energy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect to conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec water heating energy efficiency _wh and mixed water at 40^ (V40)

Description tinU eulaV retemaraP
k-Value	k	0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term Q	cor kWh	-0.470
Referencet energy	Qref	5.845	kWh
Useful energy content	QH2O	5.944	kWh
Correction ratio of reference and useful energy	Qref/QH2O kWh	0.983
Daily electricity consumption (measured)	Qtest_elec	6.804	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	74.1	°C
Water temperature at the end of the 24h measurement cycle	T5	74.6	°C
Storage volume	Mact	50.1	kg
Storage volume	Cact	50.1	L
Daily electricity consumption (corrected)	Qelec	6.662	kWh
Water heating energy efficiency	nwh	36.1
Annual Electricity Consumption	AEC	1422	kWh
Water heating energy efficiency class		C
Description	Parameter	Value	Unit
Water temperature without tapping	Tset	74	°C
Average water temperature of outlet warm water	θp	67.2	°C
Average water temperature of inlet cold water	θc	10.4	°C
Normalised value of the average temperature	θp	67.2	°C
Volume that delivered water of at least 40°C	V40exp	40	L
Calculated volume that delivered hot water of at least 40°C	V40	76	L

The electrical storage water heater TEC-80 of the company MEGAEXIT S.L. was tested with a declared load profile of the size "M"

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of _wh = 36.2%

that correspond to the water heating efficiency class "C"

In accordance with Annex II Energy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect to conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec water heating energy efficiency _wh and mixed water at 40^ (V40)

Description tinU eulaV retemaraP
k-Value	k	0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term	Qcor	-0.464	kWh
Referenct energy	Qref	5.845	kWh
Useful energy content	QH2O	5.948	kWh
Correction ratio of reference and useful energy	Qref/QH2O	0.983	kWh
Daily electricity consumption (measured)	Qtest_elec	6.806	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	57.9	°C
Water temperature at the end of the 24h measurement cycle	T5	58.3	°C
Storage volume	Mact	80.1	kg
Storage volume	Cact	80.1	L
Daily electricity consumption (corrected)	Qelec	6.652	kWh
Water heating energy efficiency	ηwh	36.2
Annual Electricity Consumption	AEC	1420	kWh
Water heating energy efficiency class		C
Description	Parameter	Value	Unit
Water temperature without tapping	Tset	58	°C
Average water temperature of outlet warm water	θp'	58.1	°C
Average water temperature of inlet cold water	θc	10.4	°C
Normalised value of the average temperature	θp	58.1	°C
Volume that delivered water of at least 40°C	V40exp	56	L
Calculated volume that delivered hot water of at least 40°C	V40	90	L

The electrical storage water heater TEC-100 of the company MEGAEXIT S.L. was tested with a declared load profile of the size "M"

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of _wh = 36.0%

that correspond to the water heating efficiency class "C"

In accordance with AnnexII Energy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect to conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec water heating energy efficiency _wh and mixed water at 40^ (V40)

Description tinU eulaV retemaraP
k-Value	k	0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term Q	cor kWh	-0.489
Referencet energy	Qref	5.845	kWh
Useful energy content	QH2O	5.951	kWh
Correction ratio of reference and useful energy	Qref/QH2O kWh	0.982
Daily electricity consumption (measured)	Qtest_elec	6.945	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	58.4	°C
Water temperature at the end of the 24h measurement cycle	T5	59.5	°C
Storage volume	Mact	100.8	kg
Storage volume	Cact	100.8	L
Daily electricity consumption (corrected)	Qelec	6.695	kWh
Water heating energy efficiency	ηwh	36.0
Annual Electricity Consumption	AEC	1427	kWh
Water heating energy efficiency class		C
Description	Parameter	Value	Unit
Water temperature without tapping	Tset	58	°C
Average water temperature of outlet warm water	θp'	55.8	°C
Average water temperature of inlet cold water	θc	10.3	°C
Normalised value of the average temperature	θp	55.8	°C
Volume that delivered water of at least 40°C	V40exp	72	L
Calculated volume that delivered hot water of at least 40°C	V40	110	L

The product is subject to change without notice. Please keep this manual properly.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
  Metallic objects such as knives, forks, spoons and lids should not be placed on the surface since they can get hot
  A steam cleaner is not to be used.
• Do not use a steam cleaner to clean your cooktop.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
  WARNING: Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

CE Certificate

It has been determined that this product complies with the LOW VOLTAGE directive (2006/95/ec), Electromagnetic Compatibility directive (2004/108/EC), and RoHS directive.

For more information related to declarations and certificates of conformity, please contact us through the mail [e-mail] and in the web www.infiniton.es

TECHNICAL SERVICE

If you have any questions regarding this device, please contact us: [e-mail] and www.infiniton.es

You can also contact our official technical service - MEGAEXIT, S.L.

tel: [phone]

Repairs e-mail: [e-mail]

www.megaexit.com
