Product type	TASSIMO pod coffee maker
Brand	Bosch
Model	Tassimo Vivy 2 TAS1401GB
Coffee system	T DISC (pods)
Pressure	15 bar (pump)
Water tank capacity	1.3 L
Power	1500 W
Dimensions (L x W x H)	28 x 18 x 30 cm
Weight	3 kg
Power supply	220-240 V, 50/60 Hz
Main features	Preparation of hot and cold drinks, T DISC barcode reading, individual volume adjustment, automatic descaling
Safety	Percolation system lock, automatic shut-off, anti-splash protection
Care and cleaning	Cleaning with yellow Service T DISC, descaling with special tablets
Included accessories	Yellow Service T DISC, cleaning/descaling memo, height-adjustable cup support, drip tray
Spare parts and repairability	Parts available through Bosch customer service (ref. no. 00576836 for yellow Service T DISC, TCZ6004/TCZ6008 for descaling tablets)
General information	Household use only, warranty according to distributor conditions, recycling according to WEEE directive

Frequently Asked Questions - Tassimo Vivy 2 TAS1401GB BOSCH

Why won't the appliance turn on and no LED lights up?

Check that the appliance is properly plugged into a working power outlet. If the problem persists, contact Bosch customer service.

Brewing starts but no drink comes out, what should I do?

Make sure the water tank is correctly engaged. If there is air in the system, run a cleaning cycle with the yellow Service T DISC (steps 2-13 of the manual). Also check that the float in the tank is not stuck.

Why won't the brewing system close?

The piercing crown or T DISC holder is not correctly placed. Press the crown with your thumbs until it clicks. Make sure the T DISC is correctly positioned, printed side down, tab in the slot.

The 'Fill water tank' light stays on even though the tank is full.

The float in the tank may be stuck. Clean the water tank and free the float. Also check that the tank is properly seated.

How to descale the appliance when the 'Descaling' light comes on?

Use Bosch descaling tablets (ref. TCZ6004/TCZ6008) and follow the instructions in the Descaling chapter. Do not use descaler containing phosphoric acid.

The T DISC barcode is not recognized, what should I do?

Clean the T DISC reading window with a soft, damp cloth. Smooth the T DISC film with your finger to make reading easier. If the problem persists, use a new T DISC.

Water droplets drip from the brewing system after use.

Stop the appliance, let it cool down, remove the T DISC and clean the brewing system. Make sure the piercing crown is fully pressed down. Do not use damaged T DISCs.

The drink volume does not meet my expectations.

The barcode defines the optimal volume. For a smaller volume, press the Start/Stop button during preparation. For a larger volume, hold the button down until the desired volume. Excess limescale can also reduce volume: descale the appliance.

How to clean the spout?

Clean the spout with a soft, damp cloth. For a deep clean, run a cycle with the yellow Service T DISC as described in the Cleaning chapter.

Where can I order accessories or spare parts?

The descaling tablets (TCZ6004/TCZ6008) and yellow Service T DISC (00576836) are available at www.tassimo.com or www.bosch-home.com. For other parts, contact Bosch customer service.

USER MANUAL Tassimo Vivy 2 TAS1401GB BOSCH

Black Bosch BOSCH milk tea maker with visible branding and external circuit board (no text or symbols on device body)

TAS140x GB/CH

en Instruction manual

Pure diagram of four basic kitchen and water-related icons without any text or symbols

Illustration of a hand using a stand mixer to lift a coffee cup, with no visible text or symbols.

Pure diagram of four basic kitchen fixtures without any text or symbols

Illustration of a hand pressing down on a cloth over a coffee cup, with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

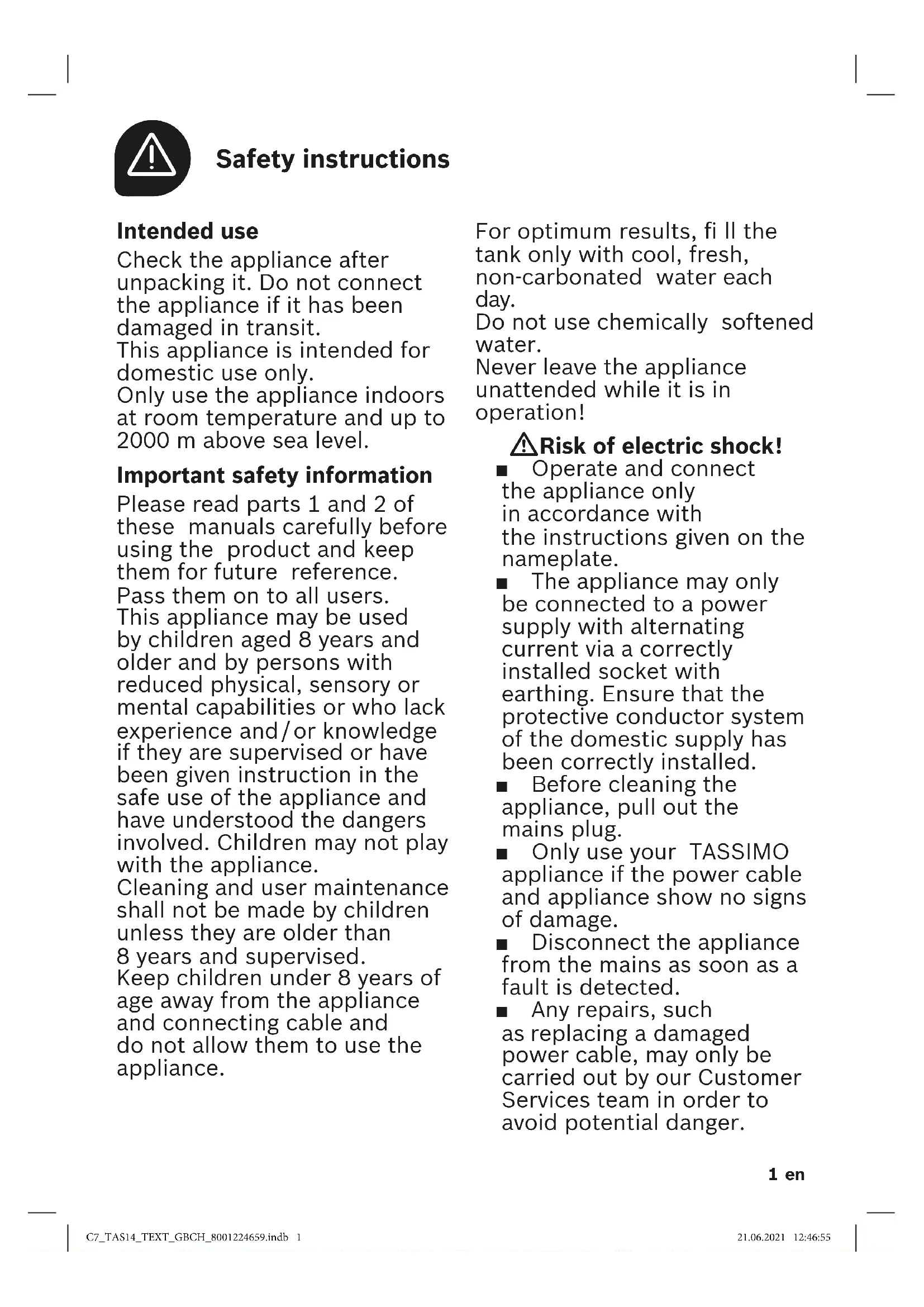

Safety instructions

Intended use

Check the appliance after unpacking it. Do not connect the appliance if it has been damaged in transit.

This appliance is intended for domestic use only.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Please read parts 1 and 2 of these manuals carefully before using the product and keep them for future reference. Pass them on to all users. This appliance may be used by children aged 8 years and older and by persons with reduced physical, sensory or mental capabilities or who lack experience and/or knowledge if they are supervised or have been given instruction in the safe use of the appliance and have understood the dangers involved. Children may not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance.

For optimum results, fill the tank only with cool, fresh, non-carbonated water each day.

Do not use chemically softened water.

Never leave the appliance unattended while it is in operation!

⚠️Risk of electric shock!

■ Operate and connect the appliance only in accordance with the instructions given on the nameplate.

■ The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.

■ Before cleaning the appliance, pull out the mains plug.

■ Only use your TASSIMO appliance if the power cable and appliance show no signs of damage.

■ Disconnect the appliance from the mains as soon as a fault is detected.

■ Any repairs, such as replacing a damaged power cable, may only be carried out by our Customer Services team in order to avoid potential danger.

1 en

Safety instructions

■ Never immerse the appliance or power cable in water.
■ Avoid spillage on the connector.
■ Please note the special information on cleaning in the instructions.

⚠️Risk of burns!

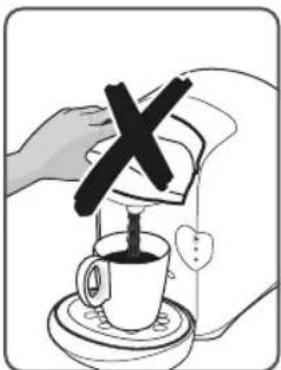

■ Never attempt to open the brewing unit during operation. Please note that any escaping liquids will be very hot. The T DISC, the piercing unit and the beverage outlet may be very hot immediately after brewing. Allow to cool fi rst.

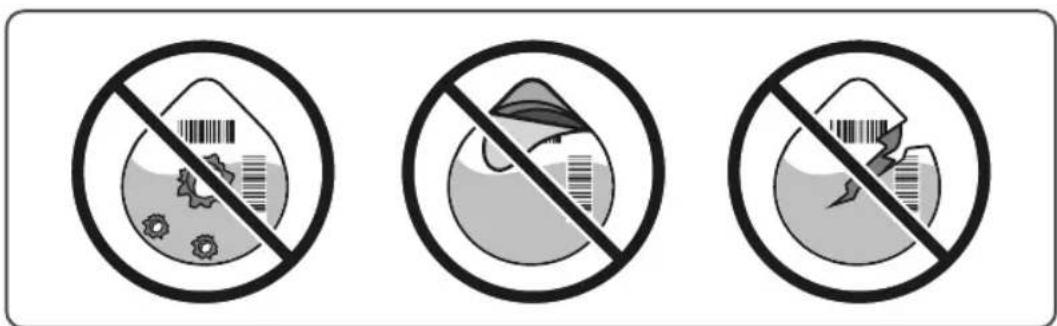

■ Do not use T DISCs that are damaged.
■ Only use each T DISC once.
■ After the use the heating element surfaces can be subjected to residual heat.
■ Freshly prepared beverages are very hot. Leave to cool a little if necessary.

⚠️Risk of fi re!

■ The appliance gets hot.
■ Never operate the appliance in a cupboard.

⚠️Risk of injury!

■ A misuse of the appliance can potentially lead to injury.
■ Under no circumstances you should drink the descaling liquid.

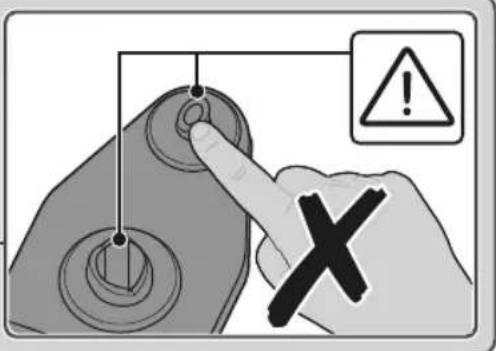

■ The T DISC piercing unit has sharp cutting edges. Be careful of your fingers when inserting the T DISC or cleaning it.

⚠️Risk of suff ocation!

■ Do not allow children to play with packaging material.
■ Store small parts safely as they can be easily swallowed.

Caution!

■ Cleaning surfaces which come into contact with foodstuff s! Please note the special information on cleaning in the illustrated instructions.

⚠ Warning – Hazard due to magnetism!

The appliance contains permanent magnets. They may affect electronic implants, e.g. pacemakers or insulin pumps.

■ Persons with electronic implants must stand at least 10 cm away from the appliance.
■ The minimum distance of 10 cm must also be observed for the water tank when removed.

At a glance

Before reading on, please unfold the illustrations page at the start of the booklet.

1 Start/Stop button with display elements

a Status LED ▽°
b Fill water tank
c Descale

2 Brewing unit

a Lid
b T DISC support
c T DISC piercing unit
d T DISC reading window
e Beverage outlet
f Splash guard

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

3 Removable water tank

a max mark
b "Descaling" ⚠ mark
c Float

4 Storage compartment

a Yellow Service T DISC
b Brief cleaning/descaling instructions

5 Cup stand

(removable and height adjustable)

a Drip grate

b Drip tray

Info

Bosch is the manufacturer of the TASSIMO machine. Therefore, it cannot provide any delivery guarantee for the TASSIMO T DISCs.

TASSIMO T DISCs are available from specialistretailers.

Or visit www.tassimo.com to discover the large variety of beverages available and to order your discs online.

Accessories

Accessories Order numberWebshop
Descaling tabs TCZ6004 / 00311909TCZ6008 / 00312249www.tassimo.comwww.bosch-home.com
YellowService T DISC	00576836www.bosch-home.com

3 en

Troubleshooting

The following table contains solutions to problems or faults which may occur during operation of the appliance and that can be easily rectified at home. If you are not satisfied with the solutions provided here, please contact our Customer Service department. Further customer service information can also be found online:

www.tassimo.com

www.bosch-home.com

Problem Cause Solution
The appliance is not working and none of the display elements (LEDs) are lighting.	The appliance has no power supply.	Check to see whether the appliance is connected to the mains.
The brewing starts, however there is no beverage dispensed.	The water tank is not inserted correctly.	Check that the water tank is correctly inserted.
	The water tank was removed during the brewing stage or there is air in the system.	Start the cleaning process with the yellow Service T DISC. Please refer here to the sectionFirst Time Use, Steps 2-13.
	The float in the water tank is stuck.	Clean the water tank and free the float.
The brewing will not start.	No T DISC inserted. Check that a T DISC has been inserted.
	The appliance does not recognise the T DISC bar code.	Clean the T DISC reading window with a soft, damp cloth.
		Smooth out the foil of the T DISC with your finger so that the bar code can be read.
		Use a new T DISC.
		If the problem persists, contact the TASSIMO careline.
	The brewing unit is not closed properly.	Clean the brewing unit with a soft, damp cloth, paying particular attention to the lid area.
	The appliance was not plugged in when the T DISC was inserted.	Insert a new T DISC and check that the appliance is plugged into the power supplybefore insertingthe T DISC.
The brewing unit cannot be closed.	The piercing unit and/or the T DISC support have not been correctly inserted.	Press the piercing unit into its holder using both thumbs and check the position of the T DISC support.
	The T DISC has not been correctly inserted.	Replace the damaged T DISC with a new one. Place the T DISC with the printed side facing downwards so that the tab is resting in the intended slot.
	The brewing unit is not closed properly.	Clean the brewing unit with a soft, damp cloth, paying particular attention to the lid area.
		Press the lid down until it audibly clicks into place.
The brewing unit cannot be opened.	The brewing unit is still locked.	Wait until the Status LED has stopped blinking before attempting to open the brewing unit.
		If the brewing unit stays locked, contact the TASSIMOcareline.

Troubleshooting

Problem Cause Solution
Fill water tank lights up.	There is not enough water in the water tank.	Fill the tank with cold, fresh water as far as the max mark. Reinsert the water tank.
Fill water tank lights up even though there is enough water in the water tank.	The float in the water tank is stuck.	Clean the water tank and free the float.
	The water tank is not inserted correctly.	Check that the water tank has been correctly inserted.
Fill water tank and Descale are flashing simulta neously and it is not possible to prepare drinks.	There is a fault on the machine.	Please contact the TASSIMO careline.
Descale lights up or starts flashing.	The appliance needs to be descaled.	Descale the appliance. Please refer here to the section Descaling. Do not use descaling agent with phosphoric acid.
Descale lights up or starts flashing even though decalcified water has been used.	Even decalcified water contains low amounts of calcium carbonate.	Descale the appliance. Please refer here to the section Descaling. Do not use descaling agent with phosphoric acid.
The quality of the crema has deteriorated.	The beverage outlet is sticky or dirty.	Clean the beverage outlet. Please refer here to the section Cleaning.
		Clean the brewing unit with the yellow Service T DISC. Please refer here to the section Cleaning.
	Build-up of limescale in the appliance.	Descale the appliance. Please refer here to the section Descaling. Do not use descaling agent with phosphoric acid.
Water is dripping from the brewing unit.	The T DISC is damaged or leaky.The T DISC has not been pierced correctly.	Do not use T DISCs that are damaged.Only use each T DISC once.Wait until the brewing stage has come to an end and the appliance has cooled down.Remove the T DISC and clean the brewing unit.Please refer here to the section Cleaning.
	The piercing unit has not been inserted correctly.	Press the piercing unit into its holder using both thumbs (until an audible click is heard).
On the surface below the cup stand there is water.	This is condensation. Condensation may appear and is not caused by any fault with the appliance. Wipe the water away with a cloth.
The yellow Service T DISC is damaged or lost.		The yellow Service T DISC can be requested from Bosch Customer Services (item no. 00576836, contact information included at the end of these instructions).
The beverage quantity does not meet your requirements.	The T DISC bar code provides the recommended volume for every beverage selected. This volume can also be adapted to personal requirements.	Reduced quantity:During the brewing process, press the Start/Stop button to interrupt this stage.Increased quantity:Press and hold the Start/Stop button until the required beverage quantity has been reached.
	Build-up of limescale in the appliance could cause reduced quantity.	Descale the appliance. Please refer here to the section Descaling. Do not use descaling agent with phosphoric acid.

Sicherheitshinweise

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

de Garantie (CH)

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk

Or call

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges

CH Schweiz, Suisse, Svizzera, Switzerland

BSH Hausgeräte AG

For information, questions or locations of authorised Bosch service centres nearest you, please contact TASSIMO:

Phone: [phone]

www.tassimo.co.uk

CH TASSIMO Infoline

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

HELLO!

Looking for help?

You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

Visit tassimo.com for registration, accessories and more.

Illustration of a laptop with email envelope, gift box, shopping cart, and cursor (no text or symbols)

Valid within Great Britain: Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

06/21 8001224659
