USER MANUAL Clean Butler 4G Silent Klarstein

CLEAN BUTLER 4G SILENT

Staubsauger
Vacuum Cleaner
Aspiradora
Aspirateur
Aspirapolvere

10033762 10033763

CLEANINGGCL

KLARSTEIN

www.klarstein.com

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 16

Product Overview 17

Assembly and Operation 18

Cleaning and Care 20

Troubleshooting 23

Disposal Considerations 24

Manufacturer & Importer (UK) 24

TECHNICAL DATA

Item number 10033762, 10033763
Battery 22.2 V / 2200 mA
Charging period 4 hours
Battery charger output 26.5 V / 500 mA
Net Weight 2.3 kg
Usage time	35 min. (low power) 20 min. (high power)
Power 160 W
Vacuum 16 kPa
Airflow 15 dm	3/s

SAFETY INSTRUCTIONS

• Read all instructions before using the vacuum cleaner and save for future reference. To reduce the risk of personal injury or damage to your vacuum, use only recommended accessories.
• Do not leave vacuum unattended when it is plugged in and/or operating. Unplug unit when not in use.
• Never operate this unit when flammable materials or when vapors are present because electrical devices produce arcs or sparks that can cause a fire or explosion.
• Always disconnect the plug from the wall outlet before removing the tank cover.
• Do not allow to be used as a toy. Close attention is necessary when vacuum is in use by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with a damaged cord, plug, or other parts.
• If your vacuum is not working as it should, has missing parts, has been dropped, damaged, left outdoors, or dropped into water, call customer service.
• Sparks inside the motor can ignite flammable vapors or dust. To reduce the risk of fire or explosion, do not use near combustible liquids, gases, dusts, gasoline or other fuels, lighter fluid, cleaners, oil-based paints, natural gas, coal dust, magnesium dust, grain dust, aluminum dust or gun powder.
• Do not pull or carry the appliance by cord, close a door on cord, or pull cord around sharp edges or corners.
• Do not unplug by pulling on cord. To unplug, grasp the plug firmly.
• Do not handle plug or appliance with wet hands.
• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked; keep free of dust, lint, hair, or anything that can reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off the control before unplugging.
• Use extra care when cleaning stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters in place.
  Always unplug this appliance before connecting or disconnecting vacuum hose.
• Store the vacuum indoors. Put the vacuum away after use to prevent tripping accidents.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

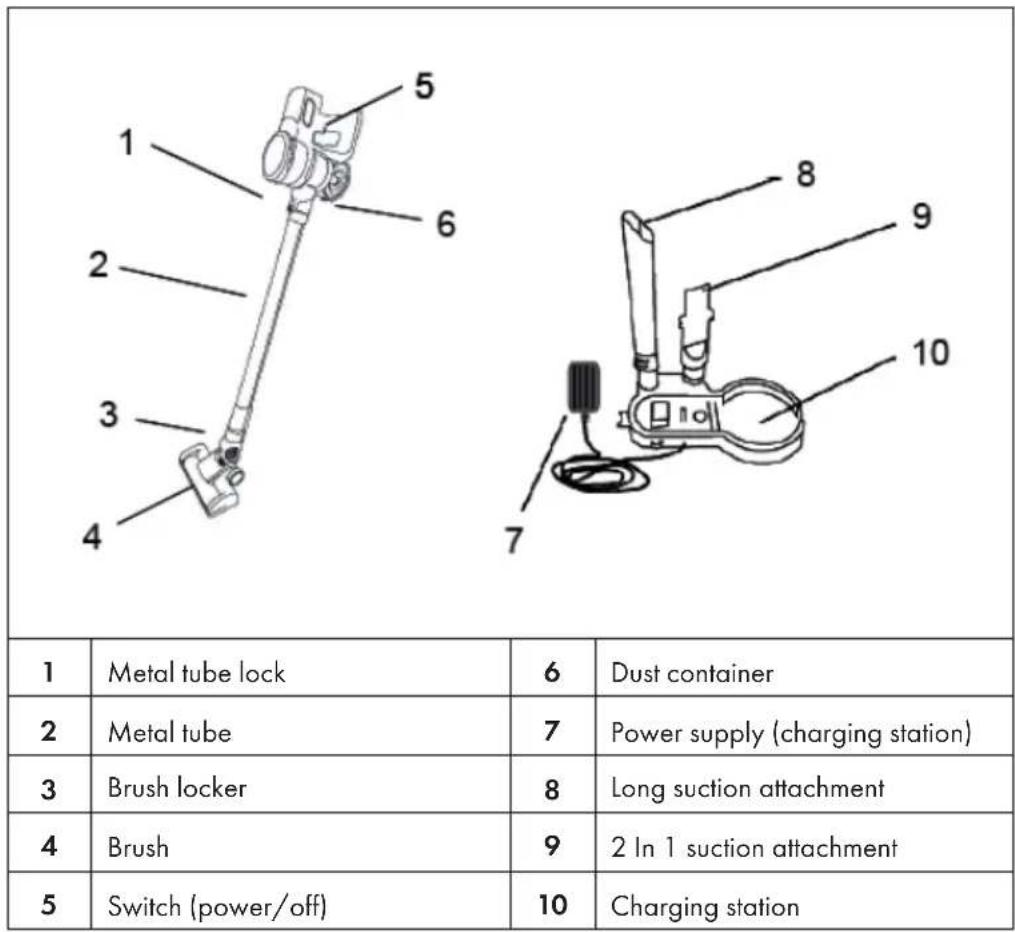

PRODUCT OVERVIEW

ASSEMBLY AND OPERATION

Assembly

1	2
Assemble the dust cup in anticlockwise direction	Attached the metal tube to the body as below until hear click sound
3
attaché the brush to another head of metal tube as shown.

Switching on and adjusting the power

1	2
Switch/suction power	low power switch off appliance high power

Press the switch to switch on the device (fig. 1). Press the switch several times to select one of the following functions (fig. 2):

Low suction power: When you press the button for the first time, a low suction power is set.
High suction power: If you press the button a second time, a high suction power is set.
- Switch off: If you press the button a third time, the appliance is switched off.

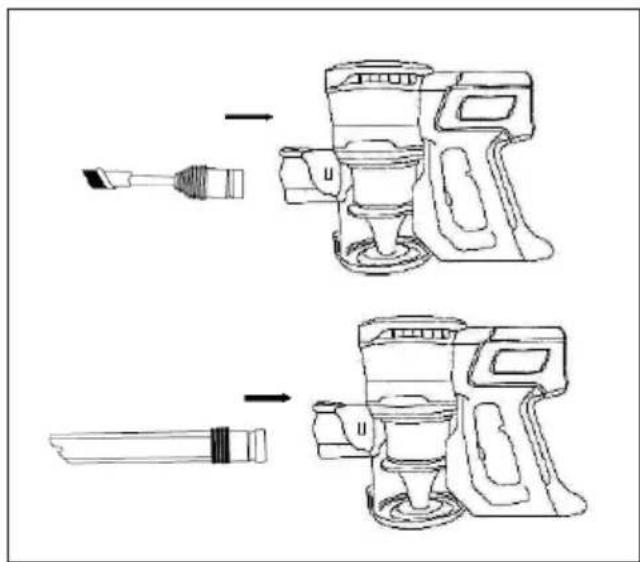

Using the accessories

Plug the accessories (2 in 1 suction attachment) onto the unit body as shown below.

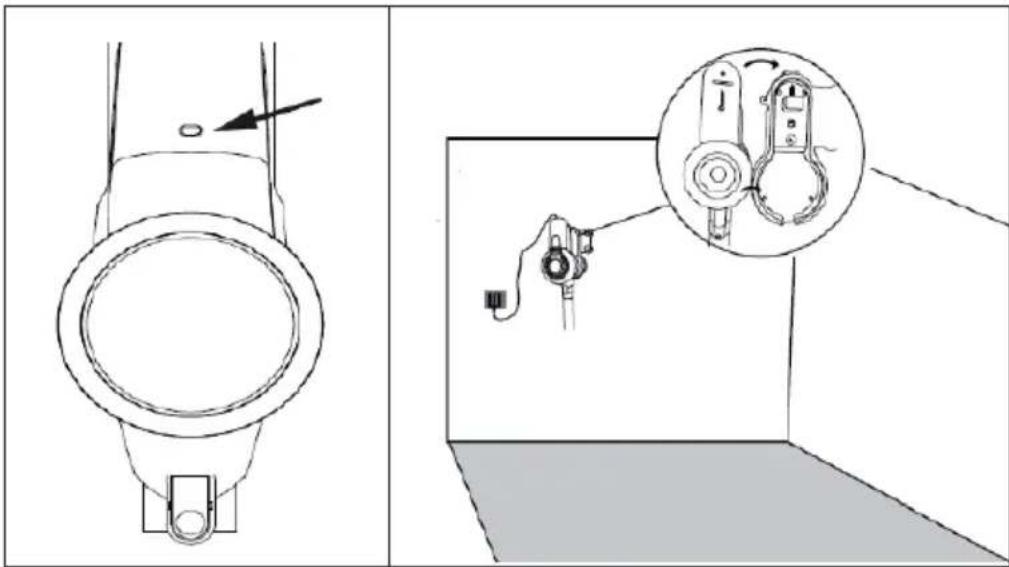

Charging the battery

If the battery indicator flashes red, turn off the unit and charge it by placing it on the charging cradle.

CLEANING AND CARE

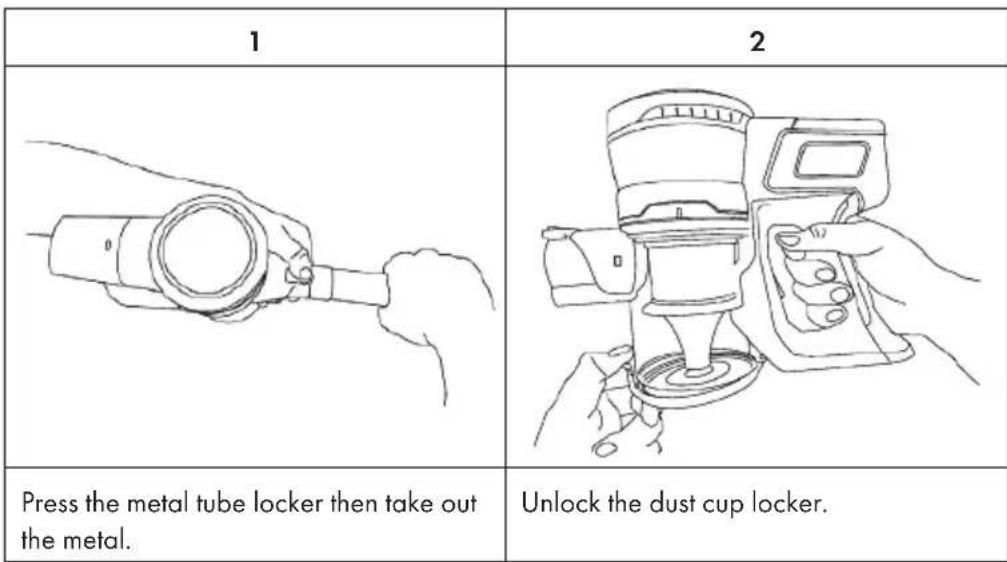

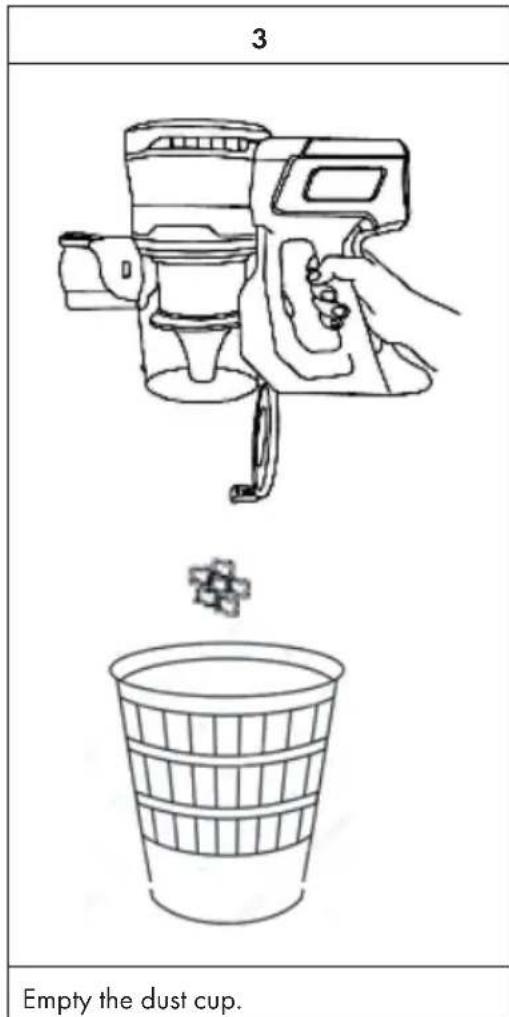

How to empty the dust cup

1
Press the dust cup lock and turn it in clockwise direction.
2	3
Take out the filter case, then take out the filter.	Wash the filter case and HEPA filter.
4	5
Dry the filter and filter holder completely before reinserting them into the unit.	After drying, assemble the filter to the case.
6	7
Put the filter case back to the dust cup.	Assemble the dust cup in anticlockwise direction.

TROUBLESHOOTING

The vacuum cleaner doesn't clean properly.	Empty the dust container.
	Check that the dust container is correctly seated.
	Check that the filter is seated correctly.
	Clean the filter.
The vacuum cleaner stops repeatedly or does not work.	Charge the battery.
	Remove any residue from the brush strip.
The battery is not charging. Check the con
		ctions.
		Check the wall outlet.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom
