Brand	Candy
Model	CMNV 6184W
Product Type	Combined Freezer (refrigerator-freezer)
Climate Class	SN, N, ST
Refrigerant	R600a (isobutane)
Insulating Gas	Cyclopentane
Main Functions	Super Cooling, Super Freezing, Smart Eco, Holiday, Fast Cooling, Fast Freezing, Settings Memory, Open Door Alarm, Freezer Overheat Alarm
Display	Round or vertical touch LED screen depending on version
Connectivity	Wi-Fi SmartFi+ (control via Simply-Fi app)
Antibacterial System	Yes (UVA LED + titanium dioxide)
Water Dispenser	Integrated in refrigerator door
Lighting	Replaceable LED
Defrost	Automatic
Door Reversal	Possible (detailed procedure in the manual)
Power Supply	220-240 V ~ 50 Hz
Maintenance and Cleaning	Interior cleaning with bicarbonate water, condenser vacuumed
Safety	Child Lock (Lock), alarms, delayed shutdown
Freezer Temperature	Adjustable from -16°C to -24°C (recommended -18°C)
Refrigerator Temperature	Adjustable from 0°C to 8°C (recommended 4°C)
Spare Parts and Repairability	Replaceable LED lighting, door gaskets, drawers Professional repair recommended for refrigeration circuits
General Information	Household use only, do not use in commercial premises Consult the manual for exact dimensions and weight

Frequently Asked Questions - CMNV 6184W CANDY

How to adjust the freezer temperature?

Use the + and - buttons on the touch screen after pressing MODE. The recommended temperature is -18°C.

What to do if the audible alarm sounds?

The alarm may indicate an open door (more than 3 minutes) or freezer overheating. Close the door or press any button to stop it.

How to use the water dispenser?

Fill the water tank in the refrigerator up to the Max line. Push a glass against the lever to get fresh water.

How to reverse the door opening direction?

Unplug the appliance, empty it, and follow the detailed instructions in the manual to disassemble and reassemble the hinges on the other side. It is recommended to call a technician.

How to activate Holiday mode?

Press the Holiday icon on the touch screen (or via the Option button then OK on some versions). This mode stops the refrigerator while keeping the freezer running.

How to connect my refrigerator to the Simply-Fi app?

Download the Simply-Fi app, create an account, then press the Wi-Fi icon on the appliance for 3 seconds. Follow the on-screen instructions on your smartphone.

How to clean the interior of the freezer?

Use warm water with baking soda, then rinse with clean water and dry. Do not use abrasive products or solvents.

What to do if condensation forms on the exterior walls?

This is normal in high humidity. Wipe with a dry cloth. If the problem persists, check the door seal.

How to save energy with this freezer?

Place the appliance away from heat sources, do not open the door unnecessarily, do not put hot food in, and use Smart Eco mode for optimal temperature.

How to replace the LED bulb?

Unplug the appliance, lift the light cover, unscrew the old LED and replace it with a new one screwing clockwise. Reconnect the power.

USER MANUAL CMNV 6184W CANDY

SAFETY INFORMATION

COMBI REFRIGERATOR CANDY

Climate Class

TRANSPORTATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS

STARTING TO USE

COMBI OPERATION

VERTICAL DISPLAY

ROUNDED DISPLAY

INTERNAL USER INTERFACE

TECHNICAL FEATURES

Freshness Control

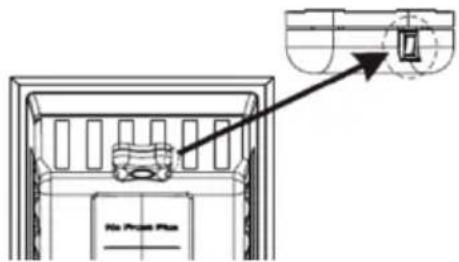

ANTIBACTERIAL SYSTEM (if present)

WATER DISPENSER

Tips for keeping food perfect in the Fridge

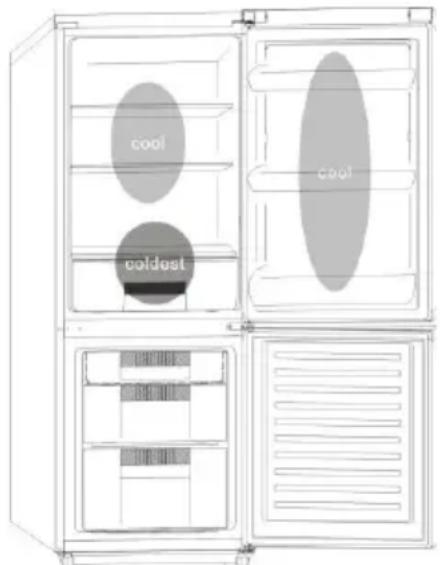

Where to store your foods in the fridge 43

Storing Frozen Food 44

ENERGY SAVING 45

TAKE CARE. 45

Defrosting 45

Cleaning and Care 45

CHANGING THE INTERNAL LIGHT 46

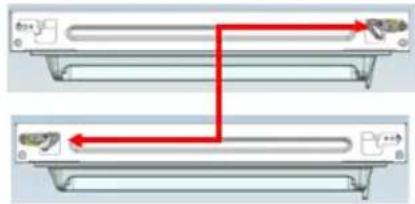

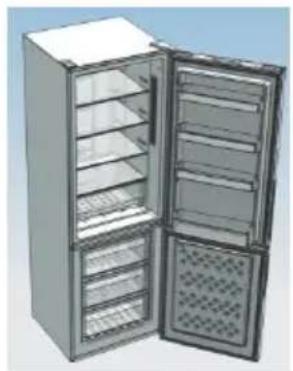

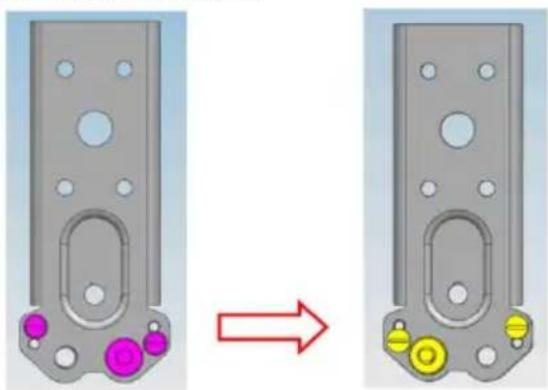

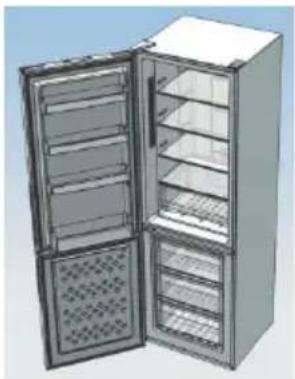

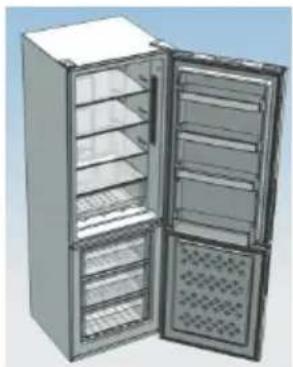

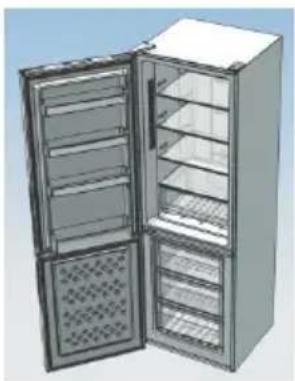

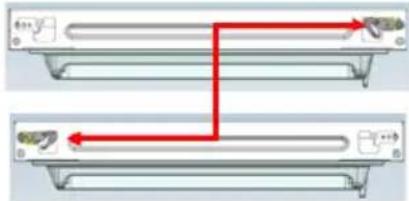

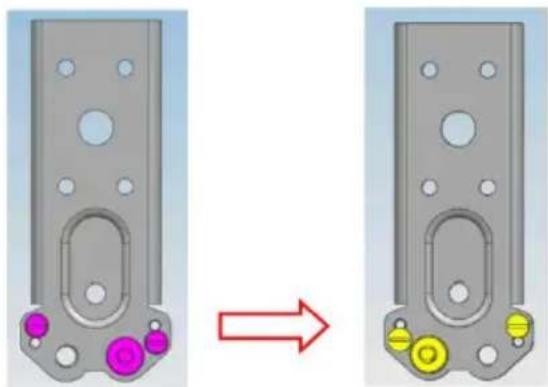

REVERSING THE DOOR SWING 46

TROUBLESHOOTING 51

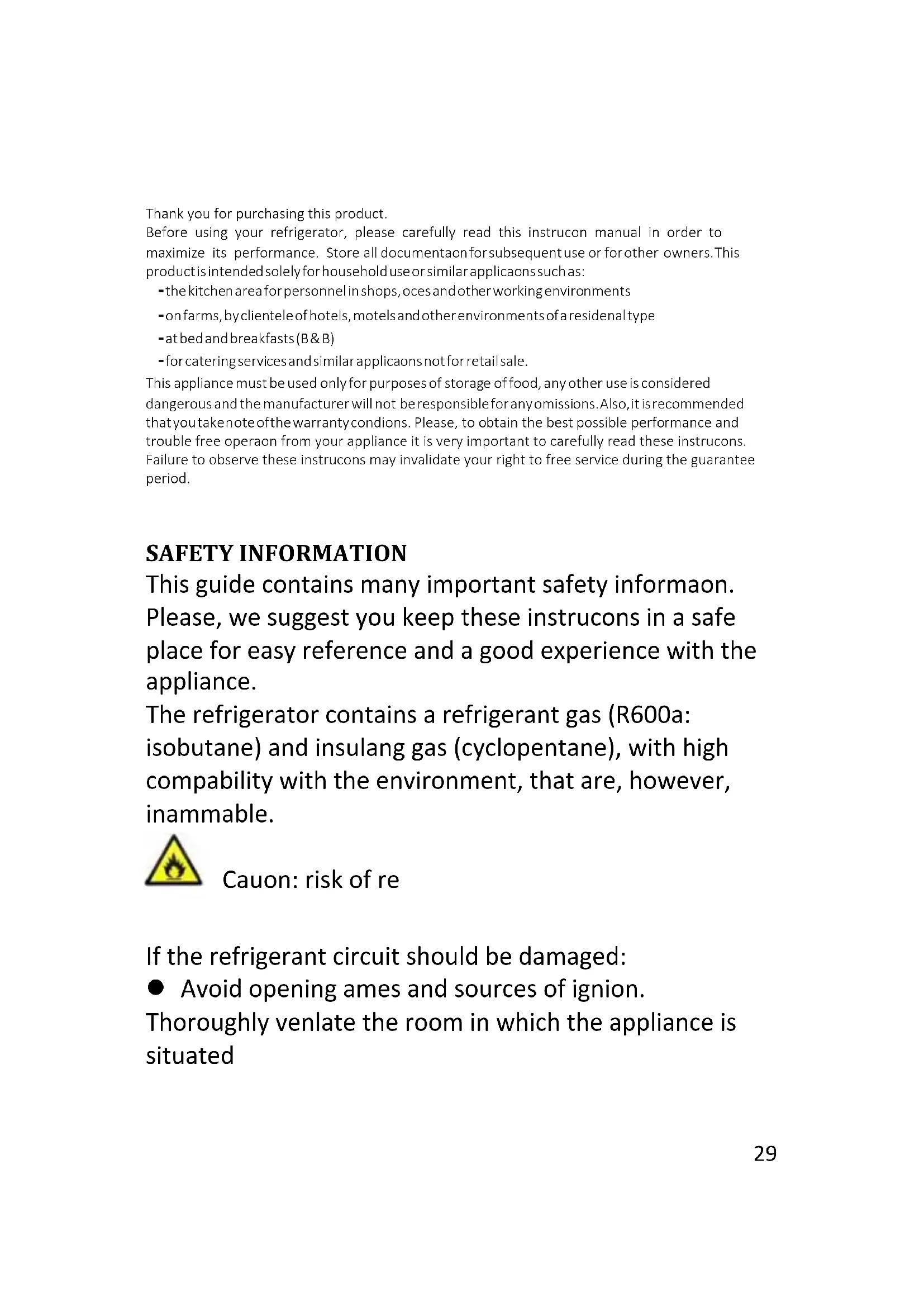

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type
• at bed and breakfasts (B & B)
• for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. Please, to obtain the best possible performance and trouble free operation from your appliance it is very important to carefully read these instructions. Failure to observe these instructions may invalidate your right to free service during the guarantee period.

SAFETY INFORMATION

This guide contains many important safety information. Please, we suggest you keep these instructions in a safe place for easy reference and a good experience with the appliance.

The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, flammable.

Caution: risk of fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.

Thoroughly ventilate the room in which the appliance is situated

WARNING!

• Care must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.
• This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.
• Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged.
• When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed.
• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or flammable materials.
• If there is a power failure, do not open the lid.

Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

• If you find that the lid of the chest freezer is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.
• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed.
• Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.
• This freezer must only be used for its intended purpose (i.e. storing and freezing of edible foodstuff).
• Do not store medicine or research materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.
• Before performing any operation, unplug the power cord from the power socket.
• On delivery, check to make sure that the product is not damaged and that all the parts and accessories

are in perfect condition.

• If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.
• Do not use extension cords or adapters.
• Do not excessively pull or fold the power cord or touch the plug with wet hands.
• Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
• Do not place or store flammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.
• Do not use or store flammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.
• Do not place objects and/or containers filled with water on the top of the appliance.
• We do not recommend the use of extension leads and multi-way adapters.
• Do not dispose of the appliance on a fire. Take care not to damage the cooling circuit/pipes of the appliance in transportation and in use. In case of

damage, do not expose the appliance to fire, potential ignition source, and immediately ventilate the room where the appliance is situated.

• The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
• Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
• Do not scrape with a knife or sharp object to

remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

• Do not use mechanical devices or other equipment to hasten the defrosting process.
• Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
• Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust. It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause of fire.
• The product is designed and built for domestic household use only.
• The guarantee will be void if the product is installed or used in commercial or non-residential domestic household premises.
• The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.
• The guarantee is applicable only to new products and is not transferable if the product is resold.
• Our company disclaims any liability for incidental or consequential damages.
• The guarantee does not in any way diminish your statutory or legal rights.
• Do not perform repairs on this Wine Cooler. All interventions must be performed solely by qualified personnel.
• If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.
• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge, provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved. Children should not play with the appliance.

Cleaning and user maintenance should not be made by children without supervision.

• Locks: If your Fridge/Freezer is fitted with a lock, to prevent children being entrapped keep the key out of reach and not in the vicinity of the appliance. If disposing of an old Fridge/Freezer, break off any old locks or latches as a safeguard.

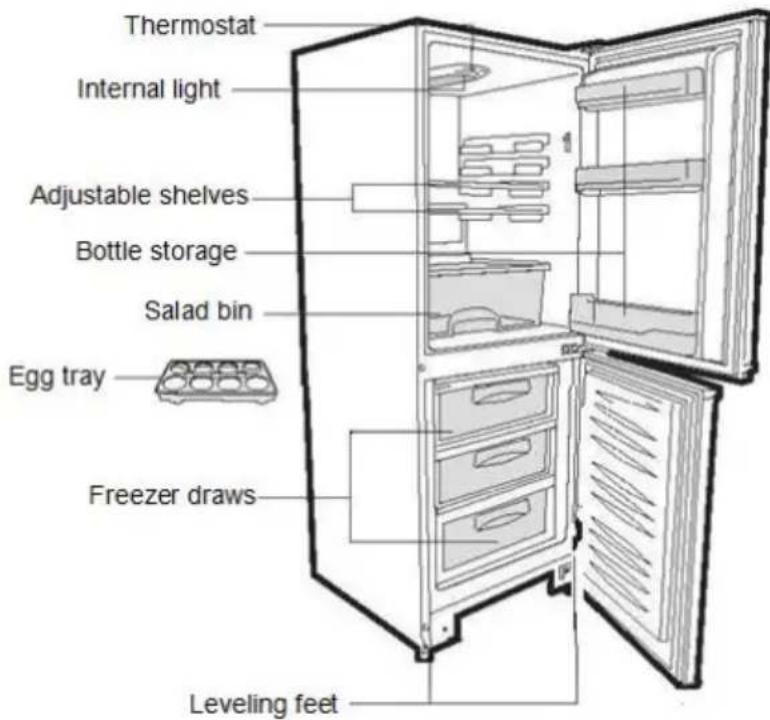

COMBI REFRIGERATOR CANDY

Climate Class

The appliance is designed to operate at the limited range of ambient temperature, depending on climate zones. Do not use the appliance at the temperature out of the limit. Climate class of your appliance is indicated on the label with technical description inside the fridge compartment.

Climate Class	Amb. T. (°C)	Amb. T. (°F)
SN	From 10 to 32	From 50 to 90
N	From 16 to 32	From 61 to 90
ST	From 16 to 38	From 61 to 100
T	From 16 to 43	From 61 to 110

TRANSPORTATION INSTRUCTIONS

The appliance should be transported only in a vertical upright position. The packing as supplied must be intact during transportation. If during the course of transport the product has been transported horizontally, it must only be laid on its left hand side (when facing the door front) and it must not be operated for at least 4 hours to allow the system to settle after the appliance is brought back to upright position.

1. Failure to comply with the above instructions could result in damage occurring to the appliance. The manufacturer will not be held responsible if these instructions are disregarded.
2. The appliance must be protected against rain, moisture and other atmospheric influences.

INSTALLATION INSTRUCTIONS

1. If possible avoid placing the appliance near cookers, radiators or in direct sunlight as this will cause the compressor to run for long periods. If installed next to a source of heat or refrigerator, maintain the following minimum side clearances:

From Cookers 4" (100 mm)

From Radiators 12" (300 mm)

From Fridges 4" (100 mm)

1. Make sure that sufficient room, with an average temperature of between 16°C and 32°C, is provided around the appliance to ensure free air circulation. Ideally, a space of no less than 9 cm on the back and 2 cm on the sides.
2. The appliance should be located on a smooth surface.
3. It is forbidden to use the refrigerator outdoors.
4. Protection from moisture. Do not locate the freezer in a moist space to avoid the metal parts rusting. And do not spray water on the freezer, otherwise it will weaken the insulation and cause current leakage.
5. Refer to "Cleaning and Care" section to prepare your appliance for use.
6. If the freezer is installed in unheated areas, garages etc., in cold weather condensation may form on the outer surfaces. This is quite normal and is not a fault. Remove the condensation by wiping with a dry cloth.
7. Never place the refrigerator in a wall recess or into fitted cabinets or furniture. When it is working, the grille at the back may become hot and the sides warm. Do not drape the refrigerator with any covering.

STARTING TO USE

Before you start to use the freezer, please check that:

1. The interior is dry and air can circulate freely at the rear.
2. Clean the interior as recommended under "TAKE CARE" section (electric parts of the refrigerator can only be wiped with a dry cloth).
3. Do not switch on until 4 hours after moving the fridge/freezer. The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.
4. Before connecting the refrigerator to the mains supply, position the thermostat control dial, which is located inside the fridge compartment.
5. Turn the thermostat knob to the "3" position and turn on the electricity. The compressor and the light inside the refrigerator will begin to work.
6. Before storing foods in your refrigerator, turn the refrigerator on and wait for 24 hours, to make sure it is working properly and to allow the fridge/freezer to fall to the correct temperature.
7. Open the door 30 minutes later, if the temperature in the refrigerator decreased obviously, it shows that the refrigerator system works well. When the refrigerator operates for a period of time, the temperature controller will automatically set the temperature within limits it opens.

COMBI OPERATION

Appliance connected to power at the first time: When the appliance is connected to power at the first time, the display will be lit for 2 seconds before going normal and the appliance runs with intelligence function.

Display Control: When the refrigerator door is closed and there is no button operation in 3 minutes, the display light goes off.

When the display light is off, open the refrigerator door or click any button to light it up.

VERTICAL DISPLAY

TEMPERATURE SETTING: Click the "Fridge" or "Freezer" button and when it flickers in the symbol, temperatures can be set. Each time when the button is clicked, the temperature changes accordingly. Temperatures cannot be set under functions of fast cooling, fast freezing, Smart ECO and vacation. Under temperature setting, if there is no button operation in 5 seconds, the button stops flickering and the set temperature comes into effect.

SMART ECO: Activate the Smart Eco button to set the temperatures of the fridge in max. energy efficiency conditions (+4°C for fridge temperature, -18°C for freezer temperature).

To enter Smart Eco: Click "option" until it flickers and then click "OK" to enter this function.

To deactivate Smart Eco: Click "option" until it goes to Smart ECO, click "OK" to quit this function and the light goes off.

FAST COOLING: Activate Fast Cooling mode to start an additional pulse for a fast freezing of the fridge compartment. The function is activated and confirmed by the switching on of the dedicated LED icon.

To enter Fast Cooling: Click "option" until it flickers in "Fast Cooling" and then click "OK" to enter this function.

To deactivate Fast Cooling: Click "option" until it goes to "fast cooling" and then click "OK" to deactivate this function.

FAST FREEZING: Activate Fast Freezing to rapidly freeze big quantities of food keeping intact nutritional food properties. When the light in Fast Freezing goes off and the freezer temperature goes back to the value before fast freezing. When Fast Freezing time is up (26 hours), it deactivates automatically. When it goes to Vacation, Fast Freezing stops.

To enter Fast Freezing: Click "option" until it flickers in "Fast Freezing" and then click "OK" to enter

this function.

To deactivate Fast Freezing: Click "open" until it goes to "fast freezing" and then click "OK" to quit this function.

VACATION: In case of long stops, the Vacation function can be used. This function deactivates the fridge compartment, while leaving the freezer on. Ensure that there is no food inside the fridge compartment before using this function. The function is activated and confirmed by the switching on of the dedicated LED icon. The light in Vacation goes off and the refrigerator temperature goes back to the value before Vacation.

Vacation quits under functions of Smart ECO and Fast Cooling.

To enter Vacation: Click "open" until it flickers in "Fast Freezing" and then click "OK" to enter this function.

To deactivate Vacation: Click "open" until it goes to "Vacation" and then click "OK" to quit this function.

POWER OFF MEMORY: Refrigerator can automatically keep all the settings in case of power off.

When the unit is plugged in again, the refrigerator will run with the settings before power off.

POWER-ON DELAY: To prevent harm to the refrigerator in case of sudden power cut and power on, the unit does not start immediately if the power off time is less than 5 minutes.

FREEZER OVER-TEMPERATURE ALARM (only in case of power on): When the freezer temperature is higher than 10° C at the first time connected to power, the symbol light of the freezer chamber goes on and the number representing temperature flickers.

Press any button or wait for 5 seconds, flickering stops and it goes back to the temperature that was set.

REFRIGERATOR DOOR OPENING ALARM: When the refrigerator is open over 3 minutes, the buzzer will buzz. Close the door or press any button to stop the alarm, but for the latter, the alarm will go off again after 3 minutes.

SENSOR FAULT ALARM: When it shows "E0", "E1", "E2" or other abnormal symbols, it means sensor faults and the refrigerator needs repair.

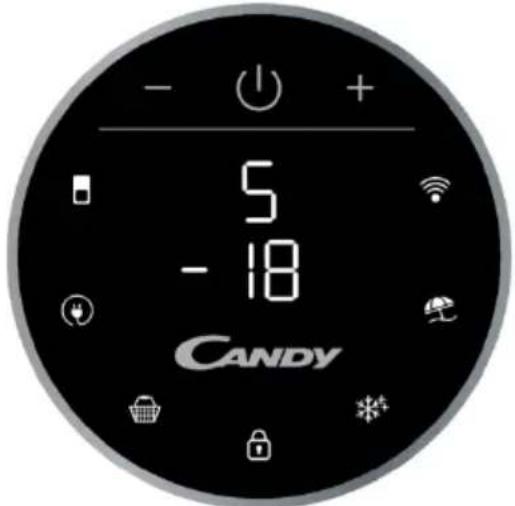

ROUNDED DISPLAY

Rounded Display is a touch user interface. When the refrigerator is turned on, white LED lights will be enlightened. When the functions is pressed the icon lights change from white to blue.

SETTING TEMPERATURE: Press MODE icon to change the temperature.

• Refrigerator Temperature: Press the MODE icon once, the refrigerator digit blinks, and manage the temperature of the refrigerator with the "+" and "-" buttons.

Freezer Temperature: Press the MODE icon twice, the freezer digit blinks, and manage the temperature of the freezer with the "+" and "-" buttons.

ECO MODE Icon: Press the Eco Mode icon to set the temperatures of the fridge in maximum energy efficiency conditions (+5°C for fridge temperature, -18°C for freezer temperature). The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the ECO mode function, you need to press the Eco Mode icon again and the refrigerator temperature turns back to normal operation.

SUPER COOLING Icon: Press the Super Cooling icon to start an additional pulse for fast freezing of the fridge compartment. The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the Super Cooling function, you need to press the Super Cooling icon again and the refrigerator temperature turns back to normal operation.

LOCK Icon: Press the Lock icon to block the display user interface. If the lock function is selected, the icon (LED) should turn blue. When the Lock function is turned on, the user cannot set any new functions. To turn off the Lock function, the user must perform a long press on the icon for 3 seconds to unlock the display.

SUPER FREEZING Icon: Press the Super Freezing icon to rapidly freeze large quantities of food while keeping nutritional food properties intact. The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the Super Freezing function, you need to press the Super Freezing icon again and the freezer temperature turns back to normal operation.

HOLIDAY Icon: In case of long stops, the Holiday function can be used. This function deactivates the fridge compartment, while leaving the freezer on. Ensure that there is no food inside the fridge compartment before using this function. The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the Holiday function, you will need to press the Holiday icon again, the light in Holiday goes off and the refrigerator temperature goes back to the value before Holiday.

Wi-Fi Icon: This appliance is equipped with SmartFi+ technology that allows you to control it remotely via App. Press the Wi-Fi icon for 3 seconds to activate the Wi-Fi function and the icon light changes from white to blue.

Machine Enrollment (on App): Download the SimplyFi App on your device. The Candy SimplyFi App is available for devices running both Android and iOS, both for tablets and for smartphones. Get all the details of the SmartFi+ functions by browsing the App in DEMO mode.

Open the App, create the user profile and enroll the appliance following the instructions on the device display or the "Quick Guide" attached on the machine. This operation is necessary just for the first installation. To finalize the enrollment, follow the instructions on the smartphone's screen.

Refrigerator usage from remote by App: When the enrollment is completed, the Wi-Fi LED will be switched on. From now on, it will be possible to manage the product by using the buttons on the display or using the App: both of them will be aligned according to the last command given.

INTERNAL USER INTERFACE

SET Button: Press the SET button to set the temperature until you reach the level you want, where level 1 is the warmest and level 4 is the coldest. Under normal operating conditions, we recommend using an intermediate setting (level 2).

Once the setting takes effect, it immediately enters the corresponding stall for operation control, and the stall indicator lights up for 3 seconds and then goes out. Factory default temperature is set to 2. Long press the "SET" key for more than 3 seconds to enter the hardware self-check program. The hardware self-check operation is effective within 10 minutes, and the long button operation after 10 minutes is invalid.

Wi-Fi Button: This appliance is equipped with SmartFi+ technology that allows you to control it remotely via App. Press the Wi-Fi icon for 3 seconds to activate the Wi-Fi function and the icon light changes from white to blue.

Machine Enrollment (on App): Download the SimplyFi App on your device. The Candy SimplyFi App is available for devices running both Android and iOS, both for tablets and for smartphones. Get all the details of the SmartFi+ functions by browsing the App in DEMO mode.

Open the App, create the user profile and enroll the appliance following the instructions on the device display or the "Quick Guide" attached on the machine. This operation is necessary just for the first installation. To finalize the enrollment, follow the instructions on the smartphone's screen.

Refrigerator usage from remote by App: When the enrollment is completed, the Wi-Fi LED will be switched on. From now on, it will be possible to manage the product by using the buttons on the display or using the App: both of them will be aligned according to the last command given.

FAST COOL Button: when the "FAST COOL" button is pressed, the rapid cooling function is activated, according to the 21°C to refrigeration control gear. Maximum running time is 3 hours, after this time the temperature will be set to 1.

If the "SET" button is pressed during the process of speed cooling, the instant cooling function is immediately withdrawn and the default is entered into the next gear.

TECHNICAL FEATURES

FRESHNESS CONTROL

Thanks to freshness control, you can guarantee the right humidity level for vegetables and fruits in the crisper drawer (Fresh drawer). The humidity gets bigger as the rod goes from left to right.

ANTIBACTERIAL SYSTEM (if present)

LED UVA Lights activate a Titanium Filter producing a "photocatalysis" reaction which will destroy bacteria within the refrigerator air. This reaction works when the refrigerator door is closed to avoid purified air leakage.

In Total No Frost products, it is inserted in the sky box and it works every time the compressor works. The filter is permanent and therefore does not need changing.

The antibacterial system has to be turned off during the energy consumption test.

WATER DISPENSER

The water dispenser allows you to get chilled water without opening the fridge compartment door.

Before first use

Before using the water dispenser for the first time, remove and clean the water tank located inside the fridge compartment.

• Lift the water tank out of the fridge compartment.
• Open the water tank cover and then clean the water tank and cover in warm soapy water. Rinse thoroughly.
• After cleaning, attach the cover to the water tank and then replace the water tank back on the fridge door.

• Clean the dispenser pad outside the fridge door.

Filling the water tank with water

• Open the small cover.
• Fill the water tank with drinkable water up to the Max line.
• Close the small cover.

Dispensing

To dispense water, push the dispenser pad gently, using a glass or container. To stop the flow of water, pull your glass away from the dispenser pad.

Tips for keeping food perfect in the Fridge

Take extra care with meat and fish: cooked meats should always be stored on a shelf above raw meats to avoid bacterial transfer. Keep raw meats on a plate which is large enough to collect juices and cover it with cling film or foil.

Leave space around food: this allows cold air to circulate around the Fridge, ensuring all parts of the Fridge are kept cool.

Wrap up food! To prevent transfer of flavors and drying out, food should be separately packed or covered. Fruit and vegetables need not be wrapped.

Pre-cooked food should be cooled properly: allow pre-cooked food to cool down before placing in the Fridge. This will help to stop the internal temperature of the Fridge from rising.

Shut the door! To prevent cold air escaping, try to limit the number of times you open the door. When returning from shopping, sort foods to be kept in your Fridge before opening the door. Only open the door to put food in or take it out.

Where to store your foods in the fridge

Cool area: this is where to store foods which will keep longer if they are kept cool. Milk, eggs, yogurt, fruit juices, hard cheeses e.g. Cheddar. Opened jars and bottles of salad dressings, sauces and jams. Fats, e.g. Butter, margarine, low-fat spreads, cooking fats and lard.

Coldest area (0°C to 5°C): this is where foods which must be cold to keep them safe should be kept:

• Raw and uncooked foods should always be wrapped. -Pre-cooked chilled foods, e.g. Ready meals, meat pies, soft cheeses. -Pre-cooked meats e.g. Ham,
• Prepared salads (including pre-packed mixed green salads, rice, potato salad etc). Desserts, e.g. Fromage frais, home-prepared food and leftovers or cream cakes.

Crisper: this is the most humid part of the fridge. Vegetables, fruit, fresh salad items, unwashed whole lettuce, whole tomatoes, radishes, etc. can be stored here.

WE RECOMMEND THAT ALL PRODUCE KEPT IN THE SALAD BIN IS WRAPPED.

NOTES: Always wrap and store raw meat, poultry, and fish on the lowest shelf at the bottom of the fridge. This will stop them from dripping onto or touching other foods. Do not store inflammable gases or liquids in the fridge.

Electrical operation: after 3 hours on the freezer, the temperature in the cabinet is above -12°C, the alarm light is lit, and the buzzer sounds.

Storing Frozen Food

Clean and defrost your refrigerator regularly.	Freeze zzy drinks.
Prepare fresh food for freezing in small porons to ensure rapid freezing.	Consume ice-cream and water ices direct from freezer. It may cause “freezer burns” on lips.
Always choose high quality fresh food and be sure it is thoroughly clean before you freeze it.	Store poisonous or dangerous substances in the freezer.
Wrap all foods in aluminum foil or freezer quality plasc bags and make sure any air is excluded.
Wrap frozen food when you buy it and put it into the freezer shortly.
Keep food for as short a me as possible and adhere to “Best Before”, “Use By” dates.

For more about storing, download the App and visit "Tips & Hints".

ENERGY SAVING

For better energy saving, we suggest:

• Installing the appliance away from heat sources, not exposed to direct sunlight, and in a well-ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible.
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance.

TAKE CARE

Defrosting

This appliance has automatic defrosting system, no need to defrost by hand.

Cleaning and Care

After defrosting you should clean the Fridge/Freezer internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the Fridge/Freezer. Condensation will form on the back wall of the Fridge; however it will normally run down the back wall and into the drain hole behind the salad bin.

The drain hole will have a "cleaning spike" inserted into it. This ensures that small pieces of food cannot enter the drain. After you have cleaned the inside of your Fridge and removed any food residues from around the hole, use the "cleaning spike" to make sure that there are no blockages. Use standard furniture polish to clean the Fridge/Freezer exterior. Make sure that the doors are closed to prevent polish getting on the magnetic door seal or inside.

The grille of the condenser at the back of the Fridge/Freezer and the adjacent components can be vacuumed using a soft brush attachment.

Do not use harsh cleaners, scouring pads or solvents to clean any part of the Fridge/Freezer.

CHANGING THE INTERNAL LIGHT

1. Before carrying out the LED replacement always disconnect the mains supply.
2. Hold and lift up the LED light cover.
3. Remove the old LED by unscrewing it in an anti-clockwise direction.
4. Replace with a new LED light by screwing it in a clockwise direction making sure that it is secure in the light holder.
5. Refit the light cover and re-connect your Fridge to the mains supply and switch on.

REVERSING THE DOOR SWING

Disassemble the Refrigerator Door

1. a. Use a tool to remove the screw on the hinge cover, and then remove the cover. Insert the communication line into the hole on the cabinet top.

b. Use a tool to remove the 4 screws on the upper hinge cover and then remove the cover. Pry up the door bush and small end cap cover on the door.

c. Insert the door bush and door communication line into the hole on the door and then put on the small end cap cover.

d. Use a tool to remove the 2 screws as shown in the below figure to remove the hole cover on the cabinet top and get the

cabinet communication line out of the hole.

Pry up the small end cap cover on the door and get out the door bush and door communication line.

e. Insert the door bush into the round hole on the door and then put on the small end cap cover.

f. Move the refrigerator door upward over 500mm to remove the door.

1. a. Use a tool to remove the 3 screws on the middle hinge cover and then remove the middle hinge.

b. Move the freezer door upward over 500mm to remove the door.

c. Remove the adjustable front feet under the lower hinge; use a tool to remove the 4 screws from the lower hinge and then disassemble the lower hinge. Door disassembly is finished.

Assemble door, lower hinge accessories to the corresponding positions

1. a. Use a tool to get the door bush out as shown in the below figure and assemble it to the corresponding position of the other side.

b. Use a tool to remove the screws of the stopper assembly as shown in the figure below, and then assemble them to the other side of the door.

c. Use a tool to remove the axle and two stoppers on the lower hinge, and then assemble them to the position as shown in the figure below.

This situation applies to opening the door on the right side. This situation applies to the left side.

Assemble the refrigerator door and freezer door to the opposite side.

1. a. Remove the adjustable front foot as shown below by hand, and then assemble the lower hinge to the other side of the cabinet and fix the screws by using a tool.

b. Assemble the shorter adjustable front foot to the lower hinge side and adjust the height of the foot to make the refrigerator stay level.

1. Put on the freezer door and turn the middle hinge by 180 degrees, and then assemble it to the other side of the cabinet; use a tool to screw up the 3 screws to fix the middle hinge.

1. Put on the refrigerator door and assemble the upper hinge to the other side of the cabinet; use a tool to screw up the 4 screws to fix the upper hinge.

After that, connect the door communication line and the cabinet communication line, and then put on the upper hinge cover and fix it using a screw.

1. Assemble the hole cover to the other side of the cabinet and use a tool to screw up the hole cover.

Door disassembly is finished here.

Figure of door opening from the right.

Figure of door opening from the left.

Double check that the door is aligned correctly and all the seals are closed on all sides. If necessary, re-adjust the levelling feet.

NOTE: If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so. All parts removed must be saved to do the reinstallation of the door. You should rest the fridge freezer on something solid so that it will not slip during the door change process. Do not lay the fridge freezer flat as this may damage the coolant system. Ensure the fridge freezer is unplugged and empty. We recommend that 2 people handle the fridge freezer during assembly.

TROUBLESHOOTING

• If the appliance does not operate when switched on, check:
• Power cut: If the internal temperature of the Fridge/Freezer compartment is -18°C or less when the power returns, your food is safe. The food in your Fridge/Freezer will remain frozen for approximately 16 hours with the door closed. Do not open the Fridge/Freezer door more than necessary. The product is designed and built for domestic household use only.
• The plug is inserted properly in the socket and that the power supply is on. (To check the power supply to the socket, plug in another appliance).
• The fuse has blown/circuit breaker has tripped/main distribution switch has been turned off.
• The temperature control has been set correctly. If the refrigerator is exceptionally cold, you may have accidentally adjusted the thermostat control dial to a higher position.
• If the refrigerator is exceptionally warm, the compressor may not be working. Turn the thermostat control dial to the maximum setting and wait a few minutes. If there is no humming noise, it is not working. Contact the local store where your purchase was made.
• If condensation appears outside of the Refrigerator, this may be due to a change in the room temperature. Wipe off any residue of moisture. If the problem continues, contact the local store where your purchase was made. If the provided plug has been replaced, make sure the new plug is properly connected. If the appliance is still not operating after the above checks, please contact Customer Service.

SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste.

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the CE mark on this product, we are confirming compliance with all relevant European safety, health and environmental requirements that are applicable by law for this product.

TABLE OF CONTENTS

SAFETY INFORMATION 54

COMBI CANDY 62

Climate class 62

TRANSPORT INSTRUCTIONS 62

INSTALLATION INSTRUCTIONS 63

START-UP 63

COMBINED OPERATION 64

VERTICAL DISPLAY UNIT 64

ROUND DISPLAY UNIT 66

INTERNAL USER INTERFACE 67

TECHNICAL CHARACTERISTICS 68

FRESHNESS CONTROL 68

The Holiday function continues under the Smart ECO and Fast Cooling functions.

The prepackaged frozen foods of the store should be stored according to the instructions of the manufacturer of the frozen foods for a refrigerator.

To ensure the quality that is achieved by the manufacturer of frozen foods and the retailer, the following should be observed:

1. Place the foods in the refrigerator as soon as possible after purchase.
2. Do not exceed the "Use by", "Best before" dates indicated on the packaging.

Defrost the refrigerator in a hygienic or in a way that avoids the formation of ice, following the instructions for use and maintenance.

Defrost the frozen food immediately before cooking.

Store the defrosted frozen foods according to the instructions of the manufacturer on the packaging you buy.

Check the contents of the freezer at regular intervals.

VERTICAL DISPLAY

DISPOSAL OF OLD APPLIANCES

SAFETY INFORMATION

This manual contains important safety information.

TROUBLESHOOTING 456

Instructions for the user of this product

Before using the refrigerator, read this manual carefully. It will help you use it correctly and safely. Keep this documentation for future reference or for other owners. This product is intended for use in a household or similar environment, such as:

• staff kitchens in shops, offices, and other working environments,
• farmhouses, for guests staying in hotels, motels, and other residential facilities,
• in establishments offering bed and breakfast,
• for catering services and similar services, which are not intended for retail sale.

This appliance is intended for storing food. Improper use may be dangerous, and the manufacturer is not responsible for damage caused by negligence. We strongly recommend that you familiarize yourself with the operating conditions. To ensure the best possible performance and safe operation, it is very important to read these instructions carefully. Failure to follow these instructions may result in the loss of the right to free service during the warranty period.

SAFETY INFORMATION

This manual contains many important safety instructions. We recommend storing these instructions in a safe place so that they can serve as a source of information to facilitate and improve the use of the appliance.

WARNING: FIRE HAZARD

If the cooling circuit is damaged:

• Avoid open flames and sources of ignition. Ventilate the room in which the appliance is located.

WARNING!

- Be careful when cleaning/moving the appliance and avoid touching the metal parts of the compressor at the back of the appliance, as you could cut yourself or damage your product. This appliance is not intended for storing any other items. Do not stand or sit on the appliance, as it is not designed for such use. You could injure yourself or damage the appliance. - Make sure that the power cord is not trapped under the appliance during installation or moving, to prevent damage to the power cord. When positioning the appliance, be careful not to damage the floor, pipes, walls, or coverings. Do not move the appliance by pulling the handle or the door. Do not allow children to play with the appliance or to touch the controls. The manufacturer declines all responsibility if the instructions are not followed. Do not install the appliance in damp, wet, or cold places, or in direct sunlight.

CJIbHueBa CBeTInHa N BOda.

Do not place the appliance near heat sources or flammable materials. - If the appliance stops, do not open the door. Frozen food should not be refrozen if the storage time has exceeded 20 hours. If the storage time is longer, the food should be checked and discarded if spoiled, or refrozen. Do not force the door of the horizontal freezer if it opens with difficulty; this is normal due to the vacuum created, which will equalize and allow the door to open after a few minutes. Do not connect the appliance to the electrical supply until all packaging and transport materials have been removed. Leave it standing for at least 4 hours before switching it on, so that the compressor oil can distribute if it was transported horizontally. This freezer is intended for household use only (i.e., storing and freezing food products). Do not store medicines or scientific research materials.

Cooling for wine. When storing materials that require strict temperature control, it is possible that they may deteriorate or cause uncontrolled reactions, which could pose risks.

• Disconnect the power cord from the outlet.
• Check that the product is not damaged and that all parts and accessories are in perfect condition.
• If refrigerant leaks into the cooling system, do not touch the wall contacts and do not use open flames. Open windows and let fresh air into the room. Then contact a service center to request repair. Do not use extension cords or adapters. Do not pull the power cord forcefully and do not overload the freezer, and do not touch the appliance with wet hands. Do not damage the appliance or the power cord; this could cause electric shock or fire. Do not place or store flammable and explosive materials such as ether, propane-butane gas, aerosols, paints, pure alcohol, etc. These materials may

Mounting the doors and the bottom panel in their respective places

1. a). Using a screwdriver, remove the bushing as shown in the illustration below, and then mount it in place on the opposite side.

b). Using a screwdriver, unscrew the screws of the hinge as shown in the illustration below, and then screw them in on the opposite side.

c). Using a screwdriver, remove the remaining hinge and the bottom panel, and then screw them in their place on the opposite side, as shown in the illustration below.

The illustration clearly shows the arrangement of the door. The illustration clearly shows the arrangement of the door.

Mounting the door of the refrigerator and freezer on the opposite side

1. a). Connect the power cable to the appliance as shown in the figure, then mount the lower hinge on the opposite side and tighten the screws with a screwdriver.

b). Mount the lower adjustable hinge on the side of the lower door and adjust the height of the hinge so that the door remains in a horizontal position.

1. Place the door on the freezer and close the middle door at 180 degrees, then mount it on the opposite side of the cabinet. Use a screwdriver to tighten the 3 screws with which you secure the middle door.

1. Place the refrigerator door and mount the upper hinge on the opposite side of the cabinet. Use a screwdriver to tighten the 4 screws with which you secure the upper hinge.

Then connect the communication cable of the door to the communication cable of the cabinet, and then place the cover on the upper hinge and tighten it with a screwdriver.

1. Mount the cover on the opening on the opposite side of the cabinet and use a screwdriver to tighten it.

This completes the installation of the door hinges.

This illustration shows the removal of the left door.

This illustration shows the removal of the right door.

Check carefully that the door is properly aligned and that all components are in place. If necessary, adjust the hinges.

WARNING: If you want to reverse the door of the refrigerator, we recommend that you have it reversed by a qualified technician. Do not attempt to reverse the door yourself unless you have the necessary knowledge and skills. All removed parts must be kept for reinstallation of the door. You must support the refrigerator on a stable surface so that it does not tip over while you are reversing the door. Do not lay the refrigerator in a horizontal position, as this may damage the cooling system. Make sure that the refrigerator is unplugged from the power outlet and is empty. We recommend that the removal and installation of the refrigerator door be carried out by a qualified person.

TROUBLESHOOTING

If the appliance does not work when it is switched on, check the following. - Electrical connection: If the internal temperature of the refrigerator/freezer compartment is -18°C or lower, when the electrical supply is restored, the food will be preserved. The food in the refrigerator/freezer will remain frozen for about 16 hours with the door closed. Do not open the refrigerator/freezer door more than necessary. - The product is designed and manufactured only for domestic use. - The appliance has been correctly placed in the container for freezing to be activated. (To check the freezing in the container, switch on the freezer). - The thermostat/preset is set to the correct position. The temperature control is set correctly. If the refrigerator is too cold, you may have accidentally set the knob and thermostat to a higher position. If the refrigerator is too warm, the compressor may not be working. Set the thermostat to the maximum setting and wait a few minutes. If there is no noise, it is not working. Contact the local dealer where the purchase was made. If the appliance is placed in a hot room, this may be due to a change in room temperature. Remove all remaining food. If the problem persists, contact the local dealer where the purchase was made. If the power cord is damaged, check that it is connected correctly. If after performing the above checks the appliance still does not work, contact the customer service department.

DISPOSAL OF OLD APPLIANCES

This appliance is marked in accordance with European Directive 2012/19/EC regarding waste electrical and electronic equipment (WEEE).

WEEE contains both hazardous substances (which can have negative effects on the environment) and basic and component materials (which can be reused). It is important that WEEE is disposed of properly, so that all hazardous substances are removed correctly and all materials are recycled.

Individual households play an important role in ensuring that WEEE is not a problem for the environment; it is important to follow some basic rules: WEEE should not be treated as household waste.

WEEE should be handed over to the appropriate collection points, managed by the municipality or registered companies. For large WEEE in many countries, there may be the possibility of home collection.

In many countries, when you buy a new appliance, the old one can be returned to the retailer, who must take it back free of charge on a one-for-one basis, provided it is of equivalent type and has the same functions as the one provided.

Compliance

By placing the marking on this product, we confirm compliance with all European safety, health, and environmental protection requirements applicable to this product.

SUMMARY

SAFETY INFORMATION 511

CANDY COMBI 518

Climate class 518

INFORMATION REGARDING TRANSPORT 518

INSTALLATION REQUIREMENTS 519

USING THE FREEZER 519

OPERATING THE COMBI REFRIGERATOR 520

VERTICAL DISPLAY 520

CIRCULAR DISPLAY 522

INTERNAL USER INTERFACE 523

CLIMATE CLASS

The appliance is intended for operation in a limited range of ambient temperatures, depending on the climate zones. Do not use the appliance at temperatures outside the set limits. The climate class of the appliance is indicated on the plate with technical description inside the refrigerating compartment.

Климатчески Клasc	Окрж.Т.(°C)	Окрж.Т.(°F)
SN	От 10 do 32	От 50 do 90
N	От 16 do 32	От 61 do 90
ST	От 16 do 38	От 61 do 100
T	От 16 do 43	От 61 do 110

TRANSPORTATION INSTRUCTIONS

The appliance should be transported only in a vertical position.

The packaging in which the product was supplied must remain undamaged during transportation. If during transportation the appliance is in a horizontal position, it must lie only on its left side (when facing the front door), and it should not be unpacked for at least 4 hours to allow the system to settle after the product has been returned to a horizontal position.

1. Failure to follow the above instructions may lead to damage to the appliance. The manufacturer is not responsible in case of non-compliance with these instructions.
2. The appliance must be protected from rain, moisture, and other atmospheric phenomena.

When setting the temperature, if no button is pressed for 5 seconds, the button stops flashing and the set temperature takes effect.

Cold zone (from 0°C to +5°C): place where products should be stored, the temperature of which must be low:

Raw and unprepared products must be stored in packaging.

Ready-to-eat products, such as ready meals, meat products, soft cheeses.

Ready-to-eat products, for example, ham.

Ready-made salads (including packaged green salads, rice and potato salads, etc.).

Desserts, for example, fresh cheese, homemade dishes and leftovers of cakes or creams.

Container drawer: this is the humid zone of the refrigerator. Vegetables, fruits, fresh products for salad, etc. Here you can store unwashed salad leaves, whole tomatoes, radishes, etc.

It is recommended to store all products for salads in packaging.

Note. Raw meat, poultry, and fish should be wrapped in packaging and stored on the lowest shelf or in the lower part of the refrigerator. This prevents contact and dripping of juices onto other products. Do not place flammable substances or liquids in the refrigerator.

If the temperature in the freezer compartment after 3 hours of operation is above -12°C, the signal indicator lights up and a buzzer sounds.

Storage of frozen products

Packaged products, previously frozen under industrial conditions, should be stored in accordance with the instructions of their manufacturers or retail departments.

To achieve the best product quality, as achieved by the manufacturer of frozen products, and maintained by the food retailer, please observe the following:

1. Place packages in the freezer as soon as possible after purchase.
2. Do not exceed the storage time ("Use by...", "Best before") indicated on the packaging.
