CBG6201W - Basket CANDY - Free user manual and instructions

Product type	Cooker hood
Brand	Candy
Model	CBG6201W
Recessed dimensions (W x D)	490 x 250 mm
Minimum distance above hob	65-75 cm
Speeds	3 (low, medium, high)
Lighting	LED, 220 V max 2 W
Grease filter	Metal, washable (monthly cleaning)
Activated carbon filter	Optional, yearly replacement
Power supply	220-240 V, 50 Hz
Installation	Built into a suspended/wall cabinet
Grease filter maintenance	Clean with household detergent every month
Bulb replacement	LED 220 V max 2 W, unscrew the cover
Safety	Do not use with flames, respect distances
Usage	Domestic use only

Frequently Asked Questions - CBG6201W CANDY

At what height should the hood be installed above the hob?

The recommended distance is 65 to 75 cm for best performance.

How to clean the grease filter of the Candy CBG6201W hood?

Remove the filter by pressing the lock and pulling it downwards. Clean it with household detergent and warm water. Let it dry before replacing.

How often should the activated carbon filter be replaced?

The activated carbon filter should be replaced at least once a year, depending on frequency of use.

How to change the hood light bulb?

Turn off and unplug the appliance. Remove the lamp cover by unscrewing the 2 screws. Replace the bulb with an LED 220 V max 2 W of the same type.

What to do if the fan does not work but the light turns on?

This may be due to a stuck fan blade. Turn off the appliance and have it repaired by a qualified technician.

Why is my hood vibrating strongly?

Vibrations can come from a damaged blade, a loosely fixed motor, or a poorly fastened console. Check the console or call a professional.

The suction is weak, what should I check?

Make sure the distance between the hood and the hob is 65 to 75 cm. Also check the condition of the grease filter: if it is dirty, clean it.

Can I use the hood without the carbon filter?

Yes, the carbon filter is only necessary in recirculation mode (without external extraction). In extraction mode, only the grease filter is required.

What type of grease filter is supplied?

The grease filter is metal and is cleaned with household detergent. It must be cleaned monthly.

How to install the hood in a cabinet?

Cut an opening of 490 x 250 mm in the cabinet, 35 mm from the edge. Fix the hood with 8 supplied screws, then replace the panel.

USER MANUAL CBG6201W CANDY

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 3
SAFETYPRECAUTION. 3-4
PREPARE FOR INSTALLATION 5
SKPECIFICATIONS. 5
INSTALLATION 6-7
OPERATION 7-8
MAINTENANCE 8
TROUBLESHOOTING. 9
ENVIRONMENTALPROTECTION. 9

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required Instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood use high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

• Never let the children operate the machine.
• The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
• The cooker hood and its filter should be clean regularly in order to keep in good working condition.
• Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. There is a fire risk if cleaning is not carried out in accordance with the instructions.
• forbid the direct baking from the gas cooker.
• Please keep the kitchen room a good convection.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent similarly qualified persons in order to avoid a hazard.
• There shall be adequate ventilation of the room when the range hoods used at the same time as appliances burning gas or

other fuels;

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;
• Regulations concerning the discharge of air have to be fulfilled.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not flame under the range hood.
• CAUTION: Accessible parts may become hot when used with cooking appliance.
• The warning shall be in the same part of the instructions that include details of how to mount the equipment.

Electrical Shock Hazard

• Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
• Failure to follow these instructions can result in death, fire, or electrical shock.

Prepare for installation:

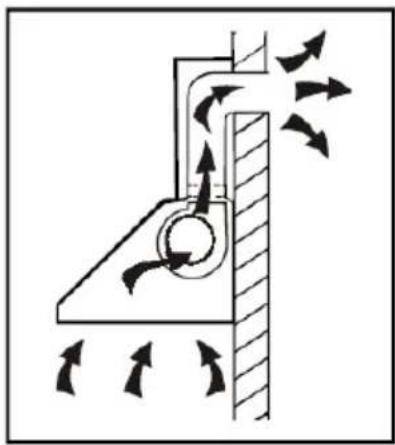

a. If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

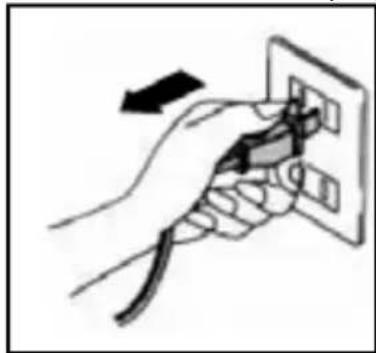

b. Before installation, turn the unit off and unplug it from the outlet.

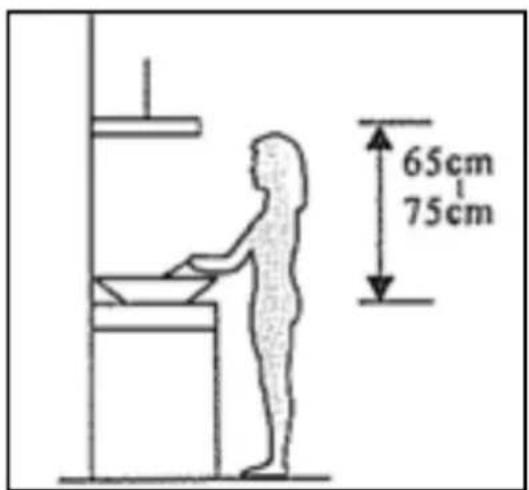

c. The cooker hood should be placed at a distance of 65 75cm above the cooking plane for best effect.

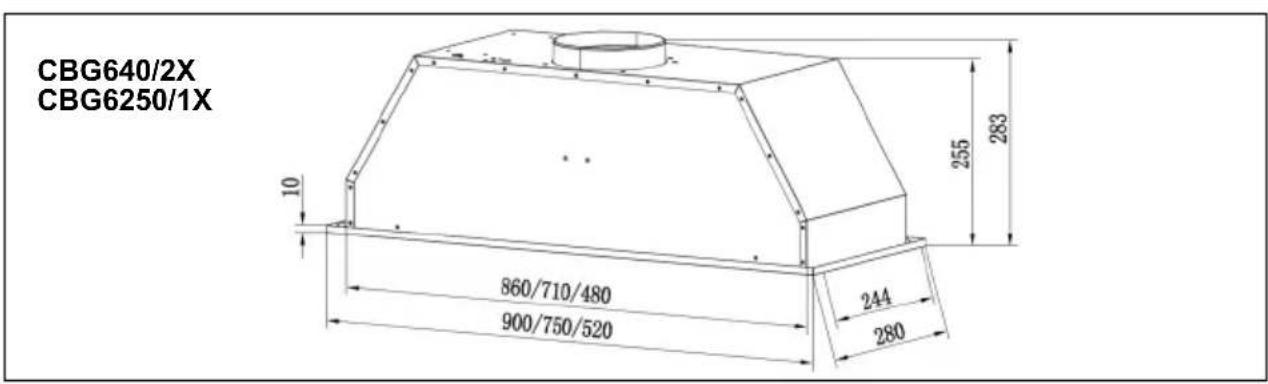

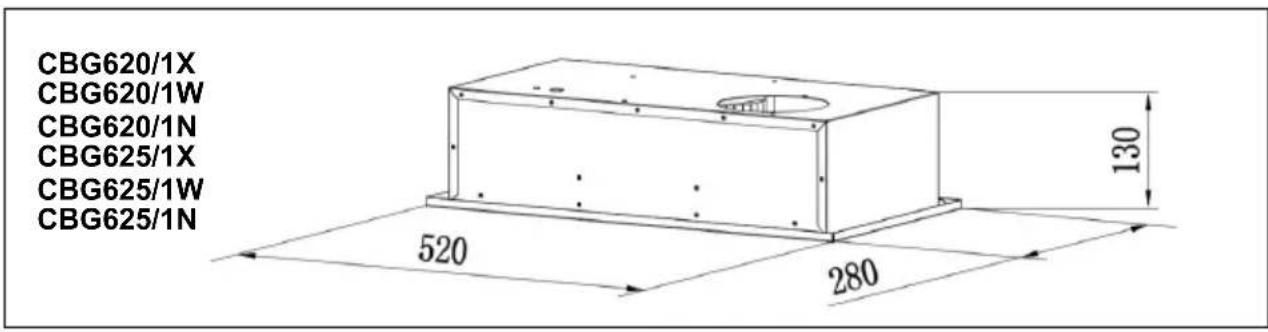

Specifications

Installation

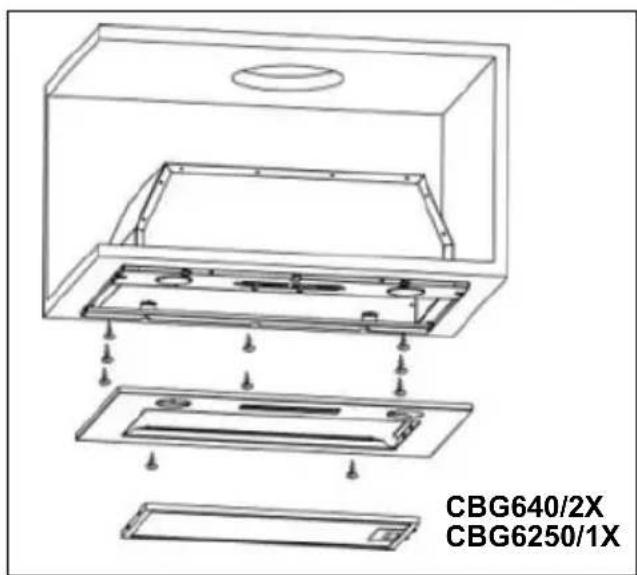

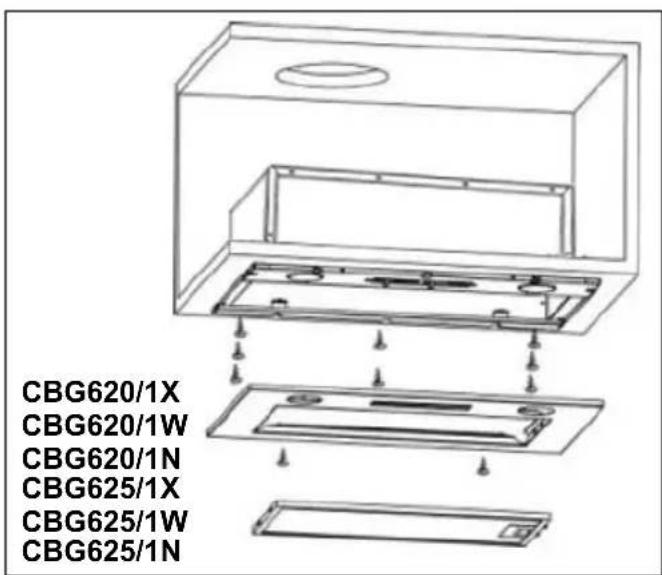

• The typical installation method for your range hood is into a purpose built overhead/wall cabinet.

• Using a jigsaw, create the required cut-out for your range hood, as 490 × 250mm

• Make sure the cut-out is at least 35mm from the cabinet edge.

• Remove the grease filter and remove the 2 screws on the panel.
• Screw the range hood into the cabinet using 8 screws (supplied).
• Re-fit the panel with the 2 screws (previously removed).

Activated carbon filter can be used to trap odors.

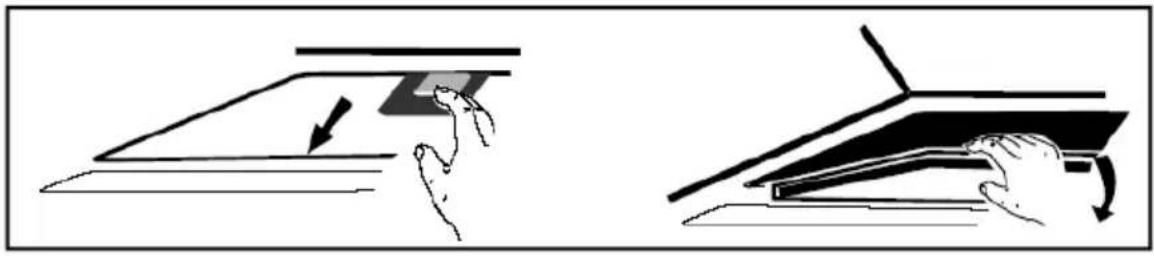

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

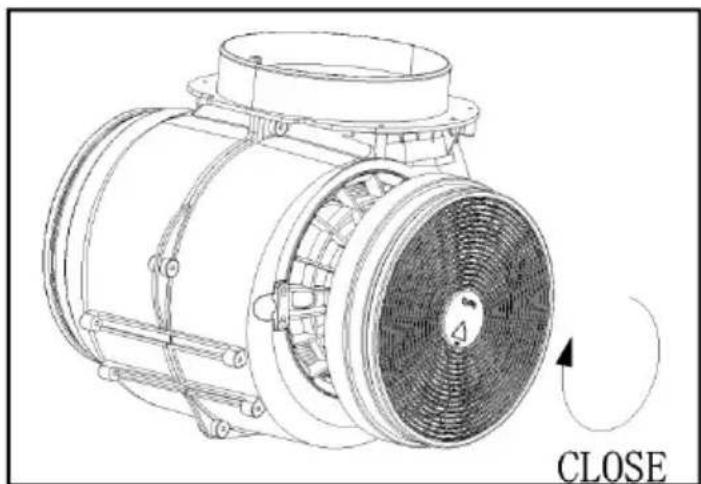

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

NOTE:

○ Make sure the filter is securelylocked. Otherwise, it would loosen and cause dangerous.
- When activated carbon filter attached, the suction power will be lower.

DESCRIPTION OF COMPONENTS

OPERATION

Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button

2

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust....so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

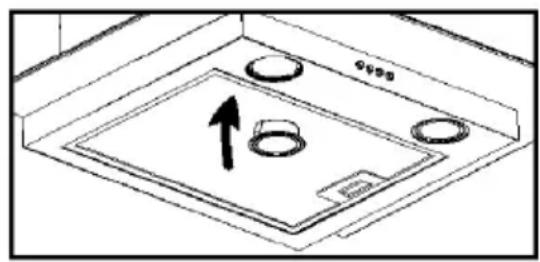

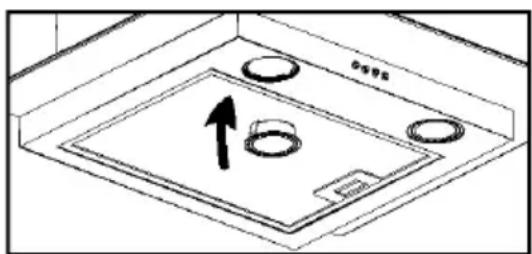

III. Bulb Replacement

1. Switch the unit off and unplug the appliance.
   2.Remove the lamp cover by unscrewing the 2 screws.
   3.Unscrew the LED lamp
2. Replace with the same type and lamp

LED lamp (220V max,2W).

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch of the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch of the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
