USER MANUAL CDPM 3DS62DW CANDY

Durezza dell'acqua Regolazione decalcificazione Uso sale rigenerante14 Congratulations! Thank you for choosing a Candy appliance; quality dishwashers which guarantee high performance and reliability. Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers. Ask your dealer for the catalogue with the complete range of Candy products. Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher. For future reference please keep this instruction booklet in a safe place. GUARANTEE This appliance is supplied with a guarantee certificate which allows free use of Technical Assistance Service. Please retain your purchase receipt. This should be kept in a safe place and preserved to the engineer if a service call is required.

Service and Warranty The product is guaranteed under the terms and conditions stated on the certificate included with the product. The certificate has to be stored so as to be shown to the Authorized Customer Service Centre in case of need. You can also check the warranty conditions on our web site. To obtain assistance, please fill in the form on-line or contact us at the number indicated on the support page of our web site.15

Width x Height x Depth (cm) 60 x 85 x 60 Depth with door open (cm) 120 EN 50242 place load Capacity with pans and dishes Water supply pressure (MPa) Fuse / Power input / Supply voltage

9 persons Min. 0,08 - Max. 0,8 See rating plate Power consumption of the off-mode and of the left-on mode: 0,45 W / 0,45 W *Values are measured in a laboratory according to European Standard EN 50242 (consumption may vary according to conditions of usage). 59,8 x 82 x 57,3

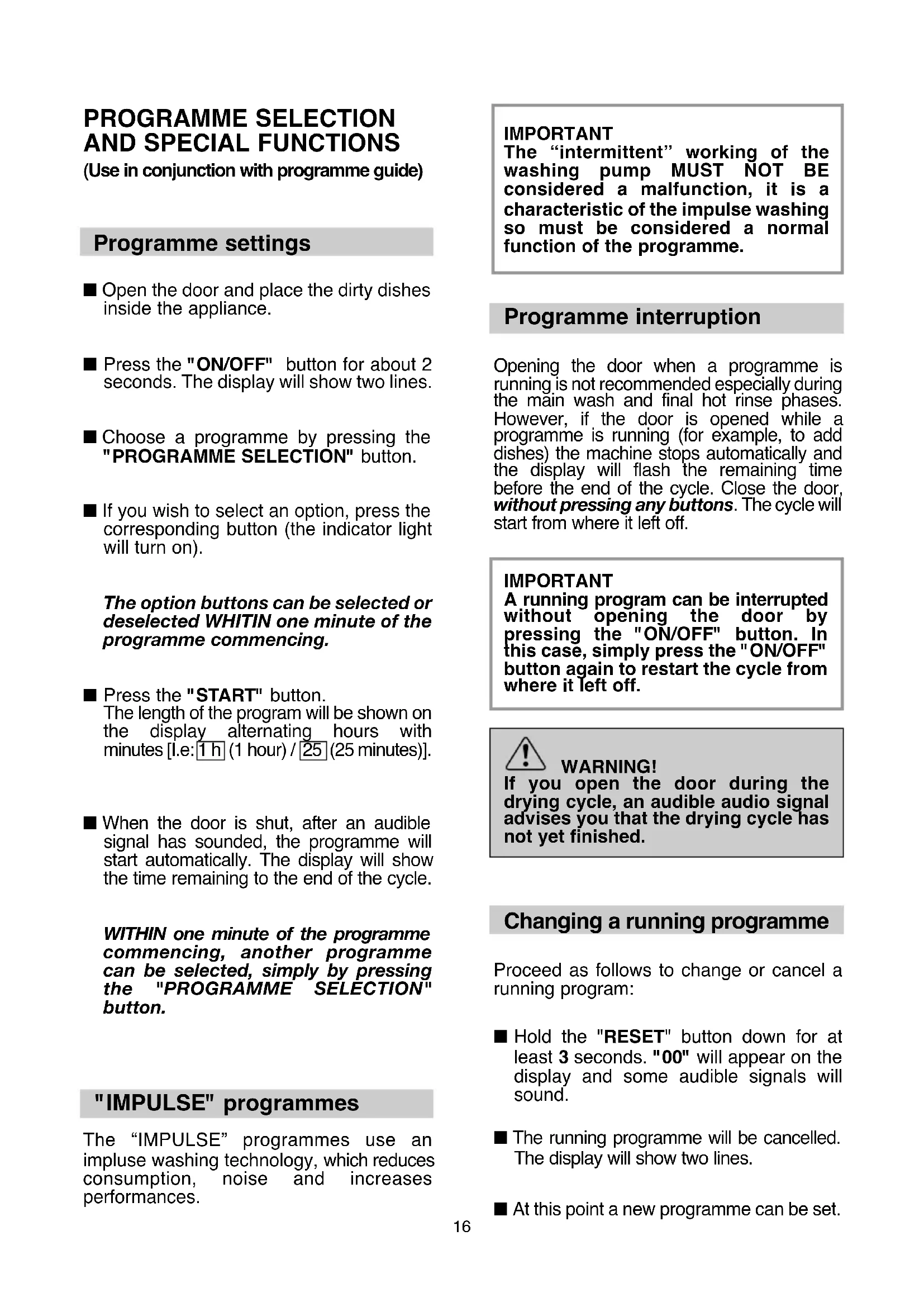

(Use in conjunction with programme guide) Programme settings ■ Open the door and place the dirty dishes inside the appliance. ■ Press the "ON/OFF" button for about 2 seconds. The display will show two lines. ■ Choose a programme by pressing the "PROGRAMME SELECTION" button. ■ If you wish to select an option, press the corresponding button (the indicator light will turn on). The option buttons can be selected or deselected WHITIN one minute of the programme commencing. ■ Press the "START" button. The length of the program will be shown on the display alternating hours with minutes [I.e: 1 h (1 hour) / 25 (25 minutes)]. ■ When the door is shut, after an audible signal has sounded, the programme will start automatically. The display will show the time remaining to the end of the cycle. WITHIN one minute of the programme commencing, another programme can be selected, simply by pressing the "PROGRAMME SELECTION" button. "IMPULSE" programmes The “IMPULSE” programmes use an impluse washing technology, which reduces consumption, noise and increases performances. IMPORTANT The “intermittent” working of the washing pump MUST NOT BE considered a malfunction, it is a characteristic of the impulse washing so must be considered a normal function of the programme. Programme interruption Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically and the display will flash the remaining time before the end of the cycle. Close the door, without pressing any buttons. The cycle will start from where it left off. IMPORTANT A running program can be interrupted without opening the door by pressing the "ON/OFF" button. In this case, simply press the "ON/OFF" button again to restart the cycle from where it left off. WARNING! If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished. Changing a running programme Proceed as follows to change or cancel a running program: ■ Hold the "RESET" button down for at least 3 seconds. "00" will appear on the display and some audible signals will sound. ■ The running programme will be cancelled. The display will show two lines. ■ At this point a new programme can be set.reduction of energy consumption. The automatic door opening in the last phase of drying enables the air to circulate, removing the risk of bad odours. IMPORTANT This option is automatically activated on the "ECO" programme, it is however possible to disable it. The function "SMART DOOR" is not available in the programme "ULTRA RAPID 24'" and "REFRESH". ATTENTION With this option selected, you must not in any way prevent the door from opening or force it shut, as this will damage the mechanism. Ensure that there is free space in front of the door and before closing wait for the return opening device. "ALL IN 1" button This option optimises the use of "ALL in 1" ("3 in 1"/"4 in 1"/"5 in 1", ecc.) combined detergents. By pressing this button, the selected washing programme is modified to get best performance from combined detergents (furthermore, the salt empty alert will be de-activated). WARNING! Once selected, this option keeps being on (light on) also for next washing cycles and it can be de-activate (light off) only by pressing the button once again. IMPORTANT This option is recommended when using the ULTRA RAPID 24' program, the duration of which will be extended for about 15 minutes, allowing the detergent tablets to achieve a better performance.

WARNING! Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser. Programme operations Whilst a programme is running, the display shows the time remaining to the end of the cycle, which is automatically updated. If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off. Programme end A 5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended. IMPORTANT If the "SMART DOOR" function is activated, during the drying phase the door will open automatically and you will have to wait until the indication of the end of cycle before removing the dishes. Option buttons "SMART DOOR" button (AUTOMATIC OPEN DOOR) This option activiates a special device that opens the door a few centimeters during or at the end of the drying cycle (depending on the programme). This ensures the natural and efficient drying of dishes. The duration of the selected cycle will automatically change to allow an optimiazation of temperatures used during the rinse phase, this allows a significant18 Salt empty alert If your dishwasher requires filling with salt, the display will show and flash "SL" when the dishwasher is switched on. The appearance of white stains on dishes is generally a warning sign that the salt container needs filling. "DELAY START" button Dishwasher start time can be set with this button, delaying start from 1 to 23 hours. Proceed as follows to set a delayed start: ■ Press the "DELAY START" button ("00" will appear on the display). ■ Press the button again to increase the delay in hours (each time the button is pressed the delay is increased by 1 hour to a maximum of 23). ■ To start the countdown, press the "START" button. The display will show the time remaining to the begin of the programme. At the end of the countdown, the programme will automatically start and the length of the selected cycle will be shown in the display. Proceed as follows to cancel a delayed start: ■ Hold the "RESET" button down for at least 3 seconds. "00" will appear on the display and some audible signals will sound. ■ The delayed start and the selected programme will be cancelled. The display will show two lines. ■ At this point, a new programme and option buttons must be set to start a new programme as indicated in the "PROGRAMME SETTINGS" section. Alarm mute for the PROGRAMME END The alarm for the programme end may be muted as follows: IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 15 seconds (during this time 2 audible signals will sound).

3. Release the button when the second

audible signal sounds ("b1" will appear on the display to indicate that the alarm is on).

4. Press the same button again ("b0" will

appear on the display to indicate that the alarm is off).

5. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. To turn the alarm on again, follow the same procedure.19

AUTOMATIC FAULT SIGNALS

Turn off the dishwasher, open the inlet hose and reset the cycle. Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service. Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service. Contact Customer Service. Clean the filter plate. If the problem persists, contact Customer Service.

appears on the display and the alarm sounds. E3 appears on the display and the alarm sounds. E4 appears on the display and the alarm sounds. E5,E6,E7,Ef or EL appears on the display and the alarm sounds. E8 or Ei appear on the display and the alarm sounds. No water (inlet hose closed). The machine cannot drain water. Water leak Electronic control fault. The water heating element is not working correctly or the filter plate is clogged. The dishwasher is able to signal a series of faults in the display.

4. Press the same button again ("A1" will

appear on the display to indicate that the memorization is on).

5. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. To disable the memorization, follow the same procedure. IMPORTANT This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur. WARNING! To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher. Memorization of the last programme used The last programme used can be memorized by following the below: IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 30 seconds (during this time, 3 audible signals will sound).

3. Release the button when the THIRD

audible signal sounds ("A0 " will appear on the display to indicate that the memorization is off).20 SMART TOUCH This appliance is equipped with Smart Touch technology that allows you to interact, via the App, with smartphones based on Android operating system and equipped with NFC (Near Field Communication) function. ■ Download on your smartphone the Candy simply-Fi App. The Candy simply-Fi App is available for devices running both Android and iOS, both for tablets and for smartphones. However, you can interact with the machine and take advantage of the potential offered by Smart Touch only with Android smartphones equipped with NFC technology, according to following functional scheme: FUNCTIONS The main functions available using the App are: ■ Voice Assistant – A guide to help you choose the ideal cycle with only three voice inputs (dishes, load level, stain level). ■ Cycles – To select and launch new additional washing programmes. ■ Smart Care – Advanced settings, Water Hardness, "Smart Check-up", Filter-Clean and a troubleshooting guide. ■ My Statistics – Washing statistics and tips for a more efficient use of your machine. Get all the details of the Smart Touch functions, browsing the App in DEMO mode or go to: www.candysmarttouch.com

HOW TO USE SMART TOUCH

FIRST TIME - Machine registration ■ Enter the "Settings" menu of your Android smartphone and activate the NFC function inside the "Wireless & Networks" menu. Depending on the smartphone model and its Android OS version, the process of the NFC activation may be different. Refer to the smartphone manual for more details. ■ Switch the appliance on, then enable the Smart Touch mode by selecting the programme "P0". ■ Open the App, create the user profile and register the appliance following the instructions on the phone display or the "Quick Guide" attached on the machine. Android smartphone with NFC technology Android smartphone without NFC technology Android Tablet Apple iPhone Apple iPad Interaction with the machine + contents Contents only Contents only Contents only Contents only More information, F.A.Q. and the video for an easy registration are available on: www.candysmarttouch.com/how-to21 NEXT TIME – Regular usage ■ Every time you want to manage the machine through the App, first you have to enable the Smart Touch mode by switching the appliance on, then selecting the programme "P0". ■ Make sure you have unlocked your phone (from stand-by mode) and you have activated the NFC function; then, follow the steps mentioned earlier. ■ If you want to start a washing cycle, load the dishes, the detergent and close the door of the appliance. ■ Close the door of the appliance. ■ Select the desired function in the App (e.g.: starting a programme, the "Smart Check-up" cycle, update statistics, etc…). ■ Follow the instructions on the phone display, KEEPING IT ON the Smart Touch logo on the machine dashboard, when requested to do so by the App. NOTES: Place your smartphone so that the NFC antenna on its back matches the position of the Smart Touch logo on the appliance (as illustred below). If you do not know the position of your NFC antenna, slightly move the smartphone in a circular motion over the Smart Touch logo until the App confirms the connection. In order for the data transfer to be successful, it is essential TO KEEP

FEW SECONDS OF THE PROCEDURE; a message on the device will inform about the correct outcome of the operation and advise you when it is possible to move the smartphone away. Thick cases or metallic stickers on your smartphone could affect or prevent the transmission of data between machine and telephone. If necessary, remove them. The replacement of some components of the smartphone (e.g. back cover, battery, etc...) with non-original ones, could result in the NFC antenna removal, preventing the full use of the App. The management and the control of the machine via App is only possible "by proximity": it is therefore not possible to perform remote operations (e.g.: from another room; outside of the house).Wash with prewash For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10 g) directly in the machine. Programme PROGRAMME GUIDE Description Once a day - for normal soiled pans and any other items that have been left all day for washing. Programme for normally soiled tableware (the most efficient in terms of its combined energy and water consumption for that type of tableware). Programme standardised to EN 50242. An antibacterial cycle, intended for washing and sterilising dishes (even heavily stained ones) babies’ bottles etc. Fast cycle, for “normally” dirty dishes - intended for frequent washes and normal loads. Suitable for heavily soiled items that are to be washed straight after a meal (Max 8 place load). Quick wash for dishes which are to be washed immediately after the meal. Wash load of 6 persons. Suitable for delicate crockery and glassware. Also for less soiled items excluding pans. Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load. Quietest washing cycle. Ideal for functioning by night and for taking advantage of reduced energy fares. = "IMPULSE" programmes

N/A = OPTION NOT AVAILABLE

Hygienic 75°C Universal 60°C Daily 55°C Eco 45°C Delicate 45°C Rapid 59' 65°C Ultra Rapid 24' 50°C Ultra Silent 55°C Refresh Activation of Smart Touch mode, to enable the interaction between the appliance and the Candy simply-Fi App. Before the first use with the App, this position will be occupied by Hygienic program. 22YES YES YES YES YES YES YES YES YES

The water-stop device protects against water damages caused by leaks on the fill hose which could develop due to natural ageing of the hose. In the water-stop system the leaking water fills the corrugated hose and activates a stop valve which cuts off the water supply to the machine. This fault is shown by a red sector on the window . Would this occur, please refer to your Service Agent. If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent. Safety antitwist device (press and twist to remove the washer). AQUASTOP-SYSTEM* The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users. Regulate the setting of your water softener unit according to the degree of hardness of your water as follows: IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 5 seconds, UNTIL an audible signal sounds. The current water softener setting level will be shown on the display.

3. Press the same button again to select

the required water softener level: each time the button is pressed, the setting will increase by one level. When you have reached "d7", the display will go back to "d0".

4. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. WARNING! If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company. Regulating the water softener with electronic programmer The water softener can treat water with a hardness level of up to 90°fH (French grading) or 50°dH (German grading) through 8 settings. The settings are listed in the table below:

Water hardness Water softener setting Use of regenerating salt
