Product type	Analog quartz watch
Brand	Zeades
Model	Metropolis ZWA01232
Movement	Quartz (battery SR927W or SR621SW depending on variant)
Main functions	Hour, minute, second, date, day (depending on variant), chronograph 1/1 sec up to 59 min 59 s or 11 h 59 min 59 s, 24-hour hand
Power	Button cell battery SR927W (for models with chronograph) or SR621SW (multifunction)
Time setting	Pull crown to 2nd click, turn to adjust
Date setting	Pull crown to 1st click, turn counterclockwise (avoid between 9 PM and 1 AM)
Day setting	On some models, pull to 1st click and slowly turn clockwise (avoid between 11 PM and 3 AM)
Chronograph usage	Button A: start/stop; Button B: reset
Chronograph reset	Pull crown to 2nd click, press A to reset second hand to zero
Care and cleaning	Clean with a soft, dry cloth. Avoid water and shocks. Do not use chemicals.
Safety	Do not set the date, day, or time during certain time ranges (9 PM - 1 AM for date, 11 PM - 3 AM for day) to avoid damaging the mechanism.
Spare parts and repairability	Battery replaceable. For other parts, contact customer service.
General information	Analog watch with several dial variants (24H chrono, 12H chrono, multifunction, multi-eyes). Manual available for download.

Frequently Asked Questions - Metropolis ZWA01232 Zeades

How to set the time on my Zeades Metropolis watch?

Pull the crown to the 2nd click. Turn it to set the hour and minute hands. Then push the crown back to the normal position to start the second hand.

How to set the date?

Pull the crown to the 1st click. Turn it counterclockwise to set the date. Avoid doing this between 9:00 PM and 1:00 AM, as the date may not change correctly.

How to use the chronograph?

Press button A to start and stop timing. Press button B to reset the chronograph hands to zero. Maximum capacity depends on the model (59 min 59 s or 11 h 59 min 59 s).

What to do if the chronograph second hand does not return to zero?

Pull the crown to the 2nd click. Press button A continuously until the second hand is at 12 o'clock (zero). Then push the crown back to the normal position.

How to set the day on multifunction models?

Pull the crown to the 1st click. Turn it very slowly clockwise until the day hand points exactly to the desired day. Avoid doing this between 11 PM and 3 AM.

How to set the 24-hour hand?

On models with a 24-hour hand, pull the crown to the 1st click and turn it counterclockwise to set the second time (24-hour format). Then push the crown back.

What battery does my watch use?

It depends on the model. Watches with a chronograph use an SR927W battery, while multifunction models use an SR621SW. Check the inscription on the back of the case.

Can I wear my watch in the shower?

The manual does not mention water resistance. As a precaution, avoid any contact with water to prevent damage to the mechanism. Clean it with a soft, dry cloth.

How to replace the battery?

The battery is replaceable. It is recommended to have the replacement done by a professional watchmaker to avoid damaging the watch.

Where can I get after-sales service?

For any questions or repairs, contact Zeades customer service by email at [e-mail].

USER MANUAL Metropolis ZWA01232 Zeades

Hour hand Second hand Minute hand 2nd position 1st position Normal crown position *Date

Date position may be located at different position depends on models.

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   *If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

24H CHRONO, TIME & DATE—

Chronograph function : center second hand chronograph 1/1 sec.

Timing up to 59 minutes 59 seconds

Battery: SR927W

A/ DISPLAYS & BUTTONS

Chronograph second hand hour Hand Chronograph minute hand Minute hand Button A 24 hour hand 1st position 2nd position Normal crown position Button B Small Second hand Calendar

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   *If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand and chronograph minute hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown

* Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

12H CHRONO, TIME & DATE—

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 11 hours 59 minutes 59 seconds. Battery : sr927w

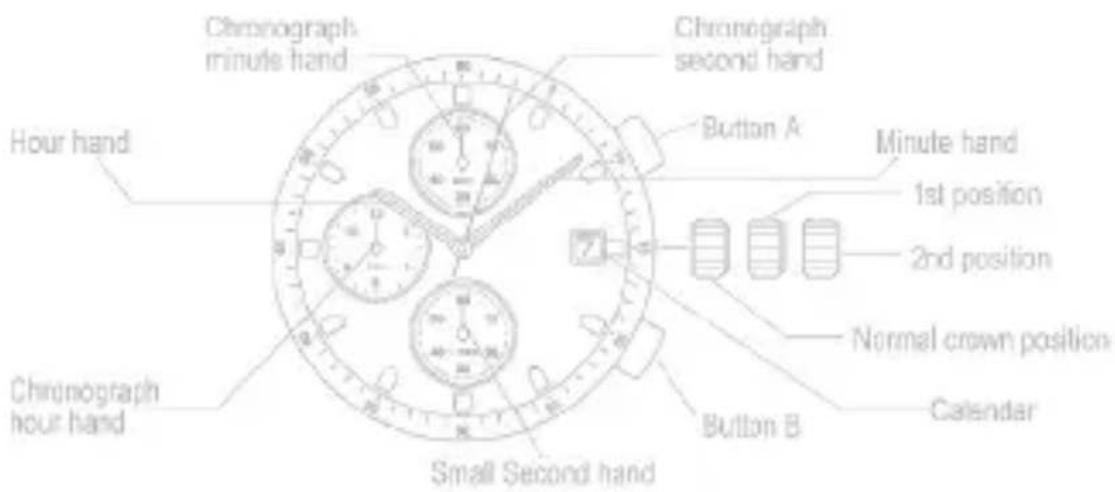

A/ DISPLAYS & BUTTONS

Chronograph minute hand Chronograph second hand Hour hand Button A Minute hand 1st position 2nd position Normal crown position Clockup hour hand Button B Calendar Small Second hand

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   * If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 11 hours 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 11 hours 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand, chronograph minute hand, and chronograph hour hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The Chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown to the normal position.

* Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

MULTIFUNCTIONS

Analog quarts watch designed with multi hands, to enhanced perfection. The hands, in the small displays, show day, date & 24 hour time. Battery: sr621sw

A/ DISPLAYS & BUTTONS

Minute hand Day Hour hand Ochotograph second hand Normal crown position 1st position 2nd position Gate 24-hour system

The three small dials are arranged in one of two kinds, depending on each model. All of them are operated similarly, however.

B/ SETTING THE DAY OF THE WEEK (9 O'CLOCK POSITION, CLOCKWISE)

Set the day by pulling out the crown to second click position and rotating it forward (to rotate the hour and minute hands clockwise).

If the day is set by rotating the crown backyard (rotating the hour and minute hands counter-clockwise), the date may not be changed.

Note : The day is changed during the period from about 0:00 AM to about 5:30 AM

C/ SETTING THE DATE (3 O'CLOCK POSITION, CLOCKWISE)

Quick change function : Pull the crown out to the first click position and set the date by rotating the crown backyard. If the date is set between 9:00 PM and 0:00 AM, the date will not change correctly.

D/ SETTING THE SECOND, MINUTE, HOUR, 24 HOUR, DAY

The second, minute, hour, 24-hour system, and day are set by the same operation.

Pull out the crown to the second click position when the second hand reaches the 12-o'clock position to stop the second hand there. Rotate the crown forward (to rotate the hour and minute hands clockwise) to set the day.

The day hand moves forward 1 step each time the 24-hour hand rotates a round. You cannot set the day by rotating the crown in reverse. After setting the day, set the hour and minute hands. Check a.m. or p.m. by the 24-hour hand.

When setting the minute hand, put it 4 or 5 minutes forward from the current time, and then return it to the current time.

After setting the time, push in the crown to the normal position, synchronizing with the time signal.

The second hand starts moving again at the time when the crown is pushed back.

Notes : (1) The day and date are changed during the period from 0:00 a.m. to 5:30 a.m. (2) The day and date hands rotate only forward.

E/ SETTING PROCEDURE


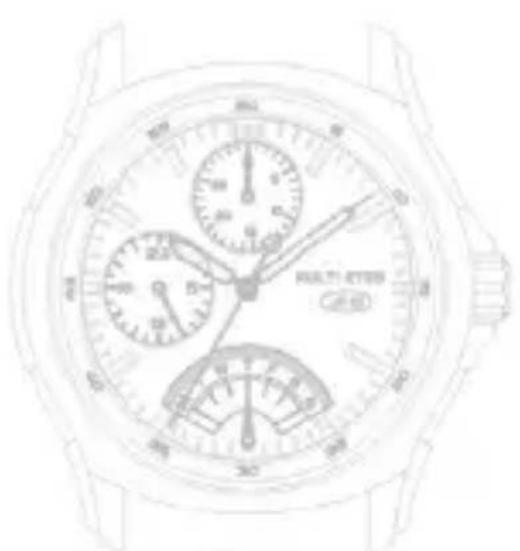

MULTI EYES WITH RETROGRADE DAY FUNCTION \_\_\_\_

Caliber No. JR00, JR10, JR20

Battery: SR621SW

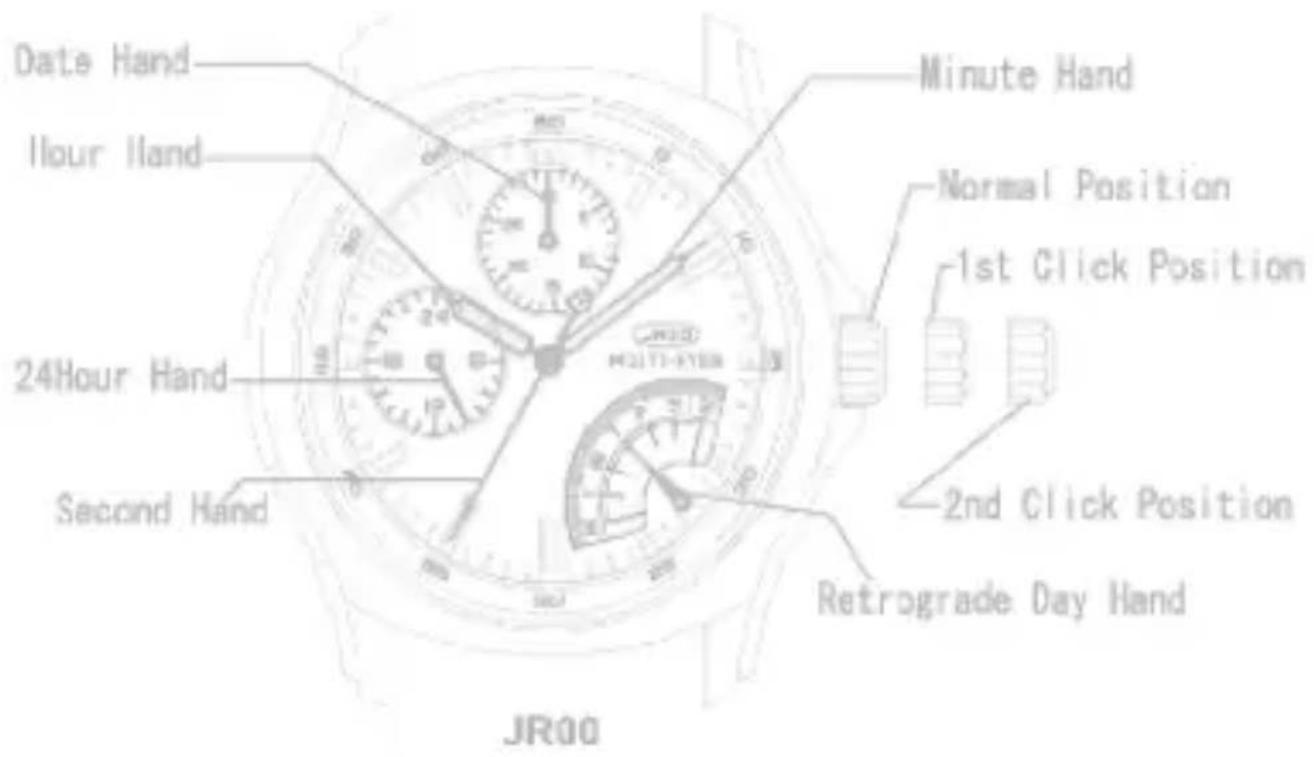

A/ DISPLAYS & BUTTONS

Date Hand Hour Hand 24Hour Hand Second Hand JR00 Minute Hand Normal Position 1st Click Position 2nd Click Position Retrograde Day Hand

MULTI-ETES OFF-10

JR10

MULTI-2 PETER 2000

JR20

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Click Position.
2. Turn the crown to set hour and minute hands.

C/ SETTING THE DATE

* Please do not set the date between 9:00PM and 1:00AM

1. Pull the crown out to the 1st Click Position.
2. Turn the crown counter-clockwise to set the date
3. After the date has been set, push the crown back to the normal position.

D/ SETTING THE DAY

* Please do not set the date between 11:00PM and 3:00AM

1. Pull the crown out to the 1st Click Position.

2. Turn the crown clockwise very slowly to set the day.

* Please do not stop when the hand is between the day like the following picture.

Please do not stop when the day hand is in this position. Figure. 1 Please set the day hand just positioned on the day scale Figure. 2

*If the day hand stops at a position like Fig.1, please turn the crown clockwise very slowly and stop soon after the day hand positioned like Fig.2.

1. After the day has been set, push the crown back to the normal position.

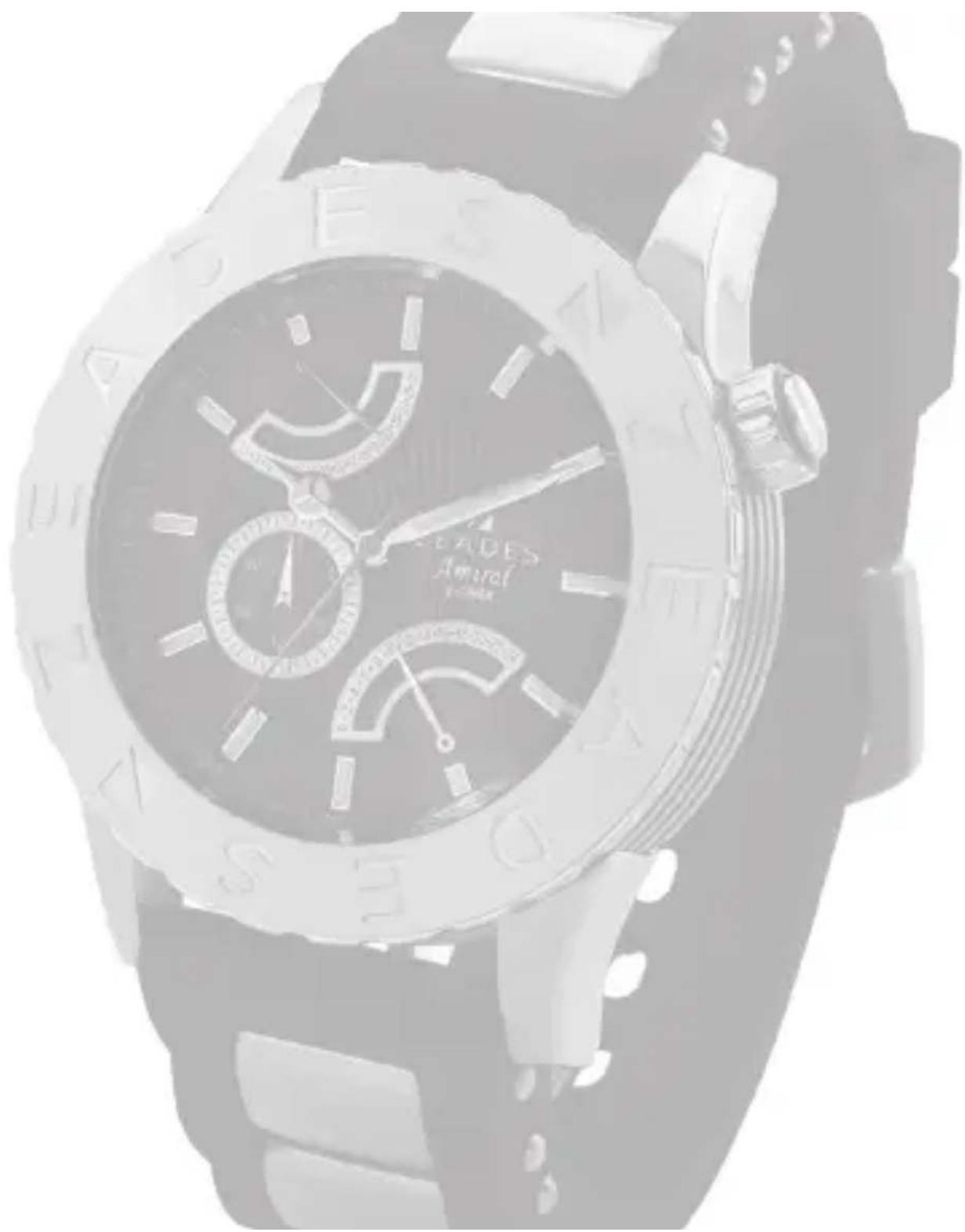

Close-up of a luxury wristwatch with dual dials and a watch face (no visible text or symbols)

FLYBACK / DUAL TIME

Caliber No. GP52

Battery: SR920SW

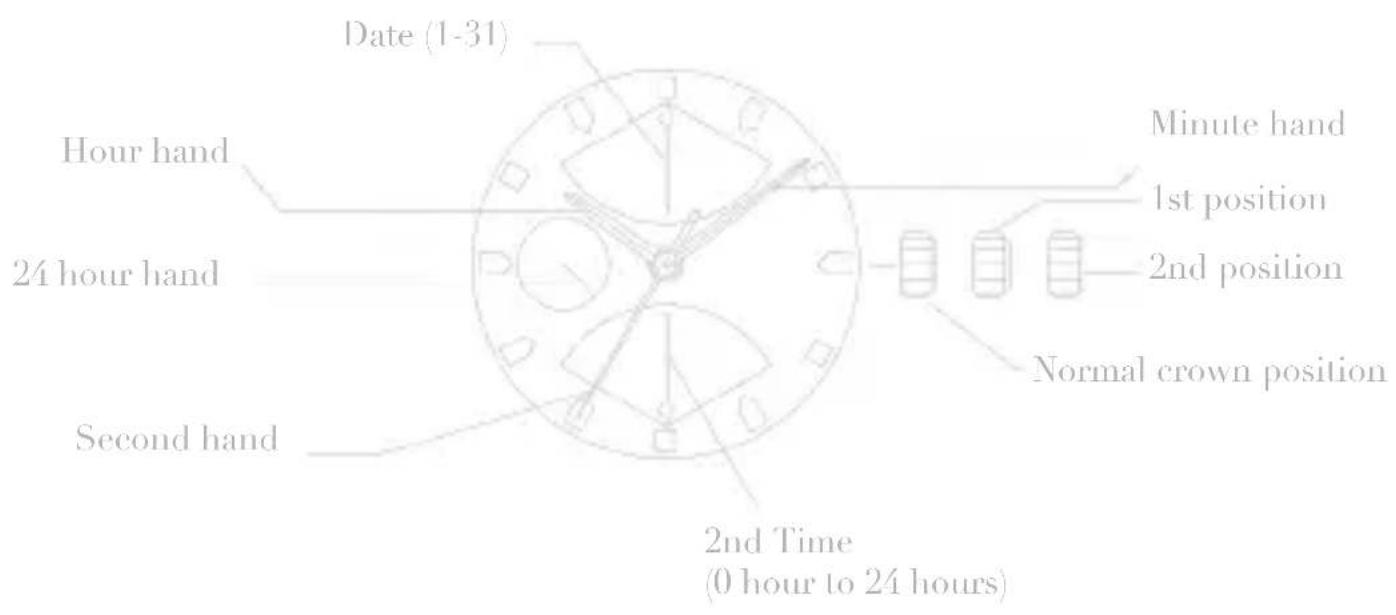

A/ DISPLAYS & BUTTONS

Date (1-31) Hour hand 24 hour hand Second hand Minute hand 1st position 2nd position Normal crown position 2nd Time (0 hour to 24 hours)

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown clockwise to set the date.
   * If the date is set between the hours of around 9:00 PM and 2:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ SETTING THE 2nd TIME (24 HOURS)

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the 2nd time (24H).
3. After the 2nd time (24H) has been set, push the crown back to the normal position.

Pour toute question concernant notre service après-vente, contactez / For any after-sale service inquiry, please contact :

[e-mail]

Scanned text of contract clauses

Collections and E-Shop

www.zeades.com

MANUEL D'UTILISATION

DATE & HEURE

A/ RÉGLAGE DE L'HEURE

A/ INDICATIONS & BOUTONS

A/ INDICATIONS & BOUTONS

A/ INDICATIONS & BOUTONS

AIGUILLE DES MINUTES JOUR (DE LA SEMAINE) AIGUILLE DES HEURES TROTTEUSE XII XI XII POSITION NORMALE DE LA COURONNE 1° POSITION 2° POSITION DATE AIGUILLE 24 HEURES

B/ RÉGLAGE DU JOUR

MTW T F S S Figure. 1

M T F S S M T F S S Figure. 2

Close-up of a luxury wristwatch with dual dials and a watch face (no visible text or symbols)

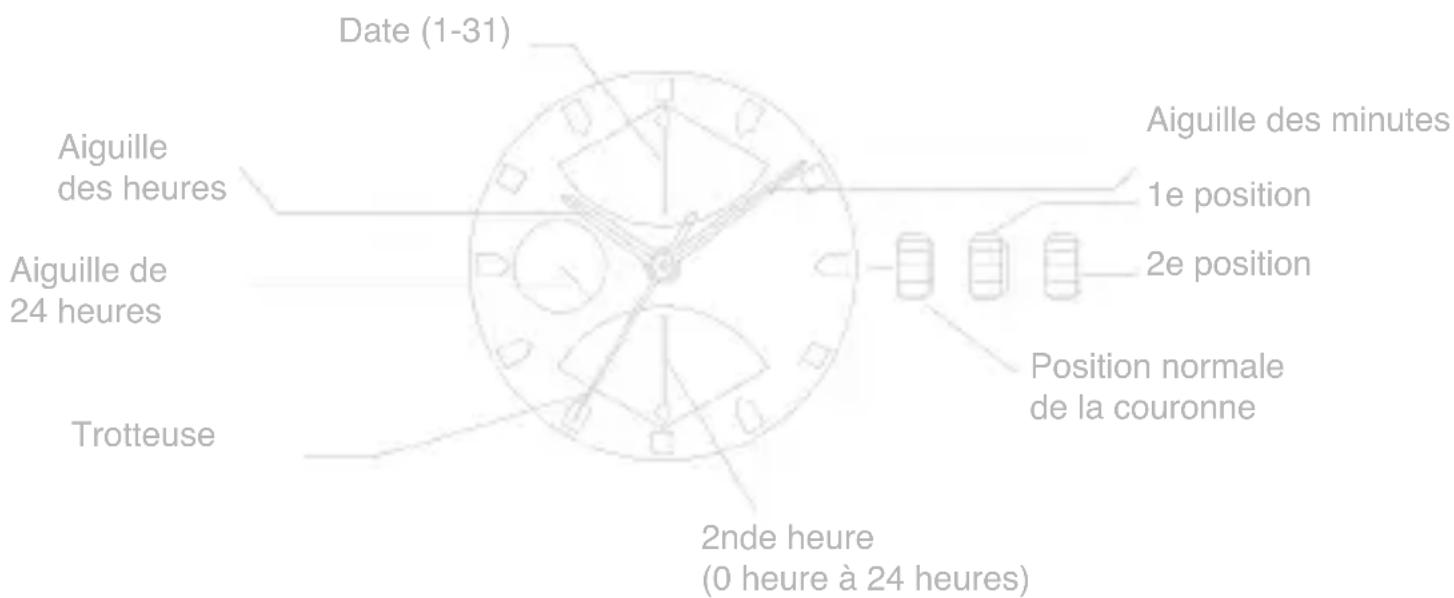

MOUVEMENT RETROGRADE DOUBLE FUSEAU —
