Product Type	Multifunctional analog wristwatch
Brand	Zeades
Model	Metropolis ZWA01233
Power Supply	Button cell (SR927W or SR621SW depending on version)
Main Functions	Hour, minute, second, date, day, chronograph 1/1 sec (up to 59 min 59 s or 11 h 59 min 59 s), second time zone 24h
Movement	Analog quartz
Water Resistance	Not specified – avoid any contact with water
Case Material	Stainless steel or alloy (estimated)
Glass Material	Mineral (estimated)
Strap	Leather or steel (depending on version, not specified)
Case Dimensions	Approximately 42 mm diameter, 12 mm thickness (estimated)
Weight	Approximately 80 g (estimated)
Display	Hands (hours, minutes, seconds) and subdials (date, day, 24h, chronograph)
Date Setting	By crown at position 1, counterclockwise rotation
Day Setting	By crown at position 2 (or 1 depending on version), clockwise or counterclockwise rotation
Chronograph	Start/stop by button A, reset by button B
Second Time Zone	24h indication adjustable by crown at position 1, counterclockwise rotation
Care and Cleaning	Wipe with a soft, dry cloth. Avoid water and chemicals.
Safety	Do not expose to extreme temperatures. Keep batteries away from children.
Spare Parts and Repairability	Battery and strap available from manufacturer or watchmaker. Repairs by a professional.
General Information	Full manual available online at notice-facile.com. Customer service contact: [e-mail]

Frequently Asked Questions - Metropolis ZWA01233 Zeades

How to set the time on my Metropolis ZWA01233 watch?

Pull the crown to the 2nd click (time setting position). Turn the crown to position the hour and minute hands. Once set, push the crown back to normal position to restart the seconds hand.

How to set the date?

Pull the crown to the 1st click. Turn it counterclockwise until the desired date appears. Caution: do not set the date between 9 PM and 1 AM to avoid incorrect date change the next day.

How to use the chronograph?

Press button A to start and stop the chronograph. Press button B to reset the chronograph hands to zero. Measurement can go up to 59 minutes 59 seconds or 11 hours 59 minutes 59 seconds depending on the movement.

What to do if the chronograph hand does not return to zero after a reset?

Pull the crown to the 2nd click position. Continuously press button A to advance the seconds hand to the 12 o'clock position (zero). Then return the crown to the normal position.

How to set the day?

Depending on the movement, pull the crown to position 1 or 2. Turn it very slowly clockwise to scroll through the days. Avoid setting the day between 11 PM and 3 AM. Ensure the day hand points exactly to the graduation.

How to set the second time zone (24h)?

Pull the crown to the 1st click. Turn it counterclockwise to adjust the 24-hour hand. Then push the crown back to the normal position.

What type of battery does my watch use?

Depending on the movement, the watch uses a SR927W battery (for 24h/12h chronographs) or SR621SW (for multifunction versions). Check the exact reference in the manual or with the manufacturer.

Is my watch water resistant?

The manual does not specify a water resistance rating. As a precaution, avoid any contact with water (rain, shower, swimming). Consult the manufacturer for more details.

How to clean my watch?

Use a soft, dry cloth to wipe the case and strap. Do not use chemical or abrasive products. Avoid moisture.

Where can I find the full manual?

The manual is available for free in PDF format on notice-facile.com. You can also contact customer service at [e-mail].

USER MANUAL Metropolis ZWA01233 Zeades

Date position may be located at different position depends on models.

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.

*If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

1. After the date has been set, push the crown back to the normal position.

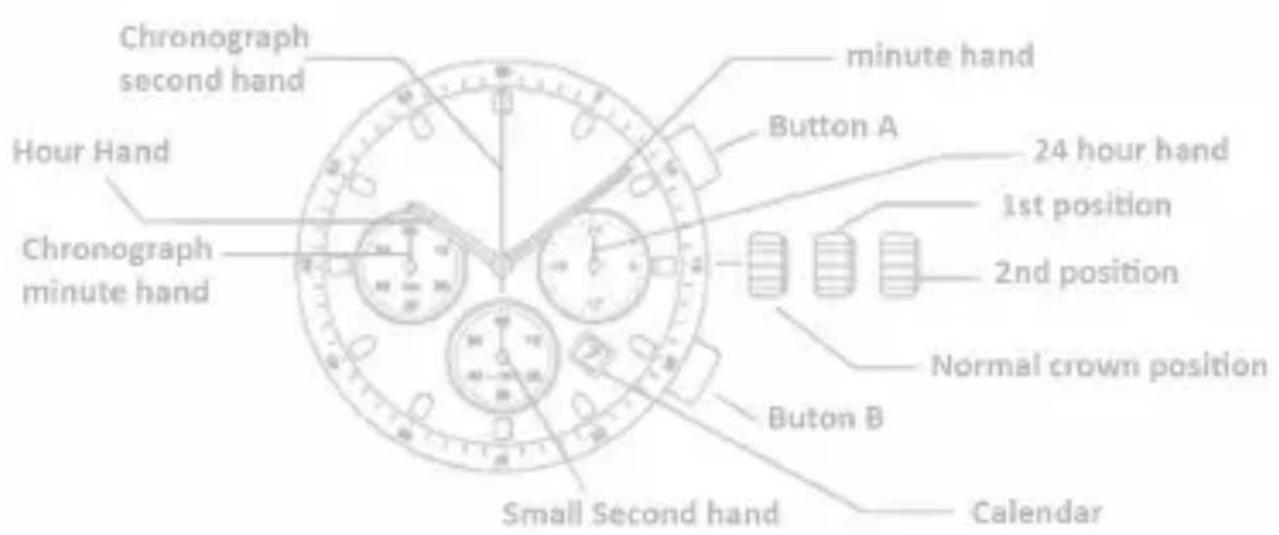

24H CHRONO, TIME & DATE

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 59 minutes 59 seconds Battery: SR927W

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.

*If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

1. After the date has been set, push the crown back to the normal position.

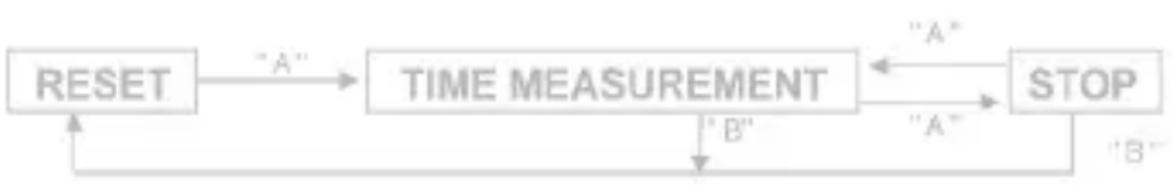

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand and chronograph minute hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown

*Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

12H CHRONO, TIME & DATE

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 11 hours 59 minutes 59 seconds. Battery: sr927w

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.

2. Turn the crown counter-clockwise to set the date.

3. If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

4. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 11 hours 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 11 hours 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand, chronograph minute hand, and chronograph hour hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The Chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown to the normal position.

*Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

MULTIFUNCTIONS

Analog quarts watch designed with multi hands, to enhanced perfection. The hands, in the small displays, show day, date & 24 hour time. Battery: sr621sw

A/ DISPLAYS & BUTTONS

The three small dials are arranged in one of two kinds, depending on each model. All of them are operated similarly, however.

B/ SETTING THE DAY OF THE WEEK (9 O'CLOCK POSITION, CLOCKWISE)

Set the day by pulling out the crown to second click position and rotating it forward (to rotate the hour and minute hands clockwise).

If the day is set by rotating the crown backyard (rotating the hour and minute hands counter-clockwise), the date may not be changed.

Note: The day is changed during the period from about 0:00 AM to about 5:30 AM

C/ SETTING THE DATE (3 O'CLOCK POSITION, CLOCKWISE)

Quick change function : Pull the crown out to the first click position and set the date by rotating the crown backyard. If the date is set between 9:00 PM and 0:00 AM, the date will not change correctly.

D/ SETTING THE SECOND, MINUTE, HOUR, 24 HOUR, DAY

The second, minute, hour, 24-hour system, and day are set by the same operation.

Pull out the crown to the second click position when the second hand reaches the 12-o'clock position to stop the second hand there. Rotate the crown forward (to rotate the hour and minute hands clockwise) to set the day.

The day hand moves forward 1 step each time the 24-hour hand rotates a round. You cannot set the day by rotating the crown in reverse. After setting the day, set the hour and minute hands. Check a.m. or p.m. by the 24-hour hand.

When setting the minute hand, put it 4 or 5 minutes forward from the current time, and then return it to the current time.

After setting the time, push in the crown to the normal position, synchronizing with the time signal.

The second hand starts moving again at the time when the crown is pushed back.

Notes: (1) The day and date are changed during the period from 0:00 a.m. to 5:30 a.m. (2) The day and date hands rotate only forward.

E/SETTING PROCEDURE

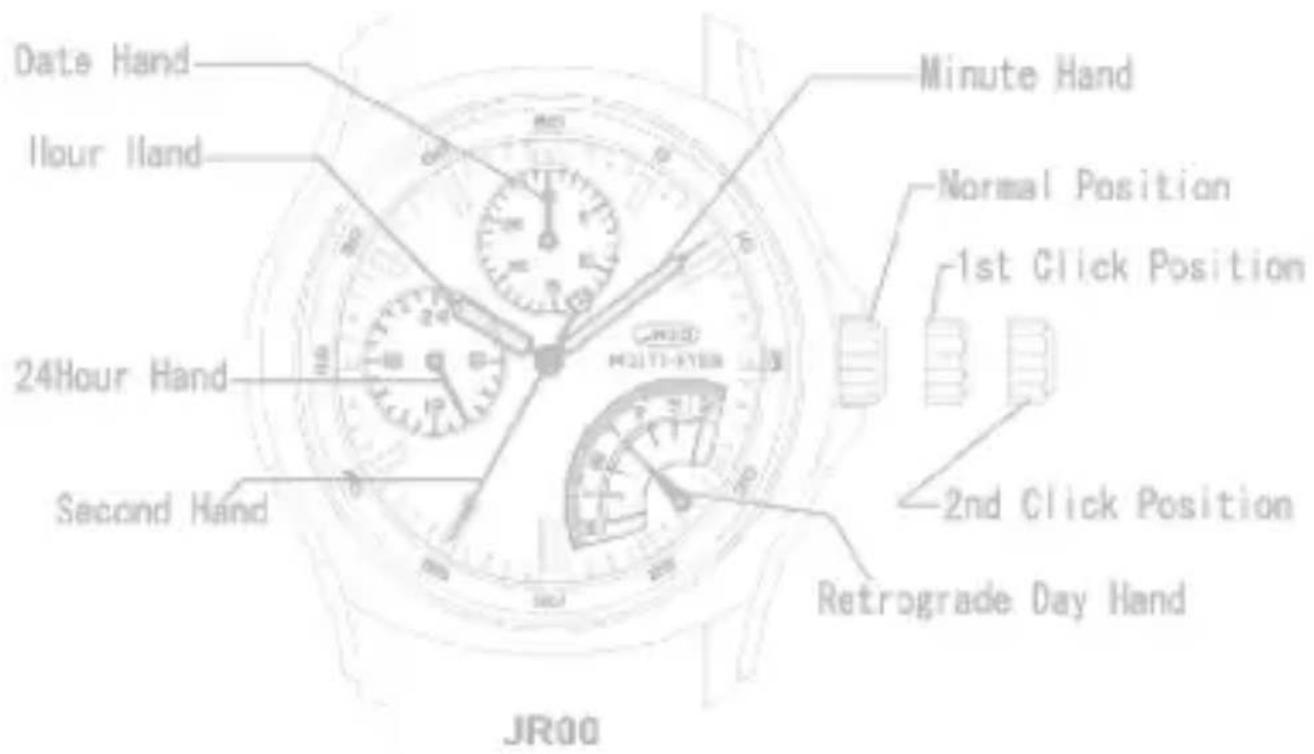

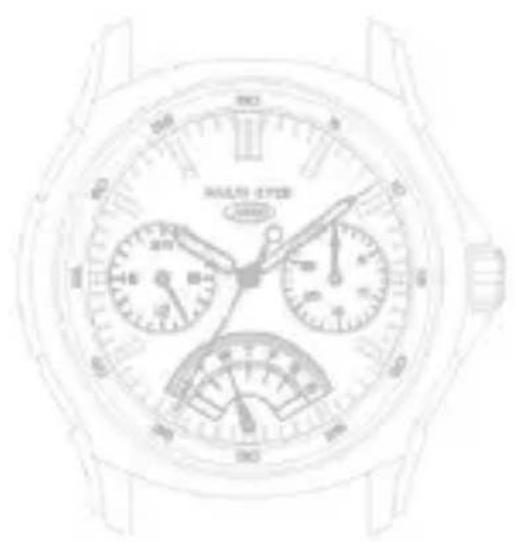

MULTI EYES WITH RETROGRADE DAY FUNCTION

Caliber No.JR00, JR10, JR20

Battery:SR621SW

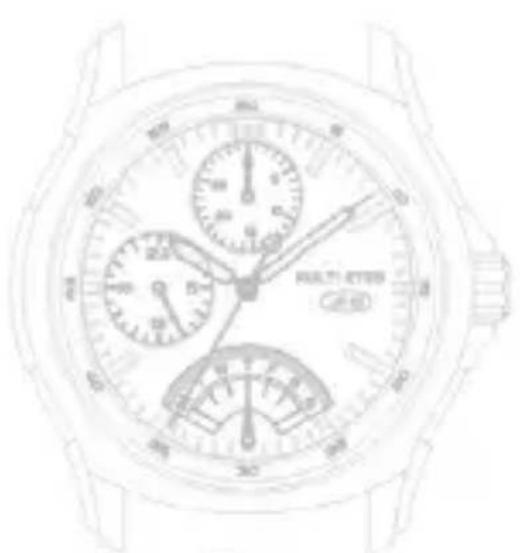

A/ DISPLAYS & BUTTONS

JR10

JR20

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Click Position.
2. Turn the crown to set hour and minute hands.

C/ SETTING THE DATE

• Please do not set the date between 9:00PM and 1:00AM

• Pull the crown out to the 1st Click Position.

• Turn the crown counter-clockwise to set the date
• After the date has been set, push the crown back to the normal position.

D/ SETTING THE DAY

• Please do not set the date between 11:00PM and 3:00AM

• Pull the crown out to the 1st Click Position.

• Turn the crown clockwise very slowly to set the day.

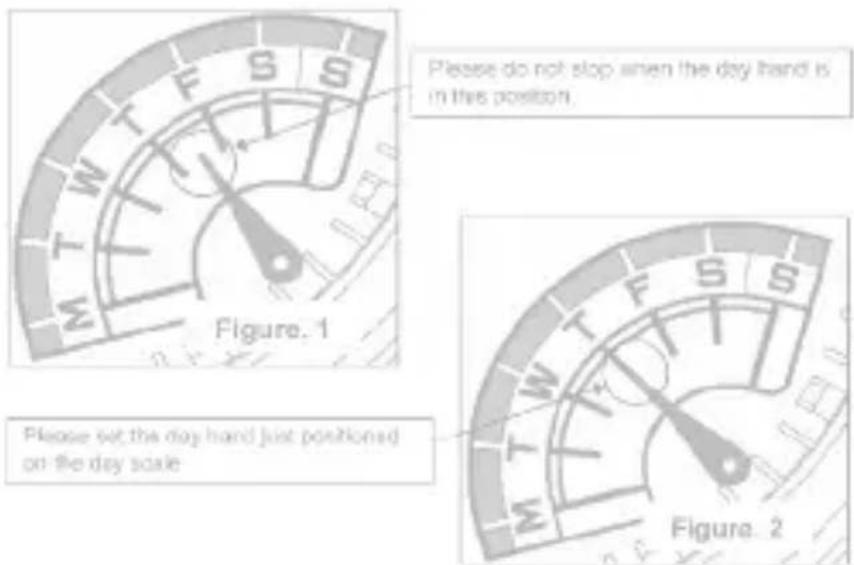

• Please do not stop when the hand is between the day like the following picture.

*If the day hand stops at a position like Fig.1, please turn the crown clockwise very slowly and stop soon after the day hand positioned like Fig.2.

1. After the day has been set, push the crown back to the normal position.

FLYBACK / DUAL TIME

Caliber No. GP52

Battery:SR920SW

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.

2. Turn the crown clockwise to set the date.

3. If the date is set between the hours of around 9:00 PM and 2:00 AM, the date may not change the following day.

4. After the date has been set, push the crown back to the normal position.

D/ SETTING THE 2nd TIME (24 HOURS)

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the 2nd time (24H).
3. After the 2nd time (24H) has been set, push the crown back to the normal position.

Pour toute question concernant notre service après-vente, contactez /For any after-sale service inquiry, please contact:

[e-mail]

Collections and E-Shop

www.zeades.com

MANUEL D'UTILISATION

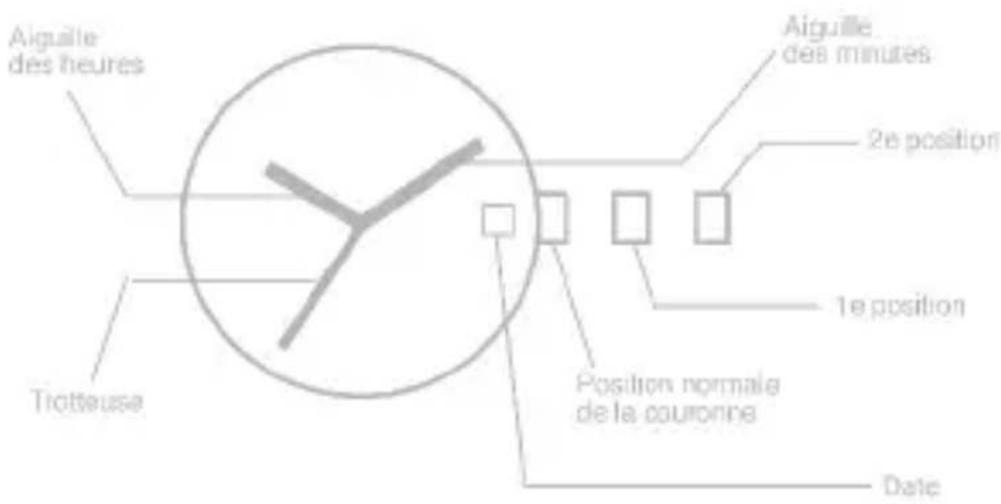

DATE & HEURE

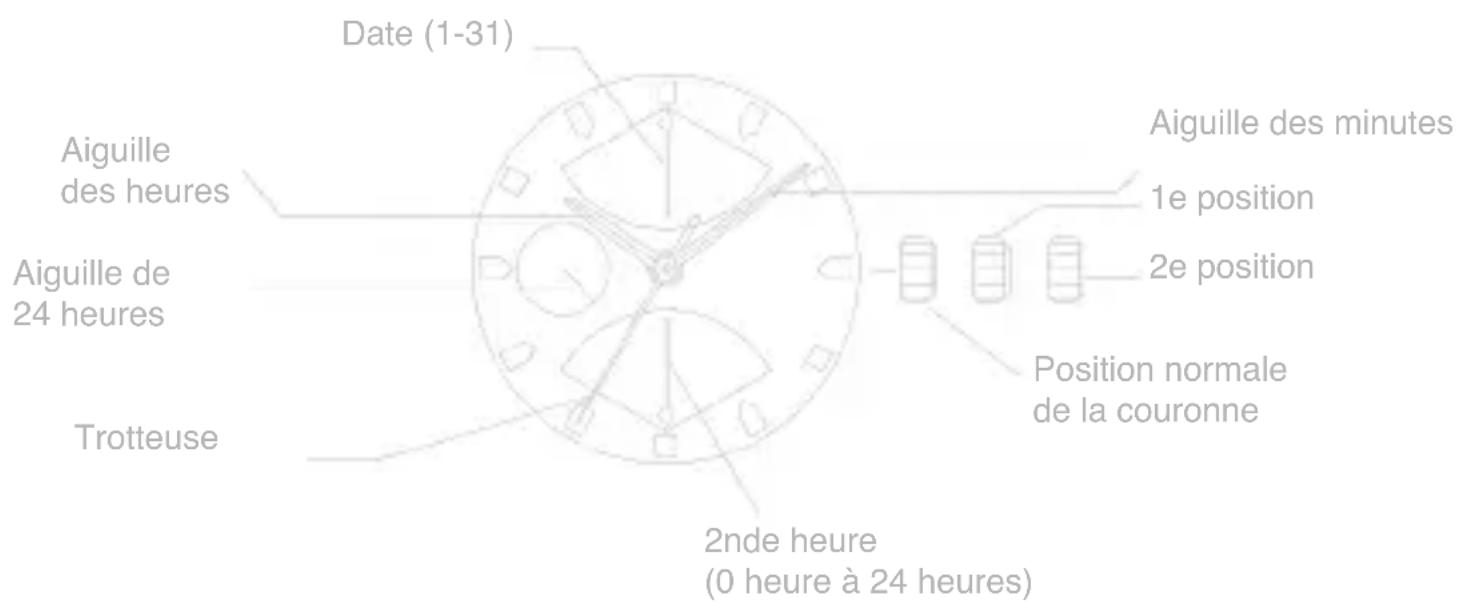

A/ RÉGLAGE DE L'HEURE

A/ INDICATIONS & BOUTONS

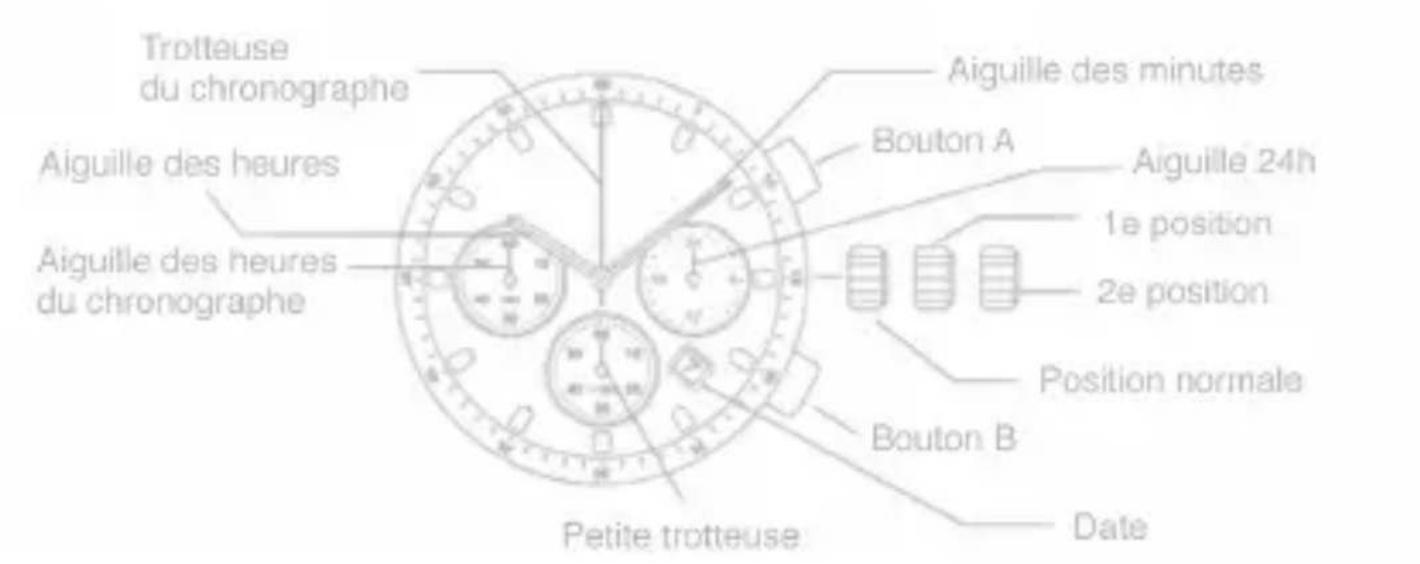

B/ RÉGLAGE DE L'IIEURE

A/INDICATIONS & BOUTONS

B/ RÉGLAGE DE L'HEURE

A/ INDICATIONS & BOUTONS

B/ RÉGLAGE DE L'HEURE
