Product Type	Analog Quartz Watch
Brand	Zeades
Model	Constellation ZWA01303
Power	SR927W Battery (1.55 V)
Main Functions	Hour, minute, second, date, 24h chronograph (up to 59 min 59 s), 24h hand
Display	Analog with central seconds hand, sub-dials for chronograph and 24h
Time Setting	Crown with 2 positions: 1st click for date, 2nd click for time
Chronograph	Buttons A (start/stop) and B (reset)
Chronograph Reset	Special procedure after battery change or misalignment
Case Material	Not specified (estimate: stainless steel or alloy)
Crystal	Mineral (estimate)
Water Resistance	Not specified (estimate: 30 m, splash resistant)
Case Diameter	Approx. 40 mm (estimate)
Case Thickness	Approx. 10 mm (estimate)
Weight	Approx. 100 g (estimate)
Strap	Not specified (estimate: steel or leather)
Care	Avoid shocks, water, magnetic fields; clean with soft cloth
Battery Replacement	By a watchmaker; after replacement, reset chronograph if necessary
After-Sales Service	[e-mail]

Frequently Asked Questions - Constellation ZWA01303 Zeades

How to set the time on my Zeades Constellation watch?

Pull the crown to the 2nd click. Turn it to set the hour and minute hands. Once set, push the crown back to normal position for the seconds hand to start.

How to set the date on the Constellation watch?

Pull the crown to the 1st click then turn it counterclockwise to adjust the date. Avoid setting the date between 9pm and 1am to not disturb the date change mechanism.

How to use the chronograph on the Zeades watch?

Press button A to start/stop. Press A again to stop. Use button B to reset the chronograph hands to zero.

What to do if the chronograph seconds hand does not return to zero?

Pull the crown to the 2nd click. Press button A to move the seconds hand to the 12 o'clock position. Then push the crown back to normal. This procedure is also necessary after a battery change.

My watch stops, what should I do?

First check if the battery is dead. If so, replace it with a SR927W battery. If the problem persists, contact after-sales service.

How to replace the battery of the Constellation watch?

It is recommended to have the battery replaced by a watchmaker. After replacement, you may need to reset the chronograph following the reset procedure.

How to set the 24h hand on the watch?

The 24h hand is set at the same time as the main hands. Make sure to distinguish AM and PM when setting the time.

Can I swim with my Zeades Constellation watch?

The manual does not specify the water resistance level. As a precaution, avoid any contact with water. Consider it splash resistant only.

How to clean my watch?

Use a soft dry cloth. Avoid chemicals. For the strap, follow specific instructions if provided.

Where can I find spare parts or get my watch repaired?

Contact Zeades after-sales service at [e-mail] for any repair or spare parts requests.

USER MANUAL Constellation ZWA01303 Zeades

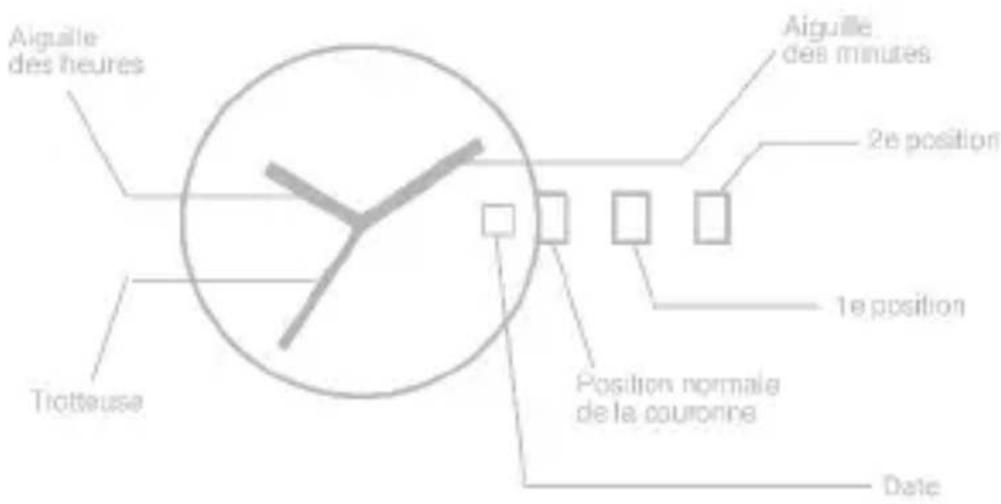

Hour hand Second hand Minute hand 2nd position 1st position Normal crown position *Date

Date position may be located at different position depends on models.

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   *If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

24H CHRONO, TIME & DATE—

Chronograph function : center second hand chronograph 1/1 sec.

Timing up to 59 minutes 59 seconds

Battery: SR927W

A/ DISPLAYS & BUTTONS

Chronograph second hand hour Hand Chronograph minute hand Minute hand Button A 24 hour hand 1st position 2nd position Normal crown position Buton B Small Second hand Calendar

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   *If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand and chronograph minute hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown

* Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

12H CHRONO, TIME & DATE—

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 11 hours 59 minutes 59 seconds. Battery : sr927w

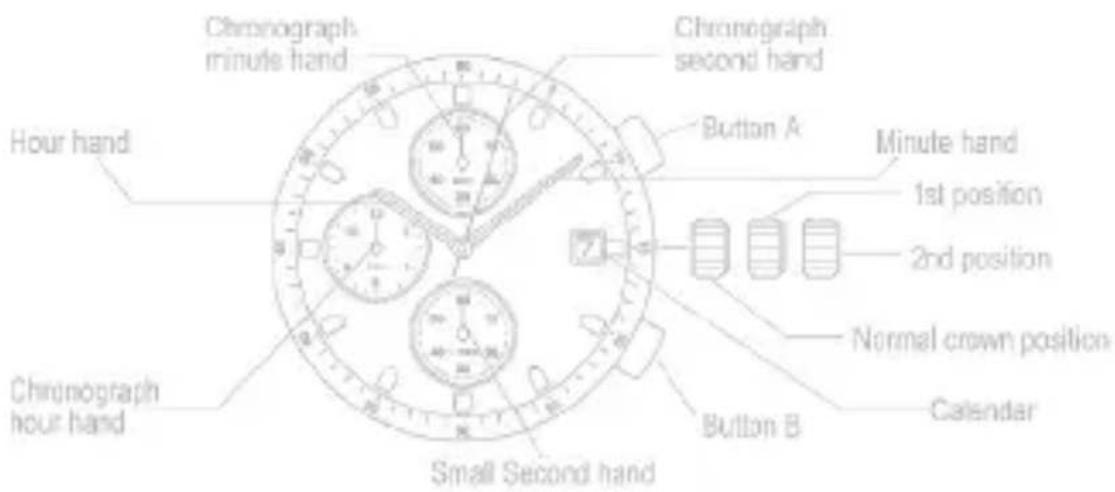

A/ DISPLAYS & BUTTONS

Chronograph minute hand Chronograph second hand Hour hand Button A Minute hand 1st position 2nd position Normal crown position Clockup hour hand Button B Calendar Small Second hand

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   * If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 11 hours 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 11 hours 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand, chronograph minute hand, and chronograph hour hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The Chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown to the normal position.

* Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

MULTIFUNCTIONS

Analog quarts watch designed with multi hands, to enhanced perfection. The hands, in the small displays, show day, date & 24 hour time. Battery: sr621sw

A/ DISPLAYS & BUTTONS

Minute hand Day Hour hand Ochotograph second hand Normal crown position 1st position 2nd position Gate 24-hour system

The three small dials are arranged in one of two kinds, depending on each model. All of them are operated similarly, however.

B/ SETTING THE DAY OF THE WEEK (9 O'CLOCK POSITION, CLOCKWISE)

Set the day by pulling out the crown to second click position and rotating it forward (to rotate the hour and minute hands clockwise).

If the day is set by rotating the crown backyard (rotating the hour and minute hands counter-clockwise), the date may not be changed.

Note : The day is changed during the period from about 0:00 AM to about 5:30 AM

C/ SETTING THE DATE (3 O'CLOCK POSITION, CLOCKWISE)

Quick change function : Pull the crown out to the first click position and set the date by rotating the crown backyard. If the date is set between 9:00 PM and 0:00 AM, the date will not change correctly.

D/ SETTING THE SECOND, MINUTE, HOUR, 24 HOUR, DAY

The second, minute, hour, 24-hour system, and day are set by the same operation.

Pull out the crown to the second click position when the second hand reaches the 12-o'clock position to stop the second hand there. Rotate the crown forward (to rotate the hour and minute hands clockwise) to set the day.

The day hand moves forward 1 step each time the 24-hour hand rotates a round. You cannot set the day by rotating the crown in reverse. After setting the day, set the hour and minute hands. Check a.m. or p.m. by the 24-hour hand.

When setting the minute hand, put it 4 or 5 minutes forward from the current time, and then return it to the current time.

After setting the time, push in the crown to the normal position, synchronizing with the time signal.

The second hand starts moving again at the time when the crown is pushed back.

Notes : (1) The day and date are changed during the period from 0:00 a.m. to 5:30 a.m. (2) The day and date hands rotate only forward.

E/ SETTING PROCEDURE


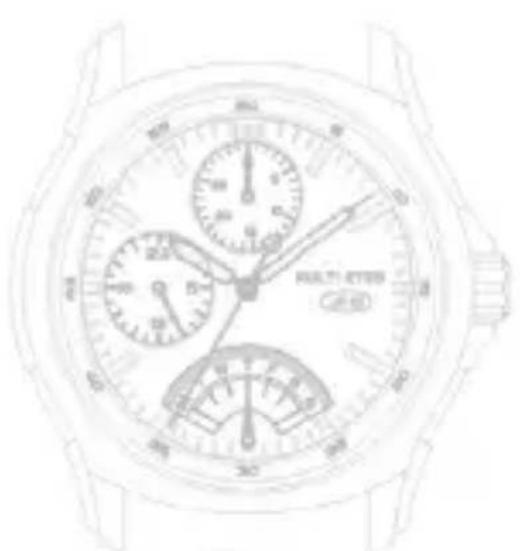

MULTI EYES WITH RETROGRADE DAY FUNCTION \_\_\_\_

Caliber No. JR00, JR10, JR20

Battery: SR621SW

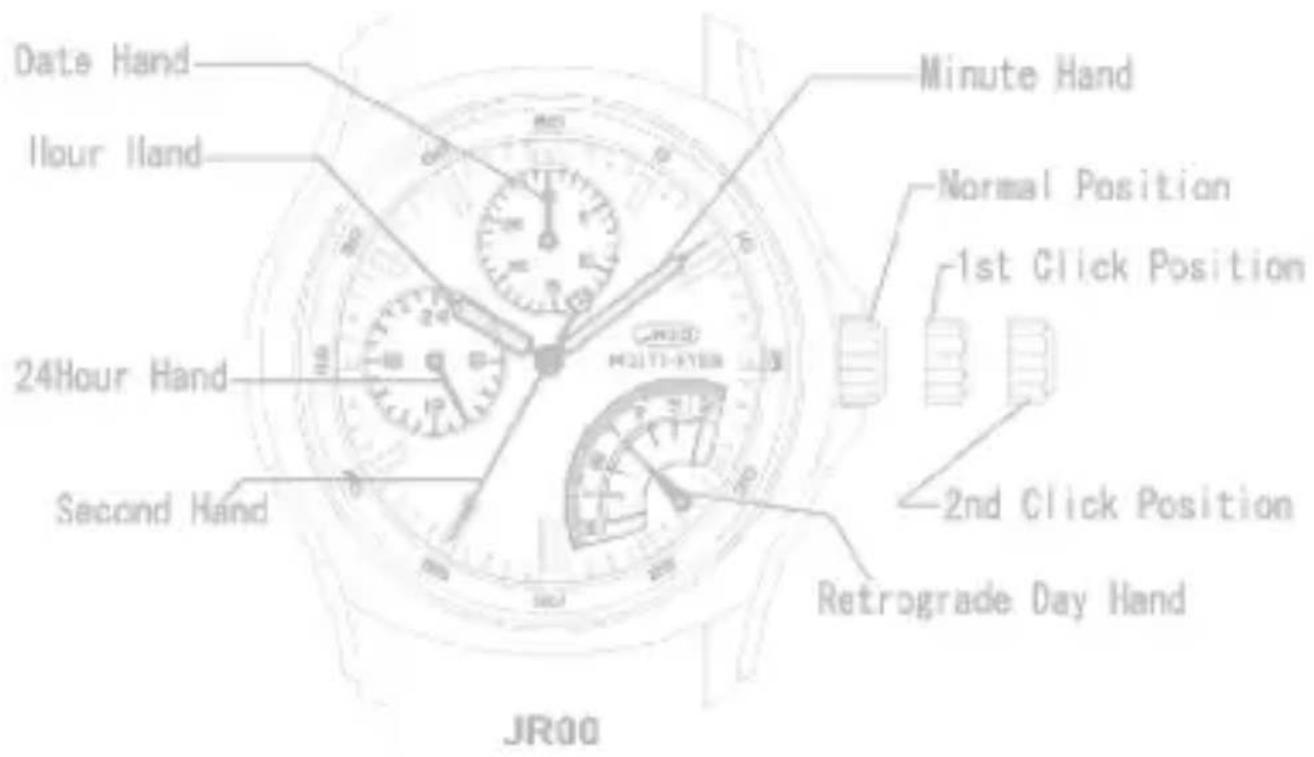

A/ DISPLAYS & BUTTONS

Date Hand Hour Hand 24Hour Hand Second Hand JR00 Minute Hand Normal Position 1st Click Position 2nd Click Position Retrograde Day Hand

MULTI-ETESO OFF-10

JR10

HOLLY 2018 2018 1.6 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

JR20

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Click Position.
2. Turn the crown to set hour and minute hands.

C/ SETTING THE DATE

* Please do not set the date between 9:00PM and 1:00AM

1. Pull the crown out to the 1st Click Position.
2. Turn the crown counter-clockwise to set the date
3. After the date has been set, push the crown back to the normal position.

D/ SETTING THE DAY

* Please do not set the date between 11:00PM and 3:00AM

1. Pull the crown out to the 1st Click Position.
2. Turn the crown clockwise very slowly to set the day.

* Please do not stop when the hand is between the day like the following picture.

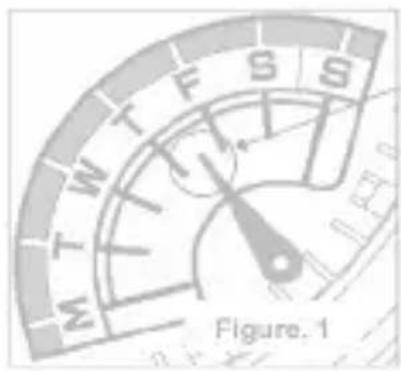

MTW T F S Figure. 1

Please do not stop when the day hand is in this position.

Please set the day hand just positioned on the day scale

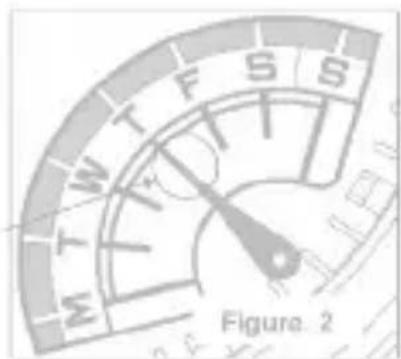

MTW T F S S Figure. 2

*If the day hand stops at a position like Fig.1, please turn the crown clockwise very slowly and stop soon after the day hand positioned like Fig.2.
3. After the day has been set, push the crown back to the normal position.

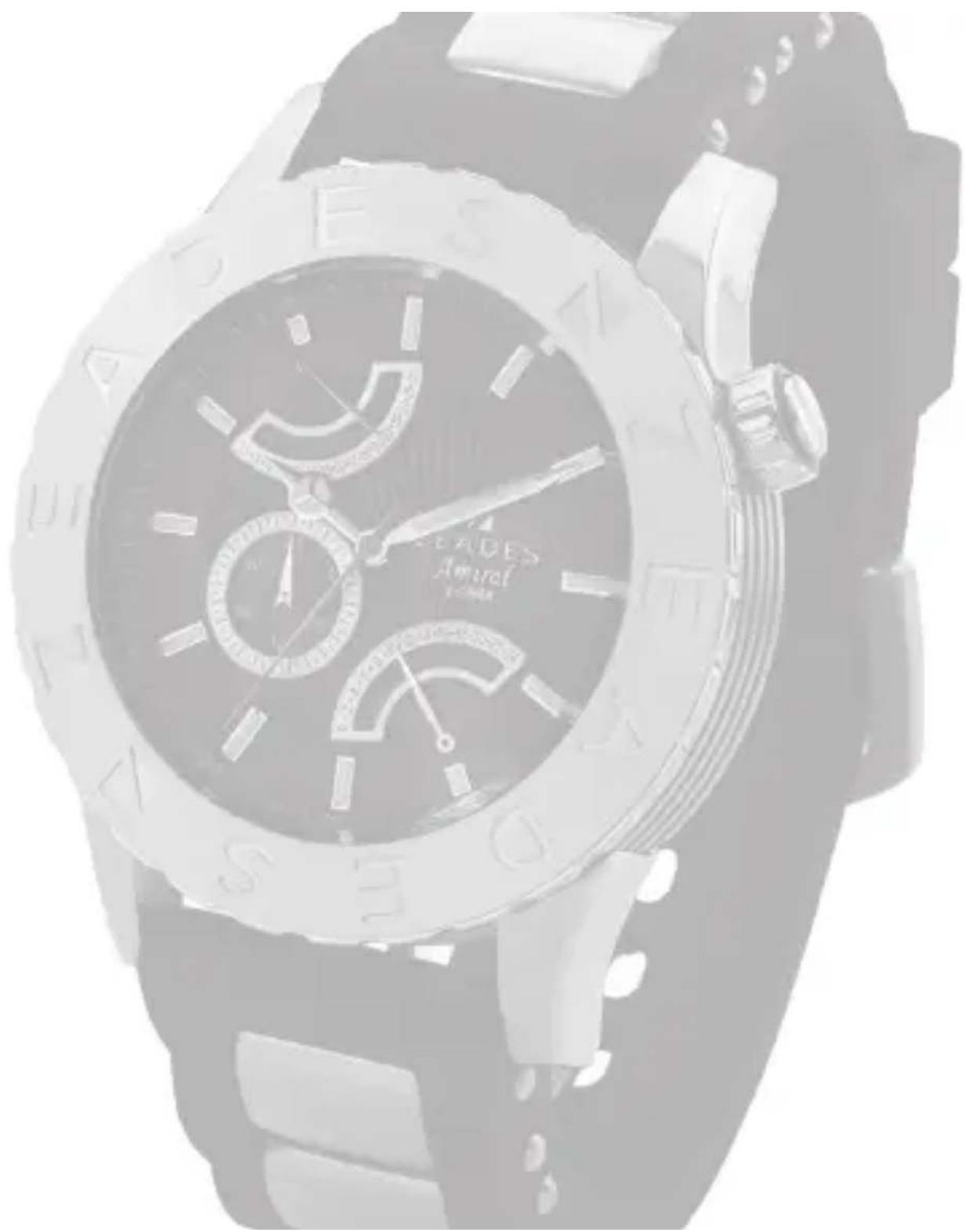

Close-up of a luxury wristwatch with dual dials and a watch face (no visible text or symbols)

FLYBACK / DUAL TIME

Caliber No. GP52

Battery: SR920SW

A/ DISPLAYS & BUTTONS

Date (1-31) Hour hand 24 hour hand Second hand Minute hand 1st position 2nd position Normal crown position 2nd Time (0 hour to 24 hours)

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown clockwise to set the date.
   * If the date is set between the hours of around 9:00 PM and 2:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ SETTING THE 2nd TIME (24 HOURS)

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the 2nd time (24H).
3. After the 2nd time (24H) has been set, push the crown back to the normal position.

Pour toute question concernant notre service après-vente, contactez / For any after-sale service inquiry, please contact :

[e-mail]

Scanned text of contract clauses

Collections and E-Shop

www.zeades.com

MANUEL D'UTILISATION

DATE & HEURE

A/ RÉGLAGE DE L'HEURE

A/ INDICATIONS & BOUTONS

A/ INDICATIONS & BOUTONS

A/ INDICATIONS & BOUTONS

AIGUILLE DES MINUTES JOUR (DE LA SEMAINE) AIGUILLE DES HEURES TROTTEUSE XII XI XII POSITION NORMALE DE LA COURONNE 1° POSITION 2° POSITION DATE AIGUILLE 24 HEURES

B/ RÉGLAGE DU JOUR

MTW T F S S Figure. 1

M T F S S M T F S S Figure. 2

Close-up of a luxury wristwatch with dual dials and a watch face (no visible text or symbols)

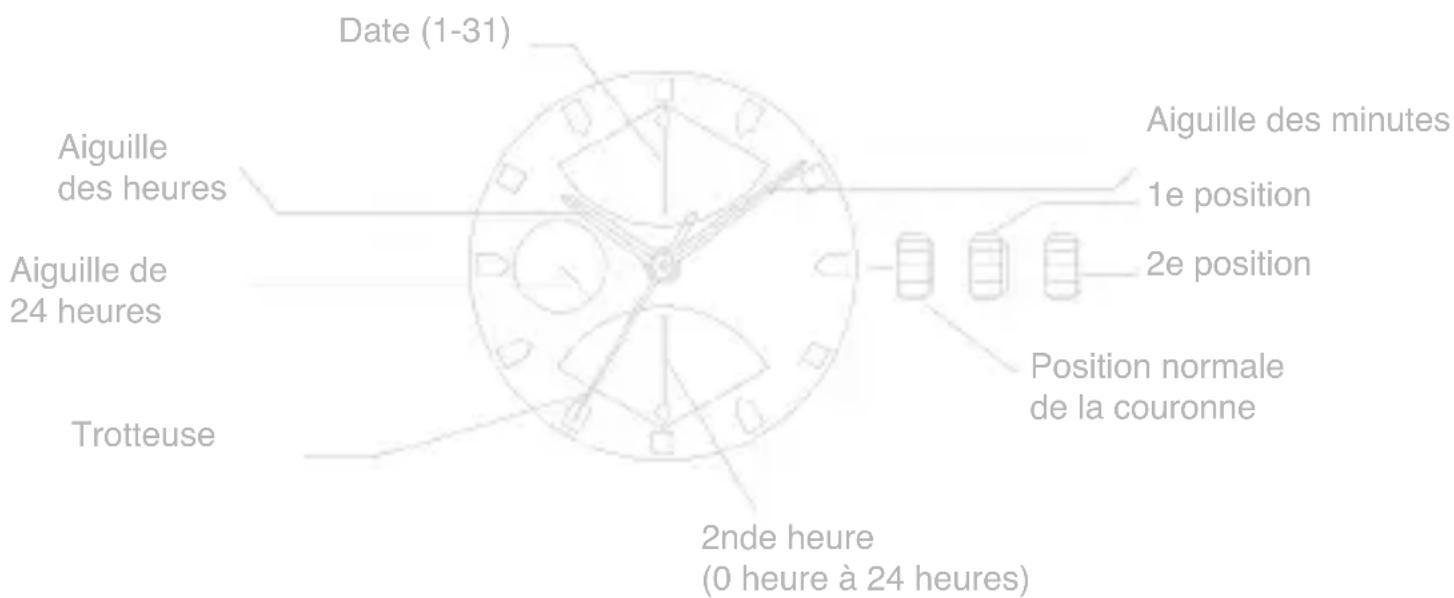

MOUVEMENT RETROGRADE DOUBLE FUSEAU —

Calibre : GP52

Pile : SR920SW

A/ INDICATIONS & BOUTONS
