Product Type	Multifunction analog watch
Brand	Zeades
Model	Oceanique ZWA01309
Movement	Analog quartz
Display type	Hands for hours, minutes, seconds; subdials for chronograph, day, date, 24h
Main functions	Hour, minute, second, chronograph (up to 59 min 59 s or 11 h 59 min 59 s depending on variant), day, date, 24h indicator
Chronograph capacity	Up to 59 minutes 59 seconds (24h model) or 11 hours 59 minutes 59 seconds (12h model)
Power supply	Button cell battery (SR927W or SR621SW depending on variant)
Case material	Stainless steel (estimated)
Case diameter	Approximately 42 mm (common estimate)
Water resistance	Not specified, check on watch (estimated: splash resistant)
Strap length	Standard adjustable (about 20 cm)
Strap width	Approximately 22 mm (adjustable estimate)
Watch weight	Approximately 100 g (estimate)
Time setting	Crown with normal, first click, second click positions
Date setting	Via crown in first click position, counterclockwise direction
Day setting	Via crown in second click position with hand rotation (on models with day)
Chronograph buttons	Button A (start/stop), Button B (reset)
Chronograph reset	Possible after battery replacement by pulling crown and pressing button A
Battery replacement	By a watchmaker; battery SR927W or SR621SW, exact reference depends on variant
Maintenance	Avoid shocks and water; clean with a soft cloth
After-sales service	Contact [e-mail]

Frequently Asked Questions - Oceanique ZWA01309 Zeades

How to set the time on my Oceanique ZWA01309 watch?

Pull the crown to the second click. Turn it to set the hour and minute hands. When you push the crown back in, the second hand starts moving.

How to set the date on this watch?

Pull the crown to the first click. Turn it counterclockwise to set the date. Caution: do not set the date between 9:00 PM and 1:00 AM to avoid improper switching.

How to use the chronograph?

The chronograph is operated with two buttons: press button A to start and stop, and button B to reset the hands to zero. The measurement can go up to 59 minutes 59 seconds or 11 hours 59 minutes 59 seconds depending on the model.

What to do if the chronograph second hand does not return to zero?

Pull the crown to the second click. Press and hold button A to advance the second hand to the 12:00 position (zero). Then push the crown back to its normal position.

How to set the day on my watch?

Pull the crown to the first click. Turn it very slowly clockwise to set the day. Avoid adjustments between 11:00 PM and 3:00 AM. Make sure the day hand points exactly to the marking.

What type of battery does the Oceanique ZWA01309 watch use?

The watch uses a button cell battery, generally type SR927W or SR621SW depending on the variant. For replacement, consult a watchmaker or after-sales service.

How to set the second time (24h) on models equipped with it?

Pull the crown to the first click. Turn it counterclockwise to set the 24-hour hand. Push the crown back to normal position once set.

Why does the date not change the next day?

If you set the date between 9:00 PM and 1:00 AM, it may prevent correct switching. Set the date outside this time range.

How to reset the chronograph after a battery change?

Follow the reset procedure: pull the crown to the second click, press and hold button A until the second hand returns to 12, then push the crown back.

Where can I get spare parts or after-sales service?

For any after-sales service inquiries, contact the email address: [e-mail].

USER MANUAL Oceanique ZWA01309 Zeades

Date position may be located at different position depends on models.

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.

*If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

1. After the date has been set, push the crown back to the normal position.

24H CHRONO, TIME & DATE

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 59 minutes 59 seconds Battery: SR927W

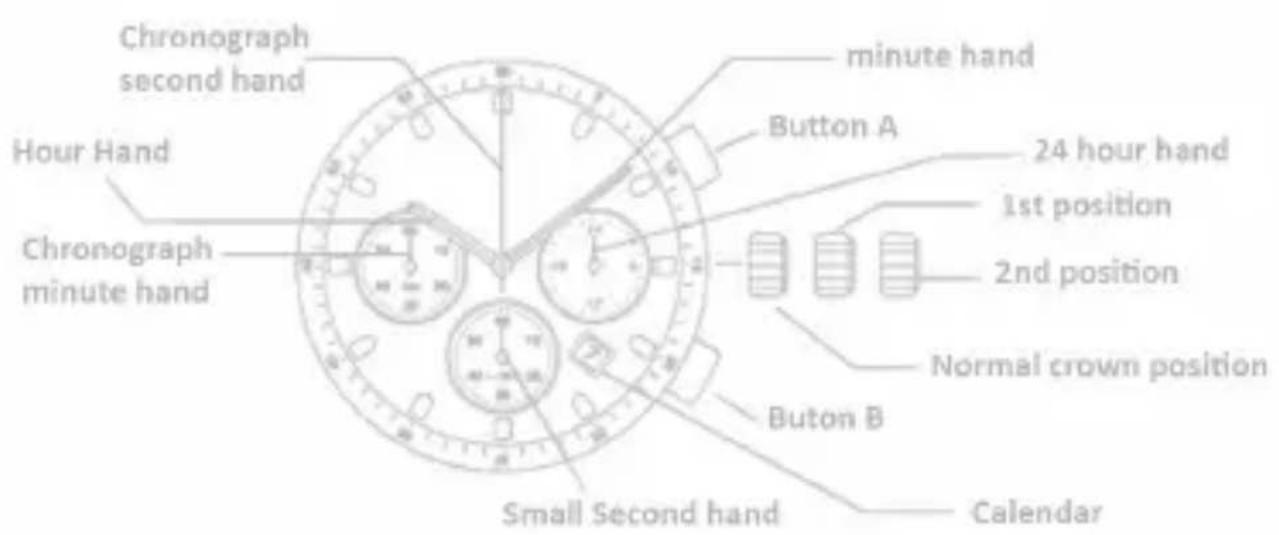

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.

*If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

1. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 59 minutes 59 seconds after starting.

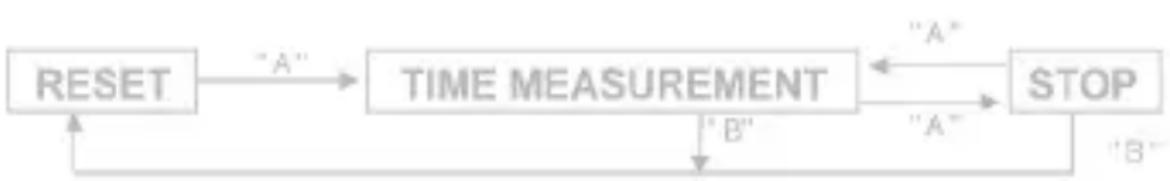

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand and chronograph minute hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown

*Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

12H CHRONO, TIME & DATE

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 11 hours 59 minutes 59 seconds. Battery: sr927w

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.

2. Turn the crown counter-clockwise to set the date.

3. If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

4. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 11 hours 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 11 hours 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand, chronograph minute hand, and chronograph hour hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The Chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown to the normal position.

*Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

MULTIFUNCTIONS

Analog quarts watch designed with multi hands, to enhanced perfection. The hands, in the small displays, show day, date & 24 hour time. Battery: sr621sw

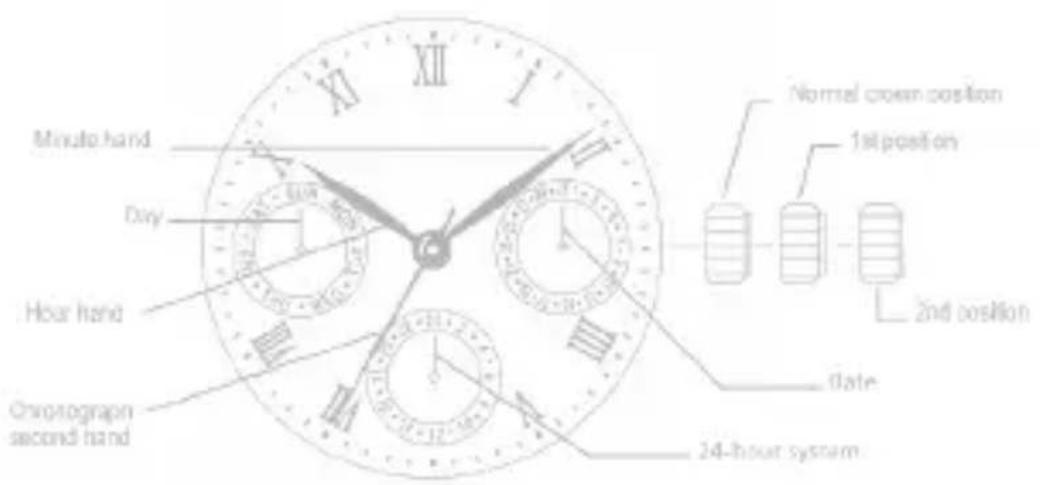

A/ DISPLAYS & BUTTONS

The three small dials are arranged in one of two kinds, depending on each model. All of them are operated similarly, however.

B/ SETTING THE DAY OF THE WEEK (9 O'CLOCK POSITION, CLOCKWISE)

Set the day by pulling out the crown to second click position and rotating it forward (to rotate the hour and minute hands clockwise).

If the day is set by rotating the crown backyard (rotating the hour and minute hands counter-clockwise), the date may not be changed.

Note: The day is changed during the period from about 0:00 AM to about 5:30 AM

C/ SETTING THE DATE (3 O'CLOCK POSITION, CLOCKWISE)

Quick change function : Pull the crown out to the first click position and set the date by rotating the crown backyard. If the date is set between 9:00 PM and 0:00 AM, the date will not change correctly.

D/ SETTING THE SECOND, MINUTE, HOUR, 24 HOUR, DAY

The second, minute, hour, 24-hour system, and day are set by the same operation.

Pull out the crown to the second click position when the second hand reaches the 12-o'clock position to stop the second hand there. Rotate the crown forward (to rotate the hour and minute hands clockwise) to set the day.

The day hand moves forward 1 step each time the 24-hour hand rotates a round. You cannot set the day by rotating the crown in reverse. After setting the day, set the hour and minute hands. Check a.m. or p.m. by the 24-hour hand.

When setting the minute hand, put it 4 or 5 minutes forward from the current time, and then return it to the current time.

After setting the time, push in the crown to the normal position, synchronizing with the time signal.

The second hand starts moving again at the time when the crown is pushed back.

Notes: (1) The day and date are changed during the period from 0:00 a.m. to 5:30 a.m. (2) The day and date hands rotate only forward.

E/SETTING PROCEDURE

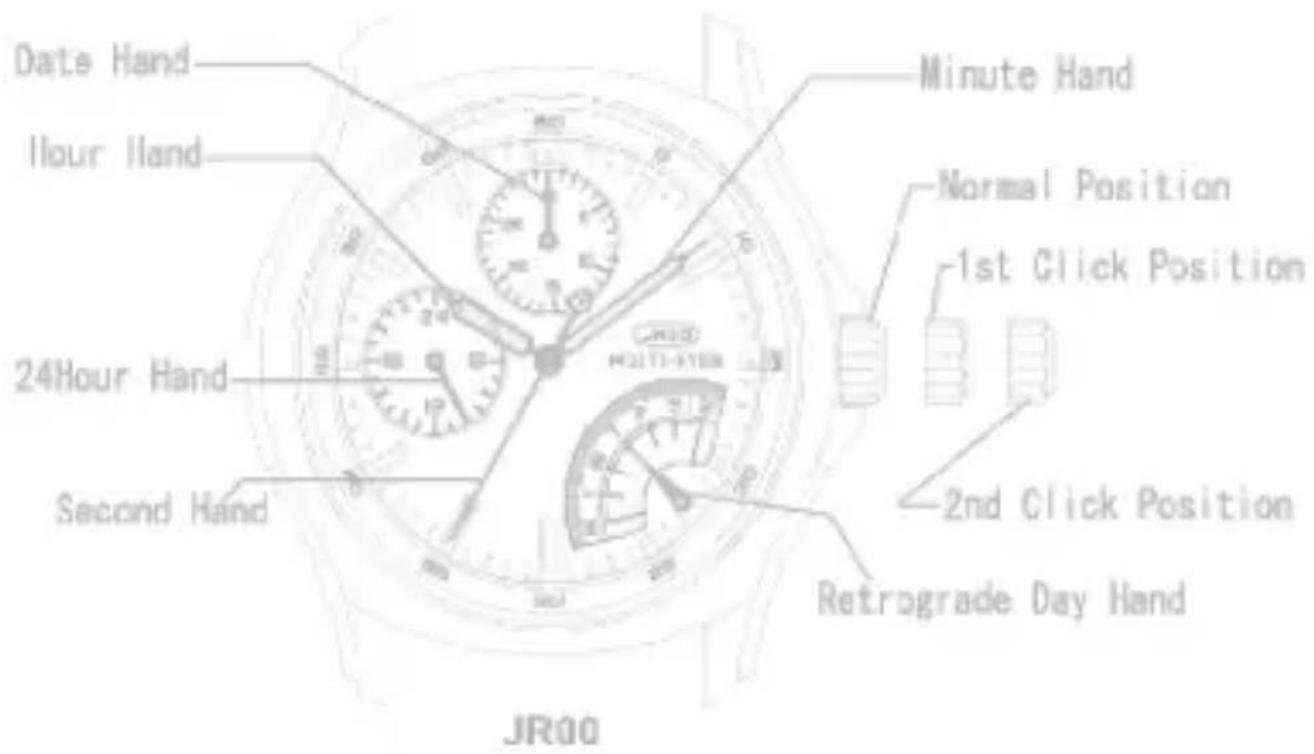

MULTI EYES WITH RETROGRADE DAY FUNCTION

Caliber No.JR00, JR10, JR20

Battery:SR621SW

A/ DISPLAYS & BUTTONS

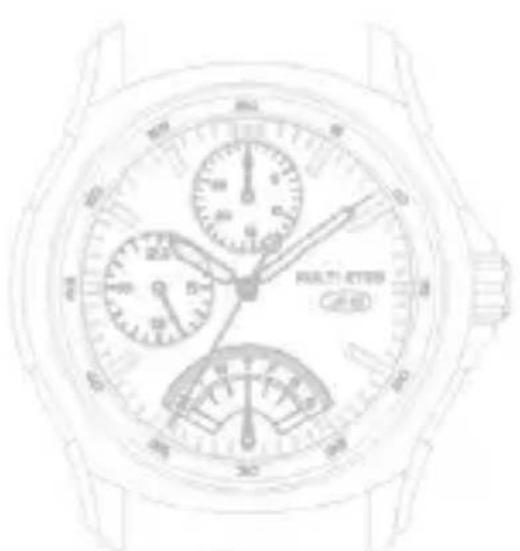

JR10

JR20

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Click Position.
2. Turn the crown to set hour and minute hands.

C/ SETTING THE DATE

• Please do not set the date between 9:00PM and 1:00AM

• Pull the crown out to the 1st Click Position.

• Turn the crown counter-clockwise to set the date
• After the date has been set, push the crown back to the normal position.

D/ SETTING THE DAY

• Please do not set the date between 11:00PM and 3:00AM

• Pull the crown out to the 1st Click Position.

• Turn the crown clockwise very slowly to set the day.

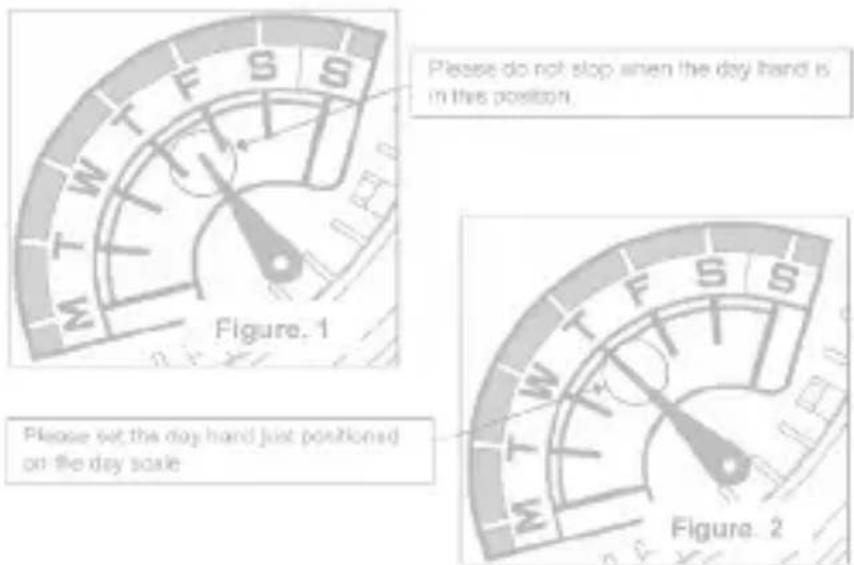

• Please do not stop when the hand is between the day like the following picture.

*If the day hand stops at a position like Fig.1, please turn the crown clockwise very slowly and stop soon after the day hand positioned like Fig.2.

1. After the day has been set, push the crown back to the normal position.

FLYBACK/DUAL TIME

Caliber No. GP52

Battery:SR920SW

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.

2. Turn the crown clockwise to set the date.

3. If the date is set between the hours of around 9:00 PM and 2:00 AM, the date may not change the following day.

4. After the date has been set, push the crown back to the normal position.

D/ SETTING THE 2nd TIME (24 HOURS)

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the 2nd time (24H).
3. After the 2nd time (24H) has been set, push the crown back to the normal position.

Pour toute question concernant notre service après-vente, contactez /For any after-sale service inquiry, please contact:

[e-mail]

Collections and E-Shop

www.zeades.com

MANUEL D'UTILISATION

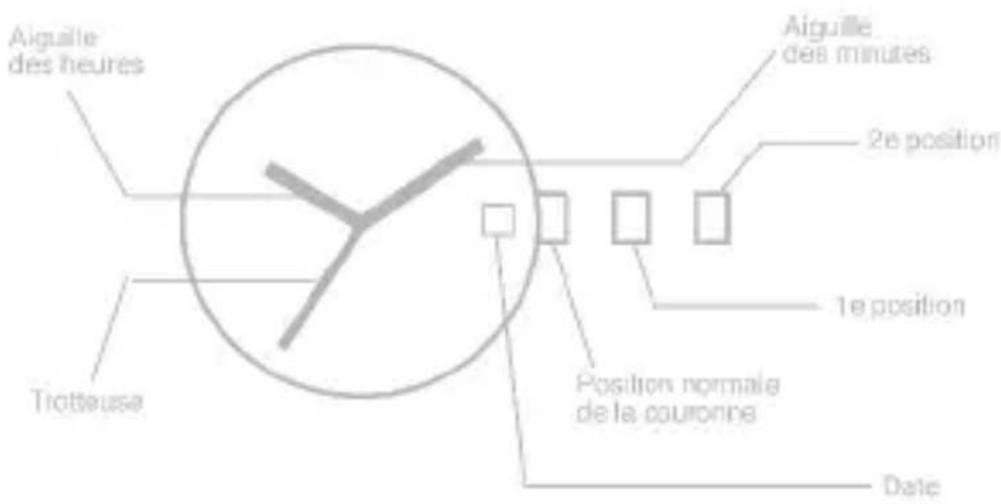

DATE & HEURE

A/ RÉGLAGE DE L'HEURE

A/ INDICATIONS & BOUTONS

B/ RÉGLAGE DE L'IIEURE

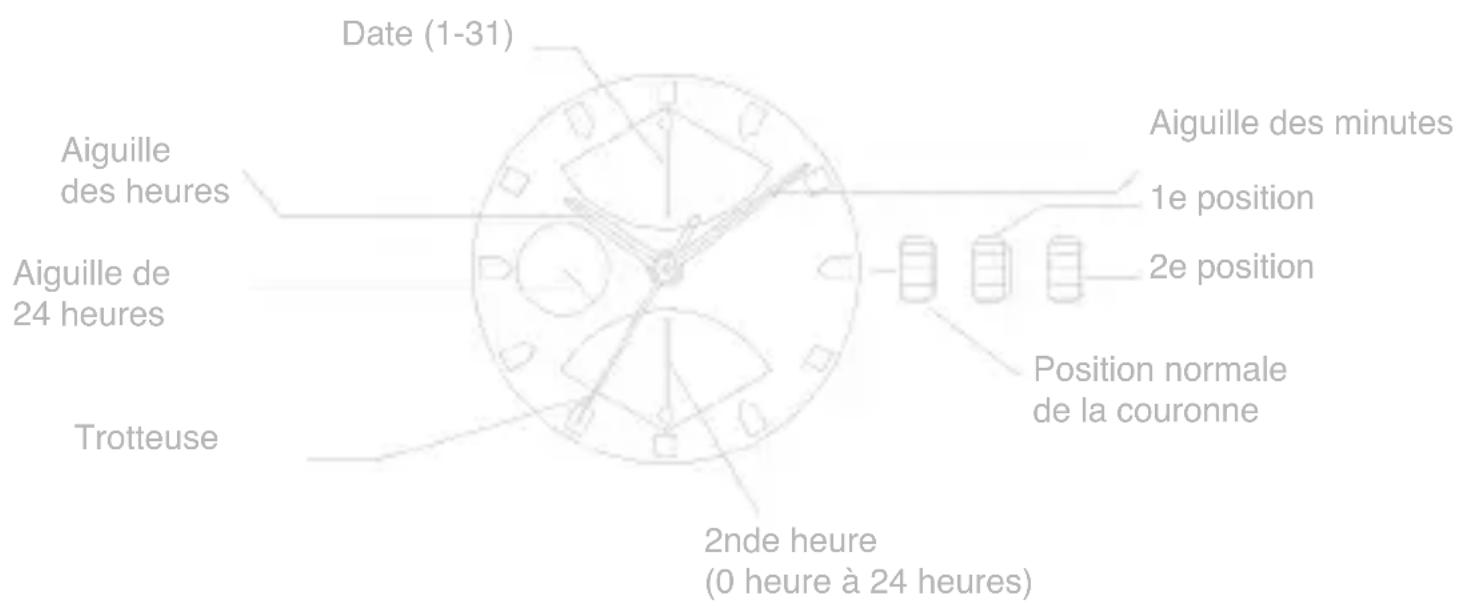

A/INDICATIONS & BOUTONS

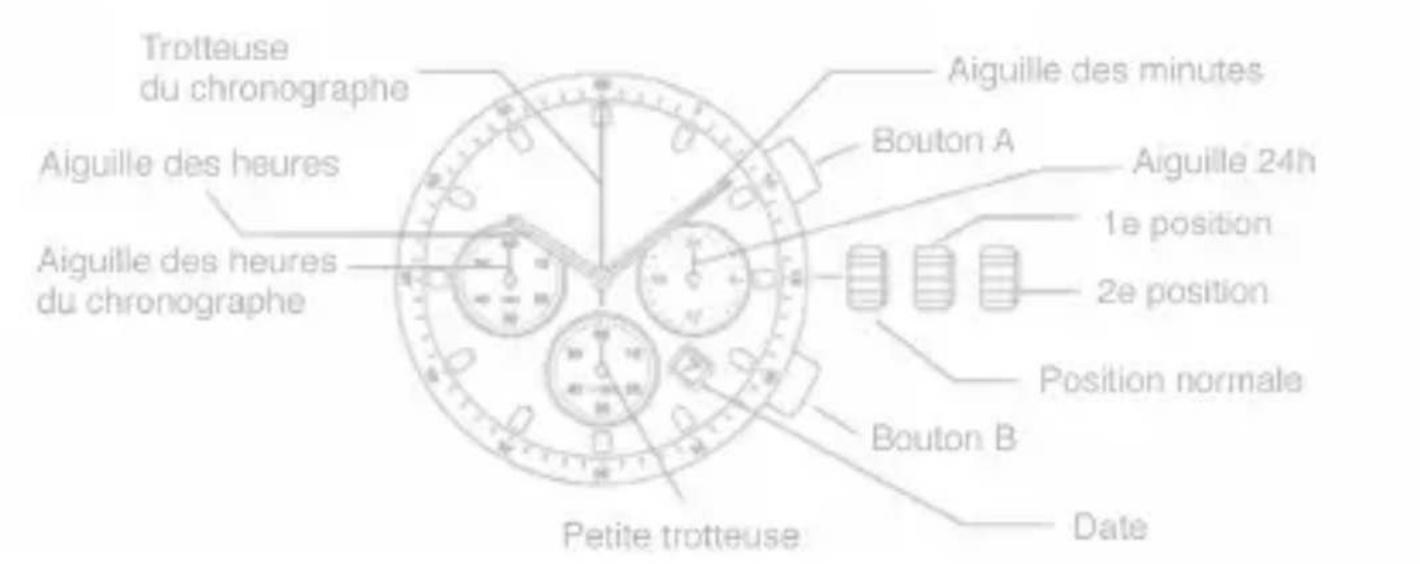

B/ RÉGLAGE DE L'IIEURE
