DO9144M - Blender DOMO - Free user manual and instructions

Product Type	Multifunctional immersion blender
Brand	DOMO
Model	DO9144M
Power Supply	220-240 V ~ 50/60 Hz
Power	300 W (estimated)
Speeds	Variable speed adjustment + Turbo function
Chopper bowl capacity	200 g maximum (meat)
Included accessories	Immersion blender, whisk, chopper with bowl, measuring cup
Blade material	Stainless steel
Cord length	Short (approx. 60 cm)
Safety	Recommended automatic stop after 1 minute of continuous use
Cleaning	Blades and accessories washable with water; wipe motor unit with damp cloth
Warranty	2 years
Main functions	Mixing, whisking, chopping
Spare parts available	Yes, on Domo webshop

Frequently Asked Questions - DO9144M DOMO

Can I blend solid foods without liquid?

No, the immersion blender requires adding a liquid to operate correctly and avoid damaging the appliance.

How long can I use the blender continuously?

It is recommended not to exceed 1 minute of continuous use to avoid overheating.

How to clean the chopper blades?

Rinse the blades under running water immediately after use, especially if you have chopped salty foods. Dry thoroughly. Caution, the blades are very sharp.

Can I put the motor unit in the dishwasher?

No, never immerse the motor unit in water. Clean it only with a damp cloth.

What is the maximum amount of meat I can chop?

The chopper can process up to 200 g of meat at a time. Cut the meat into small pieces and remove bones.

How to change the accessories?

Unplug the appliance, then turn the accessory clockwise to remove and counterclockwise to attach until it clicks.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any hazard.

Is the appliance under warranty?

Yes, DOMO offers a 2-year warranty from the date of purchase, subject to presentation of the receipt.

Where can I buy spare parts?

Domo accessories and spare parts are available on the official webshop: webshop.domo-elektro.be or at the point of sale.

Can I use an extension cord?

No, the appliance is equipped with a short cord and using an extension cord is not recommended for safety reasons.

USER MANUAL DO9144M DOMO

Product photo of a white Domo 350 blender with control unit, beaker, and whisk (no text or symbols visible)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

INFORMATION DE RECYCLAGE

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

INFORMACE O RECYKLACI ODPADU

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

CZ

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

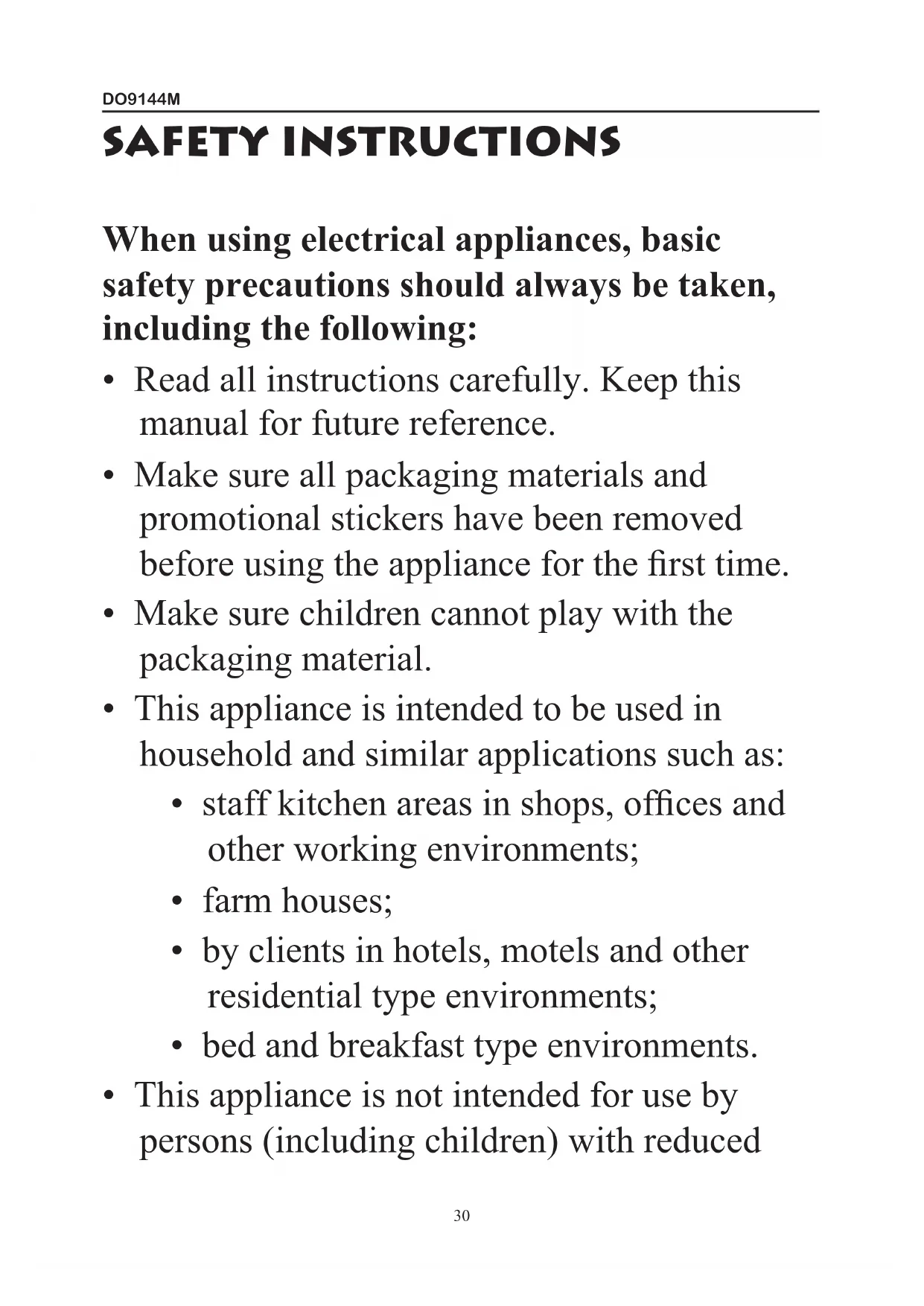

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
• Make sure children cannot play with the packaging material.
• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.
• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to

cool before putting on or taking off parts, and before cleaning the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• Never leave the appliance unattended while it is functioning.
• Do not use or store this appliance outdoors.
• Do not use this appliance for other than intended use.
• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Only use the utensils delivered with the appliance.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.
• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Do not operate the appliance with wet hands.
• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.
• Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Do not allow the power cord supply to run underneath or around the unit.
• Make sure the appliance is correctly assembled, then plug the cord in the wall

outlet. To disconnect, turn controls to "OFF" or "0" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Do not use the appliance if there is any water in it or the parts are still wet after cleaning.

- Do not use the appliance without ingredients.

- Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

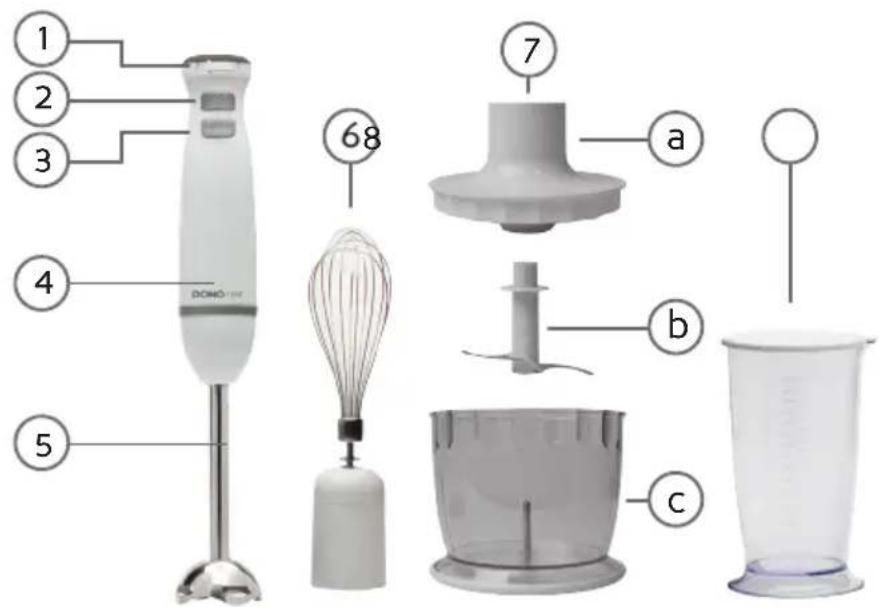

PARTS

1. Speed control
2. On/off button
3. Turbo button
4. Motor unit
5. Mixer
6. Beater
7. Chopper

a. Lid
b. Knife
c. Bowl

1. Measuring cup

1 2 3 4 5 68 7 a b c

BEFORE USE

1. Before use, remove all packaging materials and any promotional stickers.

2. Clean the stick mixer before use. See chapter «Cleaning»

USE

Mixer

The mixer is suited for making sauces, soups, mayonnaise, baby food, milkshakes and other mixed foods.

Caution: do not mix food without adding any liquid.

1. Attach the mixer to the motor unit. Turn it anti-clockwise and make sure it clicks into place.
2. Plug in the appliance in the wall socket.

3. Place the mixer upright in a bowl with ingredients. Do not hold the mixer in an angle to avoid splashes.

4. Select a speed with the speed control and press the on/off button to mix with the selected speed. Hold the button pressed. You can adjust the speed during mixing with the speed control. Or press the turbo button to start mixing immediately at full speed.

Caution: do not mix for longer than 1 minute continuously.

1. After use, unplug the appliance. Remove the mixer by turning the mixer clockwise.

Beater

The beater is suitable for beating egg whites, whipping cream, instant desserts, etc.

1. Place the beater on the motor unit and rotate it counterclockwise until it clicks.
2. Put the plug in the outlet.
3. Place the beater directly in the bowl with ingredients. To avoid spattering, do not hold it slanted.
4. Select the speed with the speed controller and press the on/off button to beat. Keep it pressed in. It is also possible to adjust the speed with the speed controller while beating. Or push the turbo button to beat at full speed immediately. Caution: do not use the beater for longer than 1 minute at a time.
5. When finished, pull the plug from the outlet. Remove the beater by rotating it clockwise.

Chopper

The chopper is suitable for chopping various types of food. When chopping meat, remove all bones. Prepare the meat by cutting it into smaller pieces. The maximum amount of meat that you can mix is 200 g.

1. Place the chopper on a flat surface. Place the knife on the iron pin of the bowl of the chopper.
2. Add the food.
3. Place the lid on the chopper. Place the motor unit on top of the lid and rotate it counterclockwise until it clicks.
4. Put the plug in the outlet.
5. Select the speed with the speed controller and press the on/off button to chop. Keep it pressed in. It is also possible to adjust the speed with the speed controller while chopping. Or push the turbo button to chop at full speed immediately. Caution: do not chop for longer than 1 minute at a time.
6. When finished, pull the plug from the outlet. Remove the motor unit of the chopper by rotating it clockwise.

CLEANING

• Always unplug the appliance before cleaning it.
- Never immerse the motor unit in water. Only wipe the motor unit clean with a damp cloth.
- Caution: after processing really salty food the blades should be rinsed immediately.
- Remove the motor unit from the accessory used. Rinse the accessory under running water. Do not immerse it in water. Don't use any abrasive or corrosive cleaners.
- Dry thoroughly. Be careful: the blades are very sharp.

Two cylindrical white objects with small protrusions, possibly milk or tea, placed on a plain white surface (no text or symbols visible)

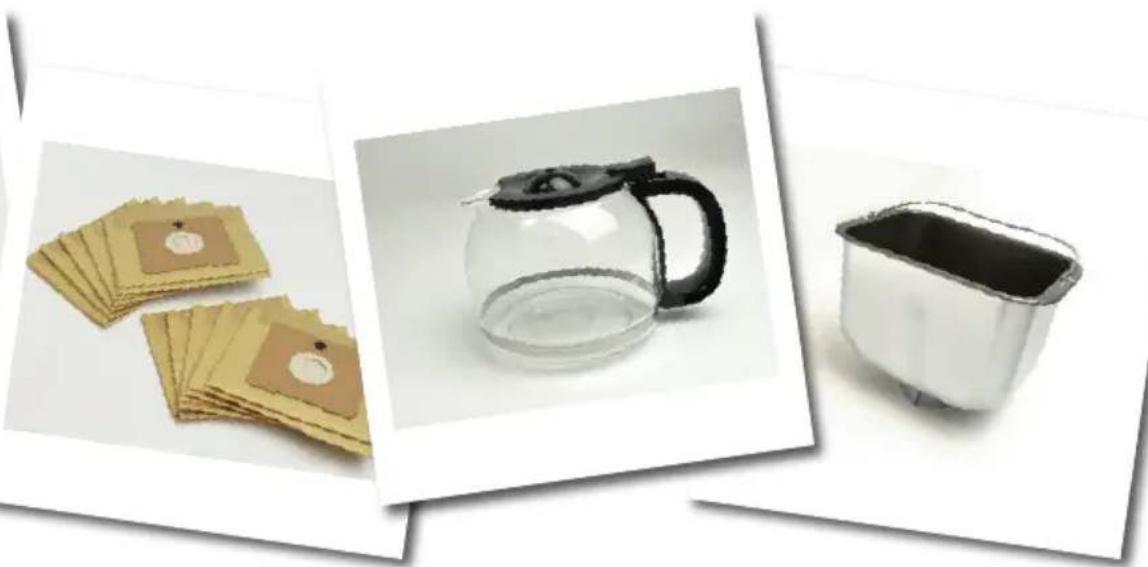

Three product photos: cardboard sheets, a clear glass coffee maker, and a white bread box (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
