TravelReady DA1560 - Iron ROWENTA - Free user manual and instructions

USER MANUAL TravelReady DA1560 ROWENTA

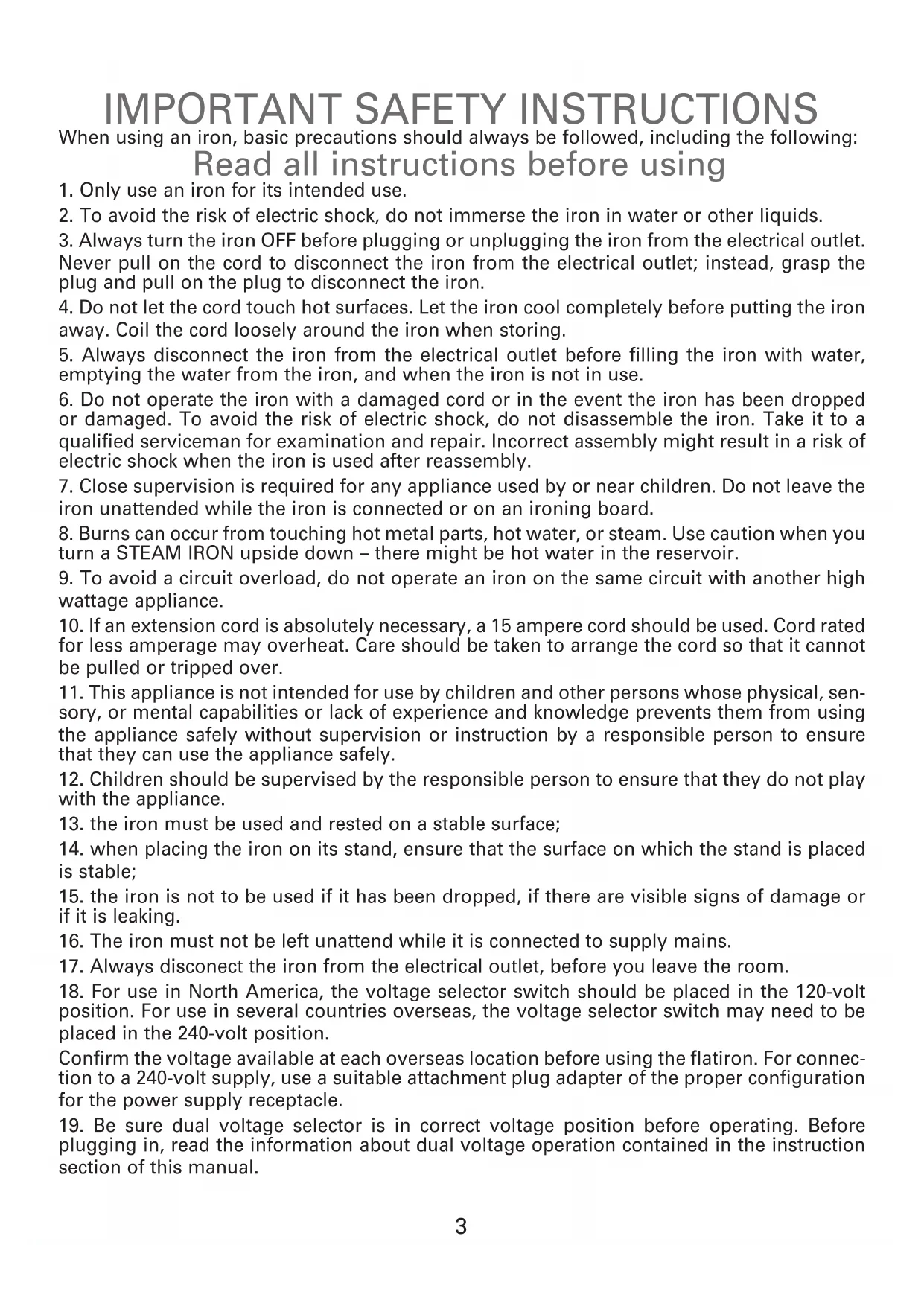

When using an iron, basic precautions should always be followed, including the following: Read all instructions before using

1. Only use an iron for its intended use.

2. To avoid the risk of electric shock, do not immerse the iron in water or other liquids.

3. Always turn the iron OFF before plugging or unplugging the iron from the electrical outlet.

Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.

4. Do not let the cord touch hot surfaces. Let the iron cool completely before putting the iron

away. Coil the cord loosely around the iron when storing.

5. Always disconnect the iron from the electrical outlet before filling the iron with water,

emptying the water from the iron, and when the iron is not in use.

6. Do not operate the iron with a damaged cord or in the event the iron has been dropped

or damaged. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualified serviceman for examination and repair. Incorrect assembly might result in a risk of electric shock when the iron is used after reassembly.

7. Close supervision is required for any appliance used by or near children. Do not leave the

iron unattended while the iron is connected or on an ironing board.

8. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you

turn a STEAM IRON upside down – there might be hot water in the reservoir.

9. To avoid a circuit overload, do not operate an iron on the same circuit with another high

10. If an extension cord is absolutely necessary, a 15 ampere cord should be used. Cord rated

for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

11. This appliance is not intended for use by children and other persons whose physical, sen-

sory, or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.

12. Children should be supervised by the responsible person to ensure that they do not play

13. the iron must be used and rested on a stable surface;

14. when placing the iron on its stand, ensure that the surface on which the stand is placed

15. the iron is not to be used if it has been dropped, if there are visible signs of damage or

16. The iron must not be left unattend while it is connected to supply mains.

17. Always disconect the iron from the electrical outlet, before you leave the room.

18. For use in North America, the voltage selector switch should be placed in the 120-volt

position. For use in several countries overseas, the voltage selector switch may need to be placed in the 240-volt position. Confirm the voltage available at each overseas location before using the flatiron. For connec- tion to a 240-volt supply, use a suitable attachment plug adapter of the proper configuration for the power supply receptacle.

19. Be sure dual voltage selector is in correct voltage position before operating. Before

plugging in, read the information about dual voltage operation contained in the instruction section of this manual.

320. This appliance was set at the factory to operate at 120 volt. Refer to the Operating

Instructions section of this manual for conversion to 240 volt operation.

21. Travel iron, is not intended for regular use.

22. Cleaning and user maintenance shall not be made by children without supervision.

SAVE THESE INSTRUCTIONS

Environment protection first ! Your appliance contains valuable materials which can be recovered or recy- cled.  Leave it at a civic waste disposal centre.

• Adjust the iron to correct voltage for your location, using a sharp object. If the voltage selected is 120 V, the iron will operate at 100 to 120 V. If it is set at 240 V, the iron will operate at 200 to 240 V. Put the handle into the ironing position.

• Press the release button on the rear side and raise the handle until it locks into position.

• For storing press release button again to close the handle.

8. Burst of steam button

Note! If necessary, check that you are using an adapter which meets the safety requirements of the country you are in. DESCRIPTION *Depending on the model: these accessories are specific to certain models or available as an option.

Note ! Your iron has been designed to operate using untreated tap water. Important: Heat concentrates the elements contained in water during evapora- tion. The types of water listed below may contain organic waste, or chemical elements that can cause spitting, brown staining, or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batte- ries, air conditioners, rain water, boiled, filtered or bottled water. Important : Before filling the water tank, unplug the iron . The steam selector should be switched into the “OFF” position. Do not hold the iron under the tap while filling. Your iron will only produce steam when the control is set within the coloured zone and the steam switch is in the on position.

OFF 110V 220V Hold down the burst of steam button and place the iron a few inches away from the garment to avoid burning delicate fabrics. IMPORTANT Never direct the steam at people or animals ! MAX

OFF Dry ironing Steam control set to Temperature set to

Fabric selected: Silk, Synthetics Wool Burst of steam Temperature at setting

Steam ironing Steam control set to Temperature set to

Cleaning your iron. Important : Do not use sharp or abrasive cleaning agents or objects to clean soleplate or other parts of the iron. Do not use any cleaning or descaling products. Never hold the iron under a running tap. Always empty the water tank when you have finished ironing.

Our advice : With the iron in DRY mode, start by ironing fabrics at a low temperature (•) before moving on to those requiring a higher temperature (•••). If you turn the temperature control down, wait for approximately one minute for the temperature to adjust before ironing again. If you are ironing fabrics made from mixed fibers : set the iron temperature to the correct level for the most delicate fibers.ON OFF 120V 240V

OFF 110V 220V Turn steam switch to off position. Unplug iron from electrical outlet. Make sure the iron is cold before storing it. IMPORTANT Do not wind the cord around the hot soleplate. Never store your iron placed down onto the soleplate.

SAVE THESE INSTRUCTIONSSubject to modifications Problems and possible causes Solutions Your iron produces little or no steam

• The temperature selected is too low.

• The steam control is set on OFF.

• There is no water in the tank. Set the temperature control to ••• Switch the steam control to ON. Fill the water tank. Water is dripping from the holes in the soleplate

• You have been using the burst of steam button too often.

• Steam is used before the iron is hot enough.

• The iron is stored with water in the tank. Wait a few seconds between each burst. Set the thermostat within the colored steam zone and wait until the iron is hot (approx. 2 min.) Empty the tank before storing the iron and set the steam control to OFF.

• The problem persists. Take your iron to an Approved Service Center.
