Product type	Bluetooth docking station
Brand	Gembird
Model	SPKBT06B
Connectivity	Bluetooth 5.0, USB-A port, 3.5 mm audio jack
Power supply	Included power adapter (5V/2A)
Audio output power	2 x 5 W RMS
Frequency response	100 Hz – 20 kHz
Dimensions (L x W x H)	26 x 12 x 8 cm
Weight	650 g
Material	ABS plastic with fabric grille
Compatibility	Smartphones, tablets, computers (Bluetooth or jack)
Main functions	Wireless audio playback, device charging via USB, built-in speaker
Controls	Volume buttons, play/pause, Bluetooth pairing
Battery life	Up to 8 hours (depending on usage)
Charging time	Approximately 3 hours
Maintenance and cleaning	Wipe with a soft, dry cloth. Do not use chemical products.
Safety	Do not expose to water, shocks, or excessive heat.
Spare parts and repairability	Battery replaceable by a professional. Contact customer service.
General information	2-year warranty. Compliant with RED and RoHS directives.

Frequently Asked Questions - SPKBT06B Gembird

How do I pair my smartphone with the docking station?

Enable Bluetooth on your phone, then press the pairing button on the docking station until the indicator flashes. Select 'Gembird SPKBT06B' from the list of devices.

Can I use the docking station to charge my phone?

Yes, the docking station has a USB-A port for charging your devices (max 5V/1A). Simply connect your charging cable.

What to do if the sound is low or distorted?

Make sure the audio source is at a proper volume and that the distance between the docking station and your device does not exceed 10 meters. Also check that no metal obstacles are interfering with the Bluetooth signal.

How to clean the docking station?

Use a soft, dry cloth. Never use water, alcohol, or abrasive products that could damage the surfaces.

The docking station does not turn on, what to do?

Check that the power adapter is properly plugged in. If the problem persists, try another power cable or contact customer service.

Can I connect the docking station to a TV?

Yes, if your TV has a 3.5 mm audio jack output or Bluetooth, you can pair it. For a wired connection, use a male-to-male audio cable.

How to reset the docking station?

Press and hold the 'Volume +' and 'Play/Pause' buttons simultaneously for 5 seconds. The docking station will turn off and then back on in reset mode.

Is the docking station compatible with non-Bluetooth devices?

Yes, you can connect any device via the 3.5 mm audio port (cable not included) or via USB for playing stored audio files.

What is the Bluetooth range?

The maximum range is about 10 meters in open space. Walls or obstacles may reduce this distance.

Where to find spare parts?

Contact Gembird customer service or check the list of authorized resellers at www.gembird.eu. For the battery, contact an authorized repair center.

USER MANUAL SPKBT06B Gembird

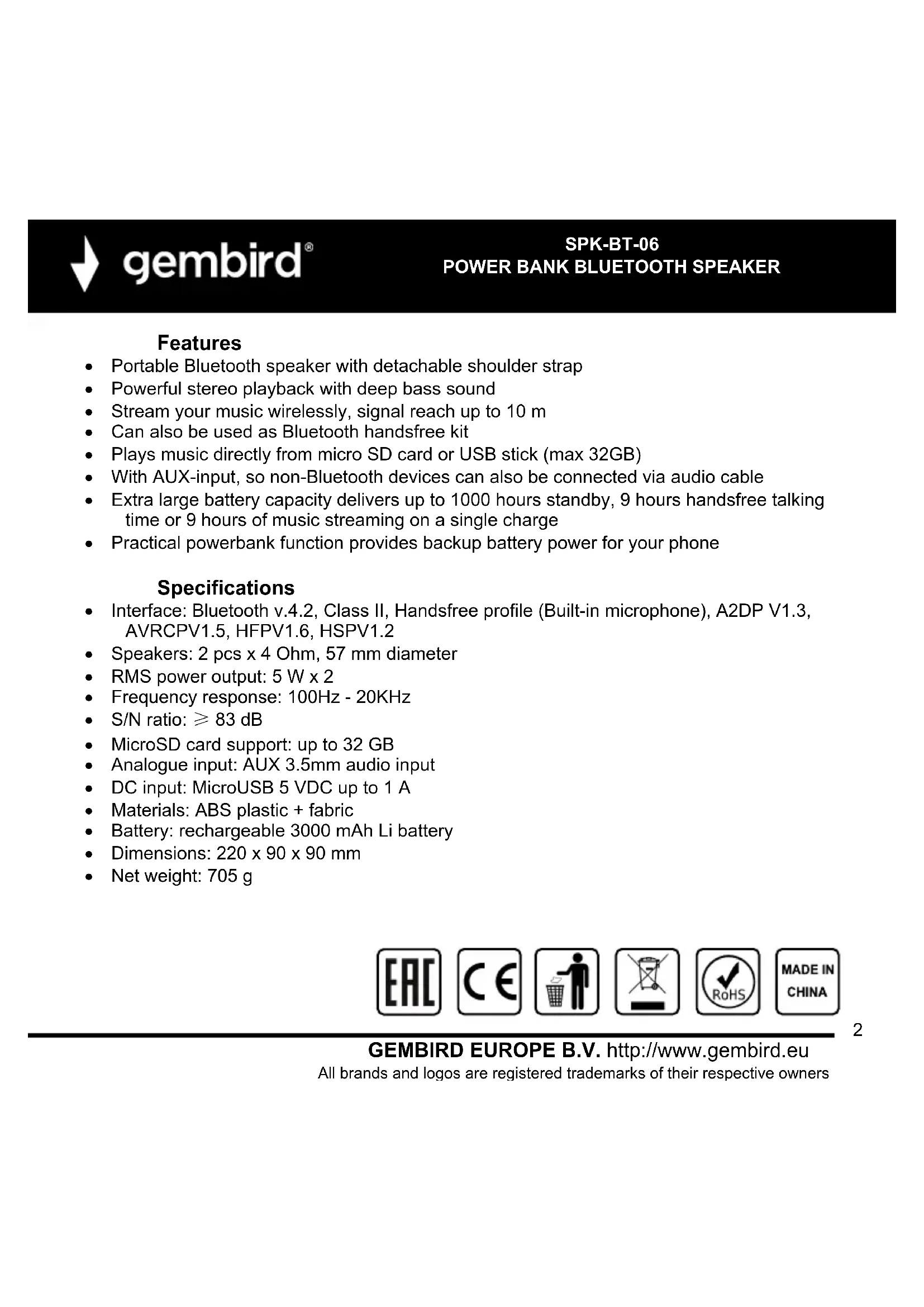

• Portable Bluetooth speaker with detachable shoulder strap
• Powerful stereo playback with deep bass sound
  Stream your music wirelessly, signal reach up to 10m
• Can also be used as Bluetooth handsfree kit

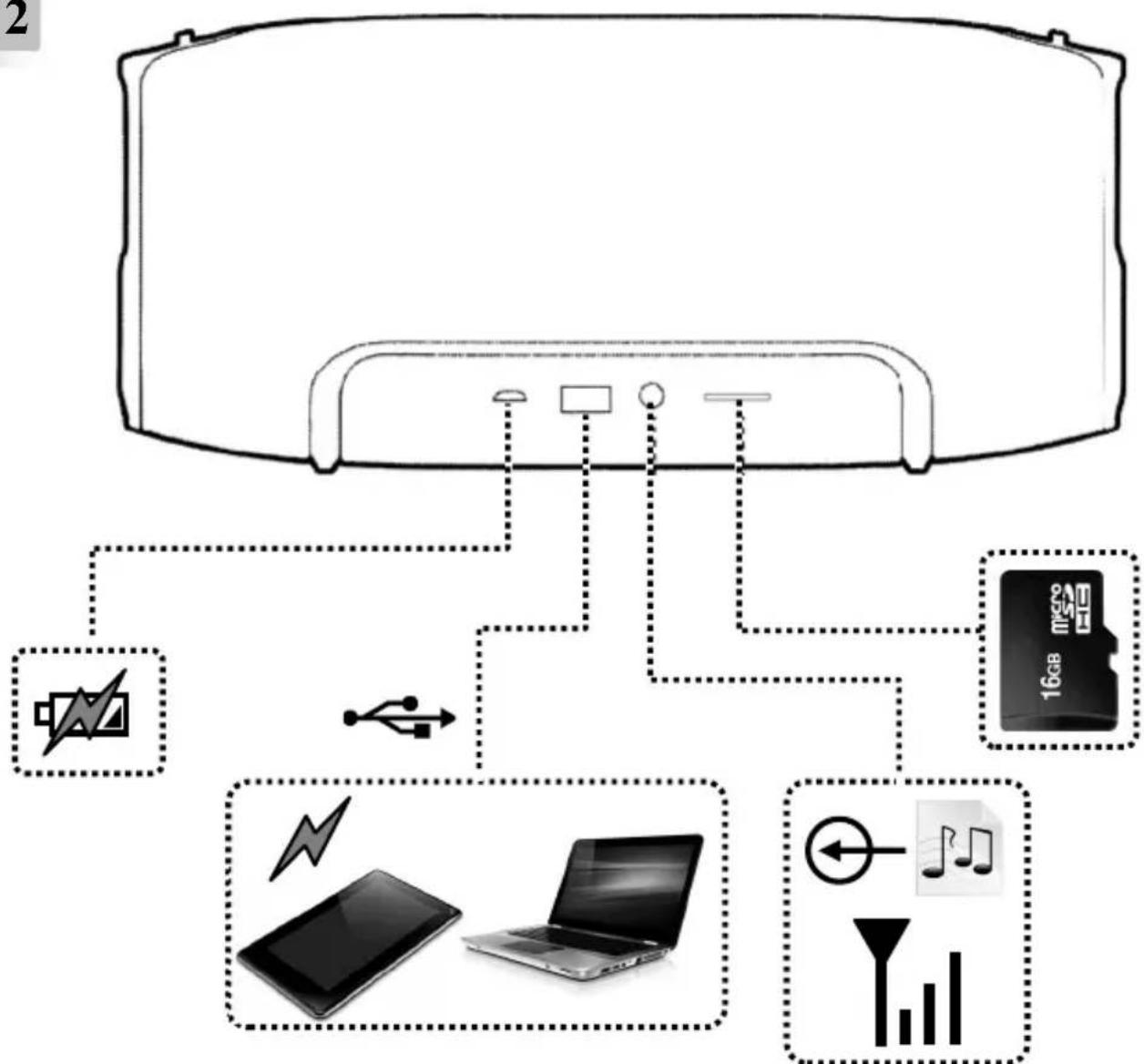

• Plays music directly from micro SD card or USB stick (max 32GB)
• With AUX-input, so non-Bluetooth devices can also be connected via audio cable
• Extra large battery capacity delivers up to 1000 hours standby, 9 hours handsfree talking time or 9 hours of music streaming on a single charge
• Practical powerbank function provides backup battery power for your phone

Specifications

• Interface: Bluetooth v.4.2, Class II, Handsfree profile (Built-in microphone), A2DP V1.3, AVRCPV1.5, HFPV1.6, HSPV1.2
• Speakers: 2 pcs x 4 Ohm, 57 mm diameter
  RMS power output: 5W× 2
  Frequency response: 100Hz - 20KHz
  S/N ratio: ≥ 83 dB
• MicroSD card support: up to 32 GB

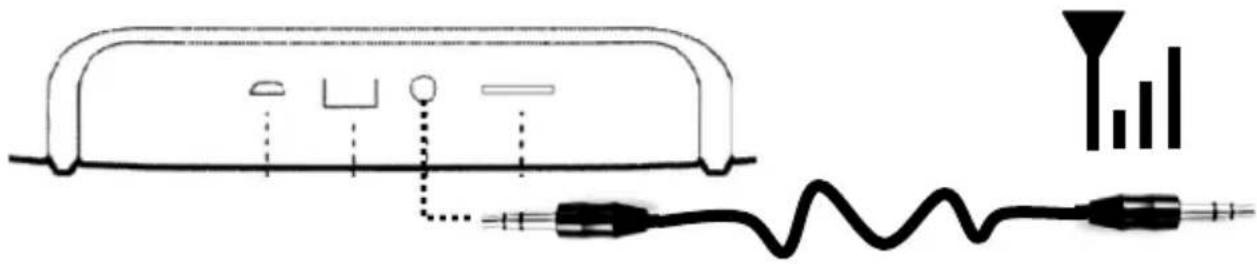

• Analogue input: AUX 3.5mm audio input
  DC input: MicroUSB 5 VDC up to 1 A
• Materials: ABS plastic + fabric
• Battery: rechargeable 3000 mAh Li battery
• Dimensions: 220 × 90 × 90 mm
  Net weight: 705 g

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

1

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

2

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

3

"0000"

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

4

5

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

(ENG) Declaration of conformity

This product is tested and complies with the essential requirements of the laws of member states concerning RED (2014/53/EU), RoHS (2011/65/EU). The CE declaration can be found under www.gembird.eu

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

YMOBNI TAPAHINHOFO OBCJNYTOBYBAHH

1. TapaHTIiHe 06cnyroBvBaHnHaJaEcTbCnPOTaROM TepMIHy TapaTII, npn HauBHOCTI TapaTIIHoro TaHOy, 3aNOBHeHOro HAeKHM MHHOM, Ta BINOBy B NOBHI KOMNJIeKTaII.
   2.「rapantiHe 06cnyroByBaHH He nItpmyeTbC B pa3i npuyenHn npabn ekcnnyatau, 36epirAHn ABO nepeBe3eHHBnpo6y, 3o 3a3naeHi BInctpykui no eKcnnyatauBnpo6y.
   3.「apaHTiHHe 06cIpyOByBaHHcKacOByeTbc8yBnuaKaX: -HaBHOCTi MExaHiHnx NoIkoJKeHb a6o CIIiIB CTOpOHbOro BtpuAHH;
2. NOUKOJKeHHB NKIIKAnHi CTNXIINHM NIXOM a6o HeuacHMM BnnaKOM, BKJIQUaOuN bIeCKaBky, nOpTpanIaHHM y Bnpi6 CTOPOHHIX PpeImTeB, pIDIN, KOMAX, TOIO;
3. NOUKOJXeHHB BKNIKAH3acTocyBaHHM a6o NiKIOUeHHM HeCTaHapTHHX a6o HecnpabHnX nepiΦepiHnX npucTpOIB, akcecyapiB;
4. rapaHTiHa HnHnHPOeTbCra Ha BnTpAHi MaTePiAn Ta DoaATKOBi akcecyap;
   3 rapaHTiHMMyMOBaMn 3roDeH.

Пдпс поуц:

TAPAHNTIHHI TAIOH No

ToBap/MoDenb

CepiHnH Homep

TepmiH rapaHii

Дата пожу

PpOdaBeuB (Ha3Ba, TeNeΦoH)

Peyatka Ta niiinnc npoadua

3 rapaHTiHnX nITaHb 3BepTaITeCb do cepBichx ueHtpiB Gembird. Ipo aDpeCn Ta KOHTaKTH Bu MoKeTe DiHaTncb Ha caTi www.gembird.ua a6o no TelefoHy 044-4510213.

WARUNKI GWARANCJI
