Read all warnings and instructions provided with the roller stand. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

▶ Pull the plug from the mains receptacle and/or remove the battery from the power tool before making adjustments on the tool or changing tool accessories. Unintentional switching on of the power tool is the cause of many accidents.
▶ Assemble the roller stand in a proper manner. Proper assembly is important to prevent the risk of a collapse of the roller stand.
Place the roller stand on a firm, level and horizontal surface. If the roller stand can slip off or wobbles, the workpiece cannot be uniformly and securely guided.
▶ Do not overload the roller stand and do not use it as a ladder or scaffolding. Overloading or standing on the roller stand can lead to the upward shifting of the centre of gravity of the roller stand and its tipping over.
▶ When working or transporting, take care that all bolts and connecting elements are firmly tightened and/or engaged. Loose connections can lead to instability and inexact sawing.
▶ Ensure that long and heavy workpieces do not affect the equilibrium of the roller stand.

Intended Use

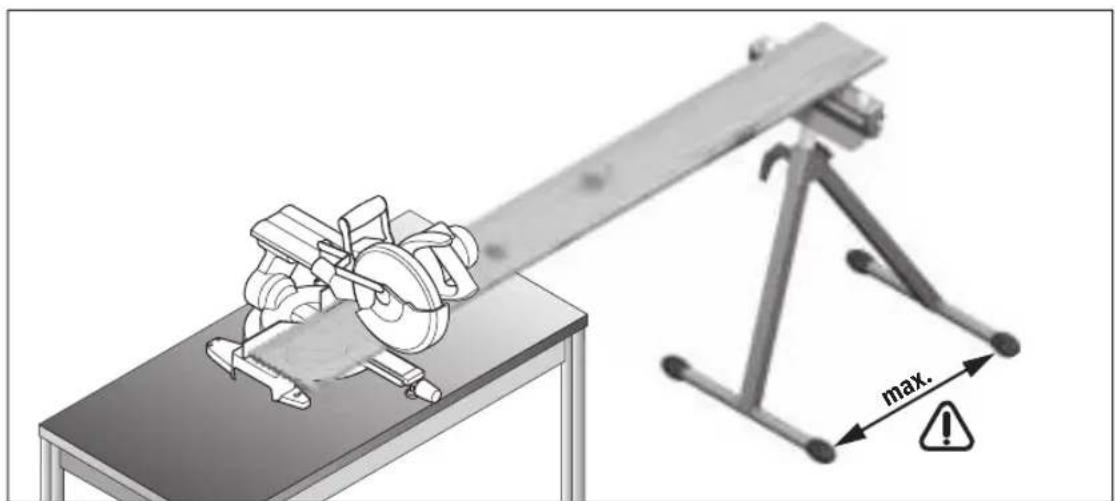

The roller stand is intended for supporting the free end of a workpiece while sawing with a stationary saw. The roller balls ensure appropriate movability of the workpiece.

Technical Data

Roller Stand PTA 1000
Article number 3 603 M05 1..

Supporting height	mm 700 -1150
Max. carrying capacity	kg 100

After-sales Service and Application Service

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the roller stand.

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.
