USER MANUAL ESLV67 PANASONIC

Operating Instructions

(Household use) Rechargeable Shaver

Model No. ES-LV67

Black Panasonic electric shaver with control panel and brand logo (no visible text or symbols on body)

CE

GB English....5 DK Dansk....131 CZ Česky....249
D Deutsch ..... 25 P Português.....151 SK Slovensky.....269
F Français......45 N Norsk ...... 173 H Magyar ...... 289
I Italiano....67 S Svenska....193 RO Română....309
NL Nederlands....87 FIN Suomi....211 TR Türkçe....329
E Español....109 PL Polski....229

1

2

A ① ② ③ ④ ⑤ ⑥ a 100 80 60 40 20 c d ⑦

Back ⑧ ⑨ ⑩ ⑪ ⑫ ⑫

B ⑬ ⑭ ⑮ ⑯

Panasonic

Operating Instructions

(Household use) Rechargeable Shaver

Model No. ES-LV67

Contents

Safety precautions...... 8

Important information....12

Parts identification....13

Preparation....13

How to use ....14

Cleaning the shaver .....16

Replacing the system outer foil and the inner blades....18

FAQ....18

Troubleshooting 19

Service....21

For environmental protection and recycling of materials....22

Specifications 23

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

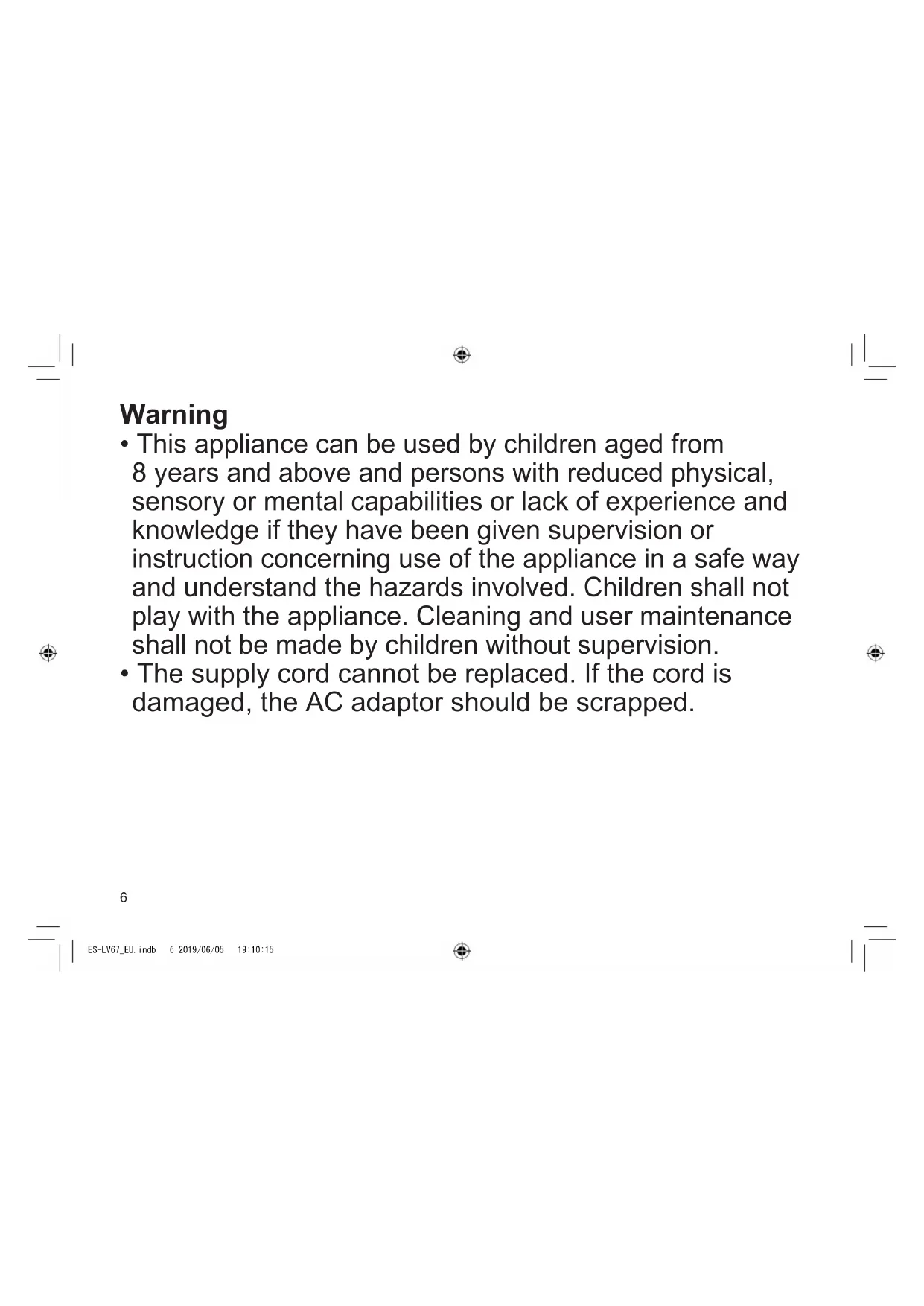

Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

- This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

- Do not use anything other than the supplied AC adaptor for any purpose. Also, do not use any other product with the supplied AC adaptor. (See page 13.) - The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

▶ This product

This product has a built-in rechargeable battery.

Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

- Doing so may cause overheating, ignition, or explosion.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury.

Contact an authorized service centre for repair (battery change etc).

Never disassemble except when disposing of the product.

-Doing so may cause fire, electric shock, or injury.

WARNING

▶ In case of an abnormality or malfunction Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.


•The main unit, adaptor or cord is deformed or abnormally hot.

• The main unit, adaptor or cord smells of burning.
- There is an abnormal sound during use or charging of the main unit, adaptor or cord.
- Immediately request inspection or repair at an authorized service centre.

▶ Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.
- Doing so may cause electric shock or injury.

Do not immerse the AC adaptor in water or wash with water.

Do not place the AC adaptor over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage the cord or the power plug.

- Do not deface, modify, forcefully bend or pull the cord or the power plug. Also, do not place anything heavy on, twist or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.
- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor. Fully insert the adaptor.

-Failure to do so may cause fire or electric shock.

Disconnect the AC adaptor when cleaning the main body with water.
-Failure to do so may cause electric shock or injury.

WARNING

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity.

▶ Preventing accidents

Do not place within reach of children or infants. Do not let them use it.

- Putting parts or accessories in the mouth may cause an accident or injury.

If oil is consumed accidentally, do not induce vomiting, drink a large amount of water and contact a physician.

If oil comes into contact with eyes, wash immediately and thoroughly with running water and contact a physician.

- Failure to follow these instructions may result in physical problems.

CAUTION

▶ Protecting the skin

Do not use excessive pressure to apply the system outer foil to your lip or other part of your face.

Do not apply the system outer foil directly to blemishes or injured skin.

Do not touch the blade section (metallic section) of the inner blade.

- Doing so may cause injury to skin or hand.

Do not forcefully press the system outer foil. Also, do not touch the system outer foil with fingers or nails when in use.

Do not use this product for hair on head or any other part of the body.

- Doing so may cause injury to skin or reduce the life of the system outer foil.

Check the system outer foil for cracks or deformations before use.

- Failure to do so may cause injury to the skin.

Be sure to place the protective cap on the shaver when carrying around or storing.

- Failure to do so may cause injury to skin or reduce the life of the system outer foil.

CAUTION

▶ Note the following precautions Do not wrap the cord around the adaptor when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Do not allow metal objects or trash to adhere to the power plug or the appliance plug.

- Doing so may cause electric shock or fire due to a short circuit.

Do not disconnect the adaptor or the appliance plug by holding onto the cord. - Doing so may cause electric shock or injury.

Do not share your shaver with your family or other people.

- Doing so may result in infection or inflammation.

Do not drop or hit against other objects. - Doing so may cause injury.

Disconnect the adaptor from the household outlet when not charging.

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

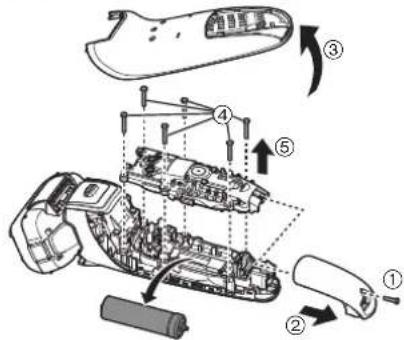

Handling of the removed battery when disposing

DANGER

•The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.

- Do not charge the battery after it has been removed from the product.

- Do not throw into fire or apply heat.

- Do not hit, disassemble, modify, or puncture with a nail.

- Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

- Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.

- Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.

- Never peel off the tube.

- Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed.

If this happens, consult a physician immediately.

If the battery fluid leaks out and comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water.

- Failure to do so may cause eye injury. Consult a physician immediately.

CAUTION

If the battery fluid leaks out and comes in contact with the skin or clothes, rinse off with clean water, such as tap water.

- Failure to do so may cause inflammation.

Important information

- Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.

- Do not bring the system outer foil into contact with hard objects.

Doing so may damage the blades as they are very thin and deform easily.

- Do not dry the main unit with a dryer or a fan heater. Doing so may cause malfunction or deformation of the parts.

- Do not leave the shaver exposed to direct sunlight with the foil frame detached.

Doing so may deteriorate the waterproof rubber and degrade waterproof function, which may cause to malfunction.

- Store the shaver in a place with low humidity after use.

Failure to do so may cause malfunction due to condensation or rust.

- Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged.

- If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time.

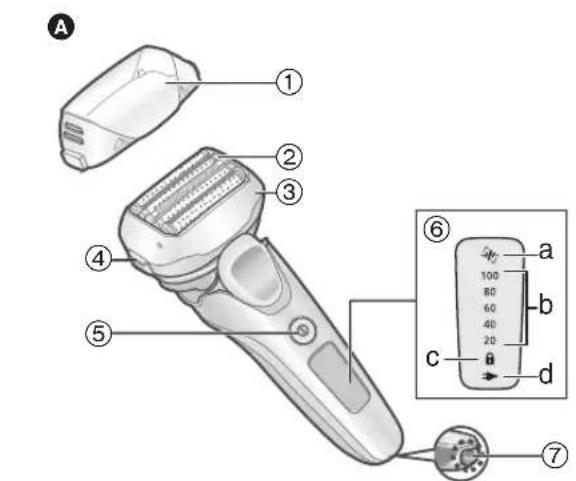

Parts identification

A Main body

① Protective cap
② System outer foil
③Foil frame
④ Foil frame release buttons
⑤Power switch
⑥ Lamp display

a. Shaving sensor lamp (¢)

b. Battery capacity lamp

c. Switch lock lamp ( 🔒 )

d. Charge status lamp (→)

⑦Appliance socket

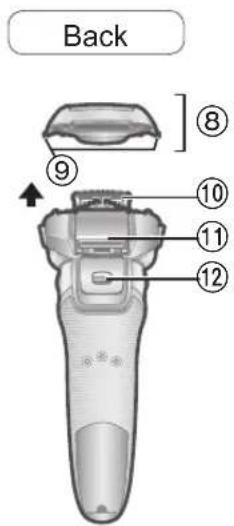

⑧ Outer foil section
⑨ System outer foil release buttons
⑩ Inner blades
⑪ Trimmer
⑫ Trimmer handle

B AC adaptor (RE7-87)

⑬Adaptor
⑭ Power plug
⑮ Cord
⑯Appliance plug

Accessories

© Travel case

D Cleaning brush
E Oil
F Operating Instructions
G Guarantee Card

Preparation

Charging the shaver

• Turn the shaver off.
• Wipe off any water droplets on the appliance socket.

1 Insert the appliance plug [B⑯] into the shaver.

2 Plug the adaptor [B⑬] into a household outlet.

• Check that the charge status lamp (→) is glowing.
• Charging is completed after approx. 1 hour.

3 Disconnect the adaptor after charging is completed.

Note

You cannot operate the shaver while charging.

While charging

glows.

The number of the battery capacity lamp will increase as charging progresses.

Diagram of a handheld device with labeled parts and connection points

After charging is completed

All the battery capacity lamp and ➤ will glow and then turn off after 5 seconds.

Notes

- When charging the shaver for the first time or when it has not been in use for more than 6 months, the charging time may change or the charge status lamp (→) may not glow for a few minutes. It will eventually glow if kept connected.

• Recommended ambient temperature for charging is 10^ - 35^ . It may take longer to charge, or the charge status lamp () will blink quickly and the battery may fail to charge properly in extremely high or low temperatures.
• The shaver can be used for approximately 2 weeks with a full charge.
  (Based on one 3-minute dry-shave usages per day in an ambient temperature range of 20^ - 30^ .) The number of usable days varies depending on the following conditions.
• Beard thickness
• Pressure applied to the skin
  -Usage frequency of the sonic vibration cleaning mode
• If there is noise from the radio or other sources while using or charging the appliance, move to a different location to use the appliance.

How to use

Shaving beard

1 Press and shave.

- The "shaving sensor", which automatically adjusts the power depending on the beard thickness, will operate.

It will shave with high power on areas where the beard is heavy, and reduce the power on areas where the beard is thin, to reduce burden on the skin.

Tips for better shaving

Apply the whole system outer foil perpendicularly against the skin and shave by slowly gliding the shaver over the face against the grain of the beard.

• The beard under the chin and around the throat can be shaved better by stretching the skin so the beard will stand.
• To prevent damaging the system outer foil, do not shave with only a part of the system outer foil.

2 Press when finished.

While using After use

The remaining battery capacity are shown and then turn off after 5 seconds.

• Approximate amount of battery capacity is displayed as 20 – 100.
  • The shaving sensor lamp (💡) blinks.

The remaining battery capacity blink and then turn off after 5 seconds.

When the battery capacity is low

"20" blinks when operating the shaver.

- You can shave 2 to 3 times after "20" blinks. (This will differ depending on usage.)

Notes

• The appliance may not operate in an ambient temperature lower than approximately 5^ .
• The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal.

• Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.

• To prevent erroneous operation, place your fingers on the finger rest while using the shaver.

• The sonic vibration cleaning mode is activated when the power switch is pressed for more than 2 seconds while the shaver is not operating. (See page 16.) You cannot shave in this mode.

Operation and display of the switch lock

▶ Locking the power switch

1. Press once and then release.• The shaver starts operating.	2. Press for more than 2 seconds until the switch lock lamp ( 🔒 ) turns on.• The shaver will stop operating.	3. Release• The switch lock lamp ( 🔒 ) will light up for 5 seconds and turn off.

▶ Unlocking the power switch

1. Press for more than 2 seconds until the switch lock lamp (🔒) turns off.

2. Once the shaver starts operating, release ⬆.• The switch lock lamp (🔒) will turn off.

- The power switch is locked when the switch lock lamp (💡) blinks for 5 seconds and the shaver does not operate even though the power switch is pressed.

▶ Switching the shaver head

You can change the pivot action.

FREE

The shaver head is moved to prevent missed spots.

LOCK

You can lock the shaver head.

▶ Using the trimmer

1. Slide the trimmer handle up to the "mm" position so that the trimmer stands upright.
2. Press ① and use.

Press and hold the top knob (a) and slide the trimmer handle down to lower the trimmer.

Tips for better usage

Apply the trimmer edge perpendicular to skin gently and move downward slowly.

Trimming sideburns Pre-shave of long beards

Cleaning the shaver

We recommend cleaning the shaver after each use.

Cleaning with water

- Turn the shaver off and disconnect the AC adaptor.

1 Apply some hand soap and some water to the system outer foil.

2 Press for more than

2 seconds to activate the sonic vibration cleaning mode.

• Splashing of foam is suppressed
• The battery capacity lamps blink in order.
  • After about 20 seconds, it will be automatically turned off, or you can turn it off by pressing the power switch.

3 Remove the outer foil section and clean with running water.

• See page 18 for removing the outer foil section.
- Splashing is reduced by rinsing the shaver in sonic vibration cleaning mode.
• After rinsing with water, shake the shaver up and down for a few times to remove excess moisture and then wipe off any drops of water with a dry cloth.

4 Dry the outer foil section, the shaver, and the trimmer [A⑪] completely

- Allow the shaver to dry in the shade, avoid direct sunlight.

5 Lubricate the shaver.

It will keep the movement of the blade smooth and maintain a comfort shave.

1. Apply one drop of oil to each of the system outer foils.
2. Raise the trimmer and apply a drop of oil.
3. Switch the shaver on, and run it for approximately five seconds.
4. Switch off the shaver, and wipe off any excess oil from the system outer foil with a soft cloth.

Notes

- Be careful not to hit the main body on the sink or any other object while draining the water. Failure to do so may cause malfunction.

• Do not wipe with thinners, benzine, alcohol etc.
  Doing so may cause malfunction, or cracking or discoloration of the parts.
  Wipe with diluted soapy water.
• Do not use any kitchen or bathroom detergents other than hand soap.
  Doing so may cause malfunction.

Cleaning with the brush

Remove the outer foil section and the inner blades. (See page 18.)

Clean the system outer foil in the areas indicated by the circles every time you use the shaver.

▶ Cleaning with the long brush

Clean the foil frame [A③], system outer foil [A②], the main body [A] and the trimmer [A⑪] using the long brush.

▶ Cleaning with the short brush

• Clean the inner blades [A⑩] using the short brush by moving it in direction as illustrated.
• Do not move the short brush perpendicularly against the blades as it will damage the inner blades and affect their sharpness.

Replacing the system outer foil and the inner blades

system outer foil once every year

inner blades once every two years

▶Removing the outer foil section

Press the foil frame release buttons [A④] and lift the outer foil section [A⑧] upwards.

▶ Attaching the outer foil section

After turning the foil frame mark (✗) to the front, securely attach the outer foil section [A⑧] to the shaver until it clicks.

▶ Replacing the system outer foil

1. Press the system outer foil release buttons [A⑨] and pull down the system outer foil [A②].

- Do not press the system outer foil release buttons with excessive force.

Doing so may bend the system outer foil, preventing complete attachment to the foil frame.

1. Align the foil frame mark (✗) and the system outer foil mark (△) and securely attach together until it clicks.

▶ Replacing the inner blades

1. Remove the inner blades [A⑩] one at a time.
2. Insert the inner blades one at a time.

Note

Do not throw away the foil frame.

FAQ

Question Answer

Will the battery deteriorate if not used for an extended period of time?

The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months.

Can I charge the shaver after every use?

The battery used is a lithium-ion, so charging after every use will have no effect on battery life.

Why should the adaptor be disconnected after charge?

Charging the battery for more than 1 hour will not affect battery performance, but disconnect the adaptor for safety and to save energy.

What is the constituent of the dedicated oil?

▶ Constituent of the oil is liquid paraffin.

Troubleshooting

Perform the following actions. If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Problem Action

The power switch does not turn ON.

The shaving sensor does not respond.

▶ Unlock the switch lock. (See page 15.)
Depending on the beard thickness or the amount of beard trimmings in the
▶ shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.
The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal.
The shaving sensor may not respond when the remaining battery capacity is low. If this happens, recharge the shaver.
Apply oil. (See page 17.) The shaving sensor may not respond when there is not enough oil on the blades.

Problem Action

The shaving sensor responds even though the shaver is not in contact with the skin.

Clean the beard trimmings from the shaver.
When the shaver is
▶ extremely dirty, remove the foil frame and wash with water.
(See page 16.)
Replace the system outer foil and/or inner blades.
Expected life of system outer foil and inner blades:
System outer foil:
Approximately 1 year Inner blades:
Approximately 2 years

Problem Action

Operating time is short even after a full charge.

Although the shaver can be used for about 2 weeks after a full charge (assuming dry-shave usages for 3

minutes per day), the usable number of days might be lower depending on how the shaver is used (for example, when used for wet shaving).

▶ Apply oil.

This can be improved by cleaning every time after shaving.

When the number of operations per charge starts to decrease, the battery is nearing the end of its life.

Problem Action

Shaver does not operate even after charging.

The driving sound changes while shaving.

Makes a loud sound.

Use the appliance in an ambient temperature approximately 5 °C or higher.

The battery has reached the end of its life.

The shaver will not operate with the AC adaptor

connected. Please use the shaver after it has been sufficiently charged and the AC adaptor disconnected.

The shaving sensor is operating. The sound changes depending on the beard thickness.

Apply oil. The blades will not move ▶ smoothly when there is no oil on the blades, requiring more power.

The shaver makes a high-pitched sound due to the linear motor drive. This does not indicate a problem.

▶ Confirm that the blades are properly attached.

▶ Clean the system outer foil with the brush. (See page 17.)

Problem Action
The odor is getting stronger.	This can be improved by cleaning every time after shaving.
Shavings fly out in all directions.	This can be improved by cleaning every time after shaving.Clean the inner blades with the brush when shavings are adhering to the inner blades.
System outer foil gets hot.	Apply oil.Replace the system outer foil if it is damaged or deformed.(See page 18.)
You do not get as close a shave as before.	This can be improved by cleaning every time after shaving.Replace the system outer foil and/or inner blades.Expected life of system outer foil and inner blades:System outer foil:Approximately 1 yearInner blades:Approximately 2 yearsApply oil.

Service

Contact

Please visit Panasonic web site http://www.panasonic.com or contact an authorized service centre (you find its contact address in the pan european guarantee leaflet.) if you need information or if the shaver or the cord gets damaged.

Replacement parts

Replacement parts are available at your dealer or Service Centre.

Replacement parts for ES-LV67	System outer foil and inner blades	WES9032
	System outer foil WES9173
	Inner blades WES9170

Battery life

The life of the battery is 3 years. The battery in this shaver is not intended to be replaced by consumers. Have the battery replaced by an authorized service centre.

For environmental protection and recycling of materials

This shaver contains a Lithium-ion battery.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Disposal of the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the shaver.

The battery is to be disposed of safely. Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing of the shaver, and must not be used to repair it. If you dismantle the shaver yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the shaver from the AC adaptor.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ⑤ and lift the battery, and then remove it.

- Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

Diagram illustrating the internal components of a shoe's internal structure with numbered parts and directional arrows indicating assembly or repair.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	3.6 V---
Charging time Approx. 1 hour
Airborne Acoustical Noise	In shaving mode: 61 (dB (A) re 1 pW) In trimmer mode: 62 (dB (A) re 1 pW)

This product is intended for household use only.

Panasonic

Betriebsanleitung

Diagram of a handheld device with labeled parts and connection points

Exploded view diagram of a device showing internal components and labeled parts in Chinese

Spezifikationen

Diagram of a handheld device with labeled parts and connection points

Diagram showing four steps of a car seatbelt buckle with labeled parts and dashed lines indicating measurement or design.

Exploded view diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair.

Spécifications

Diagram of a handheld device with labeled parts and connection points

Diagram showing four steps of a door handle with dashed arrows indicating movement or positioning, likely illustrating a mechanical or electrical component.

Exploded view diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair.

Specifiche

Diagram of a handheld device with labeled parts and connection point

Opmerking

Exploded view diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair.

Specifications

Diagram of a handheld device with labeled parts and connection points

Exploded view diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair.

Especificaciones

Diagram of a handheld device with labeled parts and connection points

Technical diagram showing four steps of a device grip or adjustment, with arrows indicating movement and labels like '100' and '200'.

▶ Brug af trimmeren

Medical illustration showing four steps of a laparoscopic procedure on pelvic region, with arrows indicating direction of movement.

Exploded view diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair.

Specifikationer

Diagram of a handheld device with labeled parts and connection points

Medical illustration showing four steps of a laparoscopic procedure on pelvic region, with arrows indicating direction of movement.

Exploded view diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair.

Especificações

Diagram of a handheld device with labeled parts and connection points

Exploded view diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair.

Spesifikasjoner

Strømkilde	Se merkeplaten på vekselstrømsadapteren (automatisk spenningsomformer).
Motorspenning	3,6 V---
Ladetid Omtrent 1 time
Luftbåren akustisk støy	Under barbering: 61 (dB (A) re 1 pW) Under trimming: 62 (dB (A) re 1 pW)

Dette produktet er kun ment til husholdningsbruk.

Panasonic

Bruksanvisning

Diagram of a handheld device with labeled parts and connection points

Exploded view diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair.

Specifikationer

Diagram of a handheld device with labeled parts and connection point

Latauksen päätyttyä

Diagram of a handheld device with labeled parts and connection points

Diagram showing three steps of a car seatbelt switch, with dashed arrows indicating the process.

▶ Korzystanie z trymera

Exploded view diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair.

Dane techniczne

Diagram of a handheld device with labeled parts and connection points

Exploded view diagram of a device showing internal components and labeled parts with numbered annotations

Technické údaje

Diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair steps.

Technické údaje

Zdroj energie	Pozrite si štítok na adaptérina striedavý prúd.(Automatický prevod napätia)
Napätie motora	3,6 V---
Čas nabíjania Približne 1 hodina
Akustický hlukvo vzduchu	V režime holenia: 61 (dB (A) pri 1 pW)V režime zastrihávania: 62 (dB (A) pri 1 pW)

Diagram of a handheld device with labeled parts and connection points

Exploded view diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair.

Műszaki adatok

Diagram of a handheld device with labeled parts and connection points

Close-up of a hand holding a device with an icon and arrow, no visible text or symbols

Medical illustration showing four steps of a laparoscopic procedure on pelvic region, with arrows indicating direction of movement.

Exploded view diagram of a shoe's internal components with numbered parts and directional arrows indicating assembly or repair.

Specificații

Diagram of a handheld device with labeled parts and connection point

Diagram of a device's internal components with numbered parts and directional arrows indicating assembly or assembly steps.

Özellikler

© Panasonic Corporation 2019

⑤ EN, GE, FR, IT, DU, SP, DA, PT, NW, SW, FI, PL, CZ, SK, HU, RO, TK

Printed in Japan

ES9700LV671E Y0619-0
