USER MANUAL MVH-S300BT PIONEER

MVH-S300BT MVH-S301BT About this manual: Connections/Installation........................................................ 23 Additional Information........................................................... 26 2 En

• In the following instructions, a USB memory or USB audio player are referred to as “USB device”.
• When an iPhone is connected to the unit, the source name on the unit appears as [iPod]. Please note that this unit supports only iPhones (iPhone 5 or later) regardless of the source name (for details, refer to page 30). Before You Start

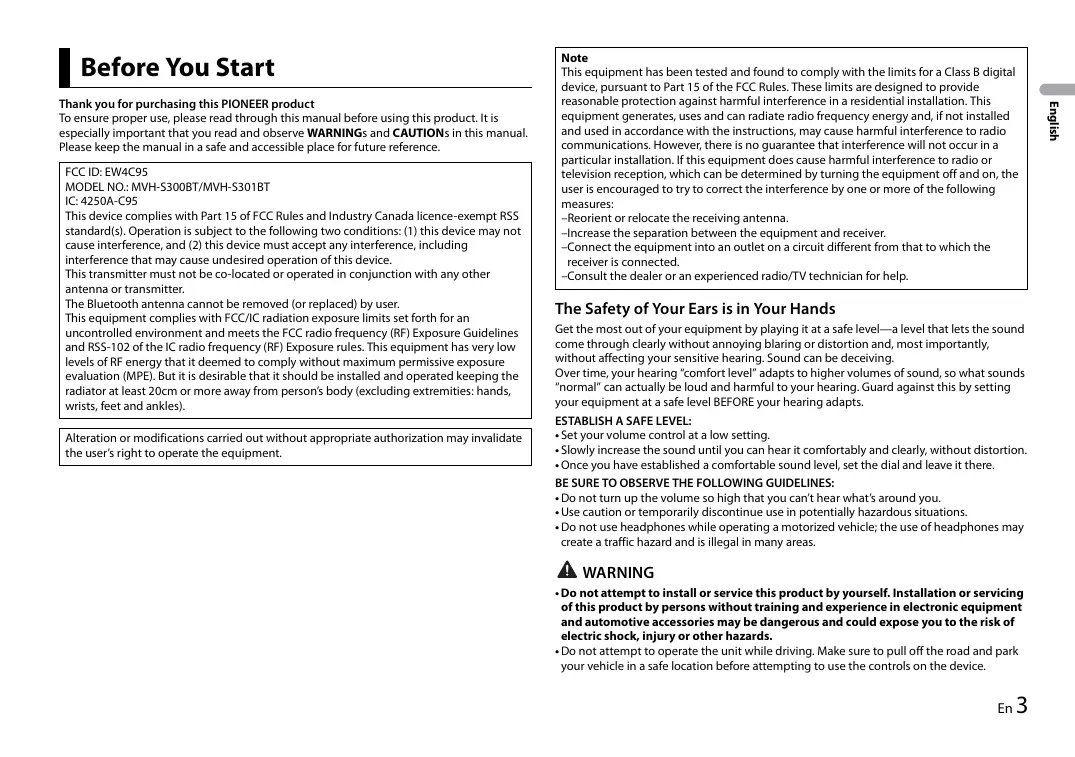

FCC ID: EW4C95

MODEL NO.: MVH-S300BT/MVH-S301BT

IC: 4250A-C95 This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The Bluetooth antenna cannot be removed (or replaced) by user. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment. The Safety of Your Ears is in Your Hands Get the most out of your equipment by playing it at a safe level—a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. ESTABLISH A SAFE LEVEL:

• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
• Once you have established a comfortable sound level, set the dial and leave it there. BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
• Do not turn up the volume so high that you can’t hear what’s around you.
• Use caution or temporarily discontinue use in potentially hazardous situations.
• Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas. WARNING
• Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.
• Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the device.

English Thank you for purchasing this PIONEER product To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGs and CAUTIONs in this manual. Please keep the manual in a safe and accessible place for future reference. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. CAUTION

• Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.
• Always keep the volume low enough to hear outside sounds.
• This product is evaluated in moderate and tropical climate condition under the Audio, video and similar electronic apparatus - Safety requirements, IEC 60065. After-sales service for Pioneer products Please contact the dealer, distributor from where you purchased this unit or the authorized PIONEER Service Station for after-sales service or any other information. In case the necessary information is not available, please contact the companies listed below: Please do not ship your unit to the companies at the addresses listed below for repair without contacting them in advance. Getting Started Basic operation

MVH-S300BT/S301BT

M.C. (multi-control) dial MUTE SRC (source)/OFF USB port Display window U.S.A. and CANADA Pioneer Electronics (USA) Inc.

CUSTOMER SUPPORT DIVISION

P.O. Box 1760 Long Beach, CA 90801-1760 800-421-1404 For warranty information please see the Limited Warranty sheet included with this unit. BASS Frequently used operations Display indication Operation Indication Head Unit Remote Control Press SRC/OFF to turn on the power. Press and hold SRC/OFF to turn off the power. Press SRC to turn on the power. Press and hold SRC to turn off the power. Turn the M.C. dial. Press MUTE to mute the unit. Press MUTE again or turn the M.C. dial to unmute. Press VOLUME + or –. Press MUTE to mute the unit. Press MUTE again or press VOLUME + or – to unmute. Select a source Press SRC/OFF repeatedly. Press SRC repeatedly. Press DISP repeatedly. Press DISP repeatedly. Return to the previous display/list Press BAND/ Return to the normal display from the menu Press and hold BAND/

Change the display brightness Press and hold BAND/

Answering a call Press

Boost the bass level Press BASS. Turn on the power* Adjust the volume

Press / to select the next/previous folder. Description English Purpose Appears when a lower tier of the menu or folder exists. Appears when the BASS button is pressed. Appears when the BASS button is pressed or [HI]/[LOW] is selected in [D.BASS] (page 20). Appears when random/shuffle play is set (except when BT AUDIO is selected as the source). Appears when repeat play is set (except when BT AUDIO is selected as the source). Appears when a Bluetooth connection is made (page 9). Detaching the front panel Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it. Detach Attach

• When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off. Important
• Avoid subjecting the front panel to excessive shock.
• Keep the front panel out of direct sunlight and high temperatures.
• Always store the detached front panel in a protective case or bag.

Resetting the microprocessor The microprocessor must be reset in the following situations: – Before using this unit for the first time after installation – If the unit fails to operate properly – When strange or incorrect messages appear on the display

Remove the front panel (page 5). Press the RESET button with a pointed instrument longer than 8 mm. WARNING

• Do not ingest the battery, Chemical Burn Hazard. (The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Do not expose the battery or remote control to excessive heat such as direct sunlight or fire. CAUTION RESET button

• There is a potential danger of explosion if the battery is incorrectly replaced. When replacing the battery, replace it with the same type.
• Do not handle or store the battery with metallic tools or objects.
• If the battery leaks, remove the battery and wipe the remote control completely clean. Then install a new battery.
• When disposing of used batteries, please comply with governmental regulations or environmental public institutions’ rules that apply in your country/area.
• “Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. (Applicable to California, U.S.A.)” Preparing the remote control Remove the insulation sheet before use. How to replace the battery Important
• Do not store the remote control in high temperatures or direct sunlight.
• Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal. Setup menu When you turn the ignition switch to ON after installation, the setup menu appears in the display.

Insert the CR2025 (3 V) battery with the plus (+) and minus (–) poles orientated properly. 6 En Turn the M.C. dial to select the options, then press to confirm. To proceed to the next menu option, you need to confirm your selection. Description Select the language to display the text information from a compressed audio file. [ENG](English), [ESP](Spanish), [FRA] (Canadian French) CLOCK SET

Set the clock. 1 Turn the M.C. dial to adjust the hour, then press to confirm. The indicator moves to the minute setting automatically. 2 Turn the M.C. dial to adjust the minute, then press to confirm. [QUIT :YES] appears when all the settings have been made. To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO], then press to confirm. INITIAL settings

Press and hold SRC/OFF until the unit turns off. Press the M.C. dial to display the main menu. Turn the M.C. dial to select [INITIAL], then press to confirm. Turn the M.C. dial to select an option, then press to confirm. Menu Item Description

SP-P/O MODE

Select when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output.

[REAR/SUB.W]

[SUB.W/SUB.W]

Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output. [REAR/REAR] Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR]. SYSTEM UPDATE Select [SYSTEM INFO] to confirm the latest system information on the unit. Select [S/W UPDATE] to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website. Press the M.C. dial to confirm the settings. NOTE These settings can be made at any time from the SYSTEM settings (page 20). Canceling the demonstration display (DEMO OFF)

Press the M.C. dial to display the main menu. Turn the M.C. dial to select [SYSTEM], then press to confirm. English [SYSTEM INFO],

[S/W UPDATE]

SYSTEM RESET [YES], [NO] Select [YES] to initialize the unit settings. The unit will be restarted automatically. Turn the M.C. dial to select [DEMO OFF], then press to confirm. Turn the M.C. dial to select [YES], then press to confirm. Radio The tuner frequencies on this unit are allocated for use in North America. Use in other areas may result in poor reception.

NOTE Receiving preset stations

You can select a preset channel by pressing and turning the M.C. dial. After selecting a channel, press and hold the M.C. dial to store a station. Press SRC/OFF to select [RADIO]. Press BAND/ to select the band from [FM1], [FM2], [FM3] or [AM]. Press a number button (1/ to 6/ USB/iPhone/AUX

NOTE You can select a preset channel by pressing Playing back and turning the M.C. dial. TIP The buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 18). Best stations memory (BSM) The six strongest stations are stored on the number buttons (1/

After selecting the band, press the M.C. dial to display the main menu. Turn the M.C. dial to select [FUNCTION], then press to confirm. Turn the M.C. dial to select [BSM], then press to confirm. To seek a station manually 1 After selecting the band, press

to select a station. Press and hold then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press

NOTE [SEEK] needs to be set to [MAN] in the FUNCTION settings (page 18). To store stations manually 1 While receiving the station you want to store, press and hold one of the number buttons (1/ 8 En to 6/ ) until it stops flashing. Disconnect headphones from the device before connecting it to the unit. USB devices (including Android™)/iPhone 1 Open the USB port cover. 2 Plug in the USB device/iPhone using an appropriate cable. NOTE To automatically switch to [USB] source when a USB device/iPhone is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 21). CAUTION Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous. Before removing the device, stop playback. AOA connections For details on AOA connection, see page 16. MTP connection A device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device and the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV file formats and FLAC file formats, and cannot be used with the MIXTRAX function. NOTE If you use an MTP connection, [PHONE CONNECT] needs to be set to [USB MTP] in the SYSTEM settings (page 21). *1 Compressed audio files only *2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct. About MIXTRAX (USB/iPhone only) NOTE If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 20). The MIXTRAX function creates a non-stop mix of your music library. For details on MIXTRAX settings, see page 22. NOTES Operations You can make various adjustments in the FUNCTION settings (page 18). Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself. Purpose English AUX 1 Insert the stereo mini plug into the AUX input jack. 2 Press SRC/OFF to select [AUX] as the source. Operation Select a folder*1 Press 1/ or 2/ Select a track/song (chapter) Press

Fast forward or reverse*2 Press and hold Search for a file from a list (USB only) 1 Press to display the list. 2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.

Press and hold the M.C. dial when a folder/category is selected. Repeat play Press 6/

Random/shuffle play Press 5/

Press 4/PAUSE. Bluetooth

Play a song in the selected folder/ category*1 Press and hold 1/ Press 3/MIX to turn MIXTRAX on/off.

Press the M.C. dial when a folder/ category is selected. Pause/resume playback

View a list of the files in the selected folder/category*1 Return to root folder (USB only)*1

• iPhone needs to be connected with Pioneer ARC APP via USB for using this function (page 16).
• This function is not compatible with an Android device connected via MTP.
• Depending on the file/song, sound effects may not be available.

Bluetooth connection Important If ten or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may not work properly.

Turn on the Bluetooth function of the device. If you make a Bluetooth connection from the device, proceed to step 6. Press Turn the M.C. dial to select [BT SETTING], then press to confirm. Turn the M.C. dial to select [ADD DEVICE], then press to confirm. The unit starts to search for available devices, then displays them in the device list.

• To cancel searching, press the M.C. dial.
• If the desired device is not in the list, select [RE-SEARCH].

• If there is no device available, [NOT FOUND] appears in the display. Menu Item Description Turn the M.C. dial to select a device from the device list, then press to confirm. Press and hold the M.C. dial to switch the displayed device information between the Bluetooth device address and device name. If you make a Bluetooth connection from the unit, proceed to step 7. ADD DEVICE Register a new device. If ten devices are already paired, this function is not available. You can check the number of paired devices on the [DEVICELIST] setting. A.CONN Select [ON] to connect to a Bluetooth device automatically. Select [Pioneer BT Unit] shown in the device display. Make sure the same 6-digit number appears on this unit and the device, then select “Yes” on the device. NOTES [ON], [OFF] VISIBLE [ON], [OFF] PIN CODE Change the PIN code. 1 Press the M.C. dial to display the setting mode. 2 Turn the M.C. dial to select a number. 3 Press the M.C. dial to move the cursor to the next position. 4 After inputting the PIN code, press and hold the M.C. dial. After inputting the PIN code, pressing the M.C. dial returns you to the PIN code input display, and you can change the PIN code. DEV. INFO Switch the device information on the display between the device name and Bluetooth device address.

• [DEVICE FULL] appears if the unit has already been paired with ten other devices. In this case, delete one of the paired devices. See [DEL DEVICE] in the Bluetooth settings (page 10).
• Depending on the device, the PIN code is required in step 7. In this case, input [0000]. TIP The Bluetooth connection can be also made by detecting the unit from the Bluetooth device. To do so, [VISIBLE] in the Bluetooth settings needs to be set to [ON]. For details on Bluetooth device operations, refer to the operating instructions supplied with the Bluetooth device. Display the list of paired Bluetooth devices. “*” appears on the device name when the Bluetooth connection is established. When no device is selected in the device list, this function is not available. DEL DEVICE Delete the device information. [DELETE YES], [DELETE NO] 10 En Select [ON] so that a Bluetooth device can detect the unit when the unit is connected via Bluetooth to another device. Description A.PAIRING Select [ON] to pair the unit and iPhone or Android device automatically when an iPhone or Android device is connected to the unit via USB. (This function may not be available depending on the version of iOS you are using.)
• When you are using an Android device, this function is available in the following situations: [ON], [OFF] – Your device has Android OS 4.4 or later installed. – Be sure to turn on the Bluetooth function of the device and confirm that the device is not connected to the unit via Bluetooth. – [P.APP AUTO ON] needs to be set to [ON] (page 21). – Pioneer ARC APP needs to be installed on your Android device and [PHONE CONNECT] needs to be set to [APP CONTROL] (page 16). – A confirmation button should be pressed on the caution window displayed on Pioneer ARC APP after a connection with the Pioneer ARC APP is made. Bluetooth telephone First, make a Bluetooth connection with the Bluetooth telephone (page 9). Up to two Bluetooth telephones can be connected simultaneously. Important
• Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the vehicle’s battery.
• Be sure to park your vehicle in a safe place and apply the parking brake before operation. To make a phone call 1 Press to display the phone menu.

When two phones are connected, a phone name appears first then a phone menu will display. To switch to another phone, press again. Turn the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to confirm. If you select [PHONE BOOK], proceed to step 4.

Turn the M.C. dial to select [MISSED], [DIALED] or [RECEIVED], then press to confirm. Turn the M.C. dial to select a name or phone number, then press to confirm. The phone call starts. To answer an incoming call 1 Press when a call is received. TIP When two phones are connected to the unit via Bluetooth and there is an incoming call while one phone is being used for a call, a message will appear in the display. To answer that incoming call, you need to end the existing call. Basic operations Purpose Operation End a call Press Reject an incoming call Press and hold Switch between the current caller and a caller on hold Press the M.C. dial. Cancel a caller on hold Press and hold

when a call is received.

Adjust the volume of the Turn the M.C. dial during the call. caller’s voice (When private mode is on, this function is not available.) Turn the private mode on or off Press BAND/ during the call. To preset phone numbers 1 Select a phone number from a phone book or call history. 2 Press and hold one of the number buttons (1/ to 6/ ). The contact is stored in the selected preset number.

English Menu Item To make a call using a preset number, press one of the number buttons (1/ to 6/ ), then press the M.C. dial. Menu Item Description PB INVT Invert the order of names in the phone book (name view). Voice recognition (Only for iPhone) BT SETTING You can adjust various settings for Bluetooth connections. For details on Bluetooth settings, see page 10. This function is only available when an iPhone equipped with voice recognition is connected to the unit via Bluetooth. 1 Press and hold to activate the voice recognition mode. 2 Press the M.C. dial and then talk into the microphone to input voice commands. To exit the voice recognition mode, press BAND/

• If two phones are connected, this function does not work on incoming calls that are received while one of the phones is being used for a call. Bluetooth audio Important NOTE For details on the voice recognition features, refer to the manual supplied with your iPhone. Display the missed call history. [MISSED] [DIALED] Display the dialed call history. [RECEIVED] Display the received call history. PHONE BOOK Display the contacts in your phone. Set [VISIBLE] in the Bluetooth settings to [ON] to browse the contacts via this unit. PRESET 1-6 Recall the preset phone numbers. You can also recall the preset phone numbers by pressing one of the number buttons (1/ to 6/

A.ANSR* Select [ON] to answer an incoming call automatically. Select [ON] if the ring tone does not come out from the car speakers. Depending on the connected phone, this function may not work.

• Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels: – A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player. – AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, select song, etc.
• The sound of the Bluetooth audio player will be muted when the phone is in use.
• When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically.
• Depending on the type of Bluetooth audio player you have connected to this unit, operation and information displayed may vary based on availability and functionality.

Make a Bluetooth connection with the Bluetooth audio player. Press SRC/OFF to select [BT AUDIO] as the source. Press BAND/ to start playback. Basic operations You can make various adjustments in the FUNCTION settings (page 18). Purpose Operation Fast forward or reverse Press and hold Select a track Press

Repeat play* Press 6/

For Android device users Purpose Operation Random play* Press 5/ Pause/resume playback Press 4/PAUSE. Search for a file from a list 1 Press to display a list. 2 Turn the M.C. dial to select the desired folder name, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts. Press 1/ or 2/ NOTE PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF SUCH APPS ARE THE SOLE RESPONSIBILITY OF THE APP PROVIDER. Playback of an application via the unit

• Depending on the connected device, these operations may not be available. App Mode You can enjoy listening to an application on an iPhone/Android device via the unit. In some cases, you can control an application by using the unit. For details on compatible devices, visit our website.

Important Use of third party apps may involve or require the provision of personally identifiable information, whether through the creation of a user account or otherwise, and for certain applications, the provision of geolocation data. ALL THIRD PARTY APPS ARE THE SOLE RESPONSIBILITY OF THE PROVIDERS, INCLUDING WITHOUT LIMITATION COLLECTION AND SECURITY OF USER DATA AND PRIVACY PRACTICES. BY ACCESSING THIRD PARTY APPS, YOU AGREE TO REVIEW THE TERMS OF SERVICE AND PRIVACY POLICIES OF THE PROVIDERS. IF YOU DO NOT AGREE WITH THE TERMS OR POLICIES OF ANY PROVIDER OR DO NOT CONSENT TO THE USE OF GEOLOCATION DATA WHERE APPLICABLE, DO NOT USE THAT THIRD PARTY APP. For iPhone users This function is compatible with iPhones installed with iOS 6.0 or later. Connect this unit with the mobile device.

• iPhone via USB (page 8)
• iPhone/Android device via Bluetooth (page 9) Press the M.C. dial to display the main menu. Turn the M.C. dial to select [SYSTEM], then press to confirm. Turn the M.C. dial to select [PHONE CONNECT], then press to confirm. Turn the M.C. dial to select one of the below, then press to confirm.
• Select [IPHONE] for iPhone.
• Select [ANDROID] for Android device. Turn the M.C. dial to select one of the below.
• Select [WIRED] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection. NOTE

When the connection setting is changed, a message that lets you know that the connection setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is executed. Press SRC/OFF to select [APP]. Operate the mobile device to start up the application. NOTE When you connect a mobile device other than iPhone/Android device, select [OTHERS] in the [PHONE CONNECT] menu and select [WIRED] (for the USB connection) or [BLUETOOTH]

English Switch the Bluetooth device name in the device list according to the connection order This function is compatible with devices that have Android OS 2.3 or later installed.

(for the Bluetooth connection). Depending on your mobile device, it may not operate correctly.

Basic operations Operation Select a track Press Fast forward or reverse Press and hold Pause/resume playback Press BAND/

Pandora® Turn the M.C. dial to select [BLUETOOTH] for iPhone/Android device via Bluetooth. NOTE You can make various adjustments in the FUNCTION settings (page 18). Purpose

• Select [ANDROID] for Android device.

When the connection setting is changed, a message that lets you know that the connection setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is executed. Press SRC/OFF to select [PANDORA]. Launch the Pandora application on the mobile device and start playback. NOTE Pandora internet radio is a music service not affiliated with Pioneer. More information is available at http://www.pandora.com. The Pandora mobile application is available for iPhone and Android phones. Please visit www.pandora.com/everywhere/mobile for the latest compatibility information. When you connect a mobile device other than iPhone/Android device, select [OTHERS] in the [PHONE CONNECT] menu and select [WIRED] (for the USB connection) or [BLUETOOTH] (for the Bluetooth connection). Depending on your mobile device, it may not operate correctly. Basic operations You can make various adjustments in the FUNCTION settings (page 18). Listening to Pandora Update the firmware of the Pandora application to the latest version before use.

Connect this unit with the mobile device.

• iPhone via USB (page 8)
• iPhone/Android device via Bluetooth (page 9) If you choose a USB connection, proceed to step 6. Purpose Operation Skip a track Press Change the sort order Press (list), then select one of the following. [ABC]: Sort the items in the list alphabetically. [DATE]: Sort the items in the list in order of the dates on which the items were created. Play When Shuffle or the station is selected, press the M.C. dial. Press SRC/OFF to select [PANDORA]. Press and hold 1/ to display [PHONE CONNECT]. Turn the M.C. dial to select one of the below, then press to confirm.
• Select [IPHONE] for iPhone. 14 En

Switch between Shuffle and the Press (list), then turn the M.C. dial to station select the Shuffle or the desired station. Operation Delete a station 1 When the station is selected, press and hold the M.C. dial. [DELETE YES] appears. 2 Press the M.C. dial. in step 1. To cancel, press BAND/ Pause/resume playback Press 4/PAUSE. Thumbs Up Press 1/

Thumbs Down Press 2/

Press and hold 5/ Create a new station based on the track currently being played

Create a new station based on Press and hold 6/ the artist currently being played

Store the track information currently being played in your Pandora account. 1 Press and hold 3/MIX. [BOOKMARK] appears. 2 Press the M.C. dial. NOTE

• For information on the countries and regions where Spotify can be used, take a look at https://www.spotify.com/us/select-your-country/. Listening to Spotify Update the firmware of the Spotify application to the latest version before use.

Some functions of Pandora may not be operated from the unit. Connect this unit with the mobile device.

• iPhone via USB (page 8)
• iPhone/Android device via Bluetooth (page 9) If you choose a USB connection, proceed to step 6. Press SRC/OFF to select [SPOTIFY]. Press and hold 1/ to display [PHONE CONNECT]. Turn the M.C. dial to select one of the below, then press to confirm.
• Select [IPHONE] for iPhone.
• Select [ANDROID] for Android device. Turn the M.C. dial to select [BLUETOOTH] for iPhone/Android device via Bluetooth. NOTE Spotify® Spotify is a music streaming distribution service not affiliated with Pioneer. More information is available at http://www.spotify.com. The Spotify application is available for compatible smartphones, please visit https://support.spotify.com/ for the latest compatibility information. To enjoy Spotify as you drive, first download the Spotify app to your iPhone or Android device. You can download it on the iTunes App Store or Google Play™. Choose a free account or a paid Premium account, either in the app or at spotify.com. A Premium account gives you more features, like offline listening.

When the connection setting is changed, a message that lets you know that the connection setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is executed. Press SRC/OFF to select [SPOTIFY]. Launch the Spotify application on the mobile device and start playback. NOTE When you connect a mobile device other than iPhone/Android device, select [OTHERS] in the [PHONE CONNECT] menu and select [WIRED] (for the USB connection) or [BLUETOOTH] (for the Bluetooth connection). Depending on your mobile device, it may not operate correctly. Important

• This product incorporates Spotify software which is subject to 3rd party licenses found here: www.spotify.com/connect/third-party-licenses. Basic operations You can make various adjustments in the FUNCTION settings (page 18).

English Purpose NOTE The available operations may vary according to the type of contents (track/album/artist/ playlist/radio) you want to play. WARNING Purpose Operation Skip a track Press Search for a track from a list 1 Press (list) to display the list. 2 Turn the M.C. dial to select the desired category, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.

Pause/resume playback Press 4/PAUSE. Thumbs Up (Only for radio) Press 1/

Thumbs Down (Only for radio) Press 2/

Random play (Only for track/album/ artist/playlist) Press 5/

Repeat play (Only for track/album/ artist/playlist) Press 6/

Start a radio channel based on the song currently being played. 1 Press and hold 5/ to start a radio. 2 Press the M.C. dial.

• This function may not be available depending on the selected song. Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application. For iPhone users This function is compatible with iPhones (iPhone 5 or later) installed with iOS

8.0 or later.

You can download Pioneer ARC APP on iTunes App Store. For Android device users This function is compatible with devices that have Android OS 4.1 or later installed and also support AOA (Android Open Accessory) 2.0. You can download Pioneer ARC APP on Google Play. NOTE NOTE Some functions of Spotify may not be operated from the unit. Using Pioneer ARC APP You can operate the unit from Pioneer ARC APP installed on an iPhone/ Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit. 16 En For details on what operations are available on the application, see the application’s help section. Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version. Making a connection with Pioneer ARC APP

Connect this unit with the mobile device.

• iPhone/Android device via USB (page 8)
• iPhone/Android device via Bluetooth (page 9) Press the M.C. dial to display the main menu. Turn the M.C. dial to select [SYSTEM], then press to confirm. Turn the M.C. dial to select [PHONE CONNECT], then press to confirm. Turn the M.C. dial to select one of the below, then press to confirm.
• Select [IPHONE] for iPhone.
• Select [ANDROID] for Android device. NOTE When the connection setting is changed, a message that lets you know that the connection setting had been changed will appear in the display. Press the M.C. dial Turn the M.C. dial to select one of the below. When [IPHONE] is selected in step 5
• Select [WIRED] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection. When [ANDROID] is selected in step 5
• Select [APP CONTROL] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection. When you select the USB connection, Pioneer ARC APP on the Android device starts automatically if [ON] is selected in [P.APP AUTO ON] (page 21). NOTE

If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message (page 21). Press SRC/OFF to select any source. Operation Fast forward or reverse Press and hold Pause/resume playback Press 4/PAUSE.

Audio Adjustments You can also make various adjustments in the AUDIO settings (page 19). Adjusting the cut-off frequency value and the slope value You can adjust the cut-off frequency value and the slope value of each speaker. The following speakers can be adjusted.

[FRONT], [REAR], [SUBWOOFER]

NOTE Launch Pioneer ARC APP on the mobile device via USB connection. Press and hold M.C. dial via Bluetooth connection. NOTE When you connect a mobile device other than iPhone/Android device, select [OTHERS] in the [PHONE CONNECT] menu and select [WIRED] (for the USB connection) or [BLUETOOTH] (for the Bluetooth connection). Depending on your mobile device, it may not operate correctly. Listening to music on Android

and turn the M.C. dial to select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is executed. [SUBWOOFER] can only be selected when [ON] is selected in [SUBWOOFER] (page 19).

Press SRC/OFF to select [ANDROID].

Basic operations Purpose Operation Select a track Press

Press the M.C. dial to display the main menu. Turn the M.C. dial to select [AUDIO], then press to confirm. Turn the M.C. dial to select [CROSSOVER], then press to confirm. Turn the M.C. dial to select the speaker unit (filter) to be adjusted, then press to confirm. Turn the M.C. dial to select [HPF] or [LPF] according to the speaker unit (filter), then press to confirm. Turn the M.C. dial to select an appropriate cut-off frequency for the speaker unit (filter) selected in step 4, then press to confirm. [25HZ] to [250HZ] Turn the M.C. dial to select an appropriate slope for the speaker unit (filter) selected in step 4.

Assign buttons to seek the stations one by one (manual tuning) or select a station from the preset channels. Settings You can adjust various settings in the main menu.

SAVE Store the information about the song currently being played to your music list on Spotify. Press the M.C. dial to display the main menu. Turn the M.C. dial to select one of the categories below, then press to confirm.

• FUNCTION settings (page 18)
• AUDIO settings (page 19)
• SYSTEM settings (page 20)
• ILLUMINATION settings (page 22)
• MIXTRAX settings (page 22) Turn the M.C. dial to select the options, then press to confirm. FUNCTION settings The menu items vary according to the source. Menu Item Description UNSAVE Remove the song information stored in [SAVE]. SEL DEVICE iPod Connect a Bluetooth device in the list. S.RTRV USB iPod [1] (effective for low compression rates), [2] (effective for high compression rates), [OFF] BOOKMARK BSM FM: [OFF], [LV1], [LV2], [LV3], [LV4]

AM: [OFF], [LV1], [LV2]

Store the track information currently being played in your Pandora account. Store the six strongest stations on the number buttons (1/ to 6/ automatically. NEW STATION Restrict the tuning station according to the signal strength. PAUSE LOCAL AUX Enhance compressed audio and restore rich sound.

[FROM TRACK], [FROM

ARTIST] Create a new station based on the track or artist currently being played. Pause or resume playback. PLAY Start playback. 18 En Menu Item Description AUDIO settings Description Types of speaker: [FRONT L], Select a speaker unit (filter) and adjust the [FRONT R], [REAR L], [REAR R], output level. [SUBWOOFER]

• Each value you have adjusted changes when you change the [POSITION] setting Output level: [–24] to [10] (page 19). CROSSOVER Select a speaker unit (filter) to adjust the HPF or LPF cut-off frequency and the slope for each speaker unit. For details on the [CROSSOVER] setting, see page 17. EQ SETTING [SUPER BASS], [POWERFUL], [NATURAL], [VOCAL], [CUSTOM1], [CUSTOM2], [FLAT] Select an equalizer band and level for further customizing. Equalizer band: [50HZ] to [12.5kHZ] Equalizer level: [–6] to [+6] Select or customize the equalizer curve.
• When you select a setting other than [CUSTOM1] and [CUSTOM2], you can also customize the equalizer curve by pressing and holding the M.C. dial, then store the customized equalizer curve in [CUSTOM1]. Adjust the front and rear speaker balance. BALANCE Adjust the left and right speaker balance. SUBWOOFER Set to [ON] when using a subwoofer speaker. POSITION [OFF], [FRONT LEFT] (front seat left), [FRONT RIGHT] (front seat right), [FRONT] (front seats), [ALL] Select a listening position to adjust the speakers' output levels automatically and add a delay time that corresponds to the number and locations of occupied seats. TIME ALGNMNT FADER*1 [ON], [OFF] Description Select the subwoofer phase. Select or customize the time alignment settings to reflect the distance between the Select a type of speaker and listener’s position and each speaker.
• Select [INITIAL] to initialize the setting adjust the speaker distance value. for further customizing in
• Select [OFF] to reset all setting values to [CUSTOM]. Types of speaker: [FRONT L], [FRONT R], [REAR L], [REAR R], • The [CUSTOM] setting is available when [FRONT LEFT] or [FRONT RIGHT] is [SUBWOOFER] selected in [POSITION] (page 19). Speaker distance (inch):
• The [CUSTOM] setting is not available [140] to [0] when [OFF] is selected in [SUBWOOFER] (page 19).

[INITIAL], [OFF], [CUSTOM]

English Stop playback. Menu Item SAVE SETTINGS [YES], [NO] Save to later recall the following sound settings at their current values:

[CROSSOVER], [SPEAKER LEVEL], [EQ

SETTING], [POSITION], [TIME ALGNMNT], [D.BASS], [SUBWOOFER]. LOAD SETTINGS Load the sound settings, when you have already performed [SAVE SETTINGS]. SYSTEM settings You can also access to these menus when the unit is turned off. Menu Item [ENG](English), [ESP](Spanish), [FRA] (Canadian French) Set the clock (page 7). Boost the bass level dynamically to offer an effect as if a subwoofer was added to the system. LOUDNESS Compensate for clear sound at low volume. [+4] to [–4] Adjust the volume level for each source except FM. Each of the below combinations are set to the same setting automatically.

• When making a USB connection, set USB, iPod, PANDORA, ANDROID, SPOTIFY, and APP.
• When making a Bluetooth connection, set BT AUDIO, iPod, PANDORA, ANDROID, SPOTIFY, and APP. Select the time notation.

[OFF], [LOW], [MID], [HI]

SLA A beep can be heard when any button is pushed. Select [OFF] to disable this function. INFO DISPLAY *1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 7). *2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 7). 20 En Select the language to display the text information from a compressed audio file. CLOCK SET D.BASS

[OFF], [LOW], [HI]

Description LANGUAGE Display the item on the sub information display.

• When [SOURCE/SPEANA] or [CLOCK/ SPEANA] is selected, display the antenna instead of the speana on the radio source. Set to [ON] when using an auxiliary device connected to the unit. Set the Bluetooth signal on/off. Set to [ON] when using the Spotify function. Menu Item Description When Pioneer ARC APP connection is NOT performed

BT MEM CLEAR

Clear the Bluetooth device data (device list, PIN code, call history, phone book, preset phone numbers) stored in the unit. [CLEARED] appears when data is successfully deleted. Select the type of device and the appropriate connection method according to your device. See page 21 for details on the connections for each device.

• Select [OTHERS] when you connect a mobile device other than iPhone/ Android. Select [ON] to automatically launch Pioneer ARC APP when an Android device is connected to the unit via AOA. (Only available when [APP CONTROL] is selected in [PHONE CONNECT].) [WIRED] (When [IPHONE] or [OTHERS] is selected) iOS USB iPod, PANDORA, APP, SPOTIFY Android USB ANDROID (AOA) Bluetooth [USB MTP](MTP) (When [ANDROID] is selected) iOS USB Android USB iPod, PANDORA, APP, SPOTIFY Bluetooth USB MTP Bluetooth [APP CONTROL](AOA) (When [ANDROID] is selected) [BLUETOOTH] Select [ON] to automatically switch to [USB] source when a USB device/iPhone is connected to the unit. Select [OFF] when a USB device/iPhone is being connected to the unit just for charging. Bluetooth

iOS USB iPod, PANDORA, APP, SPOTIFY Android USB Bluetooth

Bluetooth Android ANDROID (AOA) Bluetooth iPod, PANDORA, APP, SPOTIFY USB USB MTP Bluetooth PANDORA, APP, SPOTIFY Information on the connections for each device The available sources differ depending on the setting value. Please set [PHONE CONNECT] according to the table for the source you want to use.

English [YES], [NO] For details on Pioneer ARC APP connection, see page 16. When Pioneer ARC APP connection is performed ILLUMINATION settings Setting Value Device Connection method Available source(s) [WIRED] (When [IPHONE] or [OTHERS] is selected) iOS USB Bluetooth [USB MTP](MTP) (When [ANDROID] is selected) iOS USB Bluetooth Android USB USB MTP Bluetooth [APP CONTROL](AOA) (When [ANDROID] is selected) [BLUETOOTH] [1] to [10] USB PANDORA, ANDROID (Android Music), SPOTIFY Change the display brightness. Change the display brightness. The available setting ranges differ depending on [DIM SETTING]. SHORT PLAYBCK [1.0 MIN], [1.5 MIN], [2.0 MIN],

[2.5 MIN], [3.0 MIN], [OFF]

Select the length of the playback time. MIX PATTERN [SOUND LEVEL] Change the MIXTRAX special effects according to the audio level. The mix pattern changes according to the sound level. [LOW PASS] The mix pattern changes according to the bass level. [RANDOM] The mix pattern changes randomly according to the sound level mode and low pass mode. DISPLAY FX [ON], [OFF] Set the MIXTRAX special effects on/off. Turn the MIXTRAX sound effects on/off while manually changing the tracks. Connections/Installation WARNING

• When speaker output is used by 4 channels, use speakers over 50 W (maximum input power) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this unit.
• When rear speaker output is used by 2 Ω of subwoofer, use speakers over 70 W (maximum input power).
• Please refer to connections for a connection method.
• The black cable is ground. When installing this unit or power amp (sold separately), make sure to connect the ground wire first. Ensure that the ground wire is properly connected to metal parts of the car’s body. The ground wire of the power amp and the one of this unit or any other device must be connected to the car separately with different screws. If the screw for the ground wire loosens or falls out, it could result in fire, generation of smoke or malfunction. Ground wire Other devices (Another electronic device in the car) POWER AMP Metal parts of car’s body *1 Not supplied for this unit Important
• When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain. ACC position No ACC position

• Use this unit with a 12-volt battery and negative grounding only. Failure to do so may result in a fire or malfunction.
• To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below. – Disconnect the negative terminal of the battery before installation. – Secure the wiring with cable clamps or adhesive tape. Wrap the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction. placed
• The graphical symbol on the product means direct current. This unit Power cord input Microphone input Microphone 3 m (9 ft. 10-1/8 in.) Rear output or subwoofer output Front output Antenna input Fuse (10 A) Wired remote input Hard-wired remote control adapter can be connected (sold separately). Power cord Perform these connections when not connecting a rear speaker or middle range speaker lead to a subwoofer.

English Connections adhesive tape around wiring that comes into contact with metal parts to protect the wiring. – Place all cables away from moving parts, such as the shift lever and seat rails. – Place all cables away from hot places, such as near the heater outlet. – Do not connect the yellow cable to the battery by passing it through the hole to the engine compartment. – Cover any disconnected cable connectors with insulating tape. – Do not shorten any cables. – Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited. – Use a fuse of the rating prescribed. – Never wire the negative speaker cable directly to ground. – Never band together negative cables of multiple speakers.

• When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle’s autoantenna relay control terminal (max. 300mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.
• Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to Perform these connections when using a subwoofer without the optional amplifier. Important In the case of above, two 4 Ω subwoofers wired in parallel will represent a 2 Ω load. To power cord input Left Right Front speaker 24 En Rear speaker White White/black Gray Gray/black Green Green/black Violet Violet/black Black (chassis ground) Connect to a clean, paint-free metal location. Yellow Connect to the constant 12 V supply terminal. Red Connect to terminal controlled by the ignition switch (12 V DC). Blue/white Connect to the system control terminal of the power amp or autoantenna relay control terminal (max. 300 mA 12 V DC). Subwoofer (4 Ω) When using a subwoofer of 2 Ω, be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads. Not used. Subwoofer (4 Ω) × 2 System remote control Connect to blue/white cable. Power amp (sold separately) Connect with RCA cables (sold separately) To front output Front speaker To rear output or subwoofer output Rear speaker or subwoofer Installation

Power amp (sold separately) Perform these connections when using the optional amplifier.

Important Check all connections and systems before final installation. Do not use unauthorized parts as this may cause malfunctions. Consult your dealer if installation requires drilling of holes or other modifications to the vehicle. Do not install this unit where: – it may interfere with operation of the vehicle. – it may cause injury to a passenger as a result of a sudden stop. Install this unit away from hot places such as near the heater outlet.

• Optimum performance is obtained when the unit is installed at an angle of less than 60°.
• When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents. Leave ample space 5 cm 5 cm DIN mount installation 1 Insert the supplied mounting

sleeve into the dashboard. Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place. Dashboard Mounting sleeve

• Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions.

Line up the holes on the mounting bracket with the holes on the sides of the unit to attach the bracket.

not obstruct driving. It is recommended to use the clamps (sold separately) to arrange the lead. NOTE Depending on the vehicle model, the microphone cable length may be too short when you mount the microphone on the sun visor. In such cases, install the microphone on the steering column. To install on the sun visor 1 Fit the microphone lead into the Screw in one screw on each side to hold the unit in place. groove. To secure the front panel The front panel can be secured with the supplied screw. Screw Bracket Screw Mounting bracket Dashboard or console

• Use either truss (5 mm × 9 mm) or flush surface (5 mm × 9 mm) screws, depending on the bracket screw holes. Removing the unit (installed with the supplied mounting sleeve)

Remove the trim ring. Screw Installing the microphone

Install the microphone clip on the sun visor. Lowering the sun visor reduces the voice recognition rate. The microphone should be placed directly in front of the driver at a suitable distance to pick up their voice clearly. Using the included bracket Check to make sure that the included bracket matches your particular model of vehicle and then attach it to the unit as shown below. Microphone lead Groove Trim ring Notched tab

• Releasing the front panel allows easier access to the trim ring. CAUTION It is extremely dangerous to allow the microphone lead to become wound around the steering column or shift lever. Be sure to install the microphone in such a way that it will

English When not using the supplied mounting sleeve

• When reattaching the trim ring, point the side with the notched tab down. Insert the supplied extraction keys into both sides of the unit until they click into place. Pull the unit out of the dashboard. Additional Information Troubleshooting Double-sided tape Microphone clip To install on the steering column 1 Slide the microphone base to detach it from the microphone clip. The display automatically returns to the normal display.
• No operations have been made for about 30 seconds. – Perform an operation. The repeat play range changes unexpectedly.
• Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. – Select the repeat play range again. A subfolder is not played back.
• Subfolders cannot be played when [FLD] (folder repeat) is selected. – Select another repeat play range.

Microphone Microphone clip Microphone base Install the microphone on the rear side of the steering column. The sound is intermittent.

• You are using a device, such as a cellular phone, that may cause audible interference. – Move electrical devices that may be causing the interference away from the unit. The sound from the Bluetooth audio source is not played back.
• There is a call in progress on a Bluetooth-connected cellular phone. 26 En – The sound will be played back when the call is terminated.
• A Bluetooth-connected cellular phone is currently being operated. – Stop using the cellular phone.
• The connection between the unit and the cellular phone is not established correctly after a call made by a Bluetooth-connected cellular phone. – Make a Bluetooth connection between the unit and the cellular phone again. Error messages Common AMP ERROR
• This unit fails to operate or the speaker connection is incorrect.
• The protective circuit is activated. – Check the speaker connection. – Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance. NO XXXX (NO TITLE, for example)
• There is no embedded text information. – Switch the display or play another track/file. USB device/iPhone NO AUDIO
• There are no songs. – Transfer the audio files to the USB device and connect.
• The connected USB device has security enabled. – Follow the USB device instructions to disable the security. SKIPPED
• The connected USB device contains DRM protected files. – The protected files are skipped. PROTECT
• All the files on the connected USB device are embedded with DRM. – Replace the USB device.

N/A USB

• The connected USB device is not supported by this unit. – Disconnect your device and replace it with a compatible USB device. HUB ERROR
• The USB device connected via a USB hub is not supported by this unit. CHECK USB
• The USB connector or USB cable has short-circuited. – Check that the USB connector or USB cable is not caught in something or damaged.
• The connected USB device consumes more than maximum allowable current. – Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.
• The iPhone operates correctly but does not charge. – Make sure the connection cable for the iPhone has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back to ON, or disconnect the iPhone and reconnect. ERROR-19
• Communication failed. – Perform one of the following operations, then return to the USB source.
• Turn the ignition switch OFF and back to ON.
• Disconnect the USB device.
• Change to a different source.
• iPhone failure. – Disconnect the cable from the iPhone. Once the iPhone’s main menu is displayed, reconnect the iPhone and reset it. ERROR-23
• USB device was not formatted properly. – Format the USB device with FAT12, FAT16 or FAT32. ERROR-16
• The iPhone firmware version is old. – Update the iPhone version.
• iPhone failure. – Disconnect the cable from the iPhone. Once the iPhone’s main menu is displayed, reconnect the iPhone and reset it. STOP
• There are no songs in the current list. – Select a list that contains songs. NO BT DEVICE GO TO BT MENU TO REGISTER
• No Bluetooth device found. – Connect the unit and iPhone via Bluetooth (page 9).

CONN. FAILED PRESS BAND KEY TO

• Bluetooth connection with iPhone failed. to make a – Press BAND/ connection again.

DISCONNECTED PRESS BAND KEY TO

• Bluetooth connection with iPhone failed. – Press BAND/ to make a connection again. Bluetooth device ERROR-10
• The power failed for the Bluetooth module of the unit. – Turn the ignition switch OFF and back to ACC or ON. Pandora ERROR-19
• Communication failed. – Disconnect the cable from the device. Once the device’s main menu is displayed, reconnect the device and reset it. NOT FOUND
• The Pandora application has not started running yet. – Start up the Pandora application. RATING ERROR
• The thumb rating operation was disabled. – Run the same command for another track. CAN'T SKIP
• The skip operation was disabled. – Run the same command for another track. THUMB ERROR
• Unable to save thumb rating. – Try again later.

• Sometimes there is a delay between the start of playback and when you start to hear any sound. – Wait until the message disappears and you hear sound. – Connect the USB device directly to this unit using a USB cable. BOOKMARK ERR
• Unable to save BookMark. – Try again later.

UNABLE TO ADD

• Unable to add station. – Try again later. SKIP LIMIT
• Due to music licensing restrictions, Pandora limits the total number of skips per hour. – Wait until Pandora allows you to skip again. UPDATE APP
• This version of the Pandora application is not supported. – Connect a device that has a compatible version of the Pandora application installed.

LOG IN ERROR

• Your Pandora account is not logged in. – Disconnect the cable from the device, and log in to your Pandora account. Then reconnect the device. ERROR
• Device error message displayed in the Pandora application. – Check the connected device.
• Pandora system is undergoing maintenance. – Try again later. NO STATIONS
• No station found. 28 En – Create a station in the Pandora application on your connected device. NO BT DEVICE GO TO BT MENU TO REGISTER
• No Bluetooth device found. – Connect the unit and the device via Bluetooth (page 9).

CONN. FAILED PRESS BAND KEY TO

• Bluetooth connection failed. to make a – Press BAND/ connection again.

CHECK APP PRESS BAND KEY TO

• Connection to the Pandora application failed. to make a – Press BAND/ connection again.

DISCONNECTED PRESS BAND KEY TO

• Bluetooth connection lost. to make a – Press BAND/ connection again. STATION LIMIT
• A new station cannot be added. – Delete an old station to open a spot for a new one. CANNOT DELETE
• The station could not be deleted. – Run the same command for another station. BAD NETWORK
• The connected device is out of area. – Connect the device to a network. UNAVAILAVLE
• The connected device is out of area. – Connect the device to a network.
• The operation was disabled. – Run the same command for another station. APP NO BT DEVICE GO TO BT MENU TO REGISTER
• No Bluetooth device found. – Connect the unit and the device via Bluetooth (page 9). NOT FOUND
• The application has not started running yet. – Operate the mobile device to start up the application. Spotify NO BT DEVICE GO TO BT MENU TO REGISTER
• No Bluetooth device found. – Connect the unit and the device via Bluetooth (page 9).

CONN. FAILED PRESS BAND KEY TO

• Bluetooth connection failed. to make a – Press BAND/ connection again.

CONN. FAILED PRESS BAND KEY TO

• Bluetooth connection failed. to make a – Press BAND/ connection again.

CHECK APP PRESS BAND KEY TO

• Connection to the Spotify application failed. to make a – Press BAND/ connection again.

DISCONNECTED PRESS BAND KEY TO

• Bluetooth connection failed. to make a – Press BAND/ connection again.

DISCONNECTED PRESS BAND KEY TO

• Bluetooth connection lost. to make a – Press BAND/ connection again. CHECK APP
• Connection to the application failed. – Follow the instructions that appear on the screen. CHECK APP
• Connection to the Spotify application failed. – Follow the instructions that appear on the screen. Handling guidelines Compressed audio compatibility

• Connections via USB hubs are not supported.
• Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.
• Depending on the USB storage device, the following problems may occur. – Operations may vary. – The storage device may not be recognized. – Files may not be played back properly. – The device may cause audible interference when you are listening to the radio. iPhone
• Do not leave the iPhone in places with high temperatures.
• Firmly secure the iPhone when driving. Do not let the iPhone fall onto the floor, where it may become jammed under the brake or accelerator pedal.
• Incompatible text saved on the iPhone will not be displayed by the unit.

• Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.
• The unit may not work properly depending on the application used to encode WMA files.
• There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies. CAUTION
• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.
• Do not leave a USB device in any place that is subject to high temperatures. WMA files File extension Bit rate .wma 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR) Sampling frequency 32 kHz, 44.1 kHz, 48 kHz Not compatible MP3 files File extension Bit rate .mp3 8 kbps to 320 kbps (CBR), VBR Sampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis) Compatible ID3 tag 1.0, 1.1, 2.2, 2.3, 2.4 version (ID3 tag Version 2.x is given priority over Version 1.x.) M3u playlist Not compatible MP3i (MP3 Not compatible interactive), mp3 PRO WAV files
• WAV file formats cannot be connected via MTP. File extension Quantization bits Sampling frequency .wav 8 and 16 (LPCM), 4 (MSADPCM) 16 kHz to 48 kHz (LPCM), 22.05 kHz and 44.1 kHz (MS ADPCM) AAC encoded by iTunes File extension Sampling frequency Transmission rate Apple Lossless AAC file bought from the iTunes Store (.m4p file extension) .m4a

11.025 kHz to 48

kHz 16 kbps to 320 kbps, VBR Not compatible Not compatible English USB storage device Windows Media™ Audio Professional, Lossless, Voice/ DRM Stream/ Stream with video FLAC files

• FLAC file formats cannot be connected via MTP.
• FLAC files may not be playable, depending on the encoder. File extension Sampling frequency Quantization bit rate Channel mode USB device
• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies. Playable folder hierarchy Playable folders Playable files Up to eight tiers (A practical hierarchy is less than two tiers.) Up to 1 500 Up to 15 000

Playback of copyrightprotected files Partitioned USB device Not compatible Only the first partition can be played. CAUTION Pioneer accepts no responsibility for data lost on the iPhone, even if that data is lost while this unit is used. Sequence of audio files iPhone compatibility This unit supports only the following iPhone models. Supported iPhone software versions are shown below. Older versions may not be supported. Made for – iPhone 7 – iPhone 7 Plus – iPhone SE – iPhone 6s – iPhone 6s Plus – iPhone 6 – iPhone 6 Plus – iPhone 5s – iPhone 5c – iPhone 5

• Operations may vary depending on the generation and/or software version of the iPhone.
• Users of iPhone with the Lightning Connector should use the Lightning to USB Cable (supplied with iPhone).
• Refer to the iPhone manuals for information about the file/format compatibility.
• Audiobook, Podcast: Compatible The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device. Note that the hidden files in a USB device cannot be played back. Example of a hierarchy Folder Compressed audio file 01 to 05: Folder number to : Playback sequence Copyright and trademark Bluetooth The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth 30 En SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners. iTunes Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. WMA Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/ or other countries. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. FLAC Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE

COPYRIGHT HOLDERS AND

CONTRIBUTORS “AS IS” AND ANY

EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE ARE

DISCLAIMED. IN NO EVENT SHALL THE

FOUNDATION OR CONTRIBUTORS BE

LIABLE FOR ANY DIRECT, INDIRECT,

INCIDENTAL, SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,

PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE,

DATA, OR PROFITS; OR BUSINESS

INTERRUPTION) HOWEVER CAUSED

AND ON ANY THEORY OF LIABILITY,

WHETHER IN CONTRACT, STRICT

LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING

IN ANY WAY OUT OF THE USE OF THIS

SOFTWARE, EVEN IF ADVISED OF THE

POSSIBILITY OF SUCH DAMAGE. iPhone iPhone is a trademark of Apple Inc. Lightning is a trademark of Apple Inc. “Made for iPhone” means that an electronic accessory has been designed to connect specifically to iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple Android & Google Play Android, Google Play, and the Google Play logo are trademarks of Google Inc. Pandora® internet radio PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission. Pandora is only available in certain countries. Please visit http://www.pandora.com/legal for more information. MIXTRAX MIXTRAX is a trademark of the PIONEER CORPORATION. Spotify® SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. Compatible mobile digital devices and premium subscription required, where available, see https:// www.spotify.com. T-Kernel 2.0 This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org). MP3 Copyright (C) 1998-2009 PacketVideo Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License http://www.apache.org/licenses/ LICENSE-2.0 Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS,

WITHOUT WARRANTIES OR

CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. Specifications General Power source: 14.4 V DC (10.8 V to 15.1 V allowable) Grounding system: Negative type Maximum current consumption: 10.0 Dimensions (W × H × D): DIN Chassis: 178 mm × 50 mm × 97 mm (7 in. × 2 in. × 3-7/8 in.) Nose: 188 mm × 58 mm × 17 mm (7-3/8 in. × 2-1/4 in. × 5/8 in.)

Chassis: 178 mm × 50 mm × 97 mm (7 in. × 2 in. × 3-7/8 in.) Nose: 170 mm × 46 mm × 17 mm (6-3/4 in. × 1-3/4 in. × 5/8 in.) Weight: 0.5 kg (1.1 lbs) Phase: Normal/Reverse Speaker level: +10 dB to –24 dB (1 dB step) Time alignment: 0 Inch to 140 Inch (1 inch/Step) Audio USB Maximum power output:

• 50 W × 4 ch/4 Ω (for no subwoofer)
• 50 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for subwoofer) Continuous power output: 22 W × 4 (50 Hz to 15 000 Hz, 5 % THD, 4 Ω load, both channels driven) Load impedance: 4 Ω (4 Ω to 8 Ω (2 Ω for 1 ch) allowable) Preout maximum output level: 2.0 V Equalizer (13-Band Graphic Equalizer): Frequency: 50 Hz/80 Hz/125 Hz/ 200 Hz/315 Hz/500 Hz/800 Hz/

1.25 kHz/2 kHz/3.15 kHz/5 kHz/8

kHz/12.5 kHz Gain: ±12 dB (2 dB step) High pass filter: Frequency: 25 Hz/31.5 Hz/40 Hz/ 50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz Slope: –6 dB/oct, –12 dB/oct, –18 dB/oct, –24 dB/oct, OFF Subwoofer/Low pass filter: Frequency: 25 Hz/31.5 Hz/40 Hz/ 50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz Slope: –6 dB/oct, –12 dB/oct, –18 dB/oct, –24 dB/oct, –30 dB/oct, – 36 dB/oct, OFF Gain: +10 dB to –24 dB (1 dB step) USB standard specification: USB 2.0 full speed Maximum current supply: 1.5 A USB Protocol: MSC (Mass Storage Class) MTP (Media Transfer Protocol) AOA (Android Open Accessory) File system: FAT12, FAT16, FAT32 MP3 decoding format: MPEG-1 & 2 Audio Layer 3 WMA decoding format: Ver. 7, 8, 9, 9.1,

9.2 (2 ch audio), Ver. 10, 11, 12

(Windows Media Player) AAC decoding format: MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier) FLAC decoding format: v1.2.1 (Free Lossless Audio Codec) WAV signal format: Linear PCM (Noncompressed) English is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPhone may affect wireless performance. FM tuner Frequency range: 87.9 MHz to 107.9 MHz Usable sensitivity: 11 dBf (1.0 μV/75 Ω, mono, S/N: 30 dB) Signal-to-noise ratio: 65 dB (analog broadcasting) (IHF-A network) AM tuner Frequency range: 530 kHz to 1 710 kHz

Usable sensitivity: 25 μV (S/N: 20 dB) Signal-to-noise ratio: 60 dB (analog broadcasting) (IHF-A network) Bluetooth Version: Bluetooth 4.0 certified Output power: +4 dBm Maximum (Power class 2) Frequency band(s): 2 400 MHz to 2

483.5 MHz

Bluetooth profiles: GAP (Generic Access Profile) SDAP (Service Discovery Application Profile) HFP (Hands Free Profile) 1.6 PBAP (Phone Book Access Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile) 1.5 SPP (Serial Port Profile) 1.1 CEA2006 Specifications Power output: 14 W RMS × 4 Channels (4 Ω and < = 1 % THD+N) S/N ratio: 91 dBA (reference: 1 W into 4 Ω) NOTE Specifications and the design are subject to modifications without notice. 32 En English

MVH-S300BT/S301BT

Commande M.C. (multi-contrôle) MUTE SRC (source)/OFF [SYSTEM INFO],

[S/W UPDATE]

SYSTEM RESET [YES], [NO] Pause/reprise de lecture [DELETE YES], [DELETE NO] ADD DEVICE Pause/reprise de lecture Pause/reprise de lecture Pause/reprise de lecture Pause/reprise de lecture Pause/reprise de lecture LOCAL FM : [OFF], [LV1], [LV2], [LV3], [LV4]

AM : [OFF], [LV1], [LV2]

S.RTRV SAVE SETTINGS [YES], [NO] LOUDNESS

[OFF], [LOW], [MID], [HI]

[OFF], [LOW], [HI]

Réglages SYSTEM Activation/désactivation du signal Bluetooth.

BT MEM CLEAR

[YES], [NO] iPod, PANDORA, APP, SPOTIFY iOS USB iPod, PANDORA, APP, SPOTIFY Bluetooth Android USB USB MTP iPod, PANDORA, APP, SPOTIFY USB USB MTP Bluetooth PANDORA, APP, SPOTIFY USB MTP [BLUETOOTH]

iOS USB Android USB iPod, PANDORA, APP, SPOTIFY Bluetooth Android Bluetooth Android DIM SETTING

[SYNC CLOCK], [MANUAL]

SHORT PLAYBCK [1.0 MIN], [1.5 MIN], [2.0 MIN],

[2.5 MIN], [3.0 MIN], [OFF]

MIX PATTERN [SOUND LEVEL] DISPLAY FX [ON], [OFF] Sans position ACC Control remoto VOLUME +/– MUTE

SRC (fuente) DISP (visualizar) [SYSTEM INFO],

[S/W UPDATE]

SYSTEM RESET [YES], [NO] [DELETE YES], [DELETE NO] ADD DEVICE NEW STATION

[FROM TRACK], [FROM

[INITIAL], [OFF], [CUSTOM]

[OFF], [LOW], [MID], [HI]

[SOURCE/SPEANA], [CLOCK/

SPEANA], [SRC/LIVE FX], [CLOCK/LIVE FX], [SOURCE], [SPEANA], [OFF]

BT MEM CLEAR

[YES], [NO] iPod, PANDORA, APP, SPOTIFY Android USB iPod, PANDORA, APP, SPOTIFY Bluetooth USB MTP iPod, PANDORA, APP, SPOTIFY Android USB Bluetooth

Bluetooth Android ANDROID (AOA) Bluetooth iPod, PANDORA, APP, SPOTIFY USB USB MTP Bluetooth PANDORA, APP, SPOTIFY SHORT PLAYBCK [1.0 MIN], [1.5 MIN], [2.0 MIN],

[2.5 MIN], [3.0 MIN], [OFF]

MIX PATTERN [SOUND LEVEL] DISPLAY FX [ON], [OFF]
