HSC 644 S - Oven TEKA - Free user manual and instructions

Product type	Built-in oven
Brand	Teka
Model	HSC 644 S
Color	Stainless steel
Capacity	65 L
Total power	2800 W
Voltage	230 V
Frequency	50 Hz
Number of functions	8
Cooking functions	Conventional cooking, Grill, Maxi grill, Conventional cooking with fan, Maxi grill with fan, Defrosting, Eco mode
Cleaning	Hydroclean®
Child safety	Clock lock
Clock	Electronic with programming (duration, end of cooking, timer)
Included accessories	Metal grid, baking tray
Installation type	Built-in
Dimensions (W x H x D)	595 x 595 x 530 mm
Net weight	30 kg
Energy class	A
Number of door panes	2
Interior light	Bulb

Frequently Asked Questions - HSC 644 S TEKA

How to set the time on the Teka HSC 644 S oven?

After connection, the time flashes. Use the + and - keys to set hours then minutes. Two beeps confirm the setting. To change, press and hold a key until the time flashes.

How to use the Hydroclean® function?

Place a cloth at the bottom of the cold oven, pour 200 ml of water (possibly with a spoon of mild dish soap). Select the Hydroclean® function using the function selector. The cycle lasts about 30 minutes. Once finished, wipe off residues with the cloth.

How to program the cooking duration?

Press the + or - keys until the |→| symbol flashes, then press OK. Set the desired duration with the + or - keys. Then select a function and temperature. The oven turns off automatically at the end of the programmed time.

How to activate the child lock?

Press and hold the OK key until you hear a beep and the lock symbol appears. The clock is then locked. To deactivate, repeat the same operation.

What to do if the clock does not respond?

Unplug the oven from the mains, wait a few moments then plug it back in. The touch keys recalibrate automatically.

How to use the defrosting function?

Turn the function selector to the Defrosting position. The oven does not heat, only the fan runs to circulate air. Place the food on the grid.

How to program the end of cooking time?

Press the + or - keys until the →| symbol flashes, then press OK. Set the desired end time with the + or - keys. Select a function and temperature. The oven starts automatically to finish at the chosen time.

What accessories are supplied with the oven?

The oven is supplied with a metal grid and a baking tray. Depending on the model, other accessories may be included.

How to clean the oven interior after cooking?

Use the Hydroclean® function for light soiling. For stubborn stains, after cooling, clean with a neutral detergent and a soft non-abrasive sponge.

Does the oven have a door lock?

No, the HSC 644 S model does not have a door lock (reserved for pyrolytic models). It features a clock lock for child safety.

USER MANUAL HSC 644 S TEKA

Modern kitchen interior with black cabinets and wood flooring, featuring a 'TEKA' logo in the top right corner (no other text or symbols visible)

User Manual

HS C

ES PT EN

FR DE

ESPAÑOL

Before using your oven for the first time, please carefully read the installation and maintenance instructions that come with it.

Depending on the model, the accessories included in your oven may vary from those shown in the pictures.

FRANÇAIS

Modelos HBC 625 P, HSC 635 P

Funciones del horno

ORMACIÓN

Close-up of a metallic cup pouring liquid onto a flat surface inside a microwave oven (no text or symbols visible)

Modelos HBC 625 P, HSC 635 P

Funções do forno

ORMAÇÃO

PROGRAMAR A FUNÇÃO TEKA HYDROCLEAN®

ATENÇÃO

Close-up of a metal cup pouring liquid onto a flat surface inside a microwave oven (no text or symbols visible)

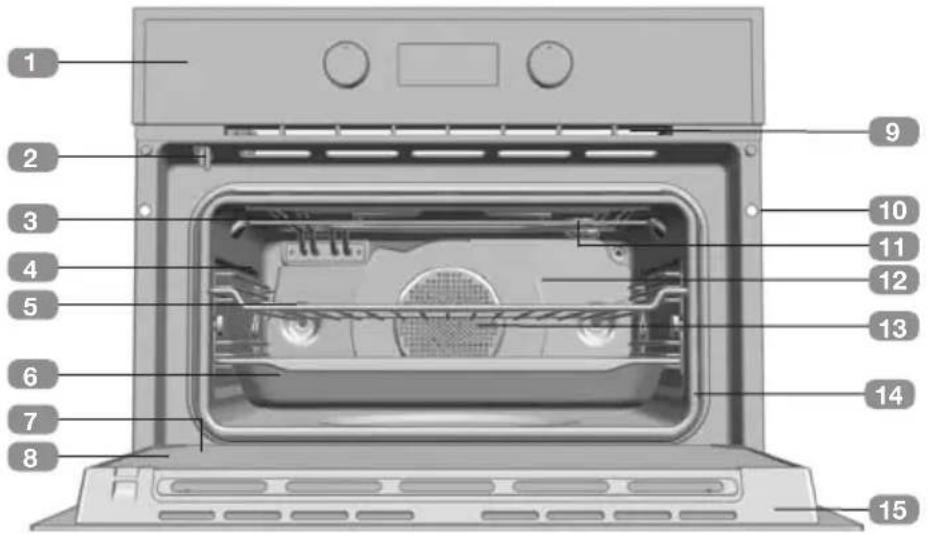

Description of the oven

1 Control panel
2 Door lock (only for pyrolytic models)
3 Grill element
4 Tray supports
5 Grid shelf
6 Tray
7 Hinge
8 Inner Glass
9 Air cooling outlet
10 Unit mounting
11 Lamp
12 Back Wall Panel
13 Fan
14 Oven Seal
15 Door

Control panel

1 Function control dial

2 Electric clock/timer

3 Temperature control dial

1 Function control dial
2 Electric clock/timer / Selected temperature
3 Temperature control dial

Function selector symbols

HSC 635 Model

HBC 625 P, HSC 635 P Models

Oven functions

ORMATION

For a description of how to use each of the features, see the cooking guide that comes with your oven.

MAXIGRILL WITH FAN

CONVENTIONAL WITH FAN

OVEN SWITCH-OFF

CONVENTIONAL

GRILL

MAXIGRILL

LOWER ELEMENT

ECO ECO

DEFROSTING

HYDROCLEAN

PYROLYSIS

FAST PREHEATING

Electronic clock/timer description

1 KEYS

-, and : Enable you to programme the electronic clock/timer functions.

OK: For models with electronic temperature control, press this button to see the temperature during cooking.

2 SYMBOLS

Clock Settings

(©) AVISADOR: Lights up when the clock/ timer is selected. Generates an acoustic signal when the time is up. The oven does not turn off at the end of the timer period. This function can also be used while the oven is cooking.

I→l and ⬆PROGRAMMING: Light up to indicate that the oven is programmed (cooking time, stop time or total).

→ Cooking Time: This function allows you to programme the cooking time, after which the oven will turn off automatically.

→I Cooking Stop Time: This setting allows you to programme the time for cooking to stop, after which the oven will turn off automatically.

|→| and →Cooking Time and Cooking

Stop Time: This setting allows you to programme the cooking time and cooking stop time. The oven switches on automatically at the set time and operates for the selected cooking time (Cooking Time). It then switches off automatically at the indicated time (Cooking Stop Time).

CLOCK/TIMER LOCK: Indicates that the touch keys for the clock/timer are locked, preventing modifications by small children.

Other functions

HEATING: Indicates that the oven is transmitting heat to the food.

HYDROCLEAN: Lights up while the Teka Hydroclean® function is in progress.

PYROLYSIS: For pyrolytic models only. Lights up while the Pyrolytic function is in progress.

DOOR LOCK: For pyrolytic models only. Indicates that the door is locked, either manually or automatically while the pyrolytic function is in progress.

WARNING

The sensitivity of the touch keys adapts continually to environmental conditions. Make sure the surface of the control panel is clean and free of obstacles when plugging in the oven.

If the clock does not respond correctly when you touch the keys, unplug the oven for a few seconds and then plug it in again. Doing this causes the sensors to adjust automatically so that they will react once more to fingertip control.

SETTING THE TIME

To set the time on the oven, the function and temperature dials must be in the ○ position.

When you plug in the oven, you will see the clock flashing 12:00.

Touch ⊖ or ⊕ to adjust the hours and then the minutes. You will hear a double beep confirming the time is set.

If you wish to modify the time, touch or + until the time starts flashing. Touch OK and and follow the instructions in the previous point.

NOTE

The clock light has a night mode so the display light will dim between 00:00 and 6:00 hours.

RNING

In the event of a power failure, your electronic clock/timer settings will be erased.

If this happens, turn the function and temperature dials to the ○ position.

The indication 12:00 will show, and you will then be able to set the time as described above.

If the oven door was locked before the power cut, the locked symbol will show until it is unlocked.

This may take several minutes, depending on the temperature inside the oven, and during this time you cannot reset the time.

Once the door is unlocked, you can set the time as described above.

Oven use

MANUAL OPERATION

After setting the clock, the oven is ready for use. Select a cooking function and temperature.

INFORMATION

In models with an electronic temperature control, when the selector switch is turned, the clock display will show the temperature.

After selecting the temperature, the clock display will automatically reappear.

To see the temperature again during cooking, press the OK button and turn the temperature dial if you want to change it.

You will notice that the symbol lights up during cooking to indicate that heat is being transmitted to the food. This symbol disappears when the selected temperature has been reached.

Set the controls to ⚙ to turn off the oven.

INFORMATION

When you start cooking, your oven will show the time the oven has been cooking.

Programming the Buzzer

1. Touch ☑ or ⓣ until the symbol on the display starts flashing, then press OK. The indication '00:00' will appear on the display.
2. Select the time after which you want the alarm to sound by pressing ⏻ or ⚠You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time. The Ⓤ symbol will flash slowly.
3. Once the time has expired, an acoustic signal will sound for 90 seconds and the (○) symbol will flash quickly.

NOTE

With the Buzzer function, the oven will not turn off when the time expires.

1. Touch any key to stop the alarm. The (①) symbol will then disappear.

If you wish to modify the time on the buzzer, repeat the steps shown. Upon entering the timer control, the time currently remaining will appear, which you will be able to adjust.

NOTE

With the Buzzer function, the remaining time will show permanently on the display. With this programmed function, it is not possible to view the time or the total programmed cooking time.

Programming Cooking Time

1. Touch ⊖ or ⓣ until the symbol on the display starts flashing, then press Ⓞ. The indication '00:00' will appear on the display.
2. Select the time after which you want the alarm to sound by pressing ⊖ or ⊕You will hear 2 beeps to confirm that the time has been set and the clock will start counting

down from the selected time. The symbol will flash slowly.

1. Select a function and a cooking temperature using the oven commands.
2. Once the cooking time is up, the oven will turn off, an alarm will sound and the symbol will flash quickly.
3. Touch any key to stop the alarm and turn off the symbol. The oven will switch on again.
4. Set the controls to the ○ position to turn off the oven.

You can change the remaining cooking time at any time by touching ⏻ or Ⓕ until the symbol starts to flash quickly. Now press ⓄK to change the time.

NOTE

With the Cooking Time function, the remaining time will show permanently on the display. You cannot see the current time on the display when this function is set.

Programming the Cooking Stop Time

1. Touch ☑ or ⓣ until the symbol on the display starts to flash and press OK. You will see the current time on the timer display.
2. Select the time after which you want the alarm to sound by pressing ⊖ or ⊕You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time. The → symbol will flash slowly.
3. Select a cooking function and temperature.
4. When the cycle is finished, the oven will turn itself off, a buzzer will sound and symbol will flash quickly.
5. Touch any sensor to stop the alarm and to turn off the 1, symbol. The oven will switch on again.
6. Set the controls to the ○ position to turn off the oven.

You can change the remaining cooking time at any time by touching ⏻ or Ⓗ until the → symbol starts to flash quickly. Now press ⓄK to change the time.

Programming Cooking Time and Cooking Stop Time

1. Touch ⊙ or ⓣ until the symbol on the display starts flashing, then press OK. The indication '00:00' will appear on the display.

2. Select the cooking time by touching ⊙ or ⊕. Next, a double beep will sound, the remaining time will appear on the display and the | | symbol will flash slowly.

3. Touch ⊙ or ⏻ until the symbol on the display starts flashing, then press OK. You will see the expected completion time on the timer display.

4. Adjust cooking end time by touching ⊙ or ⊕. Next, a double beep will sound and the current time will be displayed on the display.

5. Select a cooking function and temperature. The oven will remain disconnected with the | l and -symbols lit up. The oven is now programmed.

6. When it is time to start cooking, the oven will turn on and will operate for the programmed cooking time.
7. While cooking, the cooking time remaining will be displayed and the symbol will flash slowly.
8. When the cooking time is up, the oven will turn off, a buzzer will sound, and the symbol will flash quickly.
9. Touch any sensor to stop the buzzer and turn off the symbol. The oven will switch on again.
10. Set the controls to the ○ position to turn off the oven.

You can change the remaining cooking time at any time by touching ⏻ or Ⓗ until the ⪰ symbol starts to flash quickly. Now press ⓄK to change the time.

Safety instructions

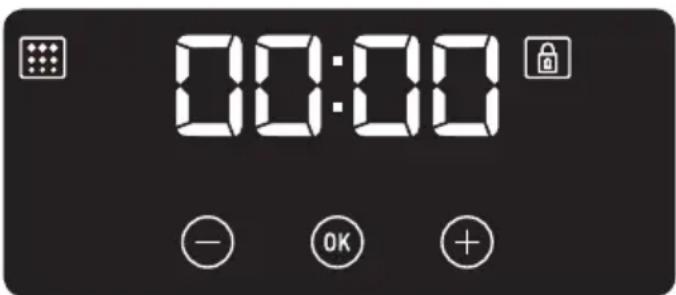

SAFETY CHILD LOCK

This function can be selected at any time while using the oven.

To activate the function, touch and hold Ⓞ key for several seconds until you hear a beep and the 🔒 symbol appears on the display. The clock/timer is locked.

If the oven is off and you activate the child safety function, the oven will not work even if a cooking function is selected.

If this function is activated while you are cooking, it will only lock the electronic clock/timer settings.

To disable the function, press OK key for several seconds until you hear a beep.

MANUAL DOOR LOCK

Available in pyrolytic models only.

This function allows the oven door to be locked.

IMPORTANT

This function can only be selected when the oven command functions are set to the rest position .

Once the door has been locked, you can start cooking normally.

To activate/deactivate the door lock, follow these steps:

1. Touch ⊖ or ⓣt until the symbol on the display starts flashing.

The current door lock status will be displayed: "On" if it is active and "Off" if deactivated.

1. Press OK You will then hear a beep and the block will start to activate if it was "Off", or deactivate if it was "On".

WARNING

Before locking, ensure that the oven door is properly closed. If not, it will not lock and an alarm will sound.

If this happens, switch off the alarm by pressing any clock button, close the door properly and lock again as per the instructions above.

1. Once the door has been fully locked/unlocked, the display will show the new door status.

In the event that the locking system is active, the 🔒 symbol will appear constantly lit on the display.

IMPORTANT

To unlock the door during cooking, turn the function dial to standby and unlock the door as described above.

Once the door is unlocked, turn the function dial back to its former position to continue cooking.

Teka Hydroclean® function

This function makes it easy to remove grease and other food debris that may have stuck to the sides of the oven.

For easier cleaning, do not allow dirt to accumulate. Clean the oven frequently.

PROGRAMMING THE TEKA HYDROCLEAN® FUNCTION®

WARNING

Do not pour water into a hot oven as this can damage the enamel of the oven.

Always run the cycle on a cold oven. The result could be affected and the varnish damaged if it is run when the oven is too hot.

First remove the trays and all accessories from the oven interior, including the tray supports and telescopic guide rails.

To do this, follow the instructions in the installation and maintenance guide accompanying the oven.

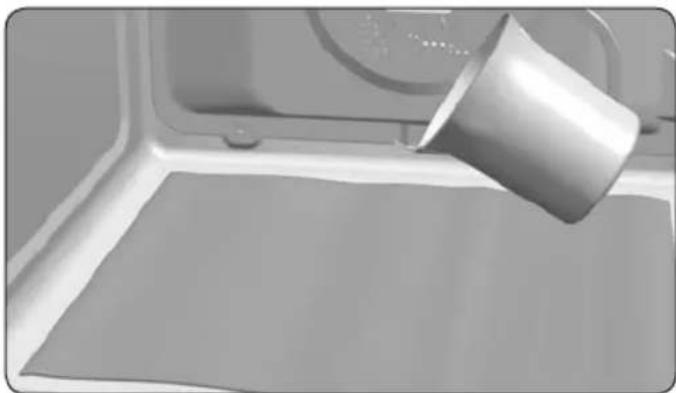

1. With the oven cold, spread a cloth out on the bottom of the oven.

Close-up of a metal cup pouring liquid onto a flat surface, with no visible text or symbols.

1. Gently pour 200 ml of water into the bottom of the oven cavity.

INFORMATION

For best results, add a teaspoon of mild washing up detergent to the glass of water before pouring onto the cloth.

1. Turn the control dial to the 🔒 position.

2. You will hear a beep indicating that the Teka Hydroclean® cycle has started. The symbol will flash slowly and the time remaining to complete the cycle will appear on the display.

IMPORTANT

The duration of this cycle cannot be changed. To stop the cycle before it is finished, turn the control dial to the ○ position.

1. When the cycle is finished, the oven will turn itself off, an alarm will sound and the symbol will flash quickly.

IMPORTANT

Do not open the oven door until the Hydroclean® function is complete.

The cooling cycle is necessary for the function to work properly.

1. Touch any sensor with your fingertip to stop the alarm and turn off the △ symbol.

2. Turn the control dial to the ○ position.

3. Any traces of dirt and excess water can now be removed from the oven with the damp cloth.

The Hydroclean ^® function takes place at a low temperature. However, cooling times can vary depending on the room temperature.

WARNING

Before touching the inside surface of the oven, make sure that it has cooled properly.

If a deeper clean is required after using the Hydroclean® function, use neutral detergents and non-abrasive sponges.

Pyrolytic self-cleaning function

Function available in pyrolytic models HBC P / HSC P.

WARNING

Before setting the pyrolytic cleaning cycle, carefully read the safety instructions, which

you will find at the start of the Installation and Maintenance guide.

This function allows you to carry out a pyrolytic cleaning cycle during which, due to the high temperatures reached inside the oven, accu-

mulated grease undergoes a carbonisation process.

The general recommendation is to perform a pyrolytic cycle every 4-5 uses, using the most suitable programme according to the level of stains present in the oven. The more stained the oven, the longer the duration of the programme.

During the pyrolytic cycle the light inside the oven will remain off.

PROGRAMMING THE PYROLYTIC FUNCTION

IMPORTANT

Before carrying out the pyrolysis, you must remove all accessories and dishes from the oven, including the shelves and/or telescopic guide rails. To do this, follow the instructions in the installation and maintenance guide accompanying the oven.

WARNING

Clean any spillages or excess dirt from the inside, as these could ignite during the pyrolysis and create a fire hazard.

WARNING

Before running the pyrolytic function, ensure that the oven is properly closed.

1. Turn the cooking control dial to the Pyrolysis position ☐.
2. TAfter a few seconds, the ☐ symbol will light up on the clock display, reading 'P2' (Pyrolysis programme 2.
3. You can now change the pyrolysis programme to P1, P2 or P3 by pressing the ⊖ or ⊕ keys:

P1: Light pyrolysis. Lasts 1 hour.

P2: Regular pyrolysis. Lasts 1 hour 30 min.

P3: Intensive pyrolysis. Lasts 2 hours.

1. Once the desired programme has been selected, press OK. The automatic door lock will be activated immediately.

WARNING

If the door is not properly closed, it will not lock and an alarm will sound.

If this happens, switch off the alarm by pressing any clock button, close the door properly, turn the function dial to the ○ position and re-select the pyrolytic programme as described above.

1. Once the door is locked, the 🔒 symbol will light up on the clock display and the time remaining before the end of the pyrolysis will appear.

IMPORTANT

At this point, the oven is programmed and the pyrolytic cleaning cycle is under way. During the cycle, none of the oven timer functions may be chosen (except the child lock).

Do not try to open the oven door as this may interrupt the cleaning process.

1. When the pyrolytic cleaning cycle has finished, an alarm will sound, the 📄 symbol will flash and you will see the time '0:00' on the clock display.

2. Press any of the timer's keys to disable the alarm.

3. Turn the control dial to the ○ position.

4. The oven's heating process has finished. However, the oven is extremely hot and cannot be used.

The cooling process will continue to operate and the 🔒 symbol will remain lit until the oven cools down.

IMPORTANT

As a result of the high temperatures inside the oven, the cooling process may vary depending on the room temperature..

1. Once the oven has cooled down, the symbol will turn off.
2. Open the oven door and wipe the inside with a damp cloth, removing the ash from the cleaning cycle. Hard-to-reach areas in the oven will need to be cleaned with a non-metallic fibre scourer.
3. Once the oven is clean, do not forget to replace the supports and accessories.
4. The oven is now ready to be used.

IMPORTANT

If any incident is detected in the programming or use of this function, consult the installation and maintenance guide included with your oven.

CANCELLING THE PYROLYTIC FUNCTION

Pyrolysis is an automatic function and therefore it can only be activated from the timer programme. To cancel a pyrolysis in progress it is necessary to reset the oven, following the instructions below:

1. Set the control dial to the o position.

The timer display will appear as follows

1. Depending on the internal temperature of the oven, either of the two following situations could arise:

a) Dangerous internal temperature: In this case, the door will remain locked until the temperature reaches safe levels.
b) Safe internal temperature: If the temperature inside the oven is safe, the door will be unlocked immediately.

1. Once the door has been unlocked and can be opened, the time will show once again on the timer display.

Description du four

Fonctions du four

ORMATION

FONCTIONNEMENT MANUEL

Close-up of a metal cup pouring liquid onto a flat surface inside a microwave oven (no text or symbols visible)

1 TASTEN

3D rendering of a microwave oven with a metallic cup capturing the interior surface (no text or symbols visible)

World map silhouette showing continents and countries with no text or labels
