TROPHY CAM™

TROPHY®

XLT

INSTRUCTION MANUAL

Model#s: 119436 / 119446 / 119456

Lit# 98-1517 / 4-11

TABLE OF CONTENTS PAGE #

ENGLISH 4-34

FRANÇAIS 34-70

ESPAÑOL 71-107

DEUTSCH 108-147

ITALIANO 148-186

PORTUGUÊS 187-223

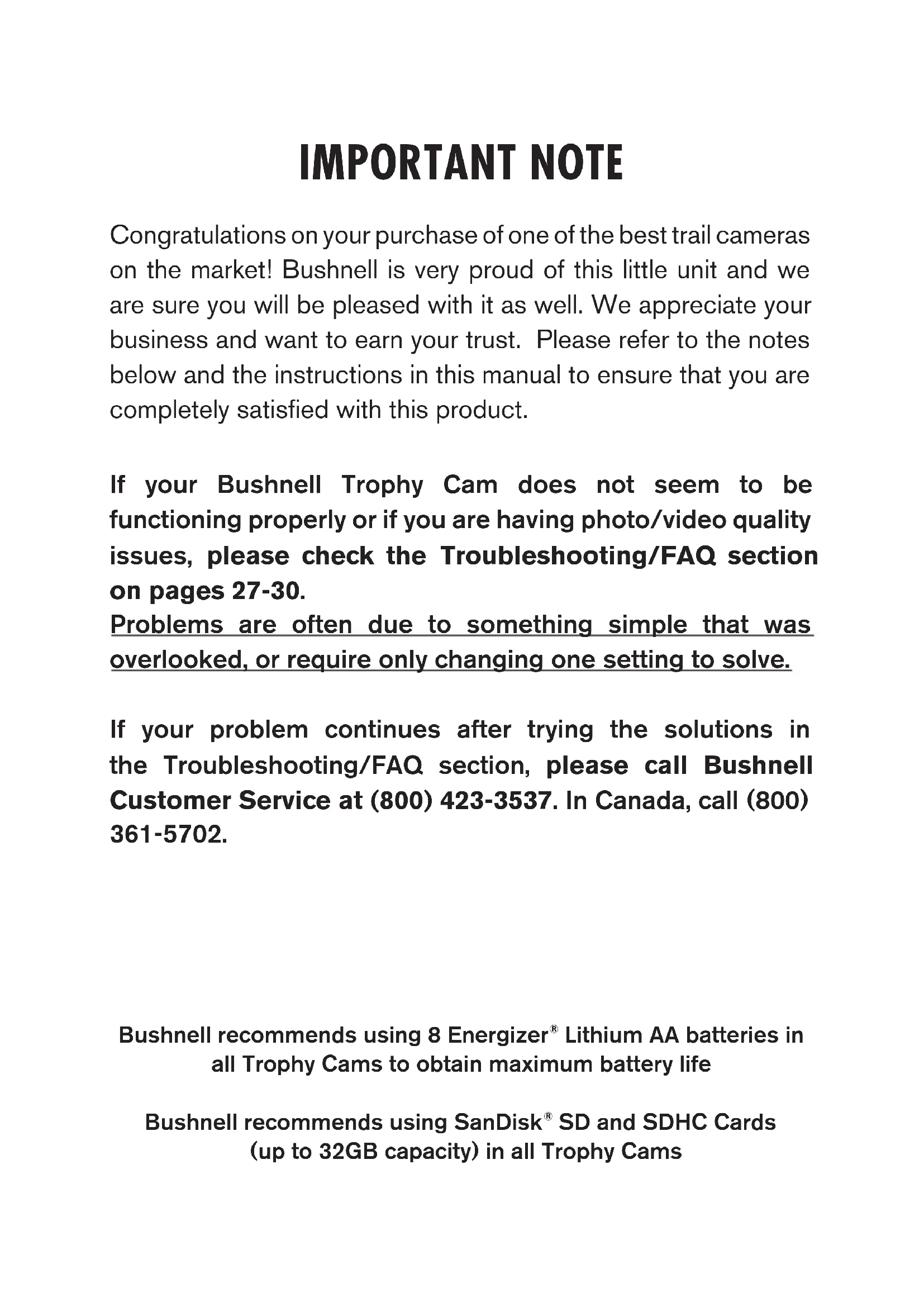

IMPORTANT NOTE

Congratulations on your purchase of one of the best trail cameras on the market! Bushnell is very proud of this little unit and we are sure you will be pleased with it as well. We appreciate your business and want to earn your trust. Please refer to the notes below and the instructions in this manual to ensure that you are completely satisfied with this product.

If your Bushnell Trophy Cam does not seem to be functioning properly or if you are having photo/video quality issues, please check the Troubleshooting/FAQ section on pages 27-30.

Problems are often due to something simple that was overlooked, or require only changing one setting to solve.

If your problem continues after trying the solutions in the Troubleshooting/FAQ section, please call Bushnell Customer Service at [phone]. In Canada, call [phone].

Bushnell recommends using 8 Energizer® Lithium AA batteries in all Trophy Cams to obtain maximum battery life

Bushnell recommends using SanDisk® SD and SDHC Cards (up to 32GB capacity) in all Trophy Cams

INTRODUCTION

About the Trophy Cam

The Bushnell Trophy Cam is a digital scouting camera. It can be triggered by any movement of game in a location, detected by a highly sensitive Passive Infra-Red (PIR) motion sensor, and then take high quality pictures (up to 8MP still photos), or video clips.

The Trophy Cam consumes very little power (less than 300mA) in a standby (surveillance) state. This means it can deliver up to six months stand-by operation time when the device is powered by eight AA alkaline batteries, and up to twelve months utilizing lithium AA batteries. Once motion in the monitored area is detected, the digital camera unit will be triggered at once (typically within one second) and then automatically take photos or videos according to previously programmed settings. The Trophy Cam is equipped with built-in infrared LEDs that function as a flash, so that it delivers clear photos or videos (in black & white) even in the dark, and it can take color photos or videos under sufficient daylight. The Trophy Cam is designed for outdoor use and is resistant against water and snow.

Applications

The Trophy Cam can be used as a trail camera for hunting or scouting game. It is also suitable for surveillance usage.

PARTS AND CONTROLS

The Trophy Cam provides the following connections for external devices: USB port, SD card slot, TV Out, and external DC power in (Fig. 1).

A 3-way power switch is used to select the main operating modes: OFF, SETUP, and ON (Fig. 2).

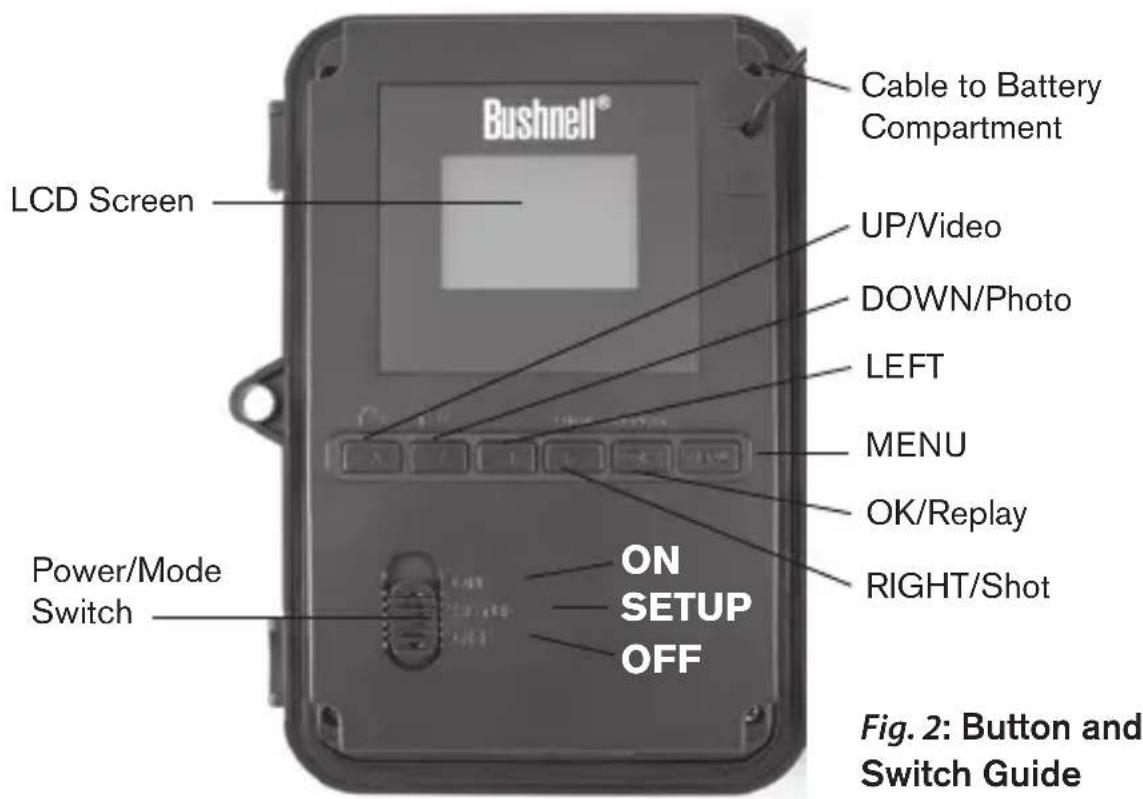

A control key interface with six keys is primarily used in SETUP mode to select operational functions and parameters. As shown in Fig. 2, these keys are: UP, DOWN, LEFT, RIGHT, OK and MENU. Four of the keys can also perform a second function (shortcut operations in SETUP mode) in addition to their main function: The DOWN key can be used to set the camera to Photo mode (still camera icon), and the UP key can set the camera to Video mode (movie camera icon). The RIGHT key also serves as the manual shutter ("SHOT") button of the camera and the OK key switches the camera to

the Playback ("REPLAY") mode. These secondary functions are indicated by icons or text above the key as shown in Fig. 2.

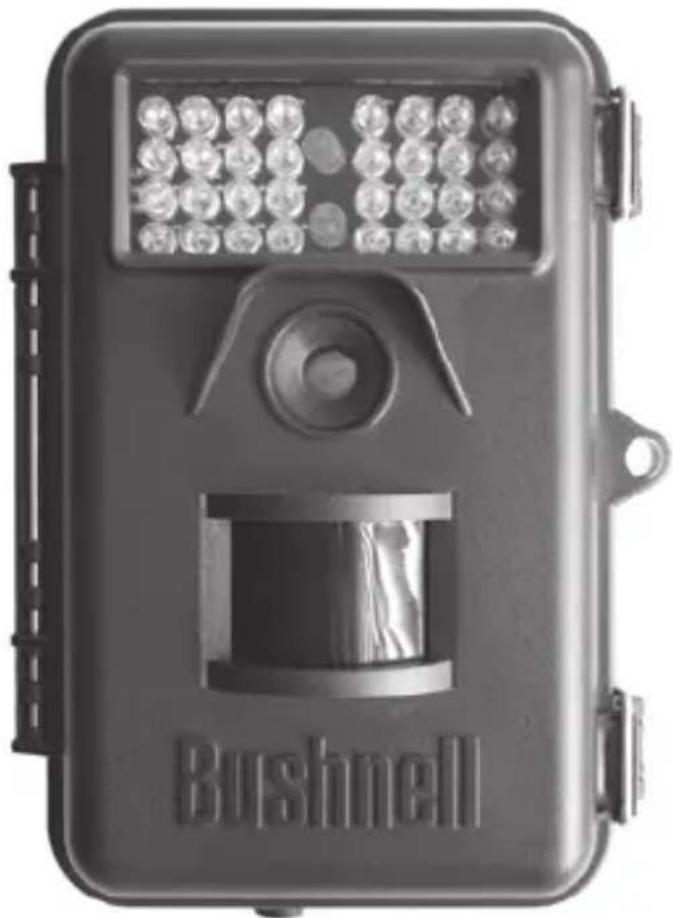

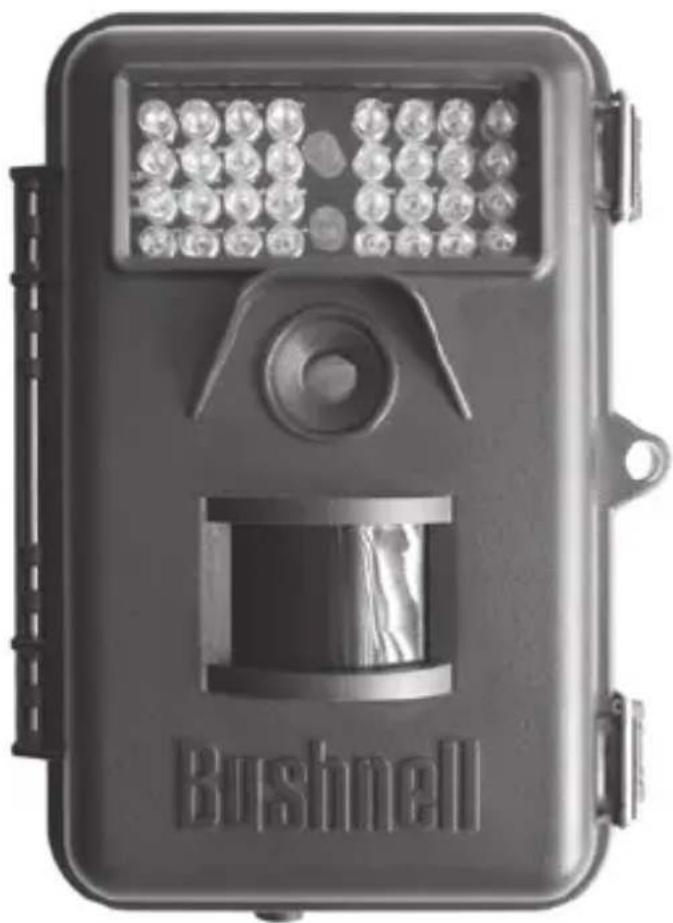

FRONT VIEW

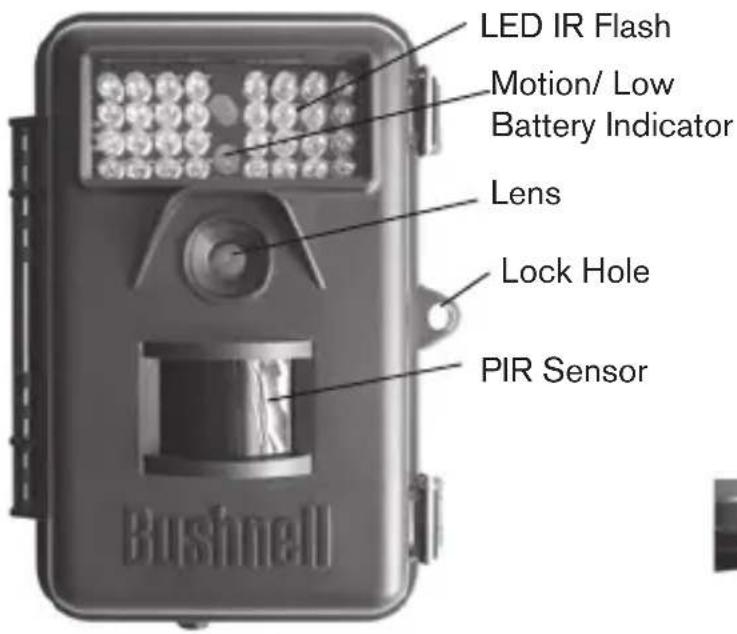

LED IR Flash Motion/ Low Battery Indicator Lens Lock Hole PIR Sensor Bushnell

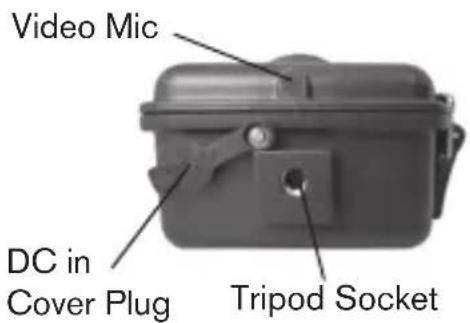

Video Mic DC in Cover Plug Tripod Socket

Fig. 1: Connections

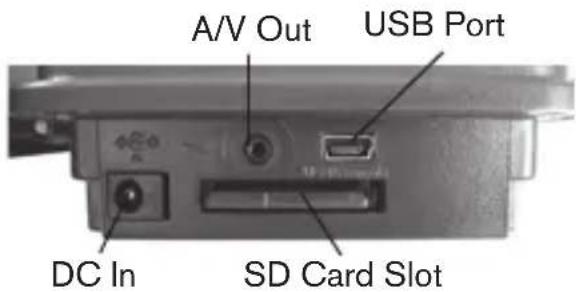

A/V Out USB Port DC In SD Card Slot

BACK VIEW

Cable to Battery Compartment LCD Screen UP/Video DOWN/Photo LEFT MENU OK/Replay RIGHT/Shot Power/Mode Switch ON SETUP OFF Fig. 2: Button and Switch Guide

INSTALLING THE BATTERIES AND SD CARD

Before you begin learning how to use your Trophy Cam, you will first need to install a set of batteries and insert an SD card. Although that may only take you a minute, there are some important notes about both batteries and SD cards you should be aware of, so please take the time to read the following directions and cautions:

Loading Batteries

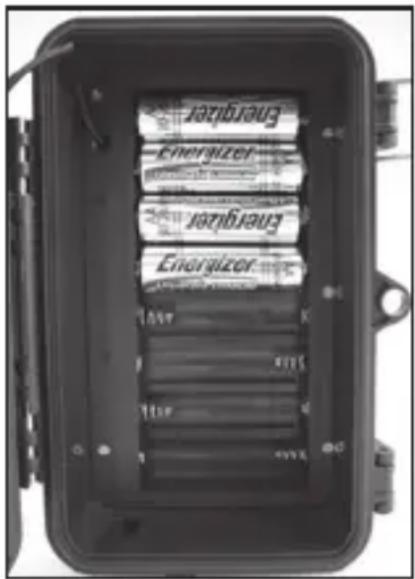

After opening the two latches on the right side of the Trophy Cam, you will see that the Trophy Cam has eight battery slots. Starting at the top of the battery compartment, slots 1, 2, 3 and 4 form one group, while slots 5, 6, 7 and 8 form the other group, each providing 6 volts in parallel. For maximum battery life, you should install a full set of eight batteries. The Trophy Cam may also be operated by just four batteries installed in the top group only (see right), starting at slot 1. Battery life will be shorter with 4 batteries, but the camera will operate normally. Whether you use 4 or 8, be sure to insert each battery with correct polarity (negative or "flat" end against the long spring of each battery slot). Bushnell recommends using eight new lithium AA (Energizer® brand) or alkaline AA batteries. NiMh Rechargeable batteries can also be used, but they might have a shorter life span due to their reduced efficiency over time and at low temperature. It is also possible to use a lead-acid external battery cell with 6V output or suitable AC adapter-see below for more details.

Energyizer Zozeniene Energyizer Zozeniene

Using an External Power Source (optional, user provided)

Optionally, you can connect an external 6V DC power source to the "DC In" jack at the bottom of the Trophy Cam. It is recommended to use a power source with a current output greater than 1000mA. However, during bright daytime operation when no flash is required, the Trophy Cam can function with much less current (>400mA). Please use a compatible power source cable (not provided) to connect the external DC power source with the power input jack of the Trophy Cam, making sure that the polarity is correct. Note: The power connector is a 4.0x1.7mm coaxial DC power plug with positive "tip" (inside pin) polarity (Radio Shack P/N 274-1532 or equivalent).

If both an external power source is connected and batteries are installed, the Trophy Cam will be powered by the external power source.

When the batteries become weak, the low-battery indicator LED will glow blue, indicating the batteries should be changed (pg 6, "Front View").

Inserting the SD Card

The Trophy Cams have 32MB internal memory, which can hold only about 20 photos (@ 5MP resolution). This is handy for testing and getting familiar with the camera, but you will no doubt want to leave the camera unattended for longer than a day, so using an SD card is recommended. Insert the SD card (with the camera's power switch in the OFF position) before beginning to operate the camera. Don't insert or remove the SD card when the power switch is in the ON position.

The Trophy Cam uses a standard SD (Secure Digital) memory card to save photos (in .jpg format) and/or videos (in .avi format). SD and SDHC (High Capacity) cards up to a maximum 32GB capacity are supported. Before inserting the SD card into the card slot after opening the camera's front cover, please make sure that the write-protect switch on the side of the card is "off" (NOT in the "Lock" position). The following describes how to insert and remove the SD card:

- Insert the SD card into the card slot with its label side upwards (see above). A “click” sound indicates that the card is installed successfully. If the wrong side of the card is facing up, you will not be able to insert it without force-there is only one correct way to insert cards. If the SD card is not installed correctly, the device will not display an SD card icon on the LCD in SETUP mode (the SD card icon displayed after switching to SETUP mode will have a “lock” symbol inside it in it if the card is locked). Formatting the SD card by using the Trophy Cam’s “Format” parameter before using it for the first time is recommended, especially when a card has been used in other devices (see “Changing Menu Parameter Settings” for details).

- To take out the SD card, just gently push in the card (do not try to pull it out without pushing in first). The card is released from the slot and ready to be removed when you hear the click.

1.40 + 1.60 + 4.7 32GB

WARNING

Be sure the camera's power is switched OFF before inserting or removing SD cards or batteries.

USING THE TROPHY CAM

Once you've prepared your Trophy Cam by properly installing batteries and an SD card, you could simply take it outside, strap it to a tree, switch it on and leave-and you might get some great photos that are exactly what you wanted. However, we highly recommend that you first spend some additional time indoors with this manual and your camera until you know a bit more about what the 3-way switch and those control keys do. If nothing else, you'll probably want to at least set the date and time so the camera will imprint them (or not-it's your option) on your photos as they are taken, learn how to set the camera to shoot video clips instead of still photos if you like, and read some tips about mounting it on a tree.

THE OFF, ON, AND SETUP MODES

The Trophy Cam has three basic operational modes:

• OFF mode: Power switch in the OFF position.
- ON mode: Power switch in the ON position (LCD screen is off.)
- SETUP mode: Power switch at SETUP position (LCD screen is on).

OFF MODE

The OFF mode is the “safe” mode when any actions must be taken, e.g., replacing the SD card or batteries, or transporting the device. You will also use OFF mode if you connect the camera to a computer’s USB port later to download your photos/videos. And of course, when you are storing or not using the camera, you will switch it to OFF. Please note that even in the OFF mode the Trophy Cam still consumes power at a very low level. Therefore, it’s a good idea to take the batteries out of the battery compartment if the camera will not be used for a long time.

ON MODE

Anytime after the batteries and SD card have been inserted, you can switch on the camera. When the power switch is moved to the top position, the camera will enter into the ON (Live) mode. The motion indicator LED (pg. 5, "Front View") will blink red for about 10 seconds. This interval allows time for you to close the Trophy Cam's front cover, lock it, and leave the monitored area. Once in the ON mode, no manual controls are needed or possible (the control keys have no effect). The Trophy Cam will take photos or

videos automatically (according to its current parameter settings) when it is triggered by the PIR sensor's detection of activity in the area it covers.

You can either move the power switch directly from OFF to ON mode, or stop at the SETUP position first to change one or more settings, then move the switch to ON after you have finished doing so.

SETUP MODE

In the SETUP mode you can check and change the settings of the Trophy Cam with the help of its built-in LCD (or a monitor connected to the TV out jack). These settings, found in the SETUP Menu, let you change the photo or video resolution, interval between photos, switch the time imprint on, etc. Moving the power switch to the SETUP position will turn on the LCD display, and you will see an information screen that shows how many images have been taken, the battery level, camera or video mode, etc (see Fig. 3 below).

NOTE: Always move the power switch from OFF to SETUP mode. It is possible that the camera could lockup if it is switched from ON to SETUP mode. If this occurs, simply move the switch to OFF and then push it up to SETUP again.

SETUP Mode Shortcut Keys/Functions

As mentioned earlier in “Parts & Controls”, four of the keys below the LCD have secondary, “shortcut” functions when the camera is switched to SETUP mode (but the MENU key has not been pressed):

• Press the UP key to quickly set the camera to shoot video clips.
• Press the DOWN key to quickly set the camera to take still photos.
• Press the RIGHT key to manually trigger the shutter. This is useful for testing the camera-make sure you are in SETUP mode, press the RIGHT key, and a few seconds later a photo or video (depending on how the camera was set) will be saved to the SD card (or internal memory if no card is inserted). The “number of images taken” counter on the bottom left of the LCD will increase by one. If the display indicates “SD PROTECTED” when you press the SHOT key, switch the camera OFF, remove the SD card and slide its protect switch off.
• Press the OK key to replay (review or playback) photos/videos on the LCD (color viewer models only), or a connected TV monitor (std. display models). See “Playing Back Photos/Videos” for more details.

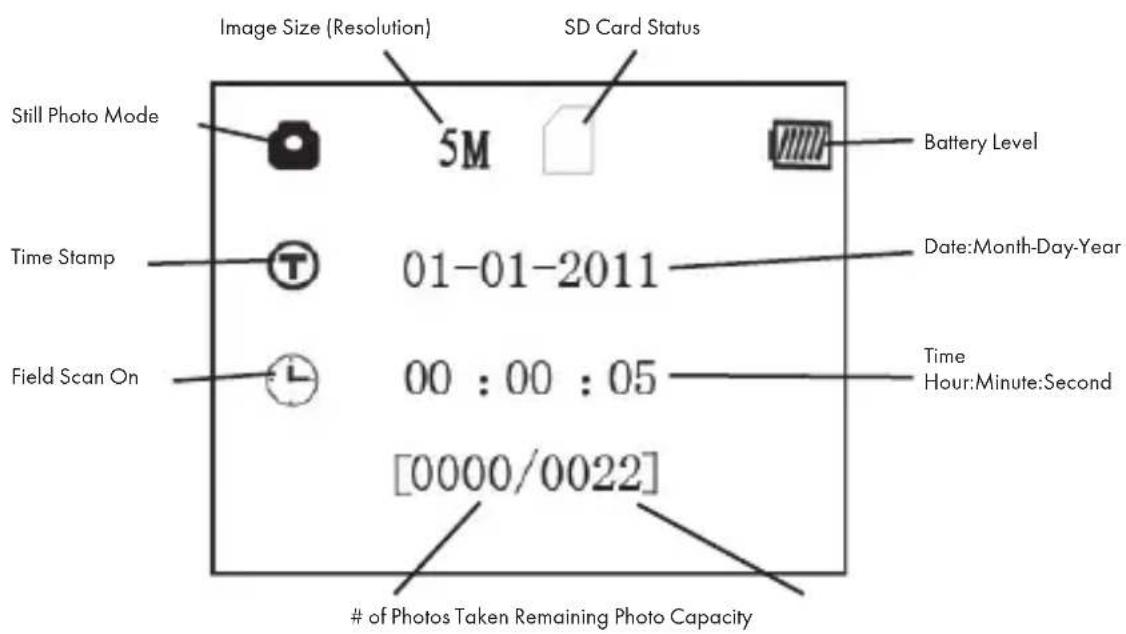

Fig. 3: SETUP Information Screen (standard display model shown)

Image Size (Resolution) SD Card Status Still Photo Mode 5M Battery Level Time Stamp 01-01-2011 Date:Month-Day-Year Field Scan On 00 : 00 : 05 Time Hour:Minute:Second [0000/0022]

of Photos Taken Remaining Photo Capacity

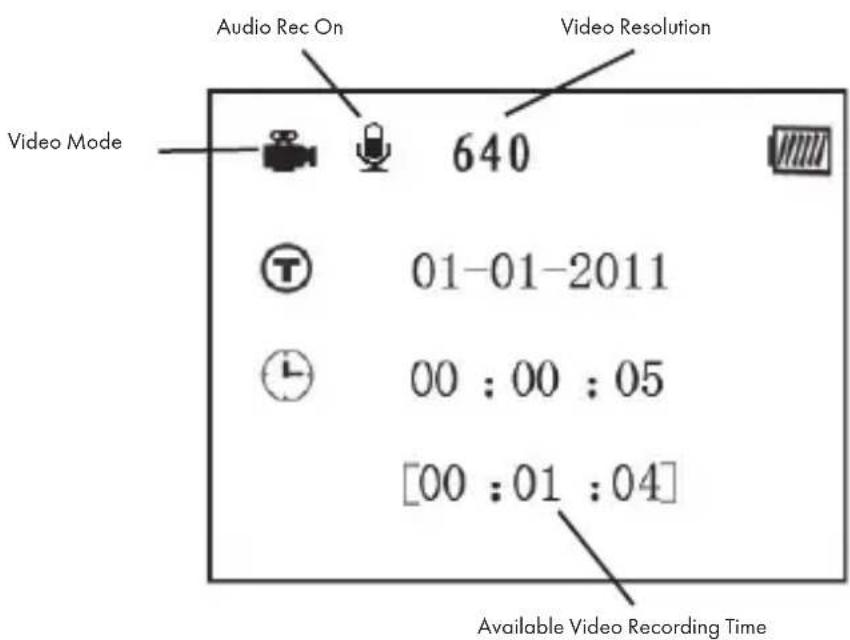

Audio Rec On Video Resolution Video Mode 640 01-01-2011 00 : 00 : 05 [00 : 01 : 04] Available Video Recording Time

USING THE SETUP MENU TO CHANGE SETTINGS

The main purpose of the SETUP mode is to allow you to change the settings of the camera's parameters (12-13 different ones are available) so your Trophy Cam operates exactly the way you want it to. You will do this by entering the SETUP Menu and pressing the keys below the LCD display, which will show you each parameter and its setting.

Changing Parameter Settings in SETUP Mode

A wide range of options or “parameters” are provided to allow you to set the Trophy Cam to your operational preferences. To change the setting of any parameter you must first switch to the SETUP mode. Once in SETUP mode, pressing the MENU button will allow you to select any parameter and change its setting. The name of the parameter and its current setting will be shown on the LCD. Pressing the RIGHT or LEFT key scrolls to the next or previous parameter (RIGHT key to move on to the next parameter and LEFT key to go back to the previous parameter), and pressing the UP or DOWN key lets you select a different setting for the currently displayed parameter. Once you have selected your preferred new setting for a parameter, press the OK button to save the new setting (actually change it). When have are finished changing the settings of one or more parameters, press MENU again to exit the SETUP menu. MENU can also be pressed anytime you want to cancel changing a parameter’s setting after a new setting has been selected (but OK has not been pressed yet). After setting the parameters to your preferences, be sure to move the switch to ON to begin actually taking photos or videos. No images will be captured if the switch is left in the SETUP position (unless you press the RIGHT/Shot key after exiting the menu)-in fact, the camera will power off automatically after a few seconds with no key pressed.

Color Viewer vs. Standard Display Models

There is a slight difference in how the settings for a parameter are shown between the two different types of Trophy Cam models:

- On models with a color viewer, all the available settings for the currently displayed parameter are shown on one screen, with a checkmark next to the current setting (Fig. 4a). To change the setting, first use the UP/DOWN keys to highlight (select) the new setting you want (Fig. 4b), then press OK to "Execute" the actual change to the selected setting.

The checkmark will appear next to your new setting to confirm this (Fig. 4c).

- On models with standard (non-color) display, only one setting is displayed at a time, starting with the current setting for the parameter when it is first selected (Fig. 4d). To change the setting, use the UP/DOWN keys to display the new setting you want (Fig. 4e), then press OK to "Execute" (make the actual change to this setting). If you want to confirm this setting is now the current one, just press the RIGHT key to scroll to the next parameter, then press LEFT to go back again to the previous one. You should see the parameter setting you just made.

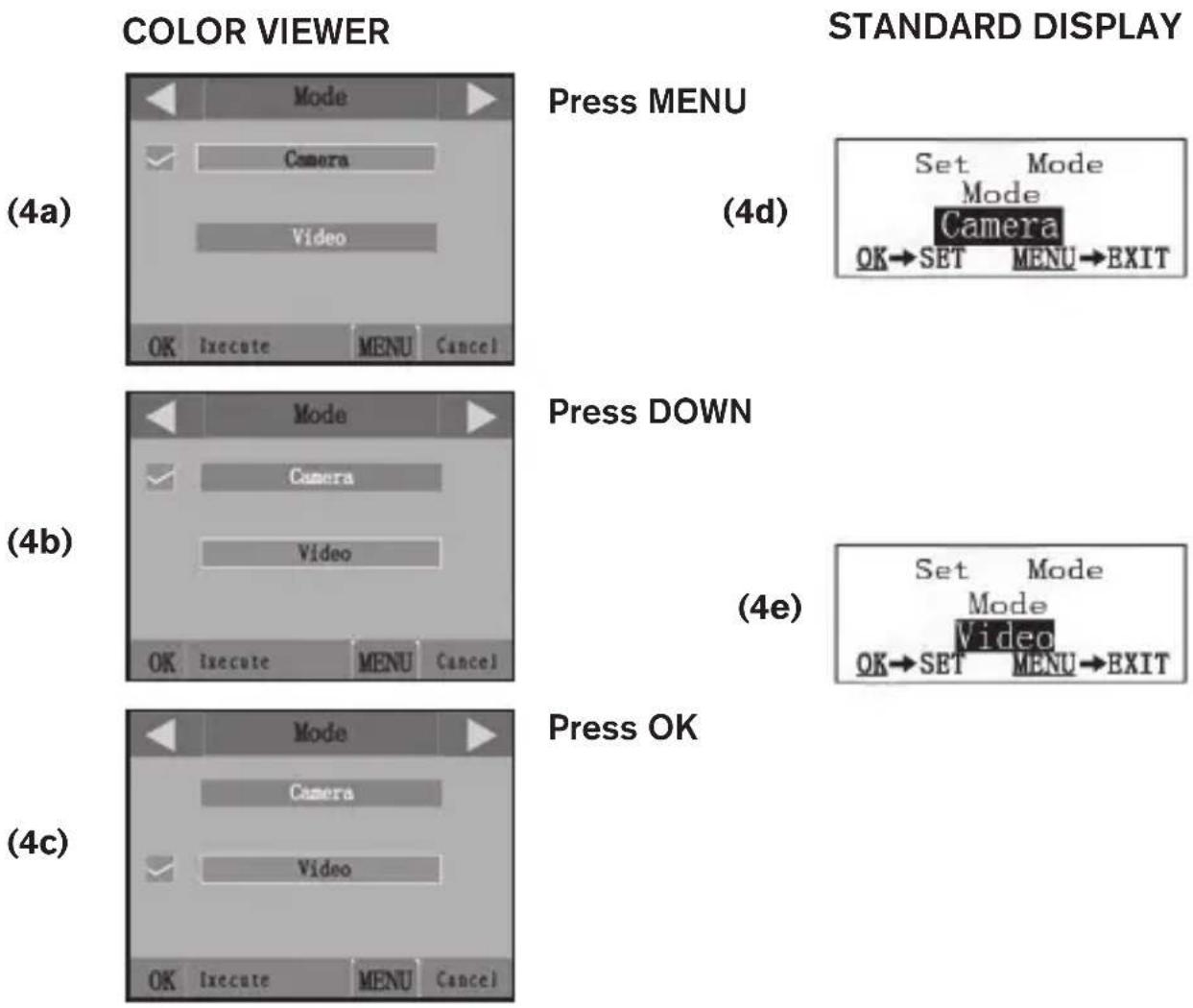

Fig. 4: Selecting Parameter Settings

COLOR VIEWER (4a) Mode Camera Video OK Execute MENU Cancel Press MENU (4d) Set Mode Mode Camera OK→SET MENU→EXIT (4b) Mode Camera Video OK Execute MENU Cancel Press DOWN (4e) Set Mode Mode Video OK→SET MENU→EXIT (4c) Mode Camera Video OK Execute MENU Cancel Press OK STANDARD DISPLAY

EXAMPLES-Changing the Settings of Some Common Parameters

Following this page, you will find tables listing all of the parameters found in the SETUP Menu, along with their possible settings (or range of settings), and a detailed description of what the parameter controls and what the settings do. If you read the previous section detailing how to select parameters and change their settings, you should be able to dive right in, find the parameter(s) you want, and setup the camera to your preferences. But maybe you'd rather walk through an example or two first:

To change any parameter's setting, always start with the power switch in the SETUP position. After the LCD comes on, press the MENU key.

The first parameter you will when you first enter the SETUP Menu is “Mode”. To change it from its default setting of “Camera” (still photos) to “Video” (shoot video clips), press the DOWN key to highlight “Video” (color viewer models) or to select the “Video” setting (std. display models). Press the OK key to “Execute” (Set) the new setting you’ve selected for this parameter.

Now press the RIGHT key to move to another parameter in the Menu. Pressing it four times will take you to “Video Length”. Try using the UP and DOWN keys to scroll through the range of settings, then press OK to lock in your setting for the length of each video clip the camera shoots.

Pressing the RIGHT key several more times will get you to the “Default Set” parameter. Highlight or select “Execute” (using UP or DOWN) and press OK to restore all parameters (including the Mode and Video Length parameters you changed a minute ago) back to their original factory default settings. The default settings for each parameter are indicated in bold type in the SETUP Menu tables on the next several pages.

Be sure to set the current date and time, using the “Set Clock” parameter, if you choose to change the “Time Stamp” parameter setting to “On” since that will tell the camera to imprint the date and time on each of the images it captures.

Field Scan Feature

Field Scan is a revolutionary new feature for the Bushnell Trophy Cam, which allows you to monitor your food plots or field edges with time lapse images or video. When set to “On”, the Trophy Cam will take a photo (or record a video clip) automatically at your choice of intervals during a block of time you set up for each day, without requiring a trigger from an active animal. This has the advantage of giving you the ability to monitor the edge of a field that might be 50 or 150 yards away from the camera out of the PIR sensor’s range. The result is an effective range much greater than it would normally be, with the camera dependant on triggers generated by nearby animals. This is a great tool for hunters to scout an entire field with only one camera.

If an animal does enter the area covered by the IR sensor and generate a trigger event during a time in between the Field Scan intervals you set, the camera will capture an image or video just as it normally would, based on your other menu settings. Here's how to setup and use Field Scan (be sure you've set the current time in "Clock Set" first, so your Field Scan recording will stop and start at the correct times of day):

1. Move the main switch to SETUP, then press MENU.
2. Keep pressing the RIGHT key, stepping through the Setup Menu until you reach Field Scan.
3. With "On" selected (press UP/DOWN to toggle between On/Off), press OK. This takes you to the screen to set Start and Stop time, which determines the clock times when the Field Scan recording will begin and end for each day. You can set these times to the exact hour and minute you want, for a recording "block" that lasts anywhere from just a minute to a full 24 hours.
4. Set the Start and Stop times, beginning with the Start hour, using the UP/DOWN keys to change the setting. The hour setting is based on a 24-hour clock, with "00" hours = midnight, "12" hours = noon, "23" hrs = 11PM, etc. To move to the next setting, press the RIGHT key, change the minute for the Start time with UP/DOWN, then on to the hour and minute settings for the Stop time.
5. After you finish setting the last time setting (Stop minutes), another press of the RIGHT key will take you to the setting for Interval. This lets you control how often a photo or video clip is recorded during the block of time you defined with the Start and Stop settings. Note that

for videos, this is independent of the length of each video recording-it's how often videos are recorded, not how long each one lasts. Your options are 60 minutes, 30 minutes, 15 minutes, 5 minutes (this is the default), or 1 minute-use the UP/DOWN keys to select your preference, then press OK to save it.

1. Here's an example of how the camera would operate, based on the following Field Scan settings:

Field Scan: On

Interval: 15M

These settings would cause the camera to take a photo (or video, depending on which you have it set for) beginning at 4 PM, then another one at 4:15, 4:30, etc.—one every 15 minutes, until the Field Scan recording stops at 6:30 PM. The next day, the camera would again record an image or video once every 15 minutes between 4 and 6:30 PM. Remember, this is independent of normal triggers due to animal activity—even if no animals enter the IR sensor coverage zone, an image or video will still be captured every 15 minutes during the 2.5 hour block of time. If an animal triggers the camera “in between” the 15 minute intervals, it will be recorded, same as it would if you had setup the camera with Field Scan turned Off. Note: Field Scan settings of frequent intervals and/or long periods between start and stop time can reduce battery life.

Set Mode Field Scan On OK→SET MENU→EXIT

Step 1-set Field Scan Mode to "On"

Field Scan [Start] 16:00 [Stop] 00:00 OK→SET MENU→EXIT

Step 2-set Start Time (Hour & Minute)

Field Scan [Start] 16:00 [Stop] 18:30 OK→SET MENU→EXIT

Step 3-set StopTime (Hour & Minute)

Field Scan [Interval] 15M OK→SET MENU→EXIT

Step 4-set Interval (60, 30, 15, 5 or 1 M)

The SETUP Menu - Parameters and Settings List w/Descriptions

Parameter	Settings (Bold=default)	Description
Mode	Camera or Video	Selects whether still photos or video clips are captured when the camera is triggered.
Image Size (only affects still photos)	5M Pixel, 8M Pixel, 3M Pixel	Selects resolution for still photos from 3 to 8 megapixels. Higher resolution produces better quality photos, but creates larger files that take up more of the SD card capacity (fills up faster). 5M is a good compromise between quality and file size.
Capture Number (only affects still photos)	1 Photo, 2 Photo, 3 Photo	Selects how many photos are taken in sequence per trigger in Camera mode. Please also refer to the Interval parameter.
Video Size (only affects video clips)	640x480, 720x480, 320x240	Selects video resolution (in pixels per frame). Higher resolution produces better quality videos, but creates larger files that take up more of the SD card capacity (fills up faster). 640x480 is VGA video in standard 4:3 format, 720x480 is widescreen format.
Video Length (only affects video clips)	10S (second) default, with 60S to1S possible range	Sets length per captured video clip. Settings begin with 10 second default when parameter is first selected. After stepping down to 1S, video length settings start over at 60S.
Interval	10S (second) default, with a 60M (minute) to1S (second) range of settings available.(60M-1M are set in one minute increments, 59S-1S are set in one second increments)	Selects the length of time that the camera will “wait” until it responds to any additional triggers from the PIR after an animal is first detected and remains within the sensor’s range. During this user set “ignore triggers” interval, the camera will not capture photos/videos. This prevents the card from filling up with too many redundant images. Settings begin with 10 second default when parameter is first selected. Note: after setting down past “1S”, settings start over at “60M”.
Sensor Level	Normal, High, Low	Selects the sensitivity of the PIR sensor. The “High” setting will make the camera more sensitive to infrared (heat) and more easily triggered by motion, and the “Low” setting makes it less sensitive to heat and motion. The High setting can be useful when the ambient temperature is warm (making it more difficult for the sensor to detect animals), and the Low setting may help in cold weather if the camera is being triggered too often by anything warmer than the surroundings.
Format Execute	(followed by an additional No/ Yes step on color viewer models only)	Deletes (erases) all files stored on a card to prepare it for reuse. Always format a card that has been previously used in other devices. Caution! Make sure you have downloaded and backed up any files you want to preserve first! Press OK to execute (then select Yes and press OK again on color viewer models), press MENU (or select NO then press OK) to exit without formatting.
TV Out	NTSC, PAL	Selects video standard /format for the “TV Out” output jack. The video standard is NTSC for the United States, Canada, Mexico, Asia and South America. PAL is used primarily in Europe.
Time Stamp (only affects still photos)	Off, On	Select “On” if you want the date & time (that the photo was captured) imprinted on every photo, select “Off” for no imprint.
Set Clock Set		Press OK and use the UP/DOWN keys (to change the setting) and LEFT/RIGHT keys ( to move to the next field) to set the hour (24-hr format only, “00”=midnight, “12”=noon) and minute, and then (on the lower row), the year, month and date.
Field Scan	On, Off Turns Field	Recording mode on/off. Pressing OK with On selected will go to the Set Field Scan screen, which allows you to set the Start and Stop times in hours (0-24) and minutes (00-59). This is setting the time each day for recording to begin and end (24 -hr clock, so 13:00 hours=1PM). Use the RIGHT key to step through the fields, and use UP/DOWN to change the settings. After you set the “Stop” minutes, the next press of the RIGHT arrow key will jump to the screen for setting the Interval (how often the Trophy Cam will wake up and record). You can select 60, 30, 15, 5 or 1 minutes (default is 5M).
Video Sound(only affects video clips)	On, Off Select “On” to record audio along with the video when the camera is set to video mode (saved file sizes will be slightly larger).
Default Set	Cancel, Execute	Select “Execute” and press OK to restore all parameters to the original factory default settings. If the camera is behaving oddly and you think you may have changed the setting for something accidentally (but aren’t sure which one), this will reset all parameters to their most commonly used or “generic” settings.

MOUNTING AND POSITIONING THE TROPHY CAM

Mounting

After you've set up the camera's parameters to your personal preferences at home or in your truck, you're ready to take it outside and slide the power switch to "ON". When setting up the Trophy Cam for scouting game or other outdoor applications, you must be sure to mount it in place correctly and securely. We recommend mounting the Trophy Cam on a sturdy tree with a diameter of about 6 in. (15cm). To get the optimal picture quality, the tree should be about 16-17 ft. (5 meters) away from the place to be monitored, with the camera placed at a height of 5-6.5 ft. (1.5\~2 m). Also, keep in mind that you will get the best results at night when the subject is within the ideal flash range, no farther than 45' (14m) and no closer than 10' (3m) from the camera.

There are two ways to mount the Trophy Cam: using the provided adjustable web belt, or the tripod socket.

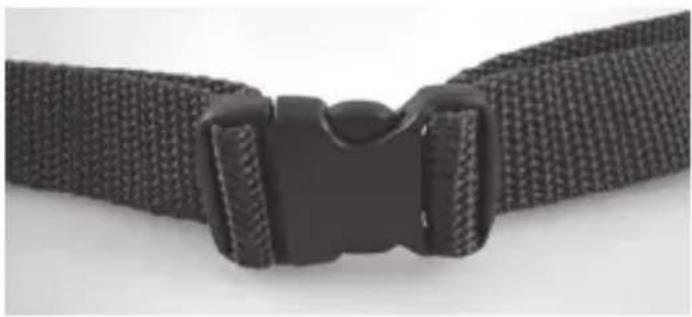

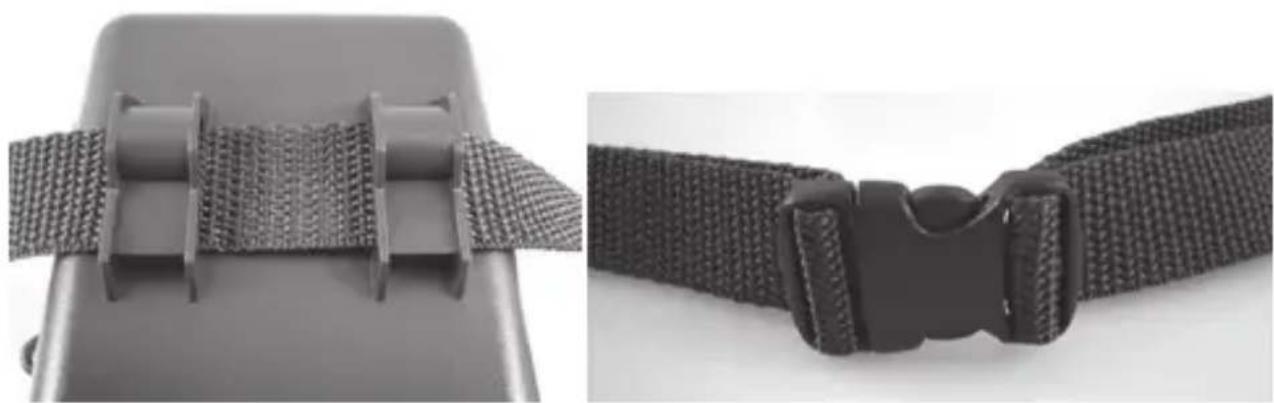

Using the adjustable web belt: Fig. 5 illustrates using the web belt on the Trophy Cam. Push one end of the belt through the two brackets on the back of the Trophy Cam. Thread one plastic buckle part onto each end of the belt. Fasten the belt securely around the tree trunk by clicking the buckle ends together after tightening the belt so there is no slack left. Using the tripod socket: The camera is equipped with a socket at the

Fig. 5: Attaching the Belt

Two black fabric-wrapped items: a mesh-coated component and a U-shaped buckle (no text or symbols visible)

bottom end to enable mounting on a tripod or other mounting accessories with a standard1/4-20 thread.

Two optional mounting accessories, a "Bear Safe" metal camera box (model # 119653C) and Deluxe Tree Bracket (model# 119652C) are also available-please see your Bushnell dealer or website for more details.

Sensing Angle and Distance Test

To test whether the Trophy Cam can effectively monitor the area you choose, this test is recommended to check the sensing angle and monitoring distance of the Trophy Cam. To perform the test:

• Switch the Trophy Cam to the SETUP mode.
• Make movements in front of the camera at several positions within the area where you expect the game or subjects to be. Try different distances and angles from the camera.
• If the motion indicator LED light blinks, it indicates that position can be sensed. If it does not blink, that position is outside of the sensing area.

The results of your testing will help you find the best placement when mounting and aiming the Trophy Cam. The height away from the ground for placing the device should vary with the animal size appropriately. In general, 3 to 6 feet is preferred.

You can avoid potential false triggers due to temperature and motion disturbances in front of the camera by not aiming it at a heat source or nearby tree branches or brush (especially on windy days).

Switching ON the Camera

Once you switch to the ON mode, the motion indicator LED (red) will blink for about 10 seconds. This gives you time to close and lock the front cover of the Trophy Cam and then walk away. During this time, the motion indicator LED will blink red continuously. After it stops blinking, the PIR is active, and any motion that is detected by it will trigger the capture of photos or videos as programmed in the SETUP Menu. Be sure you have read the descriptions of the Capture Number, Video Length, Interval and Sensor Level parameters. Please note, the PIR is strongly sensitive to ambient temperature. The greater the temperature difference between the environment and your subject, the farther the possible sensing distance. The average sensing distance is about 45 ft.

Before leaving the camera unattended, please check for the following:

• Are the batteries or DC power supply inserted/connected with correct polarity and is the power level is sufficient?
• Does the SD card have sufficient available space and is its write-protection (lock) switch off?
• Is the Power switch in the ON position? (do not leave it in SETUP).

PLAYING BACK/DELETING THE PHOTOS/ VIDEOS

After you have setup, mounted and activated your Trophy Cam, you will of course be eager to return later and review the images it has captured for you. There are several different ways this can be done.

Reviewing Images Directly From the SD Card

This is the most popular method of viewing images. Since unmounting the camera and taking it to your computer isn't very convenient, you may find it easier to just take the card out. By removing the SD card (swapping it for a new empty card if you like) and taking it to your home or campsite to view the images by using an SD card “reader” (user supplied) connected to your computer (some computers and TVs have a built in SD card slot), you can leave the camera in place ready to capture more images. Once connected, the card reader works the same way as described below-please read that section if you have any problem finding your files.

Reviewing Images on the Trophy Cam LCD (Models with Color Viewer only)

• Put the power switch in SETUP mode (switch to OFF first).
• Push the OK(Replay) key to enter image review mode.
• If you are in still photo mode, you'll see the still photo review screen. If you are in video mode, you'll see the video review screen.

• Use the UP/DOWN keys to scroll through your photos or videos. A zoom feature is available for still photos: first press the LEFT key, then use the UP/DOWN keys to zoom in or out. After zooming in, you can then press OK, and use the UP/DOWN/LEFT/RIGHT keys to move around and examine small details in different areas of the photo. Press OK at anytime to exit and return to the full view.

• Press the RIGHT (Shot) key to play a video. If “Video Sound” was set to “On” in the Setup Menu, you should hear audio from the speaker during playback.

• Push MENU to delete an image. Image delete mode works as described below. To exit image review mode, press the OK key.

Reviewing Images on an External Video Monitor

A TV monitor can also be used to play back pictures (or videos) from the device. Connect a TV monitor or a viewing device (such as a digital picture frame) that has a standard composite video input (RCA jack) to the Trophy Cam 's "TV Out" mini jack using the supplied cable. Then:

• Put the power switch in SETUP mode (switch to OFF first).
• Press the OK key. The most recently captured image will be shown on the video monitor. For

video clips, press the SHOT (RIGHT) key to start playing, press again to stop.

• Press the UP key for the previous photo or video and the DOWN key for the next one. When viewing images, the total number of all images in the SD card and the index of the displaying image are shown in the center of LCD and at the bottom of the video monitor respectively.
• Press the OK key to return to live preview state (SETUP mode) when playback is finished.

Reviewing Images by Connecting the Camera to a Computer

You can always unmount the entire camera from the tree and connect its USB port to a computer-it will be recognized as a “removable disk”, without the need to install any drivers or software. When using a PC (or Mac*) to view photos (or video clips*), first connect the device to the computer with the supplied USB cable. Then use commercial software with an image browser feature, or an image browser included with the PC’s operating system to view images saved on the SD card in the folder \DCIM\100EK113. Each new image or video will be numbered incrementally in order of the time it was captured. For example, you will see file names such as “PICT0001.JPG” or “PICT0001.avi”. Through the file format suffix you can distinguish whether the file is a still photo (with suffix .jpg) or a video (with suffix .avi).

*".avi" video files may require additional software for viewing on a Mac.

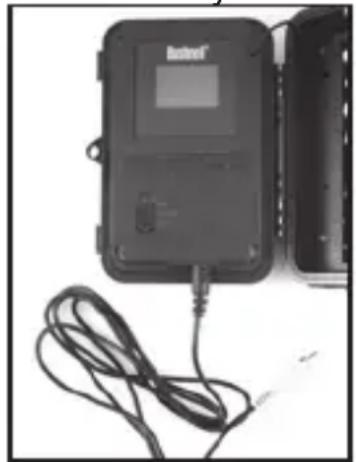

Exterior view of a black electronic device with a digital display and coiled cable (no visible text or symbols)

Cable from "TV Out"

The Trophy Cam supports 3 kinds of file system formats, FAT12, FAT16, and FAT32. The default value is FAT16 to save photos and videos. Here are some related notes:

- You don't need to be concerned about the file system format of the Trophy Cam unless your equipment has problems reading the SD card. If this happens, please format the SD card with the Trophy Cam or in your computer first and then insert the card into your Trophy Cam and try again.

- The default file system format of the Trophy Cam is FAT16, which most computers can read. If you format an SD card for the Trophy Cam in your computer, you should choose the file system format FAT16. Normally FAT16 is recommended unless you have another image viewer that uses FAT12 or FAT32 format.

Deleting Photos or Videos

If you see a photo or video during playback on the LCD or video monitor that you want to delete, it can be done easily without leaving SETUP mode:

• Press the MENU key. You will see the first "Delete" screen, which lets you selects the option to delete only the currently displayed photo/video, or all photos/videos (see below).
• Highlight the "Delete Current" or "Delete All" option, then press OK.
• Next, select "Yes" and press OK to erase only the last displayed photo or video (if you selected "Delete Current"), or every photo and video file on the card (if you selected "Delete All")-or select "No" and press OK to cancel the operation without deleting any files.

NOTE: after deleting a picture or a video file, the deleted files can't be restored! It is also possible to delete all files from the card by using the Format parameter.

Delete Delete Current Delete All OK Execute MENU Cancel

Delete Delete Current Delete All OK Execute MENU Cancel

Delete Yes No OK Execute MENU Cancel

To download your photos/videos to a PC or Mac*, first make sure the Trophy Cam power switch is in the OFF position. Connect the supplied cable to the camera's USB port, then directly to a main USB port on your computer-do not use front panel/keyboard USB ports or unpowered "hubs".

The Trophy Cam will be recognized as a standard “USB Mass Storage” device (this may take several seconds the first time you connect it). If you would rather leave your camera in the woods and just pull its SD card out, an SD card reader works the same way as described in this section once the card is inserted and the reader is connected to your computer.

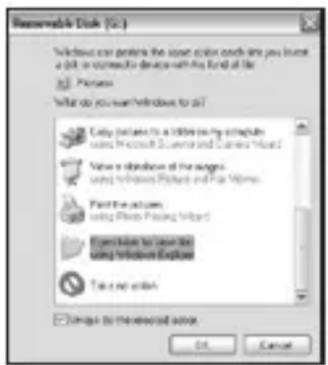

With Windows XP or later, you can then simply use the options in the pop-up window to copy, view, or print your photos (right).

On all Windows OS, the Trophy Cam will also be listed as a "Removable Disk" if you open the "My Computer" window (on Macs, an icon will appear on your desktop). The Trophy Cam's photo files are named "PICT0001.JPG" etc, and are located in the "DCIM\100EK113" folder on this "Removable Disk". Video file names will end with ".avi". You may copy the photos/videos to your hard drive as you would any filejust copy/paste or drag the file names or icons to your drive or desktop.

Renewable Disk (Rc) Windows your problems the some color check-line you have a (alt) or interactive devices with this fund of file <|vision_start|> Windows What do you want windows to set? Copy: allows it to a 100% on my desktops using Microsoft Windows and Linux Wizard View a window of the accounts using Windows Pictures and Web Services Print the accounts using Files Passing Wizard Explain how to save and using Windows Explorer Take any action Options to the desktop active. OK Cancel

After the photos are copied to your hard drive, you can disconnect the Trophy Cam. (On Mac computers, drag the “disk” that appeared on your desktop when the camera was connected into your Trash to “eject” it before disconnecting.) The .jpg standard files from the Trophy Cam may be viewed and edited with any photo software you choose to use. The .avi video files may be viewed with Windows Media Player (version 7 or later) as well as other video playback programs that may have been supplied with your computer, or are available online.

TROUBLESHOOTING / FAQ

Camera takes continuous images of no subject

A camera has what is known as a “false trigger” if the PIR sensor thinks that there is motion and heat in front of the camera lens when there is no subject in the image. These “False Triggers” are the result of placing the camera in an environment where there is motion associated with tree branches creating motion in front of the camera or an area where there is high heat in the foreground and any motion from wind could set off the camera. Setting a camera up over water is also a potential cause for this issue. To remedy this situation:

1. Try moving the camera to an area that does not have any of these issues or try changing the sensor level on the menu settings.
2. If the camera continues to take images when there is no subject in them, try placing the camera in an inside environment and aiming at a location where there is no motion.
3. If the camera continues to show issues, then there is probably an electronic component issue. If this is the case, please contact our customer service to send the camera back for repair.

Battery life is shorter than expected

1. Battery life will vary with operating temperature and the number of images taken over time. Typically, the Trophy Cam will be able to capture several thousand images before the batteries die.
2. Check to make sure you have used new alkaline or lithium batteries. Bushnell recommends using 8 Energizer® Lithium AA batteries in all Trophy Cams to obtain maximum battery life.
3. Make sure that the power switch was turned to the "On" position and that the camera was not left in "Setup" mode while in the field.
4. Make sure that you are using a good quality name brand SD card in your camera. Bushnell recommends SanDisk® brand SD Cards up to 32GB. Our experience indicates that poor quality SD cards can sometimes reduce your Trophy Cam battery life.

Camera stops taking images or won't take images

1. Please make sure that the SD card is not full. If the card is full, the camera will stop taking images.

2. Check the batteries to make sure that they are new alkaline or lithium AA batteries. See note above about short battery life.

3. Make sure that the camera power switch is in the "On" position and not in the "Off" or "Setup" modes.

4. Make sure that you are using a good quality SD card in your camera. Bushnell recommends SanDisk® SD Cards up to 32GB.
5. If the SD card has its write protect switch in the lock position, the camera will not take images.
6. If you have used an SD card in another device before inserting it in your Trophy Cam, you might want to try formatting the card using the "Format" parameter in Setup mode (make sure you have backed up any important files first, as formatting will erase all previous files). In some cases, other devices may change the formatting of the SD card so that it will not work properly with the Trophy Cam.

Camera won't power up

1. Make sure that you have installed at least 4 batteries (the required minimum #) in the battery compartment, starting at the top, filling battery spaces 1-4 with no “gaps”.

Bushnell recommends using 8 Energizer ^® Lithium AA batteries in all Trophy Cams.

1. Make sure that the batteries are installed correctly, observing proper polarity. Always place the negative (flat) end of each battery in contact with the spring side of its slot inside the camera.

2. After moving the switch from "Off" to "Setup" or "On", make sure that the switch is correctly in position to ensure the proper mode (avoid positions "between" two modes).

3. Do not move the switch directly from "On" to "Setup"-always move the switch all the way down to "Off" first, then back up to "Setup".

Still Photo and/or Video Quality Problems

1. Night photos or videos appear too dark

a. Check the battery indicator icon to see if battery power is full. The flash will stop operating near the end of the battery life.

b. You will get the best results when the subject is within the ideal flash range, no farther than 45' (14m) from the camera. Subjects may appear too dark at greater distances.

c. Please note that when the Capture Number parameter is set higher than "1 Photo", or with very short Interval settings, some images may appear darker than others due to the quick response and rapid retriggering of the camera, allowing less time for the flash to fully recharge before firing again.

1. Daytime photos or videos appear too dark

a. Make sure that the camera is not aimed at the sun or other light sources during the day, as this may cause the auto exposure to produce darker results.

1. Night photos or videos appear too bright

a. You will get the best results when the subject is within the ideal flash range, no closer than 10' (3m) from the camera. Subjects may appear too light at closer distances.

1. Daytime photos or videos appear too bright

a. Make sure that the camera is not aimed at the sun or other light sources during the day.

1. Photos with streaked subject

a. In some cases with low lighting conditions and fast moving subjects, the 5MP or 8MP resolution settings may not perform as well as the 3MP setting.

b. If you have multiple images where fast moving subjects produce streaks on the photo, try the 3MP setting instead.

1. Red, green or blue color cast

a. Under certain lighting conditions, the sensor can become confused resulting in poor color images.

b. If this is seen on a consistent basis, then the sensor may need servicing. Please contact Bushnell customer service.

1. Short video clips—not recording to the length set

a. Check to make sure that the SD card is not full.

b. Make sure that the camera has good batteries in it. Near the end of the battery life, the camera may choose to record shorter video clips to conserve power.

Date/Time Stamp not appearing on images

1. Make sure that the "Time Stamp" parameter is set to "On".

Photos Do Not Capture Subject of Interest

1. Check the “Sensor Level” (PIR sensitivity) parameter setting. For warm environmental conditions, set the Sensor Level to “High” and for cold weather use, set the sensor for “Low”.

2. Try to set your camera up in an area where there is not a heat source in the camera's line of sight.

3. In some cases, setting the camera near water will make the camera take images with no subject in them. Try aiming the camera over ground.

4. Try to avoid setting the camera up on small trees that are prone to being moved by strong winds.

5. Remove any limbs which are right in front of the camera lens.

PIR Sensor LED Flashes/Doesn't Flash

1. When the camera is in the "Setup" mode, a special LED on the front of the camera will flash when it senses motion. This is for setup purposes only and will help the user aim the camera.

2. During use, the LED will not flash when the camera takes an image. This is to help keep the camera hidden from game.

LCD Screen Issues

1. LCD screen powers on but no text is present.

a. After moving the switch from "Off" to "Setup" or "On", make sure that the switch is correctly in position to ensure the proper mode (avoid positions "between" two modes).

b. Do not move the switch directly from "On" to "Setup"-always move the switch all the way down to "Off" first, then back up to "Setup".

1. LCD screen shows a faint black line after turning from "Setup" to "On".

a. The LCD will turn off when you slide the switch to the "On" position. In some cases, this black line will appear and then fade in about 1 second. This is normal and the camera will function properly.

1. Screen comes on but then powers off

a. Make sure that you have installed the SD card correctly.

Camera won't retain settings

1. Make sure that you have been saving the changes to any parameter settings that you made while in Setup mode, by pressing “OK” after changing the setting. If you don’t save your new setting after changing it, the camera will continue to use the original default setting for that parameter.

Moisture or Ants Inside Camera

1. To ensure humidity or rain is kept out of the camera, secure the DC In plug firmly in place.

2. Ants can be attracted by low level electronic vibrations, and enter through any gaps between the exterior and interior of the camera. Make sure the DC In plug is securely attached.

TECHNICAL SPECIFICATIONS

Image Sensor	5 Megapixel Color CMOS
Maximum Pixel Size	3264x2448 (8MP)
Lens	F = 3.1; FOV=50°; Auto IR-Cut-Remove (at night)
IR-Flash Range	36'-45' (12m-15m)
Display Screen	Std B&W Display: 24x32mm(1.5") ; Color Display: 32x42mm (2")
Memory Card	SD or SDHC Card, Maximum capacity 32GB
Internal RAM	32MB
Picture Size	8MP = 3264x2448; 5MP = 2560x1920; 3MP = 2048x1536
Video Size	720x480/30 fps, 640x480/30fps, 320x240/30fps
PIR sensitivity	PIR with 3 sensitivity levels: High/Normal/Low
Operation	Day/Night
Response Time	1s
Triggering Interval	1sec. - 60min. programmable
Shooting Numbers	1-3 programmable
Video Length	5-60sec. programmable
Power Supply	8xAA recommended, 4xAA as emergency power
Stand-by Current	< 0.3mA(<7mAh/day)
Power Consumption	200mA (+530mA when IR-LED lighted)
User Interface	LCD display
Interface	TV out (NTSC/PAL); USB; SD card holder; 6V DC external
Security	Strap; 1/4-20 attachment
Operating Temperature	-20 - 60°C (Storage temperature: -30 - 70°C)
Operating Humidity	5% - 90%
Security authentication	FCC/CE/RoHs/WEEE

TWO-YEAR LIMITED WARRANTY

Your Bushnell product is warranted to be free of defects in materials and workmanship for two years after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.

Any return made under this warranty must be accompanied by the items listed below:

1) A check/money order in the amount of \$10.00 to cover the cost of postage and handling
2) Name and address for product return
3) An explanation of the defect
4) Proof of Date Purchased
5) Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage prepaid to the address listed below:

IN U.S.A. Send To: IN CANADA Send To:

Bushnell Outdoor Products Bushnell Outdoor Products

Attn.: Repairs Attn.: Repairs

9200 Cody 25A East Pearce Street, Unit 1

Overland Park, Kansas 66214 Richmond Hill, Ontario L4B 2M9

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you may also contact Bushnell at:

Bushnell Germany GmbH

European Service Centre

Mathias-Brüggen-Str. 80

D-50827 Köln

GERMANY

This warranty gives you specific legal rights.

You may have other rights which vary from country to country.

©2011 Bushnell Outdoor Products

Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.

FCC COMPLIANCE STATEMENT:

FC CE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device does not contain any user-serviceable parts. Repairs should only be made by an Authorized Bushnell repair center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and will void your warranty and your authority to operate this device under Part 15 regulations.

The shielded interface cable which is provided must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

Disposal of Electric and Electronic Equipment

(Applicable in the EU and other European countries with separate collection systems)

This equipment contains electric and/or electronic parts and must therefore not be disposed of as normal household waste. Instead, it should be disposed at the respective collection points for recycling provided by the communities. For you, this is free of charge.

If the equipment contains exchangeable (rechargeable) batteries, these too must be removed before and, if necessary, in turn be disposed of according to the relevant regulations (see also the respective comments in this unit's instructions).

Further information about the subject is available at your community administration, your local waste collection company, or in the store where you purchased this equipment.

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or labels)

Bushnell®

Exterior view of a Bushnell surveillance device with illuminated display and control panel (no readable text or symbols beyond branding)

TROPHY CAM™

TROPHY®

XLT

NOTICE D'UTILISATION

Energyizer Waterless Energyizer Waterless

Set Mode Field Scan On OK→SET MENU→EXIT

Field Scan [Start] 16:00 [Stop] 00:00 OK→SET MENU→EXIT

Field Scan [Start] 16:00 [Stop] 18:30 OK→SET MENU→EXIT

Field Scan [Interval] 15M OK→SET MENU→EXIT

Close-up of a mechanical component with textured surfaces and cylindrical shafts (no visible text or symbols)

Close-up of a black textured belt buckle with a V-shaped buckle (no text or symbols visible)

Exterior view of a black electronic device with attached cable and display (no visible text or symbols)

Delete Delete Current Delete All OK Execute MENU Cancel

Delete Delete Current Delete All OK Execute MENU Cancel

Delete Yes No OK Execute MENU Cancel

TÉLÉCHARGEMENT des PHOTOS/VIDÉOS

Renewable Disk (Sr) Welcome our problems the same action each line you insert a disk or shortcut device with the kind of file. Pictures What do you want to access to it! Copy pictures to a video on my computer using Microsoft Windows and Camera Wizard View a folder of the images using Windows Pictures and Web Video Print the images using Files, Files, Windows Open home to use this using Windows Express Take up action Unique to the selected action OK Cancel

DIAGNOSTIC/QUESTIONS FRÉQUEMMENT POSÉES

Bushnell Outdoor Products Bushnell Outdoor Products

Attn.: Repairs Attn.: Repairs

9200 Cody 25A East Pearce Street, Unit 1

Overland Park, Kansas 66214 Richmond Hill, Ontario L4B 2M9

European Service Centre

Mathias-Brüggen-Str. 80

D-50827 Köln

ALLEMAGNE

©2011 Bushnell Outdoor Products

Symbol of a trash bin crossed with two diagonal lines, no text or labels present

Solid dark gray rectangle with no visible text, symbols, or features.

F© C€

Bushnell®

Exterior view of a Bushnell surveillance camera device (no text or symbols on the device body)

TROPHY CAM™

TROPHY®

XLT

Electricizer Electricizer Electricizer Electricizer

Set Mode Field Scan On OK→SET MENU→EXIT

Field Scan [Start] 16:00 [Stop] 00:00 OK→SET MENU→EXIT

Field Scan [Start] 16:00 [Stop] 18:30 OK→SET MENU→EXIT

Field Scan [Interval] 15M OK→SET MENU→EXIT

Paso 4: fije el Intervalo (60', 30', 15', 5' ó 1')

Two black mesh-wrapped cable clips: one with a coiled spring, the other with a U-shaped buckle (no text or symbols visible)

Black electronic device with attached cable and display, next to a separate black device (no visible text or symbols)

Cable de "Salida de TV"

Delete Delete Current: Delete All OK Execute MENU Cancel

Delete Delete Current: Delete All OK Execute MENU Cancel

Delete Yes No OK Execute MENU Cancel

DESCARGA DE FOTOS/VIDEOS

Disposable Disk (SOS) Windows your problems the secret option each line you have a link in consecutive devices with this kind of file [...] Process What do you want Windows to do? Copy packets to a folder on my desktops using Microsoft Azure and Camera World View a window of the directory using Windows Pictures and File Windows Print the user from Windows using Files Forward Help Images like for these files using Windows Express Take any action □ Initialize the next file action OK Cancel

Bushnell Outdoor Products Bushnell Outdoor Products

9200 Cody 25A East Pearce Street, Unit 1

Ovreland Prak, Kansas 66214, Richmond Hill, Ontario L4B 2M9,

European Service Centre

Mathias-Brüggen-Str. 80

D-50827 Köln

ALEMANIA

©2011 Bushnell Outdoor Products

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Solid dark gray rectangle with no visible text, symbols, or features.

F© CE

Bushnell®

Exterior view of a black Barrnell surveillance camera with hexagonal lens and control panel (no readable text or symbols beyond branding)

TROPHY CAM™

TROPHY®

XLT

GEBRAUCHSANLEITUNG

DEUTSCH

Modellnummern: 119436 / 119446 / 119456

Lit# 98-1517 / 4-11

WICHTIGER HINWEIS

Interior view of a black cylindrical battery pack with multiple batteries arranged in rows (no visible text or symbols)

Close-up of a black rectangular electronic device with a 32GB memory card and ventilation slots (no visible text or symbols on the device body)

Set Mode Field Scan On OK→SET MENU→EXIT

Field Scan [Start] 16:00 [Stop] 00:00 OK→SET MENU→EXIT

Field Scan [Start] 16:00 [Stop] 18:30 OK→SET MENU→EXIT

Field Scan [Interval] 15M OK→SET MENU→EXIT

Schritt 4- Einstellung des Intervalls (60', 30', 15', 5' ó 1')

Two black fabric buckle straps with mesh texture, shown from different angles (no text or symbols visible)

Black electronic device with attached cable and display, no visible text or symbols

Delete Delete Current Delete All OK Execute MENU Cancel

Delete Delete Current Delete All OK Execute MENU Cancel

Delete Yes No OK Execute MENU Cancel

HERUNTERLADEN DER FOTOS UND VIDEOS

Windows Disk (5.1) Windows are problems the same action each time you want a link to a network device with this kind of file Pictures What do you want passwords to do? Copy your computer in my computer using Windows Computer and Windows Watch View a directory of the mouse using Windows Picture and Web Watch Print the image using Photo-Picking video Every session for your own using Windows Explorer Take any action Always to the selected option. OK Cancel

Bushnell Outdoor Products Bushnell Outdoor Products

Attn.: Reparaturen Attn.: Reparaturen

9200 Cody 25A East Pearce Street, Unit 1

Overland Park, Kansas 66214 Richmond Hill, Ontario L4B 2M9

European Service Centre

Mathias-Brüggen-Str. 80

D-50827 Köln

GERMANY

©2011 Bushnell Outdoor Products

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or numbers present)

Solid dark gray rectangle with no visible text, symbols, or features.

F© C€

Bushnell®

Exterior view of a Bushnell surveillance device with illuminated display and control panel (no readable text or symbols beyond branding)

TROPHY CAM™

TROPHY®

XLT

Interior view of a black plastic enclosure containing multiple cylindrical batteries (no visible text or symbols)

MODALITÀ OFF, ON E SETUP

Set Mode Field Scan On OK→SET MENU→EXIT

Field Scan [Start] 16:00 [Stop] 00:00 OK→SET MENU→EXIT

Field Scan [Start] 16:00 [Stop] 18:30 OK→SET MENU→EXIT

Field Scan [Interval] 15M OK→SET MENU→EXIT

Fase 4-impostare l'intervallo (60, 30, 15, 5, 1 min.)

Two black mesh-wrapped cable clips, one with textured band and the other with a V-shaped buckle (no text or symbols visible)

Black electronic device with attached cable and display, no visible text or symbols

Delete Delete Current Delete All OK Execute MENU Cancel

Delete Delete Current Delete All OK Execute MENU Cancel

Delete Yes No OK Execute MENU Cancel

Reusable Disk (S2.1) Windows can prepare the same color each, let you want a disk or create a device with this kind of file. Features What do you want Windows to set Copy pictures to a folder using the computer using Windows Puzzle and Camera Wizard View a desktop of the server using Windows Puzzle and Camera Wizard Paste the phones using Phone Parking Willow Every other to choose to using Windows Explorer Take any action Options to the selected device OK Cancel

Bushnell Outdoor Products Bushnell Outdoor Products

Attn.: Repairs Attn.: Repairs

9200 Cody 25A East Pearce Street, Unit 1

Overland Park, Kansas 66214 Richmond Hill, Ontario L4B 2M9

European Service Centre

Mathias-Brüggen-Str. 80

D-50827 Köln

GERMANY

©2011 Bushnell Outdoor Products

Exterior view of a Bushnell surveillance device with illuminated display and control panel (no readable text or symbols beyond branding)

TROPHY CAM™

TROPHY®

XLT

MANUAL DE INSTRUÇÕES

Modelo n°: 119436 / 119446 / 119456

Lit# 98-1517 / 4-11

PORTUGUÊS

NOTAS IMPORTANTES

Interior view of an electrical enclosure showing internal battery modules (no visible text or symbols)

COMO UTILIZAR O MODO OFF, ON E O SETUP

Set Mode Field Scan On OK→SET MENU→EXIT

Field Scan [Start] 16:00 [Stop] 00:00 OK→SET MENU→EXIT

Field Scan [Start] 16:00 [Stop] 18:30 OK→SET MENU→EXIT

Field Scan [Interval] 15M OK→SET MENU→EXIT

Passo 4 – definir intervalo (60, 30, 15, 5 ou 1 M)

Two black mesh-wrapped cable clips, one with a textured band and the other a V-shaped buckle (no text or symbols visible)

Exterior view of a black industrial control device with attached cables (no visible text or symbols)

Delete Delete Current Delete All OK Execute MENU Cancel

Delete Delete Current Delete All OK Execute MENU Cancel

Delete Yes No OK Execute MENU Cancel

Disposable Disk (5.1) Without our problems the some action needs that you have a list or create any device with the link of file Pictures What do you want Windows to do? Help (please to be a folder on my computer using Microsoft Computer and Linux Watch! View a directory of the sites using Windows Puzzle and Page History Find the pictures using Power Parking Wizard Ever listen to your list using Website Explorer Take no action Change to the selected action OK Cancel

9200 Cody 25A East Pearce Street, Unit 1

Overland Park, Kansas 66214 Richmond Hill, Ontario L4B 2M9

European Service Centre

Mathias-Brüggen-Str. 80

D-50827 Köln

ALEMANHA

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Solid dark gray rectangle with no visible text, symbols, or features.

F© C€

BUSHNELL ESTD 1948

For further questions or additional information please contact:

Bushnell Outdoor Products

9200 Cody, Overland Park, Kansas 66214

[phone] · www.bushnell.com

©2011 Bushnell Outdoor Products
