1 Select your vehicle type

0
Motorhome

O
Caravan

0
Van

O
Minivan

2 Select your awning type (check the label in the awning box)

Wall-mounted awning

Roof-mounted awning

Rail-mounted awning

TO 1200

TO5200
TO 9200
TO 8000
TO 6300
TO4900
TO6200
TO5102
TO 6900
T3200
TO 2000
TO5003
TO5002
Tristor
Tristorll
V10XL

3 Select your awning length (check the label in the awning box)

1.90 m

2.30m

3.00m

4.00m

5.00 m

6.00m

2.50m

3.25m

4.25m

5.50m

2.60m

3.50m

4.50m

2.70 m

3.75 m

4 Select your awning projection

2.00m

2.50m

2.75m

3.00m

Measure your mounting height

Mounting height (A) = distance between bottom of awning cassette and ground

Thule Sun Blocker G2 - Front

Sun protection

INFO

• Height (A) 1.70 m
  Length (B) 1.00 m - 4.80 m
• Colours Black, grey (transparent screen)
  Available for Thule Omnistor awnings:

-5200,8000,4900,5102,3200,2000,9200,6300,6200,1200,5003
-5002,6900,Tristor,Tristorll,V10XL

A = Approximate height of the panel

B = Approximate length of the panel

FEATURES

• Lets the breeze in while keeping the sun out, without loss of view
  Easy and quick installation:

• the front panel is suitable for all Thule Omnistor awnings

• the panel easily slides into the awning's lead rail
• all front panels can be rolled up and are fixed with a side release buckle

Modular system:

• combination of a panel with the Thule QuickFit tent is possible

(only in case the tent is smaller than the awning and if there is some space in the awning's lead rail to slide the panel in)

Fabric material:

• micro-aired screen fabric, a transparent and light screen fabric

Content:

-1 front panel
-ground fixation: pegs and ropes

User friction

MODULARITY

AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
AWNING TYPE LENGTH (A)
awnings	1.00 m -
	2.40 m 2.60 m 2.1 kg	307285	2.4 kg	1.3 kg 307284
	2.80 m 3.00 m
	3.30 m 3.50 m	1.70 m a.7 kg
	3.80 m	4.00 m
	4.30 m	4.50 m
	4.80 m	5.00m

Thule Sun Blocker G2 - Side

Sun protection

INFO

• Mounting height (A) 1.90 m - 2.64 m
  Projection (B) 2.00 m, 2.50 m, 2.75 m, 3.00 m
• Colours Black, grey (transparent screen)
  Available for Thule Omnistor awnings:

-5200,8000,4900,5102,3200,9200,6300,6200,1200,5003
- 5002, 6900, Tristor, TristorII, VIOXL by adding spare parts
Special model for Thule Omnistor 1200
- Not compatible with Master Movano adapter (ref. 308059)

A = Distance between bottom of awning's

cassette and ground
B = Approximate length of the awning when
opened
H = Awning incline

FEATURES

• Lets the breeze in while keeping the sun out, without loss of view
  Easy and quick installation:

• the side panel slides into an aluminium rafter with channel, installed between the awning's cassette and lead rail

Modular system:

• combination of a panel with the Thule QuickFit tent possible (only in case of same mounting height)

• side panel can be installed on both sides of the awning with the same rafter

• Durable material:

-aluminium rafter
- micro-aird screen fabric, a transparent and light screen fabric

Content:

-1 side panel
- 1 aluminium rafter with channel
- connection pieces for Thule Omnistor awnings for both sides of the awning
-ground fixation: pegs and ropes

User
instruction

MODULARITY

AWNING TYPE	PROJECTION (B) MOUNTING HEIGHT (A) H WEIGHT SKU NO
TO 5200 • 4900 • 5102 • 6300 • 6200 • 5003 • 5002	2.00 m 1.90 m	- 2.24 m Small 21 cm 2.7 kg 307399
T 3200	2.50 m	1.90 m - 2.24 m Small 21 cm 3.5 kg 301338
TO 5200 • 4900 • 6300 • 6200 • 5003 • 5002		2.25 m - 2.44 m	Medium	23 cm	3.6 kg	307278
		2.45 m - 2.64 m	Large	43 cm	3.6 kg	307279
TO 1200		2.25 m - 2.49 m	TO 1200	48 cm	3.8 kg	307398
TO 8000 • 6900	2.75 m	2.25 m - 2.44 m	Medium	23 cm	4 kg	307280
		2.45 m - 2.64 m	Large	43 cm	4 kg	307281
TO 9200	3.00 m	2.25 m - 2.44 m	Medium	23 cm	4.4 kg	307282
		2.45 m - 2.64 m	Large	43 cm	4.4 kg	307283

Thule Rain Blocker G2 - Front

Rain and wind protection

INFO

• Height (A) 1.85m,2.10m,2.30m
  Length (B) 1.02m - 2.00m
• Colours Black, white, grey
  Available for Thule Omnistor awnings:

-5200,8000,4900,5102,3200,2000,9200,6300,6200,1200,5003
-5002,6900,Tristor,Tristorill,V1OXL

A = Approximate height of the panel
B = Approximate length of the panel

FEATURES

• Protects against rain and wind while keeping the incidence of light thanks to the large window
  Easy and quick installation:

• the front panel slides into the awning's lead rail

• all panels can be rolled up and are fixed with a side release buckle

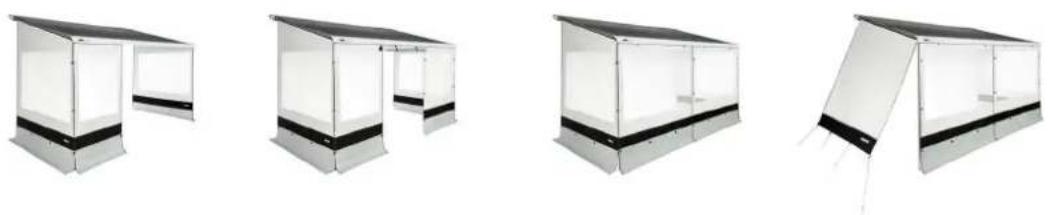

Modular system:
- various possibilities to combine the different panels thanks to smart connections
Fabric material:
- top-quality PVC fabric with welded connections of the fabric
Content:

-1 front panel

smart connections to connect with other Thule Rain Blocker G2 Front Panels
-ground fixation: pegs and pins

MODULARITY

User instruction

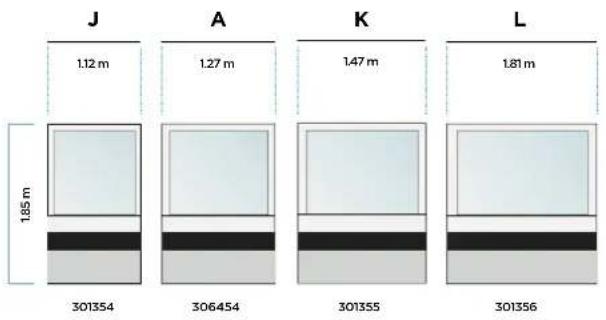

AWNING TYPE	PANEL TYPE	LENGTH (B)	HEIGHT (A)	WEIGHT (bruto)	SKU NO
Combine with side panel: Minivan
T 3200	J	1.12 m	1.85 m	1.9 kg	301354
T 3200 • 5200 • 4900 • 5102	A	1.27 m		2 kg	306454
T 3200	K	1.47 m		2.2 kg	301355
T 3200	L	1.81 m		2.5 kg	301356

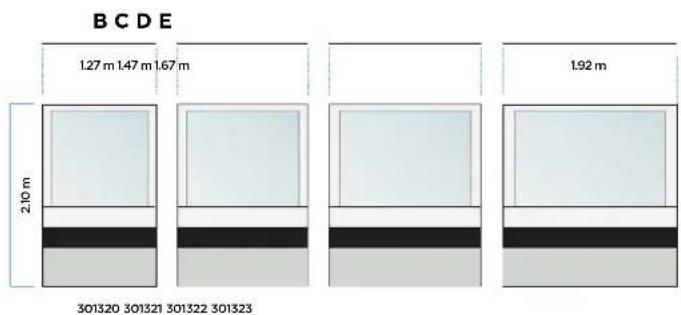

Combine with side panels: Small and TO 1200 V2
All Thule Omnistor awnings	B	1.27 m	2.10 m	2.2 kg	301320
	C	1.47 m		2.4 kg	301321
	D	1.67 m		2.6 kg	301322
	E	1.92 m		3 kg	301323

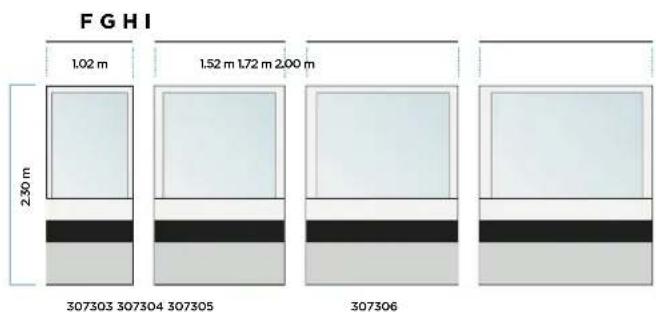

Combine with side panels: Medium, Large, X-Large, XX-Large, Van and Caravan
All Thule Omnistor awnings	F	1.02 m	2.30 m	2 kg	307303
	G	1.52 m		2.4 kg	307304
	H	1.72 m		2.6 kg	307305
	I	2.00 m		3 kg	307306

PANEL TYPE

FRONT COMBINATION

Full front combination possible
- Connection pieces to the next front panel included
Thule advises the following combinations for full awning length

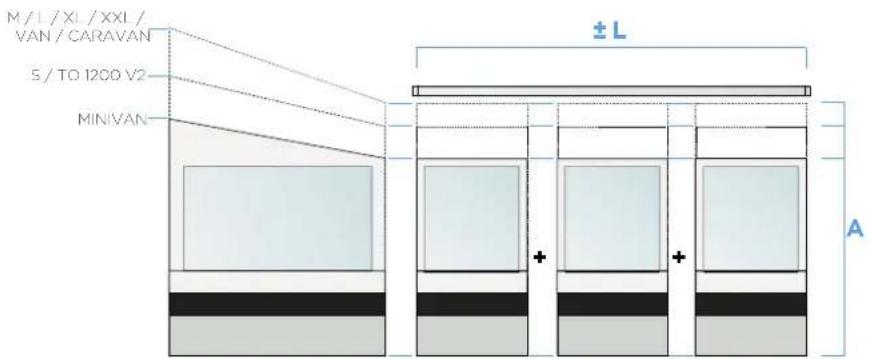

COMPATIBLE SIDE PANEL AWNING LENGTH (L) FRONT COMBINATION
MINIVAN	2.50 m J + A
	2.60 m A + A
	2.70 m J + K
	3.00 m J + L
S TO 1200 V2	2.60 m B + B
	2.80 m B + C
	3.00 m B + D
	3.25 m B + E
	3.50 m C + E
	3.75 m D + E
	4.00 m E + E
	4.25 m B + C + C
	4.50 m C + C + C
	5.00 m D + D + D
	5.50 m D + E + E
MLXLXXL VANCARAVAN	3.00 m F + F + F
	3.25 m G + H
	3.50 m F + G + F
	3.75 m	H + I
	4.00 m	F + I + F
	4.25 m F + G + H
	4.50 m	F + I + G
	5.00 m	G + I + G
	5.50 m	I + G + I
	6.00 m	I + I + I

PANEL SETS
New

AWNING TYPE	AWNING LENGTH (L)	PANEL TYPE	SKU NO
T 3200	2.50 m	J + A	301360
TO 4900 • 5102	2.60 m	A + A	301361
T 3200	2.70 m	J + K	301362
T 3200 • 4900	3.00 m	J + L	301363

Thule Rain Blocker G2 - Side

Rain and wind protection

INFO

• Mounting height (A) 1.80 m - 3.04 m
  Projection (B) 2.00 m, 2.50 m, 2.75 m, 3.00 m
• Colours Black, white, grey
  Available for Thule Omnistor awnings:

-5200,8000,4900,5102,3200,9200,6300,6200,1200,5003
- 5002, 6900, Tristor, Tristorll, V10XL by adding spare parts
- Special model for TO 1200, Ducato H2: can be combined with a Thule Rain Blocker G2 Front Panel
- Not compatible with Master Movano adapter (ref. 308059)

A = Distance between bottom of awning's cassette and ground

B = Approximate length of the awning when opened
H = Awning incline

FEATURES

• Protects against wind and rain while keeping the incidence of light thanks to the large window
  Easy and quick installation:

• the side panel slides into an aluminium rafter with channel, installed between the awning's cassette and lead rail

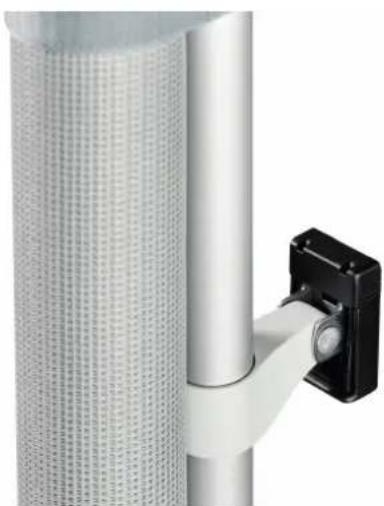

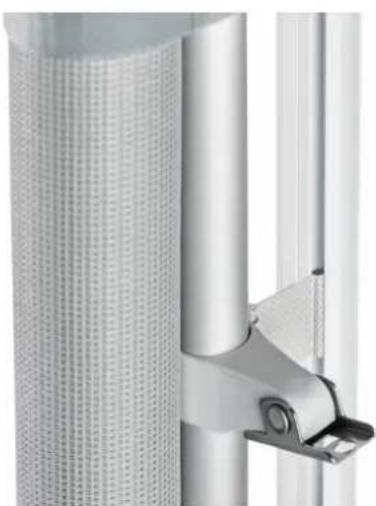

• can easily be attached to the support leg of the awning or to another Thule Rain Blocker G2 panel thanks to the smart connections

• Modular system;

• various possibilities to combine the different panels

• side panels can be installed on both sides of the awning with the same rafter

• Durable materials:

-aluminium rafter
- top-quality PVC fabric with welded connections of the fabric

Content:

-1 side panel
-1 aluminium rafter with channel
- connection pieces for Thule Omnistor awnings for both sides of the awning
- smart connections to connect the panel with the awning support leg
ground fixation: pegs and pins

Instruction manual

Minivan

• VW California T5/T6 > 2003
• PSA Minivan > 2016

Van

Fiat Ducato > 2006
Peugeot Boxer > 2006
Citroën Jumper > 2006
VW Crafter > 2017

INSTALLATION

MODULARITY

AWNING TYPE PROJECTION (B) MOUNTING HEIGHT (A) H WEIGHT SKU NO
TO 5200 • 4900 • 5102	2.00 m	1.80 m - 1.99 m Minivan 21 cm 4 kg 306515
TO 5200 • 4900 • 6300 • 6200 • 5003 • 5002		2.05 m - 2.24 m Small* 23 cm 4 kg 307400
T 3200	2.50 m	1.80 m - 1.99 m Minivan 27 cm 4.5 kg 301339
TO 5200 • 4900 • 6300 • 6200 • 5003 • 5002		2.05 m - 2.24 m Small* 23 cm 4.8 kg 307291
		2.25 m - 2.44 m Medium		23 cm 5 kg 307292
		2.45 m - 2.64 m Large		43 cm	5 kg	307293
		2.65 m - 2.84 m X-Large		63 cm	5 kg	307294
TO 1200		2.35 m - 2.54 m TO 1200 V2*		50 cm	4.8 kg	301422
TO 6300 • 6200		2.30 m - 2.50 m Van		37 cm	5 kg	307302
TO 6300 • 6200		2.35 m - 2.54 m Caravan		33 cm	5 kg	301332
TO 8000 • 6900	2.75 m	2.25 m - 2.44 m Medium		23 cm	5.6 kg	307295
		2.45 m - 2.64 m Large		43 cm	5.6 kg	307296
		2.65 m - 2.84 m X-Large		63 cm	5.6 kg	307297
		2.85 m - 3.04 m XX-Large		83 cm	5.8 kg	306516
TO 9200	3.00 m	2.25 m - 2.44 m Medium		23 cm	5.8 kg	307298
		2.45 m - 2.64 m Large		43 cm	5.8 kg	307299
		2.65 m - 2.84 m X-Large		63 cm 6 kg 307300
		2.85 m - 3.04 m XX-Large 83 cm 6 kg 306517

*Not possible to use in combination with a Thule QuickFit | EasyLink awning tent

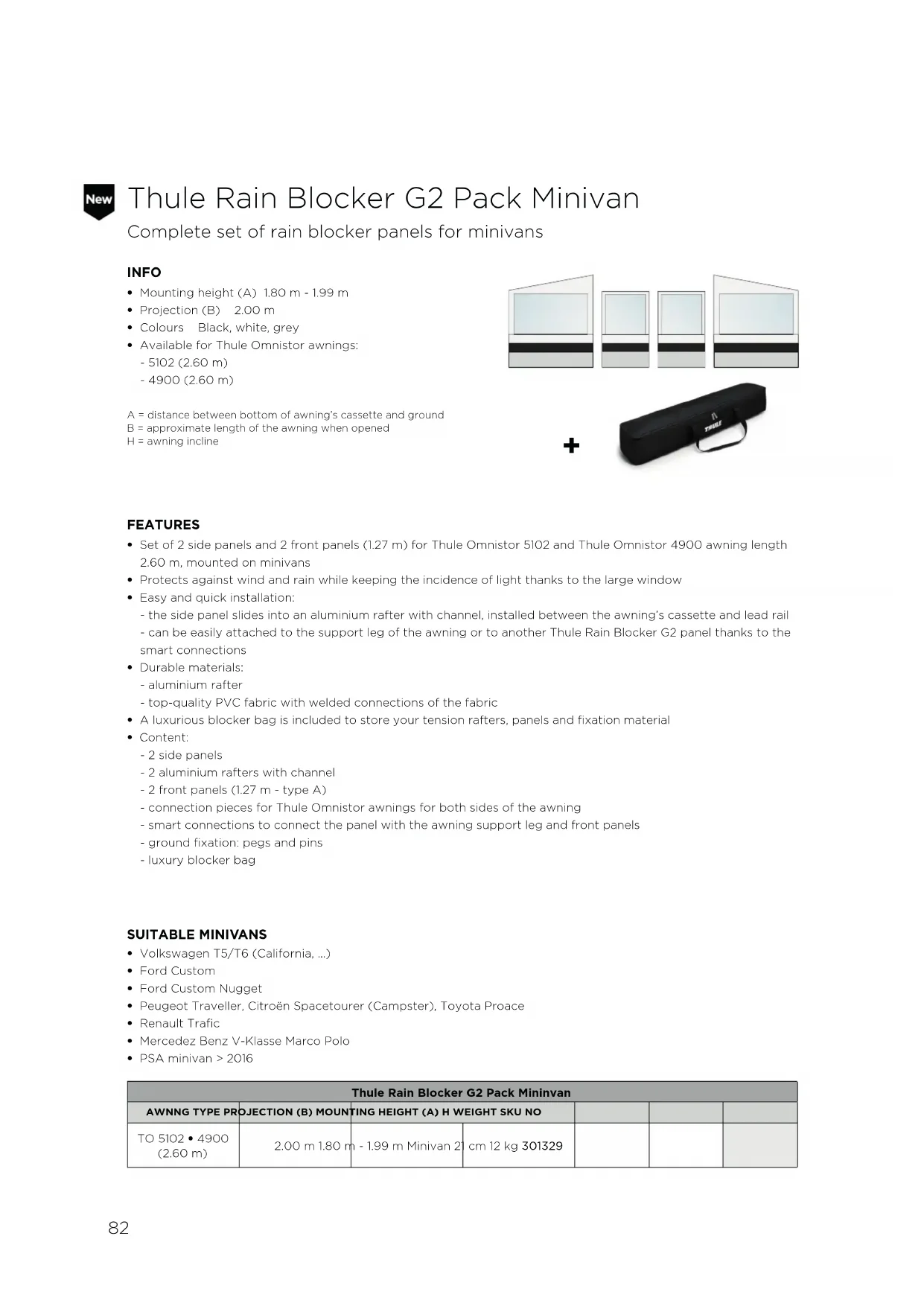

Thule Rain Blocker G2 Pack Minivan

Complete set of rain blocker panels for minivans

INFO

• Mounting height (A) 1.80 m - 1.99 m
  Projection (B) 2.00 m
• Colours Black, white, grey
  Available for Thule Omnistor awnings

-5102(2.60m)

-4900(2.60m)

A = distance between bottom of awning's cassette and ground

B = approximate length of the awning when opened

H = awning incline

FEATURES

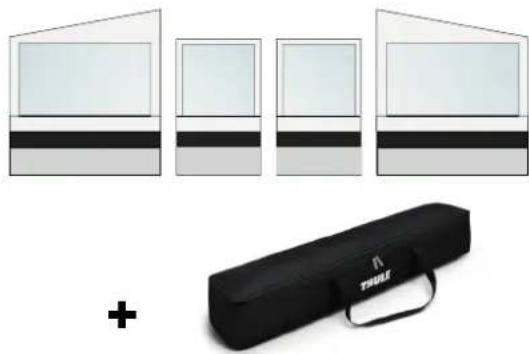

• Set of 2 side panels and 2 front panels (1.27 m) for Thule Omnistor 5102 and Thule Omnistor 4900 awning length 2.60 m, mounted on minivans

• Protects against wind and rain while keeping the incidence of light thanks to the large window
  Easy and quick installation:

• the side panel slides into an aluminium rafter with channel, installed between the awning's cassette and lead rail

• can be easily attached to the support leg of the awning or to another Thule Rain Blocker G2 panel thanks to thesmart connections

• Durable materials:

-aluminium rafter
- top-quality PVC fabric with welded connections of the fabric

• A luxurious blocker bag is included to store your tension rafters, panels and fixation material
  Content:

• 2 side panels

• 2 aluminium rafters with channel
• 2 front panels (1.27 m - type A)
• connection pieces for Thule Omnistor awnings for both sides of the awning
• smart connections to connect the panel with the awning support leg and front panels
  -ground fixation: pegs and pins
• luxury blocker bag

SUITABLE MINIVANS

Volkswagen T5/T6 (California, ...)
Ford Custom
Ford Custom Nugget
- Peugeot Traveller, Citroën Spacetourer (Campster), Toyota Proace
- Renault Trafic
- Mercedez Benz V-Klasse Marco Polo
- PSA minivan > 2016

Thule Rain Blocker G2 Pack Mininvan
AWNNG TYPE PROJECTION (B) MOUNTING HEIGHT (A) H WEIGHT SKU NO
TO 5102 • 4900 (2.60 m)	2.00 m 1.80 m	- 1.99 m Minivan 2	cm 12 kg 301329

Thule View Blocker G2 - Side

Rain, wind and sun protection

INFO

• Mounting height (A) 2.25 m - 2.64 m
  Projection (B) 2.50 m
• Colours Black, white, grey
  Available for Thule Omnistor awnings: -5200,4900,6300,6200,5003

A = distance between bottom of awning's cassette and ground B = approximate length of the awning when opened H = awning incline

FEATURES

• Protects against rain, wind and sun whilst creating complete privacy
  Easy and quick installation:

• the side panel slides into an aluminium rafter with channel, installed between the awning's cassette and lead rail

• can easily be attached to the support leg of the awning or to other Thule Rain Blocker G2 panels thanks to the smart connections

• Modular system:

• various possibilities to combine with Thule Rain Blocker G2 front panels

• combination of a panel with the Thule QuickFit tent possible (only in case of same mounting height)

• side panel can be installed on both sides of the awning with the same rafter

• Durable material:

-aluminium rafter
- top-quality non-transparent PVC fabric with welded connections of the fabric

Content:

• 1 side panel
• 1 aluminium rafter with channel
• connection pieces for Thule Omnistor awnings for both sides of the awning
• smart connections to connect the panel with the awning support leg
  ground fixation: pegs and pins

AWNNG TYPE PROJECTION (B) MOUNTING HEIGHT (A) H WEIGHT SKU NO
TO 5200 • 4900 • 6300 • 6200 • 5003 • 5002	2.50 m	2.25 m - 2.44 m	Medium 23 cm 5 kg	308380
		2.45 m - 2.64 m	Large 43 cm	5 kg	308381

Thule View Blocker - Front

Creates shade and protects against rain

INFO

• Height (A) 1.40 m
  Length (B) 2.40 m, 2.80 m, 3.30 m, 3.80 m, 4.30 m, 4.80 m
• Colours Grey (non-transparent)
  Available for Thule Omnistor awnings:

-8000,5200,5003,4900,9200,6300,6200,1200,2000,5102
-5002,6900,Tristor,Tristorll,V10XL

A = approximate height of the panel
B = approximate length of te panel

FEATURES

• Offers protection against rain, wind and sun and easily creates privacy as well
  Easy and quick installation:

• the front panel slides into the awning's lead rail

• all panels can be rolled up and are fixed with straps

• Durable material:

• micro-aird screen fabric

Content:

-1 front panel
ground fixation: pegs and ropes

AWNING TYPE LENGTH (B) HEIGHT (A) WEIGHT (bruto) SKU NO
All Thule Omnistor Awnings	2.40 m	307592	2.5 kg 307588
	2.80 m 2.8 kg
	3.30 m 3.2 kg	307594	1.40 m
	3.80 m 3.4 kg	307596
	4.30 m 3.8 kg	307598
	4.80 m 4 kg 30	7600

Thule Windscreen

Wind protection

INFO

• Height 1.55 m
  Fabric height 1.38 m
  Length Up to 3.00 m extension
  Weight 4.50 kg
  Colour Grey (transparent screen)

FEATURES

Protection against wind as well as an easy way to create privacy
- Micro-aired to avoid the wind from pushing too much the fabric
- Quick & easy to install thanks to its automatic roll in/out system
- Can be fixed to the vehicle via wall fixation or into the caravan rail via the rope fixation
- Unroll it and connect it to the awning support leg or make it free standing using the delivered strap kit
Storage bag included
Content:

• windscreen
  -rope fixation (caravan)
• 2x wall fixation (motorhome)
  -adapter
  -guy-ropes
  -4 pegs
  storage bag

Instruction manual

• Rope fixation (caravan) - Wall fixation

• Storage bag

Thule Rain Blocker G1 - Side

Rain protection

INFO

• Mounting height (A) 2.15 m - 2.49 m: TO Caravan + Caravan Style 2.15 m - 2.49 m: TO Caravan 1.86 m - 2.11 m: TO 2000
  Projection (B) 2.00 m, 2.30 m

• Colours White, grey
  Only available for Thule Omnistor awnings:

• Caravan, Caravan Style: lengths from 2.60 m up to 4.50 m

• Caravan: length 2.60 m
• 2000: length 2.60 m on a VW T4

A = distance between bottom of awning's cassette and ground B = approximate length of the awning when opened

FEATURES

• Offers protection against rain and wind and easily creates privacy as well
  Easy and quick installation:
• the side panel slides onto a steel coated rafter, mounted between the awning's cassette and lead rail
  Content:

-1 side panel
-coated steel rafter with spring
- connection pieces to the Thule Omnistor awning
ground fixation: pegs and pins

AWNING TYPE LENGTH PROJECTION (B)			MOUNTING HEIGHT (A)	WEIGHT (bruto) SKU	NO
TO Caravan • Caravan Style	2.60 m - 4.50 m	30 m 2.15 m - 2.49	m 4.5 kg 308869
TO Caravan 2.60 m 2.00 m 2.15 m - 2.49 m 4 kg 308870
TO 2000	2.60 m	2.00 m	1.86 m - 2.11 m	3.6 kg	308871

Thule Luxury Blocker Bag

INFO

• Luxurious bag to store the tension rafter, panel and fixation material
  Colour: black
  Dimensions: 130L× 20cmW× 20cmH

301568

Thule

Luxury Blocker Bag
