USER MANUAL CI491602 GAGGENAU

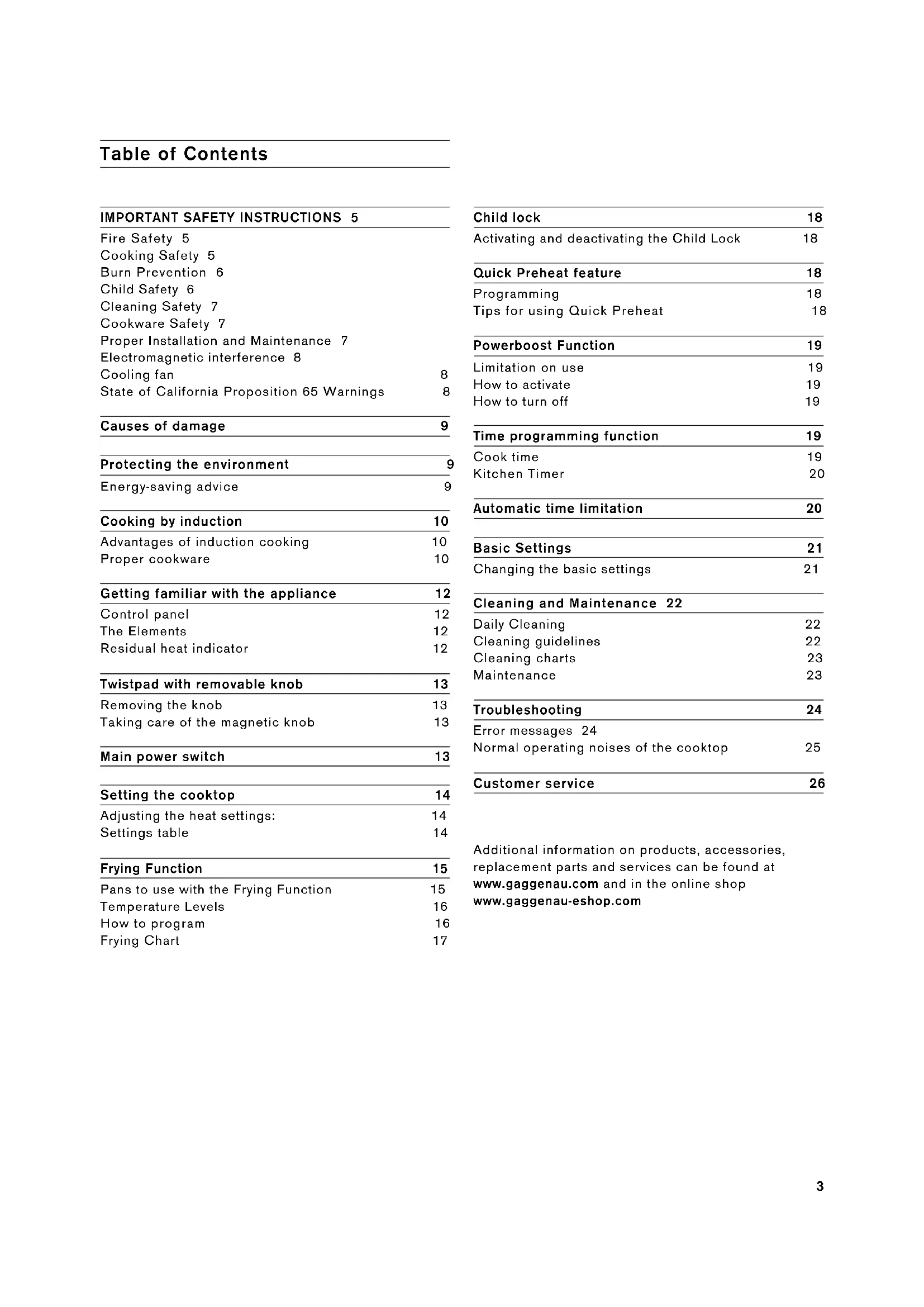

IMPORTANT SAFETY INSTRUCTIONS 5

Fire Safety 5

Cooking Safety 5

Burn Prevention 6

Child Safety 6

Cleaning Safety 7

Cookware Safety 7

Proper Installation and Maintenance 7

Electromagnetic interference 8

Cooling fan 8

State of California Proposition 65Warnings 8

Causes of damage 9

Protecting the environment 9

Energy-saving advice 9

Cooking by induction 10

Advantages of induction cooking 10

Proper cookware 10

Getting familiar with the appliance 12

Control panel 12

The Elements 12

Residual heat indicator 12

Twistpad with removable knob 13

Removing the knob 13

Taking care of the magnetic knob 13

Main power switch 13

Setting the cooktop 14

Adjusting the heat settings: 14

Settings table 14

Frying Function 15

Pans to use with the Frying Function 15

Temperature Levels 16

How to program 16

FryingChart 17

Child lock 18

Activating and deactivating the Child Lock 18

Quick Preheat feature 18

Programming 18

Tips for using Quick Preheat 18

Powerboost Function 19

Limitation on use 19

How to activate 19

How to turn off 19

Time programming function 19

Cook time 19

Kitchen Timer 20

Automatic time limitation 20

Basic Settings 21

Changing the basic settings 21

Cleaning and Maintenance 22

Daily Cleaning 22

Cleaning guidelines 22

Cleaning charts 23

Maintenance 23

Troubleshooting 24

Error messages 24

Normal operating noises of the cooktop 25

Customer service 26

Additional information on products, accessories, replacement parts and services can be found at www.gaggenau.com and in the online shop www.gaggenau-eshop.com

Signal Words for Safety and Best Use

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observation of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WARNING

When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons. When using kitchen appliances, basic safety precautions must be followed, including those in the following pages.

Examine the appliance after unpacking it. In the event of transport damage, do not plug it in.

Fire Safety

Do not allow aluminum foil, plastic, paper or cloth to come in contact with a hot surface element, burner or grate. Do not allow pans to boil dry.

If the cooktop is near a window, forced air vent or fan, be certain that flammable materials such as window coverings do not blow over or near the burners or elements. They could catch on fire.

Always have a working smoke detector near the kitchen.

Never leave the cooktop unattended when in use. Boilovers cause smoking and greasy spillovers may ignite.

WARNING

TO REDUCE THE RISK OF A GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames.

Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance.

Smother flames from food fires other than grease fires with baking soda. Never use water on cooking fires.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A GREASE FIRE, OBSERVE THE FOLLOWING:

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:

• You know you have a Class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.

Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off.

Cooking Safety

WARNING

Use this appliance only for its intended use as described in this manual. NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in overheating the appliance. Never use the appliance for storage.

When using the timer, always supervise the cooktop and do not allow anything to boil over or burn. Boilovers can cause smoke and some foods and oils may catch fire if left on high temperature settings.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WARNING

If the frying sensor is not working properly, overheating may result causing smoke and damage to the pan.

WHEN COOKING WITH THE FRYING SENSOR OBSERVE THE FOLLOWING:

Use a system pan only
Always put the pan in the centre of the heating element
- Do not place a lid on the pan
- Never leave frying fat unattended

Never use the appliance if liquids or foods have spilled around the control panel. Always turn off the cooktop and dry the control panel.

Injury and damage to the appliance may occur if control elements are not used properly.

If the cooktop turns off automatically and can no longer be operated, it may turn itself on unintentionally at a later point. Switch off the circuit breaker in the fuse box. Contact the after-sales service.

Burn Prevention

DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS - Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing, potholders, or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among these areas are the cooktop and areas facing the cooktop.

Do not heat or warm unopened food containers. Build-up of pressure may cause the container to burst and cause injury.

Always use dry potholders. Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.

Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crépes Suzette, Cherries Jubilee, Peppercorn Beef Flambe).

Use high heat settings on the cooktop only when necessary. To avoid bubbling and splattering, heat oil slowly on no more than a low-medium setting. Hot oil is capable of causing extreme burns and injury.

Never move a pan of hot oil, especially a deep fat fryer. Wait until it is cool.

Secure all loose garments, etc. before beginning. Tie long hair so that it does not hang loose, and do not wear loose fitting clothing or hanging garments, such as ties, scarves, jewelry, or dangling sleeves.

WARNING

Risk of burns

Metallic objects become hot very quickly on the cooktop. Never set down metallic objects, such as knives, forks, spoons and lids on the cooktop.

WARNING

Risk of burns

The pan detection may potentially fail to turn off the cooking zone due to spilled food or objects placed upon the cooktop. After each use, turn off the cooktop using the main switch.

If the display does not work when a cooking area is heating up, disconnect the circuit breaker from the fuse box. Contact an authorized servicer.

Child Safety

When children become old enough to use the appliance, it is the legal responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance, especially a door, warming drawer, or storage drawer. This can damage the appliance, and the unit may tip over, potentially causing severe injury.

Do not allow children to use this appliance unless closely supervised by an adult. Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

CAUTION

Items of interest to children should not be stored in an appliance, in cabinets above an appliance or on the backsplash. Children climbing on an appliance to reach items could be seriously injured.

WARNING

Danger of injury

Cookware may jump upward due to fluid trapped between the cookware bottom and cooking zone. Always keep cooking zone and cookware bottom dry.

Cleaning Safety

Do not clean the appliance while it is still hot. Some cleaners produce noxious fumes when applied to a hot surface. Wet clothes and sponges can cause burns from steam.

Do not use steam cleaners to clean the appliance.

Cookware Safety

Hold the handle of the pan when stirring or turning food. This helps prevent spills and movement of the pan.

Use Proper Pan Size.

The use of undersized cookware will expose a portion of the heating element or burner to direct contact and may result in ignition of clothing. Select cookware having flat bottoms large enough to cover the surface heating unit. This appliance is equipped with one or more surface units of different size. Proper relationship of cookware to heating element or burner will also improve efficiency.

Cookware not approved for use with ceramic cooktops may break with sudden temperature changes. Use only pans that are appropriate for ceramic cooktops.

Always position handles of utensils inward so they do not extend over adjacent work areas, burners, or the edge of the cooktop. This reduces the risk of fires, spills and burns.

WARNING

RISK of injury

When cooking with a bain-marie, the cooktop and cooking vessel may crack due to overheating. The cooking vessel in the bain-marie must not come in direct contact with the bottom of the pot filled with water. Use only heat-resistant cookware.

Proper Installation and Maintenance

Have the installer show you the location of the circuit breaker or fuse. Mark it for easy reference.

This appliance must be properly installed and grounded by a qualified technician. Connect only to properly grounded outlet. Refer to Installation Instructions for details.

This appliance is intended for normal family household use only. It is not approved for outdoor use. See the Warranty. If you have any questions, contact the manufacturer.

Do not store or use corrosive chemicals, vapors, flammables or nonfood products on or near this appliance. It is specifically designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury.

Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized servicer.

Do not cook on a broken cooktop. Cleaning solutions and spillovers may create a risk of electric shock.

Do not repair or replace any part of the appliance unless specifically recommended in this manual. Refer all servicing to a factory authorized service center.

To avoid electrical shock hazard, before servicing the appliance, switch power off at the service panel and lock the panel to prevent the power from being switched on accidentally.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Electromagnetic interference

WARNING

This induction cooktop generates and uses ISM frequency energy that heats cookware by using an electromagnetic field. It has been tested and complies with Part 18 of the FCC Rules for ISM equipment. This induction cooktop meets the FCC requirements to minimize interference with other devices in residential installation. Induction cooktops may cause interference with television or radio reception. If interference occurs, the user should try to correct the interference by:

• Relocating the receiving antenna of the radio or television.
• Increasing the distance between the cooktop and the receiver.
• Connecting the receiver into an outlet different than the receiver.

It is the user's responsibility to correct any interference.

CAUTION

Persons with a pacemaker or similar medical device should exercise caution when standing near an induction cooktop while it is in use. Consult your doctor or the manufacturer of the pacemaker or similar medical device for additional information about its effects with electromagnetic fields from an induction cooktop.

Cooling fan

The cooktop is equipped with a cooling fan on its underside. Should the cooktop lie above a drawer, there must be no objects or paper in it. They may be sucked in and compromise the cooling of the appliance or damage the fan.

There must be a minimum distance of 34 (20mm) between the content of the drawer and the fan input.

State of California Proposition 65 Warnings

WARNING

This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Causes of damage

• Scratches on glass ceramic surface: Cookware with rough bottoms will scratch the glass ceramic surface.
  Salt, sugar and sand: Salt, sugar or grains of sand will scratch the glass ceramic surface. Never use the cooktop as a working surface or for setting things down.
  Overheated cookware: Avoid heating pots or pans that are empty.
  Hot cookware: Never set down hot pans and pots on the control panel or frame. This may cause damage.
• Hard and sharp objects: Hard or sharp objects falling on the cooktop may damage it.
  Boiled-over food: Sugar and products containing sugar may damage the cooktop. Immediately eliminate spills of these products with a glass scraper.
• Foils and plastics: Aluminum foil and plastic will melt on the hot cooking zones. Stove protective film isn't suitable for your cooktop.
• Unsuitable cleaning agent: Shimmering metallic discolorations on the glass ceramic surface result from the use of inappropriate cleaning agents and abrasion from cookware.

Protecting the environment

Energy-saving advice

Always place a fitting lid on cookware. Cooking with an uncovered pan will result in a four-fold increase in energy use. Use a glass lid to provide visibility and avoid having to lift the lid.
Use cookware equipped with a solid, flat bottom. Curved pan bases increase energy consumption.
The diameter of the pan base must match the size of the element. If not, energy may be wasted. Note: The manufacturer normally indicates the pan's upper diameter. This is normally greater than the diameter of the pan's base.
- Choose cookware of a size suited to the amount of food you are going to cook. A large pan that is only half full will use a lot of energy.
Use a small amount of water when cooking. This saves energy, and vegetables retain a larger percentage of their vitamins and minerals.
- Select a lower power level.

Cooking by induction

Advantages of induction cooking

Induction cooking represents a radical change from the traditional method of heating; the heat is generated directly in the pan. It therefore offers a number of advantages:

• Greater speed in cooking and frying; as the pan is heated directly.
  Energy is saved.
• Greater convenience in care and cleaning. Foods that have spilled on the cooktop surface do not burn as quickly.
• Heat and safety control; the cooktop supplies or cuts off power immediately when the controls are set. The induction cooktop stops supplying heat if the pan is removed without turning off the power first.

Proper cookware

Ferromagnetic pans

Only ferromagnetic pans are suitable for induction cooking, these can be made from:

enamelled steel
cast iron
- special stainless steel utensils for induction cooking

Check that the bases of your pans are attracted by a magnet to find out if they are suitable.

Other suitable cookware for induction

There are other types of cookware with a base not entirely ferromagnetic that are made for induction cooking use.

When using large cookware on a smaller ferromagnetic element, only the ferromagnetic element heats up, so heat might not be uniformly distributed.

Cookware with aluminum on the base reduce the ferromagnetic zone, so less heat may be supplied or problems with detection might occur.

For good cooking results, the diameter of the cookware's ferromagnetic area should match the size of the element. If cookware is not detected on an element, try it on the next smaller element.

Unsuitable pans

Never use pans made of:

thin normal steel
glass
clay
copper
aluminum

Characteristics of the pan base

The characteristics of the pan base can influence the evenness of the cooking results. Pans made from materials which help diffuse heat, such as stainless steel sandwich pans, distribute heat uniformly, saving time and energy.

No pan or improper size

If no pan is placed on the selected element, or if it is made of unsuitable material or is not the correct size, the power level displayed on the element indicator will flash. Place a suitable pan on the element to stop the flashing. If you take longer than 90 seconds to place a suitable pan on the element, it will automatically turn off.

Empty pans or pans with a thin base

Do not heat up empty pans, or use pans with a thin base. The cooktop is equipped with an internal safety system. However, an empty pan may heat up so quickly that the "automatic switch off" function may not have time to react and the pan may reach very high temperatures. The pan base could melt and damage the cooktop glass. In this case, do not touch the pan and switch the cooktop off. If the cooktop fails to work after it has cooled down, please contact the technical service.

Pan detection

Each element has a minimum limit for detecting pans, which varies depending on the material of the pan you are using. You should therefore use the element that best matches the diameter of your pan.

Automatic detection on double or triple cooking elements

These elements can detect different pan sizes. Depending on the material and properties of the pan, the element will adapt automatically, and will turn on single zone or the entire element, supplying the proper power to obtain good cooking results.

Getting familiar with the appliance

These instructions apply to more than one cooktop, your appliance might vary slightly.

Page 2 contains a list of models and dimensions.

In this section we describe the control panel, elements and displays.

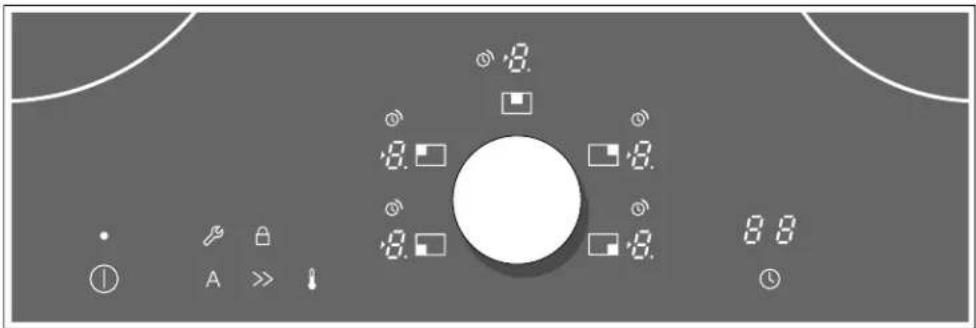

Control panel

Touch keys Function

① Main power switch
A Quick-preheating and basic settings menu
Powerboost and child lock
Frying function
Timer functions

Indicators

Basic settings
Child lock
Power levels
Functionality and residual heat
Quick preheating
Powerboost function
Timer functions

The Elements

Element Turning on and off

Single element Always use cookware of a suitable size.
Dual element This element is turned on automatically when using cookware with a base the same size as the outer zone.
Triple element This element is turned on automatically when using cookware with a base that matches the size of the outer area ( or ) selected for use.

Use only cookware suitable for induction cooking; see the section on suitable cookware.

Residual heat indicator

The cooktop has a residual heat indicator in each cooking element, to indicate which elements are still hot. You should avoid touching the cooking element that shows this indication.

Even though the cooktop may be switched off, the indicator will be turning and will stay lit while the cooking element is hot.

When the pan is removed before turning off the cooking element, the indicator and the selected heat setting will appear alternating.

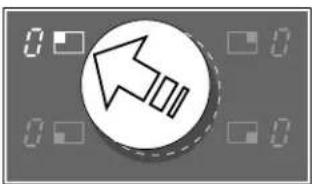

Twistpad with removable knob

The Twistpad is the programming zone in which the knob can be used to select the elements and power level.

The knob is automatically centered in the Twistpad area.

The knob is magnetic and is placed over the Twistpad. When the knob is rotated, the corresponding element is switched on. The heat settings are selected by turning the knob.

Removing the knob

The knob can be removed to facilitate cleaning.

The knob can also be removed while the cooking element is on. All the cooking elements turn off after 3 seconds.

CAUTION

If a metallic object is placed on the rotary panel during these 3 seconds, the cooktop may continue heating. Therefore, always turn off the cooktop using the main power switch.

Taking care of the magnetic knob

The knob has a powerful magnet inside. Do not place the knob near magnetic media which contain data such as video tapes, disks, credit cards and cards with magnetic strips. They could be damaged. Additionally, it could cause interference on monitors and television sets.

CAUTION

Electronic implants, such as pacemakers and insulin pumps are likely to be affected by the magnetic fields. Never put the knob in your pocket. It should be kept at least 10 cm away from a pacemaker.

Note: The knob is magnetic. Metal particles sticking to the lower part could scratch the cooktop's surface. Always clean the control knob thoroughly.

Main power switch

Use the main switch to turn on the electronic circuitry for the control panel. The cooktop is now ready to use.

To switch on:

Touch the ① key. A beep will sound. All the indicators will light up.

To switch off:

Touch the ① key. The indicators turn off. The cooktop is turned off. The residual heat indicator stays on until the elements have cooled down completely.

Setting the cooktop

This section will show you how to set the elements. The table contains details on the heat settings for a variety of dishes.

Adjusting the heat settings:

The cooktop must be switched on.

1 Select the desired element. To do this, move the knob to the required element.
2 Turn the knob until the desired heat setting is displayed.

3 To change the heat setting: Select the element and change the heat setting with the knob.

Note: The selected heat setting will flash if no pan is placed on the induction element. After a certain time, the element switches off.

Settings table

The following table provides some examples. Cooking times may vary depending on the type of food, its weight and quality. Deviations are therefore possible.

Turning off an element

Select the element and turn the knob until appears. The element is switched off and the residual heat indicator comes on

Note: The cooktop is automatically turned off when all elements have been switched off for a set period of time. If the cooktop is still hot, the residual heat indicator will come on. If the cooktop is turned on a few seconds after ti was turned off, the last settings will remain. To return to the last selected settings choose a cooking element.

Note: During cooking, stews or liquid meals such as soups, sauces or drinks can heat up too quickly unnoticed and overflow or spatter. For this reason we recommend that you stir continuously, gradually heating the food at a suitable power level.

Cooking power Type of cooking Examples

9 Pre-heating Water

Frying Meat

Heating Oils, Liquids

Boiling Soups, Sauces

9-8. Blanching Vegetables
8-6 Roasting Meat, Potatoes
7-5 Roasting Fish

7-6 Frying Dishes made from flour, Dishes made from eggs Cooking uncovered Liquids

6-5 Browning Flour, Onions

Toasting

Almonds, BREADCRUMS

Frying

Bacon

Reducing

Stock, Sauces

Cooking power	Type of cooking	Examples
5-4 Slow cooking, uncovered Potato balls, Vegetable soup, Meat soup, Poached eggs
4-3 Slow cooking, uncovered Sausages heated in water
5-4 Steaming Vegetables, Potatoes, Fish
Light frying Vegetables, Fruit, Fish
Roasting Meat roll, Roast, Vegetables
3.-2. Roasting Goulash
4.-3. Cooking covered Soups, Sauces
3.-2. Defrosting Deep-frozen products
3-2 Absorbing water Rice, Dried beans
Setting		Dishes made from eggs
2-1.	Heating/Keeping warm	Soups, Stew, Vegetables in a sauce
	Melting	Butter, Chocolate

Frying Function

This function allows you to fry by automatically regulating the temperature of the pan.

The elements in which this function operates are those on the right or front sides, depending on the model (see figure).

Advantages when frying

The cooking element only heats when it is necessary. This saves energy. Oil and grease do not overheat.

CAUTION

• Never leave oil or fat cooking unattended.

• Place the pan in the centre of the element.
  Make sure that the base of the pan has the proper diameter.

• Do not cover the pan with a lid. The automatic regulation will not work. A mash splatter guard can be used without affecting the automatic regulation.
• Only use fat or oil that is suitable for frying. When you are using butter, margarine, olive oil or pork lard, select the min temperature setting.
• The Frying Function is not suitable for boiling.

Pans to use with the Frying Function

There are pans best suited for this frying function. Special pans can be purchased at a later date as an optional accessory from specialty outlets or from our Technical Assistance Service. Always quote the corresponding reference.

GP900001 small (5.9 in. diameter)
GP900002 medium (7.08 in. diameter)
GP900003 large (8.26 in. diameter)

These pans are nonstick. Food can also be fried in a small amount of oil.

Temperature Levels

Power level Temperature Suitable for

max -	high	e.g. potato dishes, sautéed potatoes and rare steaks.
med plus -	medium-high	eg. lightly fried food such as breaded frozen fritters, scallopini, Ragù suace, veg- etables.
med -	medium-low	e.g. lightly fried food such as hamburgers and sausages, fish.
min -	low	e.g. omelettes, using butter, olive oil or margarine.

How to program

Select the correct temperature setting from the table. Place the pan on the element.

The cooktop must be switched on.

1 SeLECTIONAR la zona de cocción.

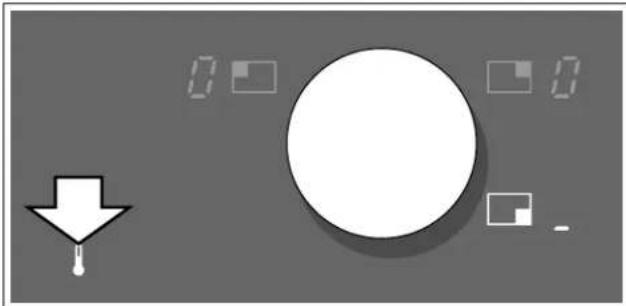

2 Touch the symbol. The indicator lights up on the element display.

Each indicator corresponds to a temperature level:

-	low temperature level
=	low-med temperature level
=	med-high temperature level
=	high temperature level

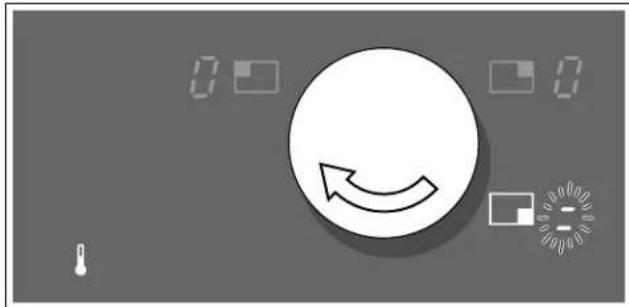

3 in the next 5 seconds, use the knob to select the desired temperature level. The indicators light up. The Frying Function has been activated.

The indicators blink until frying temperature is reached. A beep will sound.

4 Add oil to the pan, then add the ingredients. As usual, stir the food in the pan to prevent it from burning.

Turning off the Frying Function

Select the element and touch the symbol. Then remove the pan.

Frying Chart

The table shows which frying level is suitable for particular foods. Frying time may depend on the type, weight, thickness and quality of the food. The frying

levels provided are designed for the system pans. Frying levels may vary when using other frying pans.

		Frying level Total frying time from sig-nal
Meat Battered escalope (5/8"1.5 cm thick) med plus 6-10 min
	Fillet, medium (1"1/2.5 cm thick) med plus 6-10 min
	Chops with or without bone med 10-17 min
	Lamb chops, medium (1½"1 cm) med 8-15 min
	Steak, rare (3¼"1/3 cm thick) max 6-8 min
	Steak, medium or well-done (3¼"1/3 cm thick). med plus 8-12 min
	Chicken breast (1"1/2.5 cm thick) min 20-30 min
	Chicken breast, fried	min 25-35 min
	Sausages/Hot dogs (Ø1½-1½"1/1-3 cm)	med	8-20 min
	Hamburgers	med
	Thin steaks	med plus 7-12 min
	Meatloaf	med plus 6-10 min
	Belly pork	min 5-8 min
Fish	Fish, fried (whole)	med	15-25 min
	Fish filet, natural or breaded	med / med plus	10-20 min
	Salmon filet (1"1/2.5 cm thick)	med 8-12 min
	Tuna filet, well done (1"1/2.5 cm thick)	med 8-12 min
	Prawns and shrimps	med plus 4-8 min
	Seafood	med plus 5-8 min
Egg-based dishes	Crepes	med	fry one by one
	Omelettes	min fry one by one
	Fried eggs	min 2-6 min
	Scrambled eggs	min 2-4 min
	French toast	min fry one by one
Potatoes	Sautéed potatoes made from boiled potatoes	max	6-12 min
	Sautéed potatoes made from raw potatoes*	med 15-25 min
	Potatoes, cubed	min 20-30 min
Vegetables	Garlic, onion	min	2-10 min
	Zucchini, Egg plant	med 4-12 min
	Mushrooms	med plus 10-15 min
	Sautéed vegetables	med plus 10-12 min
Precooked dishes	Potato based dishes, e.g. French fries	med	10-15 min
	Potato based dishes, e.g. cubed potatoes	min 10-20 min
	Pasta (cooked with water)	min 4-6 min
Other	Rice noodles / Fried rice	max	8-15 min
	Camembert / Cheese	med 7-10 min
	Tofu	med 8-12 min
	Sweet fried bread	med 6-10 min
	Almonds/nuts/pine nuts*	min 3-7 min

• Use a cold pan.

Child lock

You can use the child lock to prevent children from accidentally turning the cooktop on.

Activating and deactivating the Child Lock

In order to use the the Child Lock you have to activate function c ^2 in the basic settings.

The cooktop must be turned off.

To activate: Turn on the cooktop and after a few seconds, the indicator will light up. Touch the symbol for at least 4 seconds until you hear a beep. The cooktop is blocked. After some time the indicator goes out.

To turn off: Turn on the cooktop and after a few seconds, the indicator will light up. Then touch the symbol for at least 4 seconds until you hear a beep. Child lock is deactivated.

Note: The child lock may be accidentally switched on on off due to: water spilled during cleaning, food that has overflowed, objects being placed on the symbol.

Quick Preheat feature

All cooking elements have a Quick Preheat function.

From the start, select the desired power level for slow cooking. The cooking element heats at maximum power and connects automatically at the power level previously selected.

Quick Preheat time depends on the programmed power level.

Programming

1 Select the desired heat setting for slow cooking. The heat setting 3 does not have this function.
2 Touch the A symbol. Quick Preheat function activates. and the heat setting previously selected blink on the display.

This function turns off after a period of time which varies depending on the selected heat setting. The element connects automatically to the slow cooking position. Only the previously selected heat setting is lit on the display. Cooking time can be modified; its value appears on the display of the timer function.

Tips for using Quick Preheat

The Quick Preheat feature does not bring foods to a boil	It is designed to conserve the food's nutritional value while using little water for cooking. Add only about 2 cups of water to the food for the large elements and about \(3/4 - 1\) cup of water for the small elements. Cook rice in double the quantity of liquid. The Quick Preheat feature is not suited for foods that are cooked in a large quan- tity of water (e.g pasta).
Milk and foods that produce a lot of froth will boil over	Use a tall pot.
Milk will stick Rinse the pan with cold water before filling it.
When frying, the food may stick to the pan	Preheat the frying pan and oil before adding food. Do not turn the food too soon. Food will separate from the bottom of the pan after cooking a short time.

Powerboost Function

The Powerboost function can be used to heat large amounts of water faster than by using heat level

This function allows you to increase the maximum power level of the element in use.

Limitation on use

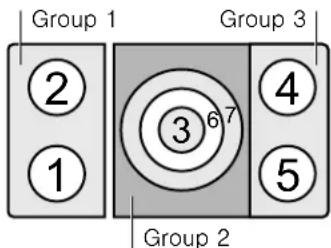

This function is available on all elements, provided that no other element in the same group is operating, (see picture). If this is not the case, the and symbols will flash on the selected element display; then it will automatically set the power level .

In group 2, the Powerboost function may be activated at the same time for all elements (see picture).

How to activate

The cooktop must be switched on.

1 Select the required element. The corresponding indicator lighths up.
2 Touch the symbol. The indicator P lights up. The function is now activated.

How to turn off

1 Select the element The corresponding indicator lights up.
2 Touch the symbol. The letter P is no longer displayed and the element will return to heat setting . The function will be deactivated.

Note: In certain circumstances, the function may be deactivated automatically to protect the internal electronic components of the cooktop.

Time programming function

This function may be used in two different ways:

to switch an element off automatically
as a kitchen timer

Cook time

You can use the timer function to set a cook time for any element. The element will turn off automatically once the set time has elapsed.

CAUTION

• When using the timer, always keep an eye on the cooktop and do not allow anything to boil over or burn. Boilovers can cause smoke and foods and oils may catch on fire if left on high temperature settings.

• This function should not be used for long periods of time, especially at high heat settings.

• Make sure the cooktop is turned off with the main power switch after each use.

Setting a Cook Time

The cooktop should be turned on.

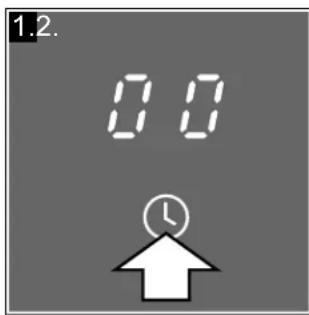

1 Select the cooking element and heat setting required. Then touch the ① symbol. ② appears in the visual display of the timer function. The ⑨ indicator lights up on the selected cooking element.

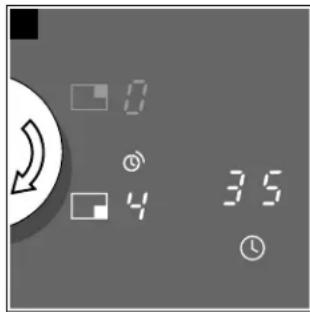

2 Program the time using the knob.

After a few seconds, the timer will start to count down. The shortest cook time shows on the display.

Once the time is up

Once the time is up, the element will turn off. You will hear a beep.

The indicator will blink on the element display and will appear on the timer display.

Turn off the indicators and the display beep by touching ①.

Correcting the time

Select the desired cooking element and then touch the ① symbol. Change the time using the knob.

Canceling Cook Time

Select the desired cooking element and then touch the symbol. Then turn the knob until 品 is displayed. The indicator will go off.

Note:

• You can set a cook time of up to 90 minutes.
• Select an element to view the remaining cook time.
  After a power outage, the timer function will be cancelled.

Kitchen Timer

The timer can be set for periods of up to 90 minutes. It is independent of the other settings. This function does not automatically switch off an element.

Setting the Kitchen Timer

The cooktop should be turned on.

1 Touch the ① symbol. 00 appears in the timer function display.
2 Program the time using the knob.

The kitchen timer starts to count down after a few seconds.

Once the time has elapsed

A beep will sound. 品 blinks on the timer display. Touch the ① symbol to make the indicators and the beep go out.

Changing the time

Touch the ① symbol and change the time with the knob.

Canceling the time

Touch the ① symbol and then turn the knob until 00 appears on the timer display.

Notes

• The timer will be deactivated after a power outage.
  The automatic off function for an element and the timer function can both be operated simultaneously.

Automatic time limitation

The automatic time limitation function is activated if the element is used for prolonged periods without any modifications being made.

The element stops heating. The residual heat indicator lights up on the element display.

When the automatic time limitation function is activated, this is controlled by the selected heat setting (from 1 to 10 hours).

Basic Settings

The appliance has various basic settings. You can adjust these settings to the way you usually cook.

c1	Deactivating the beep	D most of the signals are off
	A short beep confirms that an icon has been touched, a long beep warns that an incorrect operation has been performed.	I all the signals are on*
c2	Child lock	D child lock activation not allowed*
	This function allows the childproof safety function to be acti-vated.	I child lock activation allowed
c3	Returning to the cooktop default settings	D return to default settings
	This function reuses the settings that were made with the spe-cial function menu by using the setting menu d'.
c4	Element selection	E activated setting
	The last programmed element always remains selected. This can be changed. The element will only remain selected for 5 seconds. To activate and to deactivate the function, select E . or E with the setting control.	E . deactivated setting
c5	Power Management Function	I = 1000 W minimum power
	This function is used to limit the total power of the cooktop.	I . - I = 1500 to 9000 W
	There are 19 levels. The intermediate levels are marked with a dot.	I . = 9500 W maximum power

*Basic settings

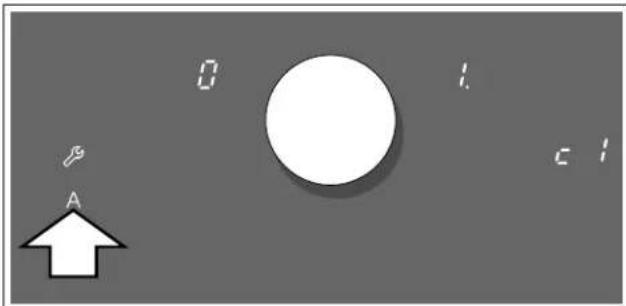

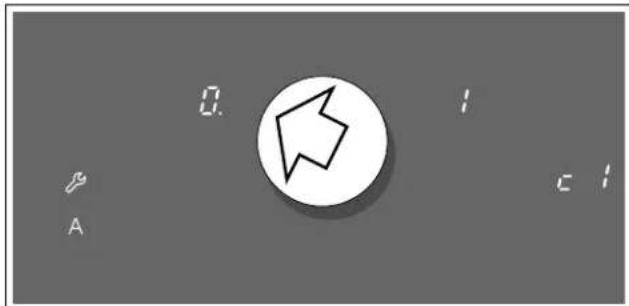

Changing the basic settings

The cooktop has to be turned off.

1 Turn on the cooktop using the main switch.
2 In the next 10 seconds, the indicator will appear. Touch the symbol Afor at least 4 seconds, until you hear the second confirmation beep.

and i also appear in the timer display.

3 Touch until the desired function indicator is displayed.

4 Select the desired value using the knob. Turn the knob to the desired setting. The selected value will be indicated with a dot (see figure).

5 Touch A again for at least 4 seconds, until a beep sounds to confirm.

The settings have been correctly stored.

Quit basic settings menu

To leave the basic settings menu, turn off the cooktop with the main switch.

Cleaning and Maintenance

Daily Cleaning

Note: Recommended cleaners indicate a type of cleaner and do not constitute an endorsement of a specific brand.

Glass ceramic cooktop

CAUTION

Do not use any kind of cleaner on the glass while the surface is hot, use only the razor blade scraper. The resulting fumes can be hazardous to your health. Heating the cleaner can chemically attack and damage the surface.

Clean the surface when it is completely cool with the following exception: remove dry sugar, sugar syrup, tomato products and milk immediately with the razor blade scraper (see special care chart).

Wipe off spatters with a clean, damp sponge or a paper towel. Rinse and dry. Use white vinegar if smudge remains; rinse.

Apply a small amount of the glass ceramic cooktop cleaner. When dry, buff surface with a clean paper towel or cloth.

Stainless steel side trim

Wipe with the grain when cleaning. For moderate/ heavy soil, use BonAmi® or Soft Scrub® (no bleach).

Wipe using a damp sponge or cloth, rinse and dry.

Knob

Remove knob from the cooktop. Wipe with warm soapy cloth, rinse and dry. Do not use abrasive products or scrub. Do not place the knob in the dishwasher or in dishwater. Otherwise it might get damaged.

Cleaning guidelines

When using a cleaner, use only a small amount; apply to a clean paper towel or cloth. Wipe on the surface and buff with a clean dry towel.

For best results, use cleaners such as glass ceramic cooktop cleaner, BonAmi®, Soft Scrub® (without bleach), and white vinegar.

Avoid these cleaners

Glass cleaners which contain ammonia or chlorine bleach. These ingredients may damage or permanently stain the cooktop.
- Caustic cleaners - cleaners such as Easy Off® may stain the cooktop surface.
- Abrasive cleaners.
Metal scouring pads and scrub sponges such as Scotch Brite® can scratch and/or leave metal marks.
- Soap-filled scouring pads such as SOS® can scratch the surface.
Powdery cleaners containing chlorine bleach can permanently stain the cooktop.
- Flammable cleaners such as lighter fluid or WD-40.

Cleaning charts

Type of Soil Possible Solution

Hot cooking liquids dripped on surface
Surface scratches:

Dry sugar, sugar syrup, milk or tomato spills. Melted plastic film or foil. All these items REQUIRE IMMEDIATE REMOVAL. Failure to remove these immediately can permanently damage the surface.

Remove these types of spills while the surface is hot using the razor blade scraper. Use a new, sharp razor in the scraper. Remove pan and turn off the element. Wearing an oven mitt, hold scraper at 30^ angle, using care not to gouge or scratch the glass. Push soil off the heated area. After the surface has cooled, remove the residue and apply the glass ceramic cooktop cleaner.

WARNING

Risk of injury

The blade is extremely sharp. Risk of cuts. Protect the blade when not in use. Replace the blade immediately when any imperfections are found. Follow manufacturer's instructions.

Burned-on food soil, dark streaks, and specks

Soften by laying a damp paper towel or sponge on top of soil for 30 minutes. Use a plastic scrubber and glass ceramic cooktop cleaner or use the razor blade scraper. Rinse and dry.

Greasy spatters Use a soapy sponge or cloth to remove grease; rinse thoroughly

and dry. Apply glass ceramic cooktop cleaner.

Metal marks: Iridescent stain

Pans with aluminum, copper or stainless steel bases may leave marks. Treat immediately after surface has cooled with glass ceramic cooktop cleaner. If this does not remove the marks, try a mild abrasive (Bon Ami®, Soft Scrub® without bleach) with a damp paper towel. Rinse and reapply glass ceramic cooktop cleaner. Failure to remove metal marks before the next heating makes removal very difficult.

Hard water spots:

Minerals in some water can be transferred onto the surface and cause stains. Use undiluted white vinegar, rinse and dry. Recondition with glass ceramic cooktop cleaner. Remove boilovers and stains before using the cooktop again.

Small scratches are common and do not affect cooking. They become smoother and less noticeable with daily use of the glass ceramic cooktop cleaner.

Apply glass ceramic cooktop cleaner before using to remove sand-like grains and grit such as salt and seasoning. Scratches can be reduced by using pans with bases that are smooth, clean, and dry before use. Use recommended glass ceramic cooktop cleaner daily.

NOTICE: Diamond rings may scratch the surface.

Maintenance

This appliance requires no maintenance other than daily cleaning. For best results, apply cooktop cleaning cream daily.

Troubleshooting

If you encounter a problem, it often will merely be something minor. Before you call customer service, consider the suggestions and instructions below:

CAUTION

Repairs should only be done by a trained servicer. Improper repair of your appliance may result in risk of severe physical injury or death.

Fault Possible cause Measure

Cooktop is not working The electric power supply has been interrupted.		Use other electrical appliances to check if there has been a power outage. Check to see if there is a problem with the circuit breaker for the electrical installation.
	The appliance has not been correctly connected following the connection diagram.	Make sure that the appliance has been connected correctly.
	Electronic system malfunction. Contact the Technical Assistance Service.
The cooktop turns off by itself	The main switch has been touched unintentionally.	Press the main switch again. Reset the cooktop.
The display flashes (no power) when you place a pan on an induction element	The pan is not ferromagnetic Check the bottom of the pan with a magnet.
	The diameter of the pan is to small. Use a pan with an appropriate diameter for the element.
		If the display still does not light up when you turn the element off and on again, disconnect the appliance at the circuit breaker. Wait 20 seconds and then reconnect it.
The Powerboost function display flashes and then turns off	The element is too hot. The Powerboost function operates the element with the highest possible power. During long cooking times, it is possible that the function will turn the element off to protect the cooktop from overheating. You can continue to use the cooktop if the display is not flashing.
Display F and numbers	A fault in the electronic system has occurred.	Turn the appliance off and back on at the fuse or circuit breaker. If the same fault occurs again, disconnect the appliance and call Technical Assistance Service.
Display F and numbers	A fault has been detected.	The following table of error messages lists actions you can take to correct the problem

Error messages

Indicator Malfunction Solution

Er + number	Electronic system malfunction.	Unplug the cooktop from the mains. Wait for 30 seconds and switch it on again. If the warning persists, contact the technical assistance service.
d' + number /
E + number
F0 / F9	There is an internal error in the operation.	Unplug the cooktop from the mains. Wait about 30 seconds before plugging it in again. If the warning persists, contact the technical assistance service.
H	The electronic system has overheated and the corresponding element has been switched off.	Wait until the electronic system has cooled down completely. Then push any symbol on the cooktop. If the warning persists, contact the technical assistance service.
F4	The electronic system has overheated and all elements have been switched off.	Wait until the electronic system has cooled down completely. Then push any symbol on the cooktop. If the warning persists, contact the technical assistance service.

Do not place hot pans on the control panel.

Indicator Malfunction Solution

Supply voltage outside normal operating limits.		Please contact your local electricity company.
22/23	The element has overheated and has switched off in order to protect its cooking surface.	Wait until the electronic system has cooled down sufficiently before switching it back on.
Do not place hot pans on the control panel.

Notes

Glass ceramic may have uneven areas on the surface due to the nature of the material itself. Because of the mirror-like finish on the cooking surface, even extremely small bubbles less than 1 mm in diameter may be visible. These bubbles will not have any adverse effect on the operation of the cooktop nor on the durability of the glass ceramic cooking surface.
Depending on the countertop that is present in the kitchen, an uneven gap between the cooktop unit and the countertop can occur. For this reason, a flexible seal is provided around the entire cooktop unit.

Normal operating noises of the cooktop

Induction technology is based on the creation of electromagnetic fields. They may generate heat directly on the bottom of the cookware. Pots and pans may cause a variety of noises or vibrations depending on the way they've been manufactured. These noises are described as follows:

Low humming (like a transformer)

This noise is produced when cooking at a high heat level. It is based on the amount of energy transferred from the cooktop to the cookware. The noise ceases or quiets down when the heat level is reduced.

Quiet whistling

This noise is produced when the cooking vessel is empty. It ceases once water or food is placed in the vessel.

Crackling

This noise occurs with cookware comprised of various materials layered one upon the other. It's caused by the vibrations of the surfaces where different materials meet. The noise occurs on the cookware and can vary depending on the amount and method of preparation of the food.

Loud whistling

This noise occurs with cookware comprised of different materials layered one upon the other, and when they are additionally used at maximum output and also on two cooking zones. The noise ceases or quiets down when the heat level is reduced.

Fan noises

For proper operation of the electronic system, it is necessary to regulate the temperature of the cooktop. For this purpose, the cooktop is equipped with a cooling fan, which is activated to reduce and regulate the temperature of the electronic system. The fan may also continue to run after the appliance is turned off if the detected temperature of the cooktop is still too hot after turning it off.

The noises described are a normal element of the described induction technology and shouldn't be regarded as defects.

Customer service

If your appliance needs repairs, our customer service is there for you. We work hard to help solve problems quickly and without unnecessary service calls, getting your appliance back up and running correctly in the least amount of time possible.

When you call, please indicate the product number (E-Nr.) and serial number (FD-Nr.) so that we can support you in a qualified manner. You will find the type plate with these numbers on the bottom of the appliance. To avoid having to search for a long time when you need it, you can enter your appliance data and the customer support telephone number here.

E-Nr.FD-Nr.

Customer Service

Please read the use and care instructions provided with your appliance. Failure to do so may result in an error in using the appliance. This could result in a service call that instead of fixing a mechanical issue is only needed for customer education. Such calls are not covered by the appliance warranty.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

USA 8774424436 toll-free

CANADA 800 828 9165

You can rely on the manufacturer's expertise. Rest assured that the repair will be handled by trained service technicians who have the original replacement parts for your appliance.

Table des Matieres

CONSIGNES DE SECURITE IMPORTANTES 29

Securite-incendie 29

1901 Main Street, Suite 600

Irvine, CA 92614

+18774GAGGENAU

USA

www.gaggenau-usa.com
