USER MANUAL DIB125850 BOSCH

Black-and-white photo of a hand holding a plate of cooked rice with visible vegetable pieces (no text or symbols)

Exterior view of a stainless steel kitchen air conditioner (no text or symbols visible)

en Operating and installation instructions

Household Appliances

de Seite 3–17

en page 18-32

fr pages 33–47

nl pagina 48–62

it pagina 63 - 77

es página 78 - 92

pt página 93 - 107

Abb. 1

GAS

GAZ

ELECTRO

ÉLECTRO

≥ 650 mm

≥ 550 mm

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Safety warning symbol and diagram showing hazard, smoke, and fire hazard with arrows indicating airflow or process flow.

Diagram showing a checkmark over a circular icon next to an electrical circuit diagram with no readable text or symbols.

Mechanical assembly diagram showing a cylindrical component inserted into a base plate with a circular cross symbol (no text or labels)

BRANDGEFAHR

Simple line icon showing a house with an arrow and crossed X-shaped symbol inside, no text or numbers present.

Symbolic icon of a crossed hammer and sickle inside a house outline, representing labor or security (no text or symbols present)

Illustration of a hand holding a rectangular object over a grid-patterned surface, with arrows indicating direction (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Diagram showing two hands holding a rectangular object with arrows labeled 1 and 2, indicating direction or movement.

Hand holding a small bulb next to a card or electronic device (no text or symbols visible)

Stacked cylindrical metallic rings or coiled material (no text or symbols visible)

Technical diagram of a metal frame structure with bolted components and fasteners (no text or labels)

4x

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram of a mechanical assembly with a 4x magnified view of a bolt (no text or symbols present)

3D diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols)

Technical illustration of a mechanical press or lift device with a screw and lever assembly (no text or symbols)

3D diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

Table of contents

General Information 19

Information on protection of the environment 19

Before using the appliance for the first time 19

Safety Instructions 20

Intended use 20

Technical safety 20

Special information for gas cookers 21

Proper use 22

Correct installation 22

Operating modes 23

Exhaust-air mode 23

Circulating-air mode 23

Operation 24

Cleaning and Care 25

Removing and installing the grease filters 26

Removing and installing the metal-mesh grease filters 26

Installing and removing the activated carbon filters 26

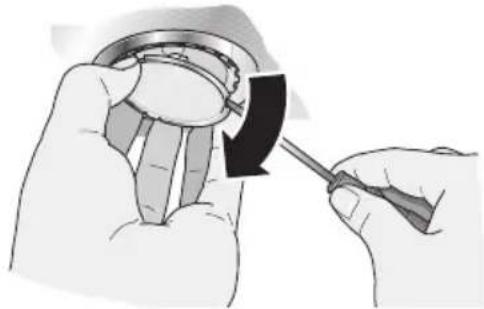

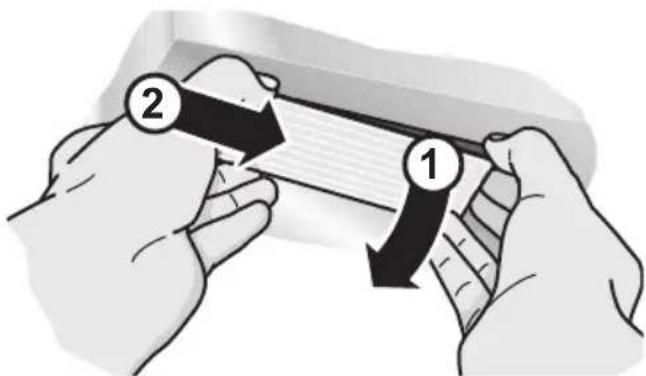

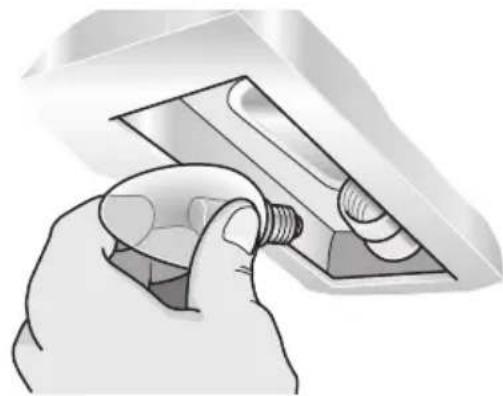

Changing the bulbs 27

Installation instructions 28

Connecting Pipes 28

Electrical Connections 29

Installation 30

Installation preparations 30

Attachment 31

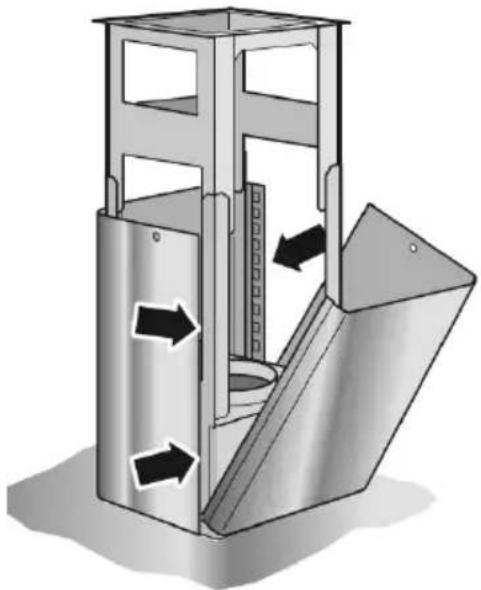

Installing the flue ducts 32

INFORMATION ON PROTECTION OF THE ENVIRONMENT

Disposal of transport packaging

Your new appliance was sent to you in protective packaging. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Packaging parts can be hazardous for children. Therefore keep them outside the reach of children.

Disposal of the old appliance

Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is identified according to the European Directive 2002/96/EC on waste electrical and electronic equipment – WEEE). The directive specifies the framework for an EU-wide valid return and re-use of old appliar

Simple line drawing of a trash bin with no text or symbols

Before disposing of your old appliance, render it unusable.

Never treat your old appliance as non-recyclable waste!

Please ask your dealer or inquire at your local authority about current means of disposal.

Ensure that the old appliance is kept childproof until it is disposed of.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

NOTE: These operating instructions apply to several appliance models It is possible that individual features are described which do not apply to your appliance.

Before switching on your new appliance, please read the operating instructions carefully. They contain important information on safety and how to use and look after the appliance.

Keep the operating and instructions in a safe place and pass them on to any subsequent owner of the appliance.

Faults

Please contact customer service regarding any queries or faults.

(See list of customer service centres).

When calling, please quote:

E-no. FD

The numbers can be found on the rating plate, after removal of the grease filter, inside the extractor hood.

Enter the numbered in the above fields.

Intended use

▷ This extractor hood complies with the stipulated safety regulations. Improper use may result in injury or damage.
The extractor hood may be used in the household only. The manufacturer is not liable for damage which is caused by improper use or incorrect operation.
The manufacturer cannot be made responsible for damage which can be attributed to non-observance of the safety instructions.

RISK OF INJURY

Do not allow children to play with the extractor hood! Adults and children must never operate the appliance unsupervised

• if they are not physically or mentally capable of doing so,
  – or if they do not have the knowledge and experience to operate the appliance correctly and safely.

Technical safety

The extractor hood left the factory in perfect condition. Nevertheless check the appliance for visible damage before installation. If it is damaged, do not switch it on!
▷ If the power cord of the extractor hood is damaged, it must be replaced by the manufacturer, his customer service or a similarly qualified person to prevent hazardous situations.
▷ Only a qualified technician may install (including electrical connection), service or repair the extractor hood. Always isolate the extractor hood by pulling out the mains plug or switching off the fuse!

▷ If the appliance is improperly installed, serviced or repaired, the user may be placed in considerable danger for which the manufacturer is not liable.
Changes to the electrical or mechanical installation are dangerous and must not be undertaken! They may also cause the extractor hood to malfunction.

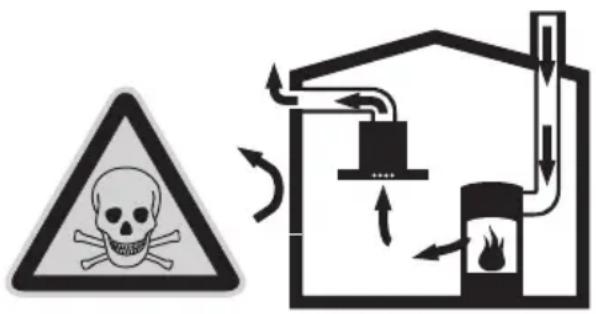

Simultaneous operation of the extractor hood with a heating appliance which is dependent on ambient air

▷ Heating appliances which are dependent on ambient air, e.g. gas, oil, wood, or solid-fuel heaters, instantaneous water heaters, hot water boilers, hobs or ovens, and which draw combustion air out of the installation room and whose exhaust gases are conveyed to the exterior by a flue.

RISK OF POISONING

If the extractor hood is operated at the same time as a heating appliance which is dependent on ambient air, there is a risk of poisoning due to combustion gases being drawn back in.

Safety warning symbol and diagram showing hazard, smoke, and electrical circuit with arrows indicating airflow or process flow.

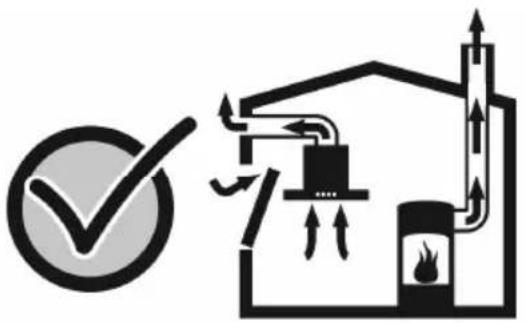

▶ Safe operation is possible provided the low pressure in the installation room of the heating appliance does not exceed 4Pa (0.04mbar). This can be achieved if the combustion air can flow through non-closable openings, e.g. in doors, windows, in conjunction with air intake/exhaust air wall boxes or by other technical measures.

Diagram showing a checkmark over a circular icon next to a schematic of a gasifier or reactor system (no text or symbols present)

▶ Adequate intake air must therefore always be provided.
▷ An intake/exhaust air wall box alone does not ensure compliance with the limit value.

NOTE: When making your evaluation, always consider the entire ventilation system in the home. Include the advice of a competent heating engineer when making your evaluation.

▷ If the extractor hood is used in circulating air mode only, it can be operated without any restrictions.

Special information for gas cookers

▷ When installing the extractor hood above gas hobs, observe the appropriate national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).
▷ Observe the currently valid installation regulations and instructions of the gas appliance manufacturer.
During installation, ensure that only one side of the extractor hood is situated directly next to a high-sided unit or a wall. Otherwise, there is a risk of heat build-up. The gap between the extractor hood and the wall or high-sided unit must be at least 50 mm.

RISK OF BURNS

Do not operate more than 2 gas cooking areas simultaneously over a period of max. 15 minutes at maximum thermal load. Due to the effect of the heat there is a risk of burns if the surfaces of the housing are touched!

▷ Note that one large burner of more than 5 kW (Wok) is equivalent to the power of 2 gas burners.
The extractor hood may be damaged by the intense heat.
▷ Never operate a gas cooking area without a cooking utensil on it. Regulate the flame in such a way that it does not project over the cooking utensil.

Proper use

▷ Clean the extractor hood thoroughly before using for the first time.

▷ Before cleaning and servicing the extractor hood, isolate it from the power supply by pulling out the mains plug or switching off the fuse.

▷ Bulbs (especially halogen bulbs) become very hot during operation. Even some time after the appliance has been switched off, there is still a risk of burns!

▷ Before changing bulbs, isolate the extractor hood from the power supply and leave the bulbs to cool down!

Do not operate the extractor hood without bulbs inserted.

▷ Always switch on the extractor hood if a hotplate is being used. If the extractor hood is not switched on, condensation may form. As a result, the appliance may corrode.

Do not place any objects on the extractor hood.

Pure mechanical diagram showing a cylindrical component mounted on a base with a circular cross symbol overlay (no text or labels)

RISK OF FIRE

Do not flambé under the extractor hood or work with a naked flame. When switched on, the extractor hood draws flames into the filter. There is a risk of fire due to deposits on the grease filter!

Do not leave pans, frying pans or deep-fat fryers unattended if you are cooking food with oils or fats, e.g. chips. Overheated oils or fats can easily ignite!

▷ A risk of fire can be prevented by cleaning the grease filters regularly and changing the activated-carbon filter in good time.

▷ Never operate the extractor hood without grease filters.

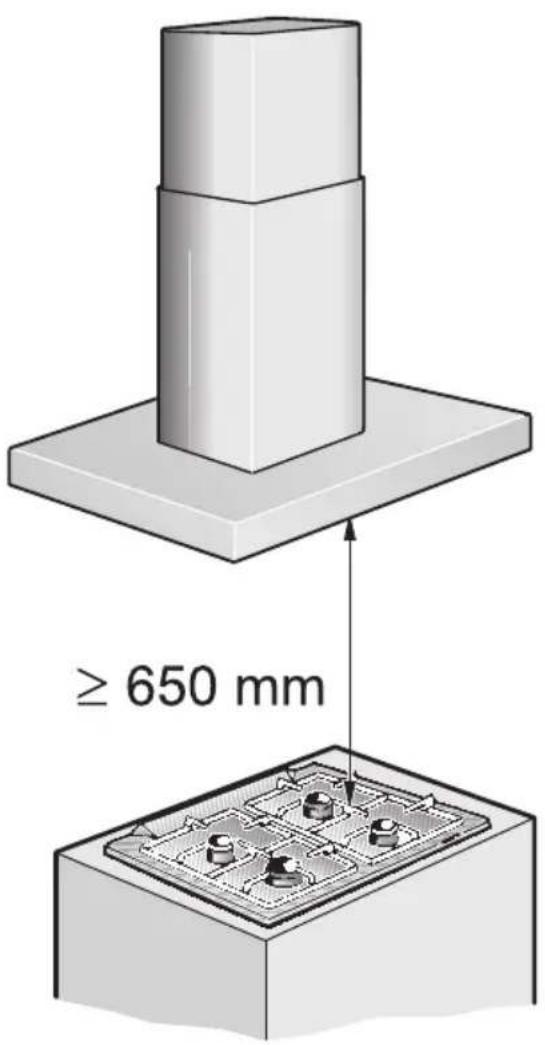

Correct installation

▷ Check the manufacturer's specifications for the cooker to determine whether an extractor hood can be operated over it.
▷ If the manufacturer of the cooker has not specified any significant safety distances, the following minimum distances apply

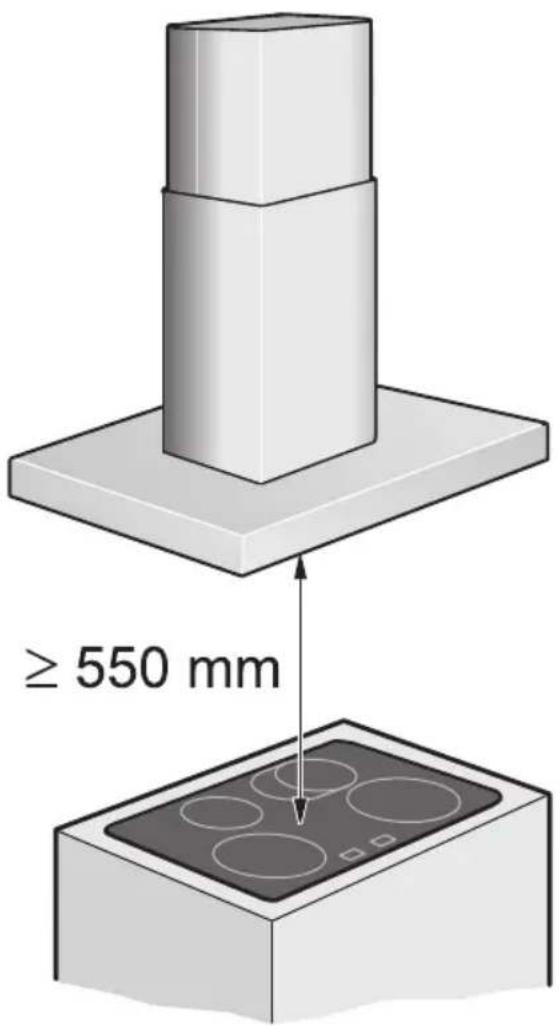

• 550 mm between electric hob and the lower edge of the extractor hood, Fig. 1.
• 650 mm between gas hob (upper edge of pan support) and the lower edge of the extractor hood, Fig. 1.
  ▷ If various cookers are used, the greatest indicated distance applies.
  ▷ The width of the extractor hood must correspond to the width of the cooking area.
  The extractor hood must not be installed over a solid fuel heating appliance which may be a fire risk (e.g. flying sparks) unless the heating appliance has a closed, non-detachable cover and the country-specific regulations are observed. This restriction does not apply to gas cookers and gas hobs.
  ▷ To avoid damaging the hob, cover it when installing the extractor hood.

The extractor hood can be used in exhaust air and circulating air mode.

Exhaust-air mode

Simple line icon of a house with an arrow and crossed bars, no text or symbols present.

The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.

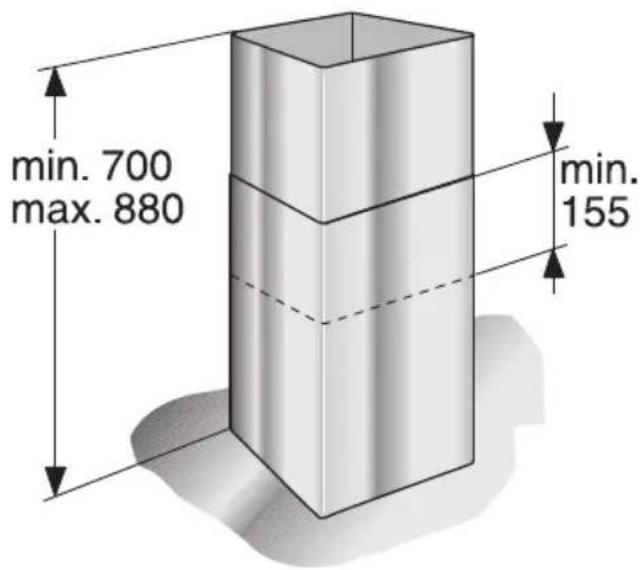

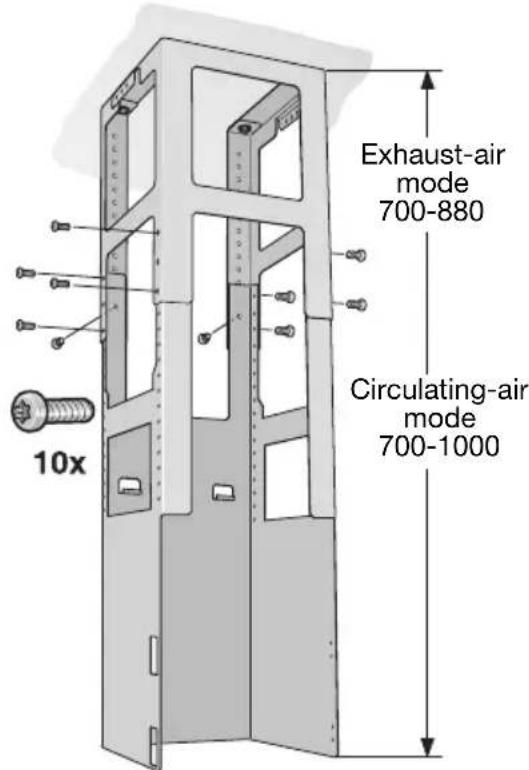

Appliance dimensions Exhaust air

min. 700 max. 880 min. 155

Circulating-air mode

Symbolic icon of a crossed hammer inside a house outline, representing labor or security (no text or symbols present)

The air which is drawn in is cleaned by the grease filters and an activated carbon filter and conveyed back into the kitchen.

An activated carbon filter must be installed to bind odours in circulating-air mode (see "Removing and installing the grease filters").

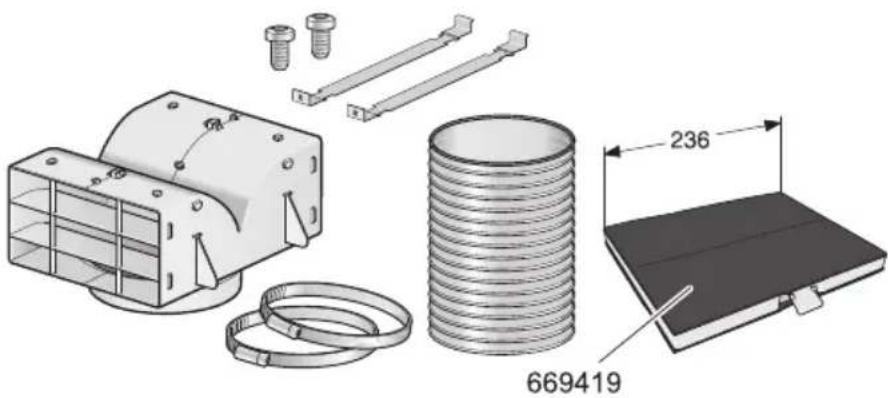

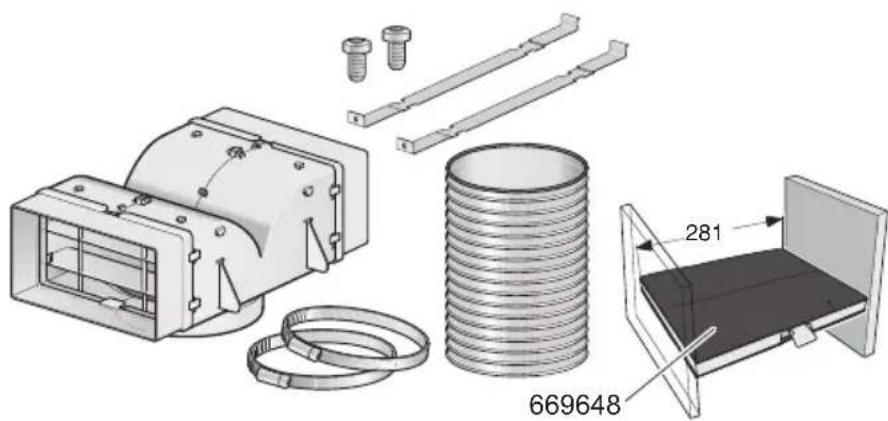

The complete installation set as well as the replacement filters are available from specialist outlets, customer service or the Online Shop. The accessory number can be found at the end of the operating instructions.

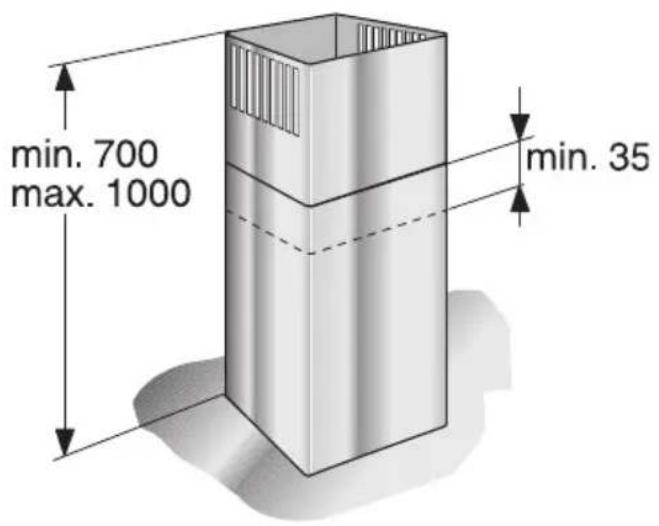

Appliance dimensions Circulating air

min. 700 max. 1000 min. 35

The description of the operation applies to several appliance models. It is possible that individual features are described which do not apply to your appliance.

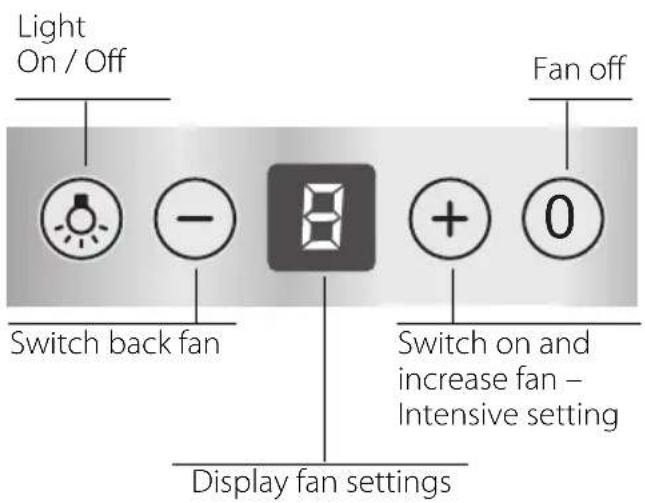

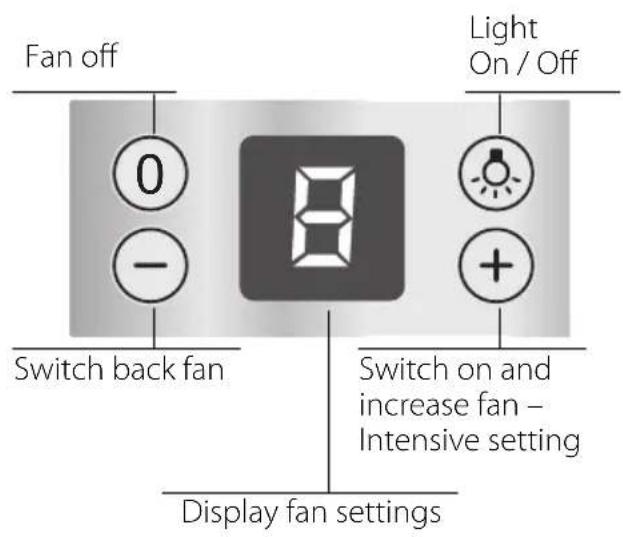

Fan off 0 - Switch back fan 8 Light On / Off Switch on and increase fan – Intensive setting Display fan settings

Light On / Off Switch back fan Display fan settings Fan off Switch on and increase fan - Intensive setting

NOTE: It is recommended to switch on the blower when you start cooking and not to switch it off again until several minutes after you have finished cooking. In this way the kitchen fumes are removed most effectively.

Switching on the fan and selecting the fan settings

▷ Press button +. If kitchen fumes are thicker, press button + again. The fan setting is increased by one.

▷ To switch back by one setting, press button =.

▷ Keep pressing button – until the fan switches off.

Light

The light can be switched on and off independently of the fan.

Intensive setting

The Intensive setting P generates maximum performance. It can be used if thick fumes or strong odours occur temporarily.

▷ Keep pressing button + until P is displayed.

▷ If the Intensive setting is not switched off by hand, the fan automatically switches back to setting 2 after 10 minutes.

LOOKING AFTER THE APPLIANCE

▷ Suitable cleaning agents and care products for your appliance can be purchased via the Hotline or from the Online Shop (see cover page).

Appliance surfaces

NOTE: Observe the warranty regulations in the enclosed service booklet.

The appliance surfaces and controls are scratch-sensitive. Therefore observe the following cleaning instructions:

• Avoid cleaning the extractor hood with dry cloths, abrasive sponges, scouring agents, cleaning agents containing sand, soda, acid, chlorine or any other aggressive substances.
• Clean the appliance surfaces and controls with a soft, damp cloth, washing-up liquid or a mild window cleaner only.
• Do not scrape off dried dirt, but moisten with a damp cloth.
  – Clean carefully in the area of the controls to avoid liquid from getting into the electronics.

NOTE: Clean the stainless steel surfaces in the direction of the ground surface only! Do not use stainless steel cleaner for the control buttons!

Metal-mesh grease filters

The metal-mesh grease filters absorb the grease particles from the kitchen fumes.
▷ The filter mats consist of fire-proof metal.

RISK OF FIRE

As the filters become more saturated with greasy residue, the flammability increases. The function of the extractor hood may also be impaired.

The risk of fire is prevented by cleaning the metal-mesh grease filters in good time.
▷ When cleaning the grease filters, also remove grease deposits from the accessible parts of the housing with a damp cloth.

Cleaning the metal-mesh grease filters ...

▶ Under normal operation (daily 1 to 2 hours), the metal-mesh grease filters must be cleaned 1x month.

... in the dishwasher

The metal-mesh grease filters can be cleaned in the dishwasher. Slight discolouration may occur but this will not affect the function of the grease filters.
The filters must be placed loosely in the dishwasher. They must not be wedged in.

NOTE: Do not clean heavily saturated metal-mesh grease filters together with utensils.

... by hand

▷ When cleaning by hand, soak the grease filters in a hot detergent solution, brush off the dirt, rinse thoroughly and leave to dry.
Do not use any aggressive, acidic or alkaline cleaning agents.
▷ If dirt is particularly stubborn, we recommend using a special grease solvent spray. This can be ordered via the Online Shop.

▷ Before removing and installing the grease filters, always follow the instructions and warnings in the chapter entitled "Safety instructions"!

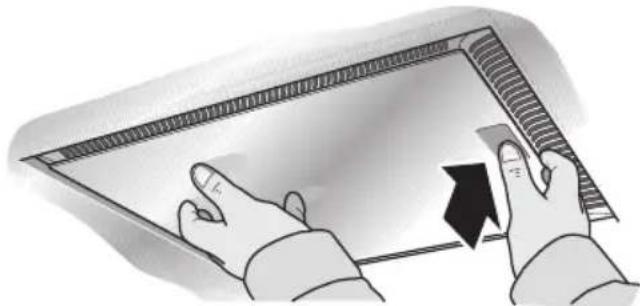

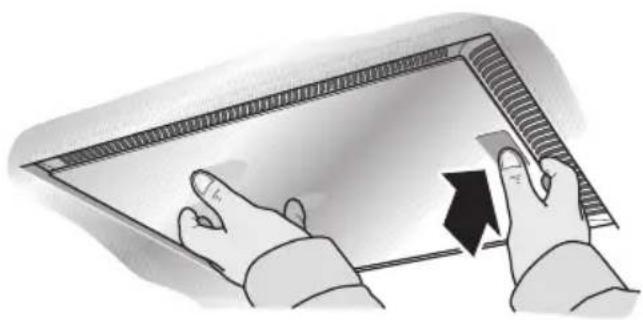

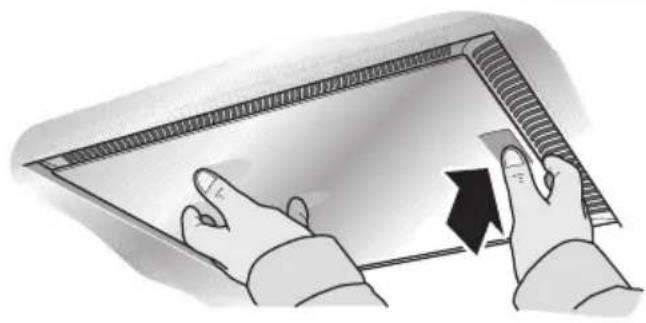

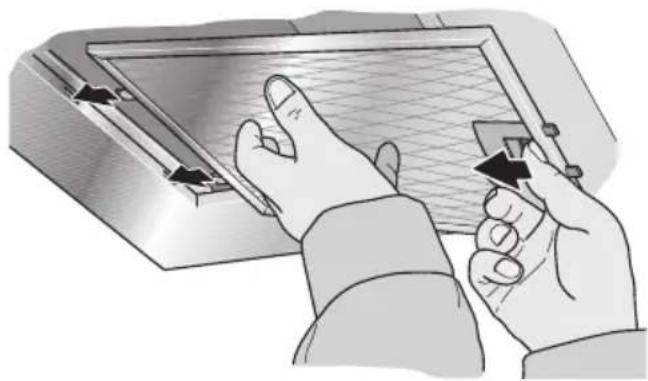

Removing and installing the metal-mesh grease filters

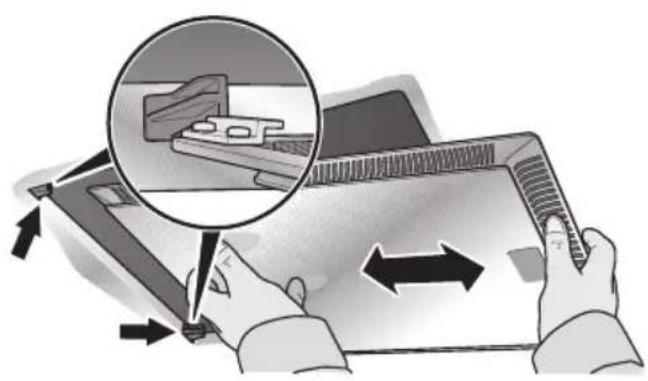

1. Open the lock and fold down the grease filters. In doing so, hold the underside of the grease filters with your other hand.

Illustration of hands interacting with a computer monitor displaying a grid screen (no text or symbols visible)

Illustration of hands interacting with a curved panel or tray (no text or symbols visible)

Illustration of hands using a laptop to interact with a device, showing a magnified view of the screen (no text or symbols present)

(for appliances with edge extraction)

1. Clean the grease filters.
2. Reinsert the cleaned grease filters.

▶ Activated carbon filters bind the odours in circulating-air mode.

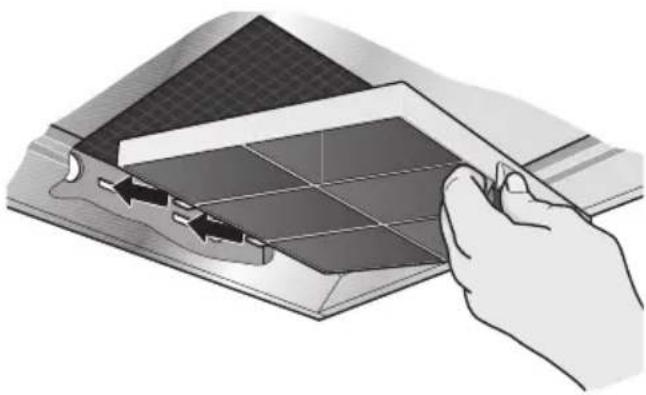

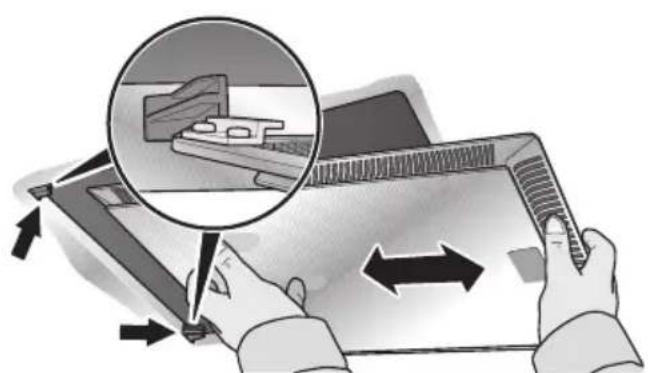

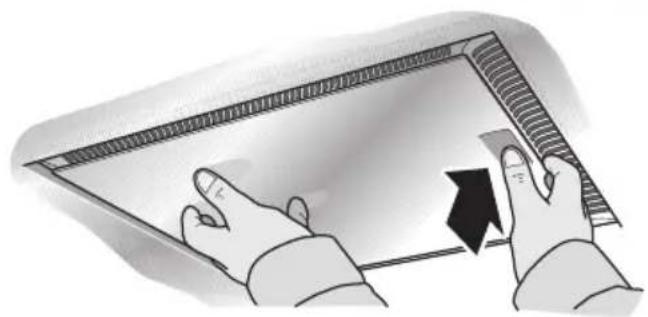

Installing and removing the activated carbon filters

1. Remove the grease filters (see Removing and installing the metal-mesh grease filters).

Illustration of a hand using a tool to cut or mark a grid-patterned object on a surface (no text or symbols visible)

1. Insert the activated carbon filter.
2. Lock the catch.
3. Reinsert the grease filters (see Removing and installing the metal-mesh grease filters).

Changing the activated carbon filter

▶ Under normal operation (daily 1 to 2 hours) the activated carbon filters must be replaced approximately 2x year.
The activated carbon filter is available from specialist outlets, customer service or the Online Shop (see Optional accessories). Use original filters only.
▶ Activated carbon filters do not contain any pollutants. They can be disposed of in the household refuse.

▷ Before changing the bulbs, always follow the instructions and warnings in the chapter entitled "Safety instructions"!
The description of changing the bulbs applies to several appliance models.

NOTE: Observe the warranty regulations in the enclosed service booklet.

Changing the halogen bulbs

Halogen bulbs become very hot during operation. Even some time after the appliance has been switched off, there is still a risk of burns!

▷ Before changing the halogen bulbs, ensure that they have cooled down fully.

1. Carefully remove the bulb ring with a suitable tool.

Close-up of hands using a screwdriver to adjust a mechanical component (no text or symbols visible)

1. Replace the defective bulb with a new one of the same type and equivalent power (see rating plate).

NOTE: When inserting halogen bulbs, do not touch the glass tube. Therefore use a clean cloth when inserting the bulb.

Illustration of hands holding a piece of bread or cereal, no text or symbols present

1. Reinsert the bulb cover.
2. Restore the power supply by inserting the mains plug or switching on the fuse.

Changing the filament bulbs

1. Lift the bulb cover slightly.
2. Push the bulb cover towards the middle of the appliance.

Diagram showing two hands holding a rectangular object with labeled arrows, illustrating a physical or mechanical process.

1. Replace the defective bulb with a new one of the same type and equivalent power (see rating plate).
2. Reinsert the bulb cover.

Hand holding a bulb-shaped object with a screwdriver inserted, next to an open electrical outlet (no text or symbols visible)

1. Restore the power supply by inserting the mains plug or switching on the fuse.

NOTE: If the light does not function, check whether the bulbs have been inserted correctly.

▷ Defective bulbs should be replaced immediately to avoid overloading the remaining bulbs.

Prior to installation, always follow the instructions and warnings in the chapter entitled "Safety instructions"!

Exhaust-air mode

The exhaust air is conveyed upwards via a ventilation shaft or directly through the outer wall to the exterior.

NOTE: The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms which contain heating appliances.

Before conveying the exhaust air into a non-functioning smoke or exhaust gas flue, obtain the consent of the appropriate heating engineer.
▷ Discharge exhaust air in accordance with the official and statutory regulations (e.g. regional building laws).
▷ If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.

To ensure optimum performance, the extractor hood requires:

• a short, straight exhaust air pipe and
  – the largest possible pipe diameter.
  ▷ If pipe bends cannot be avoided, ensure the largest possible radii.

NOTE: If long, rough exhaust air pipes, a lot of pipe bends or pipe diameters less than 150 mm are used, the air capacity will be less than optimum and there will be an increase in noise.

▷ Use only pipes or hoses made of non-combustible material for installation of the exhaust air duct.
The manufacturer of the extractor hoods is not responsible for complaints which can be attributed to planning and design of the pipework.

Connecting pipes

The diameter of the exhaust air pipes should not be less than 150 mm.

▷ Round pipes:

We recommend an inner diameter of 150 mm, however at least 120 mm.

Flat ducts must have the same inner cross-section as round pipes.

There should be no sharp bends.

∅ 150 mm approx. 177 cm²
∅ 120 mm approx. 113 cm²

▷ If pipe diameters differ:

Use sealing strips.

Connection of 150 mm ∅ exhaust air pipe (recommended size)

▷ Attach exhaust air pipe directly to the air-pipe connector and seal appropriately. If using an aluminium pipe, smooth the connection area beforehand.

Stacked cylindrical metallic rings or helical structures, no text or symbols visible

Connection of 120 mm ∅ exhaust air pipe

▷ Attach reducing connector directly to the air-pipe connector.
▷ Attach exhaust air pipe to the reducing connector.
▷ Seal both joints appropriately.

ELECTRICAL CONNECTION

Before connecting the appliance to the power supply, always follow the instructions and warnings in the chapter entitled "Safety instructions"!
The extractor hood may only be connected by a qualified electrician who is familiar with the regulations of the relevant electricity supply company.

RISK OF INJURY

If the power cord of the extractor hood is damaged, it must be replaced by the manufacturer, his customer service or a similarly qualified person to prevent hazardous situations.

▷ The extractor hood may be connected to a correctly installed earthed socket only.
▷ Attach the earthed socket as directly as possible behind the flue duct.

– The earthed socket should be connected via its own circuit.

- If the earthed socket is no longer accessible following installation of the extractor hood, a disconnector must be fitted as for a permanent connection.

If a permanent connection is required

A disconnector must be provided on the installation side. Switches with a contact opening of more than 3 mm and all-pole disconnection are regarded as disconnectors. This includes LS switches, fuses and contactors.

Electrical specifications

The required connection data can be found on the rating plate inside the appliance when the grease filters have been removed.

Length of the power cord: approx. 1.30 m.

This extractor hood complies with the EC interference suppression regulations.

The extractor hood is designed for installation on the kitchen ceiling or on a rigid suspended ceiling.

During installation, optional accessories may also require fitting.
▷ Observe the minimum distance between hob and extractor hood (see "Safety instructions")!
▷ Avoid damaging the sensitive surfaces!

Preparing the ceiling

RISK OF INJURY, DAMAGE TO PROPERTY

Before drilling the holes for the designated installation location, check for concealed electrical cables and other lines.

The ceiling must be level and horizontal.
The enclosed screws and wall plugs are suitable for concrete and natural stone. Use the appropriate fasteners for other ceiling structures.

Ensure that the ceiling has adequate load bearing capacity.

▷ Ensure that the depth of the drilled holes corresponds with the length of the screws.
▷ Ensure that the wall plugs are secure.

Max. weight in kg: 50

Design subject to modification in line with technical development.

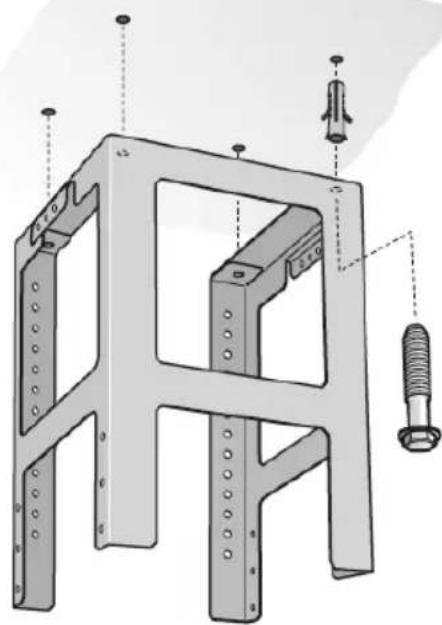

Installing the upper support frame

1. Specify the total height of the support frame before installation and mark the screw holes. The height of the support frame can be adjusted in 20 mm steps. The total height is measured from the height of the ceiling, the height of the worktop and the corresponding distances between the hob and extractor hood.
2. On the ceiling mark the centre point of the extractor hood.
3. Using the enclosed template, mark the positions for the screws on the ceiling.

4x

Technical diagram of a metal frame structure with bolted joints and a threaded bolt (no text or labels)

4x

1. Drill 4x 8 ∅ mm holes and press in wall plugs flush with the ceiling.
2. Attach the upper part of the support frame to the ceiling with 4 screws.
3. Ensure that the support frame is in the correct position. The middle bracket defines the preferred side. It must be facing the hob control.

Installing the lower support frame

▷ Attach upper and lower parts of the support frame at the specified total height with 10 screws (preferred hole selection, see diagram).

▷ Ensure that the lower support frame is in the correct position. The open side must be facing the hob control.

10x Exhaust-air mode 700-880 Circulating-air mode 700-1000

NOTE: The support frame can be aligned subsequently by loosening the fastening screws on the ceiling.

Installing the extractor hood

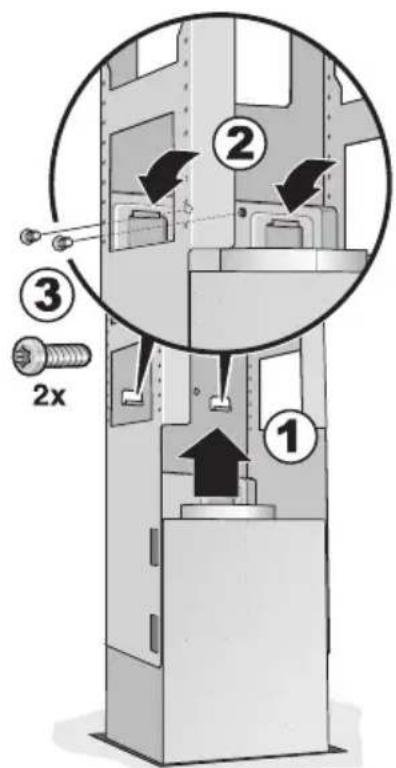

1. Hook the extractor hood from below into the support frame.

Do not trap the power cord!

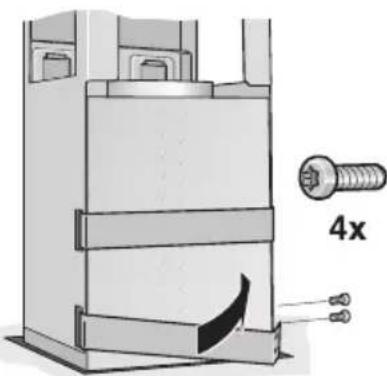

1. Attach the extractor hood to the support frame with 2 securing screws.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

1. Hook in retaining clip and screw tight.

Technical diagram of a mechanical assembly with a 4x magnified detail showing a bolt and two screws (no text or symbols present)

1. Connect the pipes.

2. Connect the power supply.

Installing the flue ducts

RISK OF INJURY

The insides of the flue ducts may have sharp edges. We recommend wearing protective gloves during installation.

1. Separate the flue ducts. To do this, remove the adhesive tape.
2. Remove the protective film from both flue ducts.
3. Attach both parts of the upper flue to the extractor hood und push together.

NOTE: Protect the extractor hood from damage. Avoid scratching the sensitive surfaces.

3D diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols)

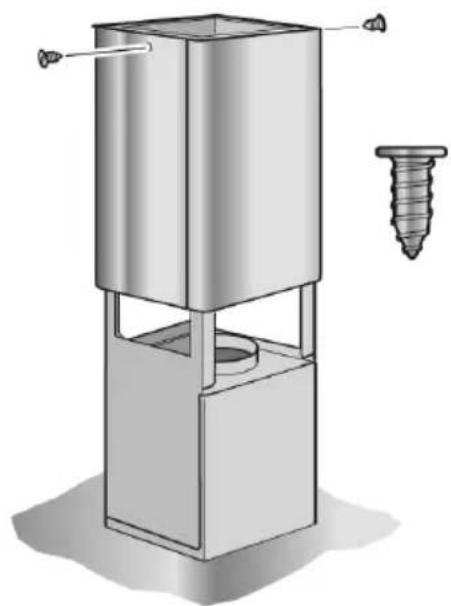

1. Push up the upper flue part and secure with 2 screws.

Technical illustration of a mechanical press or press device with a cylindrical component and a separate screw (no text or symbols)

1. Insert the two lower parts of the flue and push together.

3D diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Safety warning symbol and diagram showing a skull hazard and a fire extinguisher with airflow arrows

Diagram showing a checkmark over a circular icon next to an electrical circuit diagram with no readable text or symbols.

Mechanical assembly diagram showing a cylindrical component with a cross symbol, mounted on a base plate (no text or labels)

RISQUE D'INCENDIE

Simple line icon of a house with an arrow and crossed-out tools inside, no text or symbols present.

Symbolic icon of a crossed hammer and sickle inside a house outline, with arrows indicating direction (no text or numbers present)

Illustration of hands using a computer to interact with a screen (no text or symbols visible)

Illustration of hands holding a rectangular object with a black arrow indicating rotation (no text or symbols)

Illustration of hands using a tablet device to interact with a laptop, showing a magnified view of the screen (no text or symbols present)

Illustration of a hand inserting a card into a grid notebook (no text or symbols visible)

Illustration of a hand holding a mechanical component with a tool, no text or symbols present

Illustration of a hand holding a piece of paper or tape, partially covered by a ball (no text or symbols visible)

Diagram showing two hands holding a rectangular object with arrows labeled 1 and 2, indicating direction or movement.

Hand holding a bulb inserted into a light bulb inside a device (no text or symbols visible)

Stacked cylindrical metallic sheets with no text or symbols

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram of a mechanical assembly with a 4x magnified view of a bolt (no text or symbols present)

Technical diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols present)

Technical illustration of a mechanical press or press device with a cylindrical component and a separate screw (no text or symbols)

3D diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

Pure line drawing of a trash bin with no text or symbols

Safety warning symbol and diagram showing a skull hazard and a gas cylinder with flame, indicating hazard and combustion.

Diagram showing a checkmark over a building with airflow and heat source (no text or symbols)

Pure mechanical diagram showing a cylindrical component with a crosshair overlay, no text or symbols present

⚠️ BRANDGEVAAR

Simple line icon of a house with an arrow and crossed-out tools, no text or symbols present.

Symbolic icon of a crossed hammer inside a house outline, representing labor or security (no text or symbols present)

Illustration of hands using a computer to interact with a screen (no text or symbols visible)

Illustration of hands holding a rectangular object with a black arrow indicating rotation (no text or symbols)

Illustration of hands using a computer to interact with a device, showing a magnified view of the screen (no text or symbols present)

Illustration of a hand holding a tablet over a grid-patterned surface (no text or symbols)

Close-up of hands holding a mechanical component with a tool, no visible text or symbols

Illustration of hands holding a piece of bread or cheese, with no visible text or symbols

Diagram showing two hands holding a rectangular object with labeled arrows, numbered 1 and 2 indicating direction or movement.

Hand holding a bulb inserted into a device (no text or symbols visible)

Stack of five parallel cylindrical objects with rounded ends, no text or symbols visible

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical assembly with a 4x magnified view of a bolt (no text or symbols present)

3D diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols)

Technical illustration of a mechanical press or press device with a screw and pin, showing internal components and mounting features (no text or symbols)

3D diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

Symbol of a trash bin with no text or labels

Safety warning symbol and diagram showing hazard, smoke, and fire hazard with arrows indicating airflow or safety.

Diagram showing a checkmark over a building with airflow and heat source (no text or symbols)

Mechanical assembly diagram showing a cylindrical component inserted into a base plate with a circular cross symbol (no text or labels)

⚠ PERICOLO D'INCENDIO

Simple line icon of a house with an arrow and crossed hammer (no text or symbols)

Symbolic icon of a crossed hammer inside a house outline, with arrows indicating direction (no text or numbers present)

Illustration of hands using a computer to interact with a screen (no text or symbols visible)

Illustration of hands holding a rectangular object with a black arrow indicating rotation (no text or symbols)

Illustration of hands using a laptop to interact with a device, showing a magnified inset of a device (no text or symbols present)

Illustration of a hand holding a rectangular object over a grid-patterned surface, with no visible text or symbols.

Close-up of hands using a screwdriver to adjust a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object with a ring, partially covered by a ball (no text or symbols visible)

Diagram showing two hands holding a rectangular object with arrows labeled 1 and 2, illustrating a physical or mechanical process.

Hand inserting a bulb into an electrical outlet (no text or symbols visible)

Stacked cylindrical metallic rings or corrugated material (no text or symbols visible)

Technical diagram of a metal frame structure with bolts and a bolt, showing assembly details (no text or labels)

4x

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical illustration of a mechanical component with a 4x magnified view showing a screw and two screws (no text or symbols present)

3D diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols)

Technical illustration of a mechanical press or lift device with a screw and lever assembly (no text or symbols)

3D diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Safety warning symbol and diagram showing a skull hazard and a gas stove with flame, indicating hazard and fire resistance.

Diagram showing a checkmark over a building with airflow and heat source (no text or symbols)

Pure mechanical diagram showing a cylindrical component with a circular cross mark on a base plate (no text or symbols)

⚠️ PELIGRO DE INCENDIO

Simple line icon of a house with an arrow and crossed-out tools, no text or symbols present.

Symbolic icon of a house with crossed X and Y axes, no text or numbers present

Illustration of hands interacting with a computer monitor displaying a grid pattern (no text or symbols visible)

Illustration of hands holding a rectangular object with a black arrow pointing to it (no text or symbols present)

Illustration of hands using a computer with an inset magnified view of a device (no text or symbols)

Illustration of a hand inserting a card into a grid notebook (no text or symbols visible)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

Illustration of a hand holding a piece of paper or tape, with no visible text or symbols.

Diagram showing two hands holding a rectangular object with labeled arrows, numbered 1 and 2 indicating direction or movement.

Hand holding a bulb inserted into a device (no text or symbols visible)

Stacked cylindrical metallic sheets with no text or symbols

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical illustration of a mechanical assembly with a 4x magnified detail showing a bolt and two screws (no text or symbols present)

3D diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols)

Technical illustration of a mechanical device with a cylindrical component and a separate screw (no text or symbols)

3D diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Safety warning symbol and diagram showing a skull hazard and a flame inside a building with airflow arrows

Diagram showing a checkmark over a building with airflow and heat source (no text or symbols)

Pure mechanical diagram showing a cylindrical component with a crosshair overlay, no text or symbols present

PERIGO DE INCÊNDIO

Simple line icon showing a house with an arrow and crossed-out tools, no text or symbols present.

Symbolic icon of a crossed hammer and wrench inside a house outline, representing labor or security (no text or symbols present)

Illustration of hands using a computer to interact with a screen (no text or symbols visible)

Illustration of hands holding a rectangular object with a black arrow pointing to it (no text or symbols present)

Illustration of hands using a laptop to interact with a device, showing a magnified inset of the screen (no text or symbols present)

Illustration of a hand using a tool to cut or spread a grid-patterned object on a surface (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object with a metallic component, no text or symbols present

Diagram showing two hands exchanging a rectangular object with labeled arrows, numbered 1 and 2.

Hand holding a small bulb next to a device with a screwdriver (no text or symbols visible)

1. Voltar a ligar o aparelho à corrente, ligando a ficha à tomada ou ligando o dispositivo de segurança.

Stacked cylindrical metallic components with curved ends, no text or symbols visible

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram of a mechanical assembly with a 4x magnified view of a bolt (no text or symbols present)

Technical diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols present)

Technical illustration of a mechanical press or lift device with a screw and lever assembly (no text or symbols)

3D diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

	DHZ5265
	DHZ5285
