USER MANUAL LC855GB60 SIEMENS

Technical line drawing of a stainless steel kitchen range hood (no text or symbols)

de Seite 3–15

en page 16 – 28

fr pages 29 - 41

nl pagina 42 - 54

it pagina 55 - 67

es página 68 - 80

pt página 81 - 93

Abb. 1

GAS

GAZ

KAASU

GASS

ELEKTRO

ELECTR.

ELETT.

EL.

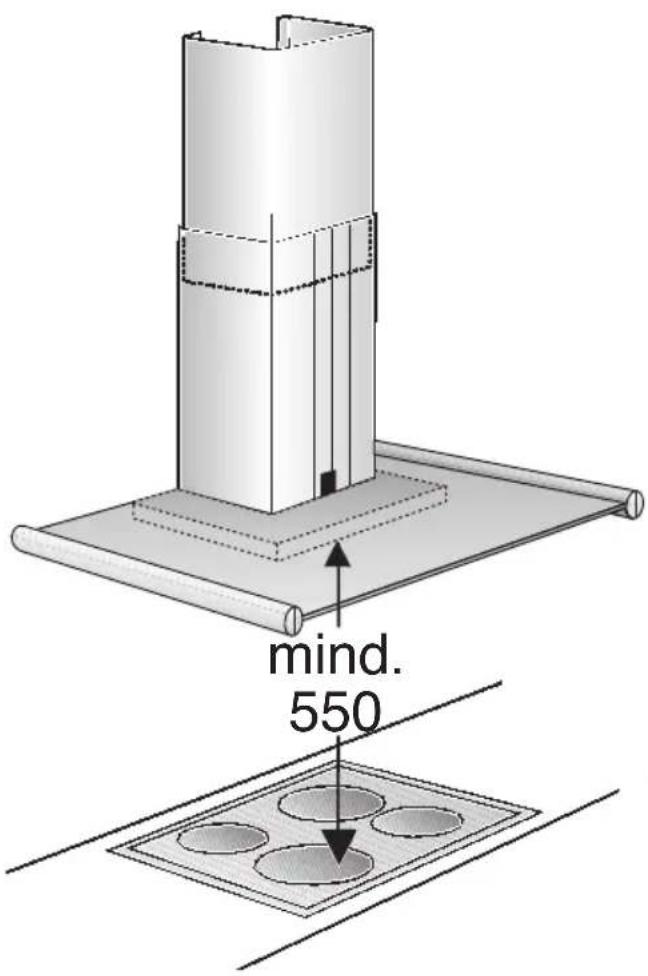

mind. 650

mind. 550

Gebrauchsanleitung:

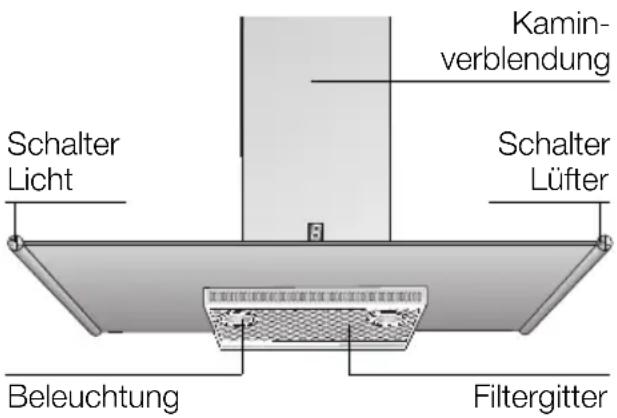

Gerätebeschreibung

Technical illustration of a mechanical assembly with three circular views showing internal components and a hand interacting with a component (no text or symbols present)

Diagram of a mechanical component with a hand inserting a slot into a grating (no text or symbols visible)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a screwdriver with a circular component and an arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical assembly with a spring-loaded component and a cylindrical housing (no text or symbols)

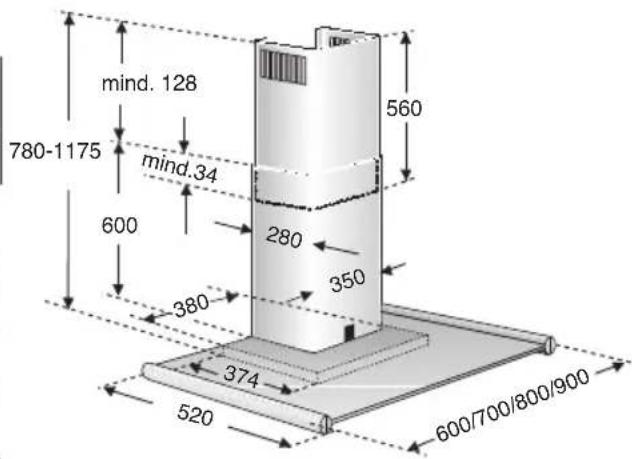

Umluftbetrieb

Diagram of airflow or heat transfer through a vertical container with arrows indicating direction (no text or symbols)

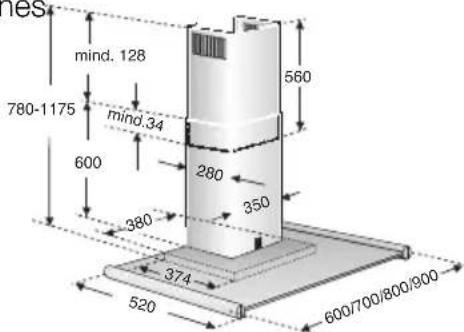

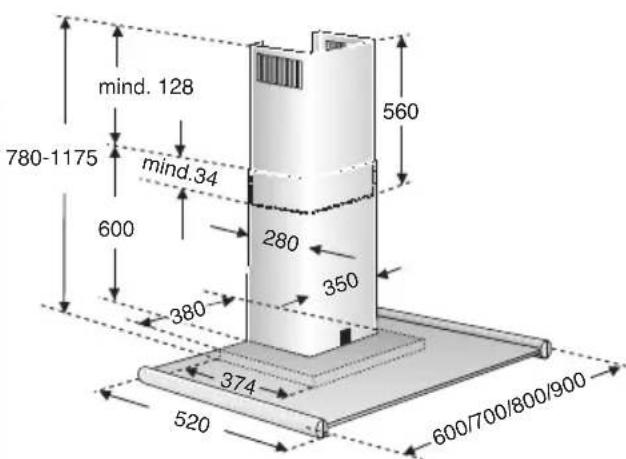

mind. 128 780-1175 mind.34 600 280 350 380 374 520 560 600/700/800/900

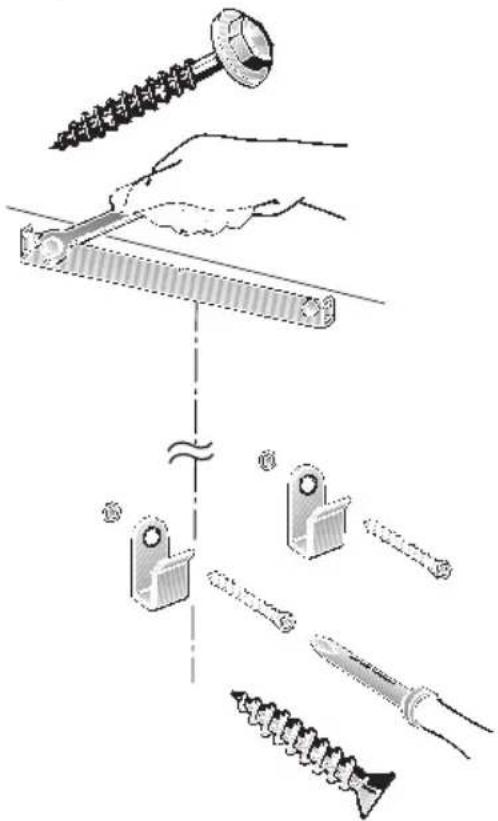

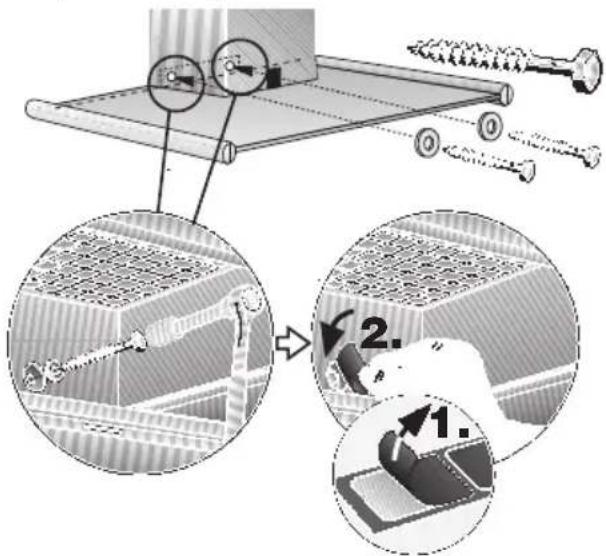

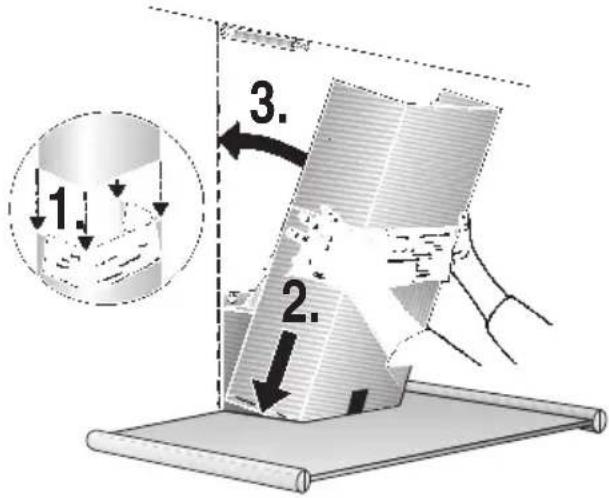

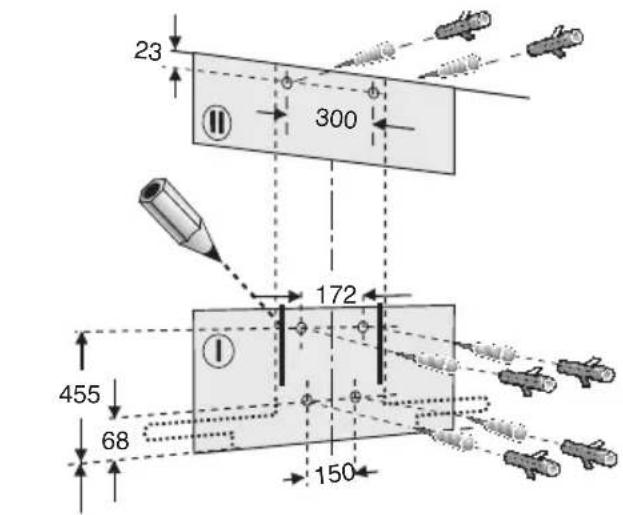

Vor der Montage

Technical diagram illustrating the assembly of screw fasteners with labeled parts and a close-up view of the assembly.

Technical diagram showing mechanical assembly with two views of a component, no visible text or symbols

Diagram illustrating a mouse processing procedure with labeled steps and magnified views of the process.

Diagram illustrating a mechanical assembly with labeled components and a magnified inset showing internal components.

Instructions for use:

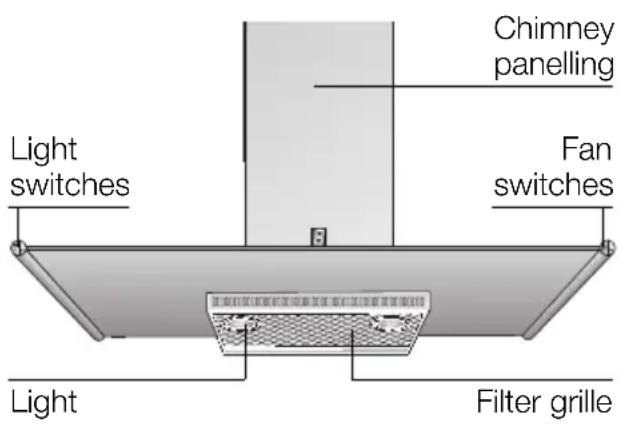

Appliance description

Light switches Chimney panelling Fan switches Light Filter grille

Operating modes

Exhaust-air mode:

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.
☐ The grease filter absorbs the solid particles in the kitchen vapours.
☐ The kitchen is kept almost free of grease and odours.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

Operating modes

This can be achieved if the combustion air is able to flow through non-lockable openings, e.g. in doors, windows and in conjunction with an air supply/air-intake wall box or by other technical procedures such as reciprocal interlocking.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

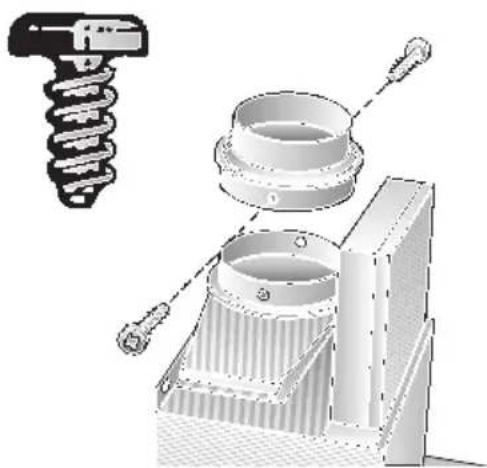

Circulating-air mode:

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).

⚠️ The complete installation set and replacement filters can be obtained from specialist outlets.

The corresponding accessory numbers can be found at the end of these operating instructions.

☐ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen.
☐ The grease filter absorbs the grease particles in the kitchen vapours.
☐ The activated carbon filter binds the odorous substances.

⚠️ If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

Important notes:

☐ The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
☐ This extractor hood complies with all relevant safety regulations.

Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

⚠️ Do not use the appliance if damaged.

⚠ The appliance is not intended for use by young children or infirmed persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

⚠ The appliance may be connected to the mains by a qualified technician only.

⚠ Dispose of packaging materials properly (see Installation instructions).

⚠ This extractor hood is designed for domestic use only.

Light bulbs must always be fitted when the extractor hood is in use.

⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.

⚠️ Never operate the extractor hood without a grease filter.

⚠️ Overheated fat or oil can easily catch fire.

If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.

Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.
☐ Please retain the operating and installation instructions for a subsequent owner.

⚠️ Never allow children to play with the appliance.

Do not let adults or children operate the appliance unsupervised:

• if they are mentally or physically unable to use the appliance safely and correctly,
• if they don't have the knowledge and experience to use the appliance safely and correctly.

⚠ Do not flambé food directly under the extractor hood.

! Risk of grease filter catching fire due to flames.

⚠ The hotplates must always be covered with a utensil.

⚠️ Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Gas hobs / Gas cookers

Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

Operating procedure

⚠ The most effective method of removing vapours produced during cooking is to:

☐ Switch the ventilator ON as soon as you begin cooking.
☐ Switch the ventilator OFF a few minutes after you have finished cooking.

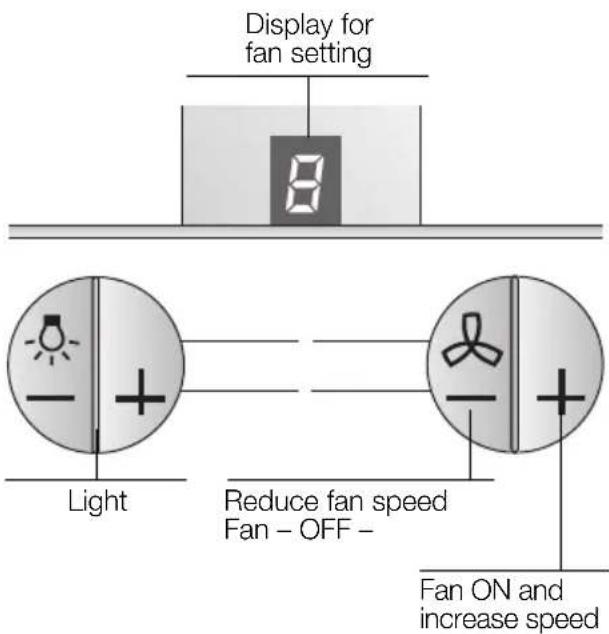

Display for fan setting 8 Light Reduce fan speed Fan - OFF - Fan ON and increase speed

Acoustic signal:

☐ When a button is pressed, this is verified by an acoustic signal.

Switching off the acoustic signal:

□ Simultaneously press buttons ⚙ – and ⚙– until a signal is emitted after approx. 3 seconds.

Switching on the acoustic signal:

☐ Repeat the process.

Setting the required fan speed:

- Press the ⚠+ button. The fan speed is increased by one step. - Press the ⚠- button. The fan speed is reduced by one step.

- Keep pressing the fan switches off. The displayed ☐ goes out shortly afterwards.

Intensive setting:

Maximum power is obtained at the intensive setting. It is only required for short intervals.

□ Keep pressing the 🔒+ button until a 🔒 appears in the display.
☐ If the intensive setting is not cancelled by hand, the fan will automatically switch back to step 2 after 10 minutes.

Lighting:

☐ The light can be switched on at any time, even though the fan is switched off.
☐ Adjusting the brightness: Hold down the ⚙ + or ⚙ - button until the desired brightness is obtained.

Filters and maintenance

Grease filters:

Metal filters are used to trap the greasy element of the vapours that develop during cooking.

The filter mats are made from non-combustible metal.

Caution:

As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected.

Important:

By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Saturation indicator: =

When the grease filters reach saturation point, an acoustic signal is sounded for 6 seconds after the fan has switched off, and an = appears in the display. The grease filters should be cleaned straight away.

Cleaning the metal grease filters:

☐ In normal operation (1 to 2 hours daily), the metal grease filter must be cleaned 1 x a month.

☐ The filters can be cleaned in a dish-washer. It is however possible that they will become slightly discoloured.

☐ The filter must be placed loosely, and NOT wedged, in the dishwasher.

Important:

Metal filters that are saturated with grease should not be washed together with other dishes etc.

☐ When cleaning the filters by hand, soak them in hot soapy water first of all. Do not use aggressive, acidic or caustic cleaners. Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

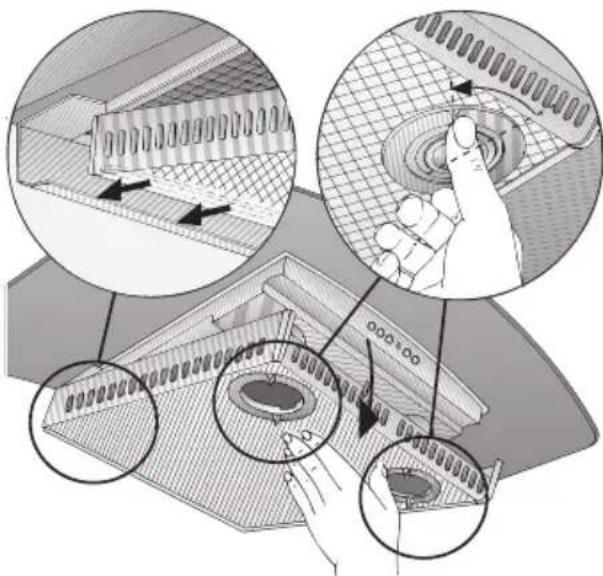

Removing and inserting the metal grease filters:

Warning: The halogen bulbs must be switched off and cool.

1. Rotate the two catches on the grease filter and remove the grease filter. At the same time take hold of the underside of the grease filters with your other hand.

Diagram showing three views of a mechanical component with arrows indicating assembly or adjustment, no text or symbols present.

1. Clean the grease filter.
2. Re-insert the clean grease filter.
3. Cancel the in the display.
   □ Press the ⚙- button.

Filters and maintenance

Activated carbon filter:

For neutralizing odours in recirculating mode.

Caution:

As the filter becomes more and more saturated with grease, there is an increased risk of fire and the function of the extractor hood may be impaired.

Important:

Change the activated carbon filter promptly to prevent the risk of fire from the accumulation of heat when deep-fat frying or roasting.

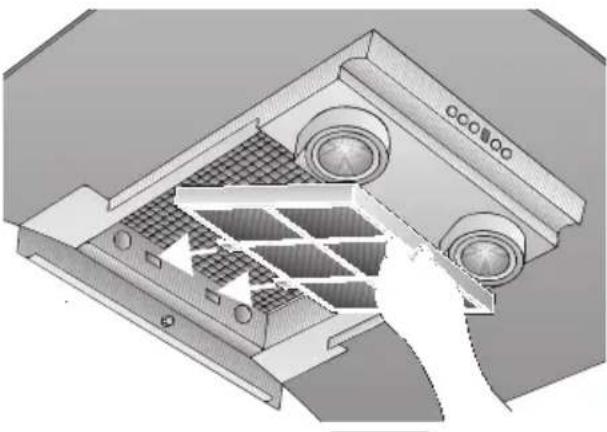

Installation and removal:

Warning: The halogen bulbs must be switched off and cool.

1. Remove the metal filters (see "Removing and inserting the metal grease filters").

2. Insert the activated carbon filter.

Technical diagram of a mechanical component with internal grating and mounting holes (no text or symbols)

1. Engage the lug at the front.

2. Insert the metal grease filters (see "Removing and inserting the metal grease filters").

3. Cancel the in the display.

□ Press the ⚙- button.

Saturation indicator:

When the activated carbon filter reaches saturation point, an acoustic signal is sounded for 6 seconds after the fan has switched off, and a appears in the display. The activated carbon filter should be replaced straight away.

Replacing the activated carbon filter:

☐ During normal operation (1 to 2 hours per day) the activated carbon filters should be replaced approximately 1 x year.

☐ A replacement filter can be obtained from any authorized dealer (see optional accessories).

☐ Use original filters only. By doing so you will obtain maximum performance from your extractor hood.

Disposing of the old activated carbon filter:

☐ There are no pollutants in the activated carbon filters. They can therefore be disposed of as part of your normal domestic refuse.

Isolate the extractor hood by pulling out the mains plug or switching off the fuse.

⚠ Do not clean the extractor hood with abrasive sponges or with cleaning agents which contain sand, soda, acid or chlorine!

☐ Clean the extractor hood with a hot soap solution or a mild window cleaner.
☐ Do not scrape off dried-on dirt but wipe off with a damp cloth.
☐ When cleaning the grease filters, remove grease deposits from accessible parts of the housing. This prevents the risk of fire and ensures that the extractor hood continues operating at maximum efficiency.
☐ Note: Do not use alcohol (spirit) on plastic surfaces, as dull marks may appear.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

☐ Use a mild non-abrasive stainless steel cleaner.
☐ Clean the surface in the same direction as it has been ground and polished.
☐ We recommend our stainless steel cleaner no. 461731. See enclosed service booklet for order address.

Aluminium and plastic surfaces:

☐ Do not use dry cloths.
☐ Use a mild window cleaning agent.
☐ Do not use aggressive, acidic or caustic cleaners.

Observe the warranty regulations in the enclosed service booklet.

Replacing the light bulbs

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.
   When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.
2. Remove the bulb ring with a screwdriver or similar tool.

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

1. Replace the halogen light bulb (conventional halogen bulb, 12 Volt, max. 20 Watt, G4 cap). Caution: Refer for plug-in lampholder. Take hold of the bulb with a clean cloth.

Illustration of a hand holding a tool with a circular component and an arrow indicating rotation (no text or symbols)

1. Re-insert the bulb ring.
2. Plug the appliance into the mains or switch it on at the fuse box.

Note: If the light does not function, check that the bulbs have been inserted correctly.

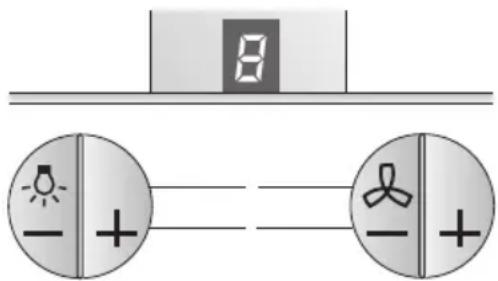

Setting the saturation indicator

If it becomes necessary to change the operating mode (exhaust-air/recirculating mode), the saturation indicator for the filters must also be altered (see Installation Instructions).

If you encounter a problem

If an or appears in the display:

☐ See "Filters and maintenance" Section.

If is not possible to operate the extractor hood:

☐ Disconnect the extractor hood from the mains electricity supply by pulling out the plug or switching it off at the main fuse box. Wait for approx. 1 minute and then switch it on again.

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Important information

⚠️ Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.

⚠️ You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

⚠ The extractor hood can be used in exhaust air or circulating air mode.

⚠️ Always mount the extractor hood over the centre of the hob.

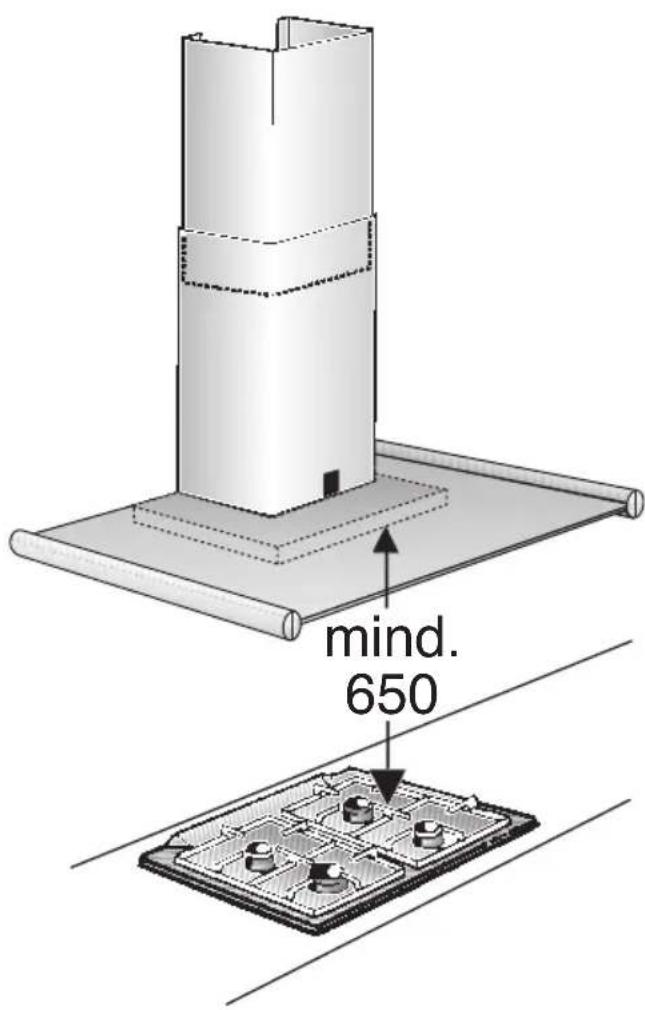

⚠️ Minimum distance between electric hob and bottom edge of extractor hood: 550 mm, Fig. 1.

⚠ The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed.

⚠ The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

Additional information concerning gas cookers:

⚠ When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).

⚠️ Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.

⚠️ Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.

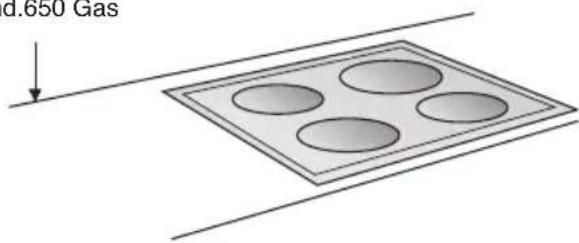

⚠️ Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm, Fig. 1.

Exhaust-air mode

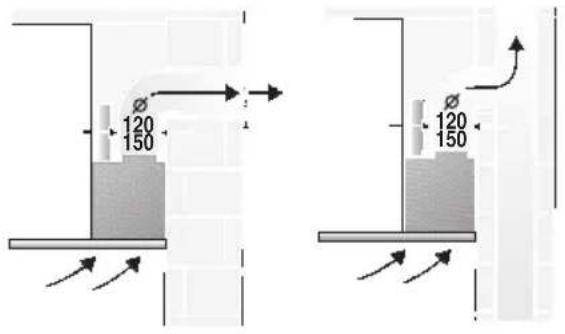

120 150 120 150

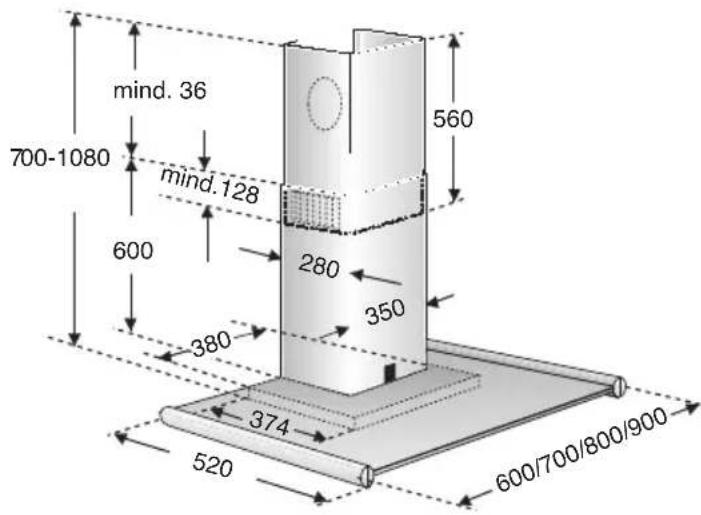

mind. 36 700-1080 mind.128 600 380 280 350 374 520 560 600/700/800/900

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.

Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations).

Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.

For optimum extractor hood efficiency: For optimum extractor hood efficiency:

☐ Short, smooth air exhaust pipe.
☐ As few bends in the pipe as possible.
☐ Diameter of pipe to be as large as possible and no tight bends in pipe. If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Round pipes:
We recommend Internal diameter: 150 mm (at least 120 mm).

☐ Flat ducts must have an internal cross-section that equates to that of round pipes.

There should be no sharp bends.

∅ 120 mm approx. 113 cm

∅ 150 mm approx. 177 cm²

☐ If pipes have different diameters: Insert sealing strip.

☐ For exhaust-air mode, ensure that there is an adequate supply of fresh air.

Circulating-air mode

☐ With activated carbon filter if exhaust-air mode is not possible.

⚠ The complete installation set can be obtained from specialist outlets.

The corresponding accessory numbers can be found at the end of these operating instructions.

Diagram of airflow or heat transfer through a vertical structure with arrows indicating direction (no text or symbols)

Connecting a 150 mm exhaust-air pipe:

☐ Mount the pipe directly onto the air outlet on the hood.

Connecting a 120 mm exhaust-air pipe:

☐ Screw a reducing adapter onto the air outlet on the hood and then connect the exhaust-air pipe.

Technical illustration of a mechanical assembly with a spring-loaded component and a cylindrical housing (no text or symbols)

mind. 128 780-1175 mind.34 600 380 280 350 374 520 560 600/700/800/900

Prior to installation

Preparing the wall

☐ The wall must be flat and perpendicular.
☐ Ensure that the wall is capable of providing a firm hold for mounting screws and plugs.

Weight in kg:

	Exhaust air	Recirculating air
	21,060 cm	22,5
70 cm	22,0 23,5
80 cm 2	3,0 24,5
90 cm 2	4,0 25,5

We reserve the right to construction changes within the context of technical development.

Changing over from exhaust-air to recirculating mode

Changing the electronic control system to recirculating mode:

☐ The standard factory setting is for operation in exhaust-air mode.
☐ To change the mode, the extractor hood must have been connected up and should be switched off.

8 - + - +

1. Press and hold the ⚠- and ⚠+ button.
2. While ☐ is displayed, press the ⚙ – button until ☐ is displayed. When this has taken place, release the buttons.
   ☐ goes out shortly afterwards. The electronic control system will then have been set to recirculating mode.
   ☐ By repeating steps 1 and 2, you can change the electronic control system back to exhaust-air mode (= in display).

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in accordance with the following code:

$$ \begin{array}{l} \text { Green and Yellow - Earth } \ \text {Blue - Neutral} \ \text { Brown - Live } \ \end{array} $$

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

This is what you have to do:

1. Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol (≡), or coloured green or green and yellow.
2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.
3. Connect the brown (Live) wire to the terminal marked 'L', or coloured red.

The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations.

If possible, site the earthed socket directly above the chimney panelling in the ceiling.

Electrical data:

Are to be found on the name plate inside the appliance after removal of the filter frame.

⚠️ Before undertaking any repairs, always disconnect the extractor hood from the electricity supply.

Length of the connecting cable: 1.30 m. If it is necessary to wire the extractor hood directly into the mains:

The extractor hood should only be connected to the electricity supply by a properly qualified electrician.

A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

This extractor hood corresponds to EC regulations concerning RF interference suppression.

Installation

This extractor hood is intended to be mounted onto the kitchen wall.

1. Remove the grease filter (refer to Operating Instructions).
2. Draw a line on the wall from the ceiling to the lower edge of the hood at the centre of the location where the hood is going to be mounted.
3. Use the template to mark the points on the wall where the screws will be mounted. In order to make it easier to hook the hood onto the screws, draw the outline of the area where the hood will be attached.

⚠ Ensure that the minimum distance between the hob and the extractor hood is maintained – 550 mm for an electric hob and 650 mm for a gas hob. The bottom edge of the template equates to the lower edge of the extractor hood.
4. Drill 4 x ∅ 8 mm holes for the extractor hood and 2 x ∅ 8 mm holes for the chimney panelling. Insert plugs into the holes so that they are flush with the wall.

23 300 172 455 68 150

mind.550 Elektro mind.650 Gas

d.650 Gas

Note: Take into account any special accessories that are going to be fitted.

1. Screw on the upper and the two lower fixing brackets.

Technical diagram illustrating the assembly of a screw and pin tool, showing how to install or repair components.

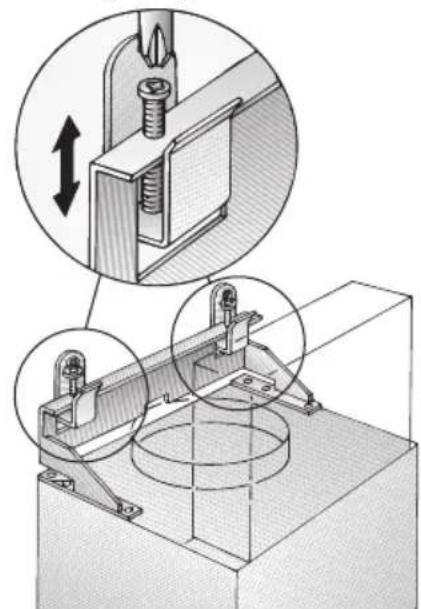

1. Attach the extractor hood. Adjust the height and align horizontally with the adjusting screws.

Technical diagram showing mechanical assembly with two views of a component, no visible text or symbols

⚠ The glass screen must not touch the wall.

Installation

1. Screw in lower screws (hex screws).

⚠️ If any pressure is exerted on the glass screen when tightening the screws it could lead to glass breakage.

1. Stick protective film over the holes of the 2 lower mounting bolts in the protective grid.

Technical diagram illustrating a mechanical assembly process with labeled steps 1 and 2, showing components like gears and springs.

1. Connect up the air outlet pipe.

2. Connect the hood to the electricity supply.

3. Remove the protective film from the two flue ducts.

⚠️ Take care not to damage the stainless steel surfaces which are susceptible to scratches etc.

1. Insert the upper flue duct (slots downwards) into the lower flue duct.

⚠️ Protect the cover panels from scratches, for example by laying the template used for marking the wall over the top edge of the lower section.

1. Insert the complete flue duct at an angle into the glass shield and swivel backwards.

1. 2. 3.

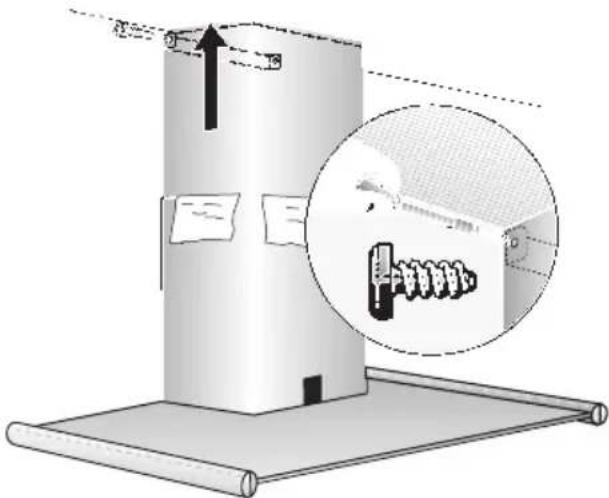

1. Carefully pull the upper flue duct upwards and screw the sides to the fixing bracket with 2 screws.

Diagram illustrating a mechanical or electrical setup with labeled components and a magnified inset showing a spring mechanism.

1. Insert the grease filter (refer to Operating Instructions).

Ventilation intensive:

Illustration of a mechanical assembly with three views showing internal components and a hand interacting with a component (no text or symbols present)

Technical illustration of a mechanical component with a hand interacting with it, showing internal structure and mounting holes (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a tool with a circular component and an arrow indicating rotation (no text or symbols)

120 mm φ = 113 crde section 150 mm φ = 177 crde section.

Technical illustration of a mechanical assembly with a spring and housing component (no text or symbols)

Mode Air recyclé

Diagram of airflow or heat transfer through a vertical structure with directional arrows (no text or symbols)

mind. 128 780-1175 mind.34 600 280 350 380 374 520 560 600/700/800/900

Avant le montage

Préparation du mur

Illustration of a hand using a screwdriver to adjust a mechanical component, with no text or symbols present.

Technical diagram showing mechanical assembly with magnified views of components (no text or symbols)

Technical diagram illustrating screw installation steps with magnified views of components and labeled parts

Diagram illustrating a mechanical assembly with labeled parts and a magnified inset showing a gear mechanism.

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating process steps.

Technical diagram of a mechanical component with internal grating and mounting holes (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Let op: plugfitting.

Illustration of a hand holding a screwdriver with a circular component and an arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical assembly with a spring and housing component (no text or symbols)

Technical diagram illustrating the assembly of screw fasteners with labeled components and a close-up view of the assembly.

Technical illustration of a mechanical assembly with two views showing internal components and a circular component (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled steps and magnified views of components

Diagram illustrating a mechanical assembly with labeled parts and a magnified inset showing a gear mechanism.

Technical illustration of a mechanical assembly with three circular views showing internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical component with internal grating and mounting holes (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a screwdriver with a circular component above it, no text or symbols present

Technical illustration of a mechanical assembly with a spring and housing component (no text or symbols)

Diagram of airflow or fluid flow through a vertical structure with directional arrows (no text or symbols)

mind. 128 780-1175 mind.34 600 280 350 380 374 520 560 600/700/800/900

Prima del montaggio

Technical diagram illustrating the assembly of screw fasteners with labeled parts and a close-up view of the fastener being handled.

Technical diagram showing mechanical assembly with two views of a component, no visible text or symbols

Technical diagram illustrating mechanical assembly steps with labeled components and magnified views

Diagram illustrating a mechanical or electrical device with labeled components and an inset showing a magnified view of a component.

Technical illustration of a mechanical assembly with three circular views showing internal components and a hand interacting with a component (no text or symbols present)

Technical diagram of a mechanical component with internal channels and mounting holes (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a tool interacting with a circular device (no text or symbols visible)

Technical illustration of a mechanical assembly with threaded component and housing (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows and a central block, no text or symbols present.

les mind. 128 780-1175 mind.34 600 280 350 380 374 520 560 600/700/800/900

Antes del montaje

d.050 gas

Diagram illustrating the assembly of screw and pin components, showing how they are assembled into a bracket with fasteners.

Technical diagram showing mechanical assembly with two views of a component, no visible text or symbols

Technical diagram illustrating a mechanical assembly process with labeled steps and magnified views of components

Diagram illustrating a mechanical assembly with labeled parts and a magnified inset showing a gear mechanism.

Technical diagram illustrating a door handle mechanism with magnified views of the component being handled, including tool insertion and adjustment steps.

Technical diagram of a mechanical component with internal grating and mounting holes (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a tool with a circular component and an arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical assembly with a spring-loaded component and a cylindrical housing (no text or symbols)

Technical diagram illustrating the assembly of screw fasteners with labeled components and motion indicators

Technical illustration of a mechanical assembly with two views showing internal components and a circular component (no text or symbols)

Technical diagram illustrating a mechanical assembly with labeled components and step-by-step instructions for inspection or repair.

Diagram illustrating a mechanical assembly or installation with labeled components and an inset magnified view showing internal components.

Online-Shop: www.siemens-eshop.com
