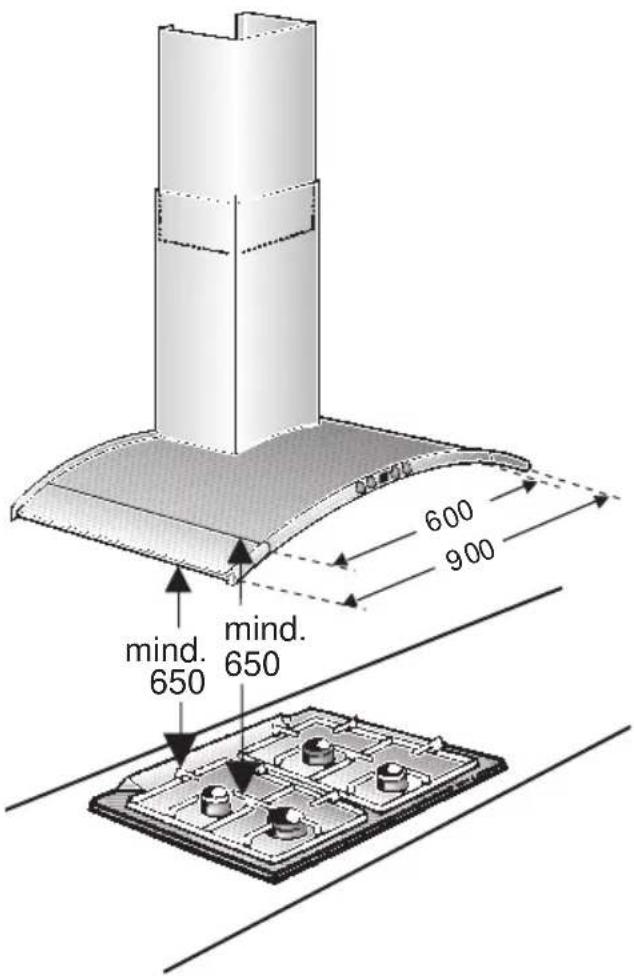

600 900 mind. 650 mind. 650

ELEKTRO

ELECTR.

ELETT.

EL.

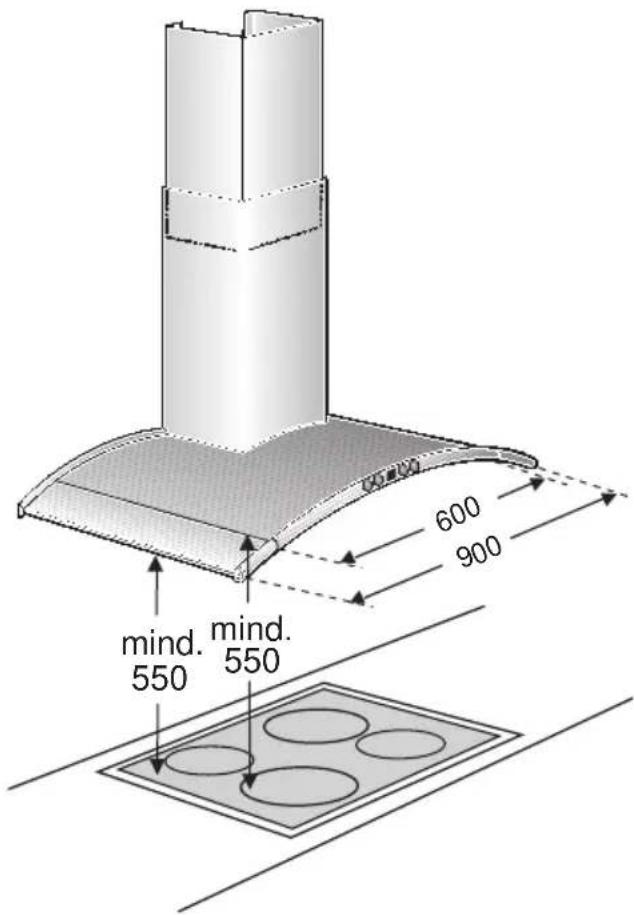

600 900 mind. mind. 550 550

Gebrauchsanleitung:

Illustration of a computer screen with three circular insets showing hand positioning and editing (no text or symbols)

Illustration of a hand holding a tool interacting with a grid-patterned device (no text or symbols visible)

Illustration of a hand holding a small object over a grid-patterned panel (no text or symbols visible)

Illustration of a circular object with a handle and textured surface, resembling a stylized lamp or filter (no text or symbols)

Illustration of a hand holding a device with a curved arrow pointing to a circular component (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Technical diagram illustrating the assembly of a screw and pin assembly with labeled components and motion indicators.

Technical diagram showing mechanical assembly with circular components and directional arrows (no text or symbols)

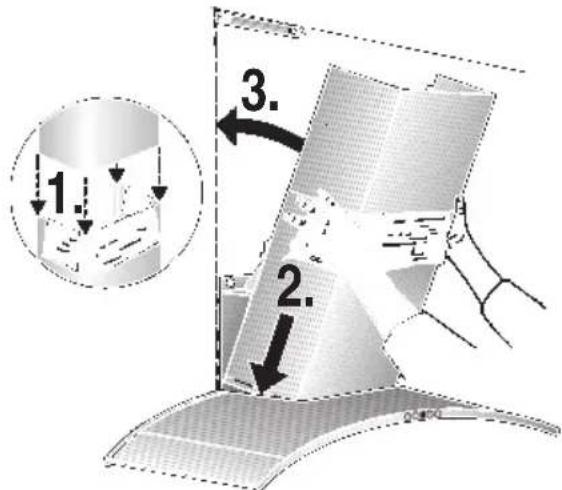

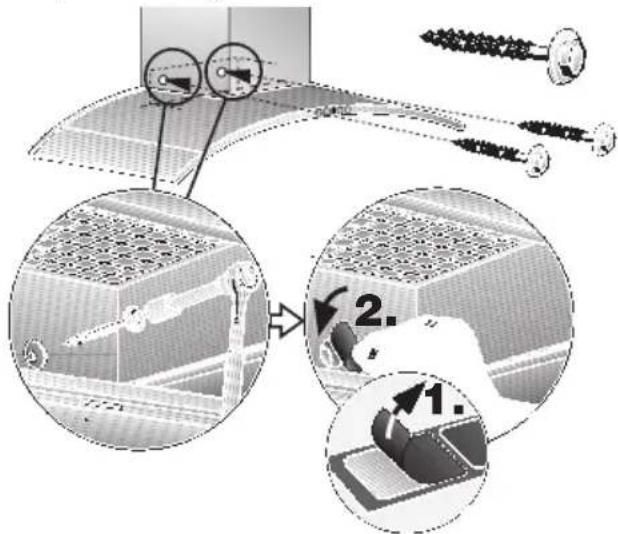

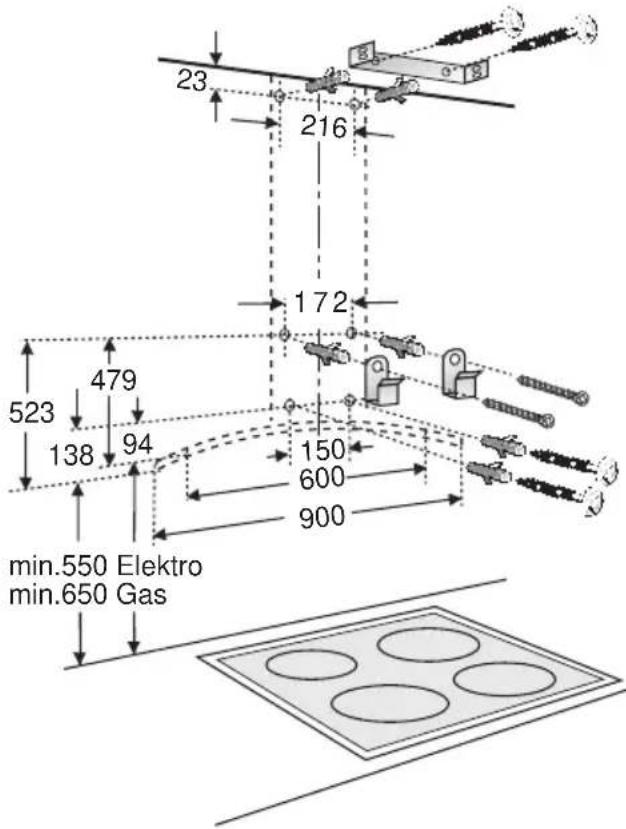

Einbauen

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram of a mechanical device with an inset showing a close-up view of a tool interacting with a component (no text or symbols present)

Instructions for use:

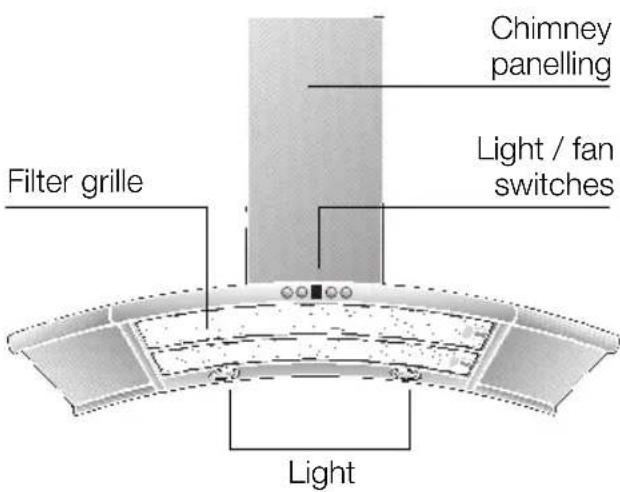

Appliance description

Chimney panelling Light / fan switches Filter grille Light

Operating modes

Exhaust-air mode:

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.

☐ The grease filter absorbs the solid particles in the kitchen vapours.

☐ The kitchen is kept almost free of grease and odours.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

Operating modes

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

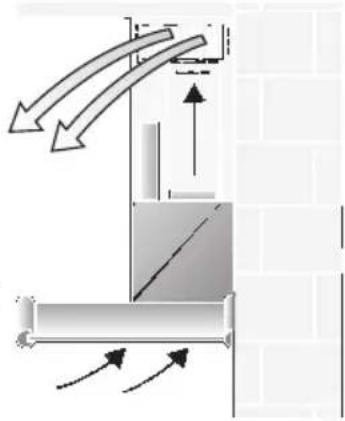

Circulating-air mode:

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).

⚠ The complete installation set and replacement filters can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these operating instructions.

☐ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen.

☐ The grease filter absorbs the grease particles in the kitchen vapours.

☐ The activated carbon filter binds the odorous substances.

⚠️ If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

Important notes:

☐ The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
☐ This extractor hood complies with all relevant safety regulations.

Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

⚠ The appliance is not intended for use by young children or infirmed persons without supervision.
Young children should be supervised to ensure they do not play with the appliance.
⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.
⚠ The appliance may be connected to the mains by a qualified technician only.
⚠ Dispose of packaging materials properly (see Installation instructions).
⚠ This extractor hood is designed for domestic use only.
Light bulbs must always be fitted when the extractor hood is in use.
⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.
⚠️ Never operate the extractor hood without a grease filter.
⚠️ Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.
⚠️ Do not flambé food directly under the extractor hood.

! Risk of grease filter catching fire due to flames.

⚠ The hotplates must always be covered with a utensil.

Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.
☐ Please retain the operating and installation instructions for a subsequent owner.

⚠️ Do not use the appliance if damaged.

⚠️ Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Gas hobs / Gas cookers

Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

If you encounter a problem

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

Operating procedure

⚠ The most effective method of removing vapours produced during cooking is to:

☐ Switch the ventilator ON as soon as you begin cooking.
☐ Switch the ventilator OFF a few minutes after you have finished cooking.

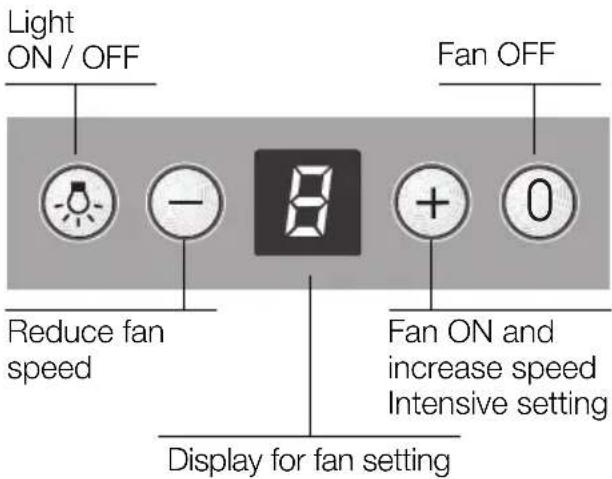

Light ON / OFF Fan OFF Reduce fan speed 8 + 0 Fan ON and increase speed Intensive setting Display for fan setting

Setting the required fan speed:

☐ Press the + button. The fan speed is increased by one step.
☐ Press the – button. The fan speed is reduced by one step.

☐ Press the 0 button. Or:
- Keep pressing the – button until the fan switches off.

Intensive setting:

Maximum power is obtained at the intensive setting. It is only required for short intervals.

☐ Keep pressing the + button until a ^2 appears in the display.
☐ If the intensive setting is not cancelled by hand, the fan will automatically switch back to step 2 after 10 minutes.

Lighting:

☐ Press the ⚙ button to switch the light on or off.
☐ The light can be switched on at any time, even though the fan is switched off.

Filters and maintenance

Grease filters:

Metal filters are used to trap the greasy element of the vapours that develop during cooking.

The filter mats are made from non-combustible metal.

Caution:

As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected.

Important:

By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Cleaning the metal grease filters:

☐ In normal operation (1 to 2 hours daily), the metal grease filter must be cleaned after 8 to 10 weeks.
☐ The filters can be cleaned in a dish-washer. It is however possible that they will become slightly discoloured.
☐ The filter must be placed loosely, and NOT wedged, in the dishwasher.

Important:

Metal filters that are saturated with grease should not be washed together with other dishes etc.

☐ When cleaning the filters by hand, soak them in hot soapy water first of all. Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

Filters and maintenance

Removing and inserting the metal grease filters:

Warning: The halogen bulbs must be switched off and cool.

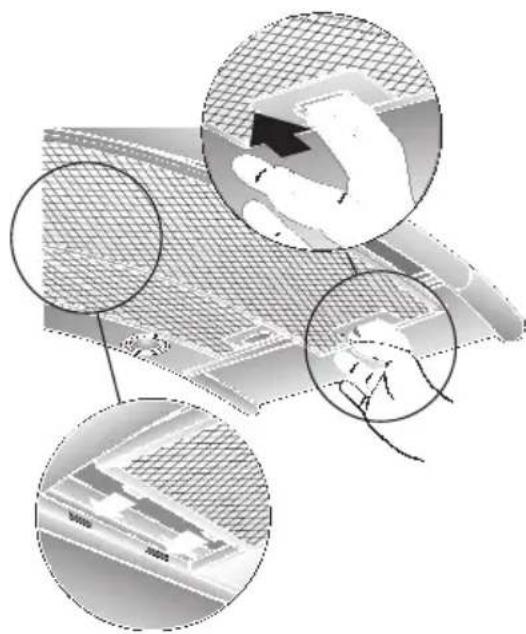

1. Press the catch on the grease filters inwards and fold the filters down.

Diagram showing three views of a grid-patterned device with hand gestures, no text or symbols present

1. Clean the filters.
2. Insert the clean filters back into the hood.

Activated carbon filter:

For neutralizing odours in recirculating mode.

Caution:

As the filter becomes more and more saturated with grease, there is an increased risk of fire and the function of the extractor hood may be impaired.

Important:

Change the activated carbon filter promptly to prevent the risk of fire from the accumulation of heat when deep-fat frying or roasting.

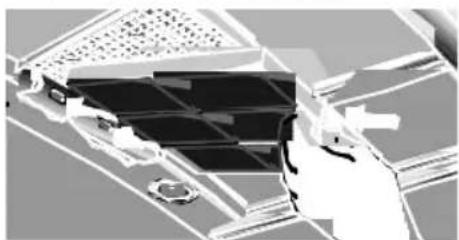

Inserting the filter:

Warning: The halogen bulbs must be switched off and cool.

1. Remove the metal-mesh filters (see "Removing and inserting the metal-mesh grease filters").
2. Insert the activated carbon filter.

Architectural rendering of a building facade with window grilles and structural elements (no text or symbols visible)

1. Engage the lug at the front.
2. Insert the metal grease filters (see "Removing and inserting the metal grease filters").

Removing the filter:

Warning: The halogen bulbs must be switched off and cool.

1. Remove the metal filters.
2. Press in the lug at the front and remove the activated carbon filter.

Abstract geometric pattern with intersecting lines and shapes (no text or symbols)

1. Insert the metal grease filters.

Replacing the activated carbon filter:

☐ During normal operation (1 to 2 hours per day) the activated carbon filters should be replaced approximately 1 x year.
☐ A replacement filter can be obtained from any authorized dealer (see optional accessories).
□ Use original filters only. By doing so you will obtain maximum performance from your extractor hood.

Disposing of the old activated carbon filter:

☐ There are no pollutants in the activated carbon filters. They can therefore be disposed of as part of your normal domestic refuse.

Cleaning and care

Disconnect the extractor hood from the electricity supply by pulling out the mains plug or switching it off at the fuse box.

☐ At the same time as you clean the grease filters, clean off any grease from all accessible parts of the housing. This significantly reduces the fire hazard and ensures that the extractor hood performs as effectively as possible.
☐ Use a hot detergent solution or a mild window cleaner to clean the canopy of the extractor hood.
☐ Do not scrape off any dirt that has dried on but loosen it up with a damp cloth.
☐ Do not use abrasive cleaning agents or sponges that could cause scratches.
☐ Note: Do not use alcohol (spirit) on plastic parts, otherwise the surface may become matt in appearance.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

☐ Use a mild non-abrasive stainless steel cleaner.
□ Clean the surface in the same direction as it has been ground and polished.

Do not use any of the following to clean stainless steel surfaces: abrasive sponges, cleaning agents containing sand, soda, acid or chloride!

Aluminium and plastic surfaces:

☐ Use a soft, non-linting window cloth or micro-fibre cloth.
☐ Do not use dry cloths.
☐ Use a mild window cleaning agent.
☐ Do not use aggressive, acidic or caustic cleaners.
☐ Do not use abrasive agents.

Replacing the light bulbs

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.
   When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.
2. Remove the bulb ring with a screwdriver or similar tool.

Illustration of a magnifying glass with handle and circular lens (no text or symbols)

1. Replace the halogen light bulb (conventional halogen bulb, 12 Volt, max. 20 Watt, G4 cap). Caution: Refer for plug-in lampholder. Take hold of the bulb with a clean cloth.

Illustration of a hand holding a small object with a curved arrow pointing to a circular component (no text or symbols)

1. Re-insert the bulb ring.
2. Plug the appliance into the mains or switch it on at the fuse box.

Note: If the light does not function, check that the bulbs have been inserted correctly.

Important information

⚠️ Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.

⚠️ You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

⚠ The extractor hood can be used in exhaust air or circulating air mode.

⚠️ Always mount the extractor hood over the centre of the hob.

⚠️ Minimum distance between electric hob and bottom edge of extractor hood: 550 mm, Fig. 1.

⚠ The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed.

⚠ The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

Additional information concerning gas cookers:

⚠ When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).

⚠️ Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.

⚠️ Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.

⚠️ Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm, Fig. 1.

Exhaust-air mode

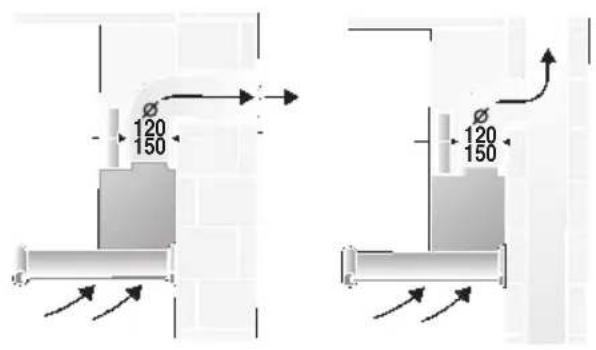

120 150 120 150

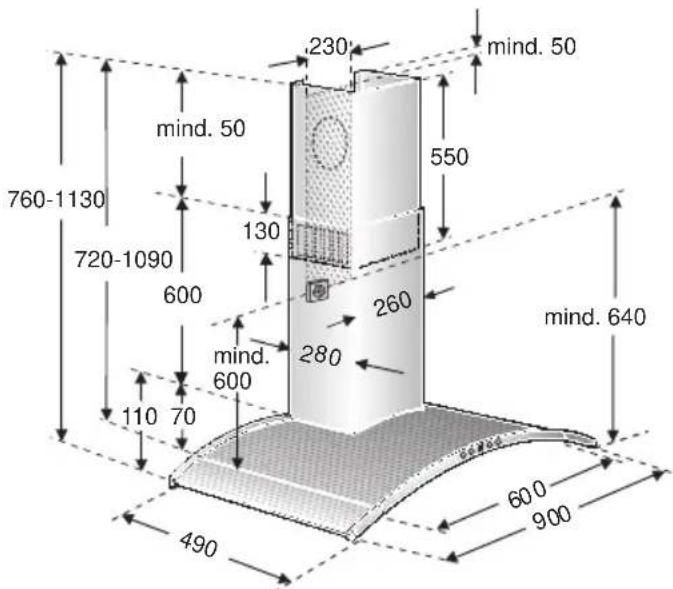

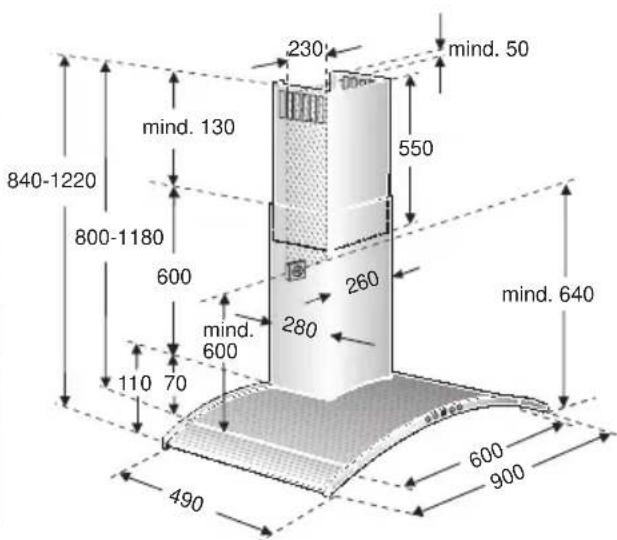

230 mind. 50 mind. 50 760-1130 130 550 720-1090 600 260 mind. 640 mind. 600 280 110 70 490 600 900

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.

Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations).

Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.

Prior to installation

For optimum extractor hood efficiency:

☐ Short, smooth air exhaust pipe.
☐ As few bends in the pipe as possible.
☐ Diameter of pipe to be as large as possible and no tight bends in pipe. If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

Round pipes:

We recommend Internal diameter: 150 mm (at least 120 mm).

☐ Flat ducts must have an internal cross-section that equates to that of round pipes.

There should be no sharp bends.

∅ 120 mm approx. 113 cm

∅ 150 mm approx. 177 cm

☐ If pipes have different diameters: Insert sealing strip.

☐ For exhaust-air mode, ensure that there is an adequate supply of fresh air.

Circulating-air mode

☐ With activated carbon filter if exhaust-air mode is not possible.

⚠️ The complete installation set can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these operating instructions.

Diagram of airflow or heat transfer through a stepped structure with directional arrows (no text or symbols)

Connecting a 150 mm exhaust-air pipe:

☐ Mount the pipe directly onto the air outlet on the hood.

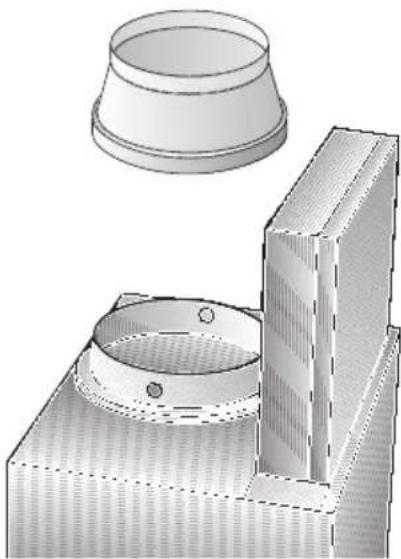

Connecting a 120 mm exhaust-air pipe:

☐ Attach the reducing connector directly to the air pipe.

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

☐ Attach the exhaust-air pipe to the reducing connector.

230 mind. 50 mind. 130 840-1220 550 800-1180 600 260 mind. 640 mind. 600 280 110 70 490 600 900

Prior to installation

Preparing the wall

☐ The wall must be flat and perpendicular.
☐ Ensure that the wall is capable of providing a firm hold for mounting screws and plugs.

Weight in kg:

	Exhaust air	Recirculating air
		19,218,760 cm
		20,920,490 cm

We reserve the right to construction changes within the context of technical development.

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow – Earth Blue – Neutral Brown – Live

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

This is what you have to do:

1. Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol (≡), or coloured green or green and yellow.
2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.
3. Connect the brown (Live) wire to the terminal marked 'L', or coloured red.

The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations.

If possible, site the earthed socket directly behind the chimney panelling.

Electrical data:

Are to be found on the name plate inside the appliance after removal of the filter frame.

⚠️ Before undertaking any repairs, always disconnect the extractor hood from the electricity supply.

Length of the connecting cable: 1.30 m. If it is necessary to wire the extractor hood directly into the mains:

The extractor hood should only be connected to the electricity supply by a properly qualified electrician.

A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

This extractor hood corresponds to EC regulations concerning RF interference suppression.

Installation

This extractor hood is intended to be mounted onto the kitchen wall.

1. Remove the grease filter (refer to Operating Instructions).

2. Draw a line on the wall from the ceiling to the lower edge of the hood at the centre of the location where the hood is going to be mounted.

3. Use the template to mark the points on the wall where the screws will be mounted. In order to make it easier to hook the hood onto the screws, draw the outline of the area where the hood will be attached.

⚠ Ensure that the minimum distance between the hob and the extractor hood is maintained – 550 mm for an electric hob and 650 mm for a gas hob. The bottom edge of the template equates to the lower edge of the extractor hood.
4. Drill 4 x ∅ 8 mm holes for the extractor hood and 2 x ∅ 8 mm holes for the chimney panelling. Insert plugs into the holes so that they are flush with the wall.

23 216 172 523 479 138 94 min.550 Elektro min.650 Gas 150 600 900

Note: Take into account any special accessories that are going to be fitted.

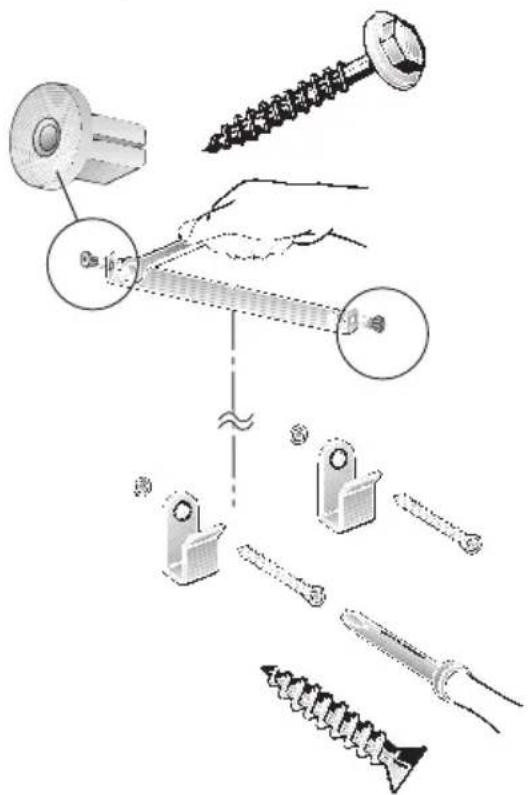

1. Attach the 2 enclosed spacers to the fixing bracket for the flue duct panelling. Attach the fixing bracket for the chimney panelling using two hexagon head cap screws.

Diagram illustrating the assembly of screw and pin components with labeled parts and motion arrows

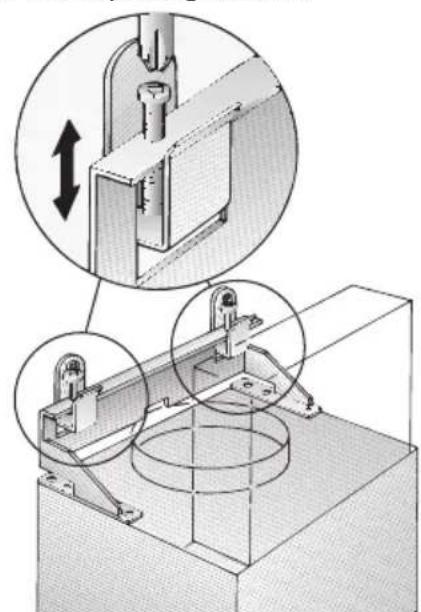

1. Attach the extractor hood. Adjust the height and align horizontally with the adjusting screws.

Technical diagram showing mechanical assembly with circular components and directional arrows (no text or symbols)

Installation

1. Screw in lower screws (hex screws).
2. Stick protective film over the holes of the 2 lower mounting bolts in the protective grid.

Technical diagram illustrating a mechanical assembly process with labeled steps 1 and 2, showing components like screws, bolts, and a grid structure.

1. Connect up the air outlet pipe.

2. Connect the hood to the electricity supply.

3. Remove the protective film from the two flue ducts.
   ⚠️ Take care not to damage the surfaces which are susceptible to scratches etc.

4. Push both sections of the flue panelling together (slots in the upper section must be pointing downwards) and insert into the opening in the extractor hood.
   ⚠️ Protect the cover panels from scratches, for example by laying the template used for marking the wall over the top edge of the lower section.

1. 2. 3.

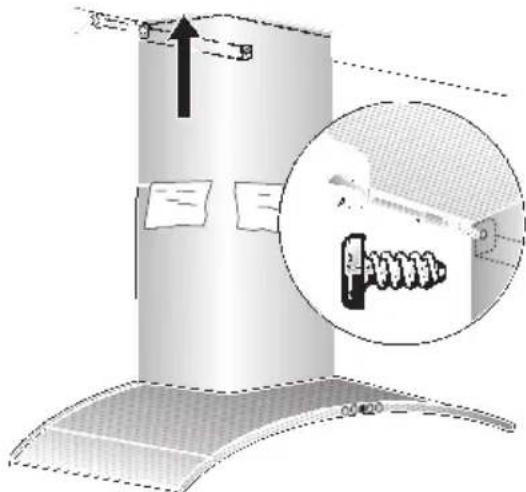

1. Slide out the upper section and attach it to the mounting brackets at the sides with two screws.

Diagram illustrating a mechanical assembly with labeled parts and a magnified inset showing a spring mechanism.

1. Insert the grease filter (refer to Operating Instructions).

Mode d'emploi:

Ventilation intensive:

Close-up of a computer keyboard with three circular insets showing hand pressing on the screen (no text or symbols visible)

Illustration of a hand holding a solar panel over a circuit board (no text or symbols visible)

Illustration of a hand installing or adjusting solar panel panels on a grid (no text or symbols visible)

Illustration of a circular object with a handle and textured surface, resembling a stylus or magnifying glass (no text or symbols)

Illustration of a hand holding a device with a circular component and an arrow indicating rotation (no text or symbols)

Diagram of airflow or heat transfer through a stepped structure with directional arrows (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Diagram illustrating the assembly of screw and nut components with labeled parts and motion arrows

Technical diagram showing mechanical assembly with two views of a bracket and a circular component (no text or symbols)

Encastrement

Technical diagram illustrating a mechanical assembly process with labeled steps 1 and 2, showing components like bolts, screws, and a grid structure.

Diagram of a cylindrical device with an arrow indicating upward motion, showing internal components and a magnified inset of a mechanical component (no text or symbols present)

Three circular diagrams showing a hand interacting with a grid-patterned device, one pointing at a device and the other on a screen (no text or symbols present)

Architectural diagram showing a hand holding a wall-mounted panel or fixture (no text or symbols visible)

Abstract geometric pattern with intersecting lines and shapes (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Let op: plugfitting.

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

3D technical illustration of a mechanical assembly with a conical component and a stepped base (no text or symbols)

Diagram illustrating the assembly of screw and nut components with labeled parts and motion arrows

Technical diagram showing mechanical assembly with two views of a bracket and mounting base (no text or symbols)

Inbouwen

Diagram illustrating a mechanical assembly process with labeled steps 1 and 2 showing components like bolts, screws, and a grid structure.

Technical diagram showing a cylindrical device with an inset close-up of its internal structure, labeled in Chinese.

Diagram showing three views of a grid-patterned device with hand gestures, no text or symbols present

Illustration of a hand interacting with a solar panel array (no text or symbols visible)

Close-up of a hand installing or adjusting a solar panel array (no visible text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a device with a circular component and an arrow indicating rotation (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Diagram of airflow or heat transfer through a stepped structure with directional arrows (no text or symbols)

230 mind. 50 mind. 130 550 840-1220 800-1180 600 260 mind. 600 280 mind. 640 110 70 490 600 900

Prima del montaggio

Technical diagram illustrating the assembly of screw and nut components with labeled parts and motion arrows

Technical diagram showing mechanical assembly with cross-sectional views and directional arrows (no text or symbols)

Montaggio

Diagram illustrating a mechanical assembly process with labeled steps 1 and 2, showing components like bolts, springs, and a grid-like structure.

Diagram illustrating a mechanical assembly with labeled parts and an inset showing a magnified view of a spring-loaded component.

Three circular diagrams showing a hand interacting with a grid-patterned device, one pointing at a screen, another with a magnified view of the device (no text or symbols present)

Architectural diagram showing a hand holding a wall-mounted device (no text or symbols visible)

Abstract geometric pattern with intersecting lines and shapes (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a cable with a magnified circular component and an arrow indicating rotation (no text or symbols)

Diagram of airflow or mechanical motion with arrows indicating direction, no text or symbols present

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Diagram illustrating the assembly of screw and nut components with labeled parts and motion arrows

Technical diagram showing mechanical assembly with circular components and directional arrows (no text or symbols)

Montaje

Technical diagram illustrating assembly steps of a mechanical component with labeled parts and directional arrows

Diagram illustrating a mechanical assembly with labeled parts and a magnified inset showing a tool interacting with a component.

Three circular diagrams showing a hand interacting with a grid-patterned surface, one with a tool and the other with a tool inserted (no text or symbols present)

Illustration of a hand interacting with a solar panel array (no text or symbols visible)

Hand holding a small object above a grid-patterned ceiling structure (no text or symbols visible)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a connector with a circular component and an arrow indicating rotation (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Diagram illustrating the assembly of screw and nut components with labeled parts and motion arrows

Technical diagram showing mechanical assembly with two views of a bracket and mounting base (no text or symbols)

Τοποθέτηση

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram of a cylindrical device with an arrow pointing upward, showing a magnified inset of its internal components (no text or symbols present)
