USER MANUAL Hydrium 56668 BESTWAY

WE SUGGEST NOT TO RETURNTHE PRODUCT TO THE STOREQUESTIONS? PROBLEMS?MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visitbestwaycorp.com/support

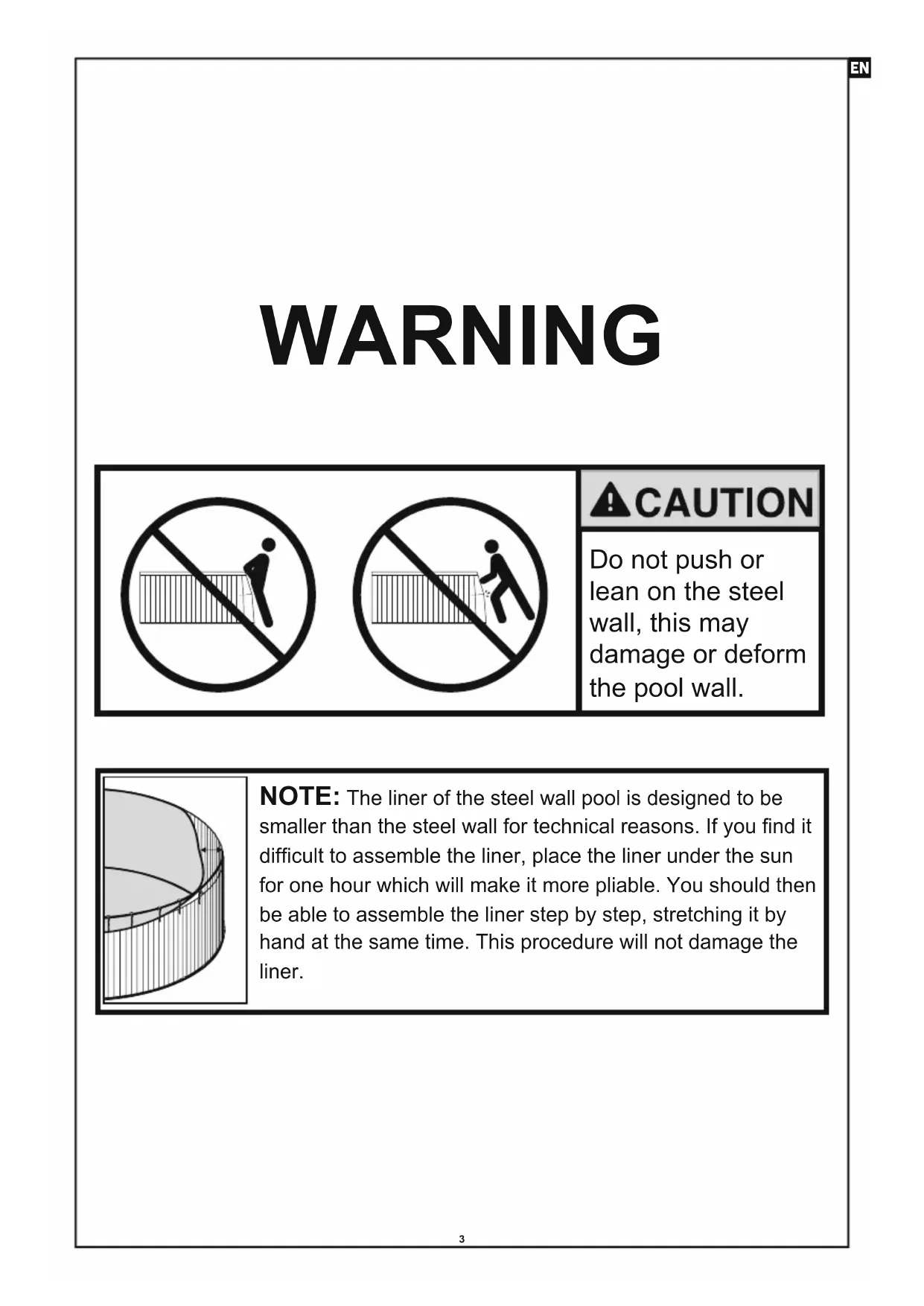

bestwaycorp.com/supportVisit Bestway YouTube channel3 Do not push or lean on the steel wall, this may damage or deform the pool wall. WARNING NOTE: The liner of the steel wall pool is designed to be smaller than the steel wall for technical reasons. If you find it difficult to assemble the liner, place the liner under the sun for one hour which will make it more pliable. You should then be able to assemble the liner step by step, stretching it by hand at the same time. This procedure will not damage the liner. ENWARNING Carefully read, understand, and follow all information in this user manual before installing and using the swimming pool. These warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when enjoying any water activity. Retain this information for future use.Non Swimmers safety- Continuous, active, and vigilant supervision of weak swimmers and non-swimmers by a competent adult is required at all times (remembering that children under five are at the highest risk of drowning).- Designate a competent adult to supervise the pool each time it is being used. - Weak swimmers or non-swimmers should wear personal protection equipment when using the pool.- When the pool is not in use, or unsupervised, remove all toys from the swimming pool and its surrounding to avoid attracting children to the pool.Safety devices - In order to prevent children from drowning, it is recommended to secure the access to the pool with a protection device. In order to prevent children climbing from the inlet and outlet valve, it is recommended to install a barrier (and secure all doors and windows, where applicable) to prevent unauthorized access to the swimming pool.- Barriers, pool covers, pool alarms, or similar safety devices are helpful aids, but they are not substitutes for continuous and competent adult supervision.Safety equipment- It is recommended to keep rescue equipment (e.g. a ring buoy) by the pool.- Keep a working phone and a list of emergency phone numbers near the pool.Safe use of the pool- Encourage all users especially children to learn how to swim.- Learn Basic Life Support (Cardiopulmonary Resuscitation - CPR) and refresh this knowledge regularly. This can make a life-saving difference in the event of an emergency.- Instruct all pool users, including children, what to do in case of an emergency.- Never dive into any shallow body of water. This can lead to serious injury or death.- Do not use the swimming pool when using alcohol or medication that may impair your ability to safely use the pool.- When pool covers are used, remove them completely from the water surface before entering the pool.- Protect pool occupants from water related illnesses by keeping the pool water treated and practicing good hygiene. Consult the water treatment guidelines in the user’s manual.- Store chemicals (e.g. water treatment, cleaning or disinfection products) out of the reach of children.- Use the signage as outlined below. Signage is to be displayed in a prominent position within 2m of the pool. HYDRIUM

- Keep children under supervision in the aquatic environment. No diving.- Removable ladders shall be placed on a horizontal surface.- Irrespective of materials used for swimming pool construction, accessible surfaces have to be checked regularly to avoid injuries.- Regularly monitor bolts and screws; splinters or any sharp edges to avoid injuries.ATTENTION: Do not leave the drained pool outside. The empty pool is liable to being deformed and/or displaced due to wind. - If have a filter pump, refer to the pump’s manual for instructions.WARNING! The pump cannot be used while people are inside the pool! - If have a ladder, refer to the ladder’s manual for instructions. WARNING! The use of a swimming pool implies compliance with the safety instructions described in the operating and maintenance guide. In order to prevent drowning or other serious injuries, pay particular attention to the possibility of unexpected access to the swimming pool by children under 5 years by securing the access to it, and, during the bathing period, keep them under constant adult supervision.Please read carefully and keep for future referenceWE SUGGEST NOT TO RETURNTHE PRODUCT TO THE STOREQUESTIONS? PROBLEMS?MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visitbestwaycorp.com/support

PART LIST Tools Required (not included): Installation usually takes approximately 1 hour with 2-3 people excluding earthworks and fillingRail CoverM6 Cap NutM6x11 BoltControl ValvePool Inlet StrainerPool Outlet StrainerLinerHose Adaptor3M Self-adhesive Tape Rail Steel WallClipsRail Connector

WARNING: Leveling is extremely important.

Carefully select the location for your new pool. This is the most important decision you will have to make to ensure the safety and success of your pool’s construction. A poorly-chosen location could cause problems in the future that may cause injury, death or financial loss. Read carefully the checklist below when selecting where to set up your pool. Acceptable: Flat, level, firm and dry ground with easy access to all sides of the pool Exposed to direct sunlight Access to electricity for running the filter pump and other pool accessories Easy to access to a water source Protection from wind Position the pool near an adequate system to discharge the pool Unacceptable: Sloping, uneven ground Sandy, rocky or soggy ground Close to wooden construction (e.g. pergolas and decking) Next to trees Overhead wires and clotheslines Drains, electric wires or gas pipelines underneath the site Poor or little drainage High flood risk locations High wind conditions NOTE: Remove the higher ground rather than filling the low laying ground. All grass and sod under entire pool area must be removed. 0°6 POOL ASSEMBLY Please refer to diagram steps. IMPORTANT: If the holes on the ends of the steel wall do not align (show in step 4), do not use the screwdriver to align the holes as this will cause damage to the holes themselves. NOTE: If the holes on the ends of the steel wall do not align, simply lift up one of the sides of the steel wall and adjust the space between the rails until the holes align.

#11 #13 #01 #10 #02 #03 #10 #01

#12 6 cm #09 #10 A=B A B8 IMPORTANT: Before connecting the valve to the pool, first fill the pool with water to a level that leaves roughly 5-6 cm (2” - 2.5”) of space between the bottom of the valve and the top of the water surface. WARNING! Never permanently install the connection valve before the water is within a few centimeters of them because the liner has to be properly taut from the pressure of the water. NOTE: Be careful the splinters or any sharp edges when cutting the pool. IMPORTANT: Cutting more liner than necessary will damage and void the pool liner, so please trim with extra care.

Pool Maintenance If you do not adhere to the maintenance guidelines below, your health might be at risk, especially that of your children. Using chemical tablets (not included): NOTE: Chemconnect or Chemical Floater must be used when you perform chemical maintenance with tablets. Your purchased item may not include any of those dispensers, in this case you can purchase it by visiting our website www.bestwaycorp.com or at the nearest pool dealer. IMPORTANT: Don't use granulate tablets or throw the tablet directly in the water. The chemicals can deposit on the bottom, damage the material and discolor the PVC. Using chemical liquid (not included): IMPORTANT: Add chemical liquid in small doses and in the center of the pool to avoid direct contact between the chemicals and the PVC surface. Direct contact can damage the material and discolor the surface. NOTE: Remove the chemical dispenser from pool when the pool is in use. IMPORTANT: After performing chemical maintenance and before using the pool, use a test kit (not included) to test the water chemistry. We recommend maintaining your water according to the following table. Parameters Water clarity Colour of the water Turbidity in FNU/NTU Nitrate concentration above that of fill water in mg/l Total organic carbon (TOC) in mg/l Redox potential against Ag/AgCI 3,5 m KCl in mV pH value Free active chlorine (without cyanuric acid) in mg/l Free chlorine used in combination with cyanuric acid in mg/l Cyanuric acid in mg/l Combined chlorine in mg/l Values clear view of the pool bottom no colour should be observed max. 1,5 (preferably less than 0,5) max. 20 max. 4,0 min. 650 6,8 to 7,6 0,3 to 1,5 1,0 to 3,0 max. 100 max. 0,5 (preferably close to 0,0 mg/l) NOTE: Damage resulting from chemical imbalance is not covered by the warranty. Pool chemicals are potentially toxic and should be handled with care. There are serious health risks from chemical vapors and the incorrect labeling and storage of chemical containers. Please consult your local pool supply retailer for more information about chemical maintenance. Pay close attention to the chemical manufacturer's instructions. Pool damage resulting from misuse of chemicals and mismanagement of pool water is not covered by the warranty. IMPORTANT: Over usage of chemicals can discolor the printing and all points of the pool material. It can also damage the structure of the pool liner. To keep your pool clean: 1. Contact your local pool supply shop for advice and purchase of chemicals and pH kits. One of the most important factors to increase the life of the liner is to keep continuously clean and healthy water. Please strictly follow the instructions from professional technicians for the water treatment through the use of chemicals.

2. Locate a bucket of water next to pool to clean users’ feet before entering pool.

3. Cover the pool when not in use.

4. Skim pool regularly to avoid settled dirt.

5. Check and wash the filter cartridge regularly.

6. Gently clean any scum from below the top ring with a clean cloth.

7. Please be careful in case of rain water, kindly check that the water level is not higher than the expected. If so, YOU HAVE TO DISCHARGE THE EXCESS WATER. 8. If it rains, check that the water level is not higher than the specified level. If water exceeds the specified levels, drain the pool to the specified level.10 RE- ASSEMBLY Carefully inspect your pool to ensure that there are no missing or damaged parts.

1. Follow steps 1 through 8 for assembling the rail and steel wall.

2. Align the holes on both the steel wall and the liner.

3. Assemble the control valve and strainer.

4. Follow steps 9 through 13 and fill the pool with water.

NOTE: If you discover the liner is damaged, please contact our After Sales Service or purchase a new liner.

10 cm #04 #08 Proper maintenance can maximize the life of your pool. During the season of use of the swimming pool, the filtration system must be necessarily put into service every day, enough time to assure at least a complete renewal of the volume of water. NOTE: The pump is used to circulate the water and to filter small particles. In order to keep your pool water clean and hygienic, you must also add chemicals. Repair In the event of a leak, patch your pool using the underwater adhesive repair patch provided. You can find the instructions in FAQs on the support section of our website, www.bestwaycorp.com. WINTERIZATION If you do not want to dismantle the pool in winter, please observe the following instructions: IMPORTANT: Do not drain all of the pool water. If you do so, the pool may be damaged by strong wind. Drain the water to 10cm below the inlet valve on the pool wall.

1. Drain the water to 10cm below the inlet valve on the pool wall. You

can use a pump or a garden hose (Diagrams 19, 20).

2. Treat the pool water with a suitable chemical product.

3. Remove the filtration system from the pool.

You can leave the inlets/outlets attached to the pool.

4. Also remove any other pool accessories and store them in a dry and

5. Protect the pool with the pool cover.

If you want to dismantle the pool in winter, please observe the following instructions:

1. Drain the pool with a garden hose, or use a drain pump to empty the

2. Clean all pool parts with a sponge and soap with a neutral pH. Dry
