HW290262 - Warming drawers and cabinets SIEMENS - Free user manual and instructions
Find the device manual for free HW290262 SIEMENS in PDF.
| Product type | Heated drawer and cabinet |
| Brand | Siemens |
| Model | HW290262 |
| Electrical supply | 220-240 V, 50/60 Hz |
| Rated power | Not specified in the manual |
| Maximum load | 25 kg |
| Available heights | 14 cm (low version) or 29 cm (high version) |
| Dish capacity | 6 to 12 plates Ø 24 cm |
| Heating levels | 5 positions (0 to 4) |
| Main functions | Preheating dishes, keeping food warm, gentle defrosting, low-temperature cooking, rising dough |
| Front material | Stainless steel or glass depending on version |
| Heating plate material | Glass |
| Maintenance and cleaning | Clean with water and mild dish soap; avoid caustic or abrasive products |
| Safety | Automatic shut-off when drawer is open; fuse; do not use a multi-socket outlet |
| Spare parts and reparability | Genuine parts available; repairs by authorized technician |
| After-sales service | Contact details in the attached directory; specify the E and FD numbers |
| Environmental protection | Compliant with WEEE; respectful disposal |
Frequently Asked Questions - HW290262 SIEMENS
User questions about HW290262 SIEMENS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Warming drawers and cabinets in PDF format for free! Find your manual HW290262 - SIEMENS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HW290262 by SIEMENS.

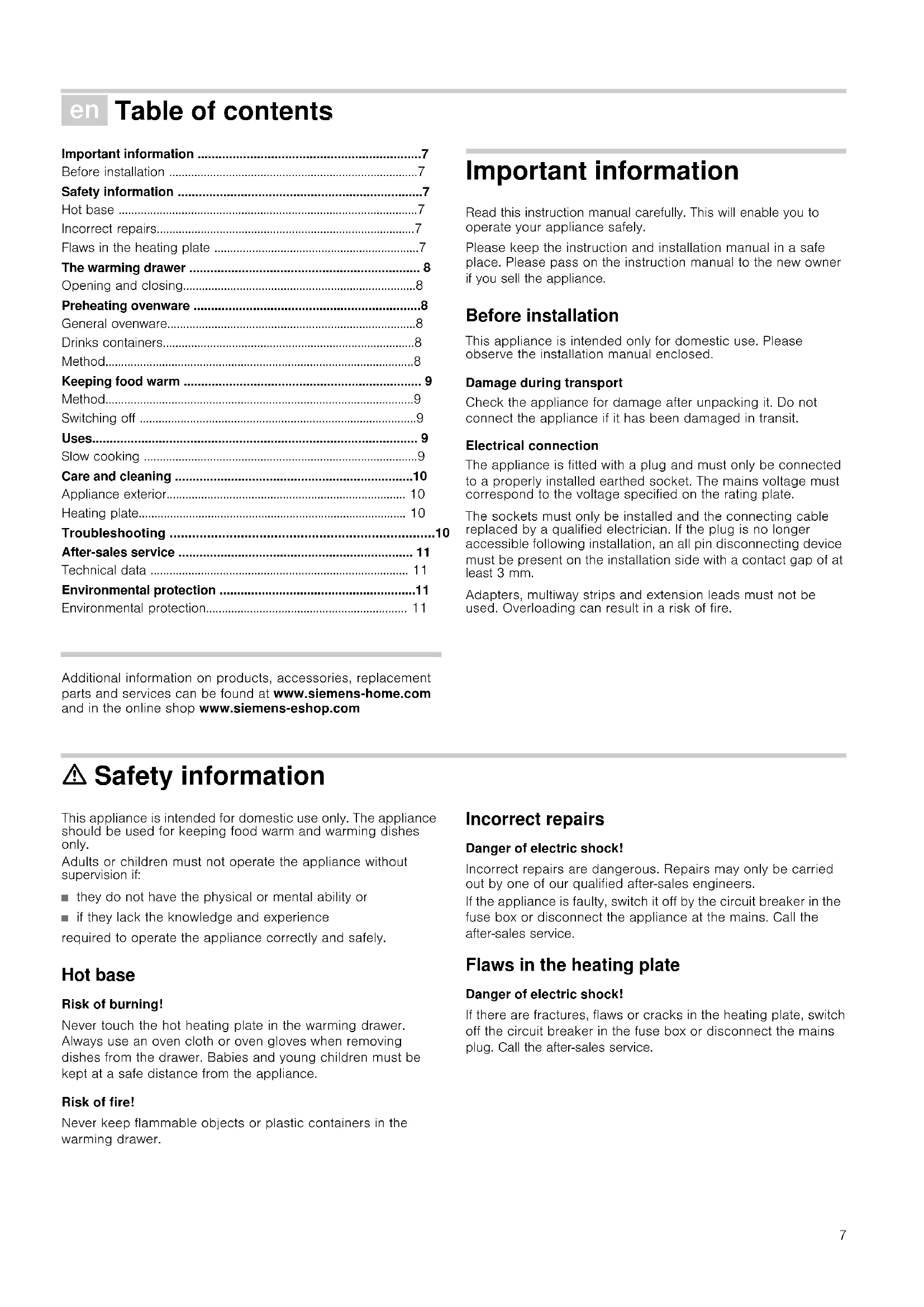

USER MANUAL HW290262 SIEMENS
HW 140..., HW 290...
Wärmeschublade
Warming drawer
Cajón calientaplatos
Tiroir chauffant
Cassetto termico
Warmtelade
Eine Störung, was tun? 5
Kundendienst. 6
Technische Daten 6
Umweltschutz 6
Eine Störung, was tun?
Before installation 7
Safety information 7
Hot base 7
Incorrect repairs. 7
Flaws in the heating plate 7
The warming drawer 8
Opening and closing. 8
Preheating ovenware 8
General ovenware. 8
Drinks containers. 8
Method. 8
Keeping food warm 9
Method. 9
Switching off 9
Uses. 9
Slow cooking 9
Care and cleaning 10
Appliance exterior. 10
Heating plate. 10
Troubleshooting 10
After-sales service 11
Technical data 11
Environmental protection 11
Environmental protection. 11
Additional information on products, accessories, replacement parts and services can be found at www.siemens-home.com and in the online shop www.siemens-eshop.com
Important information
Read this instruction manual carefully. This will enable you to operate your appliance safely.
Please keep the instruction and installation manual in a safe place. Please pass on the instruction manual to the new owner if you sell the appliance.
Before installation
This appliance is intended only for domestic use. Please observe the installation manual enclosed.
Damage during transport
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transit.
Electrical connection
The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. The mains voltage must correspond to the voltage specified on the rating plate.
The sockets must only be installed and the connecting cable replaced by a qualified electrician. If the plug is no longer accessible following installation, an all pin disconnecting device must be present on the installation side with a contact gap of at least 3mm .
Adapters, multiway strips and extension leads must not be used. Overloading can result in a risk of fire.
Safety information
This appliance is intended for domestic use only. The appliance should be used for keeping food warm and warming dishes only.
Adults or children must not operate the appliance without supervision if:
they do not have the physical or mental ability or
if they lack the knowledge and experience
required to operate the appliance correctly and safely.
Hot base
Risk of burning!
Never touch the hot heating plate in the warming drawer. Always use an oven cloth or oven gloves when removing dishes from the drawer. Babies and young children must be kept at a safe distance from the appliance.
Risk of fire!
Never keep flammable objects or plastic containers in the warming drawer.
Incorrect repairs
Danger of electric shock!
Incorrect repairs are dangerous. Repairs may only be carried out by one of our qualified after-sales engineers.
If the appliance is faulty, switch it off by the circuit breaker in the fuse box or disconnect the appliance at the mains. Call the after-sales service.
Flaws in the heating plate
Danger of electric shock!
If there are fractures, flaws or cracks in the heating plate, switch off the circuit breaker in the fuse box or disconnect the mains plug. Call the after-sales service.

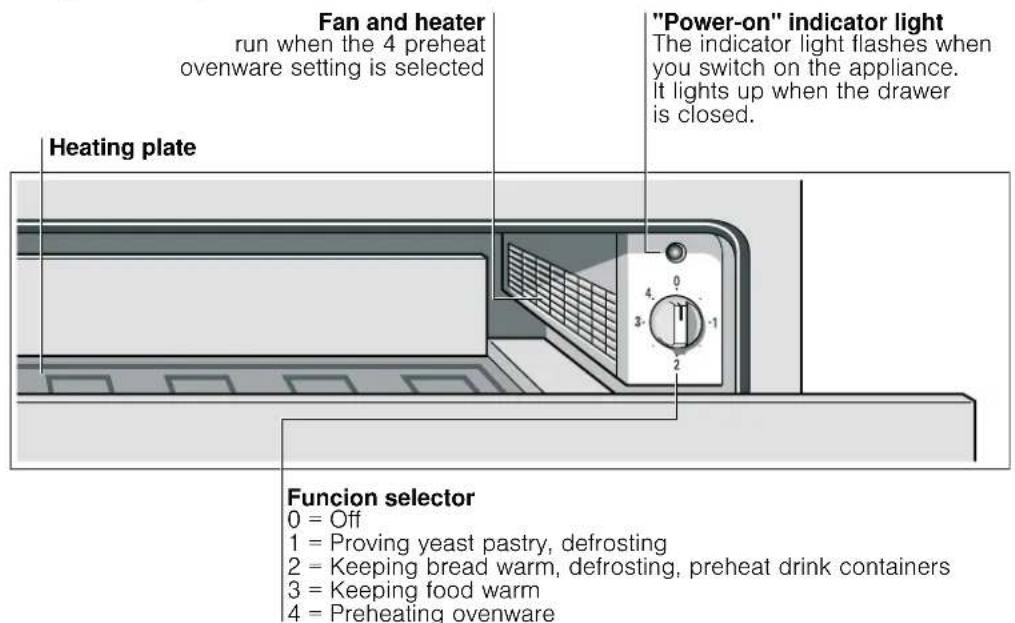

The warming drawer
You can use the warming drawer to preheat ovenware or to keep food warm.
The appliance will only heat up if the drawer is closed correctly.
Opening and closing
For appliances with no handle:
Press the middle of the drawer to open or close it.
When opening, the drawer pops out slightly. You can then pull it out towards you.
Preheating ovenware
Food stays warm for longer in preheated ovenware. Drinks also remain warm for longer.
General ovenware
Only load the warming drawer up to 25kg . You can preheat dinnerware for 6 or 12 people, for example.
| Low drawer, (14 cm in height) | Tall drawer, (29 cm in height) |
| 6 dinner plates Ø 24 cm 12 dinner plates Ø 24 cm | |
| 6 soup bowls Ø 10 cm 12 soup bowls Ø 10 cm | |
| 1 serving dish Ø 19 cm 1 serving dish Ø 22 cm | |
| 1 serving dish Ø 17 cm 1 serving dish Ø 19 cm | |
| 1 meat plate 32 cm 1 serving dish Ø 17 cm | |
| 2 meat plates 32 cm | |
Arranging ovenware
As far as possible, distribute the ovenware over the entire surface. It takes longer to warm through tall stacks of plates than individual pieces of ovenware, e.g. 2 serving dishes.
Drinks containers
Always heat drinks containers, e.g. espresso cups, using setting 2.
Risk of burning!
At setting 3 or 4, the drinks containers will get very hot.
Method
- Place the ovenware in the drawer.
2.Set the function selector to setting 4. Always heat drinks containers using setting 2. The "power on" indicator light flashes.
3.Close the warming drawer.
The "power on" indicator light lights up. The appliance heats up.
How long does preheating take
The length of time required for preheating depends on the material the ovenware is made of and its thickness, as well as the quantity, height and arrangement of the ovenware. As far as possible, distribute the ovenware over the entire surface.
It takes approximately 15-25 minutes to preheat dinnerware for 6 people.
Switching off
Open the drawer. Switch off the function selector.
Removing ovenware
Remove ovenware from the drawer using oven gloves or an oven cloth.
Risk of burning!
The upper surface of the heating plate will be hot. The base of the ovenware will be hotter than the top.
Keeping food warm
Do not place hot saucepans or pans on the glass surface of the warming drawer immediately after removing them from the hot hob. This could damage the glass surface.
Do not fill the ovenware to such an extent that food spills over.
Cover the food with a heat-resistant lid or aluminium foil.
It is recommended that you do not keep food warm for longer than an hour.
Suitable foods: The appliance is suitable for keeping meat, poultry, fish, sauces, vegetables, side dishes and soups warm.
Method
- Place the ovenware in the drawer.
- Set the function selector to setting 3 and preheat the appliance for 10 minutes.
- Add the food to the preheated ovenware.
- Close the drawer again.
The "power on" indicator light lights up. The appliance heats up.
Switching off
Switch off the function selector. Remove the food from the drawer using oven gloves or an oven cloth.
Uses
The table shows various uses for the warming drawer. Set the function selector to the desired setting. Preheat the ovenware as indicated in the table.
Level Food / ovenware Note
| 1 Delicate deep-frozen food e.g. cream cakes, butter, sau-sages, cheese | Defrost |
| 1 Leaving yeast dough to rise Cover | |
| 2 Deep-frozen food e.g. meat, cakes, bread Defrost | |
| 2 Keeping eggs warm e.g. hard-boiled eggs, scrambled eggs Preheat ovenware, cover food | |
| 2 Keeping bread warm e.g. toast, bread rolls Preheat ovenware, cover food | |
| 2 Preheating drinks containers e.g. espresso cups | |
| 2 Delicate food e.g. slow-cooked meat Cover ovenware | |
| 3 Keeping food warm Preheat ovenware, cover food | |
| 3 Keeping drinks warm | Preheat ovenware, cover drinks |
| 3 Warming flat dough-based foods e.g. pancakes, wraps, tacos | Preheat ovenware, cover food |
| 3 Warming dry cakes e.g. crumble cakes, muffins | Preheat ovenware, cover food |
| 3 Melting cooking chocolate or chocolate coating | Preheat ovenware, break up food into small pieces |
| 3 Dissolving gelatine | Open, approximately 20 minutes |
| 4 Preheating ovenware | Not suitable for drinks containers |
Slow cooking
Slow cooking is the ideal cooking method for all tender pieces of meat which are to be cooked rare or very rare. The meat remains very juicy and turns out as soft as butter. Advantage: this gives you flexibility when planning meals, since the cooking times for slow cooking are generally longer. Slow-cooked meat can be kept warm easily.
Suitable ovenware: Use ovenware made out of glass, porcelain or ceramic and with a lid, e.g. a glass roasting dish.
Method
- Preheat the warming drawer containing the ovenware at setting 4.
- Rapidly heat a little fat in a pan. Sear the meat over a high heat and then place it directly in the warmed ovenware. Place the lid on top.
- Put the ovenware with the meat back in the warning drawer and complete the cooking. Set the function selector to setting 3.
Notes on slow cooking
Only use high-quality, fresh meat for this. Carefully remove sinews and fat. Fat develops a strong, distinct taste during slow cooking.
The meat should not be turned even if it is a large joint.
You can cut the meat immediately after slow cooking. It is not necessary to leave the meat to stand.
This particular cooking method always leaves the inside of the meat medium rare. However, this does not mean that it is raw or not properly cooked.
Meat that has been slow-cooked is not as hot as meat that has been cooked conventionally. Serve the sauce very hot. Place the plates in the warming drawer for the last 20-30 minutes.
Turn the oven back to setting 2 after slow cooking in order to keep the slow-cooked meat warm. You can keep small pieces of meat warm for up to 45 minutes, and large pieces for up to two hours.
Table
All tender joints of beef, pork, veal, lamb, game and poultry are suitable for slow cooking. Searing and braising times depend on the size of the piece of meat. The times for searing refer to the meat being placed in hot fat.
Meal Searing on the hotplate Completing in the oven
| Small pieces of meat | |
| Cubes or strips 1-2 minutes all over 20-30 minutes | |
| Small cutlets, steaks or medaillons 1-2 minutes per side 35-50 minutes | |
| Medium-sized pieces of meat | |
| Fillet (400-800g) 4-5 minutes all over 75-120 minutes | |
| Saddle of lamb (approx. 450g) 2-3 minutes per side 50-60 minutes | |
| Lean joint (600-1000g) 10-15 minutes all over 120-180 minutes | |
| Large pieces of meat | |
| Fillet (from 900g) 6-8 minutes all over 120-180 minutes | |
| Roast beef (1,1-2kg) 8-10 minutes all over | 210-300 minutes |
Care and cleaning
Do not use high-pressure cleaners or steam jets. Only clean the drawer when the appliance is switched off. Function selector Setting = 0
Appliance exterior
Wipe the appliance with water and a little detergent. Then dry it with a soft cloth.
Caustic or abrasive cleaning products are not suitable. If a caustic or abrasive substance comes into contact with the frontage, wash it off immediately with water.
Stainless steel surfaces
Always remove any flecks of limescale, grease, cornflour and egg white immediately. Corrosion can form under such flecks. Clean the appliance using water and a little detergent. Then dry the surface with a soft cloth.
Appliances with glass fronts
Clean the glass front with glass cleaner and a soft cloth. Do not use a glass scraper.
Heating plate
Clean the heating plate using warm water and a little detergent.
Troubleshooting
Malfunctions often have simple explanations. Please read the following instructions before calling the after-sales service:
| The ovenware or food remain cold. | Check whether: ■ the appliance is switched on ■ there has been a power cut ■ the drawer is closed completely |
| The ovenware or food are not warmed sufficiently. | This may indicate that: ■ the ovenware or food were not warmed for a sufficient length of time ■ the drawer was left open for a long time |
| The "power on" indicator light flashes. | Check whether the drawer is closed. |
| The indicator light flashes rapidly when the warming drawer is closed. | Call the after-sales service. |
| The "power on" indicator light does not light up. | The indicator light is faulty. Consult the after-sales service |
| The fuse in the fuse box has blown. | Disconnect the appliance at the mains and consult the after-sales service. |
Repairs must only be carried out by qualified specialists. Incorrect repairs may result in serious injury to the user.
After-sales service
Our after-sales service is there for you if your oven should need to be repaired. You will find the address and telephone number of your nearest after-sales service centre in the phone book. The after-sales service centres listed will also be happy to advise you of a service point in your local area.
E number and FD number
When contacting the after-sales service, always specify the product number (E no.) and the production number (FD no.) of your appliance. The rating plate bearing these numbers can be found by opening the warming drawer. Make a note of these numbers in the space below to save time in the event of your appliance malfunctioning.
E no. FD no.
After-sales service
Please find the contact data of all countries in the enclosed customer service list.
To book an engineer visit and product advice
GB 0844 8928999
Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.
IE014502655
Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance.
Technical data
Power supply: 220 -240 V
50/60 Hz
Total connected load: 810 W
VDE-inspected: yes
CE mark: yes
Environmental protection
Unpack the appliance and dispose of the packaging in an environmentally-responsible manner.
Environmental protection
This appliance is labelled in accordance with the European Directive 2002/96/EU concerning used electrical and electronic appliances (WEEE - waste electrical and electronic equipment). The guideline determines the framework for the return and recycling of used appliances as applicable.
www.siemens-eshop.com
Réparations in expertes 17
Plaque chauffante 20
Avaries de transport
Réparations in expertes
Risque d'electrocution!
Puissance totale connectee:810 W
www.siemens-home.com e I'eShop www.siemens-eshop.com
