USER MANUAL ER726RF71E SIEMENS

Pan supports
2 Control knobs
3 Auxiliary burner (up to 1.1 kW)
4 Semi-rapid burner (up to 1.9kW
5 Rapid burner (up to 2.8kW )

6 Dual double-flame wok burner up to 4.2 kW
7 Main switch
Child lock switch
9 Hotplate operating indicators

Your new appliance. 13

Accessories 13

Gas burners 13

Switching on 14

Safety system 14

Switching off. 14

Power levels. 14

Operating and residual heat indicator 14

Protection against overheating. 14

Childproof lock. 14

Warnings. 15

Cooking guidelines. 15

Operating indicators and error messages 15

Cooking pans. 16

Suitable pans. 16

Precautions for use 16

Cleaning and maintenance. 17

Cleaning. 17

Maintenance 17

Trouble shooting 17

Technical Assistance Service 18

Warranty conditions. 18

Used appliances and packaging. 18

Environmentally-friendly disposal. 18

Additional information on products, accessories, replacement parts and services can be found at www.siemens-home.com and in the online shop www.siemens-eshop.com

Safety precautions

Read these instructions carefully. You will only be able to use your appliance safely and effectively when you have read them. These operating and installation instructions should be retained, and passed onto the buyer if the appliance is sold.

The manufacturer is exempt from all responsibility if the requirements of this manual are not complied with.

The images shown in these instructions are for guidance only.

Do not remove the appliance from its protective packaging until it is installed in the unit. Do not switch on the appliance if it is damaged in any way. Contact our Technical Assistance Service.

This appliance is class 3 type, according to the EN 30-1-1 regulation for gas appliances: built-in appliance.

Before installing your new hob, ensure that it is being installed according to the assembly instructions.

This appliance cannot be installed on yachts or in caravans.

This appliance must only be used in well ventilated places.

This appliance is not intended for operation with an external clock timer or a remote control.

All operations relating to installation, connection, regulation and conversion to other gas types must be performed by an

authorised technician, respecting all applicable regulations, standards and the specifications of the local gas and electricity suppliers. Special attention shall be paid to ventilation regulations.

This appliance leaves the factory set to the gas type that is indicated on the specifications plate. If this needs to be changed, please consult the assembly instructions. It is recommended you contact the Technical Assistance Service to change to another gas type.

This appliance has been designed for home use only, not for commercial or professional use. This appliance is only intended for cooking purposes, not as a heating system.

The warranty will only be valid if the appliance is used for the purpose for which it was designed.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

Never leave the appliance unattended during operation.

Do not use lids or protective barriers for children which are not recommended by the hob manufacturer. They may cause accidents such as those due to the overheating, ignition or detachment of fragments of materials.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental

capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Risk of deflagration!

Accumulation of unburned gas in an enclosed area carries a risk of deflagration. Do not subject the appliance to draughts. These might blow out the burners. Carefully read the instructions and warnings on the operation of gas burners.

Risk of poisoning!

The kitchen will become hot and humid and combustion products produced when this gas appliance is used. Make sure the kitchen is well ventilated, particularly when the hob is in operation: either keep the natural ventilation apertures open, or install a ventilation system (extractor hood). Intense prolonged use of the appliance may require additional or more effective ventilation: open a window or increase the power of the ventilation system.

Risk of burns!

The hotplates and their immediate vicinity get very hot. Never touch the hot surfaces. Keep children under 8 years old well away from this appliance.
If the liquefied gas bottle is not upright, liquefied propane/butane can enter the appliance. Intense darting flames may therefore escape from the burners. Components may become damaged and start to leak over time so that gas escapes uncontrollably. Both can cause burns. Always use liquefied gas bottles in an upright position.
If the residual heat indicator is not working, disconnect the hotplate and notify the Technical Assistance Service.

Risk of fire!

The hotplates get very hot. Do not rest inflammable objects on the hob. Do not store objects on the hob.
- Do not store or use corrosive chemicals, products which produce fumes, inflammable materials or non-food products below or near this domestic appliance.
- Fat or oil which is overheated can catch fire easily. Never leave fat or oil to heat up unattended. If oil or fats do catch fire, never use water to put the fire out. Put the fire out by covering the pan with a lid and switch off the hotplate.

Risk of injuries!

• Pans which are damaged, are not the right size, hang over the edge of the hob or are not positioned correctly can cause serious injuries. Follow the advice and warnings provided relating to the cooking pans.
  In the event of a malfunction, turn off the appliance's gas and electricity supply. For repairs, call our Technical Assistance Service.
• Do not tamper with the appliance's interior. If necessary, call our Technical Assistance Service.
  If one of the control knobs will not turn, do not force it. Call the Technical Assistance Service immediately so that they can repair or replace them.

Risk of electric shock!

• Do not clean the appliance using steam cleaners.
• Cracks or breaks in the glass may carry an electrocution risk. Disconnect the fuse from the fuse box. Notify the Technical Assistance Service.

Your new appliance

Page 2 shows an overall view of your new appliance as well as the burner power.

Accessories

Depending on the model, the hob may include the following accessories. These can also be acquired from the Technical Assistance Service.

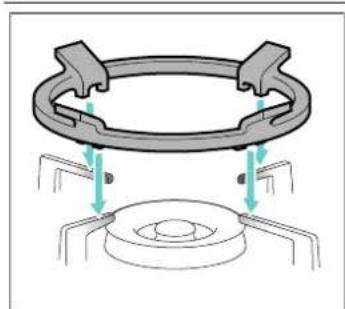

Additional wok pan support Only for use on double and triple-flame wok burners with pans which are more than 26~cm in diameter, grill pans, earthenware casserole dishes, large pans with a round base, etc.

The additional wok pan support should be used to prolong the appliance's useful life.

Additional coffee maker support

Only for use on the auxiliary burner with pans which are no more than 12cm in diameter.

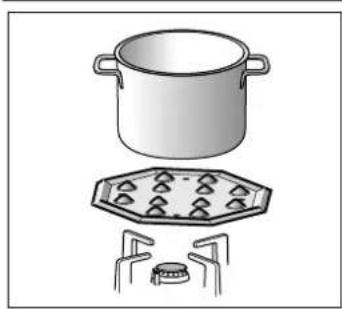

Simmer Plate

This accessory has been designed to reduce the level of heat at the lowest power setting.

Place the accessory directly on the pan support with the cones facing upwards, never directly over the burner. Centre the pan over the accessory.

Code

HZ298114 Additional coffee maker support
HZ298105 Simmer Plate

The manufacturer accepts no liability if these accessories are not used or are used incorrectly.

Gas burners

There are indications to show which burner each control knob operates.

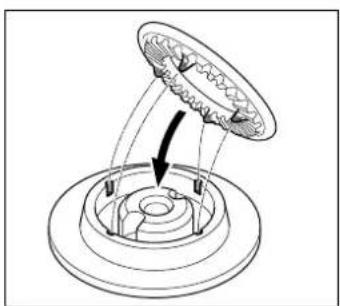

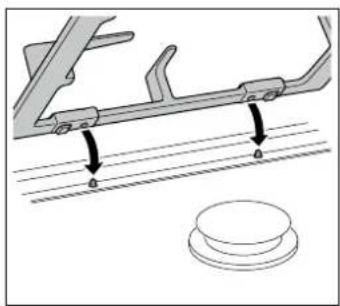

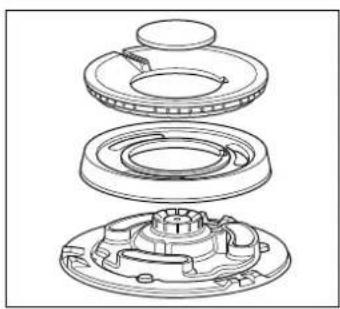

It is essential to ensure that all the burner parts and pan supports are correctly installed for the appliance to work correctly. Do not swap the burner caps around.

Note: The childproof lock will be automatically activated the first time the appliance is connected and when switching on the appliance again after a power failure or voltage drop.

To deactivate the childproof lock, refer to the Childproof lock section.

Switching on

Switching on a burner:

1. Turn on the appliance with the main switch. The main switch indicator will be turned on.
2. Press and turn the desired burner control knob anticlockwise to the required setting. The flame will ignite automatically and the hotplate indicator light will come on after a few seconds.

If the burner does not switch on, wait at least a minute until trying again.

Note: If after pressing the main switch, no burner comes on, the appliance will automatically switch off after three minutes.

Safety system

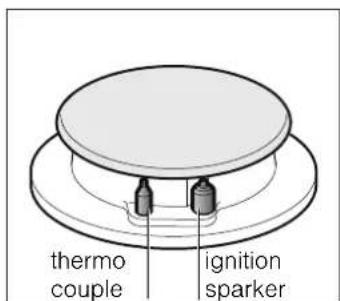

All the hotplates have a security device (thermocouple).

If the burner is switched off during operation (e.g. due to a draught), the appliance automatically switches on the hotplate again.

If reignition is not successful (e.g. due to food remains on the burner), the supply of gas to this burner is cut off and the burner hotplate indicator flashes. Turn the control knob to 0 and check the section on Operating indicators and error messages.

Switching off

Switching off a burner: turn the control knob clockwise to the off setting.

Switching off the hob: after finishing cooking, turn all the controls to setting 0 and turn off the appliance with the main switch. The main switch indicator will be turned off.

Automatic off

After six hours of operation, the appliance switches off automatically. Turn all control knobs to setting 0; the appliance can now be switched on again.

Power levels

The progressive control knobs can be used to control the power needed, from minimum to maximum power.

Setting	● Control knob off
High flame	● Maximum capacity or aperture and electricity on
Low flame	● Minimum capacity or aperture

For dual double-flame burners, the inner and outer flames can be controlled separately. The available power levels are as follows:

Inner and outer flame on full power.

Outer flame on low power, inner flame on full power.

Inner flame on full power.

Inner flame on low power.

Operating and residual heat indicator

All the hotplates have an operating and residual heat indicator which comes on when the flame on the corresponding hotplate is lit.

Once the hotplate is switched off, the residual heat indicator remains on indicating that the hotplate temperature is too high. Do not touch the hotplate while the indicator light is on.

After a while the residual heat indicator will go off, indicating that the temperature of the hotplate has dropped and is no longer too high. Care must then be taken when touching the appliance to avoid burns, since the hotplate may not have completely cooled down.

Protection against overheating

The hob has an overheating protection system to protect the electronics. This system switches off all the burners in case of overheating, with the operating indicators of all the burners and main switch starting to flash.

Turn all control knobs to setting 0. Wait until the appliance has cooled down sufficiently and the main switch operating indicator has turned off. Now you can reconnect the appliance normally. The rapid flickering of the burner operating indicators switches off or is replaced by the residual heat indicator.

Childproof lock

Activating the childproof lock:

1. Switch off the hob using the main switch ①.
2. Press the childproof lock for several seconds until the child lock indicator comes on. Now the hob cannot be switched on.

Deactivating the childproof lock:

Press the childproof lock for several seconds until the main switch indicator comes on. Now the hob can be switched on normally.

Warnings

This appliance will not function if it is not connected to the mains or if the electricity supply is cut off.

It is normal to hear a soft whistling noise while the burner is operating.

When first used, it is normal for the burner to give off odours. This does not pose any risk and does not indicate a malfunction. They will disappear in time.

An orange-coloured flame is normal. This is caused by the presence of dust in the atmosphere, spilt liquids, etc.

Keep the burner as clean as possible. If the ignition sparkers are dirty they will not light properly. Clean them periodically using a small non-wire brush. Bear in mind that the ignition sparkers must not suffer any serious impacts.

Cooking guidelines

Burner Very high - High Medium Low
Wok burner Boiling, steaming, griddling,toasting, paellas,Asian food (wok).		Reheating and keeping things hot: cooked and pre-cooked dishes
Rapid burner	Escalopes,steaks, ome-lettes, frying	Rice, white sauce, ragout	Steaming:fish, vegeta-bles
Semi-rapidburner	Steamed pota-oes, fresh vege-tables, vegetable stews, pasta	Reheating, keeping things hot and making tasty casse-roles
Auxiliaryburner	Cooking: casse-roles, rice pud-ding, caramel	Defrosting and slow cooking: veg-etables, fruit and frozen products	Melting: but-ter, choco-late, jelly

Operating indicators and error messages

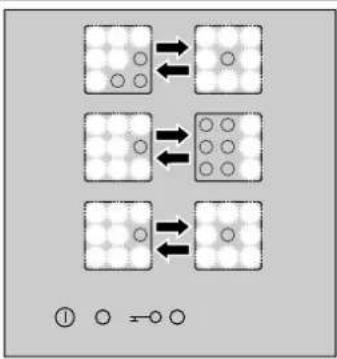

Indicators Description Meaning
①○=○	①○=○	The childproof lock indicator lights up. Childproof lock activated: press the childproof lock switch for 4 seconds to activate the appli- ance.
①○=○	①○=○	The main switch indicator lights up. The appliance is ready for use.
①○=○	①○=○	The main switch indicator and the operating indicators of the burners light up. All the burners are switched on or are still hot.
①○=○	①○=○	The main switch indicator lights up and the operating indicator of one of the burners flashes. The burner could not be switched back on (because it is dirty, there are bits of food stuck to it, the burner components are not correctly positioned or there is a strong draught).
①○=○	①○=○	The main switch indicator is turned off and the operating indicator of one of the burners flashes. Operating error: control knob is on without first switching on the main switch.
		Automatic off: the appliance has been on for more than six hours.
①○=○	①○=○	The main switch indicator and the operating indicators of the burners flash in succession. Protection against overheating: turn all the con- trol knobs to setting 0 and allow the appliance to cool until the operating indicators switch off or the residual heat indicator comes on.

Indicators Description Meaning

The main switch indicator is off and all the oper- Electronic error: turn all the controls to setting 0 ating indicators flash in succession. and turn on the appliance again with the main switch. If the indicators continue to flash, contact the Technical Assistance Service.

Cooking pans

Suitable pans

Burner Minimum pan diameter	Maximum pan diameter
Wok burner 22 cm - cm
Rapid burner 22 cm 26 cm
Semi-rapid burner 14 cm 20 cm
Auxiliary burner 12 cm 16 cm

Precautions for use

The following advice is intended to help you save energy and prevent pan damage:

Use pans which are the right size for each burner.

Do not use small pans on large burners. The flame must not touch the sides of the pan.

Do not use damaged pans, which do not sit evenly on the hob. Pans may tip over.

Only use pans with a thick, flat base.

Do not cook without using a lid and make sure the lid is properly fitted. This wastes energy.

Always centre the pan over the burner, not to one side. Otherwise it could tip over.

Do not place large pans on the burners near the control knobs. These may be damaged by the very high temperatures.

Place the pans on the pan supports, never directly on the burner.

Make sure that the pan supports and burner caps are correctly positioned before using the appliance.

Pans should be placed on the hob carefully.

Do not strike the hob and do not place excessive weight on it.

Cleaning and maintenance

Cleaning

Once the appliance is cool, use a sponge to clean it with soap and water.

After each use, clean the surface of the respective burner parts once they have cooled down. If any residue is left (baked-on food, drops of grease etc.), however little, it will become stuck to the surface and more difficult to remove later. The holes and grooves must be clean for the flame to ignite properly.

The movement of some pans may leave metal residue on the pan supports.

Clean the burners and pan supports using soapy water and scrub with a non-wire brush.

Alternatively, the pan supports can be put in the dishwasher. Use the dishwasher manufacturer's recommended detergent. If the pan supports are very dirty, they should be cleaned previously.

Do not put the burner caps in the dishwasher.

If the pan supports are fitted with rubber rests, ensure that these are also cleaned. The rests may come loose and the pan support may scratch the hob.

Always dry the burners and pan supports completely. Water droplets or damp patches on the hob at the start of cooking may damage the enamel.

After cleaning and drying the burners, make sure the burner caps are correctly positioned on the diffuser.

Caution!

Do not use steam cleaners. This could damage the hob.
- Never use abrasive products, steel scourers, sharp implements, knives, etc. to remove bits of hardened food from the hob.
- Do not use knives, scrapers or similar implements to clean the point where the glass meets the burner trims, the metal frames or the glass/aluminium panels, if fitted.

Maintenance

Always clean off any liquid as soon as it is spilt. This will prevent food remains from sticking to the hob surface and you will save yourself any unnecessary effort.

Never slide pans across the glass surface, as you may scratch it. In addition, try not to drop heavy or sharp objects on the glass. Never strike any part of the hob.

Grains of sand that may come from cleaning fruits and vegetables will scratch the glass surface.

Melted sugar, or foods which contain a lot of sugar which may have spilt, should be cleaned off the hotplate immediately, using the glass scraper.

Trouble shooting

Sometimes certain faults detected can be easily resolved. Before calling the Technical Assistance Service, bear in mind the following advice:

Fault Possible cause Solution

The general electrical sys- tem is malfunctioning.	Defective fuse. Check the fuse in the main fuse box and change it if it is damaged.
	The automatic safety switch or circuit breaker has tripped.	Check the main control panel to see if the auto-matic safety switch or circuit breaker has tripped.
The automatic switching on function does not work.	There may be food or cleaning products stuck between the ignition sparkers and the burners.	The space between the ignition sparker and the burner must be clean.
	The burners are wet. Dry the burner caps carefully.
	The burner caps are not correctly positioned. Check that the burner caps are correctly positioned.
	The appliance is not earthed, is poorly connected or the earthing is faulty.	Contact the installation technician.
The burner flame is not uni-form.	The burner components are not correctly positioned.	Correctly place the parts on the appropriate burner.
	The grooves on the burner are dirty. Clean the grooves on the burner.
The gas flow is not normal or there is no gas.	The gas supply is blocked by gas taps. Open all gas taps.
	If the gas is supplied from a gas cylinder, check that it is not empty.	Change the gas cylinder.
The kitchen smells of gas. A gas tap has been left on. Turn off the taps.
	Incorrect coupling of gas cylinder. Check that the coupling is sound.
	Possible gas leak. Shut off the gas supply, ventilate the premises and immediately notify an authorised installation technician to check and certify the installation. Do not use the appliance until ensuring that there is no gas leak in the installation or appliance itself.

The burner immediately The grooves on the burner are dirty. Clean the grooves on the burner.

switches off after the control knob.

Technical Assistance Service

When contacting our Technical Assistance Service, please provide the product number (E-Nr.) and production number (FD) of the appliance. This information is given on the specifications plate located on the lower section of the hob and on the label in the user manual.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

GB03448928999

Calls charged at local or mobile rate.

IE014502655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.

Warranty conditions

In the unlikely event that the appliance is damaged or does not meet your expectations in terms of quality, please inform us as soon as possible. For the warranty to be valid, the appliance must not have been tampered with, or used inappropriately.

The applicable warranty conditions are those set out by the company's representative office in the country of purchase. Detailed information is available from retail outlets. Proof of purchase must be presented to obtain the benefits of the warranty.

We reserve the right to introduce changes.

Used appliances and packaging

If the symbol is shown on the specifications plate, bear in mind the following instructions:

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

The packaging of your appliance has been manufactured using only the materials which are strictly necessary to guarantee efficient protection during transport. These materials are 100% recyclable, thus reducing the environmental impact. You can also contribute to caring for the environment by following the advice below:

• Dispose of the packaging in the appropriate recycling bin.
  Before you get rid of an old appliance, make sure you disable it. Contact your local authority to find out the address of your nearest recycling centre to dispose of your appliance.
• Do not pour used oil down the sink. Collect it in a sealed container and take it to an appropriate collection point or, failing that, place it in the rubbish bin (it will end up in a controlled dump; this is probably not the best option, but it will avoid contaminating ground water)

www.siemens-eshop.com

Service Technique 34

Conditions de garantie 34

Emballage et apparecs usages

de online-shop: www.siemens-eshop.com

www.siemens-eshop.com
