USER MANUAL James JVH187 Numatic

Original Instructions

Warning! Read instructions before using the machine.

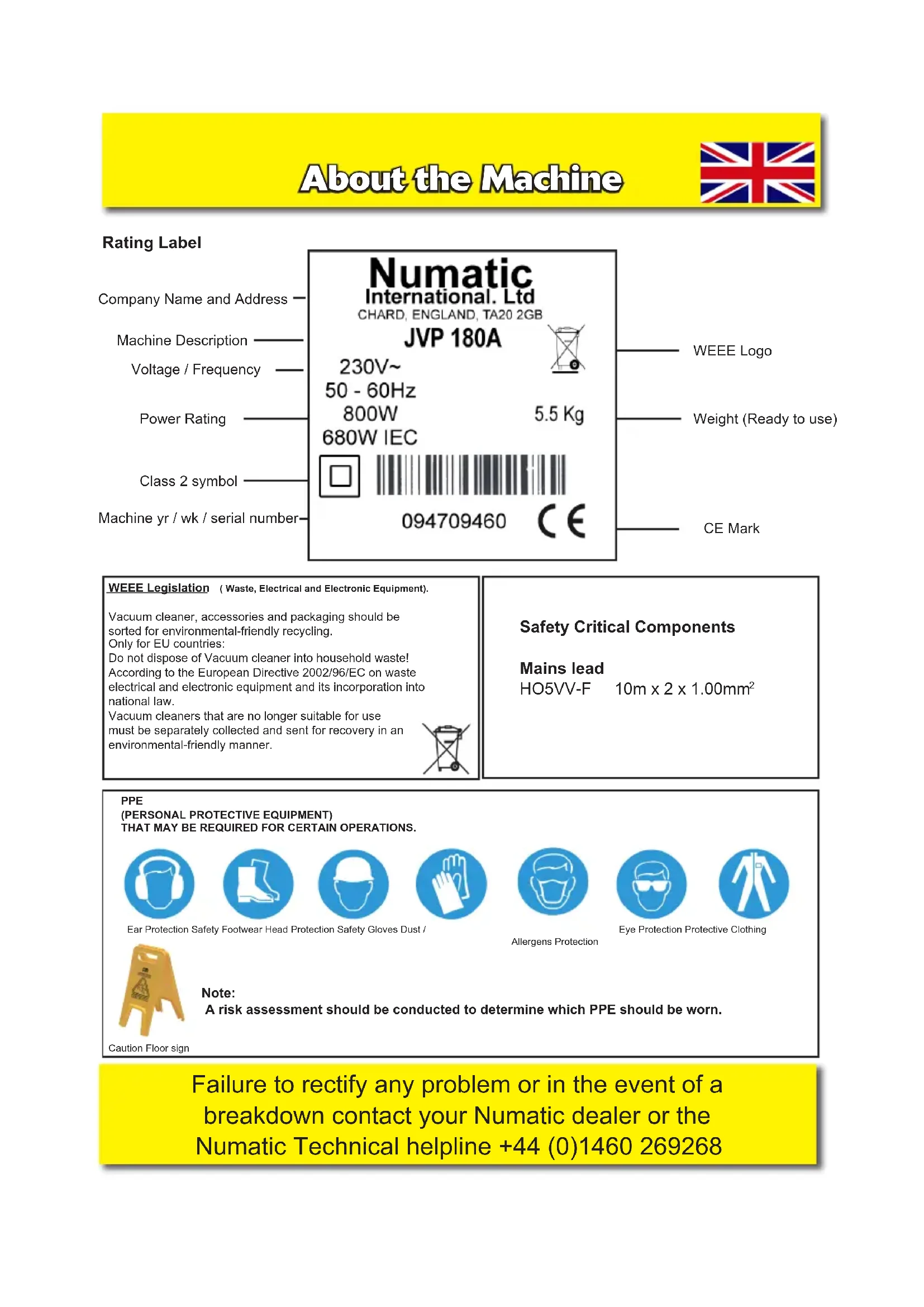

WEEE Legislation (Waste, Electrical and Electronic Equipment).

Vacuum cleaner, accessories and packaging should be sorted for environmental-friendly recycling. Only for EU countries:

Do not dispose of Vacuum cleaner into household waste! According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.

Safety Critical Components

Mains lead

HO5VV-F 10m× 2× 1.00mm^2

PPE

(PERSONAL PROTECTIVE EQUIPMENT) THAT MAY BE REQUIRED FOR CERTAIN OPERATIONS.

Ear Protection Safety Footwear Head Protection Safety Gloves Dust /

Allergens Protection

Eye Protection Protective Clothing

Note:

A risk assessment should be conducted to determine which PPE should be worn.

Caution Floor sign

Failure to rectify any problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone]

Information for DRY USE Vacuum Cleaners

Warning

Ensure you read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines, as with all electrical equipment, care and attention must be exercised at all times during use, you must also make certain that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

This machine is for DRY USE only

You must disconnected the machine from the mains by removing the plug from the supply socket BEFORE cleaning or maintenance and when replacing parts or converting the machine to another function.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not suitable for the collection of biological hazards, hazardous or explosive dusts. Contact your local distributor if you require a machine capable of performing these tasks.

The machine must not be used by persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction.

You must not allow the supply cord to come into contact with rotating brushes (if fitted).

Only use the socket outlet on the machine for purposes specified in the instructions (where fitted).

This machine is not a toy; children shall not play with this machine.

Caution

This machine must not be stored outside, or used in wet environments, or to collect wet materials. The vacuum cleaner should be stored in a dry place and is for indoor use only.

You must ensure that the filtration system fitted to the machine is suitable for the material being collected.

Notes

This product complies with the requirements of IEC 60335-2.69.

This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices for other than normal housekeeping purposes.

If the vacuum cleaner stops working, remove the plug from the wall before investigating where the fault lies.

If the vacuum cleaner has a blockage, switch off, remove the plug from the socket outlet, and inspect the floor tool, wands and hose for debris. If the floor tool, wands and hose are clear, replace the dust bag and clean the filter.

The vacuum cleaner should be inspected after use for damage.

• Keep your machine clean.
• Keep filters clean.
• Use filter bags, they will enhance performance and help keep machine clean.
• Use a Numatic Original filter bag under fine dust conditions.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.
• Regularly examine the power cord. If damage is found such as cracking or ageing the power cord must be replaced by a qualified person using the correct Numatic original part.
• Change dust bag frequently.
• Keep diffuser filter (where fitted) clean.
• Only use the brushes provided with the machine. The use of other brushes may impair safety.

Don't

• Unreel the cable with one pull or pull on the cable to unplug the machine from the power supply.
• Use to suck up hot ashes, lighted cigarette ends or flammable gases.
• Use steam cleaners, pressure washers or immerse in water to clean the machine.
• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
• Use in a wet environment or to collect wet materials.
• Store your machine in wet conditions.

Data Size Range 180	Motor Airflow Suction
	800W 500W	30 l/sec 2000mm	w.g. 1300mm w.g.
	Capacity Size Weight
	8L 340x340x340 mm 5.5Kg
Numatic INTERNATIONAL	Cleaning Range	Sound Pressure Protection Class
	26.8 m 67.1dB(A) - 61.2dB(A) (IEC 60704-2-1) Uncertainty 0.2 dB		Class II

Regular Maintenance

Keep the machine clean, including hoses and tubes.

Ensure the bag and filter are fitted.

Check the dust bag frequently.

Check filters are clean.

Check for worn or damaged parts and replace immediately.

Regularly examine power cord.

Do not steam clean or pressure wash.

Angaben zum Gerät

Numatic International Limited, Chard, Somerset, TA20 2GB, ENGLAND.

Telephone [phone] Fax: [phone]

www.numatic.co.uk

Numatic International GmbH, Frankische Straße 15-19, 30455 Hannover, DEUTSCHLAND.

Tel: [phone] Fax: [phone]

www.numatic.de

Numatic International S.A., 13/17 rue du Valengelier, EAE la Tuilerie, 77500

Chelles, FRANCE. Tel: [phone] Fax: [phone]

www.numatic.fr

BeNeLux Distribution, Numatic International BV, Postbus 101, 2400 AC Al-

phen aan Rijn, NEDERLAND.Tel: [phone] Fax: [phone]

www.numatic.nl

Numatic International (Pty.) Ltd. 16th & Pharmaceutical Roads,

Midrand, Gauteng, S.A. 1685. Tel: [phone] Fax: [phone]

www.numatic.co.za

Numatic International Schweiz AG. Sihlbruggstrasse 142,

6340 Baar. SCHWEIZ. Tel: [phone] - 0.

Fax: [phone] - 9.

www.numatic.ch

Specification subject to change without prior notice.

www.numatic.co.uk © Numatic International Limited

233821 0212 (A02)
