USER MANUAL Anker Select NFC soundcore

Illustration of a portable electronic device with ventilation grille and connected cable (no text or symbols)

NFC

English

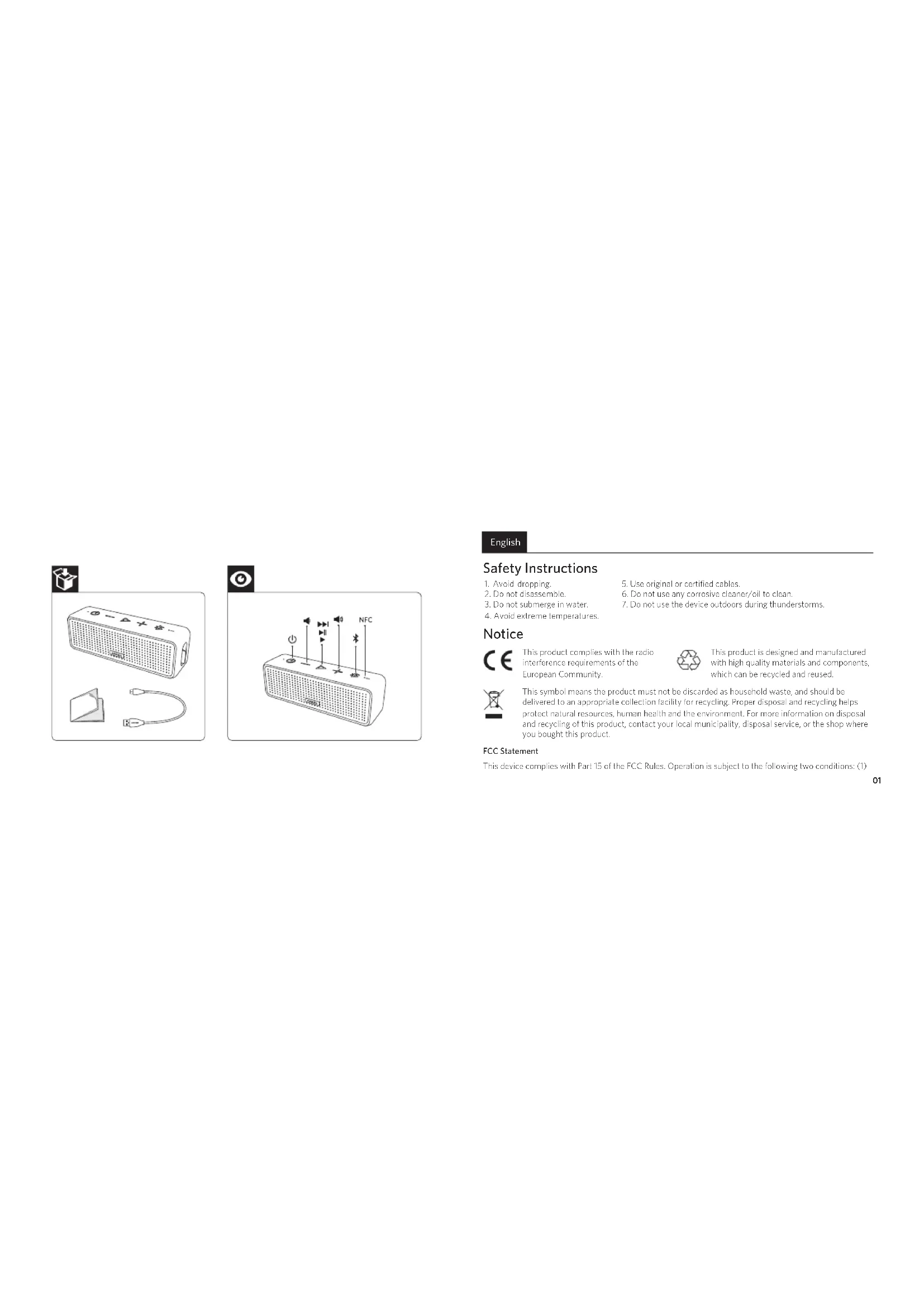

Safety Instructions

1. Avoid dropping.
2. Do not disassemble.
3. Do not submerge in water.

4. Avoid extreme temperatures.

5. Use original or certified cables.

6. Do not use any corrosive cleaner/oil to clean.
7. Do not use the device outdoors during thunderstorms.

Notice

This product complies with the radio interference requirements of the European Community.

This product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

English E

This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Charges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the receiver or an experienced radio / TV technician for help.

RF Warning Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction

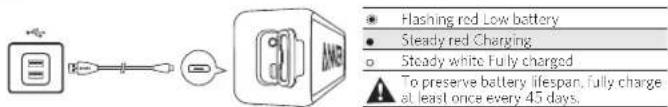

Charge Your SoundCore

● Flashing red Low battery ● Steady red Charging ○ Steady white Fully charged ⚠️ To preserve battery lifespan, fully charge at least once every 45 days.

Turn on / off

Diagram showing a hand holding a power plug next to a speaker with a magnified view of the device's tip.

English E

Bluetooth Pairing

ON ×1

Press Enter pairing mode

Press and hold for 2 seconds Un-pair connected device and re-enter pairing mode

Flashing blue Pairing mode

Steady blue Connected to a device

≤1m

When turned on, SoundCore will automatically connect to the last connected device if available if not, SoundCore will enter pairing mode.

NFC

NFC Pairing Connect via AI

②

To break connection, lap again the NFC device onto SoundCore's NFC detection area.

* SoundLine AUX cable sold separately

To return to Bluetooth mode, remove the AUX cable from your SoundCore.

English E

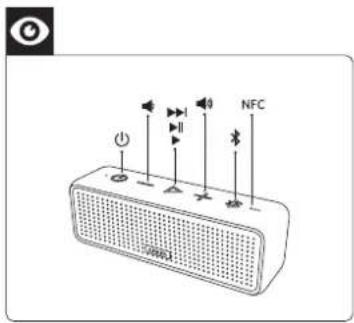

Controls

× 1	Press Play / pause		× 1	Press Answer / End call
× 2	Double press Skip forward		>15	Press and hold for 1 second	Reject call
+/-	Press Volume up / down		× 1	Press	Put current call on hold and answer incoming call
			× 1	Press	Switch between held call and active call
			>15	Press and hold for 1 second	Transfer a call between speaker and mobile phone
				Steady blue On a call
>15	Press and hold for 1 second	Activate Siri / other voice control software		Flashing blue Incoming call

Specifications

Specifications are subject to change without notice.

Input 5 V	= 2 A Charging time 3 hours
Play time (varies by volume level and content)	Up to 24 hours Driver (full range) 1.5^ × 2
Audio output	6 W × 2	Frequency response 70 Hz - 20 KHz
Impedance	4 Ω	Bluetooth version V4.2
Range	20 m / 66 ft	Waterproof rating IFX 5
Size	168 x 47 x 56 mm/6.6 x 1.9 x 2.7 in	Weight 408 g / 14.4 oz

Deutsch

Sicherheitshinweise

168×47×56 mm / 6.6×1.9×2.2 in

Diagram showing a device with a lamp and a magnified view of its tip, labeled in Chinese.

SoundCore Select O ≤ 1m

Azul intermitente Modo emoarejamiento

Azul rjo

168×47×56 mm / 6.6×1.9×2.2 in

Peso

IFX5

408 g/14.4 oz

简体中文

安全指南

SoundCore Select i ≤ 1m

NFC ON ① ②

NFC ON ① ②

18-month limited warranty

18 Monate beschränkte Herstellergarantie | 18个月保証 Garantie limitée de 18 mois | Garanzia limitata 18 mesi Garantia limitada de 18 mescs | 18个月质保期 | Ограниченная гарантия на 18 месяцев

ضملة 18 شير محدودة

Lifetime technical support

Lebenslanger technischer Support | テクニカルサポート | Support technique à vie | Supporto tecnico à vita Asistencia técnica de por vida | 终身客服支持 | Техническая поддержка на весь срок эксплуатации

For FAQs and more information, please visit:

anker.com/support

@Anker Office (@Anker_)P

©Anker
