USER MANUAL DO7287S DOMO

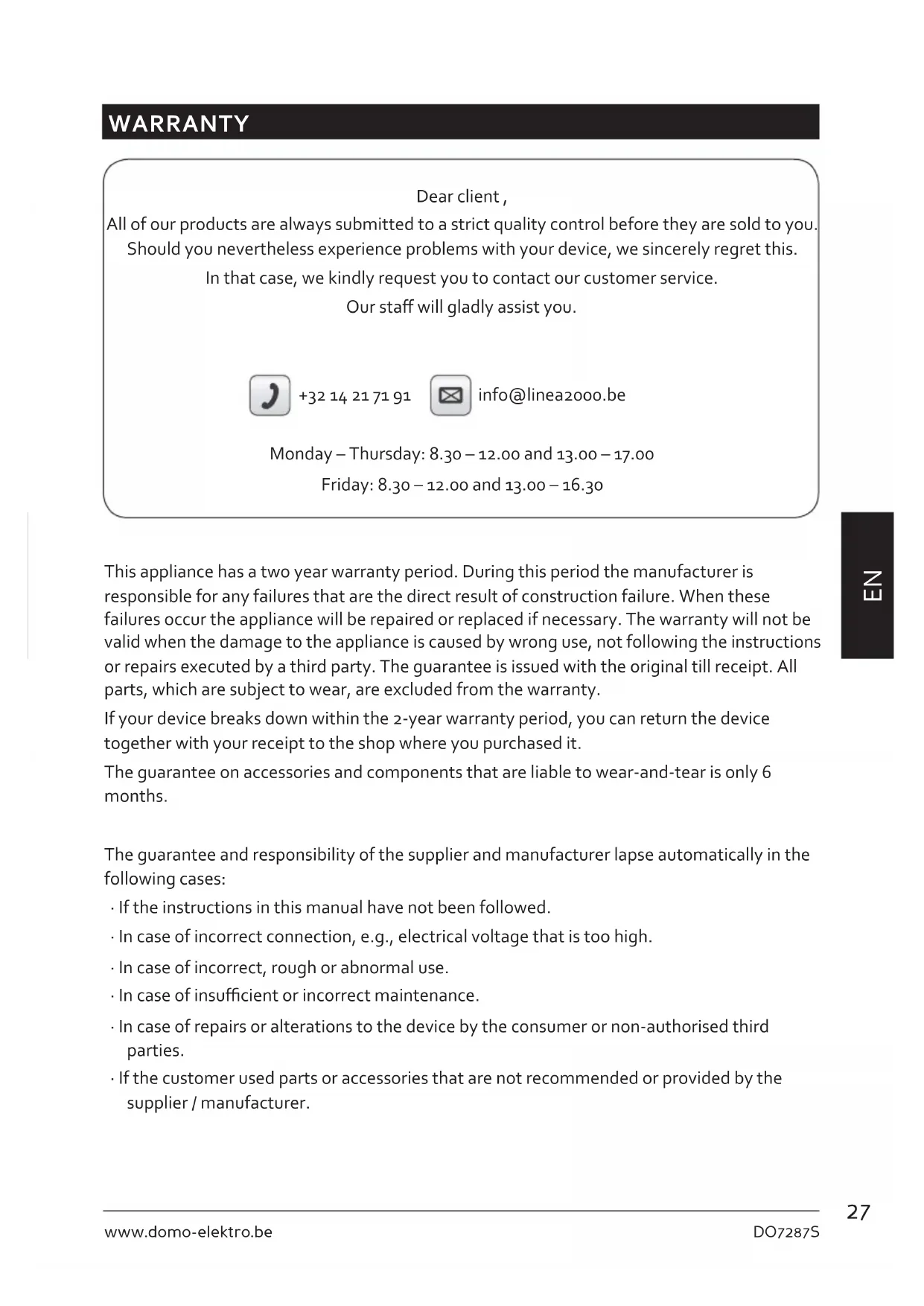

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 71 91 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.28 DO7287S

• This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

• Children cannot be allowed to play with the appliance.

• Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision.

• Keep the appliance out of reach of children younger than 16 years old. This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, oces or other similar professional surroundings

• Hotel or motel rooms and other surroundings with a residential character

• Guest rooms or similar Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.

• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.

• Do not let the cord hang on a hot surface or on the edge of a table or counter top.

• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualied service center for check-up and repair.

• Close supervision is necessary when the appliance is used near or by children.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘o’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

• Do not leave a working appliance unattended.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.

• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for29 DO7287S www.domo-elektro.be

accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Never immerse the appliance, the cord or the plug in water or any other liquid.

• Make sure that children do not touch the cord or appliance.

• Keep the cord away from sharp edges and hot parts or other heat sources.

• Before use, remove all packaging materials and any promotional stickers.

• To prevent the risk of electrocution, do not use the vacuum cleaner outdoors or on wet surfaces.

• Only use the vacuum cleaner as described in this instruction booklet. Only use accessories recommended by the manufacturer.

• Do not use the appliance when the plug or cord is damaged, when the vacuum cleaner malfunctions, when it has been dropped, has been damaged, has been left outside or has been dropped in water. In that case, take your vacuum cleaner to a service center for a check-up and/or repair.

• Do not pull the cord. Do not use the cord as a handle. Do not jam the cord between a door or do not pull it around corners or sharp edges. Do not run the vacuum cleaner over the cord. Keep the cord away from hot surfaces.

• Do not touch the plug or the vacuum cleaner when you have wet hands.

• Do not put any objects in the openings of the vacuum cleaner. Do not use the appliance when an opening is blocked.

• Keep hair, loose clothing, ngers and other body parts away from openings of the vacuum cleaner and from moving parts.

• Be extra careful when cleaning stairs.

• Never use the vacuum cleaner to pick up any combustible or inammable liquids like gasoline, or do not use the appliance in places where such substances might be present.

• Remove large and sharp objects from the oor before vacuuming it to prevent possible damage.

• Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.

• Unplug the appliance before connecting the hose.

• Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.

• Do not use the vacuum cleaner without dust bag and/or lter.

• Always connect the appliance to an earthed socket.

2. Button to pull out or retract

3. Slide button to set length of tube

6. Connection for hose

11. Button to set the suction power

13. HEPA 12 lter behind grid

16. Additional suction power control

BEFORE THE FIRST USE

Always unplug the vacuum cleaner before (dis)assembling any parts. HOSE

• Assembly: Put the connection ring at the end of the hose into the hose connection in the vacuum cleaner and turn to the right so that it is locked into place.

• Disassembly: Unplug the vacuum cleaner. Turn the connection ring at the end of the hose to the left and remove from the hose connection.

1. Put the handle of the hose into the telescopic tube.

2. Set the telescopic tube to the desired length. For this, push the slide on the wand

downwards and pull on the upper part of the wand to extend it. Release the slide button and let the tube snap into place.

3. Attach the oor nozzle to the telescopic tube by rmly sliding the tube into the nozzle.

1. Crevice nozzle: for hard to reach areas like

radiators, crevices, corners, in between pillows,...

2. Dust brush: for furniture, shelves,...

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The yellow label

on the cord indicates the maximum length of the cord, that should not be exceeded.

2. To turn the vacuum cleaner on and o, press the foot pedal with the symbol.

3. To set the suction power, slide the suction power button upwards or downwards

in between the MIN and MAX indicators. For delicate materials it is best to use the minimum power level, a medium power is recommended for matresses, furniture and carpets and the maximum power level should be used for tiles, wood and other hard oors.

4. When you want to clean hard oors, make sure that the brushes in the oor nozzle are

5. When you want to clean carpet, make sure that the brushes in the oor nozzle are

6. When you have nished vacuuming, unplug the vacuum cleaner and automatically

rewind the cord by pressing the foot pedal with the symbol. Make sure that the plug does not whip back and forth while rewinding the cord, by guiding the cord with your hand. This to prevent possible damage.

CLEANING AND MAINTENANCE

Check the hose, dust bag and lters regularly. Empty the hose when it is clogged, replace the dust bag when it is full and clean the lters when they are dirty.

DISPOSABLE DUST BAGS AND FILTERS

• The dust bag and the motor lter play a very important roll in the eciency of the vacuum cleaner. The purpose of the dust bag is to capture dirt, but at the same time the lter needs to be porous enough to allow air to pass through. If the bag or motor lter get clogged, no air can pass through the cleaner and no cleaning can take place regardless of how powerful the unit is.

• To keep the cleaner operating at maximum eciency, change the dust bag frequently and clean the lter when needed. Some ne particles can restrict the air ow very quickly and will decrease the performance even before the bag appears to be full. For that reason, the bag and lter may need to be changed more often when vacuuming carpet fresheners or cleaners, powder, plaster dust or similar ne substances. REPLACING THE DUST BAG AND CLEANING THE MOTOR FILTER The dust bag must be replaced if the indicator turns red. Be sure to turn o and unplug the vacuum cleaner before replacing the dust bag or cleaning the lter. Never vacuum without the dust bag or lters in place.

1. Turn o and unplug the vacuum cleaner.

2. Remove the hose from the hose connection and open the dust bag compartment by

pushing the handle upwards and lifting the lid.

3. Slide the dust bag out of the frame and remove the dust bag from the dust bag

4. If at this point you want to clean the motor lter, take out the lter by sliding it

upwards. Clean the lter by rinsing it under warm water. Let the lter air dry completely before reinstalling it. Reinstall the lter before placing the dust bag into the dust bag compartment.

5. Slide a new dust bag (2 l) in the dust bag frame.

6. Close the dust bag compartment and push the lid back into place. The spring on the

dust bag frame will make sure that the opening of the dust bag is pushed into the right position when closing the lid.

The HEPA 12 lter cleans the air a nal time before it leaves the vacuum cleaner. This lter and the grid that covers the lter should be cleaned regularly. You can clean the lter as follows:

1. Turn o and unplug the vacuum cleaner. Always pull the plug itself, never pull the cord.

2. Open the grid that covers the lter by pushing it left at the clip. The lter is visible when

the grid is removed.

3. Take out the lter.

4. Rinse the lter under cold water and let it air dry completely.

5. Put the lter back into place or replace the lter by a new one. Make sure that the lter is

6. Seal with the grid. Make sure that the grid clicks into place.

• Always use the vacuum cleaner with the lters in place. If not, this can lead to loss of power or damage to the motor.

• Remove the plug from the socket before cleaning the lters.

• Do not place the lters in the dishwasher.

• Do not use a hair dryer to dry the lters.34 DO7287S

ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.35 DO7287S www.domo-elektro.be
