USER MANUAL C7 NEFFOS

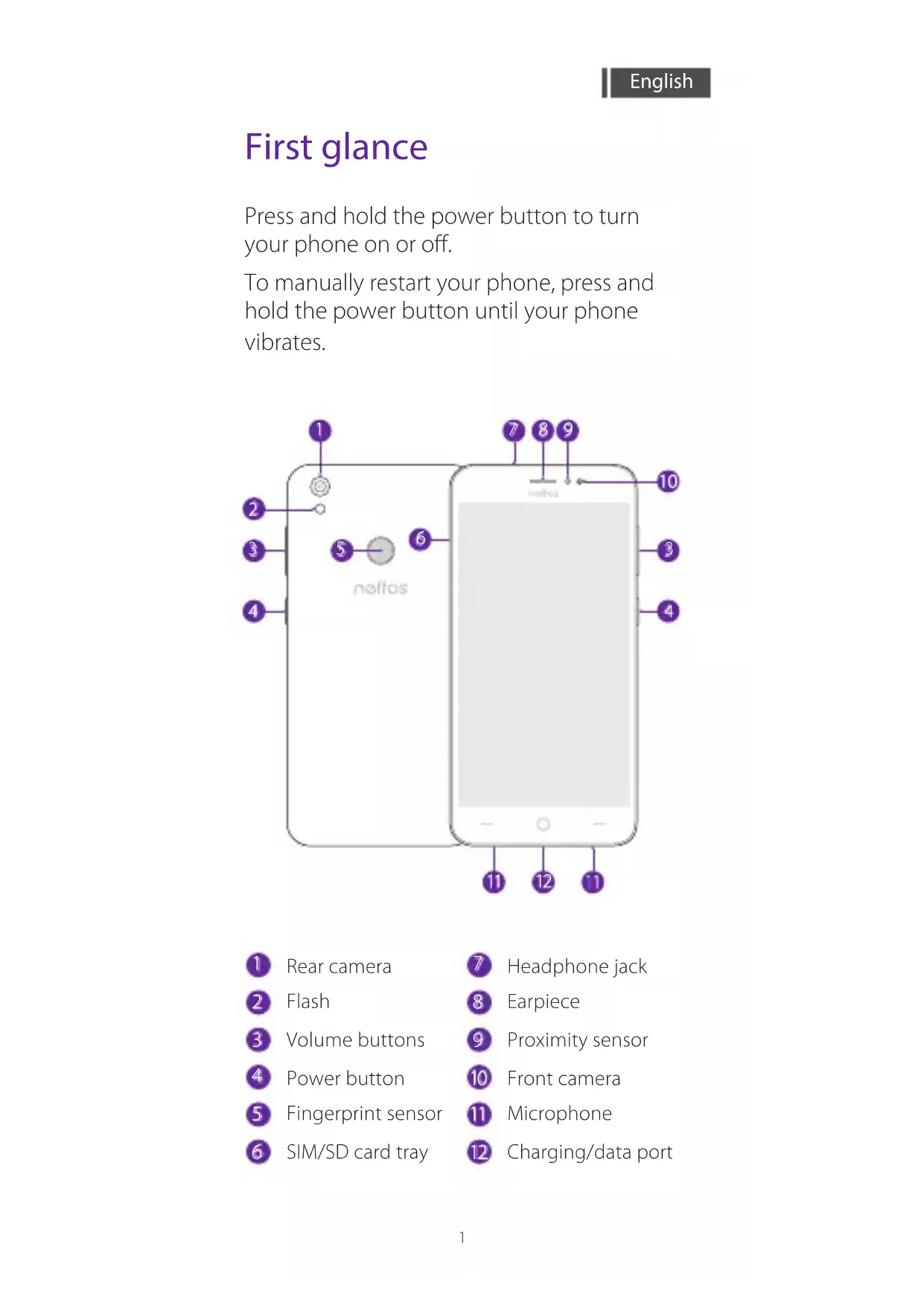

Press and hold the power button to turn your phone on or off.

To manually restart your phone, press and hold the power button until your phone vibrates.

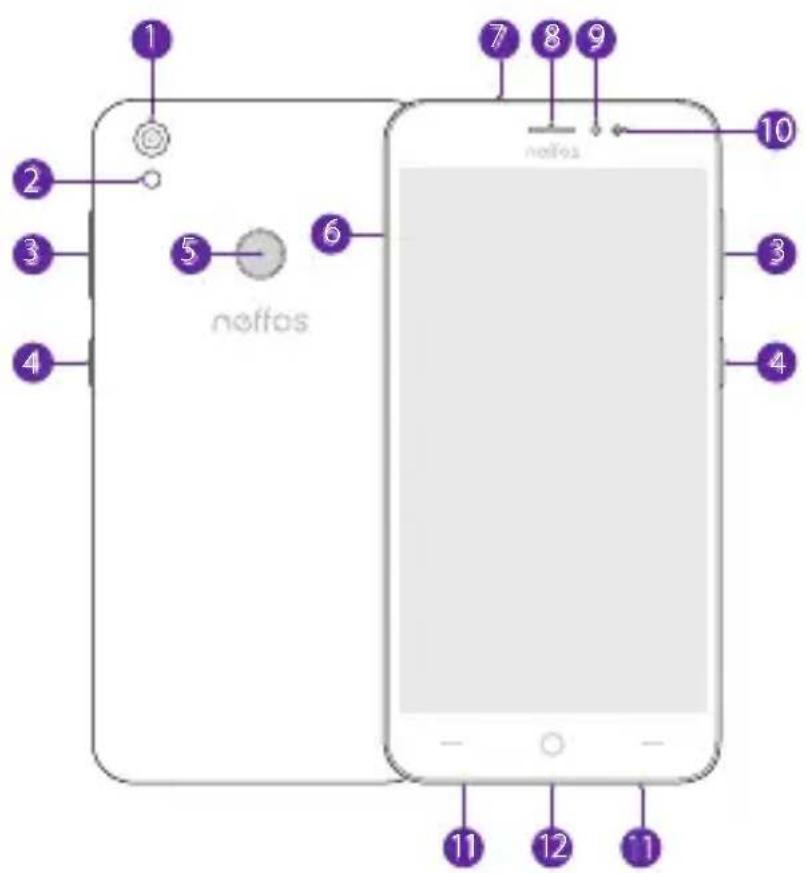

Rear camera

Headphone jack

2 Flash

8 Earpiece

3 Volume buttons

9 Proximity sensor

4 Power button

10 Front camera

Fingerprint sensor

Microphone

SIM/SD card tray

12 Charging/data port

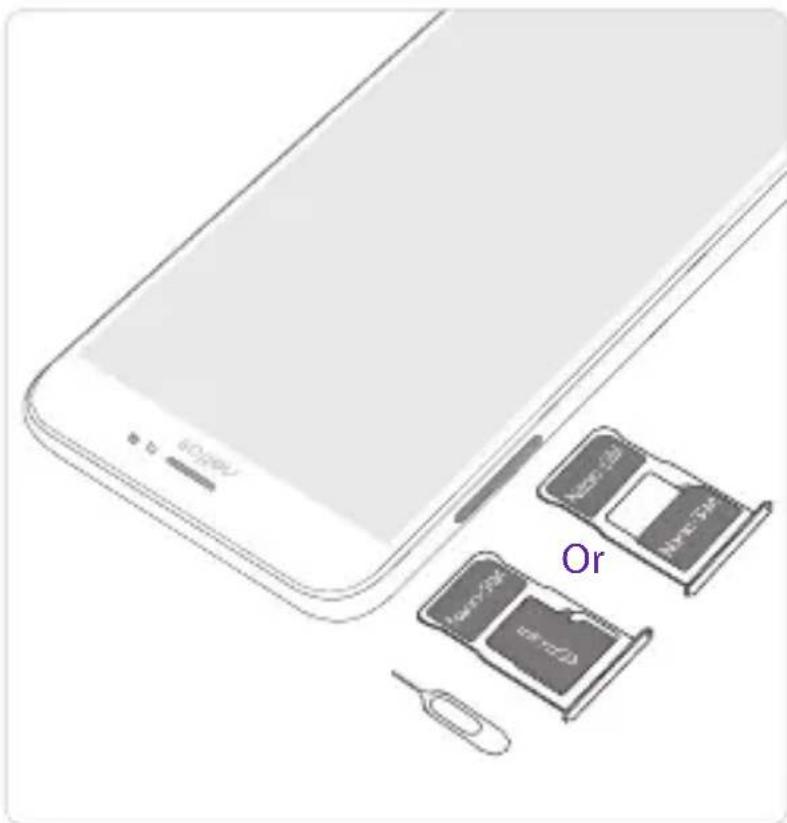

Put in the cards

Eject the SIM card tray by inserting the SIM ejector pin provided into the hole on the tray. Place the the card(s) into the tray with the gold contacts face down and then insert the tray back into the phone.

The card tray can support two Nano-SIM cards or a Nano-SIM card and a mircoSD card.

Take care not to scratch your device or harm yourself when using the SIM ejector pin. Store the SIM ejector pin out of the reach of children to prevent accidental swallowing or injury.

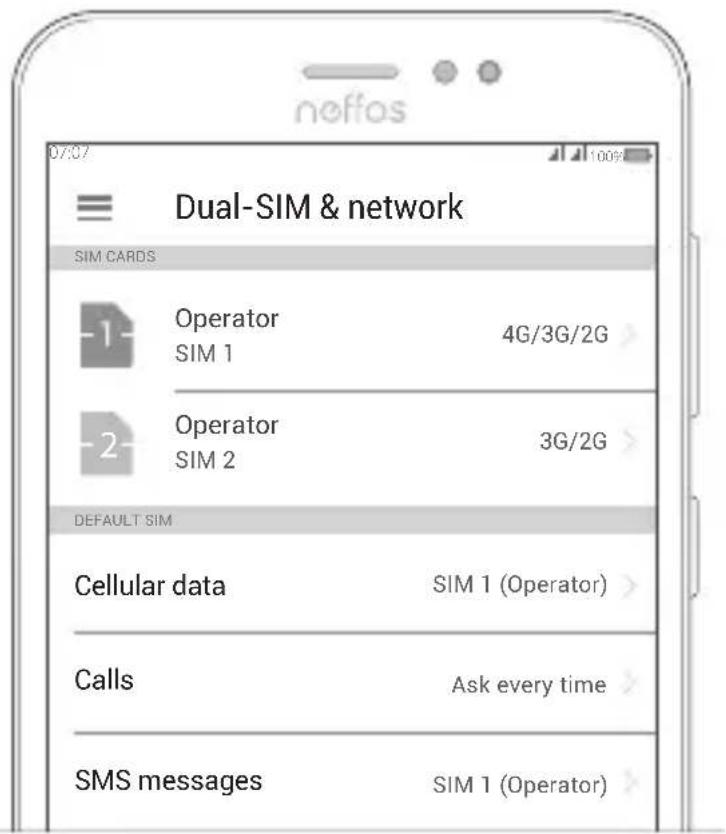

Dual SIM settings

If there's only one SIM card in the phone, it's ready to use.

With two SIM cards inserted, you can choose to use one or both of them:

Go to Settings > Dual-SIM & network, choose a SIM card and then tap the on/off button to enable or disable SIM1 or SIM2.

• Your phone supports only dual card dual standby single pass, which means you cannot use both SIM cards for calls or data services simultaneously.

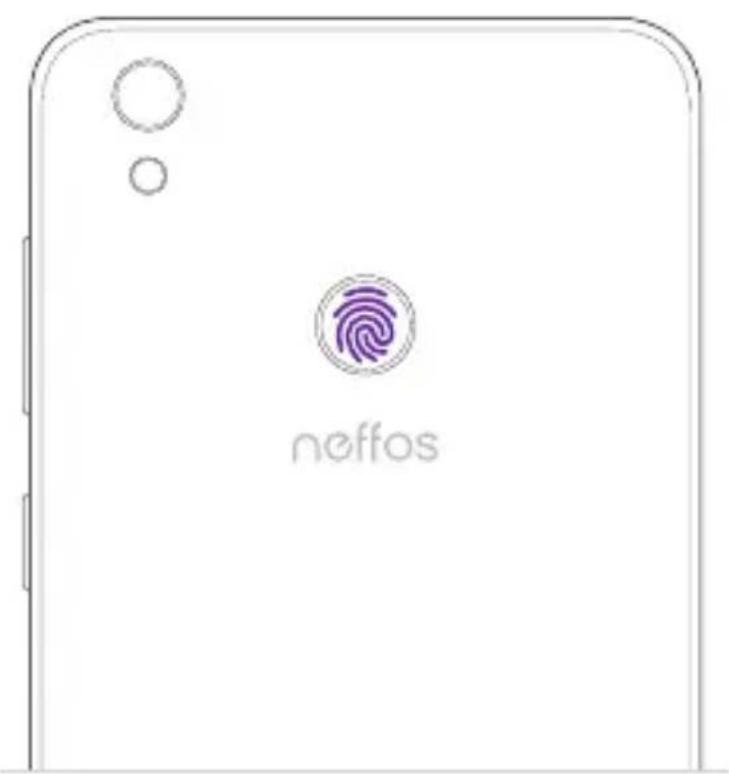

Fingerprint identification

Go to Settings > Screen lock, fingerprint & security > Fingerprint management and follow the onscreen instructions to register your fingerprint.

When recording your fingerprint, make sure the fingerprint sensor and your fingers are dry and clean.

Lock apps

Unlock phone

Take pictures

• You will be asked to enter your backup pattern or password when you restart your device or if fingerprint recognition fails.
