Box Content

LaCie d2 Quadra Hard Disk

USB 3.0 cable (USB 2.0-compatible)

FireWire 800 cable

eSATA cable

Power supply

Drive stand for upright use

Quick Install Guide

LaCie Storage Utilities and User Manual are pre-loaded on the drive.

1 2

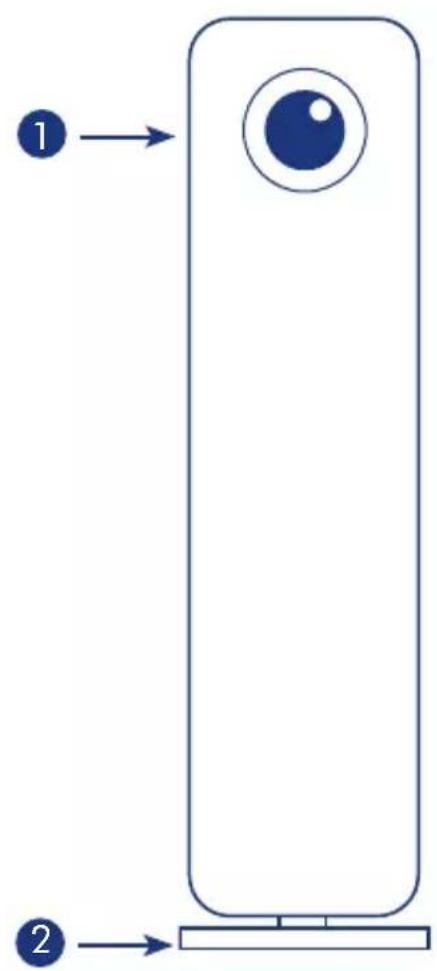

Front View

1. Shortcut button with activity LED
2. Removable stand

ON OFF FW800 USB 3.0 6SATA DESIGNED BY NEL POSITION UACIE 7 8

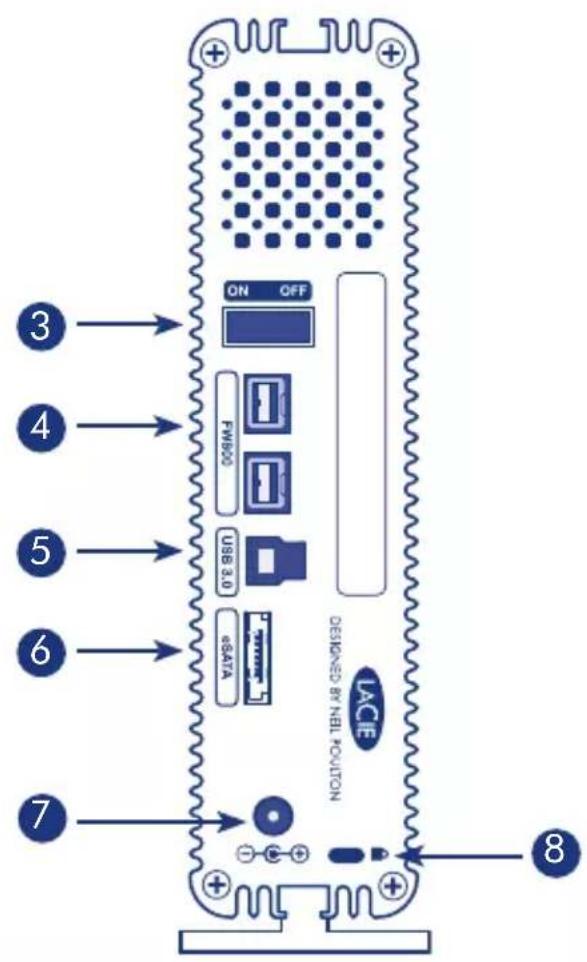

Rear View

1. Power switch
2. FireWire 800 ports
3. USB 3.0 port
4. eSATA port
5. Power supply connection
6. Chain lock option

Setup Steps

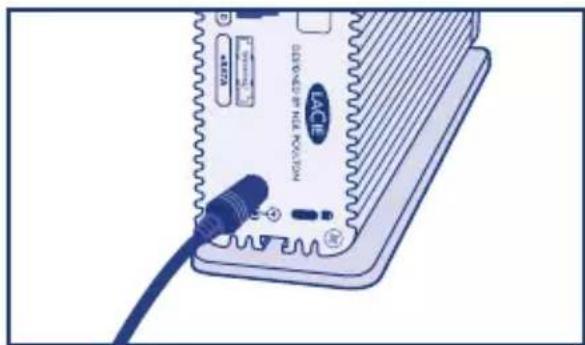

1. Connect the power supply.

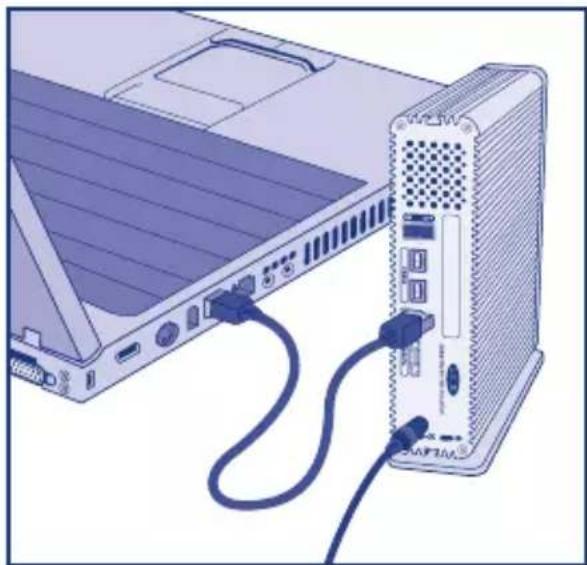

2. Connect the USB 3.0, FireWire 800 or eSATA cable to your computer and to the drive.

NOTE: If your computer does not have a USB 3.0 port, you can connect the included USB 3.0 cable to a USB 2.0 port. In this case, file transfers will be limited to USB 2.0 speeds. To take advantage of SuperSpeed USB 3.0 transfer rates, you can add a USB 3.0 PCI-Express card (for desktop computer) or a USB 3.0 ExpressCard/34 (for laptop). For more information, visit www.lacie.com/accessories.

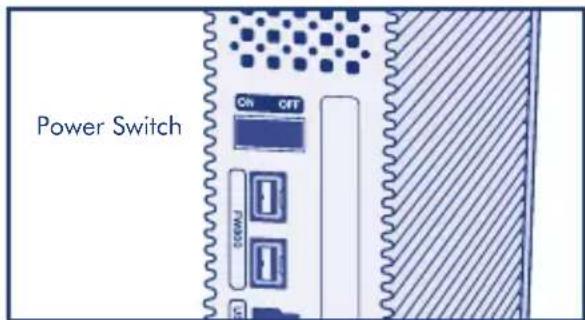

1. Turn on the drive by moving the power switch to On. The drive will mount in My Computer (Windows XP), Computer (Vista or Windows 7) or on your desktop (Mac).

Illustration of a device with a blue cable inserted into a rectangular base, showing no visible text or symbols.

Illustration of a laptop connected to a server rack with cable (no text or symbols visible)

1. Before using your drive, LaCie Setup Assistant software must be launched to format your drive. It will:

2. Optimize your drive according to your needs

3. Copy the manual and utilities onto your drive.

To launch LaCie Setup Assistant:

Windows users: Double-click the LaCie drive icon in My Computer/Computer. Mac users: Double-click the "LaCie Setup Assistant" icon on your desktop.

NOTE: If you do not launch LaCie Setup Assistant or if you quit LaCie Setup Assistant after the formatting has begun, your drive will not be ready to use and will require manual formatting. The user manual and utilities will not be available on your drive and will have to be downloaded from the LaCie website: www.lacie.com.

NOTE: Running LaCie Setup Assistant does not prevent you from using your computer's native disk utility program to format or partition your LaCie drive. Simply follow the Setup Assistant through completion, then use your computer's native disk utility (Disk Management for Windows or Disk Utility for Mac) to reformat your drive.

1. Install LaCie Shortcut Button software to enable the feature.

Simple icon of a camera lens inside a rounded rectangle (no text or symbols)

Precautions

Do not stack more than 3 LaCie d2 Quadra Hard Disks together. Do not expose the drive to temperatures over 35^ (95°F) or 30^ (86°F) when stacked. Do not expose the device to liquids. Use only the power supply shipped with the device.

Warranty Information

LaCie warrants your product against any defect in material and workmanship, under normal use, for the designated warranty period. The warranty becomes effective from the date of shipment. In the event this product is found to be defective within the warranty period, LaCie will, at its discretion, repair or replace the defective product.

This warranty is void if:

• The product was operated/stored in abnormal use or maintenance conditions;
• The product is repaired, modified or altered, unless LaCie expressly authorizes such repair, modification or alteration in writing;
• The product was subjected to abuse, neglect, electrical fault, improper packaging, accident or acts of nature;
  • The product was installed improperly;
  • The serial number of the product is defaced or missing;
• The broken part is a replacement part such as a pickup tray, etc.
• The tamper seal on the casing is broken.

For more information, see the User Manual pre-loaded on the drive.

For a detailed list of product warranties, visit www.lacie.com/products/warranty.htm.

For the latest documentation and software updates, please go to www.lacie.com/support/

FR

.www.lacie.com/accessories

Alexandria, NSW 2015

[e-mail]

LaCie Benelux

Vorstlaan / 165 Bld du Souverain

B-1160 Brussels, Belgium

[e-mail]

LaCie Canada

235 Dufferin St.

Toronto, Ontario M6K 1Z5

[e-mail]

LaCie France

17, rue Ampère

91349 Massy Cedex

[e-mail]

LaCie Germany

Am Kesselhaus 5

D-79576 Weil Am Rhein

[e-mail]

LaCie Italy

Milano Business Park

Edificio B1

(Sweden, Denmark, Norway, Finland)

Sveavägen 90, 5tr

113 59 Stockholm, Sweden

[e-mail]

LaCie Spain

LaCie United Kingdom and Ireland

LaCie Ltd, Power Road Studios

114 Power Road

Chiswick, London, UK W4 5PY

UK: [e-mail]

Ireland: [e-mail]

LaCie USA

22985 NW Evergreen Pkwy

Hillsboro, OR 97124

[e-mail]

LaCie Worldwide Export

17, rue Ampère

91349 Massy Cedex, France

[e-mail]

[e-mail]

Visit www.lacie.com for more information on LaCie products.

Copyright © 2010, LaCie 715255 101026

INTRODUCTION

Exterior view of a modern silver server with ventilation slots and a blue indicator light (no text or symbols visible)

Provides 60% more area for heat dissipation Heat Sink Design Standard Design

Exterior view of a modern, silver server with ventilation slots and a blue LED (no text or symbols visible)

INTRODUCTION

Exterior view of a modern silver server with ventilation slots and a blue indicator light (no text or symbols visible)

Provides 60% more area for heat dissipation Heat Sink Design Standard Design

Diagram showing a black metal detector connected to four separate plug connectors (no text or symbols present)

Illustration of a network device connected to a power outlet cable (no text or symbols visible)

ÉTAPE 2 - CONNEXION DU CÂBLE D'INTERFACE

Illustration of a laptop connected to a server and charging cable (no text or symbols visible)

Illustration of a laptop connected to a server with an attached power outlet (no text or symbols visible)

AutoPlay LaCie Setup (E:) General options Open folder to view files using Windows Explorer Speed up my system using Windows ReadyBoost View more AutoPlay options in Control Panel

Computer > LaCle Setup (E) Organize ▼ Include in library ▼ Share with ▼ New folder Favorites Desktop Downloads Recent Places Libraries Computer Local Disk (C:) LaCle Setup (E:) Network: Name Date modified Type Size LaCle Setup.app 3/1/2012 11:18 AM File Folder LaCle Setup 3/1/2012 11:18 AM Application 65 KB Rename 3/1/2012 11:18 AM Text Document 2 KB 3 items

Utilisateurs Mac

LaCie Setup Assistant Choose your language English Ok Cancel

LaCie Setup Assistant Welcome 2 3 4 5 LaCie Setup Assistant will help you to configure your LaCie device and install important software utilities. To continue, select Next to accept the terms of the software license . PLEASE READ CAREFULLY BEFORE USING THIS SOFTWARE PRODUCT: This End-User License Agreement ("EULA") is a contract between (a) you (either an individual or the entity you represent) and (b) LaCie ("LACIE") that governs your use of the software product ("Software"). This EULA does not apply if there is a separate license agreement between you and LACIE or its suppliers for the Software. including a license agreement in online documentation. The term "Software" may include (i) associated media. By clicking Next you accept the terms of the End User License Agreement. Click Next to continue or Cancel to exit. Previous Next Cancel ISA 2.0.14 - Product: Risky US$ 3.0 1.0.1

LaCie Setup Assistant 1 Format 3 4 5 Use the slides below to determine how LaCie Setup Assistant should format your device. Drag the slide completely to the left if you intend to use the device only with Windows computers. To create a volume to exchange data between your Windows computer and other operating systems, drag the slide slightly to the right. Drag the slide completely to the right if you want to create one large volume to exchange data between different operating systems. LaCie Share FAT32 / Windows, Mac, Linux 116.4 GB 25 % LaCie NTFS 349.3 GB 75 % NTPS: Best performance on Windows XP, Vista, and 7. Compatible in read-only mode with Mac OS 10.3 and higher. FAT32: Compatible with Windows and Mac computers. Maximum single file size is limited to 468. Click Next to continue or Cancel to exit. LDA: 2.0.14 - Product: Rkln: USB 3.0.1.0.1 Previous Next Cancel

Windows

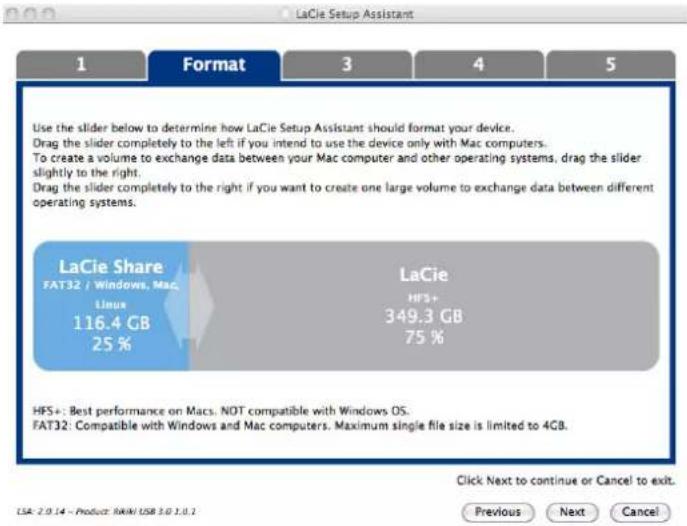

LaCie Setup Assistant 1 Format 3 4 5 Use the slider below to determine how LaCie Setup Assistant should format your device. Drag the slider completely to the left if you intend to use the device only with Mac computers. To create a volume to exchange data between your Mac computer and other operating systems, drag the slider slightly to the right. Drag the slider completely to the right if you want to create one large volume to exchange data between different operating systems. LaCie Share FAT32 / Windows, Mac,Linux 116.4 GB 25% LaCie HFS+ 349.3 GB 75% HFS+: Best performance on Macs. NOT compatible with Windows OS. FAT32: Compatible with Windows and Mac computers. Maximum single file size is limited to 4GB. Click Next to continue or Cancel to exit. Previous Next Cancel USA 2.0.14 - Product: RSM USB 3.0.1.0.1

Mac

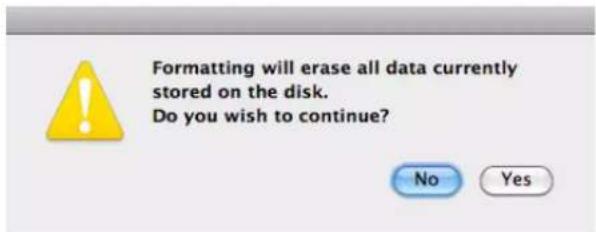

Format Warning Formatting will erase all data currently stored on the disk. Do you wish to continue? Yes No

Windows

Formatting will erase all data currently stored on the disk. Do you wish to continue? No Yes

Mac

LaCie Setup Assistant va formater le disque dur.5.

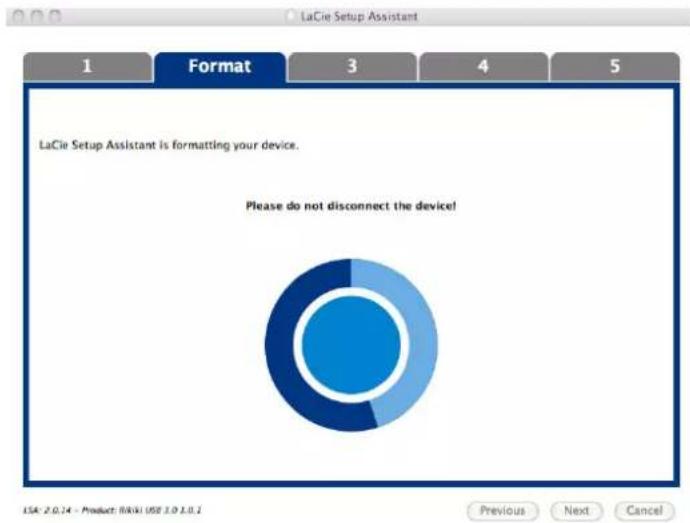

LaCie Setup Assistant 1 Format 3 4 5 LaCie Setup Assistant is formatting your device. Please do not disconnect the device! USA: 2.0.14 - Product: RIKU USD 1.0 1.0.1 Previous Next Cancel

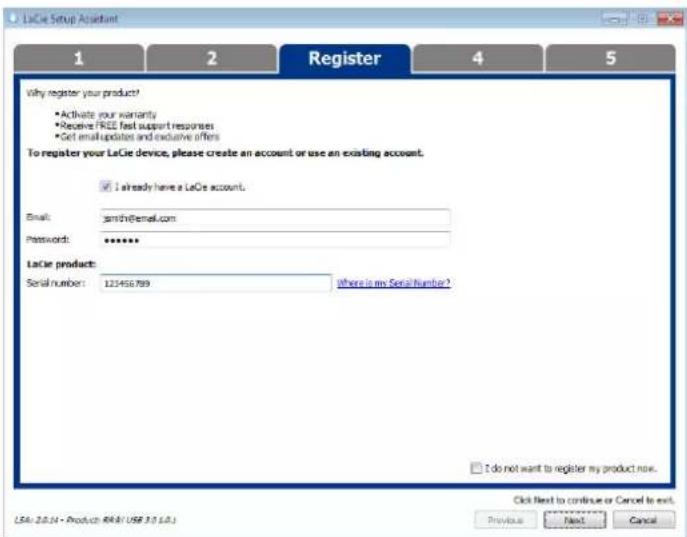

1 2 Register 4 5 Why register your product? • Activate your warranty • Receive FREE fast support responses • Get email updates and exclusive offers To register your LaCie device, please create an account or use an existing account. □ I already have a LaCie account. First name: John Last name: Smith Email: [e-mail] Password: ****** Confirm password: ****** LaCie product: Serial number: 123456789 Where is my Serial Number? □ I do not want to register my product now. Click Next to continue or Cancel to exit. Previous Next Cancel USA 2.0.24 - Product: USB 1.0.1.0.1

Nouveau compte

LaCie Setup Assistant 1 2 Register 4 5 Why register your product? • Activate your warranty • Receive FREE test support responses • Get email updates and exclusive offers To register your LaCie device, please create an account or use an existing account. ✓ I already have a LaCie account. Email: [e-mail] Passwords: ****** LaCie product: Serial number: 123456789 where is my Serial Number? I do not want to register my product now. Click Next to continue or Cancel to exit. Previous Next Cancel LSA: 2.0.14 - Product: RMB/ USB 3.0.1.0.1

Compte existant

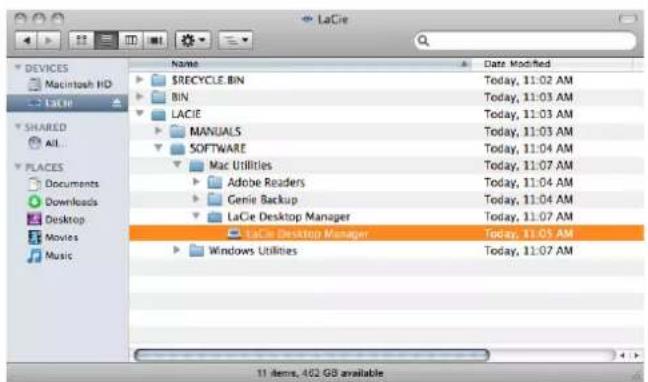

LACE SOFTWARE Windows Utilities LaCie Desktop Manager Organize Include in library Share with Burn New folder Computer Local Disk (C:) LaCie (l:) LACIE MANUALS SOFTWARE Mac Utilities Windows Utilities Adobe Readers Genie Backup LaCie Desktop Manager USB Pack 1 item LaCie Desktop Manager Installer
