USER MANUAL Ceran SCG 1200 A1 SILVERCREST

Congratulations on the purchase of your new product. You have selected a high-quality product. The operating instructions are a constituent part of this product. They contain important information about safety, use and disposal. Familiarize yourself with all the operating and safety instructions before using the product. Use the product only as described and for the stated spheres of application. If you pass the product on to a third party, always pass on all the documentation as well.

1. Appliance description

1.1 Intended purpose

The Silvercrest ceramic grill SCG 1200 A1 is suitable for grilling and cooking food. Only use the ceramic grill indoors, never out- side. The appliance must not be used for thawing, warming or drying objects. This appliance is intended for use in private households and is not suitable for commercial purposes. The appliance is likewise suitable for:

• use in staff kitchens in shops, offices and other commercial areas,

• use in agricultural settings,

• customers in hotels, motels and other accommodations,

• bed-and-breakfast establishments.

1 Ceramic grill 1 Drip tray 1 User instructions

The grill plate 3 is heated up and is used to grill and cook food. During cooking, excess fat runs off and is collected in the drip tray 4 behind the grill plate. The heater switches off automatically once the set temperature has been reached. If the temperature falls below this value, the heater RP91023 Cerangrill LB1 Seite 46 Montag, 17. Juni 2013 3:54 15SCG 1200 A1 47 switches on again until the required temperature is reached.

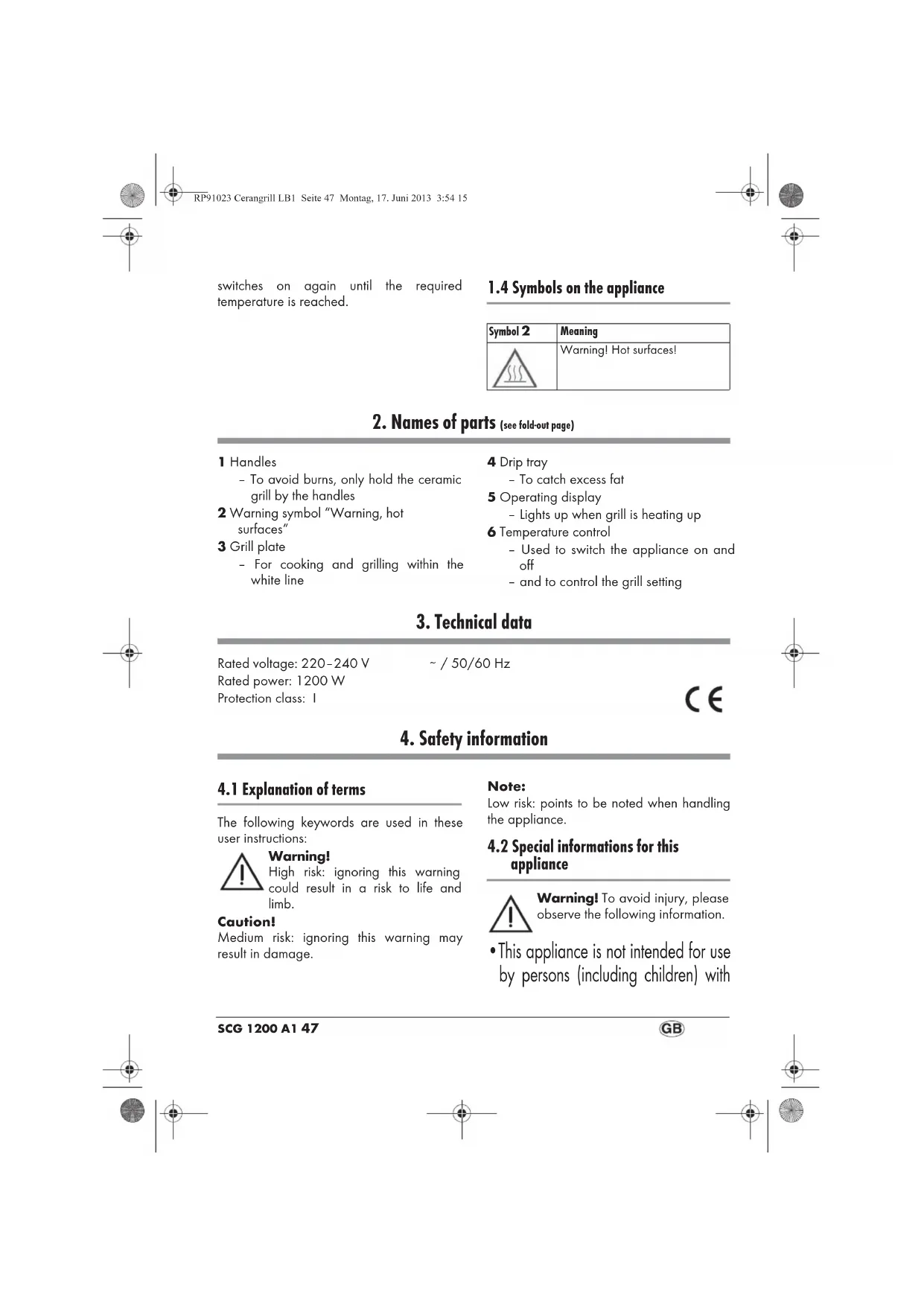

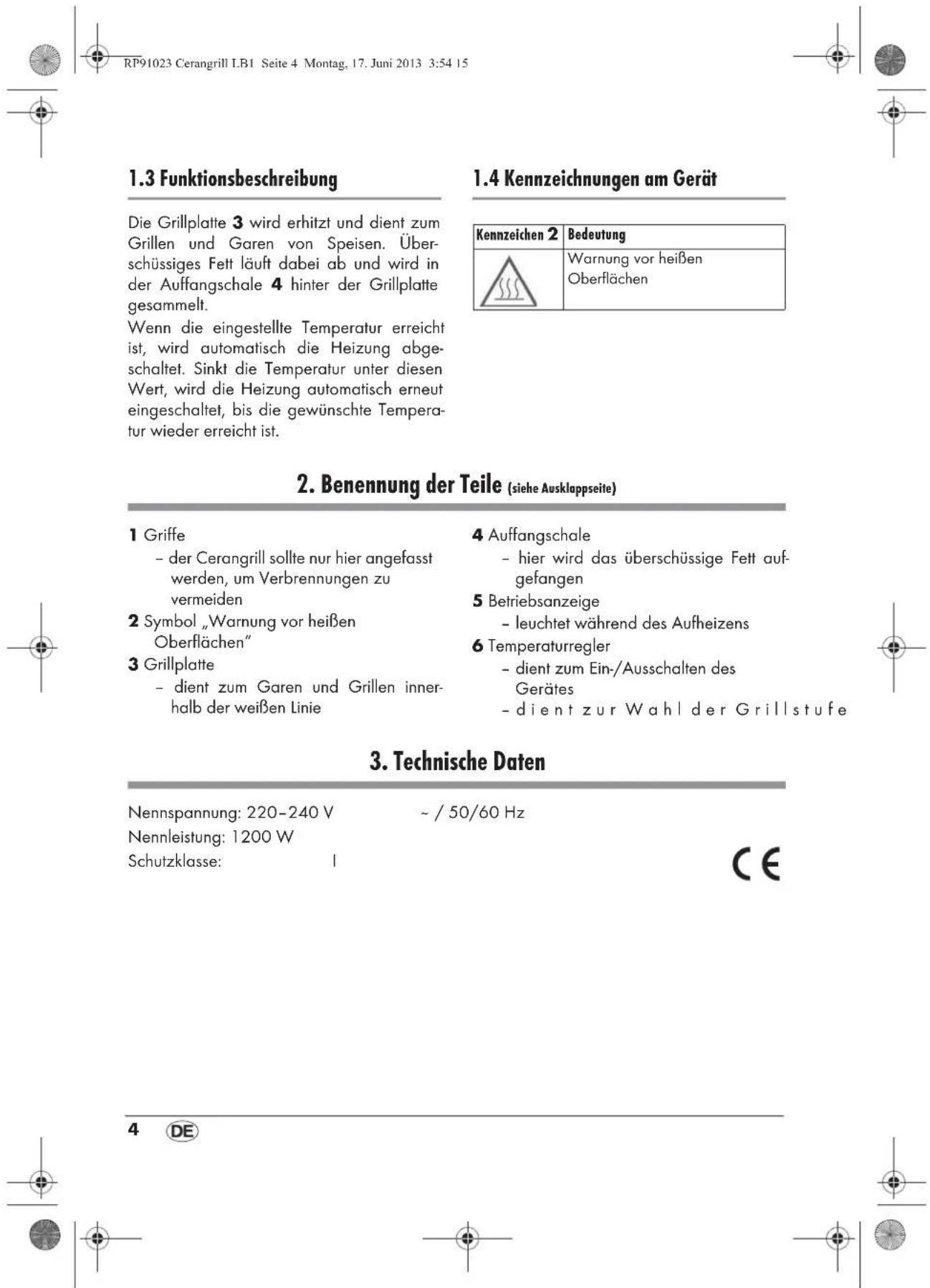

1.4 Symbols on the appliance

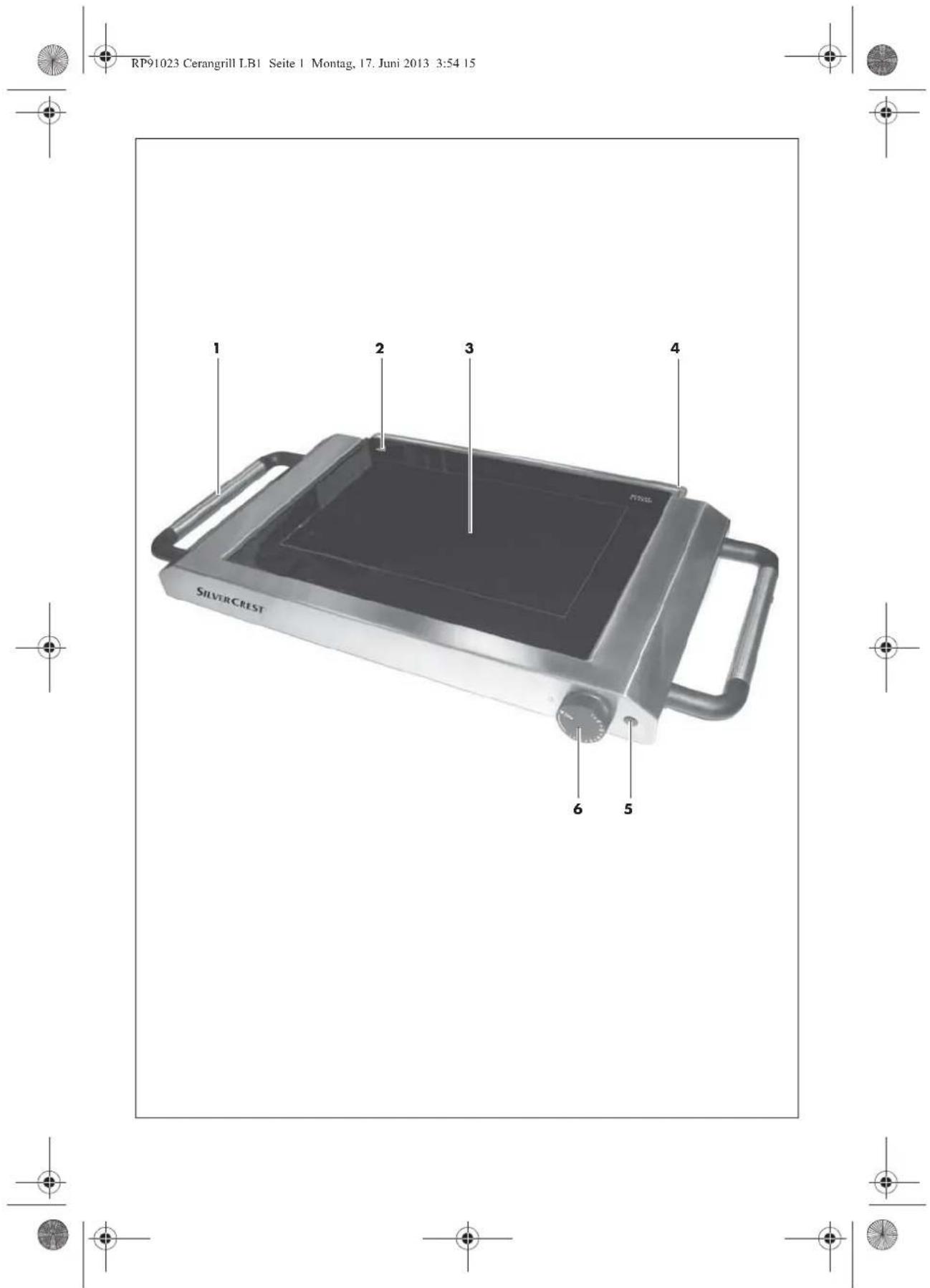

2. Names of parts (see fold-out page)

1 Handles – To avoid burns, only hold the ceramic grill by the handles 2 Warning symbol “Warning, hot surfaces” 3 Grill plate – For cooking and grilling within the white line 4 Drip tray – To catch excess fat 5 Operating display – Lights up when grill is heating up 6 Temperature control – Used to switch the appliance on and off – and to control the grill setting

Rated voltage: 220–240 V

/ 50/60 Hz Rated power: 1200 W Protection class: I

4. Safety information

4.1 Explanation of terms

The following keywords are used in these user instructions: Warning! High risk: ignoring this warning could result in a risk to life and limb. Caution! Medium risk: ignoring this warning may result in damage. Note: Low risk: points to be noted when handling the appliance.

4.2 Special informations for this

appliance Warning! To avoid injury, please observe the following information.

• This appliance is not intended for use by persons (including children) with Symbol 2 Meaning Warning! Hot surfaces! RP91023 Cerangrill LB1 Seite 47 Montag, 17. Juni 2013 3:54 1548 reduced physical, sensory or mental capabilities or lack of experience and/or lack of knowledge, unless either supervised by a person responsible for their safety or given instructions on the use of the appliance by such a person. Children should be supervised to ensure they do not play with the appliance.

• The surfaces of the appliance can get hot, only hold the appliance by the handles

displays cracks or other signs of damage, the appliance must not be used. Fat or other liquids may enter the appliance and cause electric shock. Caution! To avoid material damage, please observe the following conditions.

• The appliance must not be operated with an external time switch or separate remote control system, such as a wireless remote control socket.

• It is not permissible to use charcoal or similar fuels with this appliance.

4.3 General information

• Please read these user instructions carefully before use. They are a constituent part of the appliance and must be kept to hand at all times.

• Use the appliance only for the purpose described (see “1.1 Intended purpose” on page 46).

• To prevent damage, check that the mains voltage required (see type plate on the appliance) is compatible with your mains voltage.

• Please note that any claim under the warranty or for liability will be invalid if accessories are used that are not recommended in these user instructions, or if original spare parts are not used for repairs. This also applies to repairs undertaken by unqualified persons. The contact information can be found under “Service Centre” on page 54.

• If the appliance should develop a fault during the warranty period, it may only be repaired by our Service Centre. Otherwise all claims under warranty are null and void. The contact information can be found under “Service Centre” on page 54.

• To ensure you can intervene promptly if a fault occurs, never leave the appliance unsupervised during operation.

• Ensure that it is not possible for anyone to trip over or to get caught up in or step on the mains cable and injure themselves.

• The appliance may only be used on a firm, level, dry and non-flammable surface. This will prevent it from tipping over, sliding or setting fire to the surface and causing damage.

• Put the appliance on a fireproof surface to prevent damage if hot fat spills out.

• Maintain a distance of at least 50 cm from other objects to prevent them from catching fire.

• The appliance must not be placed on hot stoves, put in a hot oven or set up in the vicinity of gas heaters and on- RP91023 Cerangrill LB1 Seite 48 Montag, 17. Juni 2013 3:54 15SCG 1200 A1 49 demand water heaters, as this could cause damage.

• Surface cleaners may contain ingredients that could attack and soften the rubber feet. In this case, please contact the Service Centre. The contact information can be found under “Service Centre” on page 54.

• Do not put anything on the appliance.

4.4 Protection against electric shock

Warning! The following safety information is intended to protect you against electric shock.

• Only plug the appliance into a correctly installed, earthed wall socket.

• The appliance must not under any circumstances be used if it is damaged. Have the device repaired in such cases by a qualified specialist. The contact data can be found in “Service Centre” on page 54.

• If the mains cable for this appliance is damaged, it must be replaced by the manufacturer or a person with similar qualifications in order to avoid a hazard.

• Water or other liquids must never be allowed to enter the appliance. For this reason: – never use it outdoors – never immerse it in liquids – never place liquid-filled objects, e.g. pans, on the appliance – never use in very humid environments. If liquid should enter the appliance, unplug the mains plug immediately and have the appliance repaired by a qualified technician. The contact information can be found under “Service Centre” on page 54.

• Avoid using extension cables. These may only be used under very specific conditions: – the extension cable must be able to handle the amount of current drawn by the appliance, – the extension cable must not be "suspended". Keep children away from it and ensure that it is not possible for anybody to trip over it – under no circumstances use a damaged extension cable – do not connect any other appliances to the mains socket, since it could cause an overload (do not use multiple sockets of any kind).

• Never touch the appliance, the mains cable or the mains plug with wet hands.

• Always unplug the mains cable by pulling out the plug. Never pull on the cable itself.

• Never carry the appliance by the mains cable.

• Ensure that the mains cable is not kinked, twisted or crushed.

• Keep the mains cable away from hot surfaces, such as the top of a stove.

• Always turn the temperature regulator 6 to "OFF" before pulling the plug out of the wall socket so that the appliance is switched off and no heavy current is flowing.

• If you are not going to use the appliance for a while, remove the plug from the wall socket. Only then is the appliance completely free of current.

• If the appliance is connected to the mains it may be damaged by lightning during thunderstorms. RP91023 Cerangrill LB1 Seite 49 Montag, 17. Juni 2013 3:54 1550

4.5 Protection against scalds and burns

Warning! Hot surfaces and boiling fat can cause injuries. Please note therefore:

• Do not move the appliance when it is in use and do not touch the housing or the grill plate 3. These get very hot when the appliance is in use. In this way you can avoid injuries.

• Use oven gloves when cooking food at a high temperature. Splashed fat may otherwise cause burns.

• Marinated meat should be dabbed off before grilling as the marinade may lead to spraying fat.

• The drip tray 4 should never be more than half full. If you need to empty the drip tray 4 while grilling, pull it out very carefully.

• If fat on the appliance catches fire, under no circumstances use water to put it out! There is danger of a deflagration or an electric shock. Instead, cover the appliance with a fire blanket or a large pan lid.

• Never use the appliance near curtains and other flammable materials. If the grilled food catches fire, the flames could easily spread to other objects.

4.6 For the safety of your child

Warning! Children are often unaware of danger and are injured as a result. Please note therefore:

• Only allow children to use this appliance under the supervision of an adult.

• Ensure the appliance is always kept out of the reach of children.

• Ensure that children cannot pull the appliance down onto themselves with the cable.

• Ensure that the packing foil does not become a deadly trap for a child. Packing foils are not toys.

5. Before using for the first time

During manufacture, many parts are given a thin film of protective oil. Before using the appliance for the first time, heat it up without any food so that any residues can evaporate. Note: When heating up for the first few times a slight smell may be produced. Make sure the room is adequately ventilated.

1. Take the appliance and all the

accessory parts out of the packaging.

2. Remove the packaging material.

3. Check that the appliance shows no signs

4. Clean the appliance before using it for

the first time. Observe the information in the chapter entitled “6. Cleaning” on page 51.

5. Select a location that is firm, level and

not flammable. Maintain a distance of approx. 50 cm from other objects.

6. Turn the temperature regulator 6 to

"OFF". This switches the appliance off.

7. Plug the mains plug into a suitable wall

socket (see “3. Technical data” on page 47).

8. Turn the temperature regulator 6 to "5".

The indicator lamp 5 lights up and the appliance heats up. RP91023 Cerangrill LB1 Seite 50 Montag, 17. Juni 2013 3:54 15SCG 1200 A1 51

9. Leave the appliance switched on until

the indicator lamp 5 goes out. 10.Keep the appliance switched on for a further 5 minutes.

11. Switch the appliance off again by turn-

ing the temperature control 6 to "OFF".

12. Remove the power supply plug and

allow the appliance to cool down. 13.Wipe the grill plate 3 again with a damp cloth. 14.Wipe dry with a dry cloth. The appliance is now ready to use.

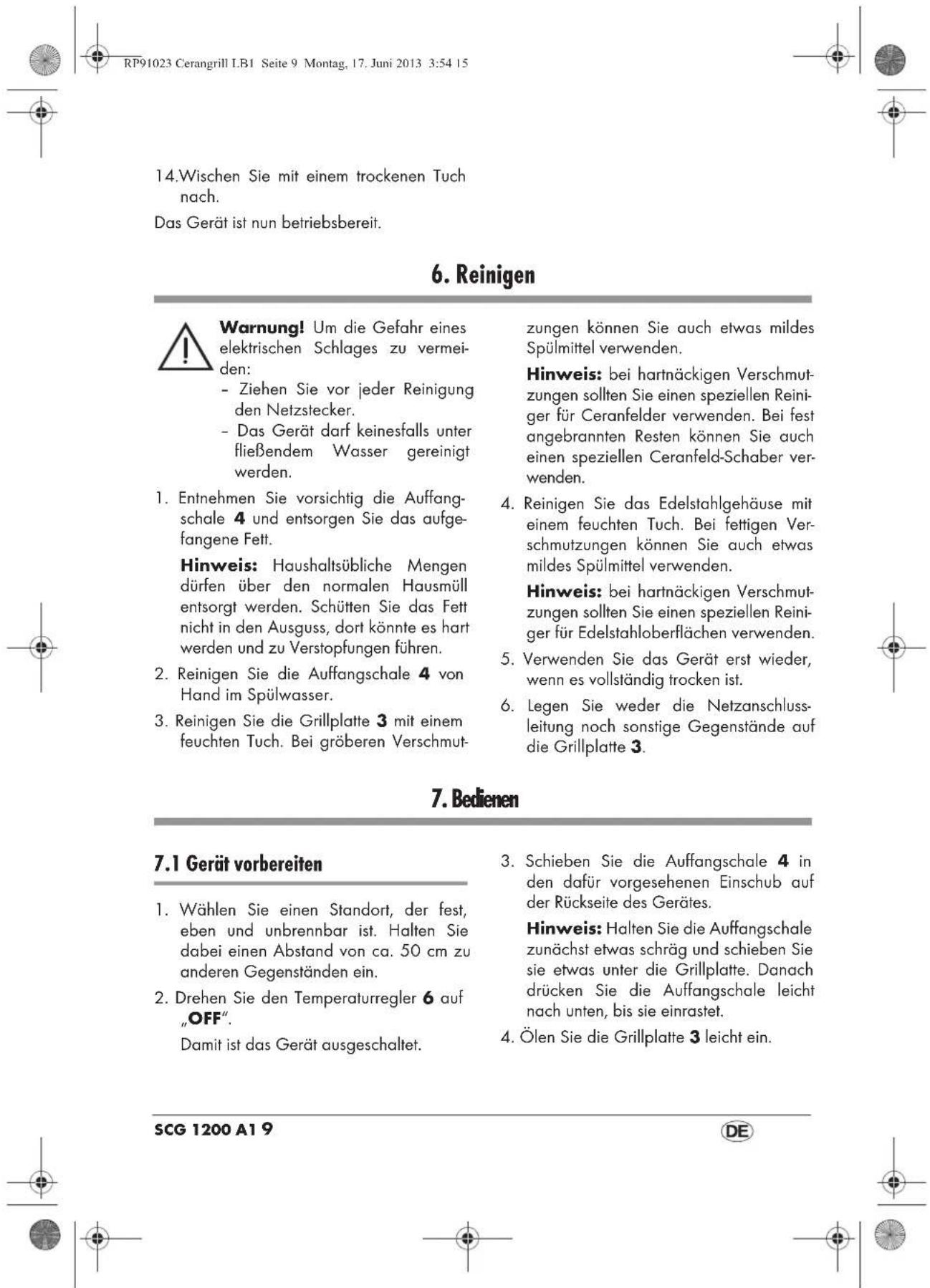

Warning! To avoid the danger of an electric shock: –Always remove the mains plug before cleaning. – Never clean the appliance under running water.

1. Carefully remove the drip tray 4 and dis-

pose of the collected fat. Note Normal domestic quantities can be disposed of as domestic waste. Do not pour the fat down the drain, as it may solidify and cause blockages.

2. Clean the drip tray 4 by hand in dishwa-

3. Clean the grill plate 3 with a damp

cloth. Use a mild detergent to clean heavier soiling. Note To remove persistent soiling, use a special ceramic-hob cleaner. For burnt-in residues, you can also use a special ceramic-hob scraper.

4. Clean the stainless steel casing with a

damp cloth. Use a mild detergent to remove greasy soiling. Note To remove persistent soiling, use a special cleaner for stainless steel sur- faces.

5. Do not use the appliance again until it is

other objects on the grill plate 3.

7.1 Preparing the appliance

1. Place the appliance on a surface that is

firm, level and non-flammable. Maintain a distance of approx. 50 cm from other objects.

2. Turn the temperature control 6 to "OFF".

This switches the appliance off.

3. Insert the drip tray 4 into the slide pro-

vided on the rear of the appliance. Note Hold the drip tray at a slightly oblique angle at first and slide it a short way under the grill plate. Then push the drip tray down slightly until it engages.

4. Apply a little oil to the grill plate 3.

Note As the grill plate can become very hot, use an oil with a high smoke point, e.g. sunflower oil.

5. Insert the mains plug into a suitable

• Do not rest any barbecue utensils on the ceramic plate. This could lead to damage.

• Do not use any acidic or sugared seasoning (mixtures that contain vinegar or sugar) as acid and sugar may damage the grill plate 3. Should these substances come into contact with the grill plate nonetheless, remove residues immediately before they begin to cool using a ceramic-hob scraper.

• You can use metal barbecue utensils.

• Never use plastic barbecue utensils or plastic knives. These could melt and damage the grill plate 3.

1. Turn the temperature control 6 to the

required temperature: – "LO" to "2": Low temperature for keeping food warm. – "3" to "5": Medium temperature for cooking fish fillets, poultry and other grilled food. – "6" to "HI": Maximum temperature for slices of meat, poultry or searing. The indicator lamp 5 lights up and the grill plate 3 heats up. When the correct temperature has been reached, the indicator lamp 5 goes out. If the temperature of the grill plate 3 falls below the selected value, the heater switches on again. Warning! Risk of burning: – The grill plate 3 gets very hot – do not touch! – Marinated or moist meat should be dabbed off before grilling as the liquid may lead to spraying fat. Caution!

• Do not rest any barbecue utensils on the ceramic plate. This could lead to damage.

• Do not use acidic seasoning (mixtures containing vinegar) as acid may damage the grill plate 3.

2. Put the food to be cooked onto the grill

plate 3. The food to be grilled should not hang over the white line of the grill plate 3.

3. Turn the food to be grilled after a while.

Note If necessary, you can remove food residue now and again using a ceramic-hob scraper.

4. When the food is cooked, remove it from

perature control 6 to "OFF" when you have finished grilling.

6. Remove the mains plug.

7. Clean the appliance (see “6. Cleaning”

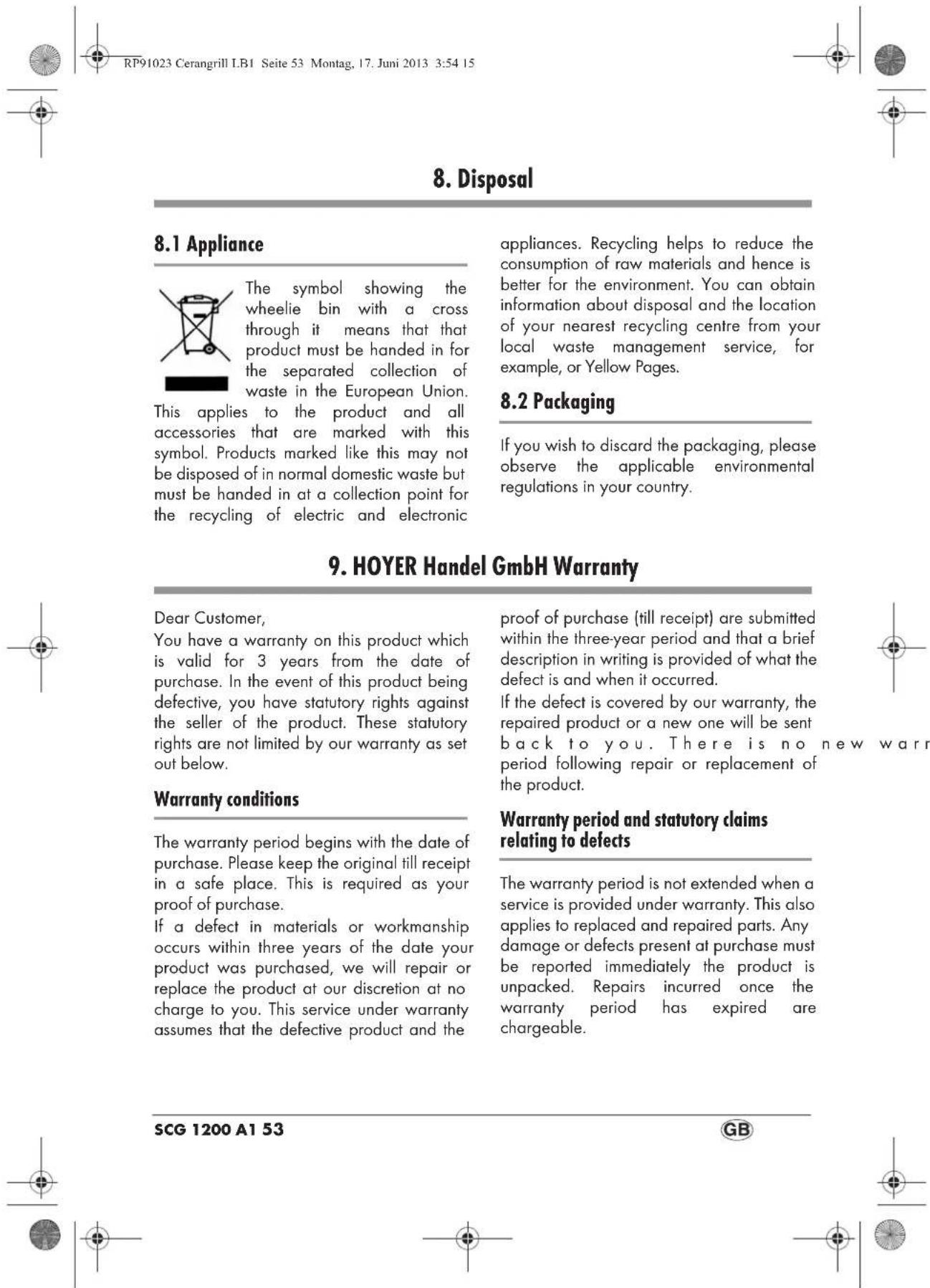

The symbol showing the wheelie bin with a cross through it means that that product must be handed in for the separated collection of waste in the European Union. This applies to the product and all accessories that are marked with this symbol. Products marked like this may not be disposed of in normal domestic waste but must be handed in at a collection point for the recycling of electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and hence is better for the environment. You can obtain information about disposal and the location of your nearest recycling centre from your local waste management service, for example, or Yellow Pages.

If you wish to discard the packaging, please observe the applicable environmental regulations in your country.

9. HOYER Handel GmbH Warranty

Dear Customer, You have a warranty on this product which is valid for 3 years from the date of purchase. In the event of this product being defective, you have statutory rights against the seller of the product. These statutory rights are not limited by our warranty as set out below. Warranty conditions The warranty period begins with the date of purchase. Please keep the original till receipt in a safe place. This is required as your proof of purchase. If a defect in materials or workmanship occurs within three years of the date your product was purchased, we will repair or replace the product at our discretion at no charge to you. This service under warranty assumes that the defective product and the proof of purchase (till receipt) are submitted within the three-year period and that a brief description in writing is provided of what the defect is and when it occurred. If the defect is covered by our warranty, the repaired product or a new one will be sent back to you. There is no new warranty period following repair or replacement of the product. Warranty period and statutory claims relating to defects The warranty period is not extended when a service is provided under warranty. This also applies to replaced and repaired parts. Any damage or defects present at purchase must be reported immediately the product is unpacked. Repairs incurred once the warranty period has expired are chargeable. RP91023 Cerangrill LB1 Seite 53 Montag, 17. Juni 2013 3:54 1554 Scope of warranty The product has been carefully manufactured in accordance with strict quality guidelines and was thoroughly checked before being delivered. The warranty applies to defective materials or workmanship. This warranty does not extend to product parts exposed to normal wear and tear (and which can therefore be considered wear parts) or to damage to fragile parts such as switches, batteries or parts made of glass. This warranty is void if the product is damaged or if it is not used or maintained properly. All the information in the operating instructions should be observed precisely to ensure that the product is used properly. It is essential to avoid intended uses and actions which are discouraged or warned against in the operating instructions. The product is intended for only private use and not for commercial purposes. The warranty is void in the event of misuse, incorrect treatment, use of force or interference by anyone other than our authorized service centre. Warranty process Please follow the instructions below to ensure that your claim is processed quickly.

• In case of any enquiry, please keep the article number (for this product: IAN 91023) and the till receipt as proof of purchase.

• The article number can be found on the rating plate, as an engraving, on the cover sheet of your instructions (bottom left) or as a label on the back or underside of your appliance.

• If malfunctions or any other defects should occur, in the first instance contact the Service Centre mentioned below by telephone or e-mail.

• Once a product has been recorded as defective, you can then send it Freepost to the service address you are given, enclosing the proof of purchase (till receipt) and quoting what the defect is and when it occurred. You can download these instructions and many other manuals, product videos and software from www.lidl-service.com. Service Centre Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: hoyer@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: hoyer@lidl.ie Service Cyprus Tel.: 8009 4409 E-Mail: hoyer@lidl.com.cy Service Malta Tel.: 80062230 E-Mail: hoyer@lidl.com.mt IAN: 91023
