Ultimate Series R7 - Shaver REMINGTON - Free user manual and instructions

Brand	Remington
Model	Ultimate Series R7
Category	Electric shaver
Power type	Cordless rechargeable
Mains adapter	100 V - 240 V automatic
Initial charging time	24 hours
Normal charging time	4 hours
Charge indicator	Green LED (charging), red (low battery), off (charged)
Usage	Dry shaving or with shaving gel
Built-in trimmer	Retractable trimmer with release button
Rotary heads	Yes, set of rotary heads and blades
Hair chamber	Yes, removable
Cleaning	Rinseable under running water (head and chamber)
Trimmer lubrication	Every 6 months with sewing machine oil
Adaptation recommendation	Use daily for 4 weeks for best performance
Safety	Do not use if cord is damaged; keep out of reach of children; unplug before cleaning
Spare parts	Adapter, charging stand, heads and blades, protective cap, cleaning brush
Recycling	Do not dispose of in household waste; battery removable by a professional

Frequently Asked Questions - Ultimate Series R7 REMINGTON

How long should I charge the shaver for the first time?

For the first use, charge the shaver for at least 24 hours. Subsequent charges take about 4 hours for a full charge.

Can I use the shaver in the shower?

Yes, the shaver is designed for use in the bathtub or shower. It can be rinsed under running water after use. Make sure to separate the portable part from the power cord before cleaning.

How do I clean the shaver after use?

After each use, clean the shaver by rinsing the head and blades under warm water. You can also remove the hair chamber and tap it on a flat surface to remove residue. Let dry before reassembling.

Can I use shaving gel with this shaver?

Yes, you can use shaving gel. After shaving, rinse the head and blades thoroughly with warm water to remove any gel residue.

What should I do if the shaver does not charge?

Check that the charging stand is properly connected to the adapter and a power outlet. Make sure the shaver is turned off during charging. If the problem persists, the power cord or adapter may be defective; contact customer service.

How do I use the retractable trimmer?

Press the release button to unlock the trimmer. Hold it at a right angle against the skin for precise cutting. To retract, push it down until it clicks into place.

Should the trimmer be lubricated?

Yes, it is recommended to lubricate the trimmer teeth every six months with a drop of sewing machine oil.

How do I remove the battery at end of life?

Battery removal should be done by a professional. Unplug the device, remove the shaver head, then disassemble the casing with a screwdriver to access the battery. The battery must be disposed of at an appropriate collection point.

Can I shave long hair with this shaver?

For long hair, first use the retractable trimmer without a cutting guide for a cut of 1 mm or 0.4 mm depending on the angle, then finish with regular shaving.

How do I maintain the shaver head?

Clean the head after each use under running water. For deep cleaning, separate the blade block from the body and rinse. Avoid pressing too hard during shaving to prevent damaging the rotary heads.

USER MANUAL Ultimate Series R7 REMINGTON

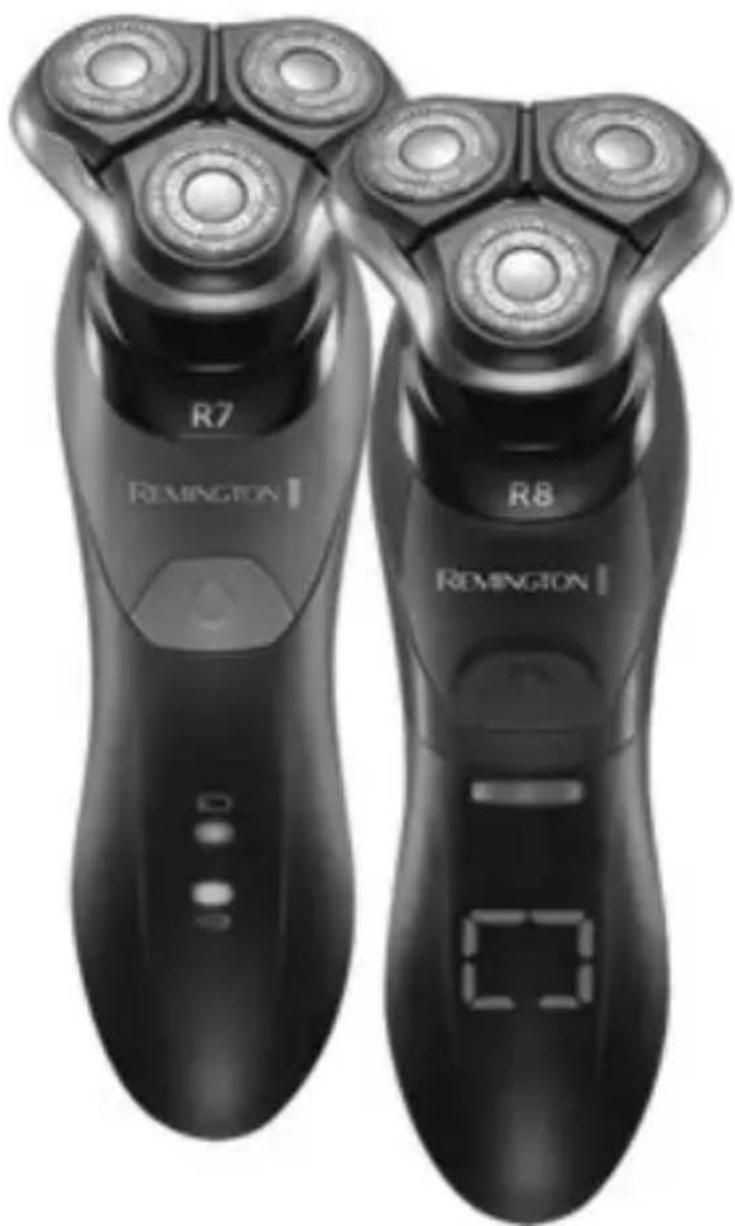

Ultimate Series Rotary Shaver

Two black Remington electric shakers with three rotary dials, shown from different angles (no text or symbols visible on the devices themselves)

R7/R8

Technical illustration of a mechanical component with a directional arrow indicating movement (no text or symbols present)

Illustration of a flying saucer with particles falling from its tip, next to a blank square (no text or symbols)

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

IMPORTANT SAFEGUARDS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury.
• The adaptor contains a transformer. Do not cut off the adaptor to replace it with another plug, as this causes a hazardous situation.

The shaver is suitable for cleaning under an open water tap.

Suitable for use in a bath or shower.

• WARNING: Detach the shaver from the charging adapter before cleaning it in water.
• Do not use the product with a damaged cord. A replacement can be obtained via our International Service Centres.
• This product should only be used with the charging adaptor supplied.
  • Always replace a damaged adaptor with one of the original type.

- Do not use the shaver, charging adaptor, charging stand or any other part if it is damaged, as this may cause injury.

- This appliance should never be left unattended when plugged into a power outlet, except when charging.

- Keep the power plug and cord away from heated surfaces.

- Do not plug or unplug the appliance with wet hands.

- Do not twist or kink the cable, or wrap it round the appliance.

- This appliance is not intended for commercial or salon use.

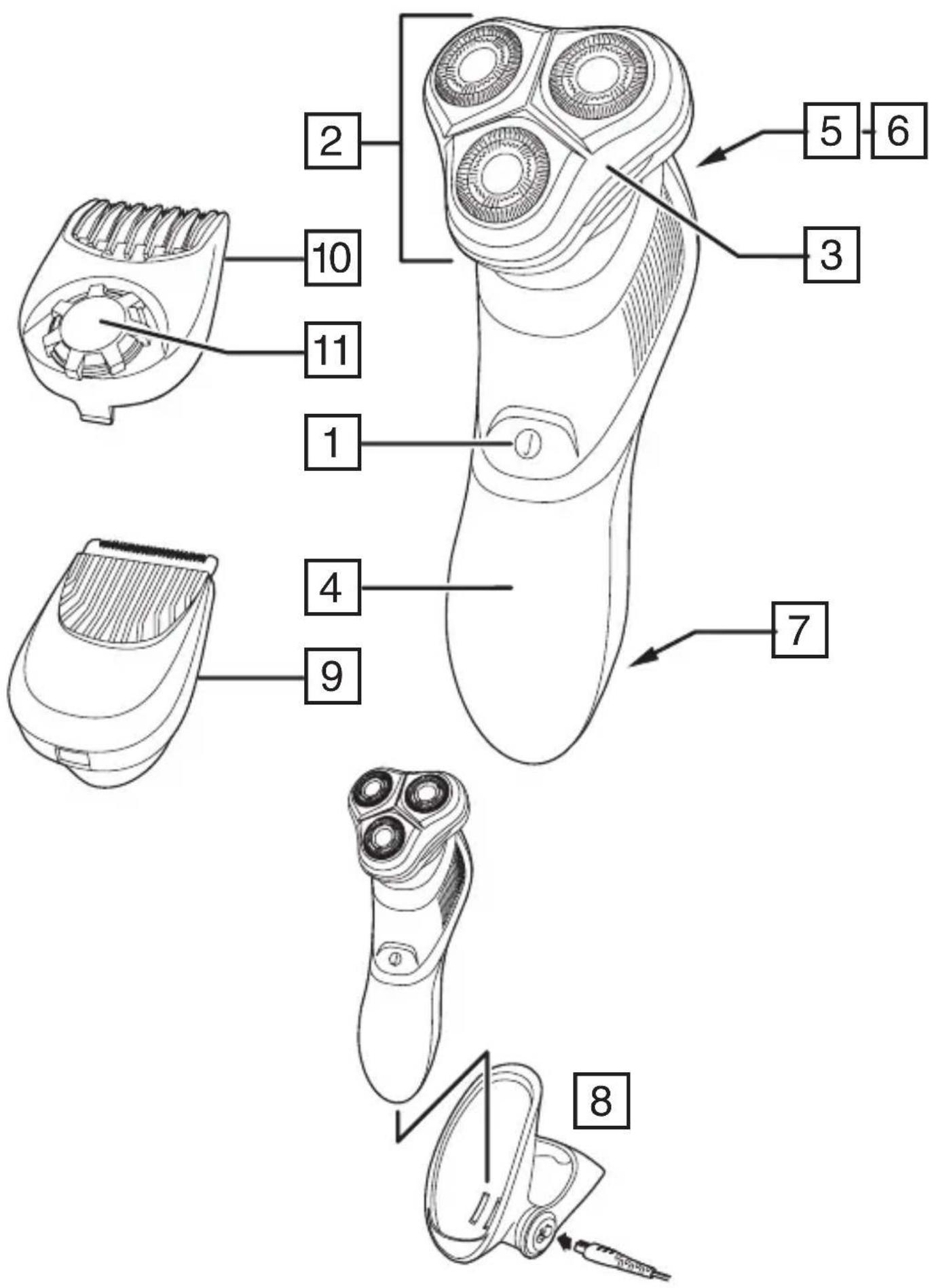

PARTS

1. On/off switch
2. Head and cutter assembly
3. Hair pocket
4. LED display
5. Pop-up trimmer
6. Trimmer release button
7. Charging pins
8. Charging stand
9. Beard trimming attachment
10. Comb
11. Comb adjustment dial
12. Adaptor (not shown)
13. Headguard (not shown)
14. Cleaning brush (not shown)
15. Storage case (not shown)

GETTING STARTED

CHARGE THE SHAVER:

Note: This shaver is for cordless use only.

1. Ensure the appliance is turned off.
2. Connect the charging stand to the adaptor and then to the mains.
3. Place the shaver in the charging stand.

4. Charge for at least 24 hours when using for the first time.

5. To preserve the life of your batteries, let them run out every 6 months then recharge for 24 hours.

6. The appliance adapts automatically to a mains voltage between 100V and 240V.

R7

• When the charge is low, the upper LED will illuminate red.
• When charging the lower LED will illuminate green. When fully charged both LEDs will be off.
• Allow 4 hours for a complete charge.

R8

• The fuel gauge will display the amount of charge left when the shaver is on. When charging, the LEDs cycle in a rotating pattern. When fully charged all LEDs will come on then turn off.
• Allow 90 minutes for a full charge.

INSTRUCTIONS FOR USE

It is recommended that you use your new shaver daily for up to four weeks to allow time for your beard and skin to become accustomed to the new shaving system.

SHAVING

1. Switch the shaver on.
2. Stretch the skin with your free hand so the hairs stand upright.

1. Only apply light pressure on the shaving head while shaving (pressing too hard can damage the heads and make them vulnerable to breakage).
2. Use short, circular strokes.

SHAVING WITH SHAVING GEL

• Follow the same instructions as dry shaving if using shaving gel.
• CAUTION After use with shaving gel, please rinse the head and cutters under warm water to clean away any excess gel and debris.

TRIMMING

• Push the trimmer button to release the detail trimmer.
• Hold the trimmer at right angles to your skin.
• Place the trimmer at desired trim line for a quick, easy, professional trim.
• To retract the trimmer, push down until it locks into position.

BEARD TRIMMER ATTACHMENT (R8)

To fit the beard trimmer attachment:

1. Switch off your shaver.

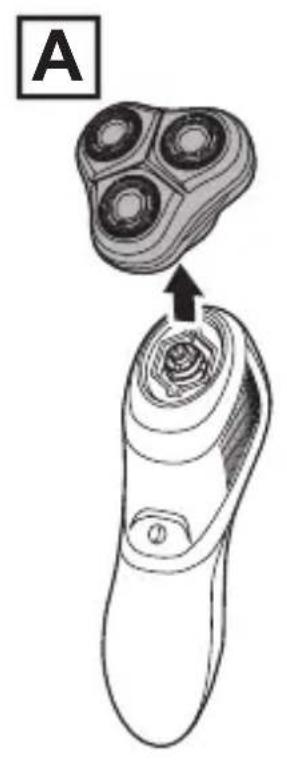

2. Grasp the head and cutter assembly and pull it away from the body of your shaver (Fig A).

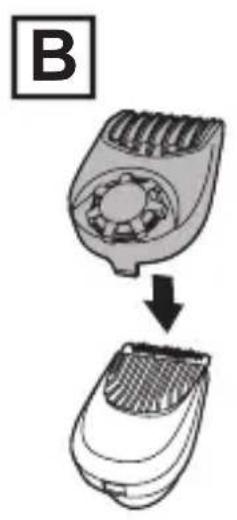

3. If using, snap the comb to the beard trimming attachment (Fig B).

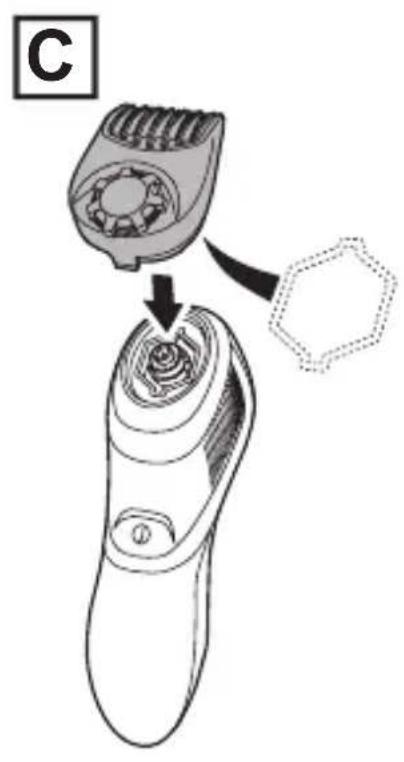

4. Align the underside of the beard trimmer attachment with the hexagonal recess in the shaver body and click it into place (Fig C).

- Use the trimmer without the comb for trimming hair close to the skin. This will trim hair to 1mm, holding the blades perpendicular to the skin will trim hair to 0.4mm.

- Adjust the comb setting by rotating the adjustment dial on top of the comb clockwise to increase the cut length or anticlockwise to reduce the cut length. The selected setting is shown on the scale.

TIPS FOR BEST RESULTS

- Use moderate to slow stroking movements. The use of short circular motions in stubborn areas may obtain a closer shave, especially along the neck and chin line.

- DO NOT press hard against the skin in order to avoid damage to the rotary heads.

CARE FOR YOUR SHAVER

To ensure long lasting performance clean after each use.

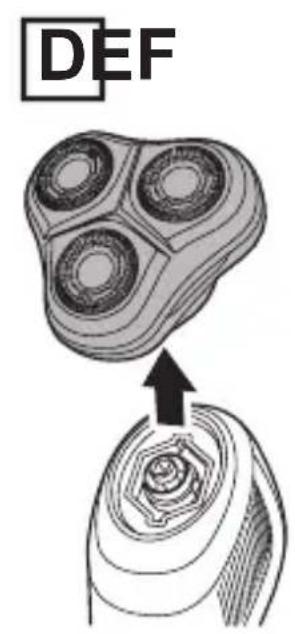

1. Grasp the head and cutter assembly and pull it away from the body of your shaver (Fig D).

2. Pull the face off the hair pocket (Fig E).

3. Tap out excess hair shavings from the hair pocket (Fig F). Hair clippings can also be washed out of the hair pocket and or shave face by rinsing these under the tap.
4. Once dry, snap the face back onto the hair pocket.

- The easiest and most hygienic way to clean the appliance is by rinsing the appliance head after use with warm water.

- Lubricate the teeth of the trimmer every six months with a drop of sewing machine oil.

REMOVING THE RECHARGEABLE BATTERY

We strongly recommend that a professional removes the rechargeable battery. Parts of the shaver case, and tools have sharp edges and may cause injury if not handled correctly.

• The rechargeable battery must be removed from the appliance before it is scrapped.
• Disconnect the charging adapter before removing the battery.
• Run the shaver until the motor stops.
• Remove the head from the shaver (pull the head up and off).
• Using a small screwdriver, pry the 'collar' off the top of the handle.
• Using a small screwdriver, pry the front cover from the body.
• Remove three screws located on front of shaver.
• Using a small screw driver, pry up the newly unsecured inner housing to expose the battery.
• Pry the battery free from the circuit board.

- Used batteries must be removed from the appliance and disposed of at an appropriate official recycling/collection point.

- Do not attempt to operate the shaver once you have opened it.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

UW APPARAAT VERZORGEN

Two identical diagrams of a trash bin with cross-bracing, no text or symbols present

Two identical diagrams of a trash bin with cross-bracing, no text or symbols present

EN IYI SONUÇLAR IÇIN IPUÇLARI

Solid gray rectangular shape with no text, symbols, or discernible features

Ref. No. XR1530 / XR1550

Remington ^® is a Registered Trade Mark of Spectrum Brands, Inc., or one of its subsidiaries

VARTA Consumer Batteries GmbH & Co. KGaA, Alfred-Krupp-Str. 9, 73479 Ellwangen, Germany www.remington-europe.com
