Product type	Ceiling mount for flat screen
Brand	Reflecta
Model	Pallas XL
VESA compatibility	200x200, 300x300, 400x200, 400x400, 600x400, 800x400
Usage	Indoor only
Material	Steel
Mounting type	To ceiling (concrete or solid brick)
Adjustable height	Yes (via telescopic tubes)
Compatible screen type	Flat back or with access to inputs
Package contents	Universal plates, tubes, screws, mounting parts
Installation	Requires two people or lifting equipment
Maintenance	Check safety every 3 months
Country of origin	Germany (brand)
Warranty	Consult your dealer

Frequently Asked Questions - Pallas XL Reflecta

How to install the mount on the ceiling?

Drill four pilot holes in the concrete or brick ceiling, then attach the base to the ceiling using the provided plugs and screws. Assemble the tubes to the desired height, then hang the TV on the universal plate. Make sure the surface can support the total weight.

What is the maximum weight the mount can support?

The maximum allowed load is indicated on the product label. Never exceed this limit to avoid any risk of injury or property damage.

What VESA standards are compatible?

The Reflecta Pallas XL mount is compatible with the following VESA standards: 200x200, 300x300, 400x200, 400x400, 600x400 and 800x400.

How to adjust the height of the mount?

The height is adjusted by assembling the lower and upper tubes to the desired height, then securing them with the appropriate screws and nuts. Make sure the tubes are tightly fastened.

What if a part is missing?

If a part is missing or defective, contact your local dealer. Do not use the mount without all parts.

Can I install this mount outdoors?

No, this mount is designed for indoor use only. Outdoor use may lead to product failure and injury.

How to attach the universal plate to the TV?

Choose the screws, washers and spacers suitable for your screen. Position the plate in the center of the TV back and screw it firmly without overtightening. For flat back screens, use direct holes; for recessed backs, use spacers.

How often should I check the safety of the mount?

It is recommended to check that the mount is securely attached and safe at least every three months.

What tools are needed for installation?

You will need a drill, a drill bit suitable for the ceiling material, a spirit level, wrenches or screwdrivers for the screws. Always use an assistant to lift the TV.

How to clean the mount?

Clean the mount with a soft dry cloth. Do not use harsh chemicals that could damage the finish.

USER MANUAL Pallas XL Reflecta

Check that the bracket is secure and safe to use at regular intervals (at least every three months).

• Please contact your distributor if you have any questions.

reflecta gmbh

Merkurstrasse 8

72184EutingenJ.G

Germany

[e-mail]

www.reflecta.de

INSTALLATION MANUAL

Flat Panel Ceiling Mount

CAUTI ON:DO NOT EXCEED RATED LISTED WEIGHT.SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

23126

200x200/300x300400x200/400x400600x400/800x400

ISSUED:APR.2013

NOTE: Read the entire instruction manual before you start installation and assembly.

WARNING

• Do not begin the installation until you have read and understood all the instructions and warnings contained in this installation sheet. If you have any questions regarding any of the instructions or warnings, please contact your local distributor.
• This mounting bracket was designed to be installed and utilised ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone with good mechanical ability who has basic building experience and fully understands this manual.
• Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
• Always use an assistant or mechanical lifting equipment to safely lift and position the equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can cause damage to the items. This greatly reduces their holding power.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

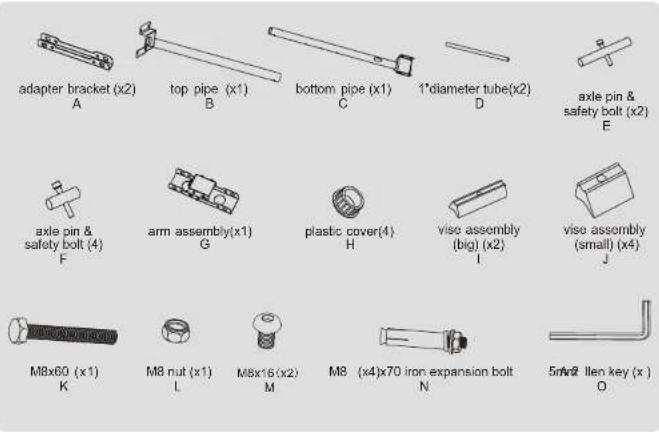

Component Checklist

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement.

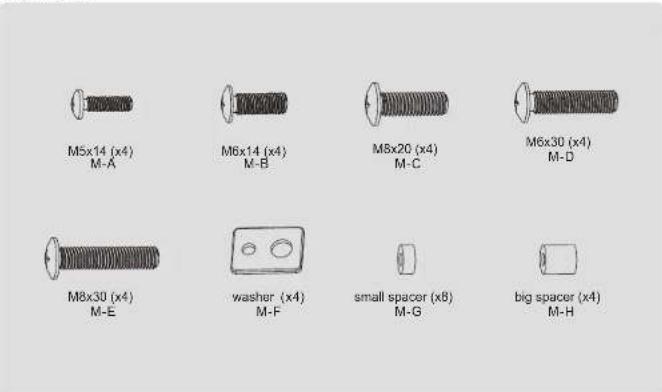

Package M

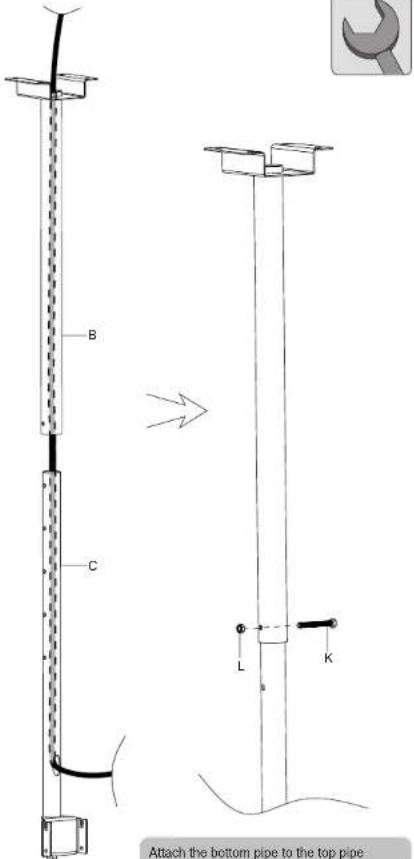

1. Assembling the Plines

Run the power cable through pipe

Attach the bottom pipe to the top pipe and fix them at the desired height. Using the correct combination of screw and nut.

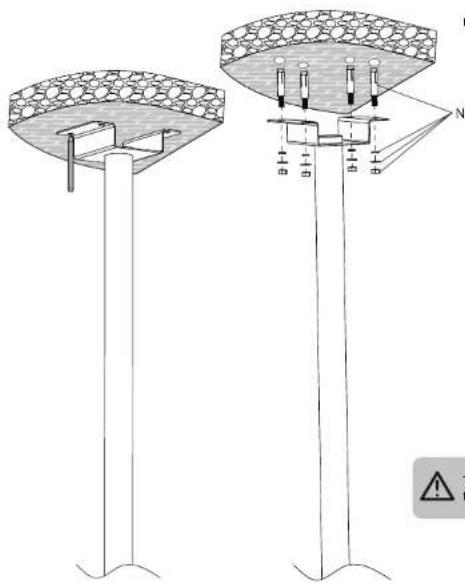

2.For Solid Brick and Concrete Mounting

Mark the exact location of mounting holes

Drill four pilot holes

Screw ceiling mount on the ceiling

WARNING

Installers must verify that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.

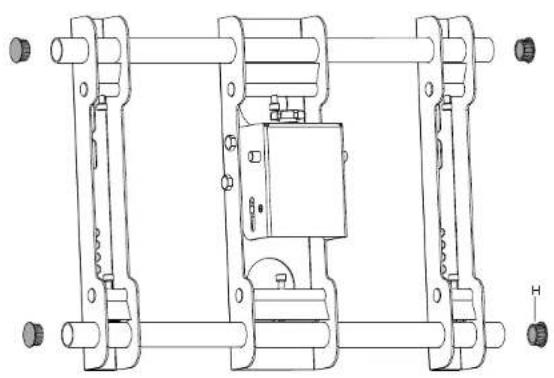

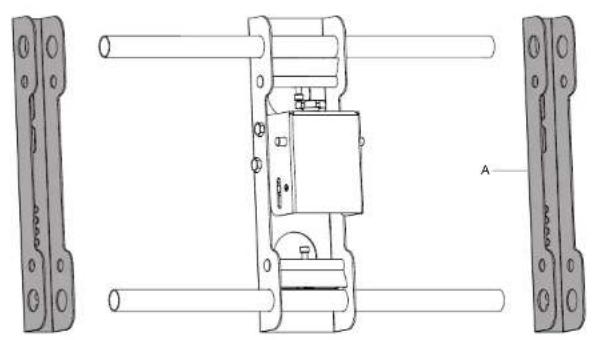

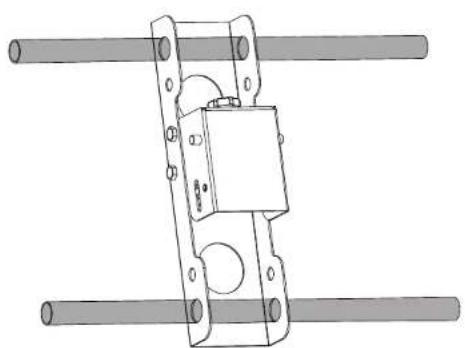

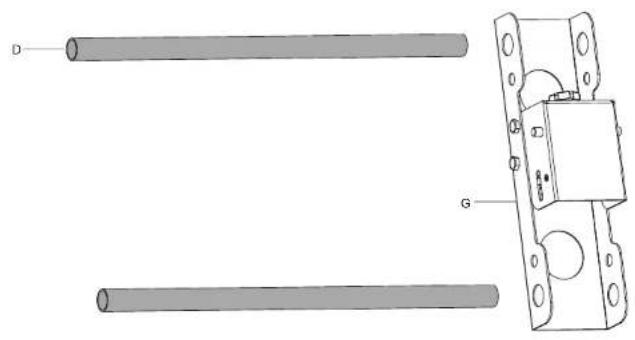

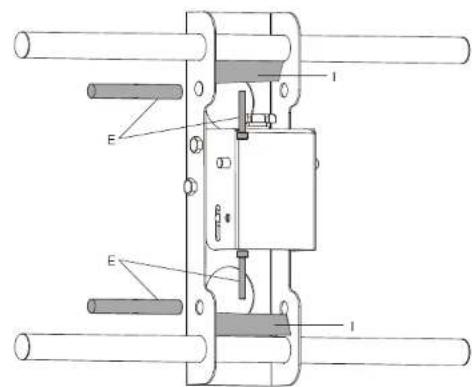

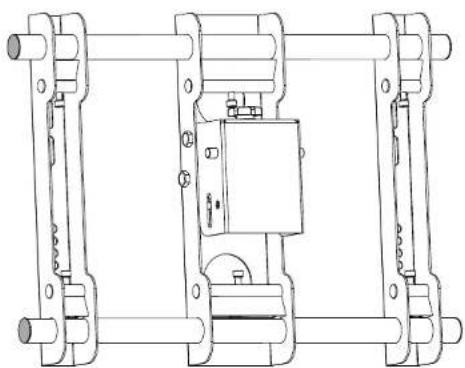

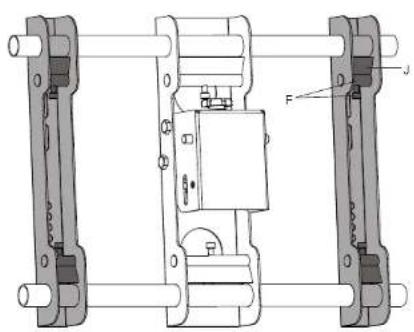

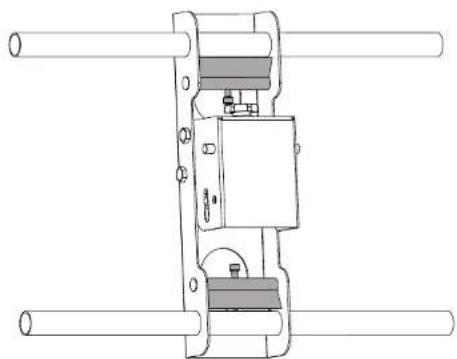

3. Assembling the Universal Plate

4. Installing the Universal Plate

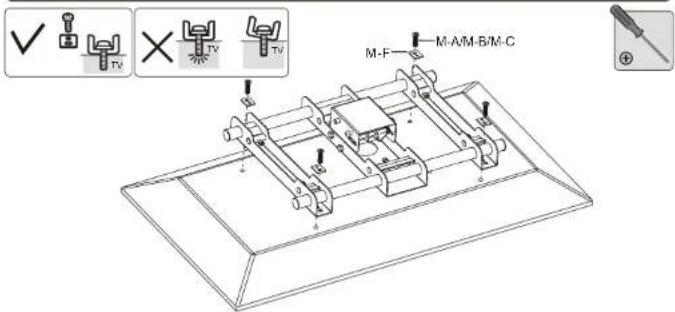

4-1 For Flat Back Screens

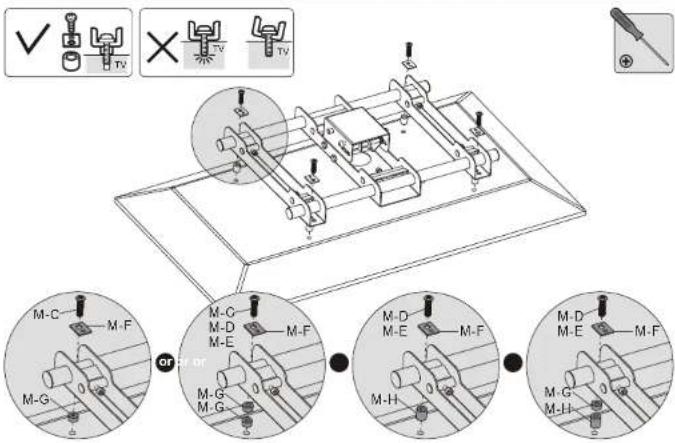

4-2 For Recessed Back Screens or to Access AV Inputs

Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.
- Position the universal plate as close as possible to the middle of the screen.
- Screw the universal plate onto the TV.

Tighten all screws but do not over tighten.

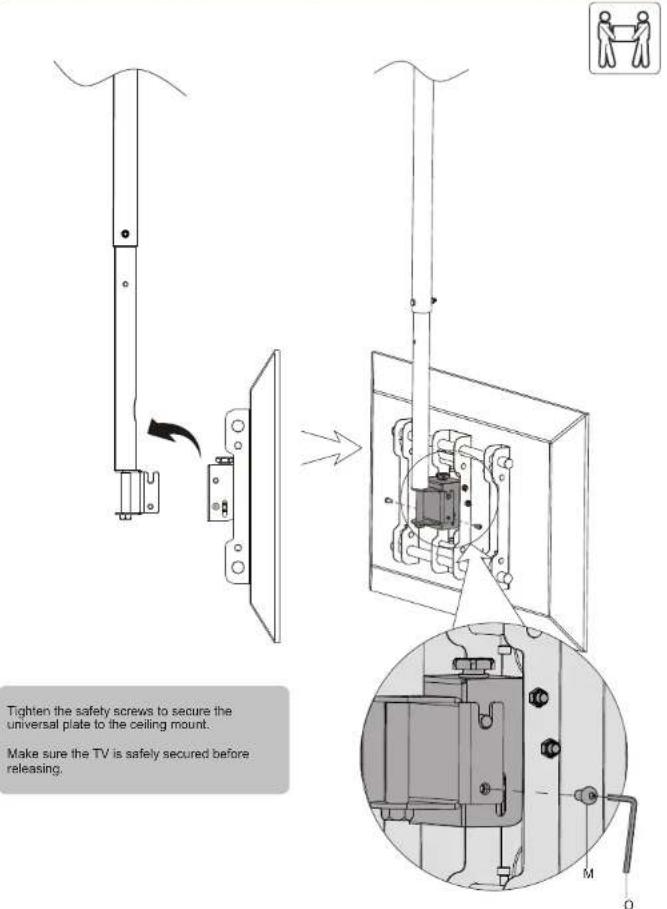

5. Hanging the TV onto the Universal Plate
