USER MANUAL Thalassa 700 CATA

WARNING: Read the instructions before using the appliance

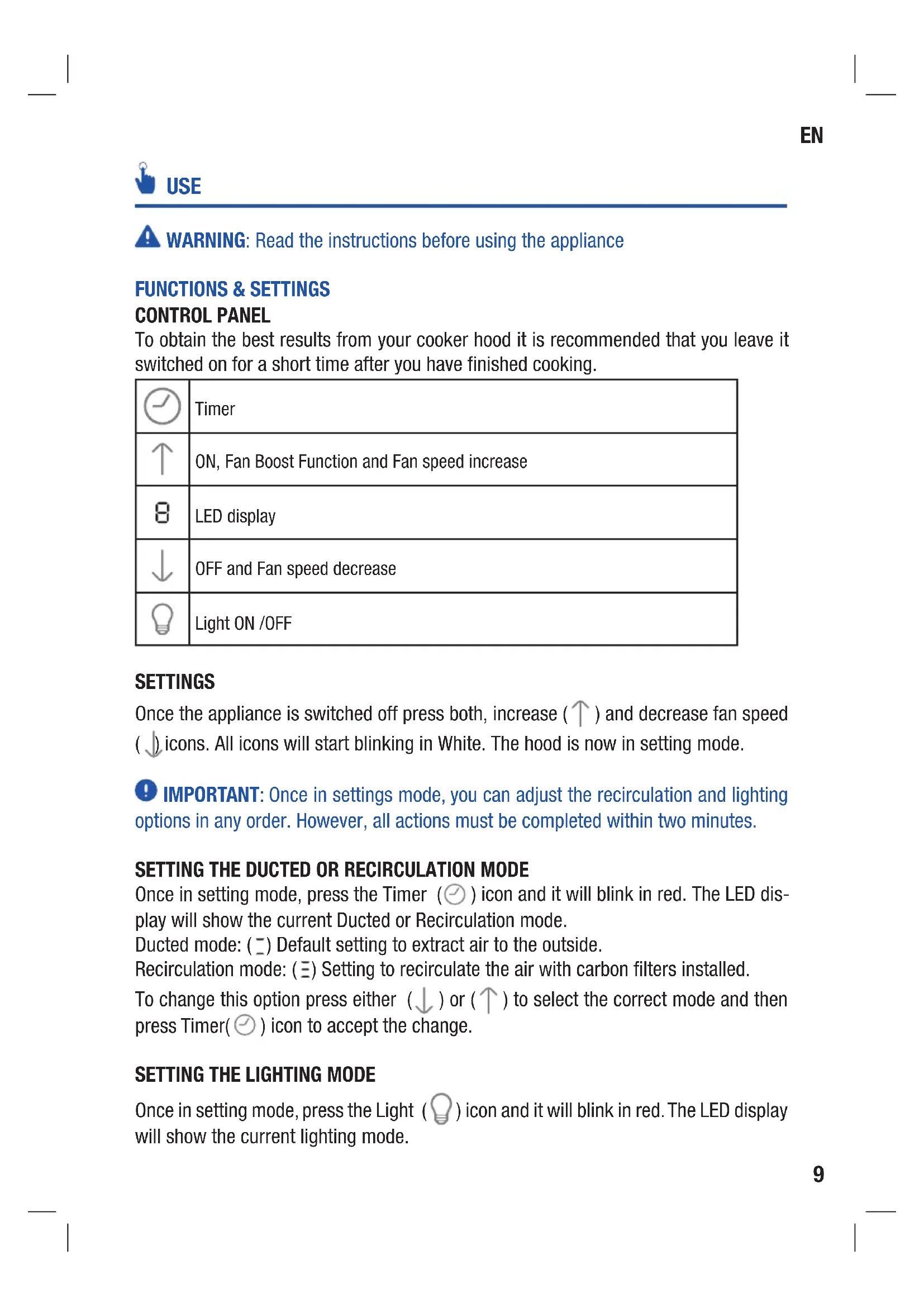

FUNCTIONS & SETTINGS CONTROL PANEL To obtain the best results from your cooker hood it is recommended that you leave it switched on for a short time after you have finished cooking. Timer ON, Fan Boost Function and Fan speed increase LED display OFF and Fan speed decrease Light ON /OFF SETTINGS Once the appliance is switched off press both, increase ( ) and decrease fan speed ( ) icons. All icons will start blinking in White. The hood is now in setting mode. IMPORTANT: Once in settings mode, you can adjust the recirculation and lighting options in any order. However, all actions must be completed within two minutes.

SETTING THE DUCTED OR RECIRCULATION MODE

Once in setting mode, press the Timer ( ) icon and it will blink in red. The LED dis- play will show the current Ducted or Recirculation mode. Ducted mode: ( ) Default setting to extract air to the outside. Recirculation mode: ( ) Setting to recirculate the air with carbon filters installed. To change this option press either ( ) or ( ) to select the correct mode and then press Timer( ) icon to accept the change.

SETTING THE LIGHTING MODE

Once in setting mode, press the Light ( ) icon and it will blink in red. The LED display will show the current lighting mode.EN

Cool light: ( ) Default setting for all lights. Warm light: ( ) Optional setting for all lights. To change these settings press ( ) or ( ) and press the Light ( ) icon to accept the change.

SETTING CONNECTIVITY MODE

Once in setting mode, press both, the Timer ( )and the Light ( ) icons. The led display will show (A) blinking waiting hob’s signal. Once it receive it, the led display will show (A) fixed. Note: If the hood controls are manually overridden when the hob and hood are linked, the hood will operate for 5 minutes on this manual setting before returning to control by de hob. Note: The remote control supplied will already be paired to your ceiling hood. GENERAL USE ON/OFF AND INCREASE/DECREASE THE FAN SPEED Press the decrease fan speed ( ) icon and the fan will turn on at speed 1. Press the increase fan speed icon ( ) and the fan will turn on at maximum speed (Booster) If the fan motor is set at speeds 2,3,4, 5 or P, pressing the Fan Decrease ( ) Icon will reduce the speed by one level at a time. If you press the Fan Decrease ( ) Icon for more than three seconds, the fan will turn down. However, the downlight will remain on 8 if enabled). If the fan motor is set at speed 1, pressing the Fan Decrease ( ) Icon the motor will switch off. However, the downlight will remain on (if enabled) and the display will show the current brightness level. Boost Function If the fan motor is set at speeds 1,2,3,4 or 5, pressing the Fan Increase ( ) Icon will increase the speed by one at a time. If you press the Fan Increase ( ) Icon for more than two seconds, the speed will increase to full power from any level and the display will flash “P” NOTA: Full power or Boost (P) only operates for five minutes maximum to conserve energy and the fan speed will automatically drop to speed level 5 after this time.EN

Light On/Off ( ) Touch the Light ( ) Icon to turn on the downlight. To change the brightness of the downlight, touch and hold the Light ( ) Icon until the display show the brightness sequence. Remove your finger from the Light ( ) Icon when the desired brightness is achieved. The sequence runs from L1 to L5 and back to L1 in steps. The selected brightness will flash for a few seconds and revert to the fan speed display. This lighting setting will be kept for future uses. Setting the timer (

• When the fan motor is on and the Timer ( ), icon is pressed the icon will turn in red and the display will show the current fan speed.

• The chosen speed level will remain in use for five minutes before dropping down to the next lowest speed. This speed will remain in operation for two minutes before dropping down again. This will be repeated every two minutes unless the speed is already at level 1 and then the fan will turn off. If the light is already on, this will also be turned off.

• Pressing the Fan Decrease ( ) Icon or Fan Increase ( ) Icon during a current timer program will restart the countdown process again with the first five minutes cycle.

• If the Timer ( ) icon is pressed again during a current timer program, the cycle will be cancelled. The Timer ( ) Icon will revert to white and the current fan speed will remain on indefinitely.

• The maximum timer program cycle is 15 minutes: 5 minutes: 5 minutes on O and then 2 minutes each on speed 5 down to speed 1. RENOVA AIR FUNCTION (This function is not available on all models) Press the timer button ( ) with the hood switched off. A flashing will appear. You will have activated Renova Air mode. The hood will operate automatically for 10 minutes every hour. In idle mode, a flashing icon will appear for 1 hour. With this mode activated, the hood can be used as normal. To exit this mode, press the timer button ( ) within the function.

RENOVA TURBO FUNCTION

With the hood switched off. Press and hold the timer and increase speed buttons

) at the same time for 3 seconds. A permanent icon will appear on the display. You have activated the Renova Turbo function.12

The icon will start to flash from bottom to top while this function is activated. At this time, the hood will continue with the following sequence automatically: - 5 minutes at MAX speed - 3 minutes at 5th speed - 3 minutes at 4th speed This sequence will continue down to the first speed. Once the time has come to an end, the hood will stop. To exit this mode before it ends, press the timer icon (

During Renova mode, the hood can be used as normal by pressing the ( ) or ( ) icons. The speed of the Renova function can be increased ( ) or ( ) decreased by pres- sing the or icons. The Renova function will automatically continue with the sequence described above from the se- lected speed. Filter cleaning warning Once the cooker hood is off, if the Timer icon ( ) blinks in red and LED display shows “( )”, you should clean the filters. Once they are cleaned or replaced, press the Timer

) icon again and the icon will turn off. (Only in Recirculation mode). Once the cooker hood is off, if Timer ( ) icon blinks in red and the LED display shows “( )” , you should clean the carbon filters (in case you are using washable carbon filters) or replace them ( in case you are using disposable carbon filters). Once they are cleaned or replaced, press the Timer ( ) icon again and the icon will turn off.EN

FAQS Problem Possible cause Solution Excessive vibration. The appliance is not installed properly on the brackets. Take down the appliance and check it is properly fixed. The fan blade is damaged. Switch o the appliance. Re- pair to be carried out by quali- fied service personnel only. The fan motor is not fixed tightly. The light is on, but the fan does not work. The fan blade is jammed. The motor is damaged. Both the light and motor do not work. Light bulb blown. Contact Customer Services on. Power connection loose. Check power supply. Suction performance reduced. Speed may be too low. Select a higher speed. Optional vent kit might be twisted. Ensure that the vent kit is fitted according to the ma- nufacturer’s instructions. Top vent might be obstructed. Clear any obstruction. The installation may not com- ply with the manufacturers ins- tructions. The vent hose should be co- rrect diameter throughout with no reductions or restriction. (See installation section). Works normally but cooking smells linger. Carbon filter is not fitted in recirculation mode or is full of grease. Fit carbon filter or replace the carbon filter (See Care and maintenance section). The hood does not work Check that the hood is connected to power. Check that the fuses or automatic have not jumped. The hood still does not work lf, after having checked the points mentioned above, your pro- blem has not yet been solved, contact the technical service or your distributor.FR
