VT7573 - Mirror V-TAC - Free user manual and instructions

Product type	Magnifying lighted mirror
Brand	V-TAC
Model	VT7573
Frame diameter	16.3 cm (6.42")
Glass diameter	13.2 cm (5.20")
Material	ABS plastic + glass
Magnification	10X
Number of LED lamps	16
Rotation	360° (adjustable)
Protection rating	IP44
Power supply	3 AA batteries (not included)
Attachment	Suction cup (on smooth, clean surface)
Usage	Indoor only
Maintenance	Soft, damp cloth or non-abrasive cleaner
Safety	Turn off before cleaning; do not expose to reflected sunlight
Warranty	2 years
Weight	Approximately 250 g (estimated)
Color	White (not specified, common estimation)

Frequently Asked Questions - VT7573 V-TAC

How to install the VT7573 mirror?

Unlock the suction cup by turning it counterclockwise. Place the mirror on a clean, smooth, flat surface (tile, marble, glass, etc.), press firmly, then lock by turning the suction cup clockwise.

What batteries to use?

The mirror operates with 3 AA batteries (not included). Open the compartment at the back and insert the batteries following the indicated polarity.

How to turn on the LEDs?

Press the On/Off button on the mirror to turn the 16 LED lamps on or off.

Can the mirror be used in a bathroom?

Yes, the IP44 rating protects against water splashes, but do not submerge it and avoid direct jets.

How to clean the mirror?

Always turn off the mirror before cleaning. Use a soft, damp cloth or a non-abrasive cleaner. Avoid harsh products.

What to do if the suction cup does not hold?

Make sure the surface is perfectly clean, smooth, and dry. Clean it with soapy water and then dry it. The suction cup adheres better on surfaces like tile or glass.

Can the mirror be rotated?

Yes, the mirror can rotate 360° for optimal positioning.

What is the magnification?

The mirror offers a 10X magnification. For optimal use, hold the mirror within 10 cm of your face.

How to avoid fire risks?

Never position the mirror to reflect direct sunlight, as this could cause a fire.

Where to find spare parts?

Contact your local dealer or V-TAC customer service. The WEEE number is 80133970. The warranty is 2 years.

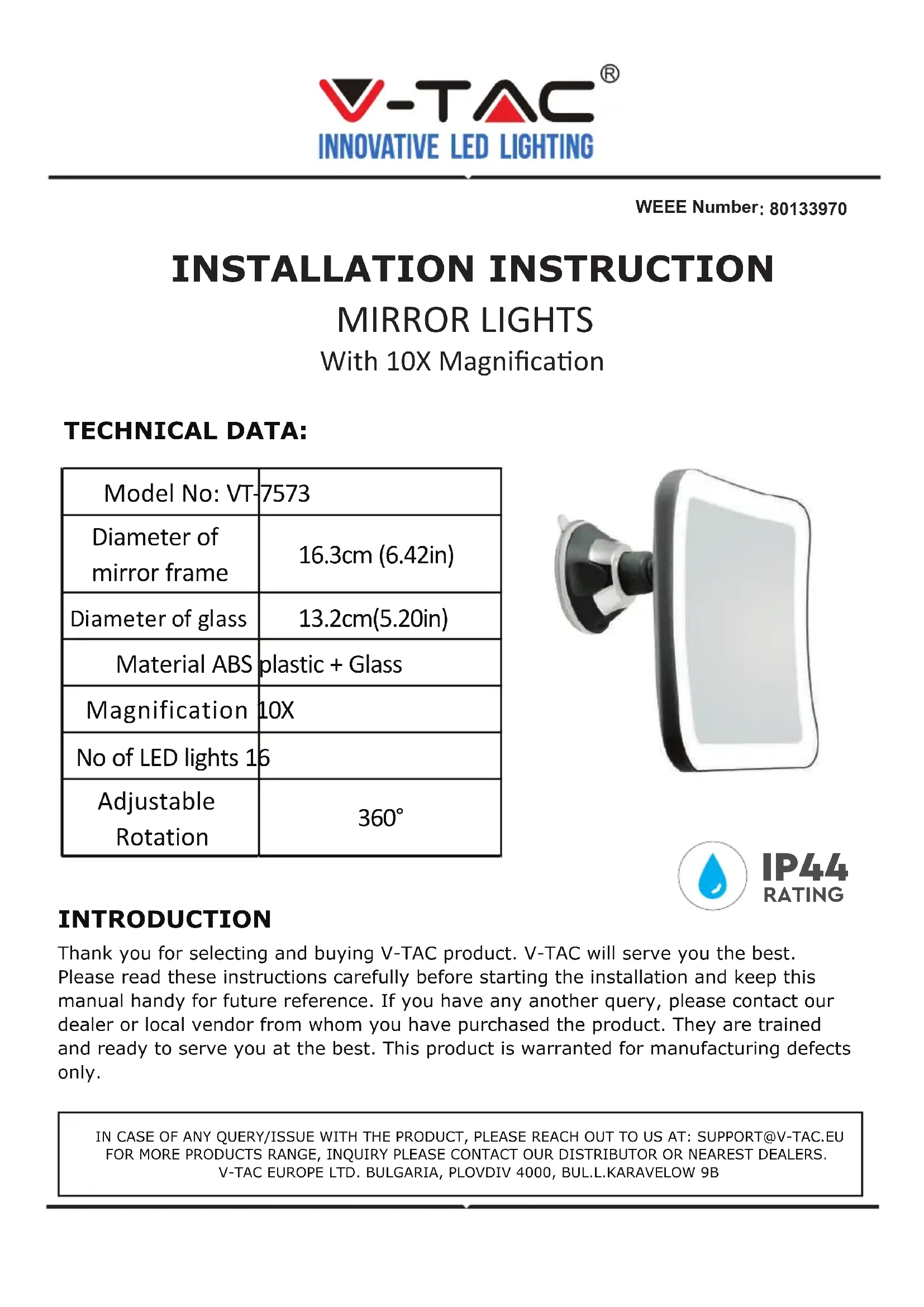

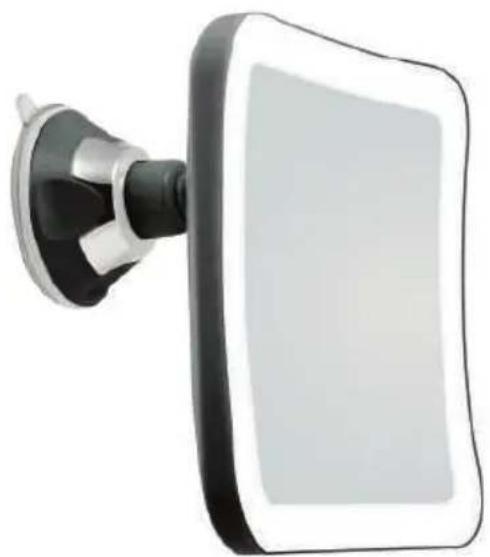

USER MANUAL VT7573 V-TAC

WEEE Number: 80133970

INSTALLATION INSTRUCTION

MIRROR LIGHTS

With 10X Magnification

TECHNICAL DATA:

Model No: VT-7573

Diameter of mirror frame 16.3cm (6.42in)

Diameter of glass 13.2cm(5.20in)

Material ABS plastic + Glass

Magnification 10X

No of LED lights 16

Adjustable Rotation 360°

IP44

RATING

INTRODUCTION

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. This product is warranted for manufacturing defects only.

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

WARNING!

• Be sure that mirror is not in a position where it can reflect sunlight. Reflected light can cause fire.
• Switch off before putting on or taking off parts.
• Close supervision is necessary when this product is used by or near children or disabled persons.
• Use this mirror only for its intended use as described in this manual.
  DO NOT use attachment that is not recommended by the manufacturer.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• To disconnect, turn off the switch.
• Unbroken lamps should never be put into the fire, incinerators, or trash compactors.
• Do not disassemble the product to avoid damaging the internal structure.

This marking indicates that this product should not be disposed of with other household wastes.

IMPORTANT SAFETY INFORMATION

This mirror light is powered by AA battery charging, Always turn off the appliance when not in use. Do not operate where aerosol (spray) products are being used or where oxygen is being administered

FEATURES

This mirror uses copper-less mirror for high magnification with most advanced technology.

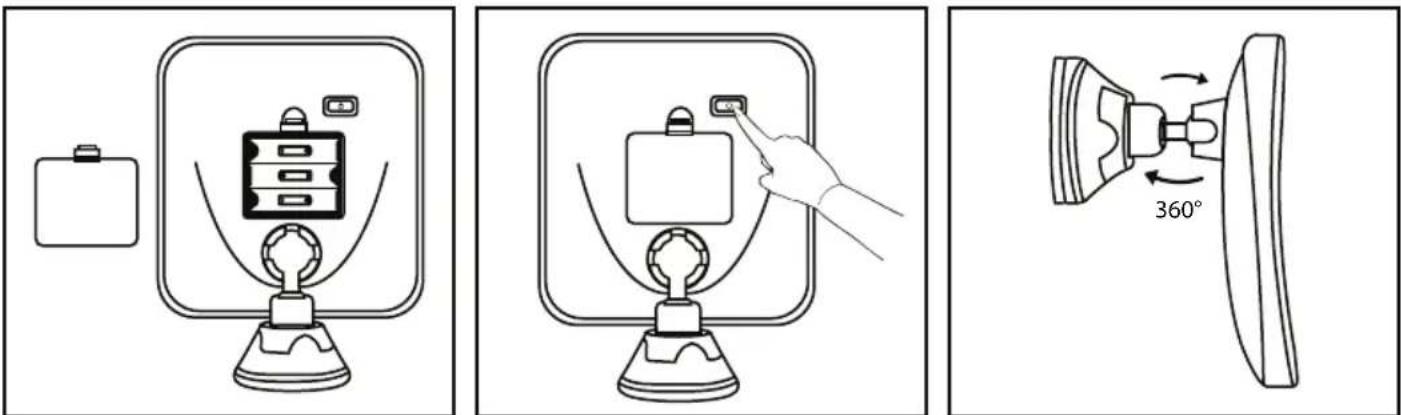

OPERATION

1. Open the battery compartment on the back of the mirror.
2. Install batteries according to the image inside the battery compartment. (batteries excluded)
3. Press the ON/OFF button to light up/turn off the LED light.
4. Please keep the magnifying mirror less than 10cm from you.
5. 360 degree rotation for the best positioning.

INSTALLATION DIAGRAM

INSTALLATION INSTRUCTION

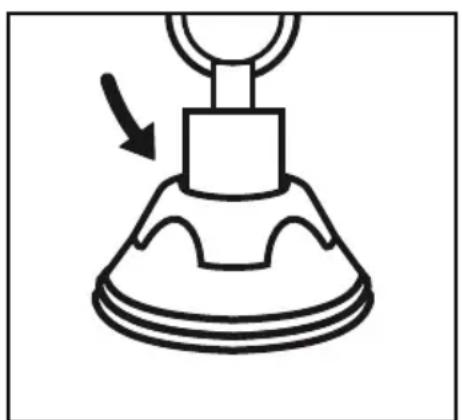

1. Unlock the cup by twisting counter-clockwise.

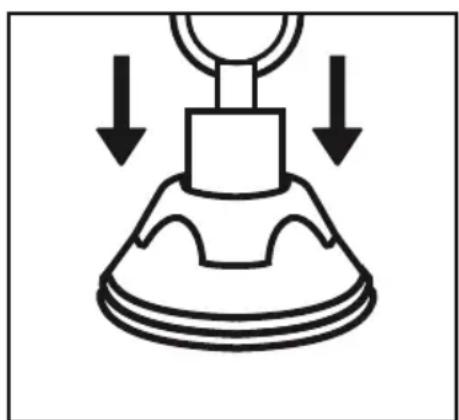

2. Place mirror on clean surface and press down firmly just below the socket.

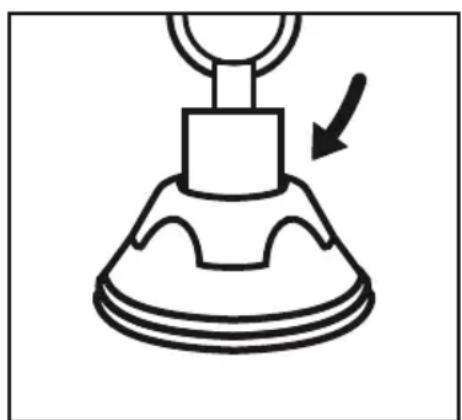

3. Lock mirror in place by twisting suction cup clockwise, ensuring seal.
4. Open the back cover of the mirror and place the 3*AA battery [Not included] then put back the cover.
5. Switch on the power to test the light

Note: Suction Cups works only on clean, smooth, flat, surfaces, like any tiles, marble, ceramic, enamel, acrylic, porcelain, glass, mirror, windows, fiberglass,etc.

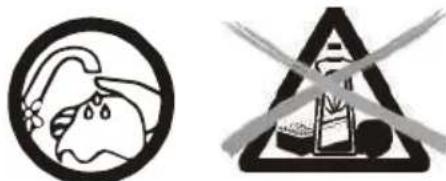

MAINTENANCE

1. Always turn off the mirror before cleaning.

2. Use only a soft damp cloth or non-abrasive cleaner to clean.

WEEE Number: 80133970

TEXHnuecko OBCJnyXBAHE

1. Binhari n3KJIouBaIte orJeIaITo npEIN NOUInCTBaHe.
2. 3a nouHCTBaHETO nIIOJ3BaIte cMo MeKa BnaXHa CbPNa IIN Hea6pa3NBHO NOUHCTBaIoo CpeIDCTBO.

WEEE Number: 80133970

MANUEL D'INSTRUCTIONS

MIROIR LUMINEUX

MANUAL DE INSTRUCTIUNI

OGLINDÁ CU ILUMINARE

Cu efect de mârire de 10X

DATE TEHNICE:
