K5AF1600P - Deep fryer AEG - Free user manual and instructions

Technical specifications	AEG K5AF1600P air fryer, 1.6 kg capacity, 1600 W power, hot air circulation technology.
Usage	Ideal for frying, roasting, grilling, and cooking with little or no oil, touchscreen for easy control.
Maintenance and repair	Removable basket and accessories, dishwasher safe for easy cleaning.
Safety	Overheat protection system, non-slip feet for increased stability.
General information	Compact dimensions for easy storage, modern design, manufacturer warranty included.

Frequently Asked Questions - K5AF1600P AEG

How do I clean my AEG K5AF1600P air fryer?

To clean your air fryer, unplug it and let it cool down. Remove the basket and the pan, then wash them with warm soapy water. Wipe the inside of the fryer with a damp cloth.

Why isn\u0027t my AEG K5AF1600P air fryer heating?

Check if the fryer is properly plugged in and if the outlet is working. Also make sure the thermostat is set to the desired temperature.

What type of oil should I use in my AEG K5AF1600P air fryer?

It is recommended to use oils with a high smoke point, such as sunflower oil, peanut oil, or rapeseed oil.

Can I fry frozen foods in the AEG K5AF1600P air fryer?

Yes, you can fry frozen foods, but it is advised to reduce the cooking time and not overload the basket.

What is the capacity of the AEG K5AF1600P air fryer?

The AEG K5AF1600P air fryer has a capacity of 1.6 kg, allowing you to prepare a wide variety of foods.

How can I avoid splattering when frying?

To avoid splattering, make sure the food is dry before placing it in the hot oil. Do not overload the basket.

Is my AEG K5AF1600P air fryer emitting a strange smell?

A strange smell may be due to oil residues or burnt food. Make sure to clean the fryer regularly and change used oil.

How can I store my AEG K5AF1600P air fryer?

After cleaning, store the fryer in a dry and cool place, ensuring it is completely cooled and dry.

Can I use my AEG K5AF1600P air fryer to bake food?

No, the fryer is designed only for frying and should not be used for baking.

USER MANUAL K5AF1600P AEG

Line drawing of an air fryer with digital display and control buttons

EN INSTRUCTION BOOK

FR NOTICE D'UTILISATION

AR دليل الاستخدام

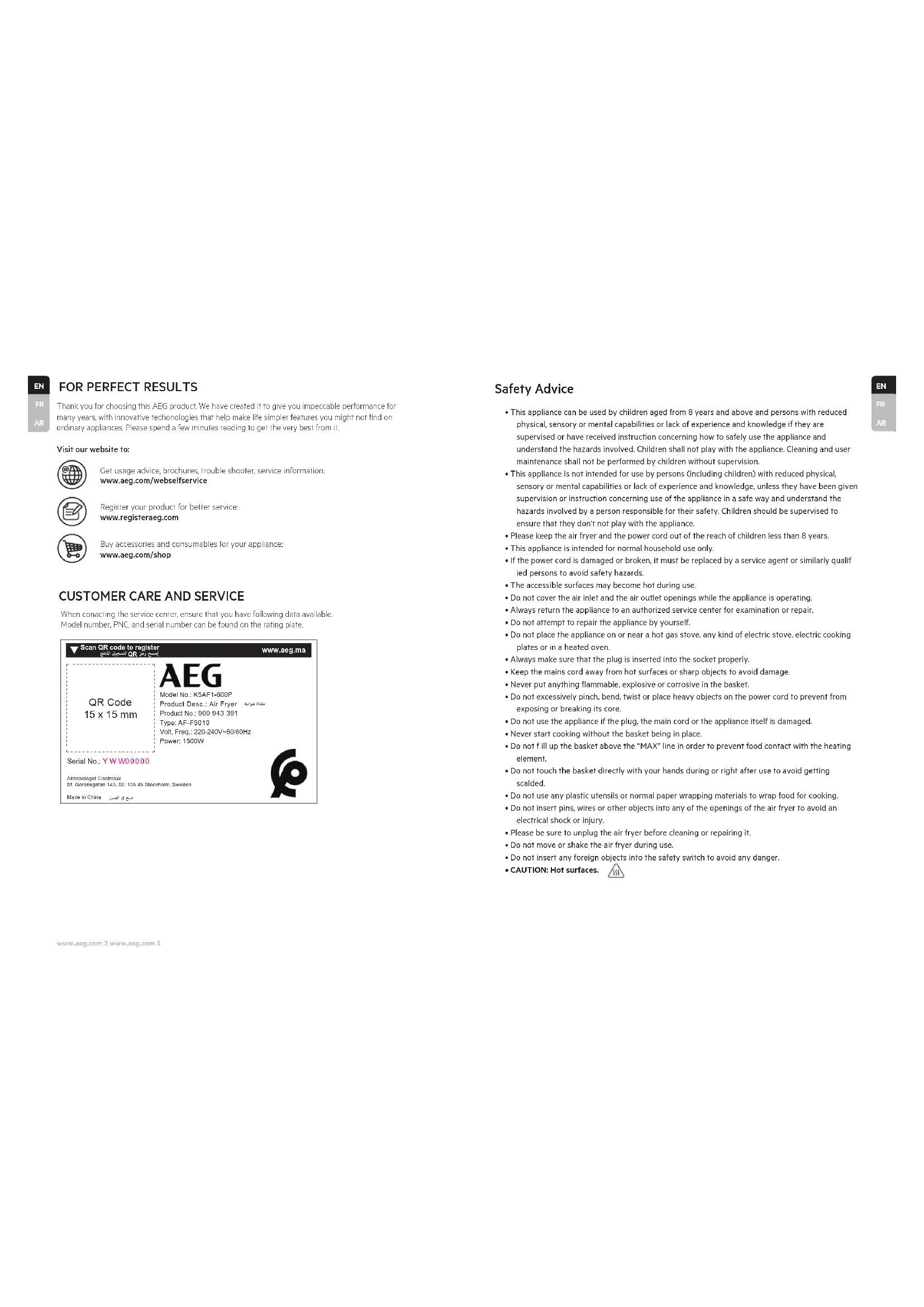

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy accessories and consumables for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When conacting the service center, ensure that you have following data available. Model number, PNC, and serial number can be found on the rating plate.

Scan QR code to register www.aeg.ma QR Code 15 x 15 mm AEG Model No.: K5AF1-600P² Product Desc.: Air Fryer Product No.: 900 943 391 Type: AF-F5010 Volt. Freq.: 220-240V~60/60Hz Power: 1500W Serial No.: Y W W00000 Arktabatogot Electrolux St. Correngelen 143, SE 136.45 Stockholm, Sweden Made in China

Safety Advice

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instruction concerning how to safely use the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved by a person responsible for their safety. Children should be supervised to ensure that they don't not play with the appliance.

- Please keep the air fryer and the power cord out of the reach of children less than 8 years. - This appliance is intended for normal household use only.

- If the power cord is damaged or broken, it must be replaced by a service agent or similarly qualified persons to avoid safety hazards.

• The accessible surfaces may become hot during use.

- Do not cover the air inlet and the air outlet openings while the appliance is operating.

• Always return the appliance to an authorized service center for examination or repair.

- Do not attempt to repair the appliance by yourself.

- Do not place the appliance on or near a hot gas stove, any kind of electric stove, electric cooking plates or in a heated oven.

• Always make sure that the plug is inserted into the socket properly.

- Keep the mains cord away from hot surfaces or sharp objects to avoid damage.

- Never put anything flammable, explosive or corrosive in the basket.

- Do not excessively pinch, bend, twist or place heavy objects on the power cord to prevent from exposing or breaking its core.

- Do not use the appliance if the plug, the main cord or the appliance itself is damaged.

- Never start cooking without the basket being in place.

- Do not fill up the basket above the "MAX" line in order to prevent food contact with the heating element.

- Do not touch the basket directly with your hands during or right after use to avoid getting scalded.

- Do not use any plastic utensils or normal paper wrapping materials to wrap food for cooking.

- Do not insert pins, wires or other objects into any of the openings of the air fryer to avoid an electrical shock or injury.

- Please be sure to unplug the air fryer before cleaning or repairing it.

- Do not move or shake the air fryer during use,

- Do not insert any foreign objects into the safety switch to avoid any danger.

• CAUTION: Hot surfaces.

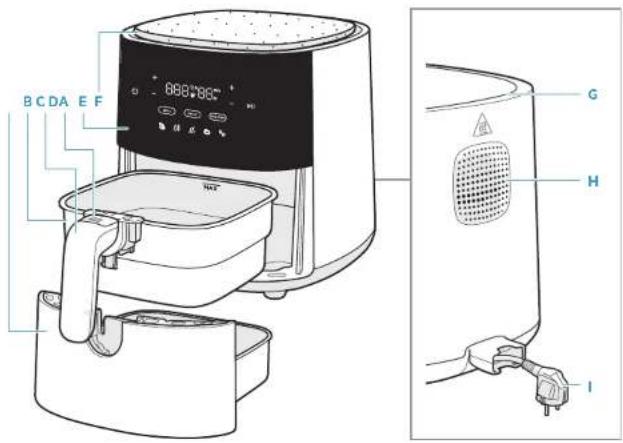

General Overview

BCDA EF 8880885° G H I

*Accessories may vary from model to model

A Pan
B Basket
C Basket handle

D Basket release
button
E Control panel

F MultiCoaster
G Air inlet

H Air outlet
1 Main cord

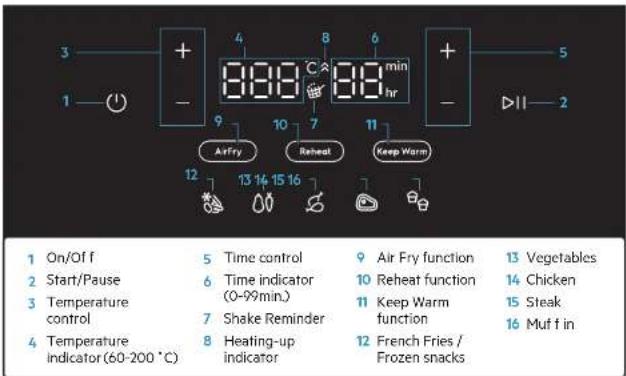

3 1 + - 888 88 min hr 9 10 11 Air Fry Reheat Keep Warm 12 13 14 15 16 13 Vegetables Start/Pause Temperature control Temperature indicator (60-200 °C) 5 Time control 6 Time indicator (0-99min.) 7 Shake Reminder 8 Heating-up indicator 9 Air Fry function 10 Reheat function 11 Keep Warm function 12 French Fries / Frozen snacks 13 Chicken 14 Steak 16 Muff in

1 On/Off
2 Start/Pause
3 Temperature control
4 Temperature indicator (60-200 °C)

5 Time control
6 Time indicator (0-99min.)
7 Shake Reminder
8 Heating-up indicator

Air Fry function
10 Reheat function
11 Keep Warm
function
12 French Fries / Frozen snacks

13 Vegetables
14 Chicken
15 Steak
16 Muff in

Before first use

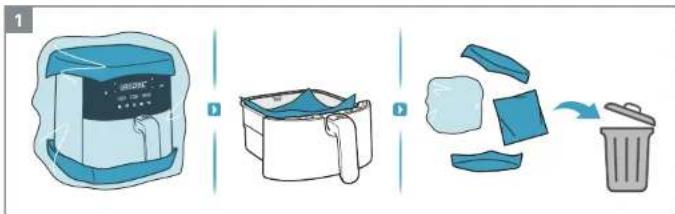

Illustration showing three stages of a washing machine: packaging, packing, and disposal with labeled steps.

1. Remove all the packaging and protective material.

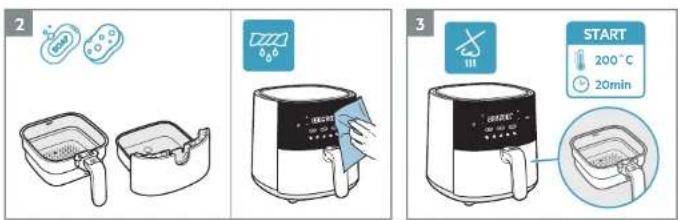

2 3 START 200°C 20min

1. Clean the basket and pan with warm water and dish soap. Wipe inside and outside of the appliance with a soft cloth.
2. It is normal for a new unit to emit odors the first few times it is operated. Run the empty air fryer at 200°C for 20 minutes minutes before first use to avoid that.

How to use

Illustration showing three steps of an air fryer: adding a blue bag, adding a black tray, and adding a bag with a 'MAX' label.

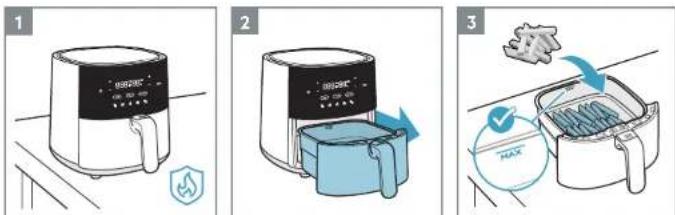

1. Place the appliance on a flat, stable and heat-resistance surface.
2. Pull out the pan and place it on a stable surface.
3. Put the food in the basket, observing the "MAX." capacity indication.

4

Illustration showing two methods of an air fryer with warning labels and a blue background device.

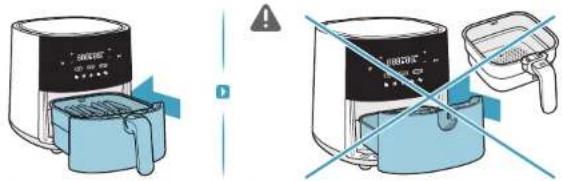

1. Push the pan with food completely back into the appliance.
   ▲CAUTION: Do not use the appliance without the basket.

6

7

8

9

5. Plug in the appliance.
6. Press the On/Off button.
7. Select the desired cooking method. For example, Air Fry function.
8. Adjust the time and temperature to your taste or select one of the pre-set recipes. For example, French Fries.
9. Press the Start/Pause button.

10

Illustration showing three steps of cooking a fish, with arrows indicating upward and downward motion, and warning symbols.

10. Depending on the type of ingredient, flip the food mid-cooking or every 7 minutes by using a heat-resistant tool or by just carefully shaking the food inside the basket. (see Cooking Guide).
▲CAUTION: Be careful not to press the "Basket Release Button" when shaking the food.
▲CAUTION: Be careful with hot surfaces when the appliance is in use.
www.aeg.com 6 www.aeg.com 7

13

Diagram illustrating a car interior repair procedure with labeled steps and tool icons

11. At the end of the cooking time, the appliance will issue a beep signal.
12. Carefully remove the pan and place it on a heat-resistant surface.
13. To remove the basket from the pan, follow these instructions:
- Slide the transparent button cover
- Press the Basket Release Bl - Lift the basket from the pan
- Lift the basket from the pan
CAUTION: Hot steam can come out of the basket when it is opened mid or at the end of cooking. Make sure your face, arms and hands are away from the steam when opening it.

14

14. Unplug the appliance after using it.
15. The versatile MultiCoaster fits on top of the air fryer as a space-saving hotplate for the cooking basket or resting place for tools and spices when cooking. It's also removable to use at the table when serving food from the hot basket.*
*Accessories may vary from model to model.
NOTE: Be careful with oil to avoid stains on the cork material.

15

Three-step illustration of a water purifier with a side view showing internal components (no text or symbols)

S

Shake Reminder

Shake Reminder
The "Shake Reminder" is activated during the pre-sets of some recipes, such as French Fries/Frozen Snacks, Vegetables and Chicken.
When it is time to shake or flip your food, the "Shake Reminder" icon will light up and blink for one minute, while a beep sound will repeat for three times.
The "Shake Reminder" is not mandatory, hence the cooking will continue as usual even if the food is not flipped or shaken.

Cooking Guide

			[023C]	[27KK]	[K422]
	300~800g 15~30min 180°C
	300~800g 20~30min 180°C
	100~500g	10~20min	170°C
	100~400g 10min 200°C
	100~200g 10min 200°C
	100~500g 10~30min 180°C
	100~500g 13~20 min 180°C
	800~1200g 45~60min 180°C
	100~500g 10~15min 140°C
	100~500g 10min 180°C
[802X]	25~50g each	10min 170°C

www.aeg.com

Cleaning

Illustration of a hand cleaning a air fryer with a cloth (no text or symbols)

1. Always unplug the appliance and wait until it cools down before cleaning it.
2. Wipe the outside of the appliance with a soft cloth.

3 OR !

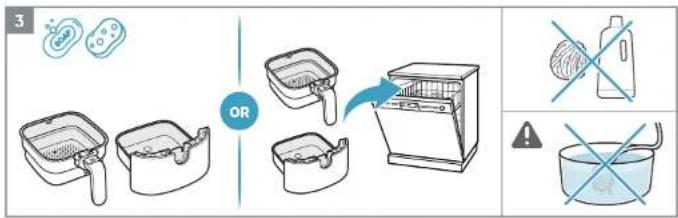

1. Clean the basket and pan with warm water and dish soap, or place them in the dishwasher.
   NOTE: Avoid using abrasive cleaning products or metal tools in order to protect the non-stick coating.
   CAUTION: Never submerge the product, its cord or plug in water or any other liquid.

Diagram showing a hairdryer with digital display and a close-up of its interior with a brush, labeled in Chinese.

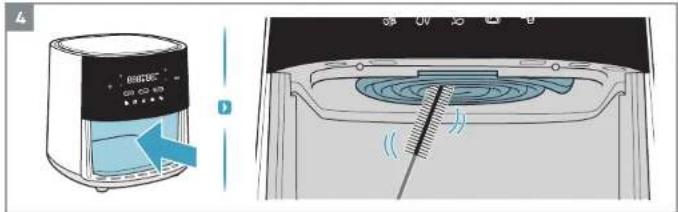

1. Clean the heating element with a cleaning brush.
   NOTE: Ensure the appliance is completely cooled down before cleaning the heating element.

www.aeg.com

What to do if...

Problem	Check if...
You cannot activate or operate the appliance.	The appliance is correctly connected to an electrical supply.The basket and pan are in the correct position.Ensure they are completely pushed into the appliance to enable the electrical supply.The cooking time is set.
You cannot slide the pan into the appliance.	The basket is filled over its maximum capacity.The basket is placed correctly. It has to click when you place it in the pan.There's an object under the pan that is an obstacle to close it properly.
White smoke comes out of the appliance.	The food you prepare is too greasy.The pan and the basket are clean.
The display shows E1 • The temperature sensor is cutting out or disconnecting.
The display shows E2	The temperature sensor has short-circuited.

In case the display shows E1 or E2 error, the appliance must be repaired by a Service Center.

Disposal

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.

POUR DES RÉSULTATS PARFAITS

BCDA EF 880°C G H I

Illustration of three different household items: a washing machine, a washing machine with a cloth, and a recycling bin (no text or symbols)

Illustration showing two types of air fryers with warning signs and a hand gesture, indicating safety or inspection.

10 D A A A A

Three-step illustration of a portable device with a lid, showing front, side, and side views (no text or symbols)

Diagram showing a hand inserting air filters into an air fryer, with a water drop and 'OFF' indicator nearby.

2

Illustration of a hand cleaning a washing machine with a blue cloth (no text or symbols)

Diagram showing a food dishwasher with a blue lid and a close-up of its interior with a coiled tube and cooling effect.

Scan QR code to register www.aeg.ma

QR Code 15 x 15 mm

AEG

Model No.: K5AF1-600P Product Desc.: Air Fryer Product No.: 900 943 391 Type: AF-F5010 Volt, Freq.: 220-240V\~50/60Hz Power: 1500W

Serial No.: Y W W00000

Astellanogat Electrolux St. Gesarageden 143. SE 105-45 Stockholm, Sweden Made in China

نصائح للسلامة

Illustration of an air fryer with a side panel and cleaning tool (no text or symbols)

Illustration showing three steps of heating a pot with arrows indicating temperature and warning symbols

2 100% 100% 100%

Diagram showing a hairdryer with digital display and a washing machine interior, illustrating the process of cooling water.
