303393 - Scale Mybeo - Free user manual and instructions

Technical Features	Electronic scale with digital display
Maximum Capacity	150 kg
Accuracy	100 g
Unit of Measurement	kg, lb, st
Platform Dimensions	30 x 30 cm
Additional Features	Tare function, auto shut-off
Usage	Ideal for home use, weighing people
Maintenance	Clean with a damp cloth, do not immerse in water
Repair	Contact customer service for spare parts
Safety	Do not exceed maximum capacity, use on a flat surface
General Information	Operates on batteries, low battery indicator

Frequently Asked Questions - 303393 Mybeo

How do I calibrate the Mybeo 303393 scale?

To calibrate your scale, place it on a flat and stable surface. Turn on the scale and wait until it displays "0.0". If it does not, press the calibration button according to the user manual.

Why does my scale show an incorrect weight?

Make sure the scale is on a flat and stable surface. Also check that the battery is charged and that there are no objects under the scale.

How do I change the batteries of my Mybeo 303393 scale?

Turn the scale over and locate the battery compartment. Open it, remove the old batteries, and replace them with new ones, respecting the polarity.

The scale does not turn on, what should I do?

Check if the batteries are properly installed and not discharged. If the scale still does not turn on, try resetting it by removing the batteries for a few minutes.

How do I clean my Mybeo 303393 scale?

Use a soft, damp cloth to clean the surface of the scale. Avoid using harsh chemical products that could damage the device.

What is the maximum weight supported by the scale?

The Mybeo 303393 scale can support a maximum weight of 180 kg.

Does the scale automatically go into sleep mode?

Yes, the Mybeo 303393 scale automatically turns off after 60 seconds of inactivity to save energy.

Is the scale waterproof?

No, the Mybeo 303393 scale is not waterproof. Avoid exposing it to water or excessive moisture.

Where can I find the user manual for the scale?

The user manual is usually included in the packaging. You can also download it from the official Mybeo website.

USER MANUAL 303393 Mybeo

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

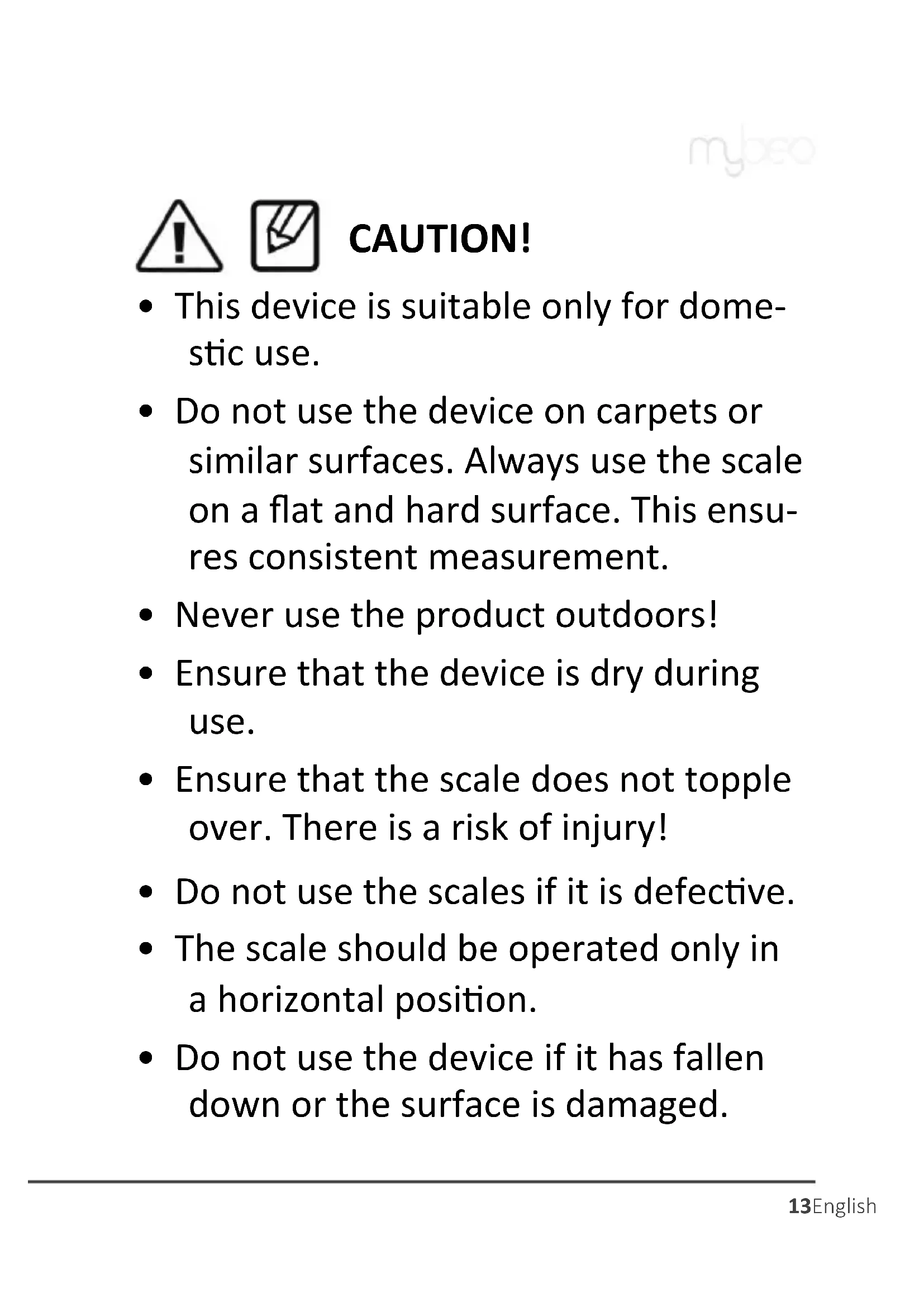

• This device is suitable only for domestic use.
• Do not use the device on carpets or similar surfaces. Always use the scale on a flat and hard surface. This ensures consistent measurement.
• Never use the product outdoors!
• Ensure that the device is dry during use.
• Ensure that the scale does not topple over. There is a risk of injury!
• Do not use the scales if it is defective.
• The scale should be operated only in a horizontal position.

• Do not use the device if it has fallen down or the surface is damaged.

• Do not immerse the device under water and ensure that it does not come into contact with water.

• Pay special attention to the correct polarity when inserting the batteries! Ensure that you do not reverse the battery polarity under any circumstances!
• Never dismantle the device under any circumstances. Warranty claims are rendered void in the event of improper use.
• Do not jump on and off the device under any circumstances.
• This product is not a toy!
• Avoid exposing the scales to direct sunlight. As far as possible, avoid placing the scales in places where the

temperature and humidity are very high.

• This device is not intended to be used, cleaned or maintained by people (including children) with reduced physical, sensory or mental abilities or lack of experience and/or knowledge. Unless they are supervised by a person who is responsible for their safety or have received instructions from this person about how the device is to be properly used.
• Never overload the product. The maximum weighing capacity of the product is 20kg .

• Do not use the scales near combustible or inflammable surroundings or objects.

• Use only high-quality batteries. Inferior quality batteries may leak and damage the device.

• Batteries should never be thrown into the fire nor be charged.
• If the scales is not used for a long duration of time, then ensure that the batteries are removed and stored in a dry place.
• Do not use any chemical cleaning agents. Use only a soft cloth for cleaning.

Thank you for choosing a mybeo product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check if the delivered item is complete, accurate and undamaged.

1. Scope of delivery

Baby scale
- User manual

2. Technical data

Power supply Two 1.5V AA A batteries
Loading capacity max 20 kg
Resolution 0.005g
Units KG, LB
Features	·Auto-off function ·LC display ·"Tare" function ·"Hold" function ·Touch buttons

3. Commissioning

Take the device out of the package and remove all the packaging material. Before using the baby scale, insert the batteries into the battery compartment at the back. Ensure that the polarity of the contacts is correct when inserting the batteries. Place the product only on a firm, even and dry surface.

5. Usage and function

Switch on the device by pressing the "ON/OFF" button on the control panel. Place your baby at the centre of the scale. The weight is shown on the display after a few seconds. Wait till the weight display shows "Hold" and a lock symbol appears at the top right of the display ( ).

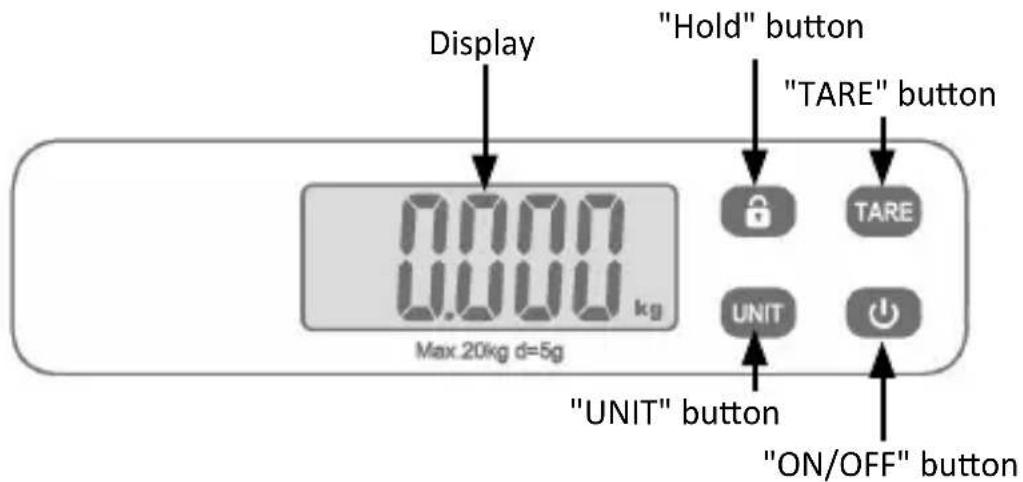

5.1 Display

5.2 Hold function

This baby scale has an automatic "Hold" function that can be enabled.

Automatic "hold" function

The automatic "Hold" function turns on when the baby is placed on the scale and it is still for a moment. Wait till the "Hold" symbol ( ) is shown continuously in the display. The measured weight is displayed till the "Hold" function is stopped.

"Hold" function that can be enabled

If the baby is placed on the scale and it is not still enough, then the automatic "Hold" function is not enabled but you can enable the "Hold" function manually by pressing the "Hold" button ( ) briefly. As soon as the "Hold" symbol is shown continuously in the display, the measured weight is displayed until the "Hold" function is stopped.

Press the "Hold" button or the "Tare" button to disable the "Hold" function.

5.3 Tare function

The "Tare" function resets the current reading to 0. If you want to weigh your baby, for example, using a bassinet, you can first put the bassinet on the scale and then press the "Tare" button. The scale automatically deducts the weight of the bassinet.

If you now place the baby along with the bassinet, the weight of the baby is now shown in the display.

5.4 Changing the unit

By pressing the "Unit" button, you can select between the following units:

KG = Kilograms; LB = Pound

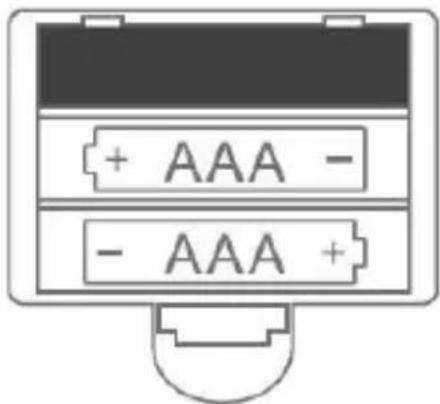

6. Replacing the batteries

Open the battery compartment at the back of the device. Remove the discharged batteries from the battery compartment and dispose of them properly.

Then insert the new batteries into the battery compartment and pay attention to the correct polarity of the contacts.

Remove the batteries if you have not used the device for a long period.

Note: Do not use rechargeable batteries as far as possible since this may eventually lead to restrictions in the functioning of the device!

7. Warning display

"IEEE" display:

The "IEEE" display implies that the device is overloaded.

"Lo" indicator:

The „Lo“ indicator appears in the display when the batteries are empty and need to be replaced.

8. Cleaning and Care

Follow the safety instructions strictly when cleaning. Once the device is switched off, you can clean the surface using a damp, soft cloth. Never use any cleaning agents, solvents or scouring agents for cleaning. Use only a soft cloth to clean the device.

9. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof. Please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without prior notification.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

C E

WEEE Guideline: 2012/19/EU

WEEE Register no.: DE 67896761

WD Plus GmbH hereby certifies that the appliance 303393 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, http://https://model.ganzeinfach.de/303393
