Product type	Accessory drawer
Brand	ETNA
Model	AL14
Use	Storage of kitchen utensils and oven accessories
Installation	Built-in in a kitchen cabinet
Dimensions (W x D x H)	595 x 540 x 140 mm
Maximum load	30 kg
Opening	By pressing the front panel
Main material	Steel
Maintenance	Soft cloth and soapy water
Prohibited cleaning products	Abrasives, solvents, high-pressure or steam cleaners
Safety	Do not sit or lean on the open drawer
Storage	Do not store food or liquids
Supplied accessories	2 screws and spacers for fixing
Installation type	Cabinet niche
Warranty conditions	Refer to the supplied warranty card
After-sales service	Full type number required

Frequently Asked Questions - AL14 ETNA

How to install the ETNA AL14 accessory drawer?

Slide the drawer into the cabinet niche, check that the frame is properly in place, open the drawer and fix it to the side walls using the 2 supplied screws and spacers.

What is the maximum load of the AL14 drawer?

The maximum load is 30 kg. Do not exceed this limit to avoid damaging the slides.

Can I store food in the drawer?

No, the drawer is not intended for storing food or liquids. Use it only for kitchen utensils and oven accessories.

How to clean the ETNA AL14 drawer?

Clean all surfaces with a soft cloth and warm soapy water. Wipe with a clean damp cloth and dry. Never use abrasive products or chemical solvents.

What to do if the drawer does not open properly?

Check that nothing is blocking the mechanism. If the problem persists, contact after-sales service with the full type number of the appliance at hand.

Can I sit on the open drawer?

No, do not lean or sit on the open drawer. This could damage the slides and cause injury.

What are the installation dimensions of the AL14 drawer?

The installation dimensions are: width 595 mm, depth 540 mm, height 140 mm. Refer to the diagram in the manual for precise measurements.

Is the drawer compatible with all built-in ovens?

This drawer is designed to be installed under a built-in oven or in a kitchen cabinet. Check the dimensions of your niche to ensure compatibility.

What accessories are supplied with the drawer?

The drawer comes with two screws and two spacers for side fixing in the cabinet.

How to open the drawer if there is no handle?

The drawer opens by briefly pressing the front panel. There is no traditional handle.

USER MANUAL AL14 ETNA

Using the accessory drawer 5

Maintenance 5

Introduction

Congratulations on choosing this drawer. Read these instructions thoroughly before you first use the drawer, and keep the instructions for future use.

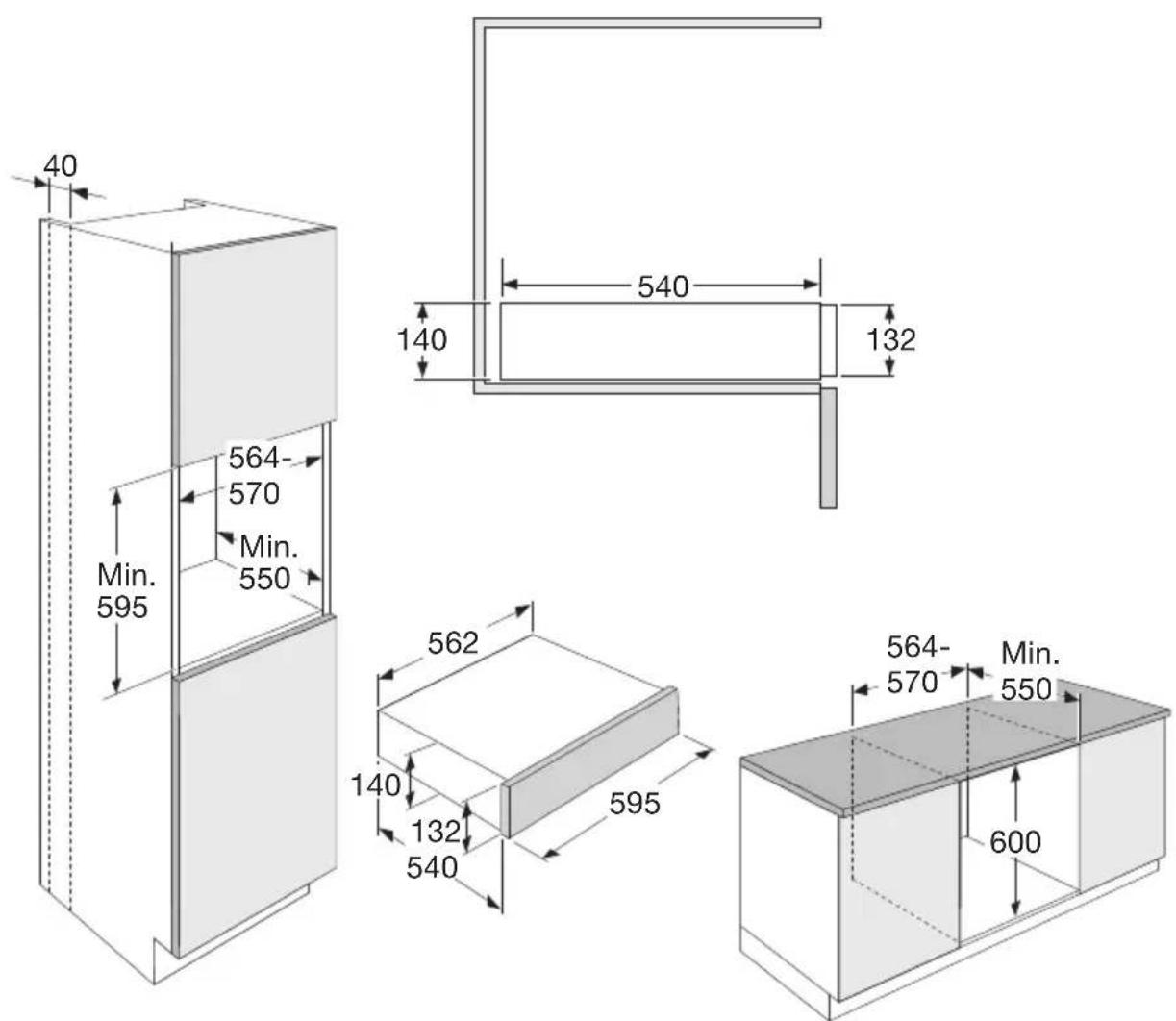

Building in

1. Check the drawer after unpacking. Do not install the drawer if it is damaged; contact your supplier.
2. Before first use, remove all packaging material from inside the drawer.
3. Slide the drawer into the niche of the kitchen cabinet. Check that the drawer housing is positioned properly.
4. Open the drawer and fasten it to the side walls of the cabinet using the 2 screws and spacers provided.

Using the accessory drawer

• Use the drawer to store cooking utensils such as cutlery and crockery or accessories for the built-in oven such as oven racks and baking trays.
• The drawer can be opened by briefly pressing the front panel.

• Do not lean or sit on the open drawer. Otherwise, the slide rails may be damaged.
• The drawer can carry a maximum weight of 30 kg.
• The drawer is not intended for storing food or liquids.

Maintenance

• Clean all surfaces with a soft cloth and warm soapy water.
• Wipe with a clean wet cloth afterwards and dry the surfaces.

Important:

• NEVER use abrasive cleaning agents or chemical solvents.
• DO NOT use a pressure washer or steam cleaner to clean the drawer.

When contacting the service department,

have the complete type number to hand.

You will find the addresses and phone numbers of the service organisation on the guarantee card.
