Technical specifications	GE UVW7361SWSS kitchen hood, wall-mounted type, with integrated LED lighting.
Dimensions	Width: 76 cm, depth: 50 cm, height: 15 cm.
Extraction capacity	Up to 400 m/h.
Ventilation levels	3 power levels.
Filtration	Aluminum grease filters, dishwasher safe.
Usage	Touch controls for easy use.
Maintenance	Filters to be cleaned regularly, minimal maintenance required.
Safety	Overheat protection, compliant with safety standards.
General information	2-year warranty, available in stainless steel finish.

Frequently Asked Questions - UVW7361SWSS GE

How do I clean the filters of the GE UVW7361SWSS hood?

To clean the filters, remove them from the hood and soak them in warm soapy water for about 10 minutes. Gently scrub with a soft brush, rinse, and let dry completely before putting them back in place.

What should I do if the hood does not turn on?

First, check that the hood is properly plugged in and that the circuit breaker has not tripped. If everything seems fine, try resetting the hood by unplugging the device for a few minutes, then plug it back in.

How do I adjust the suction power of the hood?

The suction power can be adjusted using the controls located on the control panel. Press the corresponding buttons to choose between different suction speeds.

Why is the hood making excessive noise?

Excessive noise may be caused by a dirty filter or an object obstructing the fan. Check and clean the filters, and make sure no object is blocking the fan.

How do I replace a bulb in the GE UVW7361SWSS hood?

To replace a bulb, unplug the hood, remove the bulb cover, and replace the bulb with a new one of the recommended type. Then put the cover back in place and plug the device back in.

The hood does not seem to be suctioning effectively, what should I do?

Check if the filters are clean and in good condition. If the filters are dirty, clean or replace them if necessary. Also, make sure the hood is installed correctly for optimal operation.

Where can I find the user manual for the GE UVW7361SWSS hood?

The user manual can be downloaded from the official GE Appliances website in the 'Support' or 'Manuals and Documents' section by searching for the model UVW7361SWSS.

The hood emits a strange odor, what should I do?

A strange odor may come from dirty filters or grease buildup. Clean the filters and make sure the hood is clean. If the odor persists, also check the condition of the ventilation.

USER MANUAL UVW7361SWSS GE

SAFETY INFORMATION 3

USING THE HOOD

Light Controls 5

Vent Controls 5

CARE AND CLEANING

GreaseFilter 6

Stainless Steel Surfaces 7

LED Lights 7

INSTALLATION INSTRUCTIONS .. 8

Installation Preparation 9

Vented to the Outside 14

Recirculating 18

TROUBLESHOOTING TIPS 23

LIMITED WARRANTY 25

CONSUMER SUPPORT 26

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the inside of the hood.

OWNER'S MANUAL & INSTALLATION INSTRUCTIONS

UVW7301

UVW7361

ESPANOL

For a Spanish version of this manual, visit our Website at GEAppliances.com.

For a French version of this manual, visit our Website at GEAppliances.ca.

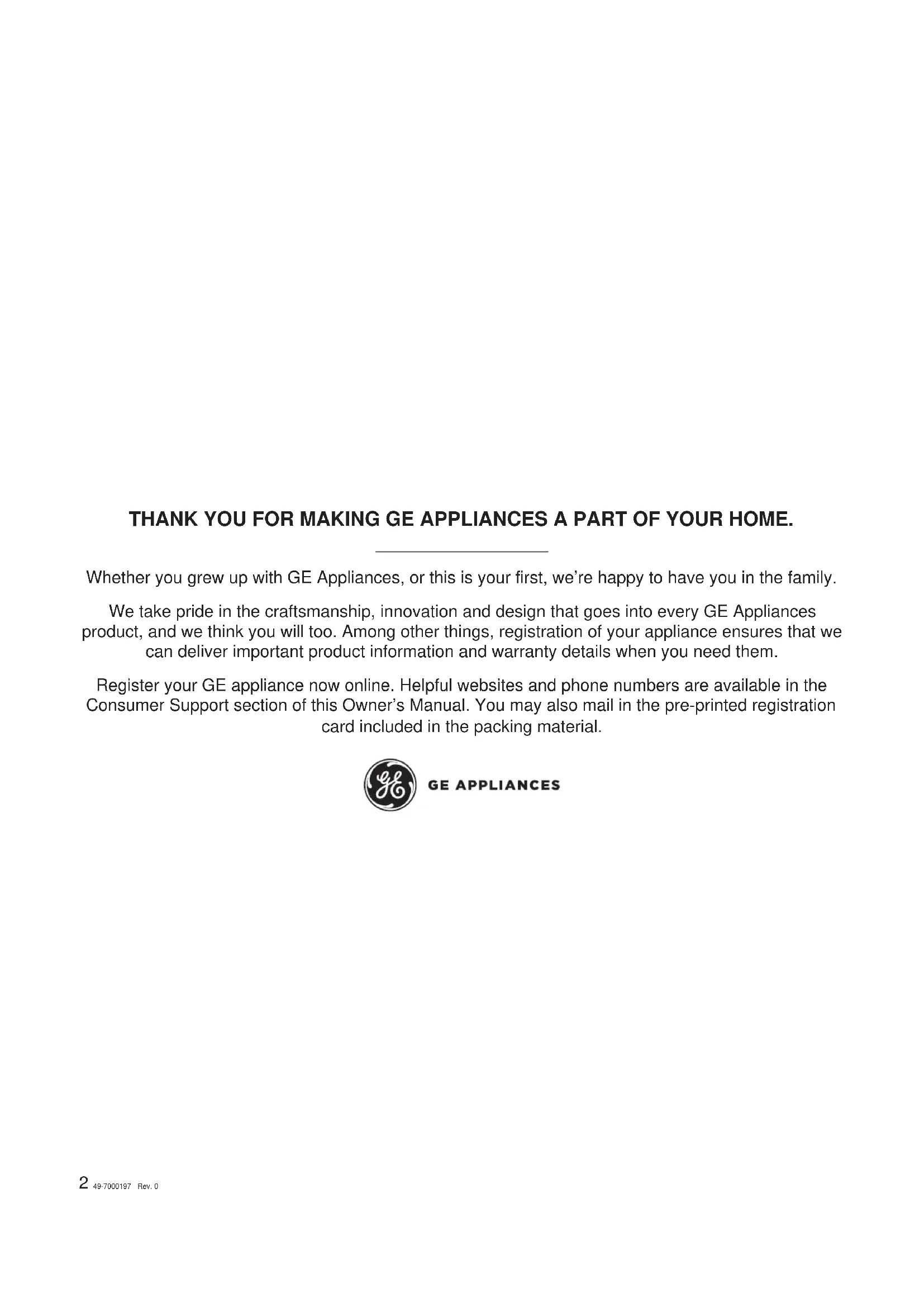

THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.

Whether you grew up with GE Appliances, or this is your first, we're happy to have you in the family.

We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.

Register your GE appliance now online. Helpful websites and phone numbers are available in the Consumer Support section of this Owner's Manual. You may also mail in the pre-printed registration card included in the packing material.

GE APPLIANCES

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
C. Do not use this unit with any solid-state speed control device.
D. This unit must be grounded.

CAUTION

For general ventilating use only. Do

not use to exhaust hazardous or explosive materials and vapors.

CAUTION

To reduce risk of fire and to properly

exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces or garages.

WARNING

TO REDUCE THE RISK OF INJURY

TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

A. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN—You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
D. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.

4. You can fight the fire with your back to an exit.

5. Based on "Kitchen Fire Safety Tips" published by NFPA.

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking on high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

B. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guidelines and safety standards, such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities. When applicable, install any makeup (replacement) air system in accordance with local building code requirements. Visit GEAppliances.com for available makeup air solutions.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
F. Turn off breaker to adjacent rooms while working.

WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

• Do not attempt to repair or replace any part of your hood unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

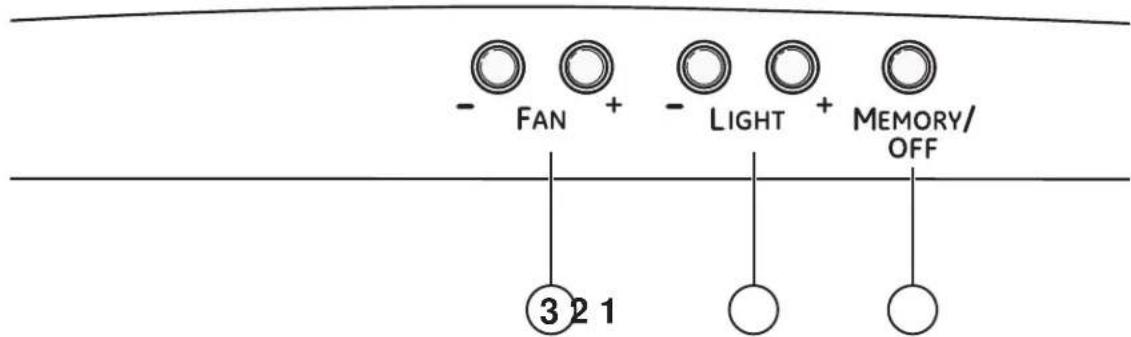

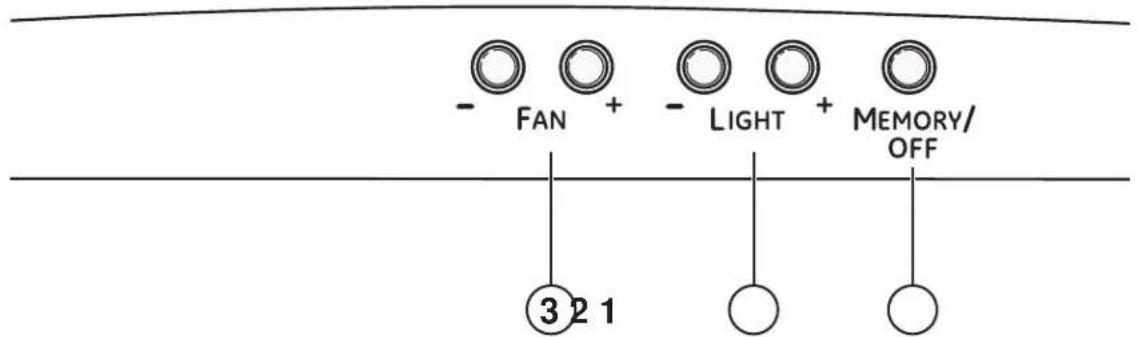

1. MEMORY/OFF: To set the memory:

A. Press the MEMORY/OFF button.
B. Set your desired fan and light settings.
C. Press the MEMORY/OFF button again to save these settings.

With your desired settings in memory, press the MEMORY/OFF button to restore the fan and light levels to their saved settings. These settings will remain in memory until they are changed or loss of power occurs.

To turn off the hood, press the MEMORY/OFF button.

1. LIGHT: Press + or - to increase or decrease light level to desired setting. There are 2 light levels (LOW, HIGH) and OFF. If you continue to press the + or - buttons, the light will cycle back through the settings.
2. FAN. Press + or - to increase or decrease fan level to your desired setting. There are 4 fan levels (LOW, MED, HIGH, BOOST) and OFF. If you continue to press the + or - buttons, the fan will cycle back through the settings.

NOTE: There is an audible "beep" each time a button is pressed. This is normal.

NOTE: The collars around the buttons will illuminate when pressed. This is normal. The collars will automatically turn off if the hood is turned off.

HEAT SENSOR:

This hood is equipped with a heat sensor that will turn on the fan if excessive temperatures are detected (over 70^ / 158^ ) above the cooking surface. The hood will return to its normal operation once the heat sensor detects temperatures below 60^ / 140^ .

NOTE: If the hood is OFF or on LOW fan speed, the temperatures above 70^ / 158^ are detected; then the fan will automatically adjust to MED speed. You may adjust the fan speed to HIGH or BOOST, but you will not be able to adjust the fan speed to LOW or OFF until temperatures below 60^ / 140^ are detected.

NOTE: The collars around the buttons may not illuminate if the heat sensor is activated. This is normal.

Filters

Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the vent hood.

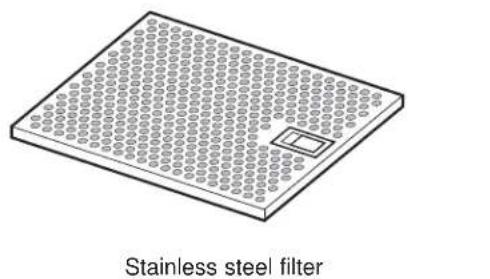

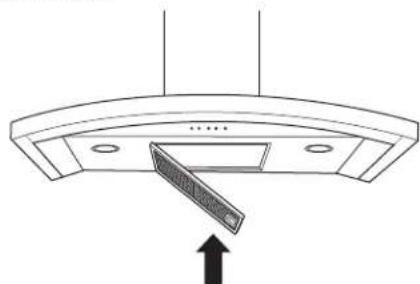

Metal Grease Filter

The metal filter traps grease released by foods from the cooktop. The filter also helps prevent flames (from food, grease) from damaging the inside of the hood.

For this reason, the filter must ALWAYS be in place when the hood is in use. The grease filter is dishwasher-safe and should be cleaned every 6 months, or as needed.

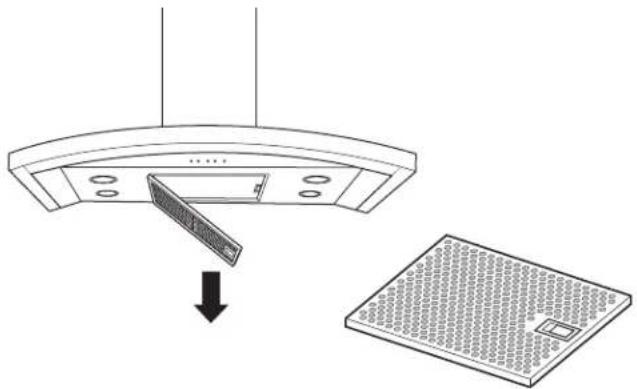

To remove:

Pull downward on the filter lock to release the filter.

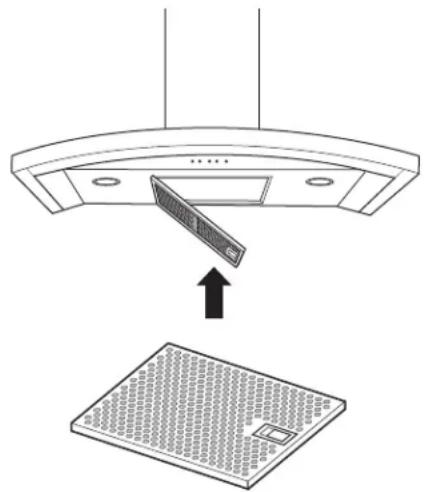

To replace:

Fit the tabs at the end of the filter into the slots in left side of the filter opening. Lift up the right side of the filter and push gently until the filter locks into place. Make sure the filter lock is in the closed position to secure the filter.

To clean, swish the filter in hot soapy water and rinse in clean water or wash it in the dishwasher. Do not use abrasive cleansers.

NOTE: Some discoloration will occur in the dishwasher.

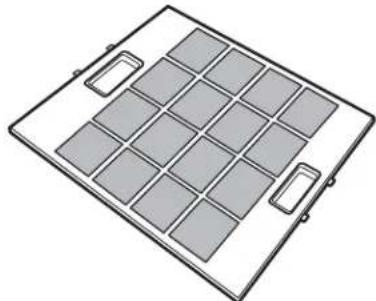

Charcoal Filter

For recirculating installation only

If the model is not vented to the outside, the air will be recirculated through a disposable charcoal filter that helps remove smoke and odors.

The charcoal filter should be replaced when it is noticeably dirty or discolored (usually after 6 to 12 months, depending on hood usage).

NOTE: DO NOT rinse, or put charcoal filter in an automatic dishwasher.

The charcoal filter cannot be cleaned. It must be replaced.

Order Charcoal Filter WB02X11348.

To inquire about purchasing replacement charcoal filters or to find the location of a dealer nearest you, please call our toll-free number:

National Parts Center: 800.626.2002

To remove:

1. Remove the metal filter—see Metal grease filter section.
2. Remove the charcoal filter by pushing in on both locking tab handles to release.

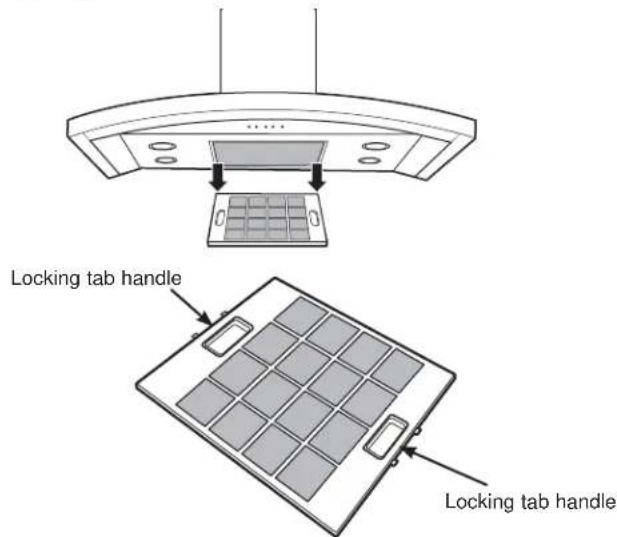

To replace:

1. Insert the charcoal filter into the opening. Push the locking tab handles toward the center and release to engage the locking tabs.
2. Replace the metal filter—see Metal grease filter section.

Care and Cleaning

Stainless Steel Surfaces

Do not use a steel wool pad; it will scratch the surface.

To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the brush line. Follow the cleaner instructions for cleaning the stainless steel surface. Cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will remove surface rust, tarnish, and small blemishes. To receive a $2.00 coupon for a trial sample of Bar Keepers Friend Soft Cleanser™ follow the link below or scan the QR Code.

barkeepersfriend.com/ge

Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge.

To inquire about purchasing stainless steel appliance cleaner or polish, or to find the location of a dealer nearest you, please call our toll-free number: 800.626.2002

GEApplianceParts.com

LED Lights

The LED lights are replaceable by a service technician only. See the Limited Warranty section for service contact information.

Installation Instructions

Chimney Vent Hood

If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737)

or visit our website at: GEAppliances.com

BEFORE YOU BEGIN

Read these instructions completely and carefully.

-IMPORTANT - Save these instructions for local inspector's use.
-IMPORTANT - Observe all governing codes and ordinances.
Note to Installer - Be sure to leave these instructions with the Consumer.
Note to Consumer - Keep these instructions for future reference.
Skill level - Installation of this vent hood requires basic mechanical and electrical skills.
Completion time - Approximately 1 to 3 hours
- Proper installation is the responsibility of the installer.
Product failure due to improper installation is not covered under the Limited Warranty.

CAUTION

Due to the weight and size of

these vent hoods and to reduce the risk of personal injury or damage to the product, TWO PEOPLE ARE REQUIRED FOR PROPER INSTALLATION.

FOR YOUR SAFETY:

WARNING

Before beginning the installation,

switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

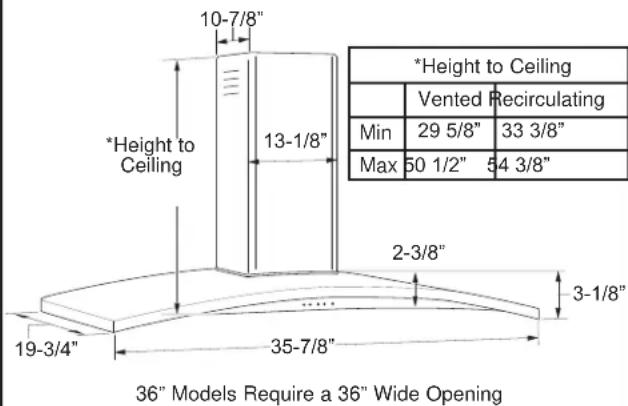

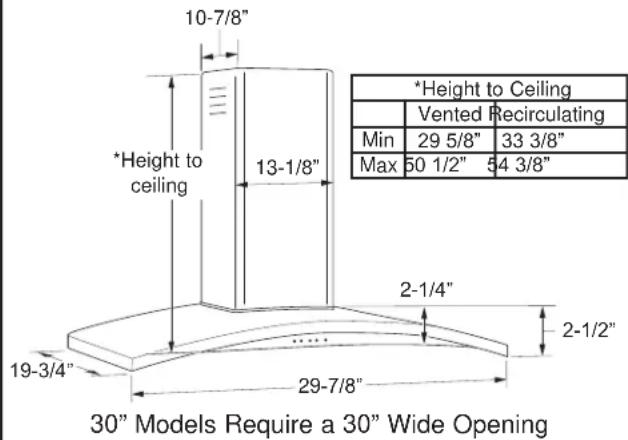

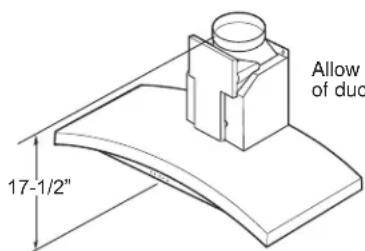

PRODUCT DIMENSIONS

* For supplied duct cover ceiling heights for vented installation and recirculating installation, refer to the table on page 13.

PREPARE TO INSTALL THE HOOD

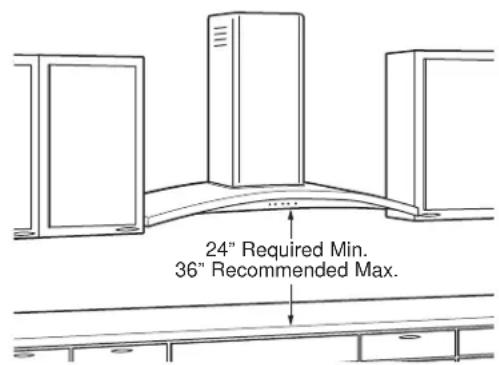

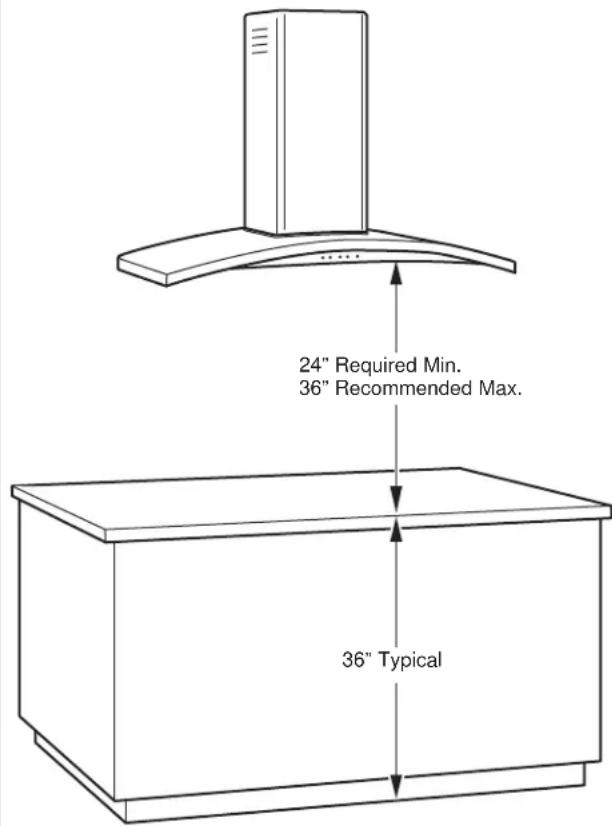

INSTALLATION CLEARANCES

These vent hoods are designed to be installed onto a wall. They may be installed beneath a soffit or cabinet.

Install these hoods between the required 24" minimum and 36" recommended maximum above the cooking surface.

The vent hood must be installed between the required 24" minimum and 36" recommended maximum above the cooking surface. The hood installation height above the cooking surface depends upon ceiling height and duct cover limitations. The telescopic duct cover conceals the ductwork running from the top of the hood to the ceiling. For supplied duct cover ceiling heights, see table on page 13.

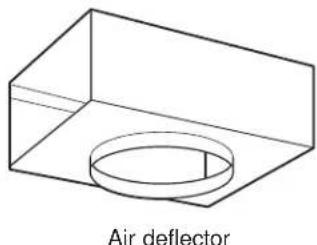

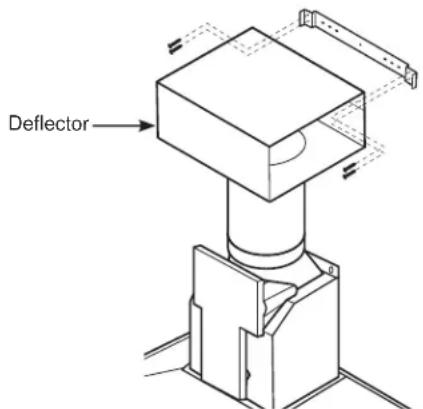

Recirculation Kit:

Kit includes 1 air deflector and 1 charcoal filter and is included with the hood.

NOTE: Installation height should be measured from the cooking surface to the lowest part of the hood. This hood must be installed onto a wall. It can be vented to the outdoors, or it can be installed for recirculating operation. For recirculation operation, a Recirculating Kit (included) is required.

ADVANCE PLANNING

Duct Install Planning

This hood is designed to be vented vertically through the ceiling. A duct transition piece is supplied for vertical exhaust. Use locally supplied elbows to vent horizontally through the rear wall.
Use metal ductwork only.
Determine the exact location of the vent hood.
Plan the route for venting exhaust to the outdoors. To maximize the ventilation performance of the vent system:
1. Minimize the duct run length and number of transitions and elbows.
2. Maintain a constant duct size.

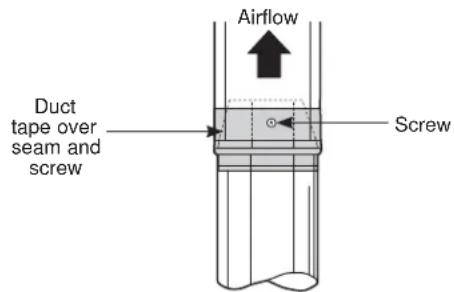

3. Seal all joints with duct tape to prevent any leaks.
4. Do not use any type of flexible ducting.
Use the shortest and straightest duct route possible.
Install a wall cap or roof cap with damper at the exterior opening. Order the wall or roof cap and any transitions and length of duct needed in advance.
- When applicable, install any makeup (replacement) air system in accordance with local building code requirements. Visit GEAppliances.com for available makeup air solutions.

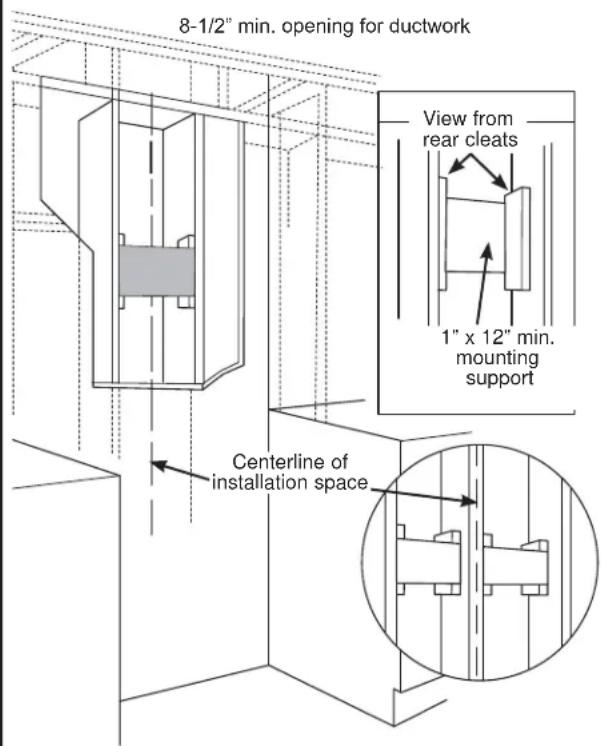

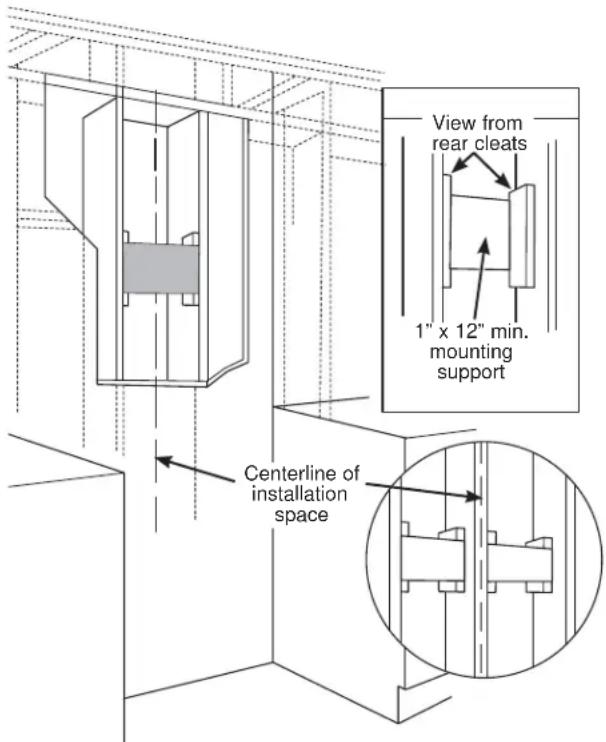

Wall Framing for Adequate Support

This vent hood is heavy. Adequate structural support must be provided. The hood must be secured to vertical studs in the wall. See page 14.
We strongly recommend that the vent hood with duct cover be on site before final framing and wall finishing. This will also help to accurately locate the ductwork and electrical service.

Installation Preparation

POWER SUPPLY

IMPORTANT—(Please read carefully)

WARNING

FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.

Remove house fuse or open circuit breaker before beginning installation.

Do not use an extension cord or adapter plug with this appliance. Follow National Electrical Codes or prevailing local codes and ordinances.

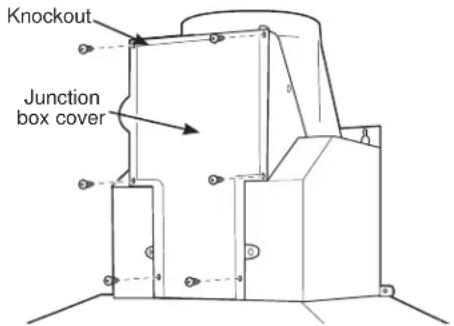

Electrical Supply

This vent hood must be supplied with 120V 60Hz and connected to an individual, properly grounded branch circuit, and protected by a 15 or 20 amp circuit breaker or time delay fuse.

Wiring must be 2 wire with ground.
If the electrical supply does not meet the above requirements, call a licensed electrician before proceeding.

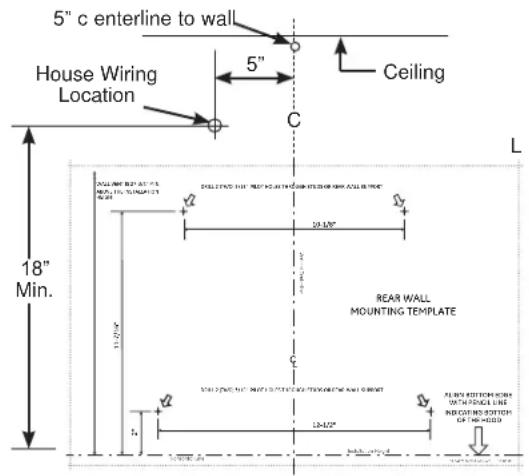

- Route house wiring as close to the installation location as possible in the ceiling or wall. See page 14 for details.
- Connect the wiring to the house wiring in accordance with local codes.

Grounding Instructions

The grounding conductor must be connected to a ground metal, permanent wiring system, or an equipment-grounding terminal or lead on the hood.

WARNING

The improper connection of equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

This Hood MUST Use an 8" Round Duct.
It Can Transition to a 3-1/4" x 12" Duct.

DO NOT use flexible plastic ducting.

NOTE: Any home ventilation system, such as a ventilation hood, may interrupt the proper flow of combustion air and exhaust required by fireplaces, gas furnaces, gas water heaters and other naturally vented systems. To minimize the chance of interruption of such naturally vented systems, follow the heating equipment manufacturer's guidelines and safety standards such as those published by NFPA and ASHRAE. When applicable, install any makeup (replacement) air system in accordance with local building code requirements. Visit GEAppliances.com for available makeup air solutions.

Installation Preparation

TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED)

Safety glasses

Pencil and tape measure

Spirit level

Hammer

Phillips screwdriver

Flashlight

Electric drill with 3/16" bits, #2 Phillips head

Metal snips

Step ladder

Pliers

UL listed wire nuts

Wire cutter/stripper

Saber saw or Key Hole saw

Aluminized Duct tape

Strain relief for junction box

8" Round metal duct, length to suit installation

120V 60Hz. 15 or 20 Amp, 2-wire with ground, properly grounded branch circuit

REMOVE THE PACKAGING

CAUTION

Wear gloves to protect against

sharp edges.

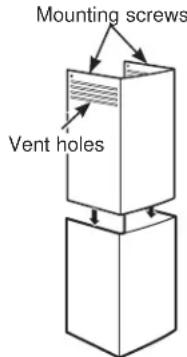

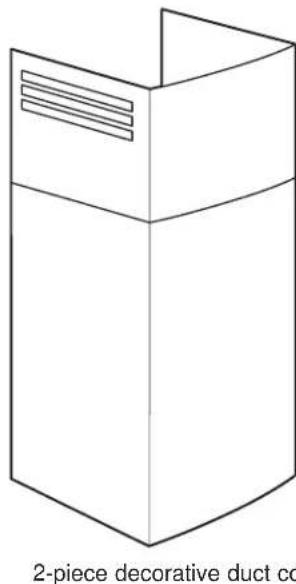

Remove the duct covers.
- Remove the hardware bag, literature package and other boxed parts.
- Remove and properly discard the protective plastic wrapping and other packaging materials.
Remove packing foam from behind the blower.

Installation Preparation

CHECK INSTALLATION HARDWARE

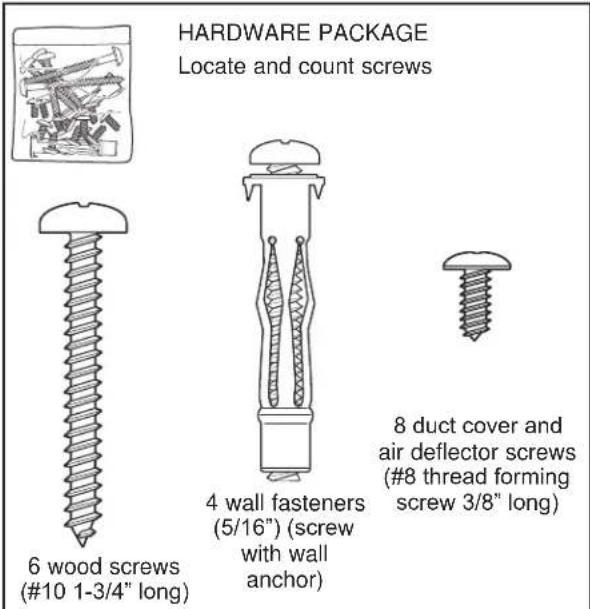

Locate the hardware package packed with the hood and check contents.

RECIRCULATING KIT (Included)

INSTALLATION CLEARANCES

These vent hoods are designed to be installed onto a wall with no above cabinets.

Install these hoods between the required 24" minimum and 36" recommended maximum above the cooking surface.

The hood installation height above the cooking surface depends upon ceiling height and duct cover limitations. The telescopic duct cover conceals the ductwork running from the top of the hood to the ceiling.

NOTE: Installation height should be measured from the cooking surface to the lowest part of the hood. This hood must be installed onto a wall. It can be vented to the outdoors, or it can be installed for recirculating operation. Recirculating Kit included with hood.

UVW7301, UVW7361
Upper Duct Cover 25.81
Lower Duct Cover 27.56
	Counter to Hood Height
Actual Ceiling Height	*Possible VENTED Installation Height	*Possible RECENTACING Installation Height
7" 6" 24"
7" 7" 24" to 25"
7' 8" 24" to 26"
7' 9" 24" to 27"
7' 10"	24" to 28" 24"
7' 11" 24" to 29" 24" to 25"
8' 0" 24" to 30" 24" to 26"
8' 1" 24" to 31" 24" to 27"
8' 2" 24" to 32" 24" to 28"
8' 3" 24" to 33" 24" to 29"
8' 4" 24" to 34" 24" to 30"
8' 5" 24" to 35" 24" to 31"
8' 6" 24" to 36" 24" to 32"
8' 7" 24" to 36" 24" to 33"
8' 8" 24" to 36" 24" to 34"
8' 9" 24" to 36" 24" to 35"
8' 10" 24" to 36" 24" to 36"
8' 11" 24" to 36" 24" to 36"
9' 0" 24" to 36" 24" to 36"
9' 1" 24" to 36" 24" to 36"
9' 2" 24" to 36" 24" to 36"
9' 3" 25" to 36" 24" to 36"
9' 4" 26" to 36" 24" to 36"
9' 5" 27" to 36" 24" to 36"
9' 6"	28" to 36" 24" to 36"
9' 7" 29" to 36" 25" to 36"
9' 8" 30" to 36" 26" to 36"
9' 9" 31" to 36" 27" to 36"
9' 10" 32" to 36" 28" to 36"
9' 11" 33" to 36" 29" to 36"
10' 0" 34" to 36" 30" to 36"
10' 1" 35" to 36" 31" to 36"
10' 2" 36" 32" to 36"
10' 3" 33" to 36"
10' 4" 34" to 36"
10' 5" 35" to 36"
10' 6"		36"

• based on 36" countertop height

INSTALLATION - VENTED TO THE OUTSIDE

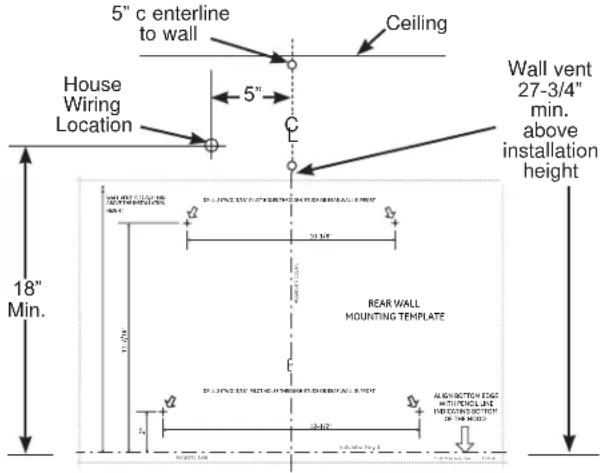

DUCTWORK, WIRING LOCATIONS

Determine the exact location of the vent hood.

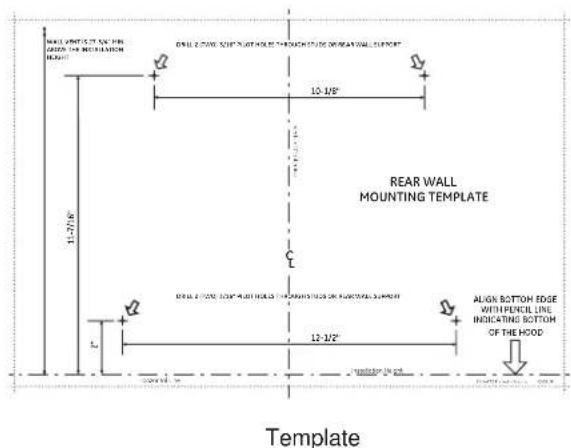

- Locate the template packed with the literature.

• Measure from the floor to the top of the cooking surface. Add hood installation height determined on pages 8 and 13. Mark that location.
• Use a level to draw a straight pencil line on the wall.
• Tape the template in position along the penciled line. CHECK TO BE SURE THE TEMPLATE IS LEVEL.

Ceiling ducting:

If ductwork will vent straight up to the ceiling:

Use a level to draw a line straight up, from the centerline on the template to the ceiling.
Measure 5^ from the back wall to the centerline of an 8-1/2" hole on the ceiling

NOTE: If drywall is not present, add drywall thickness to the 5" dimension.

Wall Ducting:

If ductwork will vent to the rear:

Use a level to draw a line straight up from the centerline on the template.
Measure at least 27 - 3 / 4 above the pencil line that indicates the bottom installation height, to the centerline of an 8 - 1 / 2 dia. duct hole. (Hole may be elongated for duct elbow.)

HOUSE WIRING LOCATION:

The junction box is located on the top left side of the hood.
Wiring should enter the back wall at least 18" above the bottom of the hood and within 5" of the left side of the centerline.

STEP 1: INSTALL FRAMING FOR HOOD SUPPORT

IMPORTANT: Framing must be capable of supporting 100 lbs.

If drywall is present, mark the screw hole locations for the top mounting brackets. Remove the template.

• Cut away enough drywall to expose 2 vertical studs at the bracket location indicated on the template.
• Install a horizontal support at least 1^ × 12^ between two wall studs at the mounting screw location. The horizontal support must be flush with the room side of the studs. Use cleats behind both sides of the support to secure to wall studs.

NOTE: 2 horizontal supports will be needed if there is a stud located between the horizontal screw locations (see figure).

IMPORTANT: Reinstall drywall for an even mounting surface.

INSTALLATION - VENTED TO THE OUTSIDE (Cont.)

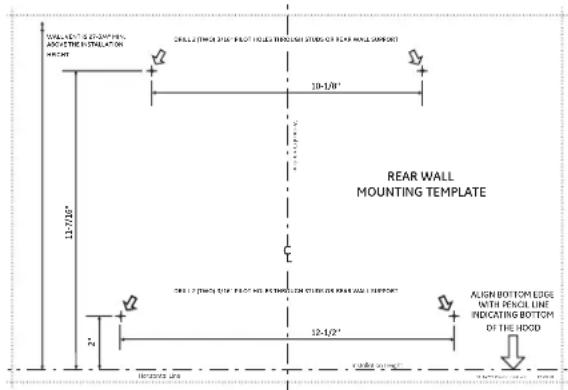

STEP 2: INSTALL HOOD MOUNTING SCREWS

The two upper mounting screws must enter the horizontal support or wall studs.

• With the template taped in place, use a punch to mark mounting bracket screw locations.
• Drill 1/8 pilot holes in 4 of the punched locations in the lower bracket. If the bottom 2 pilot holes do not enter wood, enlarge the holes to 3/8 and install metal wall fastener anchors (provided).
  Remove the template.

Install the 2 top mounting screws, leave 1/4 gap between the screw head and the wall. This will allow the keyhole slot on the hood frame to engage the screw head.

IMPORTANT: Use the mounting screws provided. DO NOT USE DRYWALL SCREWS.

• Check to be sure the mounting screws are horizontally level.

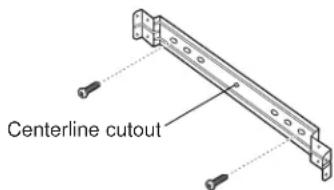

STEP 3: INSTALL DUCT BRACKET

The duct bracket should be installed against the back wall and flush with the ceiling; the point where the ceiling meets the wall should be level for the bracket and duct cover to fit flush. This bracket will hold the duct cover in place at the top.

Secure the bracket to the wall:

Align the diamond centerline cutout on the bracket with the penciled centerline on the wall.
Mark 2 screw hole locations in the wall.
- Drill 1/8 pilot holes in the marked locations.
If pilot holes do not enter wood studs, enlarge the holes to 3/8 and install metal wall fastener anchors (provided).
If mounting directly to a masonry wall, obtain appropriate #10 masonry screw anchors. Drill and install per the fastener supplier's instructions.
Drive screws, by hand, into the fasteners to allow anchors to expand. Remove the screws.
- Secure the bracket to the wall with wood screws and/or fasteners.

STEP 4: MOUNT THE HOOD

WARNING

2 people are required to lift and

position the hood onto the mounting screws.

Lift the hood onto the mounting screws.
If using a wall fastener, make sure the washer is in front of the flange and not behind it. Check with a level before tightening the screws.

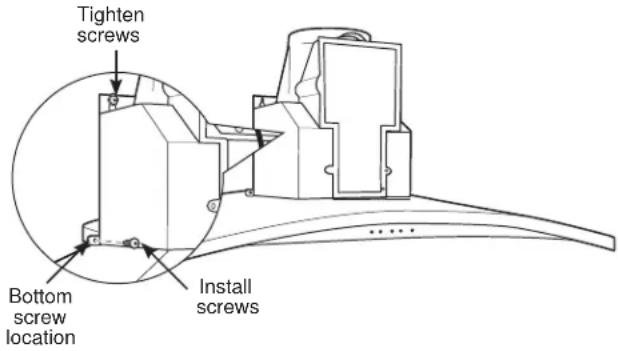

Install lower screws to pull the hood tight against the wall.

INSTALLATION - VENTED TO THE OUTSIDE (Cont.)

STEP 5: CONNECT DUCTWORK

Remove shipping tape from the damper.
Install ductwork, making connections in the direction of airflow as illustrated.
Push duct over the exhaust outlet and damper.
- Secure joints in ductwork with sheet metal screws.
- Wrap all duct joints and the flange connections with aluminized duct tape for an airtight seal.

CAUTION

Do not use sheet metal screws at

the hood flange connection. Doing so will prevent proper damper operation. Seal connection with tape only.

STEP 6: CONNECT ELECTRICAL

Verify that power is turned off at the source.

WARNING

If house wiring is not 2-wire with

a ground wire, a ground must be provided by the installer. When house wiring is aluminum, be sure to use U.L. approved anti-oxidant compound and aluminum-to-copper connectors.

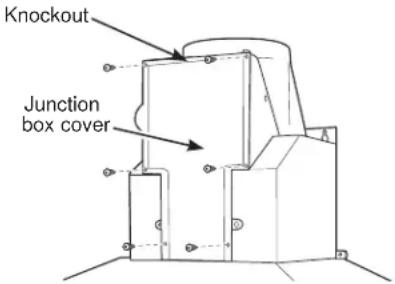

• Remove the 6 screws on the junction box cover and the knockout on the top left side.

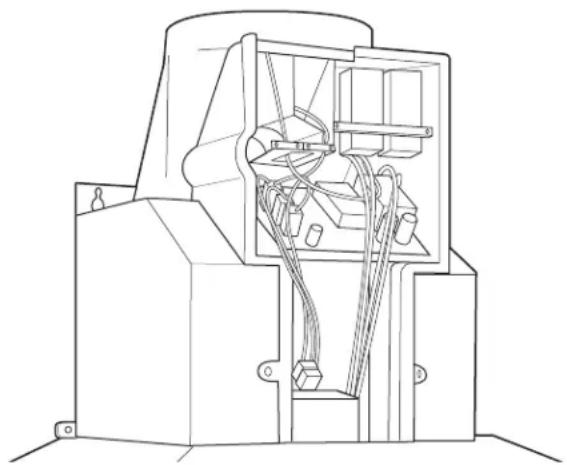

STEP 6: CONNECT ELECTRICAL (cont.)

• Secure the house wiring to the junction box with a strain relief (not provided).

• Connect the white lead to the branch circuit white lead.
• Connect the black lead to the branch circuit black lead.
• Connect the green/yellow lead to the branch circuit green lead or bare ground lead.
• Secure all the connections with wire nuts on each electrical connector.
• Push the wires into the junction box and replace the cover. Be sure the wires are not pinched.
• Secure the junction box cover with the 6 original screws.

INSTALLATION - VENTED TO THE OUTSIDE (Cont.)

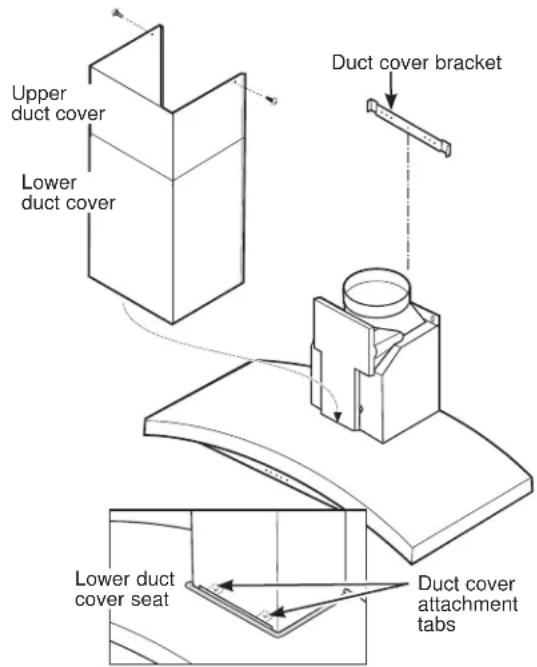

STEP 7: INSTALL DUCT COVERS

Remove protective plastic covering.
■ Assemble duct covers according to application.

NOTE: The inside duct cover has vent holes on one end.
The holes are intended for use when the hood is installed for recirculating purposes. Slide the upper duct cover into the folded ends of the lower duct cover.
- Place the decorative duct covers on top of the hood.

• Extend the inner duct cover upward to the ceiling bracket.
• Secure with 2 screws to the duct cover bracket.

• Remove the packing material from the filter opening.

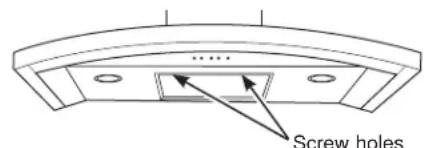

• Locate the screw holes on the inside front edge of the opening. Install 2 screws to secure the lower duct cover to the hood.

STEP 8: INSTALL METAL GREASE FILTER

• Remove the protective film on the grease filter. NOTE: The charcoal filter is not required for this installation.
  Fit the tabs at the end of the filter into the slots in the left side of the filter opening. Lift up the right side of the filter and push gently until the filter locks into place. Make sure the filter lock is in the closed position to secure the filter.
  To remove the filter, pull downward on the filter lock to release.

STEP 9: FINALIZE INSTALLATION

• Check to be sure all tape and packaging materials have been removed.
  Refer to the Operating Instructions in this manual to operate the hood.

INSTALLATION - RECIRCULATING

DUCTWORK, WIRING LOCATIONS

Determine the exact location of the vent hood.
- Locate the template packed with the literature.
Measure from the floor to the top of the cooking surface. Add hood installation height determined on pages 8 and 13. Mark that location.
- Tape the template in position along the penciled line. CHECK TO BE SURE THE TEMPLATE IS LEVEL.
Use a level to draw a line straight up, from the centerline on the template to the ceiling.

HOUSE WIRING LOCATION:

The junction box is located on the top left side of the hood.
- Wiring should enter the back wall at least 18" above the bottom of the hood, and within 5" of the centerline.

STEP 1: INSTALL FRAMING FOR HOOD SUPPORT

IMPORTANT: Framing must be capable of supporting 100 lbs.

If drywall is present, mark the screw hole locations for the top mounting brackets. Remove the template.

Cut away enough drywall to expose 2 vertical studs at the bracket location indicated on the template.
- Install a horizontal support at least 1^ × 12^ between two wall studs at the mounting screw location. The horizontal support must be flush with the room side of the studs. Use cleats behind both sides of the support to secure to wall studs.

NOTE: 2 horizontal supports will be needed if there is a stud located between the horizontal screw locations (see figure).

IMPORTANT: Reinstall drywall for an event mounting surface.

INSTALLATION - RECIRCULATING (Cont.)

STEP 2: INSTALL HOOD MOUNTING SCREWS

The mounting screws must enter the horizontal support or wall studs.

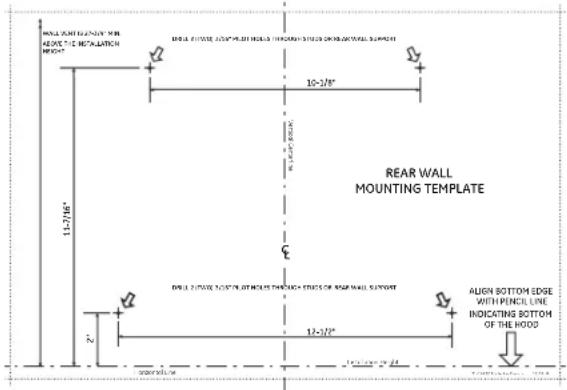

• With the template taped in place, use a punch to mark mounting bracket screw locations.
• Drill 1/8 pilot holes in 4 of the punched locations in the lower bracket. If the bottom 2 pilot holes do not enter wood, enlarge the holes to 3/8 and install metal wall fastener anchors (provided).
  Remove the template.
  Install the 2 top mounting screws; leave 1/4 gap between the screw head and the wall. This will allow the keyhole slot on the hood frame to engage the screw head.

IMPORTANT: Use the mounting screws provided. DO NOT USE DRYWALL SCREWS.

• Check to be sure the mounting screws are horizontally level.

STEP 3: INSTALL DUCT BRACKET AND DEFLECTOR

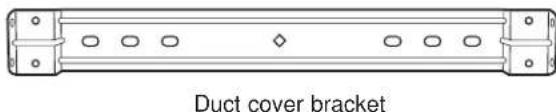

The duct bracket should be installed against the back wall and flush with the ceiling; the point where the ceiling meets the wall should be level for the bracket and duct cover to fit flush. This bracket will hold the duct cover in place at the top.

Secure the bracket to the wall:

Align the diamond centerline cutout on the bracket to the penciled centerline on the wall.
Mark 2 screw hole locations in the wall.
- Drill 1/8 pilot holes in the marked locations.
If pilot holes do not enter wood studs, enlarge the holes to 3/8 and install metal wall fastener anchors (provided).
If mounting directly to a masonry wall, obtain appropriate #10 masonry screw anchors. Drill and install per the fastener supplier's instructions.
Drive screws, by hand, into the fasteners to allow anchors to expand. Remove the screws.
- Secure the bracket to the wall with wood screws and/or fasteners.

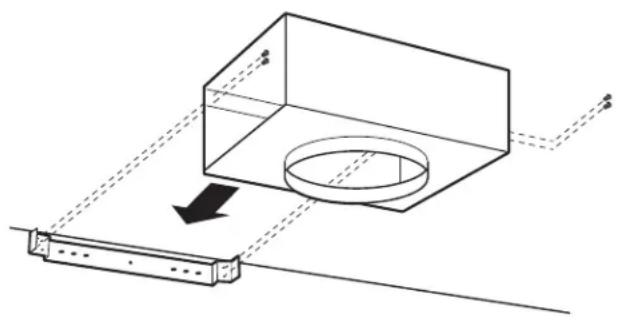

• Assemble the air deflector accessory to the duct cover bracket with the 4 assembly screws provided. DO NOT tighten screws. This is a temporary installation.

INSTALLATION - RECIRCULATING (Cont.)

STEP 4: MOUNT THE HOOD

WARNING

2 people are required to lift and

position the hood onto the mounting screws.

• Lift the hood onto the mounting screws.
  If using a wall fastener, make sure the washer is in front of the flange and not behind it. Check with a level before tightening screws.

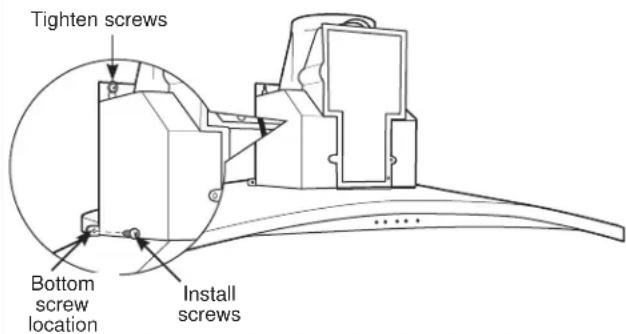

  Install lower screws to pull the hood tight against the wall.

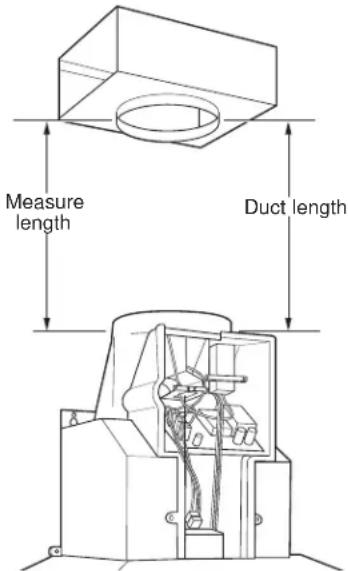

STEP 5: SIZE AND CUT DUCT PIECE

Measure from the bottom of the air deflector to the top of the hood as shown. Reduce that dimension by 1" to facilitate installation. The duct will cover and overlap the deflector and the exhaust outlet in the hood.
- Remove the air deflector from the duct cover bracket.

Cut the duct piece to size and slip onto the bottom of the deflector.
- Place the assembled deflector and duct over the exhaust outlet.
Hold the assembly against the duct bracket.
Drive 2 screws into each side of the bottom of the deflector and into the bracket.
Use duct tape to seal duct to the deflector and at the exhaust outlet.

INSTALLATION - RECIRCULATING (Cont.)

STEP 6: CONNECT ELECTRICAL

Verify that power is turned off at the source.

WARNING

If house wiring is not 2-wire with

a ground wire, a ground must be provided by the installer. When house wiring is aluminum, be sure to use U.L. approved anti-oxidant compound and aluminum-to-copper connectors.

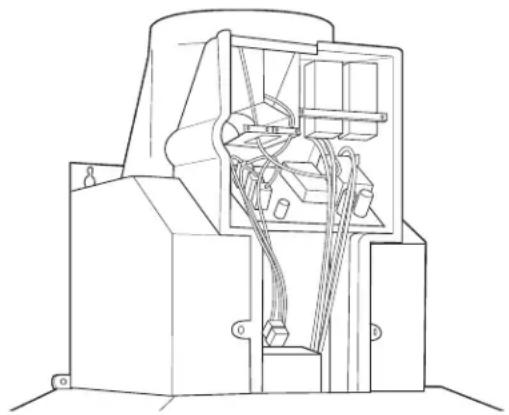

• Remove the 6 screws on the junction box cover and the knockout on the top left side.

• Secure the house wiring to the junction box with a strain relief.

• Connect the white lead to the branch circuit white lead.
• Connect the black lead to the branch circuit black lead.
• Connect the green/yellow lead to the branch circuit green lead or bare ground lead.
• Secure all the connections with wire nuts on each electrical connector.
• Push the wires into the junction box and replace the cover. Be sure the wires are not pinched.
• Secure the junction box cover with the 6 original screws.

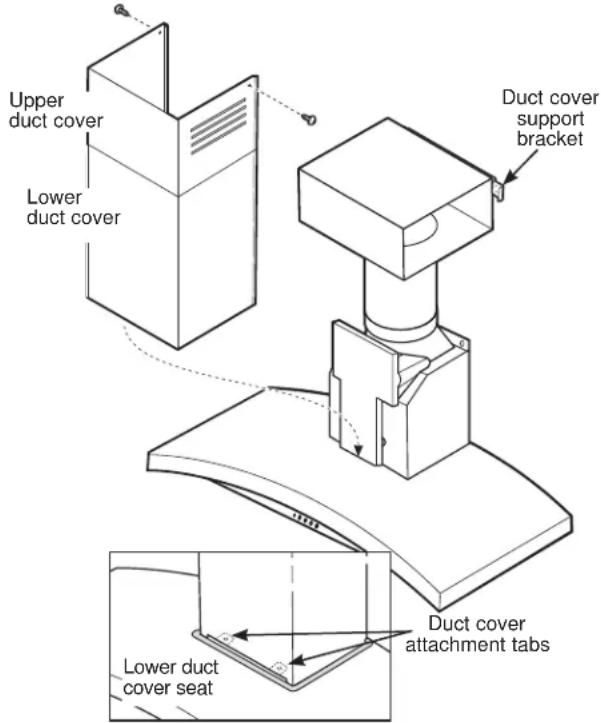

STEP 7: INSTALL DUCT COVERS

• Remove protective plastic covering.
  ■ Assemble duct covers according to application.

NOTE: The upper duct cover has vent holes on one end intended for use when the hood is installed for recirculating purposes. Be sure the vented end is at the top; the vent holes will be visible in this installation.

Slide the upper duct cover into the folded ends of the lower duct cover.

Place the decorative duct covers on top of the hood.

• Extend the inner duct cover upward to the ceiling bracket.
• Secure with 2 screws to the duct cover bracket.
• Remove the packing material from the filter opening.

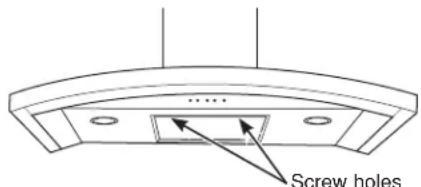

• Locate the screw holes on the inside front edge of the opening. Install 2 screws to secure the lower duct cover to the hood.

INSTALLATION - RECIRCULATING (Cont.)

STEP 8: INSTALL FILTERS

Charcoal Filter

Insert the charcoal filter into the opening. Push the latch on both sides toward the center and engage the flange.

Metal Grease Filter

• Remove the protective film on the grease filter.
  Fit the tabs at the end of the filter into the slots in left side of the filter opening. Lift up the right side of the filter and push gently until the filter locks into place. Make sure the filter lock is in the closed position to secure the filter.
  To remove the filter, pull downward on the filter lock to release.

STEP 9: FINALIZE INSTALLATION

• Remove all tape and packaging materials.
  Refer to the Operating Instructions in this manual to operate the hood.

Troubleshooting tips ... Before you call for service

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Cause	What To Do
Fan/Light does not operate when either button is pressed	A house fuse may be blown or a circuit breaker tripped.	Replace fuse or reset circuit breaker.
Fan does not operate when fan + or - buttonor MEMORY/OFF button is pressed	The blower connector is loose or not plugged into its mating connector.	Disconnect power to the unit. Remove the filters and look up at the blower. If the blower connector plug is loose or you see the connector dangling, the installer failed to plug it in securely. See the Installation Instructions for the plug location and how to plug in the connector.
Loud or abnormal airflow noise	Wrong duct size used in installation.	This hood requires 8" minimum ducting to perform optimally. Using smaller duct pipe will cause improper venting. GE Appliances service technicians cannot correct this issue if installed improperly.
Fan fails to circulate air or moves air slower than normal and/or fan is making loud or abnormal airflow noise	Obstructions in duct work. Make sure damper blade on wall or roof cap may not be open.	Be nothing is blocking the vent. Make sure flip over and will not fully open when this happens. Adjust to original position.
	Damper blade on wall or roof cap may not be open.	Make sure damper swings freely. Damper blades may flip over and will not fully open when this happens. Adjust to original position.
	Metal grease filter and charcoal filter (if present) may be dirty.	Clean the metal grease filter and replace charcoal filter (if present). See Care and Cleaning of the Vent Hood.
	Insufficient makeup (replacement) air	Sufficient makeup (replacement) air is required for exhausting appliances to operate to rating. Check with local building codes, which may require or strongly advise the use of makeup air. Visit GEAppliances.com for available makeup air solutions.
The hood controls are not operating correctly	Control logic confused. Disconnect	power to the hood by resetting the circuit breaker. Wait 30 seconds to allow controls to reset.
Hood does not appear to operate when the MEMORY/OFF button is pressed. All collars around the push buttons are illuminated.	The memory feature of this hood has not been set. This is normal.	Follow procedures for setting the MEMORY/OFF button. Adjust the Fan and Light settings to your preference.
Fan turned on by itself and is in MED setting. The fan setting can be adjusted but not to OFF.	The heat sensor is activated. This is normal when temperatures below the hood are exceeding the heat sensor limits. Remove the heat source under the hood or wait until the hood cools to appropriate levels. The hood will automatically turn itself off or return to its original setting once the heat sensor detects the temperature has reached a safe condition.
A collar around a push button is not illuminating when pressed.	Push button may be stuck. Check affected push button and ensure that it is not stuck. Call for service if problem persists.
Two or more collars around the push buttons are not illuminating when pressed.	Two or more push buttons may be stuck. Check affected push buttons and ensure that they are not stuck. Call for service if problem persists.
Sequential presses of the LIGHT or FAN buttons will change the setting from lowest setting to OFF, to highest setting, to OFF, to the lowest setting.	This is normal. It is a feature of the hood that the LIGHT and FAN buttons will cycle around through the settings so that you can easily set the controls to your desired setting.	No action required.

Limited Warranty

GEAppliances.com

All warranty service is provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service online, visit us at geappliances.com/service, or call GE Appliances at 800.GE.CARES (800.432.2737). Please have your serial number and your model number available when calling for service.

Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Appliances factory service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be sent to GE Appliances, please advise your technician not to submit the data to GE Appliances at the time of service.

For the period of GE Appliances will replace
One year From the date of the original purchase	Any part of the cooking product which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE Appliances will provide, free of charge, all labor and related service costs to replace the defective part.

What GE Appliances will not cover:

Service trips to your home to teach you how to use the product.
- Improper installation, delivery, or maintenance.
Failure of the product if it is abused, misused, modified, or used for other than the intended purpose or used commercially.
- Replacement of house fuses or resetting of circuit breakers.
- Damage to the product caused by accident, fire, floods, or acts of God.

• Damage to finish, such as surface rust, tarnish, or small blemishes not reported within 48 hours of delivery.
• Incidental or consequential damage caused by possible defects with this appliance.
  Damage caused after delivery.
  Product not accessible to provide required service.
  Service to repair or replace light bulbs, except for LED lamps.

EXCLUSION OF IMPLIED WARRANTYIS

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, a Haier company Louisville, KY 40225

Extended Warranties: Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it online anytime at

geappliances.com/extended-warranty

or call 800.626.2224 during normal business hours. GE Appliances Service will still be there after your warranty expires.

Consumer Support

GE Appliances Website

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for your convenience. In the US: GEAppliances.com

Register Your Appliance

Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

In the US: GEAppliances.com/register

Schedule Service

Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year.

In the US: GEAppliances.com/service or call 800.432.2737 during normal business hours.

Extended Warranties

Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your warranty expires.

In the US: GEAppliances.com/extended-warranty or call 800.626.2224 during normal business hours.

Parts and Accessories

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.

In the US: GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us

If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to:

In the US: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225

GEAppliances.com/contact

HOTTES

DE CHEMINÉE

CONSIGNES DE SECURITE 3

UTILISATION DE LA HOTTE

Commandes. 5

ENTRETIEN ET NETTOYAGE

Filtres 6
Surfaces 7
Ampoules 7

INSTRUCTIONS

D'INSTALLATION 8

DIMENSIONS DU PRODUIT

UVW7301, UVW7361
Couvercle de conduit supérieur 25.81
Couvercle de conduit inférieur 27.56
	Hauteur du comptoir à la hotte
Hauteur plafond réelle	*Hauteur d'installation ÉVACUEE possible	*Hauteur d'installation RECYCLÉE possible
7' 6" 24"
7' 7" 24" to 25"
7' 8" 24" to 26"
7' 9" 24" to 27"
7' 10" 24" to 28" 24"
7' 11" 24" to 29" 24" to 25"
8' 0" 24" to 30" 24" to 26"
8' 1" 24" to 31" 24" to 27"
8' 2" 24" to 32" 24" to 28"
8' 3" 24" to 33" 24" to 29"
8' 4" 24" to 34" 24" to 30"
8' 5" 24" to 35" 24" to 31"
8' 6" 24" to 36" 24" to 32"
8' 7" 24" to 36" 24" to 33"
8' 8" 24" to 36" 24" to 34"
8' 9" 24" to 36" 24" to 35"
8' 10" 24" to 36" 24" to 36"
8' 11" 24" to 36" 24" to 36"
9' 0" 24" to 36" 24" to 36"
9' 1" 24" to 36" 24" to 36"
9' 2" 24" to 36" 24" to 36"
9' 3" 25" to 36" 24" to 36"
9' 4" 26" to 36" 24" to 36"
9' 5" 27" to 36" 24" to 36"
9' 6" 28" to 36" 24" to 36"
9' 7" 29" to 36" 25" to 36"
9' 8" 30" to 36" 26" to 36"
9' 9" 31" to 36" 27" to 36"
9' 10" 32" to 36" 28" to 36"
9' 11" 33" to 36" 29" to 36"
10' 0" 34" to 36" 30" to 36"
10' 1" 35" to 36" 31" to 36"
10' 2" 36" 32" to 36"
10' 3" 33" to 36"
10' 4" 34" to 36"
10' 5" 35" to 36"
10' 6"		36"

ÉTAPE 7: INSTALLATION DES COUVRE-CONDUITS

Garante: GE Appliances, a Haier company
Louisville, KY 40225

GEAppliances.com/extended-warranty

Au Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

Au Canada: GEAppliances.ca/en/support/service-request ou composez le 800.561.3344

Prolongation de garantie

GEAppliances.com/contact

Au Canada : Director, Consumer Relations, Mabe Canada Inc. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3

READ AND SAVE THESE INSTRUCTIONS

1. MEMORY/OFF (memoria/apagado)

Para configurar la memoria:

DIMENSIONES DEL PRODUCTO

UVW7301, UVW7361
Cubierta de conductor superior 25.8
Cubierta de conductor inferior 27.56
	Mostrador hasta la alta de la campana
Altura real del cielorraso	*Altura de instalación possible CON VENTILACION	*Altura de instalación possible CON RECIRCULACION
7' 6" 24"
7' 7" 24" to 25"
7' 8" 24" to 26"
7' 9" 24" to 27"
7' 10"	24" to 28" 24"
7' 11" 24" to 29" 24" to 25"
8' 0" 24" to 30" 24" to 26"
8' 1" 24" to 31" 24" to 27"
8' 2" 24" to 32" 24" to 28"
8' 3" 24" to 33" 24" to 29"
8' 4" 24" to 34" 24" to 30"
8' 5" 24" to 35" 24" to 31"
8' 6" 24" to 36" 24" to 32"
8' 7" 24" to 36" 24" to 33"
8' 8" 24" to 36" 24" to 34"
8' 9" 24" to 36" 24" to 35"
8' 10" 24" to 36" 24" to 36"
8' 11" 24" to 36" 24" to 36"
9' 0" 24" to 36" 24" to 36"
9' 1" 24" to 36" 24" to 36"
9' 2" 24" to 36" 24" to 36"
9' 3" 25" to 36" 24" to 36"
9' 4" 26" to 36" 24" to 36"
9' 5" 27" to 36" 24" to 36"
9' 6"	28" to 36" 24" to 36"
9' 7" 29" to 36" 25" to 36"
9' 8" 30" to 36" 26" to 36"
9' 9" 31" to 36" 27" to 36"
9' 10" 32" to 36" 28" to 36"
9' 11" 33" to 36" 29" to 36"
10' 0" 34" to 36" 30" to 36"
10' 1" 35" to 36" 31" to 36"
10' 2" 36" 32" to 36"
10' 3" 33" to 36"
10' 4" 34" to 36"
10' 5" 35" to 36"
10' 6"		36"

Garante: GE Appliances, a Haier company Louisville, KY 40225

geappliances.com/extended-warranty
