USER MANUAL MG32DG4524AT SAMSUNG

Start/+30s (Avvio/+30s).

Start/+30s (Avvio/+30s).

1. Corte as bananas.

4. Envolva as pepitas de chocolate.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: If the door or door seals are damaged, the oven

must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent

person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in

sealed containers since they are liable to explode.

WARNING: Only allow children to use the oven without

supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. This appliance is intended to be used in household only and it is not intended to be used such as:

• staff kitchen areas in shops, ofces and other working environments;

• by clients in hotels, motels and other residential environments;

• bed and breakfast type environments. Only use utensils that are suitable for use in microwave ovens. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. Do not use this appliance for other purposes than cooking. Drying of clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or re. Use this appliance only for its intended use as described in the manual. Do not put corrosive chemicals or vapors in or on this appliance. This type of oven is specically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. If smoke is observed (emitted), switch off or unplug the appliance and keep the door closed in order to stie any ames. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.4 English Safety instructions Safety instructions appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. This oven should be positioned proper direction and height permitting easy access to cavity and control area. Before using the oven rst time, oven should be operated with the water during 10 minute and then used. If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center. The microwave oven has to be positioned so that plug is accessible. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. The microwave oven is intended to be used on the counter top (freestanding) use only, the microwave oven shall not be placed in a cabinet. Metallic containers for food and beverages are not allowed during microwave cooking. The care should be taken not to displace the turntable when removing containers from the appliance. The appliance shall not be cleaned with a steam cleaner. The appliance should not be cleaned with a water jet. The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of theEnglish 5 Safety instructions The door or the outer surface may get hot when the appliance is operating. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. The appliances are not intended to be operated by means of an external timer or separate remote-control system. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

WARNING: When the appliance is operated in the combination

mode, children should only use the oven under adult supervision due to the temperatures generated. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become hot during use. Young

children should be kept away. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. A steam cleaner is not to be used.

WARNING: Ensure that the appliance is switched off before

replacing the lamp to avoid the possibility of electric shock. The appliance must not be installed behind a decorative door in order to avoid overheating.

WARNING: The appliance and its accessible parts become hot

during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.6 English Safety instructions Safety instructions Microwave warning Microwave heating of beverages may result in delayed eruptive boiling; always use caution when handling the container. Always allow beverages to stand at least 20 seconds before handling. If necessary, stir during heating. Always stir after heating. In the event of scalding, follow these First Aid instructions:

1. Immerse the scalded area in cold water for at least 10 minutes.

2. Cover with a clean, dry dressing.

3. Do not apply any creams, oils, or lotions.

To avoid damaging the tray or rack, do not put the tray or rack in water shortly after cooking. Do not use the oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of hot oils. Microwave oven precautions Only use microwave-safe utensils. Do not use metallic containers, gold or silver trimmed dinnerware, skewers, etc. Remove wire twist ties. Electric arcing may occur. Do not use the oven to dry papers or clothes. Use shorter times for small amounts of food to prevent overheating or burning. Keep the power cord and power plug away from water and heat sources. To avoid the risk of explosion, do not heat eggs with shells or hard-boiled eggs. Do not heat airtight or vacuum-sealed containers, nuts, tomatoes, etc. Do not cover the ventilation slots with cloth or paper. This is a re hazard. The oven may overheat and turn off automatically and will remain off until it cools sufciently. Always use oven mitts when removing a dish. Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling. Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam. Do not operate the oven when it is empty. The oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the oven is started accidentally. General safety Any modications or repairs must be performed by qualied personnel only. Do not heat food or liquids sealed in containers for the microwave function. Do not use benzene, thinner, alcohol, or steam or high-pressure cleaners to clean the oven. Do not install the oven: near a heater or ammable material; locations that are humid, oily, dusty or exposed to direct sunlight or water; or where gas may leak; or an uneven surface. This oven must be properly grounded in accordance with local and national codes. Regularly use a dry cloth to remove foreign substances from the power plug terminals and contacts. Do not pull, excessively bend, or place heavy objects on the power cord. If there is a gas leak (propane, LP, etc) ventilate immediately. Do not touch the power cord. Do not touch the power cord with wet hands. While the oven is operating, do not turn it off by unplugging the power cord. Do not insert ngers or foreign substances. If foreign substances enter the oven, unplug the power cord and contact a local Samsung service centre. Do not apply excessive pressure or impact to the oven. Do not place the oven over fragile objects. Ensure the power voltage, frequency, and current matches the product specications. Firmly plug the power plug into the wall socket. Do not use multiple plug adapters, extension cords, or electric transformers. Do not hook the power cord on metal objects. Make sure the cord is between objects or behind the oven. Do not use a damaged power plug, power cord, or loose wall socket. For damaged power plugs or cords, contact a local Samsung service centre. Do not pour or directly spray water onto the oven. Do not place objects on the oven, inside, or on the oven door. Do not spray volatile materials such as insecticide on the oven. Do not store ammable materials in the oven. Because alcohol vapours can contact hot parts of the oven, use caution when heating food or drinks containing alcohol. Children may bump themselves or catch their ngers on the door. When opening/ closing the door, keep children away.English 7 Safety instructions Limited warranty Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit or accessory was caused by the customer. Items this stipulation covers include:

• Door, handles, out-panel, or control panel that are dented, scratched, or broken.

• A broken or missing tray, guide roller, coupler, or wire rack. Use this oven only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your oven. Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact a local Samsung service centre or nd help and information online at www.samsung.com. Use this oven for heating food only. It is intended for domestic use only. Do not heat any type of textiles or cushions lled with grains. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the oven. To avoid deterioration of the oven surface and hazardous situations, always keep the oven clean and well maintained. Product group denition This product is a Group 2 Class B ISM equipment. The denition of group 2 which contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. Install the oven in compliance with the clearances in this manual. (See Installing your microwave oven.) Use caution when connecting other electrical appliances to sockets near the oven. Microwave operation precautions Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

• Do not operate the oven with the door open. Do not tamper with the safety interlocks (door latches). Do not insert anything into the safety interlock holes.

• Do not place any object between the oven door and front face or allow food or cleaner residue to accumulate on sealing surfaces. Keep the door and door sealing surfaces clean by wiping with a damp cloth and then with a soft, dry cloth after each use.

• Do not operate the oven if it is damaged. Only operate after it has been repaired by a qualied technician. Important: the oven door must close properly. The door must not be bent; the door hinges must not be broken or loose; the door seals and sealing surfaces must not be damaged.

• All adjustments or repairs must be done by a qualied technician.8 English Installation Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product regulatory obligations, e.g. REACH, visit our sustainability page available via www.samsung.com Installation Accessories Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

01 Roller ring, to be placed in the centre of the oven. The roller ring supports the turntable.

02 Turntable, to be placed on the roller ring with the centre tting to the coupler. The turntable serves as the main cooking surface; it can be easily removed for cleaning.

03 Grill rack, to be placed on the turntable. The metal rack can be used in grill and combination cooking. Safety instructionsEnglish 9 Maintenance Installation site

• Select a at, level surface approximately 85 cm above the oor. The surface must support the weight of the microwave oven.

• We recommend installing the product so its back is ush with the wall, and leave minimum 10 cm on both sides and 20 cm above the product for ventilation.

• Do not install the microwave oven in hot or damp surroundings, such as next to other microwave ovens or radiators.

• Conform to the power supply specications of this microwave oven. Use only approved extension cables if you need to use.

• Wipe the interior and the door seal with a damp cloth before using your microwave oven for the rst time. Turntable Remove all packing materials inside the microwave oven. Install the roller ring and turntable. Check that the turntable rotates freely. Maintenance Cleaning Clean the microwave oven regularly to prevent impurities from building up on or inside the microwave oven. Also pay special attention to the door, door sealing, and turntable and roller ring (applicable models only). If the door won’t open or close smoothly, rst check if the door seals have built up impurities. Use a soft cloth in soapy water to clean both the inner and outer sides of the microwave oven. Rinse and dry well. To remove stubborn impurities with bad smells from inside the microwave oven

1. With an empty microwave oven, put a cup of diluted lemon juice on the centre

2. Heat the microwave oven for 10 minutes at max power.

3. When the cycle is complete, wait until the microwave oven cools down. Then,

open the door and clean the cooking chamber. CAUTION

• Keep the door and door sealing clean and ensure the door opens and closes smoothly. Otherwise, the microwave oven’s lifecycle may be shortened.

• Take caution not to spill water into the microwave oven vents.

• Do not use any abrasive or chemical substances for cleaning.

• After each use of the microwave oven, use a mild detergent to clean the cooking chamber after waiting for the microwave oven to cool down.10 English Microwave oven features Replacement (repair) WARNING This microwave oven has no user-removable parts inside. Do not try to replace or repair the microwave oven yourself.

• If you encounter a problem with hinges, sealing, and/or the door, contact a qualied technician or a local Samsung service centre for technical assistance.

• If you want to replace the light bulb, contact a local Samsung service centre. Do not replace it yourself.

• If you encounter a problem with the outer housing of the microwave oven, rst unplug the power cord from the power source, and then contact a local Samsung service centre. Care against an extended period of disuse If you don’t use the microwave oven for an extended period of time, unplug the power cord and move the microwave oven to a dry, dust-free location. Dust and moisture that builds up inside the microwave oven may affect the performance of the microwave oven. Microwave oven features Microwave oven

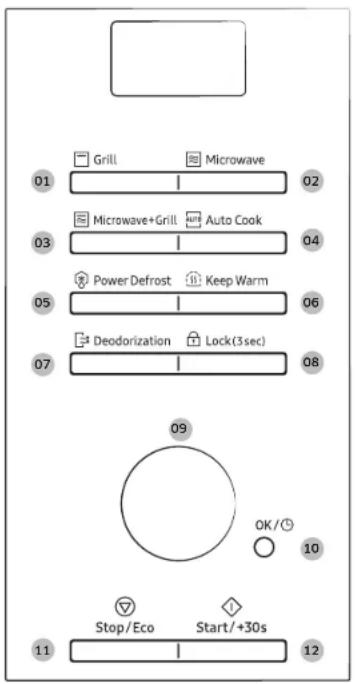

01 Grill 02 Microwave 03 Microwave + Grill 04 Auto Cook 05 Power Defrost 06 Keep Warm 07 Deodorization 08 Lock (3 sec) 09 Dial Knob (weight/serving/ time) 10 OK/Clock 11 Stop/Eco 12 Start/+30s Microwave oven use How a microwave oven works Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour. You can use your microwave oven to:

• Cook Cooking principle

1. The microwaves generated by the

magnetron reected at cavity and are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.

2. The microwaves are absorbed by the

food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.

3. Cooking times vary according to the

container used and the properties of the food:

• Quantity and density

• Initial temperature (refrigerated or not) NOTE As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the microwave oven. Standing times specied in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre.

• The same temperature throughout the food.12 English Microwave oven use Microwave oven use Checking that your microwave oven is operating correctly The following simple procedure enables you to check that your microwave oven is working correctly at all times. If you have any problems, see the “Troubleshooting” section on pages 33 to 37. NOTE The microwave oven must be plugged into an appropriate wall socket. The turntable must be placed in the microwave oven. If a power level other than the maximum (100 % - 900 W) is used, the water takes longer to boil. Open the oven door by pulling on the right upper or bottom side of the door. Place a glass of water on the turntable. Close the door. Press the Start/+30s button and set the time to 4 or 5 minutes, by pressing the Start/+30s button the appropriate number of times. The oven heats the water for 4 or 5 minutes. The water should then be boiling. Setting the time When power is supplied, “88:88” and then “12:00” is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12- hour notation. You must set the clock:

• When you rst install your microwave oven

• After a power failure NOTE Do not forget to reset the clock when you switch to and from summer and winter time.

24-hour notation. 12-hour notation. Press the Clock button once or twice.

2. Turn the Dial Knob to set the hour.

3. Press the Clock button.

4. Turn the Dial Knob to set the minute.

5. When the right time is displayed, press

the Clock button to start the clock. The time is displayed whenever you are not using the microwave oven. Microwave oven useEnglish 13 Microwave oven use Cooking/Reheating The following procedure explains how to cook or reheat food. CAUTION ALWAYS check your cooking settings before leaving the oven unattended. Open the door. Place the food in the centre of the turntable. Close the door. Never switch the microwave oven on when it is empty.

1. Press the Microwave button.

The 900 W (Maximum cooking power) indications are displayed: (microwave mode)

2. Select the appropriate power level by

turning the Dial Knob. (Refer to the power level table.) And then press the OK/Clock button.

3. Set the cooking time by turning the

Dial Knob. The cooking time is displayed.

4. Press the Start/+30s button.

The oven light comes on and the turntable starts rotating. Cooking starts and when it has nished.

• The oven beep and ash “End” 4 times. The oven will then beep one time per minute. Power levels and time variations The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity. You can choose between six power levels. Power level Percentage (%) Output (W) HIGH 100 900 MEDIUM HIGH 67 600 MEDIUM 50 450 MEDIUM LOW 33 300 DEFROST 20 180 LOW 11 100 The cooking times given in recipes and in this booklet correspond to the specic power level indicated. If you select a... Then the cooking time must be... Higher power level Lower power level Decreased Increased

414 English Microwave oven use Microwave oven use Adjusting the cooking time You can increase the cooking time by pressing the Start/+30s button once for each 30 seconds to be added.

• Check how cooking is progressing at any time simply by opening the door

• Increase the remaining cooking time To increase the cooking time of your food during cooking, press the Start/+30s button once for each 30 seconds that you wish to add.

• Example: To add three minutes, press the Start/+30s button six times. Just turning Dial Knob to adjust cooking time.

• To increase cooking time, turn to right and to decrease cooking time, turn to left. Stopping the cooking You can stop cooking at any time so that you can:

• Turn the food over or stir it

• Leave it to stand To stop the cooking... Then... Temporarily Open the door or press the Stop/Eco button once. Cooking stops. To resume cooking, close the door again and press the Start/+30s button. Completely Press the Stop/Eco button once. Cooking stops. If you wish to cancel the cooking settings, press the Stop/Eco button again. Setting the energy save mode The oven has an energy save mode.

• Press the Stop/Eco button. Display off.

• To remove energy save mode, open the door or press the Stop/Eco button and then display shows current time. The oven is ready for use. NOTE Auto energy saving function If you do not select any function when appliance is in the middle of setting or operating with temporary stop condition, function is canceled and clock will be displayed after 25 minutes. Oven Lamp will be turned off after 5 minutes with door open condition.English 15 Microwave oven use Using the auto cook features The Auto Cook features has 32 pre-programmed cooking times. You do not need to set either the cooking times or the power level. You can adjust the size of the serving by turning the Dial Knob. CAUTION Use only recipients that are microwave-safe. Open the door. Place the food in the centre of the turntable. Close the door.

2. Select Auto Cook category by turning

3. Select the type of food that you are

cooking by turning the Dial Knob, and then press OK.

4. Select the size of the serving by turning

the Dial Knob. (Refer to the table on the side.)

5. Press the Start/+30s button.

The food is cooked according to the pre-programmed setting selected.

• When cooking has nished, the oven will beep and ash “End” 4 times. The oven will then beep one time per minute. The following table presents quantities and appropriate instructions about 32 pre- programmed cooking options. CAUTION Use oven gloves when taking out food.

Code Food Serving Size (g) Instructions 1-1 Ready Meal (chilled)

Put meal on a ceramic plate and cover with microwave cling lm. This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta). Stand for 2-3 minutes. 1-2 Vegetarian Meal (chilled)

Put meal on a ceramic plate and cover with microwave cling lm. This programme is suitable for meals consisting of 2 components (e.g. spaghetti with sauce or rice with vegetables). Stand for 2-3 minutes. 1-3 Broccoli Florets 250

Rinse and clean broccoli orets. Put them evenly into a glass bowl with lid. Add 30-45 ml water. (2-3 tbsp.) Put bowl in the centre of turntable. Cook covered. Stir after cooking. This programme is suitable for broccoli as well as sliced courgette, egg plant, pumpkin or pepper. Stand for 1-2 minutes.

516 English Microwave oven use Microwave oven use Code Food Serving Size (g) Instructions 1-4 Sliced Carrots 250 Rinse and clean carrots cut into round slices evenly. Put them into a glass bowl with lid. Add 30-45 ml water. (2-3 tbsp.) Put bowl in the centre of turntable. Cook covered. Stir after cooking. This programme is suitable for sliced carrots as well as cauliower orets or turnip cabbage. Stand for 1-2 minutes. 1-5 Green Beans 250 Rinse and clean green beans. Put them evenly into a glass bowl with lid. Add 30 ml (1 tbsp.) water when cooking 250 g. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes. 1-6 Spinach 150 Rinse and clean spinach. Put into a glass bowl with lid. Do not add water. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes. 1-7 Corn on the Cob 250 Rinse and clean corn on the cobs and put into an oval glass dish. Cover with microwave cling lm and pierce lm. Stand for 1-2 minutes. 1-8 Peeled Potatoes

Wash and peel the potatoes and cut into a similar size. Put them into a glass bowl with lid. Add 45-60 ml (3-4 tbsp.) water. Put bowl in the centre of turntable. Cook covered. Stand for 2-3 minutes. Code Food Serving Size (g) Instructions 1-9 Brown Rice 250 Use a large glass ovenware dish with lid. Add double quantity of cold water (500 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 5-10 minutes. 1-10 Wholemeal Macaroni 250 Use a large glass ovenware dish with lid. Add 1 L hot boiling water, a pinch of salt and stir well. Cook uncovered. Stir before standing time and drain thoroughly afterwards. Stand for 1 minutes. 1-11 Quinoa 250 Use a large glass ovenware dish with lid. Add double quantity of cold water (500 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 1-3 minutes. 1-12 Bulgur 250 Use a large glass ovenware dish with lid. Add double quantity of cold water (500 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 2-5 minutes. 1-13 Vegetable Gratin 500 Put the vegetables, such as precooked potato slices, courgette slices and tomatoes and sauce into a suitable sized glass pyrex dish. Add grated cheese on top. Put dish on the grill rack. Stand for 2-3 minutes.English 17 Microwave oven use Code Food Serving Size (g) Instructions 1-14 Grilled Tomatoes 400 Rinse and clean tomatoes, cut them into halves and put in an ovenware dish. Add grated cheese on top. Put dish on grill rack. Stand for 1-2 minutes. 1-15 Chicken Breasts

(2 pcs.) Rinse pieces and put on a ceramic plate. Cover with microwave cling lm. Pierce lm. Put dish on turntable. Stand for 2 minutes. 1-16 Turkey Breasts 300 (2 pcs.) Rinse pieces and put on a ceramic plate. Cover with microwave cling lm. Pierce lm. Put dish on turntable. Stand for 2 minutes. 1-17 Fresh Fish Filets

(2 pcs.) Rinse sh and put on a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling lm. Pierce lm. Put dish on turntable. Stand for 1-2 minutes. 1-18 Fresh Salmon Filets

(2 pcs.) Rinse sh and put on a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling lm. Pierce lm. Put dish on turntable. Stand for 1-2 minutes. 1-19 Fresh Prawns 250 Rinse prawns on a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling lm. Pierce lm. Put dish on turntable. Stand for 1-2 minutes. Code Food Serving Size (g) Instructions 1-20 Fresh Trout 400 (1-2 sh) Put 1-2 fresh whole sh into an microwave oven proof dish. Add a pinch salt, 1 tbsp. lemon juice and herbs. Cover with microwave cling lm. Pierce lm. Put dish on turntable. Stand for 2 minutes. 1-21 Grilled Fish 400 (1-2 sh) Brush skin of whole sh (trout or gilthead) with oil and add herbs and spices. Put sh side by side, head to tail on the grill rack. Turnover, as soon as the beep sounds. Stand for 3 minutes. 1-22 Grilled Salmon Steaks

(2 steaks) Put sh steaks evenly on the grill rack. Turnover, as soon as the beep sounds. Stand for 2 minutes.

Code Food Serving Size Instructions 2-1 Walnut Pound Cake 1 serving Ingredients Flour 120 g, Butter 150 g, Black sugar 100 g, Egg 2 pcs., Walnut (Chopped) 50 g, Baking powder 4 g

1. Combine a butter and black sugar in bowl.

2. Add egg and mix well.

3. Add a our, baking powder and keep stirring.

4. Add a walnut and mix well.

5. Pour a mixture in greased glass pyrex

(Rectangle type W22 x D12 x H7 cm).

6. Put the bowl in the microwave oven and select the

7. After cooking, stand for 2-3 minutes.18 English

Microwave oven use Microwave oven use Code Food Serving Size Instructions 2-2 Banana Bread 1 serving (6 pcs.) Ingredients Banana 3 pcs., Pancake mix 120 g, Milk 120 g, Egg 1 pc., Malt syrup 2 tbsp.

2. Combine a pancake mix, milk, egg, malt syrup in

3. Add banana and mix well.

4. Pour a mixture in 6 paper cups.

5. Put paper cups in the microwave oven and select

the Auto cook [2-2].

6. After cooking, stand for 2-3 minutes.

2-3 Sponge Cake 1 serving Ingredients Flour 170 g, Butter 50 g, Sugar 150 g, Egg 3 pcs., Baking powder 10 g

1. Combine a butter and sugar in bowl.

2. Add egg and mix well.

3. Add a our, baking powder and keep stirring.

4. Pour a mixture in greased glass(Circle type)

5. Put the bowl in the microwave oven and select the

6. After cooking, stand for 2-3 minutes.

2-4 Brownie 1 serving Ingredients Flour 90 g, Butter (Melted) ½ cup, Sugar 230 g, Egg 2 pcs., Cocoa powder 40 g

1. Combine a butter, beaten eggs, sugar in bowl.

2. Add a our, cocoa powder and keep stirring.

3. Pour a mixture in greased glass pyrex

(Rectangle type W22 x D12 x H7 cm).

4. Put the bowl in the microwave oven and select the

5. After cooking, stand for 20-30 minutes.

Code Food Serving Size Instructions 2-5 Egg Pudding 1 serving (3 pcs.) Ingredients Milk 250 g, Sugar 40 g, Egg 2 pcs.

1. Crack the two eggs into a bowl. Lightly beat the egg

with a balloon whisk. Don’t let the tip of the whisk leave the bottom of the bowl to avoid creating too much foam.

2. Combine milk, sugar in other bowl.

3. Add the milk to the beaten egg while whisking the

4. Sieve the egg mixture with a ne mesh strainer.

Scrape off the bottom of the strainer with a spatula. Remove any foam on the surface with a spoon.

5. Pour the mixture into custard cups.

6. Put the cups in the microwave oven and select the

7. After cooking, refrigerate and serve.

2-6 Chocolate Mug Cake 1 serving Ingredients Butter 30 g, Sugar 60 g, Egg 1 pc., Heavy cream 40 g, Flour 25 g, Cocoa powder 15 g, Vanilla 1.5 g, Semi-sweet chocolate chips 50 g

1. Combine the butter, egg and cream together in a

mug until well combined.

2. Add the our, sugar and keep stirring.

3. Add the cocoa, vanilla and stir until just combined.

4. Stir in the chocolate chips.

5. Put the mug(pyrex 500ml) in the microwave oven

and select the Auto cook[2-6].

1. Combine the butter, egg and milk together in a

mug(pyrex 500ml) until well combined.

2. Add the our, sugar, baking powder and keep

3. Add the almond powder, vanilla and stir until just

4. Put the mug(pyrex 500ml) in the microwave oven

and select the Quto cook [2-7].

5. After cooking, stand for 2-3 minutes.

2-8 Café Latte 1 serving Ingredients Instant coffee powder 2 g, Water 50 g, Milk 125 g

1. Mix the coffee powder and water in mug.

2. Pour milk in other mug.

3. Put the coffee mixture in the microwave oven and

select the Home Dessert [2-8].

4. When the beeps, take mug out.

5. Put the milk in the microwave oven and press the

6. After cooking, mix all well and serve.

2-9 Green Tea Latte 1 serving Ingredients Green tea powder 6 g, Sugar 15 g, Milk 250 g

1. Mix all ingredients in mug.

2. Put the mug in the microwave oven and select the

3. After cooking, mix well and serve.

Code Food Serving Size Instructions

Milk Tea 1 serving Ingredients Black tea bag 2 pcs., Water 60 g, Milk 125 g

1. Mix the black tea bag and water in mug.

2. Pour milk in other mug.

3. Put the tea mixture in the microwave oven and

select the Home Dessert [2-10].

4. When the beeps, take mug out.

5. Put the milk in the microwave oven and press the

6. After cooking, mix all well and serve.20 English

Microwave oven use Microwave oven use Using the power defrost features The Power Defrost features enable you to defrost meat, poultry, sh, bread and cake. The defrost time and power level are set automatically. You simply select the programme and the weight. CAUTION Use only containers that are microwave-safe. Open the door. Place the frozen food on a ceramic in the centre of the turntable. Close the door.

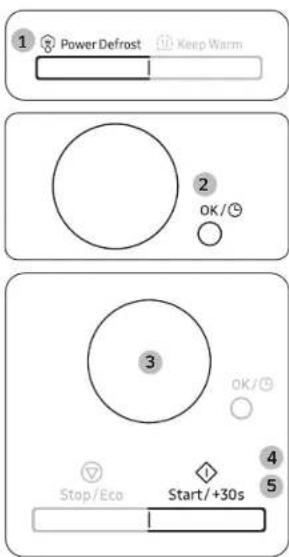

1. Select the type of food that you

are cooking by pressing the Power Defrost button once or more times.

2. Select the type of food that you are

cooking by turning the Dial Knob, and then press the OK button.

3. Select the size of the serving by turning

the Dial Knob. (Refer to the table on the side.)

4. Press the Start/+30s button.

• The oven beeps through defrosting to remind you to turn the food over.

5. Press the Start/+30s button again to

nish defrosting. When cooking has nished, the oven will beep and ash “End” 4 times. The oven will then beep one time per minute. The following table presents the various Power Defrost programmes, quantities and appropriate instructions. Remove all kind of package material before defrosting. Place meat, poultry, sh and bread/cake on a at glass dish or ceramic plate. Code/Food Serving Size (g) Instructions

Meat 200-1500 Shield the edges with aluminium foil. Turn the meat over, when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops, minced meat. Stand for 20-60 minutes.

Poultry 200-1500 Shield the leg and wing tips with aluminium foil. Turn the poultry over, when the oven beeps. This programme is suitable for whole chicken as well as for chicken portions. Stand for 20-60 minutes.

Fish 200-1500 Shield the tail of a whole sh with aluminium foil. Turn the sh over, when the oven beeps. This programme is suitable for whole shes as well as for sh llets. Stand for 20-50 minutes.

Bread/Cake 125-1000 Put bread on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door.) This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping. Stand for 5-20 minutes.English 21 Microwave oven use Grilling The grill enables you to heat and brown food quickly, without using microwaves.

• Always use oven gloves when touching the recipients in the oven, as they will be very hot.

• You can get better cooking and grilling results, if you use the high rack.

1. Open the door and put the food on the

rack and then close the door.

The following indications are displayed: (grill mode)

• You cannot set the temperature of the grill.

3. Set the grilling time by turning the

• The maximum grilling time is 60 minutes.

4. Press the Start/+30s button.

• When cooking has nished, the oven will beep and ash “End” 4 times. The oven will then beep one time per minute. Combining microwaves and grill You can also combine microwave cooking with the grill, to cook quickly and brown at the same time. CAUTION

• ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly.

• ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot. You can improve cooking and grilling, if you use the high rack. Open the door. Place the food on the rack best suited to the type of food to be cooked. Place the rack on the turntable. Close the door.

The following indications are displayed: (microwave & grill combi mode) 600 W (output power)

2. Select the appropriate power level by

pressing the Microwave+Grill button again until the corresponding power level is displayed (600 W, 450 W, 300 W).

• You cannot set the temperature of the grill.22 English Microwave oven use Microwave oven use Using the keep warm features The Keep Warm feature keeps food hot until it’s served. Use this function to keep food warm until ready to serve. You can select warming temperature either hot or mild by turning the Dial Knob. NOTE

• The Keep Warm time has been specied as 99 minutes.

• The maximum Keep Warm time is 99 minutes.

2. Press the Start/+30s button.

Result: The 99 minutes is displayed.

• To stop warming the food, open the door or press Stop/Eco button. CAUTION

• Do not use this function to reheat cold foods. This programmes are for keeping food warm that has just been cooked.

• Do not cover with lids or plastic wrap.

• Use oven gloves when taking out food.

• After start keep warm feature, set time cannot be changed.

3. Set the cooking time by turning the

• The maximum cooking time is 60 minutes.

4. Press the Start/+30s button.

• Combination cooking starts.

• When cooking has nished, the oven will beep and ash “End” 4 times. The oven will then beep one time per minute.English 23 Microwave oven use Using the Deodorization features Use this features after cooking odorous food or when there is a lot of smoke in the oven interior. First clean the oven interior.

Press the Deodorization button after you have nished cleaning. As soon as you press the Deodorization button, the operation will start automatically. when it has nished, the oven beeps four times. NOTE

• The deodorization time has been specied as 5 minutes. It increases by 30 seconds whenever the START/+30s button is pressed.

• The maximum deodorization time is 15 minutes. Using the lock features Your microwave oven is tted with a special child lock programme, which enables the oven to be “locked” so that children or anyone unfamiliar with it cannot operate it accidentally.

• The oven is locked (no functions can be selected).

• The display shows “L”.

2. To unlock the oven, press the Lock

(3sec) button for 3 second. The oven can be used normally. Switching the beeper off You can switch the beeper off whenever you want.

• Press the Lock (3 sec) and Stop/Eco button at the same time. The oven does not beep to indicate the end of a function.

• To switch the beeper back on, press the Lock (3 sec) and Stop/Eco button again at the same time. The oven operates normally.24 English Cookware guide 24 English Cookware guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven. Cookware Microwave- safe Comments Alunimium foil

Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the microwave oven wall or if too much foil is used. Crust plate

Do not preheat for more than 8 minutes. China and earthenware

Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim. Disposable polyester cardboard dishes

Some frozen foods are packaged in these dishes. Fast-food packaging

Can be used to warm food. Overheating may cause the polystyrene to melt.

• Paper bags or newspaper

• Recycled paper or metal trims

May cause arcing. Glassware

Can be used, unless decorated with a metal trim.

Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly. Cookware Microwave- safe Comments

May cause arcing or re.

• Freezer bag twist ties

• Plates, cups, napkins and kitchen paper

For short cooking times and warming. Also to absorb excess moisture.

May cause arcing. Plastic

Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.

Can be used to retain moisture. Should not touch the food. Take care when removing the lm as hot steam will escape.

Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary. Wax or grease-proof paper

Can be used to retain moisture and prevent spattering.

: UnsafeEnglish 25 Cooking guide Cooking guide Microwaves Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food. Cooking Cookware for microwave cooking: Cookware must allow microwave energy to pass through it for maximum efciency. Microwaves are reected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers. Food suitable for microwave cooking: Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, sh, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints). Covering during cooking To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling lm. Standing times After cooking is over food the standing time is important to allow the temperature to even out within the food. Cooking guide for frozen vegetables Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time – see table. Continue cooking to get the result you prefer. Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time. Food Serving Size (g) Power (W) Time (min.) Spinach 150 600 5-6 Instructions Add 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes. Broccoli 300 600 8-9 Instructions Add 30 ml (2 tbsp.) cold water. Stand for 2-3 minutes. Peas 300 600 7-8 Instructions Add 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes. Green Beans 300 600 7½-8½ Instructions Add 30 ml (2 tbsp.) cold water. Stand for 2-3 minutes. Mixed Vegetables (Carrots/Peas/ Corn) 300 600 7-8 Instructions Add 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes. Mixed Vegetables (Chinese Style) 300 600 7½-8½ Instructions Add 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.26 English Cooking guide Cooking guide Cooking guide for fresh vegetables Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended – see table. Cook covered for the minimum time – see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes. Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook. Food Serving Size (g) Power (W) Time (min.) Broccoli 250

900 4½-5 7-8 Instructions Prepare even sized orets. Arrange the stems to the centre. Stand for 3 minutes. Brussels Sprouts 250 900 6-6½ Instructions Add 60-75 ml (4-5 tbsp.) water. Stand for 3 minutes. Carrots 250 900 4½-5 Instructions Cut carrots into even sized slices. Stand for 3 minutes. Cauliower 250

900 5-5½ 7½-8½ Instructions Prepare even sized orets. Cut big orets into halves. Arrange stems to the centre. Stand for 3 minutes. Courgettes 250 900 4-4½ Instructions Cut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender. Stand for 3 minutes. Food Serving Size (g) Power (W) Time (min.) Egg Plants 250 900 3½-4 Instructions Cut egg plants into small slices and sprinkle with 1 tbsp. lemon juice. Stand for 3 minutes. Leeks 250 900 4-4½ Instructions Cut leeks into thick slices. Stand for 3 minutes. Mushrooms 125

900 1½-2 2½-3 Instructions Prepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving. Stand for 3 minutes. Onions 250 900 5-5½ Instructions Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water. Stand for 3 minutes. Pepper 250 900 4½-5 Instructions Cut pepper into small slices. Stand for 3 minutes. Potatoes 250

900 4-5 7-8 Instructions Weigh the peeled potatoes and cut them into similar sized halves or quarters. Stand for 3 minutes. Turnip Cabbage 250 900 5½-6 Instructions Cut turnip cabbage into small cubes. Stand for 3 minutes.English 27 Cooking guide Cooking Guide for rice and pasta Rice: Use a large glass pyrex bowl with lid – rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. Remark: the rice may not have absorbed all water after the cooking time is nished. Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards. Food Serving Size (g) Power (W) Time (min.) White Rice (Parboiled)

900 15-16 17½-18½ Instructions Add 500 ml cold water. (250 g), Add 750 ml cold water. (375 g) Stand for 5 minutes. Brown Rice (Parboiled)

900 20-21 22-23 Instructions Add 500 ml cold water. (250 g), Add 750 ml cold water. (375 g) Stand for 5 minutes. Mixed Rice (Rice + Wild Rice) 250 900 16-17 Instructions Add 500 ml cold water. Stand for 5 minutes. Mixed Corn (Rice + Grain) 250 900 17-18 Instructions Add 400 ml cold water. Stand for 5 minutes. Pasta 250 900 10-11 Instructions Add 1000 ml hot water. Stand for 5 minutes. Reheating Your microwave oven will reheat food in a fraction of the time that conventional ovens hobs normally take. Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled food with a temperature of about +5 to +7 °C. Arranging and covering Avoid reheating large items such as joint of meat – they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful. Power levels and stirring Some foods can be reheated using 900 W power while others should be reheated using 600 W, 450 W or even 300 W. Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example). Stir well or turn food over during reheating for best results. When possible, stir again before serving. Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food. It is preferable to underestimate cooking time and add extra heating time, if necessary.28 English Cooking guide Cooking guide Heating and standing times When reheating food for the rst time, it is helpful to make a note of the time taken – for future reference. Always make sure that the reheated food is piping hot throughout. Allow food to stand for a short time after reheating - to let the temperature even out. The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart. Take particular care when heating liquids and baby food. See also the chapter with the safety precautions. Reheating liquids Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating. Reheating baby food Baby food: Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40 °C. Baby milk: Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby’s bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving ! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37 °C. Remark: Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating. Reheating liquids and food Use the power levels and times in this table as a guide lines for reheating. Food Serving Size Power (W) Time (min.) Drinks (Coffee, Tea and Water) 150 ml (1 cup) 300 ml (2 cups) 450 ml (3 cups) 600 ml (4 cups) 900 1-1½ 2-2½ 3-3½ 3½-4 Instructions Pour into cups and reheat uncovered: 1 cup in the centre, 2 cups opposite of each other, 3 cups in a circle. Keep in microwave oven during standing time and stir well. Stand for 1-2 minutes. Soup (Chilled) 250 g 350 g 450 g 550 g 900 2½-3 3-3½ 3½-4 4½-5 Instructions Pour into a deep ceramic plate or deep ceramic bowl. Cover with plastic lid. Stir well after reheating. Stir again before serving. Stand for 2-3 minutes. Stew (Chilled) 350 g 600 4½-5½ Instructions Put stew in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Stand for 2-3 minutes.English 29 Cooking guide Food Serving Size Power (W) Time (min.) Pasta with Sauce (Chilled) 350 g 600 3½-4½ Instructions Put pasta (e.g. spaghetti or egg noodles) on a at ceramic plate. Cover with microwave cling lm. Stir before serving. Stand for 3 minutes. Filled Pasta with Sauce (Chilled) 350 g 600 4-5 Instructions Put lled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Stand for 3 minutes. Plated Meal (Chilled) 350 g 450 g 600 4½-5½ 5½-6½ Instructions Plate a meal of 2-3 chilled components on a ceramic dish. Cover with microwave cling-lm. Stand for 3 minutes. Cheese Fondue Ready-To-Serve (Chilled) 400 g 600 6-7 Instructions Put the ready-to-serve cheese fondue in a suitable sized glass pyrex bowl with lid. Stir occasionally during and after reheating. Stir well before serving. Stand for 1-2 minutes. Reheating baby food and milk Use the power levels and times in this table as guide lines for reheating. Food Serving Size Power Time Baby Food (Vegetables + Meat) 190 g 600 30 sec. Instructions Empty into ceramic deep plate. Cook covered. Stir after cooking time. Before serving, stir well and check the temperature carefully. Stand for 2-3 minutes. Baby Porridge (Grain + Milk + Fruit) 190 g 600 20 sec. Instructions Empty into ceramic deep plate. Cook covered. Stir after cooking time. Before serving, stir well and check the temperature carefully. Stand for 2-3 minutes. Baby Milk 100 ml 300 30-40 sec. 200 ml 1 min. to 1 min. 10 sec. Instructions Stir or shake well and pour into a sterilised glass bottle. Place into the centre of turn-table. Cook uncovered. Shake well and stand for at least 3 minutes. Before serving, shake well and check the temperature carefully.30 English Cooking guide Cooking guide Defrosting Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up. Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away. Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible. Check the food occasionally to make sure that it does not feel warm. If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting. Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing. Leave the sh, meat and poultry to stand in order to complete defrosting. The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below. Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food. For defrosting of frozen food with a temperature of about -18 to -20 °C, use the following table as a guide. Food Serving Size Power (W) Time (min.) Meat Minced Meat 250 g 500 g 180 6-7 9-12 Pork Steaks 250 g 180 5-7 Instructions Place the meat on turntable. Shield thinner edges with aluminium foil. Turn over after half of defrosting time! Stand for 15-30 minutes. Food Serving Size Power (W) Time (min.) Poultry Chicken Pieces 500 g (2 pcs.) 180 14-15 Whole Chicken 1200 g 180 32-34 Instructions First, put chicken pieces rst skin-side down, whole chicken rst breast-side-down on a at ceramic plate. Shield the thinner parts like wings and ends with aluminium foil. Turn over after half of defrosting time! Stand for 15-60 minutes. Fish Fish Fillets 200 g 180 6-7 Whole Fish 400 g 180 11-13 Instructions Put frozen sh in the middle of a at ceramic plate. Arrange the thinner parts under the thicker parts. Shield narrow ends of llets and tail of whole sh with aluminium foil. Turn over after half of defrosting time! Stand for 10-25 minutes. Fruit Berries 300 g 180 6-7 Instructions Spread fruit on a at, round glass dish (with a large diameter). Stand for 5-10 minutes.English 31 Cooking guide Food Serving Size Power (W) Time (min.) Bread Bread Rolls (Each ca. 50 g) 2 pcs. 4 pcs. 180 1-1½ 2½-3 Toast/Sandwich 250 g 180 4-4½ German Bread (Wheat + Rye Flour) 500 g 180 7-9 Instructions Arrange rolls in a circle or bread horizontally on kitchen paper in the middle of turntable. Turn over after half of defrosting time! Stand for 5-20 minutes. Grill The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable’s rotation makes the food brown more evenly. Preheating the grill for 3-5 minutes will make the food brown more quickly. Cookware for grilling: Should be ameproof and may include metal. Do not use any type of plastic cookware, as it can melt. Food suitable for grilling: Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin sh portions, sandwiches and all kinds of toast with toppings. Important remark: Whenever the grill only mode is used, please remember that food must be placed on the high rack, unless another instruction is recommended. Microwave + Grill This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly. Three combination modes are available with this model: 600 W + Grill, 450 W + Grill and 300 W + Grill. Cookware for cooking with microwaves + grill Please use cookware that microwaves can pass through. Cookware should be ameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt. Food suitable for microwaves + grill cooking: Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benet from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details. Important remark: Whenever the combination mode (microwave + grill) is used, the food should be placed on the high rack, unless another instruction is recommended. Please refer to the instructions in the following chart. The food must be turned over, if it is to be browned on both sides.32 English Cooking guide Cooking guide Grill guide for fresh and frozen foods Preheat the grill with the grill-function for 3 minutes. Use the power levels and times in this table as guide lines for grilling. CAUTION Use oven gloves when taking out. Fresh Food Serving Size Power 1 step (min.) 2 step (min.) Toast Slices 4 pcs. (each 25 g) Grill only 3-4 2-3 Instructions Put toast slices side by side on the high rack. Grilled Tomatoes 400 g (2 pcs.) 300 W + Grill 5-6 - Instructions Cut tomatoes into halves. Put some cheese on top. Arrange in a circle in a at glass pyrex dish. Place it on the high rack. Stand for 2-3 minutes. Tomato- Cheese Toast 4 pcs. (300 g) 300 W + Grill 4 -5 - Instructions Toast the bread slices rst. Put the toast with topping on the high rack. Stand for 2-3 minutes Baked Potatoes 500 g 600 W + Grill 7-8 - Instructions Cut potatoes into halves. Put them in a circle on the high rack with the cut side to the grill. Frozen Lasagne 400 g 300 W + Grill Grill only 18½-19½ 1-2

Instructions Put the fresh gratin into a small ovenproof dish. Put the dish on the turntable. After cooking stand for 2-3 minutes. Fresh Food Serving Size Power 1 step (min.) 2 step (min.) Baked Apples 2 apples (ca. 400 g) 300 W + Grill 7-8 - Instructions Core the apples and ll them with raisins and jam. Put some almond slices on top. Put apples on a at glass pyrex dish. Place the dish directly on the low rack. Chicken Pieces 500 g (2 pcs.) 300 W + Grill 8-10 6-8 Instructions Brush chicken pieces with oil and spices. Put them in a circle on the high rack. After grilling stand for 2-3 minutes. Roast Chicken 1200 g 450 W + Grill turnover 21-22 300 W + Grill 21-22 Instructions Brush the chicken oil and spices. Put in an ovenproof dish and place on turntable. After grilling stand for 5 minutes. Roast Fish 400-500 g 300 W + Grill 5-7 5½-6½ Instructions Brush skin of whole sh with oil and add herbs and spices. Put two sh side by side (head to tail) on the high rack. After grilling stand for 2-3 minutes.English 33 Troubleshooting and information code Tips and tricks Melting crystallized honey Put 20 g crystallized honey into a small deep glass dish. Heat for 20-30 seconds using 300 W, until honey is melted. Melting gelatine Lay dry gelatine sheets (10 g) for 5 minutes into cold water. Put drained gelatine into a small glass pyrex bowl. Heat for 1 minute using 300 W. Stir after melting. Cooking glaze/icing (for cake and gateaux) Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 900 W, until glaze/icing is transparent. Stir twice during cooking. Cooking jam Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 900 W. Stir several times during cooking. Empty directly into small jam glasses with twist- off lids. Stand on lid for 5 minutes. Cooking pudding/ custard Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6½ to 7½ minutes using 900 W. Stir several times well during cooking. Browning almond slices Spread 30 g sliced almonds evenly on a medium sized ceramic plate. Stir several times during browning for 3½ to 4½ minutes using 600 W. Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out! Troubleshooting and information code Troubleshooting If you have any of the problems listed below try the solutions given. Problem Cause Action General The buttons cannot be pressed properly. Foreign matter may be caught between the buttons. Remove the foreign matter and try again. For touch models: Moisture is on the exterior. Wipe the moisture from the exterior. Child lock is activated. Deactivate Child lock. The time is not displayed. The Eco (power-saving) function is set. Turn off the Eco function. The microwave oven does not work. Power is not supplied. Make sure power is supplied. The door is open. Close the door and try again. The door open safety mechanisms are covered in foreign matter. Remove the foreign matter and try again. The microwave oven stops while in operation. The user has opened the door to turn food over. After turning over the food, press the Start/+30s button again to start operation.34 English Troubleshooting and information code Troubleshooting and information code Problem Cause Action The power turns off during operation. The microwave oven has been cooking for an extended period of time. After cooking for an extended period of time, let the microwave oven cool. The cooling fan is not working. Listen for the sound of the cooling fan. Trying to operate the microwave oven without food inside. Put food in the microwave oven. There is not sufcient ventilation space for the microwave oven. There are intake/exhaust outlets on the front and rear of the microwave oven for ventilation. Keep the gaps specied in the product installation guide. Several power plugs are being used in the same socket. Designate only one socket to be used for the microwave oven. There is a popping sound during operation, and the microwave oven doesn't work. Cooking sealed food or using a container with a lid may causes popping sounds. Do not use sealed containers as they may burst during cooking due to expansion of the contents. Problem Cause Action The microwave oven exterior is too hot during operation. There is not sufcient ventilation space for the microwave oven. There are intake/exhaust outlets on the front and rear of the microwave oven for ventilation. Keep the gaps specied in the product installation guide. Objects are on top of the microwave oven. Remove all objects on the top of the microwave oven. The door cannot be opened properly. Food residue is stuck between the door and microwave oven interior. Clean the microwave oven and then open the door. Heating including the Warm function does not work properly. The microwave oven may not work, too much food is being cooked, or improper cookware is being used. Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a at bottom. The thaw function does not work. Too much food is being cooked. Reduce the amount of food and start the function again. The interior light is dim or does not turn on. The door has been left open for a long time. The interior light may automatically turn off when the Eco function operates. Close and reopen the door or press the Stop/Eco button. The interior light is covered by foreign matter. Clean the inside of the microwave oven and check again.English 35 Troubleshooting and information code Problem Cause Action A beeping sound occurs during cooking. If the Auto Cook function is being used, this beeping sound means it's time to turn over the food during thawing. After turning over the food, press the Start/+30s button again to restart operation. The microwave oven is not level. The microwave oven is installed on an uneven surface. Make sure the microwave oven is installed on at, stable surface. There are sparks during cooking. Metal containers are used during the microwave oven/ thawing functions. Do not use metal containers. When power is connected, the microwave oven immediately starts to work. The door is not properly closed. Close the door and check again. There is electricity coming from the microwave oven. The power or power socket is not properly grounded. Make sure the power and power socket are properly grounded.

through a door crack.

remains in the microwave oven. There may be water or steam in some cases depending on the food. This is not an microwave oven malfunction. Let the microwave oven cool and then wipe with a dry dish towel. Problem Cause Action The brightness inside the microwave oven varies. Brightness changes depending on power output changes according to function. Power output changes during cooking are not malfunctions. This is not an microwave oven malfunction. Cooking is nished, but the cooling fan is still running. To ventilate the microwave oven, the cooling fan continues to run for about 3 minutes after cooking is complete. This is not an microwave oven malfunction. Turntable While turning, the turntable comes out of place or stops turning. There is no roller ring, or the roller ring is not properly in place. Install the roller ring and then try again. The turntable drags while turning. The roller ring is not properly in place, there is too much food, or the container is too large and touches the inside of the microwave. Adjust the amount of food and do not use containers that are too large. The turntable rattles while turning and is noisy. Food residue is stuck to the bottom of the microwave oven. Remove any food residue stuck to the bottom of the microwave oven.36 English Troubleshooting and information code Troubleshooting and information code Problem Cause Action Grill Smoke comes out during operation. During initial operation, smoke may come from the heating elements when you rst use the microwave oven. This is not a malfunction, and if you run the microwave oven 2-3 times, it should stop. Food is on the heating elements. Let the microwave oven cool and then remove the food from the heating elements. Food is too close to the grill. Put the food a suitable distance away while cooking. Food is not properly prepared and/or arranged. Make sure food is properly prepared and arranged. Microwave oven The microwave oven does not heat. The door is open. Close the door and try again. Smoke comes out during preheating. During initial operation, smoke may come from the heating elements when you rst use the microwave oven. This is not a malfunction, and if you run the microwave oven 2-3 times, it should stop. Food is on the heating elements. Let the microwave oven cool and then remove the food from the heating elements. There is a burning or plastic smell when using the microwave oven. Plastic or non heat-resistant cookware is used. Use glass cookware suitable for high temperatures. Problem Cause Action There is a bad smell coming from inside the microwave oven. Food residue or plastic has melted and stuck to the interior. Use the steam function and then wipe with a dry cloth. You can put a lemon slice inside and run the microwave oven to remove the odour more quickly. The microwave oven does not cook properly. The microwave oven door is frequently opened during cooking. If you open the door often, the interior temperature will be lowered and this may affect the results of your cooking. The microwave oven controls are not correctly set. Correctly set the microwave oven controls and try again. The grill or other accessories are not correctly inserted. Correctly insert the accessories. The wrong type or size of cookware is used. Use suitable cookware with at bottoms.English 37 Technical specications Information code Information code Cause Action C-d0 Control buttons are pressed over 10 seconds. Clean the keys and check if there is water on the surface around key. If it occurs again, turn off the microwave oven over 30 seconds and try setting again. If it appears again, call your local SAMSUNG Customer Care Centre. NOTE if the suggested solution does not solve the problem, contact your local SAMSUNG Customer Care Centre. Technical specications SAMSUNG strives to improve its products at all times. Both the design specications and these user instructions are thus subject to change without notice. Model MG32DG4524A*** Power source 230 V

50 Hz AC Power consumption Maximum power Microwave Grill (heating element) 2900 W 1400 W 1500 W Output power 100 W / 900 W - 6 levels (IEC-705) Operating frequency 2450 MHz Dimensions (W x H x D) Outside Oven cavity 520 x 300 x 420 mm 357 x 255 x 357 mm Volume 32 liter Weight Net 15.5 kg approx.

• This product contains a light source of energy efciency class <G>.MemoMemoDE68-04755A-00 Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. QUESTIONS OR COMMENTS ? COUNTRY CALL OR VISIT US ONLINE AT AUSTRIA 0800 72 67 864 (0800-SAMSUNG) www.samsung.com/at/support
