sE4100 - Microphone SE Electronics - Free user manual and instructions

Feature	Details
Microphone Type	Condenser
Polar Pattern	Cardioid
Frequency Response	20 Hz - 20 kHz
Sensitivity	-38 dB (0 dB = 1 V/Pa at 1 kHz)
Output Impedance	150 Ohms
Maximum Sound Pressure Level	130 dB SPL
Recommended Use	Studio recording, podcasts, voice-over
Power Supply	48V Phantom Power
Weight	300 g
Dimensions	50 mm x 160 mm
Included Accessories	Shock mount, pop filter
Maintenance	Clean the grille with a soft cloth, avoid moisture
Safety	Avoid strong shocks, do not expose to extreme temperatures
Warranty	2 years

Frequently Asked Questions - sE4100 SE Electronics

What type of microphone is the SE Electronics sE4100?

The SE Electronics sE4100 is a condenser microphone designed for high-quality recordings.

How can I connect the sE4100 to my computer?

You need to use an XLR to XLR cable to connect it to an audio interface or compatible preamp.

Does the sE4100 work with a portable recorder?

Yes, as long as the portable recorder has 48V phantom power, the sE4100 will work properly.

What accessories are included with the sE4100?

The sE4100 typically comes with a microphone mount and a windscreen, but check the packaging for specifics.

How can I reduce background noise when using the sE4100?

Use a pop filter and position the microphone correctly to avoid unwanted sound reflections.

What is the frequency response of the sE4100?

The frequency response of the sE4100 is 20 Hz to 20 kHz, making it suitable for recording a wide range of sound sources.

Is the sE4100 suitable for vocals and instruments?

Yes, the sE4100 is versatile and suitable for recording both vocals and instruments.

What should I do if the microphone is not picking up sound?

Check that the cable is properly connected, phantom power is enabled, and your audio interface settings are correctly configured.

How do I clean my sE4100?

Use a soft, dry cloth to clean the outside of the microphone. Avoid using chemicals or water.

Where can I find replacement parts for the sE4100?

Replacement parts can be ordered directly from the manufacturer or authorized dealers.

USER MANUAL sE4100 SE Electronics

Thank you for choosing an sE product! In addition to some basic safety precautions, this manual includes details and specifications to help you get the most out of your microphone. Please take a few minutes to read through it.

Capturing excellent audio is our passion. We sincerely hope you'll enjoy using this microphone as much as we've enjoyed designing and building it for you.

Happy Tracking,

The sE Team

Brief description

sE4400 Multi-Pattern Condenser Microphone

Pure and simple: No thrills, just great sound. The sE4400 is a handcrafted vintage-meets-modern condenser microphone featuring a handcrafted brass capsule with twin 1" gold-sputtered Mylar diaphragms. Its smooth response is reminiscent of classic condensers of decades past. A true studio workhorse, it offers four distinct polar patterns and delivers incredible results on a wide array of sources. Vocals, acoustic instruments, grand piano, drum overheads, brass instruments, electric guitar cabinets; the sE4400 excels on them all. This mic is also available as a factory-matched stereo pair.

sE4100 Cardioid Condenser Microphone

The sE4100 is the younger brother of the sE4400. It features the same stunning performance, utilizing a single capsule. It has a cardioid polar pattern, the most common choice in both studio and live sound applications.

T2 Multi-Pattern Condenser Microphone

The T2 is based on the sE4400 featuring a handcrafted brass capsule with twin 1" titanium-sputtered Mylar diaphragms. Titanium is 33% stiffer and more than 300% lighter than gold, resulting in a faster transient response, perfect for capturing sources that thrive on attack: drums, cymbals, hand percussion, upright bass, etc. The T2 is also available as a factory-matched stereo pair.

T1 Cardioid Condenser Microphone

The T1 is the younger brother of the T2. It features the same stunning performance, utilizing a single capsule. It has a cardioid polar pattern, the most common choice in both studio and live sound applications.

What's in the box

Your packaging should contain the follow items. If anything is missing, please contact your sE Electronics dealer and let them know.

sE4400 / sE4100 / T2 / T1

• Microphone
• Shock-mount with thread adapter

sE4400 / sE4100 / T2 / T1 Matched Pair

• Two microphones
• Two shock-mounts with thread adapters
• Stereo mounting bar

Controls

These microphones have several switches, allowing you to get the best out of your voice or instrument.

Attenuation Pad

The attenuation switch, on the far left of the microphone allows you to reduce the microphone's signal by 10 or 20 decibels, which can be very helpful for loud sources, preventing overload on your audio interface. When this switch is in its center position, the microphone output is unaffected.

Low-Cut Filter

The low-cut switch, second from the left, allows you to adjust the bass response to your source. When engaged to the left, the microphone's low frequency response is rolled off at 40Hz . When engaged to the right, the microphone's low frequency response is rolled off beginning at 80Hz . In the center position, the low frequency response is unaffected.

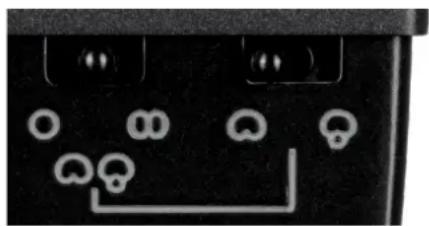

Polar Pattern (sE4400 and T2 only)

The two switches on the right side of the microphone control its polar pattern. The right-center switch offers three settings. To the left, the microphone is capturing an omnidirectional pattern. To the right, the microphone is capturing a figure-8 pattern. In the center, you have two options: cardioid or hypercardioid. The switch on the far right toggles between those two polar patterns. Switch to the left for cardioid. Switch to the right for hypercardioid.

Powering

To ensure proper operation, your sE product requires a Phantom power source that provides 48 Volts according to IEC 61938.

Risk of damage

Do not connect your sE product to any power supply other than a Phantom power source (input with Phantom power or external IEC standard Phantom power supply) with a floating connector, using a balanced cable with studio-grade connectors to IEC 268-12 only. This is the only way to ensure safe and reliable operation.

Please be aware that Phantom power cannot pass through TRS connectors. A balanced microphone cable with XLR connectors at both sides is required to provide Phantom power to your sE product.

Safety and maintenance

Warning

The product may contain small, detachable parts, which may cause choking, personal injury, or death, especially in children. Please exercise care in the use and handling of small parts and keep them away from children under four years of age.

This product is safe under normal and reasonably foreseeable operating conditions.
- Do not open or modify the product.
The product must be returned to the manufacturer or destined vendors for any service or repair.
- Do not disassemble or attempt to service this product.
This is not a children's product and is not intended to be used by children under 14 years old.

Risk of damage

Please make sure that any piece of equipment to which your sE product will be connected fulfills the safety regulations enforced in your country and is fitted with a ground lead.

Technical Specifications

	sE4400 / T2	sE4100 / T1
Capsule	Hand-crafted 1" true condenser capsule
Polar patterns	Cardioid, Hypercardioid, Omni-directional, Figure-8	Cardioid

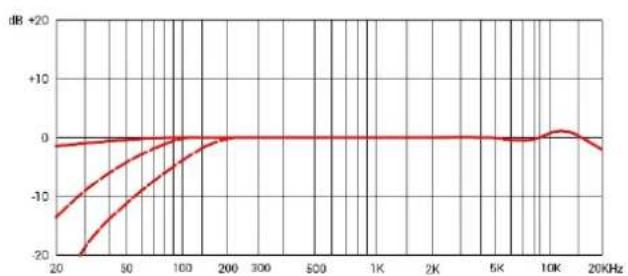

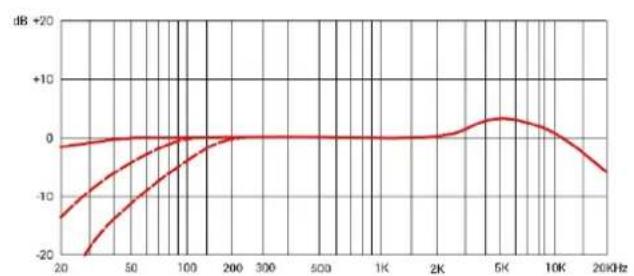

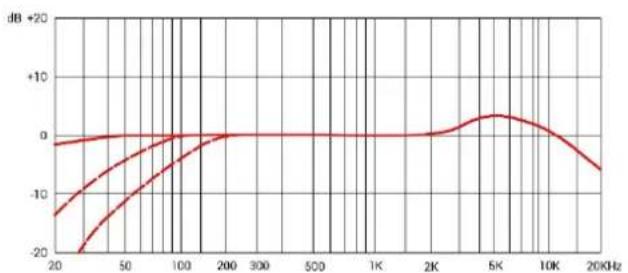

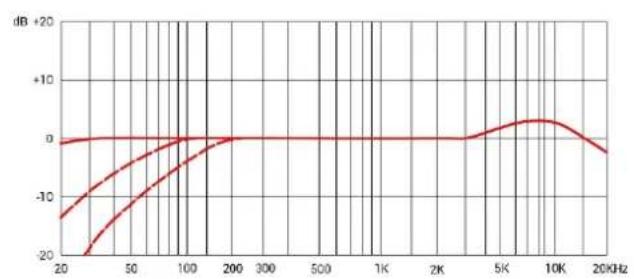

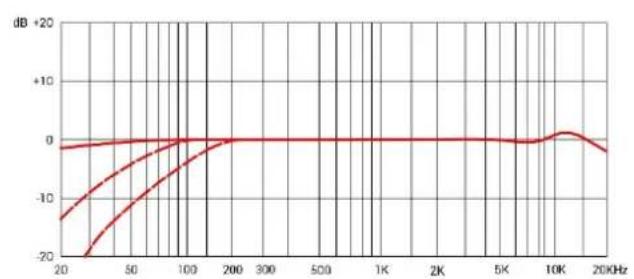

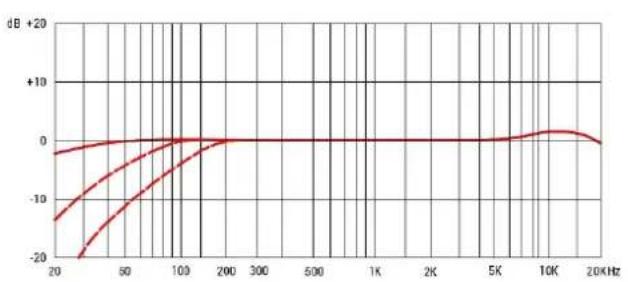

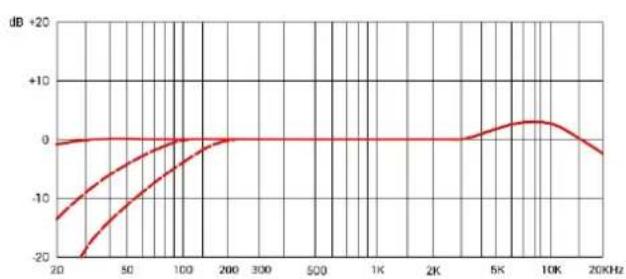

Frequency range	20 - 20,000 Hz
Sensitivity	25 mV/Pa (-32 dBV)
Max. SPL (0.5% THD) (0/10/20 dB Attenuation pad)	137 / 147 / 157 dB SPL
Equivalent noise level	13 dB(A)	9 dB(A)
Dynamic range (0/10/20 dB Attenuation pad)	124 / 134 / 144 dB	128 / 138 / 148 dB
Signal-to-noise ratio	81 dB	85 dB
Low cut filter	40 / 80 Hz, 6 dB/Oct, switchable	80 / 160 Hz, 6 dB/Oct, switchable
Attenuation pad	10 / 20 dB, switchable
Powering	48 Volts according to IEC 61938
Electrical Impedance	22 Ohms	125 Ohms
Recommended load impedance	>1k Ohms
Current consumption	3.7 mA	3.0 mA
Connectivity	3-pin male XLR connector
Dimensions	58 x 29 x 146 mm (2.32 x 1.10 x 5.75 in.)
Weight	290 g (10.23 oz.)	280 g (9.88 oz.)

Compliance

This product complies with relevant legal requirements for Restriction of Hazardous Substances (RoHS) and management of waste electronic and electrical equipment (WEEE).

For RoHS and WEEE information, go to http://www.seeelectronics.com/compliance

Maintenance is not required for product compliance.

Batteries, electronic and electrical equipment should not be disposed of with household waste. Wherever possible, they should be separated and brought to an appropriate collection point to be recycled and to avoid potential impact on the environment and/or human health. For more information, contact your local authorities or place of purchase, or visit

http://www.seeelectronics.com/recycling

CE Made in China

Warranty

sE Electronics warrants that its hardware product shall be free from defects in materials and workmanship beginning from the date of original retail purchase.

See http://www.seelectronics.com/warranty for specific warranty information about your product and procedures for a warranty claim.

sE Electronics' entire liability and your exclusive remedy for any breach of warranty shall entail, at sE Electronics' option, to repair or replace a functional equivalent of the product, or to refund the price paid, provided that the hardware is returned to the purchased location along with a receipt.

Warranty protections are in addition to rights provided under local consumer laws and may vary among countries. See the full warranty information to know your consumer rights and the additional protections provided by this product warranty.

Our headquarters:

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

Our R&D and manufacturing center:

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China

Full Warranty Information:

https://www.seeelectronics.com/warranty

Support

In case you have any questions about your new sE product, please do not hesitate to contact us directly:

http://www.seeelectronics.com/contact-us

In the event that your new sE product is operating improperly, it must be returned to us as the manufacturer or to a designated vendor for any service or repair. For the fastest and most direct service, please contact your dealer first. If authorized service is required, it will be arranged by that dealer:

http://www.seeelectronics.com/dealers

If you are experiencing difficulties with support or assistance, please do not hesitate to contact us directly: http://www.seeelectronics.com/contact-us

Lastly, please remember to register your new gear with sE to extend your warranty to a full three years: http://www.seeelectronics.com/registration

Contact

Feel free to contact us:

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

Our international distributors & sales representatives: http://www.seeelectronics.com/contact-us

Vielen Dank

http://www.seeelectronics.com/recycling

CE Narges

It in China

Garantie

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China

https://www.seeelectronics.com/warranty

Kundenservice

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

Unsere internationalen Handler & Vertriebsvertreter: http://www.seelectronics.com/contact-us

致谢

http://www.seeelectronics.com/recycling

保修条款

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

我们的研发和制造中心：

http://www.seeelectronics.com/contact-us

http://www.seeelectronics.com/contact-us

http://www.seeelectronics.com/registration

联系方式

请随时联系我们：

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

http://www.seeelectronics.com/recycling

CE Product in Cina

Garanzia

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949 USA

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, Cina

https://www.seeelectronics.com/warranty

Assistenza

http://www.seeelectronics.com/registration

Contatti

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949 USA

http://www.seeelectronics.com/recycling

Garantie

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China

https://www.seeelectronics.com/warranty

Support

http://www.seeelectronics.com/contact-us

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

http://www.seeelectronics.com/recycling

Garantía

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China

https://www.seeelectronics.com/warranty

Asistencia

http://www.seeelectronics.com/contact-us

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

KoHdEHCaTOpHbI MnKpOfoH c NODePxxKO HeCKoBkx DnaIpaMM HappaBHeHoCTn T2

Modenb T2, co3daHnHa ha ochOB Mnkpofoha sE4400, ochaueHa naTyHbIM kancioJe m pyHou c6OpKn C DBym JIOHMOBbIMM MaJnapOBbIMM Mem6paHAMC TtTaHOBBIM HaBJIeHMe. TtAn Ha 33 % npOHee N 6oJee yem Ha 300 % Ierue 3oJota, YTO oBeCneuBaet 6oJee 6bICTpyo nepExoHyo xapaKTePncTky, KOToPAIeALbHO IOxODNT dJa 3aNNcN NCTOCHIKOB pe3KOrO n PpepbIBNCTORO 3ByKa: 6apabHO, TapeJok, nepKyccnn, KOHTpa6aca n np. Modenb T2 TaKke DoCTyHnBa B KaueCTBe cTepeonapbl, corlaocBaHHo Ha 3aBODe-N3rOTOBNTeIe.

KapdnoOnHbI KOHdeHcaTopHbI MKNpOΦOH T1

T1 - уроченая Версан T2. Это ИзденихаразкетпуETсЯТakIMи КБпЧТяюшIM npaboumnpam6laorapnncnoB3OBaHnO KaNcIOJ,КaВ T2.MNKpofoH nMeet

KapdnoiHyu DnarpaMMy HnpaBHeHocTn, KOtopa Yaue Bcero npMeHaeTc KaK B Ctydnx, TaK N BO Bpem KOncepTOB.

KoMnJIeKT nOcTaBKn

B KOMNJIeKT NOCTaBKn DOJXHbI BXOINb IpeueHCJIeHHbI HIXKe KOMNoHEHTbl. EcIIu YTO-TO OTCyTCTByeT, coo6uInTe o6 3ToM dInepy sE Electronics.

sE4400/sE4100/T2/T1

MnKpOΦOH
AmoptnaTOp cpe3b6OBbIM nepexOHNKOM

Napa c corlacobaHHbIMn xapaKtepcntkamu sE4400 / sE4100/T2/T1

-Двамнкрфona
-Два amoptn3aTopa c pe3b60BbIMn nepexoHnKamN
- Mohtaxhna IIaHka IJIc Tcepeocntembl

CpeicTba pergnilpoBkn

3TN MKNpOfoHbI OCHaUeHbI HeCKoJIbKIMn NepeKJIIOuAteJMaN dIy Hau6OJe KaueCTBeHHoN 3aINCS BOKaja IJIN IHCTpyMeHTa.

ATteHHOatop

IpeeknouateIb aTteHIOaTopa B KpaHem JEBOM yrJy MHKpOfoHa No3BOJareT yMeHbIHTb CnHaN Ha 10 nJn 20 d6, YTO MOxET PnIRoDNTbc BA BpeM pa6oTbIC NCTOuHNKAMN rPOMKOrO 3ByKa DnI PpeODTbPaUeHn IpeERpy3Kn aydnoHnTepeEca. Ecnn 3ToT peeknOuaTeIb HaxoDNTc BA CpeHem NOLoxEHH, BBIXODHbIe 3HaueHn MKNpOfoHa He MeHraOTc.

ΦnNbTp Hn3Knx YacTOT

IpekeKIOUaTeJIb Hn3Knx YactOT (BTOPOJ CJIeBa) npedHa3HaueH dJe peryIINPOBKn AMNHTyIDHO-CACTOTHOJ XapaKTepNCtIKN B O6laCTn HIXHHX YACTOT B 3aBNCIMOCTH OT NCTOuHnKa. EcIn nepeKIOUaTeJIb IpeBeDeH B JleBOe NOLOKeHne, xapaKTepNCtIKa Ha Hn3Knx YactOTax MmKpOfoHa yMeHbShaetc npi 40 Tc. EcIn nepeKIOUaTeJIb IpeBeDeH B npaBOe NoLOXeHne, xapaKTepNCtIKa Ha Hn3Knx YactOTax MmKpOfoHa yMeHbShaetc,

HauHHa c 80 Tc. Ppi CpeHem noLoXeHn nepeKluOaTeIa XapaKTePncTnKa Ha Hn3Knx YacToTax He MeHReTc.

Диагамma HanpaBHeHocTn (ToIbko Дя МоDEJeS E4400 n T2)

http://www.seeelectronics.com/recycling

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA (CLIA)

Aapec Haewero Hayuho-nccJeObaTeNbckoro INpOn3BODcTBeHHoro ceHTpa:

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China (KuTa)

IoiHbI TeKCT rapaHTnHbIX 063aTeJIbCTB:

https://www.seeelectronics.com/warranty

Подержka

Ecn y Bac noBnncb kaKne-lno npoIembl n Bonpocbl no haWe npOyKu, To dnyuHna 6bICTpoi nOMoUn o6cLyXnBaHn o6paTntecb K HaWeMy ppeCTaBtEnIO B BaWeM perNoHE:

http://www.seeelectronics.com/dealers

EcnBaaH np6IeMbHepeeHbN BOpocbIOCTaIcB 6e3 OTBeTa, ObaaauTecb K Ham Hapmyo:

http://www.seeelectronics.com/contact-us

YTo6bl npOJIInTb cPOK rapaHTn Do TpEx IeT NaunHaj C MOMeHTa NOKyIKN, He 3a6yDbTe 3apeRnCTpnpoBaTb BaWe o6OpydoBAnHe:

http://www.seeelectronics.com/registration

06paTHa CBa3b

NoxayuIcTa,HeCTeChyTeCbO6paaTbcKaHAm:

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA (CLUA)

Aapeca

Haush

MekdUnhapoNbIX

ductpn6yTopoB

TOPROBbIX

npecdTabtenei:

http://www.seeelectronics.com/contact-us

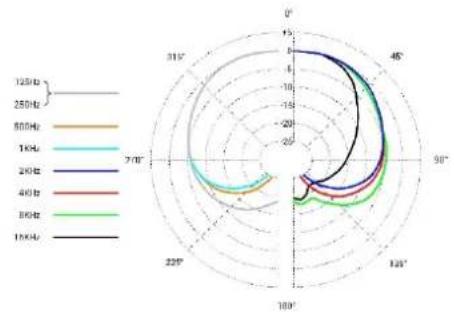

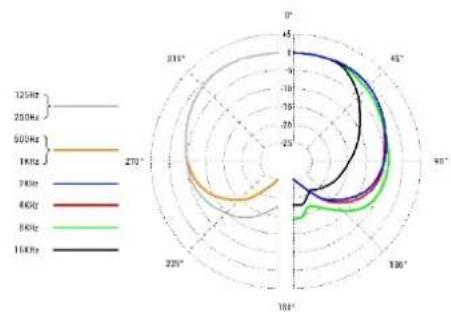

Cardioid / Niere / 心型 / Cardioide / Cardioïde / Cardioide / KapdnoiHa

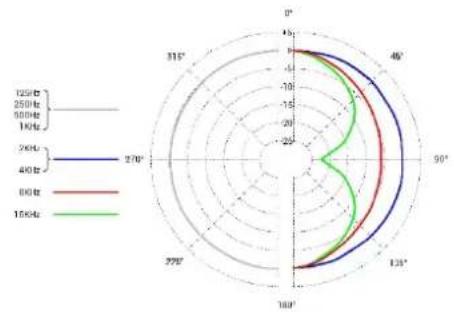

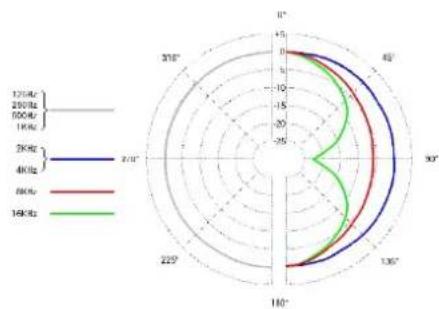

Omnidirectional / Kugel / 全指向型 / Omnidirezionale / Omnidirectionnelle / Omnidireccional / BceHapBaBHeHHa

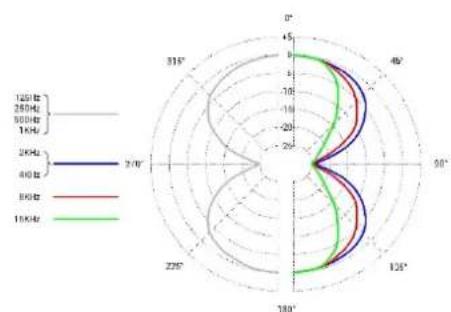

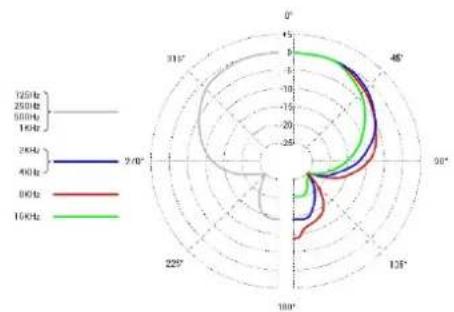

Hypercardioid / Hyperniere / 超心型 / Ipercardioide / Hypercardioide / Hipercardioide / ruplepndnna

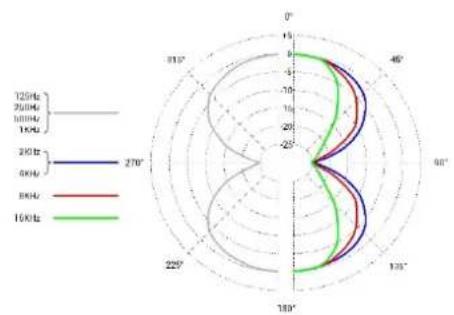

Figure 8 / Acht / 8 字型 / Figura a 8 / Figure en 8 / Figura de 8 / «ВосьМерка»

Cardioid / Niere / 心型 / Cardioide / Cardioïde / Cardioide / KapdnoiHa

Omnidirectional / Kugel / 个指向型 / Omnidirezionale / Omnidirectionnelle / Omnidireccional / BceHanpaBJeHHa

Hypercardioid / Hyperniere / 超心型 / Ipercardioide / Hypercardioide / Hipercardioide / ruplekapduoindna

Figure 8 / Acht / 8 字型 / Figura a 8 / Figure en 8 / Figura de 8 / «Восьмерка»
