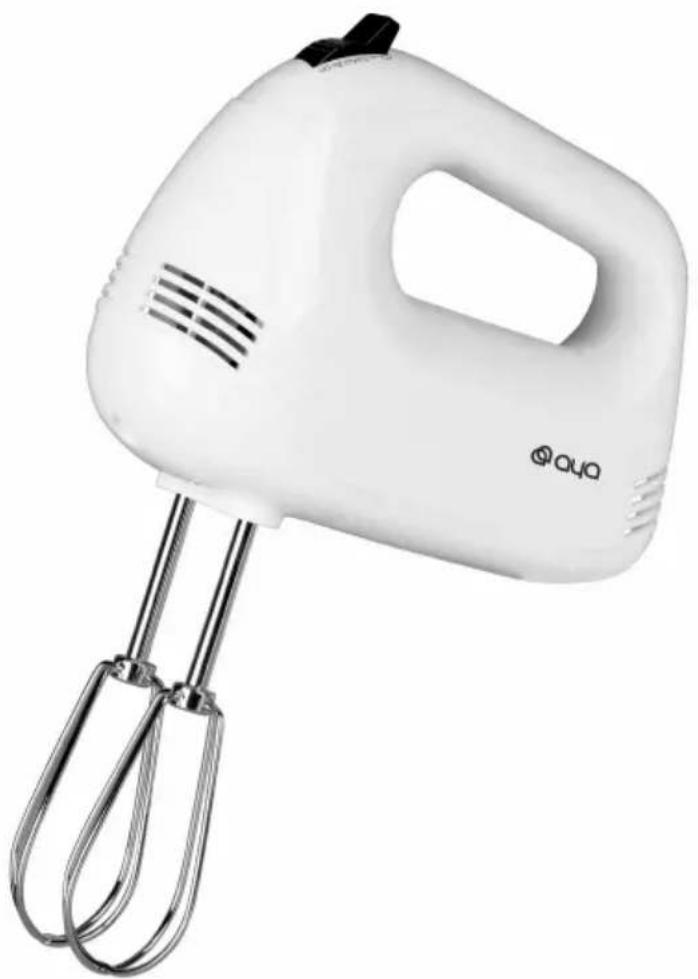

HM1072 - Hand blender AYA - Free user manual and instructions

Product Type	Hand Electric Mixer
Brand	AYA
Model	HM1072
Power Supply	220-240 V ~ 50-60 Hz
Power	120 Watts
Number of Speeds	5 Speeds
Included Accessories	2 Stainless Steel Whisk Attachments
Whisk Ejection Function	Yes, ejection button
Maximum Continuous Use	3 minutes
Required Break Time	20 minutes minimum
Usage	Household use only
Cleaning the Whisk Attachments	Dishwasher or warm soapy water
Cleaning the Motor Unit	Wipe with a damp sponge
Safety	Do not immerse the motor unit, cord, or plug in water
Whisk Material	Stainless steel
Control Type	Rotary speed selector
Legal Warranty	2 years (conformity)

Frequently Asked Questions - HM1072 AYA

How to assemble the whisk attachments?

Insert the whisk attachments into the openings of the motor unit until they stop. Since the whisk attachments are identical, they can be inserted into any opening.

What is the power of this appliance?

The power is 120 Watts.

Can I use the mixer continuously for more than 3 minutes?

No, do not exceed 3 minutes of continuous use. Let the appliance cool down for at least 20 minutes before using it again.

How to clean the whisk attachments?

The whisk attachments can be washed in the dishwasher or by hand with hot water and dish soap. Dry them with a soft cloth.

Can I wash the motor unit under water?

No, never immerse the motor unit, cord, or plug in water or any other liquid. Wipe it with a slightly damp sponge.

What to do if the mixer does not work?

Check that the speed selector is set to 0 before plugging in and that the power outlet is working. If the problem persists, contact customer service.

Can I use the mixer for hot preparations?

No, the appliance is intended for cold or lukewarm culinary preparations. Avoid very hot preparations.

How to eject the whisk attachments?

Hold the whisk attachments with one hand and press the ejection button located on the motor unit. Never press this button when the appliance is operating.

Can children use this appliance?

No, the appliance should not be used by children. Keep it and its cord out of reach of children.

What is the warranty of this appliance?

The appliance comes with a legal warranty of conformity of 2 years in accordance with current regulations.

USER MANUAL HM1072 AYA

MANUEL D'UTILISATION

HM1072

FR

Batteur

TABLE DES MATIERES

CONSIGNES DE SECURITE 1

DESCRIPTION DE L'APPAREIL 5

VOTRE PRODUIT. 6

NETTOYAGE ET ENTRETIEN 8

ENLEVEMENT DES APPAREILS MENAGERS USAGES. 9

LE TRI +FACILE

DESCRIPTION OF THE PRODUCT 5

YOUR PRODUCT 6

CLEANING AND MAINTENANCE. 8

CORRECT DISPOSAL OF THIS PRODUCT. 9

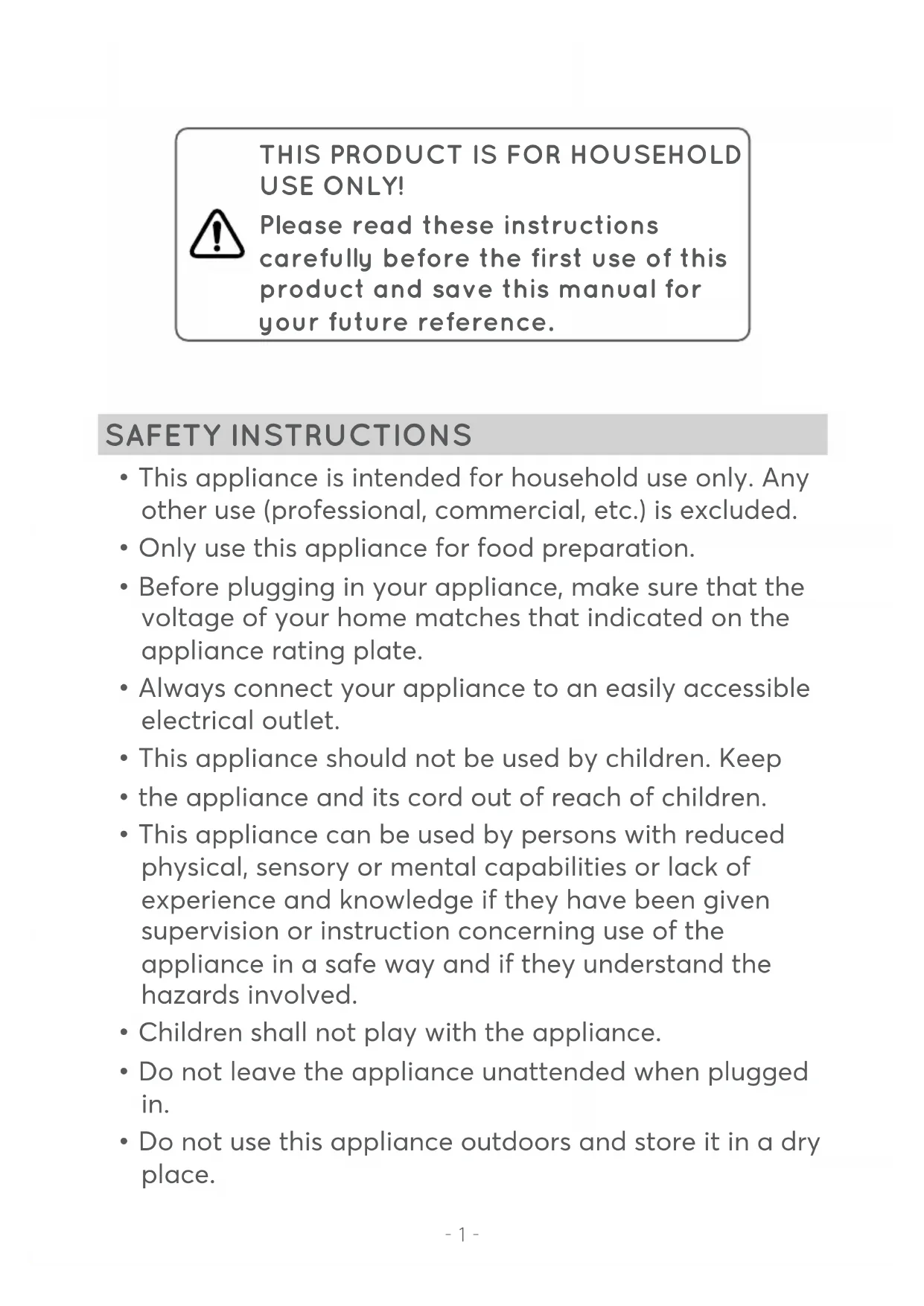

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

SAFETYINSTRUCTIONS

• This appliance is intended for household use only. Any other use (professional, commercial, etc.) is excluded.
• Only use this appliance for food preparation.
• Before plugging in your appliance, make sure that the voltage of your home matches that indicated on the appliance rating plate.
• Always connect your appliance to an easily accessible electrical outlet.
• This appliance should not be used by children. Keep
• the appliance and its cord out of reach of children.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  Children shall not play with the appliance.
• Do not leave the appliance unattended when plugged in.

• Do not use this appliance outdoors and store it in a dry place.

• Always disconnect the appliance from the supply before assembling, disassembling or cleaning.

• When you unplug the power cord, always pull it at the plug. Do not pull on the cord itself.
• Never immerse the appliance, power cord or plug in water or any other liquid.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Switch off and unplug the appliance before changing accessories or approaching moving parts during use.

• Do not use this appliance:

• If the plug or the power cord is damaged,

• if it is malfunctioning,
• If the appliance has been damaged in any way,
• If you have dropped it,

• If the motor unit has fallen in water.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

• Do not handle the appliance or plug with wet hands.
• Do not place or use this appliance on or near any heat source (hob, heating, etc.).
• Never disassemble the whisks while the appliance is running.

• Only use accessories provided and recommended by your retailer. The use of non-recommended accessories could endanger the user and cause damage to the appliance.

• Do not insert anything into the ventilation openings on the motor unit.

• Never use a kneader and whisk at the same time.

• WARNING: This appliance is not intended to be operated using an external timer or a separate remote control system.

• WARNING: Avoid contact with moving parts.

• To prevent accidents, keep hands, hair, clothing, as well as any spatulas or other kitchen utensils away from moving parts (whisks) to avoid personal injury or damage to the appliance.

• You can use a spatula only when the appliance is stopped.

• For instructions on using accessories and speed settings, refer to the «Operation» section.

• For instructions on cleaning and maintaining this unit, refer to the section at the end of this manual.

• There is a potential risk of injury if used incorrectly.

OPERATING INTERVALS

• This appliance cannot operate continuously. It is not a professional type of appliance. You must observe operating breaks. Otherwise, you may damage the

motor.

• Do not operate this appliance continuously for more than 3 minutes with the whisks. Take a 20-minute break before using the appliance again.

DESCRIPTION OF THE PRODUCT

1. Speed selector knob

Whisk eject button

1. Handle
2. Motor unit
3. Power tord
4. Whisks (x2)

YOUR PRODUCT

TECHNICAL CHARACTERISTICS

Power: 120 watts

Power supply: 220- 240 V~50-60 Hz

5 speeds

Eject button

Stainless steel whisks

Maximum continuous use time: 3 minutes

Break time between 2 uses: 20 minutes

BEFORE FIRST USE

Before the first use, clean the whisks with warm water and dish soap. Rinse with clean water and dry using a soft cloth.

USE

1. Before connecting your mixer, make sure that the speed selector knob is in the «0» (off) position.
2. Assemble the whisks on the motor unit.

The whisks are used for the preparation of whisked egg whites, whipped cream, cake mixes, mayonnaise, etc.

NOTE: since the whisks are identical, they can be inserted into any opening.

1. Plug the power cord into a wall socket.
2. Set the speed selector knob to the desired speed:

Position 0: off

Position 1: slowest speed

Position 5: fastest speed

Always start mixing at low speed.

Then gradually increase to the recommended speed in the recipe. Never press the eject button while the mixer is running!

WARNING! Do not put a spatula or other utensils into the blender jar during operation.

Do not use the appliance for more than 3 minutes consecutively (see paragraph "Operating intervals") and then allow the appliance to cool down for at least 20 minutes before using it again.

1. At the end of use, move the speed selector knob to the «0» (stop) position and unplug the appliance. To extract the whisks, hold the whisks with one hand and then press the eject button. If necessary, remove the food stuck on the whisks using a wooden or plastic spatula.

CLEANING AND MAINTENANCE

Before cleaning your mixer, unplug it from the power outlet and wait until the motor unit has cooled down sufficiently before putting it away.

Never immerse the motor unit, power cord or plug in water or any other liquid.

Wipe the body of the appliance with a slightly damp sponge. Take care to ensure that water does not enter the appliance through the ventilation holes.

The whisks can be washed in the dishwasher. You can also clean them with a soft sponge, warm water and dish soap. Rinse them with clean water and then dry them with a soft cloth.

Remove any food residue remaining on the power cord with a soft, dry cloth.

Never use abrasive detergents or scouring sponges for cleaning.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

CORRECT DISPOSAL OF THIS PRODUCT

must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97, From Monday to Friday from 9:00 to 19:00, Saturday from 9:00 to 18:00 (local call price).
