JE6 - Crepe maker Duronic - Free user manual and instructions

Product type	Electric citrus juicer
Brand	Duronic
Model	JE6
Power supply	220-240V ~ 50Hz
Power	150 W (estimated)
Material	Plastic, stainless steel (strainer)
Reservoir capacity	1 L (estimated)
Included accessories	Large cone, small cone, strainer, reservoir, lid
Functions	Automatic pressing with pressure start, tilting spout
Continuous use duration	2 minutes, then cooling
Safety	Power cord replaceable by a professional
Care and cleaning	Removable parts washable in soapy water, base wiped with a damp cloth
Warranty	1 year
Usage	Household only, for citrus fruits
Weight	1.2 kg (estimated)
Dimensions (L x W x H)	20 x 20 x 25 cm (estimated)

Frequently Asked Questions - JE6 Duronic

How to use the Duronic JE6 citrus juicer?

Place the base on a flat surface, install the reservoir, strainer and cone. Cut the fruits in half, plug in the appliance, press the fruit onto the cone: the appliance turns on automatically. Use the spout to serve the juice.

Which cones to use for oranges and lemons?

The large cone is recommended for large fruits like oranges, the small cone for smaller fruits like lemons.

Can I let the appliance run continuously?

No, the appliance is designed for a maximum use of 2 minutes without interruption. After this period, let it cool down for a few minutes before using again.

How to clean the juicer?

Unplug the appliance, disassemble all parts except the base. Wash them in warm soapy water, rinse and dry. The base is cleaned with a damp cloth. Never immerse the base in water.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer or a qualified professional to avoid any danger.

Is this appliance suitable for professional use?

No, the Duronic JE6 is designed for household use only. Commercial use is not recommended and could damage the appliance.

What is the warranty period?

The warranty is 1 year from the date of purchase, covering electrical or manufacturing defects. Keep the proof of purchase.

How to use the spout?

The spout can be raised to keep the juice in the reservoir and lowered to pour the juice into a glass.

Can I use accessories not provided?

The use of accessories not authorized by the manufacturer is discouraged and may damage the appliance or cause injury.

What to do in case of breakdown or malfunction?

Contact Duronic's after-sales service or the retailer. Do not attempt to repair the appliance yourself, as this would void the warranty.

USER MANUAL JE6 Duronic

Creative Consumer Products

JE6

Contents

English Manual 5

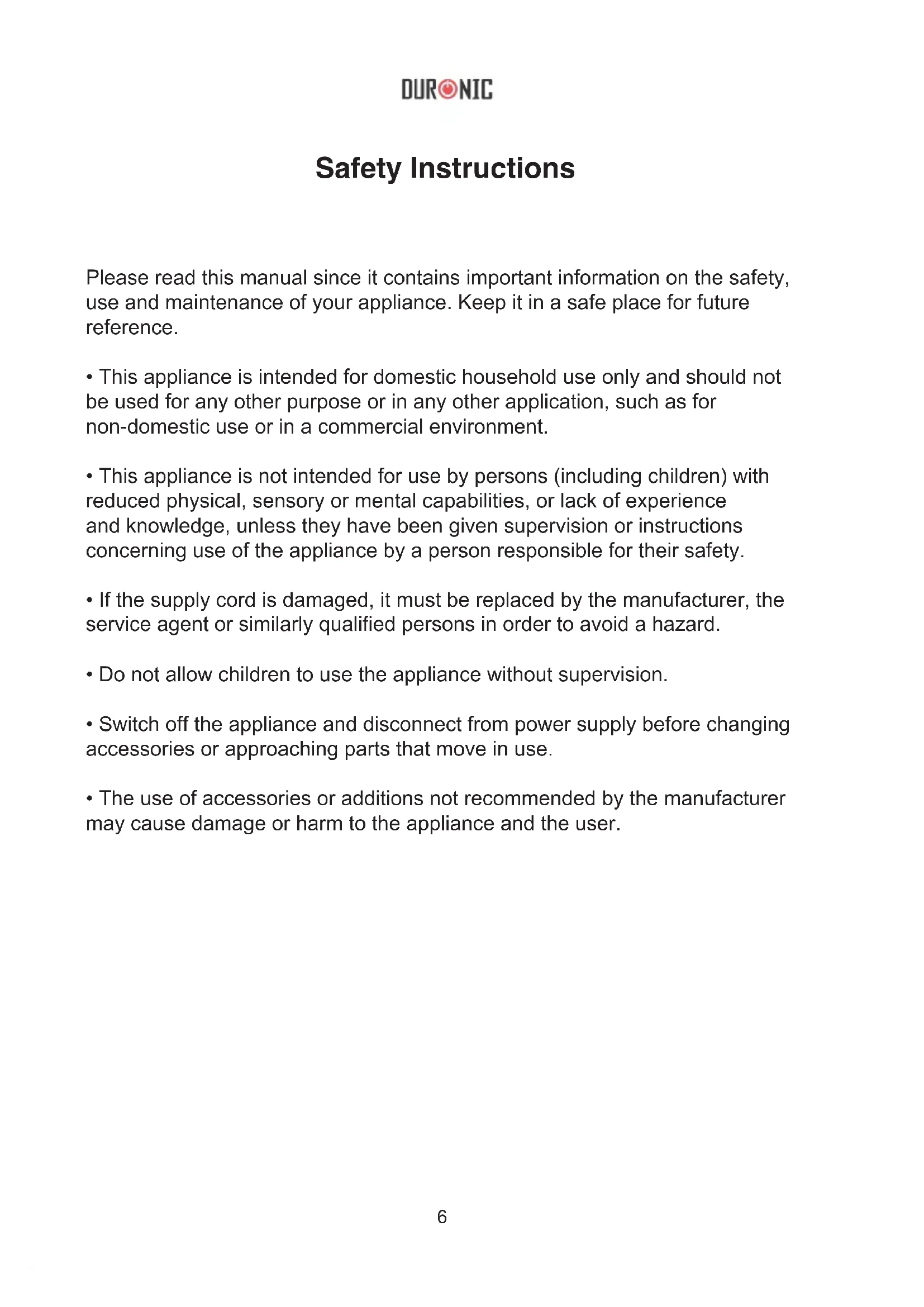

Please read this manual since it contains important information on the safety, use and maintenance of your appliance. Keep it in a safe place for future reference.

• This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
• If the supply cord is damaged, it must be replaced by the manufacturer, the service agent or similarly qualified persons in order to avoid a hazard.
• Do not allow children to use the appliance without supervision.
• Switch off the appliance and disconnect from power supply before changing accessories or approaching parts that move in use.
• The use of accessories or additions not recommended by the manufacturer may cause damage or harm to the appliance and the user.

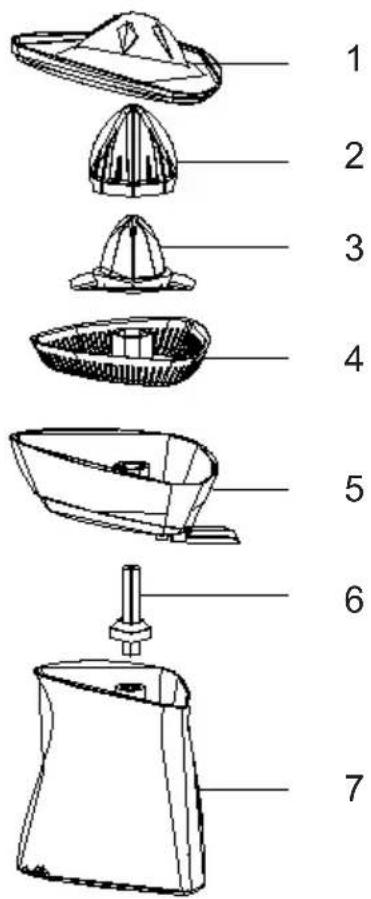

Overview

1. Cover
2. Large cone
3. Small cone
4. Strainer
5. Juice container with spout
6. Connector
7. Motor base

Tip: The large cone can be used for larger fruit such as oranges or grapefruit. The small cone can be used for smaller fruit such as lemons and limes.

Operation

Before using this appliance for the first time, please clean the appliance. Refer to the chapter "Cleaning" below.

1. Place the motor base on a flat, stable surface.
2. Attach the juice container onto the connector of the motor base.
3. Place the strainer on the container.
4. Place the small cone over the connector.
5. Plug the appliance in the mains power socket.
6. Cut your desired fruit in half to be juiced.
7. Press each fruit half firmly over the small cone or large cone and the appliance will operate automatically.

NOTE: To use the large cone, simply fit it over the small cone.

Operation

Spout of the juice container:

The juice container has a spout that can be raised or lowered. During operation, the juice will remain inside the container when the spout is raised. To serve juice in a cup, lower the spout and the juice will pour into the cup.

Short-time operation:

The appliance is designed to process average domestic quantities of citrus fruit. It can be operated without interruption for a maximum of 2 minutes. After that, allow the appliance to cool down to room temperature before continuing.

Cleaning

Always ensure the appliance is unplugged before cleaning.

Disassemble the appliance and wash all parts (except the motor base) in warm, soapy water. Rinse them thoroughly. Clean the motor base with a damp cloth. Do not immerse it in water. Never use chemical or abrasive cleaners.

Surfaces in contact with food should be cleaned regularly to avoid cross contamination from different types of food. The use of hot clean water with a mild detergent is advisable when dealing with surfaces that come into contact with food. Correct food hygiene practises should always be followed at all times to avoid possibility of food poisoning /cross contamination.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse. Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
