PRI122F4F - Refrigerator PROLINE - Free user manual and instructions

Product type	Integrated fridge-freezer
Brand	Proline
Model	PRI122F4F
Dimensions (H x W x D)	1230 x 540 x 540 mm
Total volume	181 L
Fridge volume	167 L
Freezer volume	14 L
Net weight	37 kg
Power supply	220-240 V ~ 50 Hz
Rated power	100 W
Refrigerant	R600a (isobutane) / 29 g
Climate class	Temperate / subtropical (16°C to 38°C)
Energy class	F
Annual consumption	182 kWh/year
Noise level	39 dB(A) - class C
Power failure autonomy	6.5 hours
Freezing capacity	2 kg/24h
Main functions	Smart mode, super freeze mode, door alarm, coldest zone temperature indicator
Fridge defrost	Automatic
Freezer defrost	Manual
Lighting	LED (class G), professional replacement
Door reversal	Possible, recommended by a professional
Maintenance and cleaning	Clean with soft cloth, warm water and mild detergent; do not use abrasive solvents
Safety	Grounding mandatory; do not use mobile power strip; flammable gas R600a
Spare parts and repairability	Parts available within 15 business days; repair by Darty/Vanden Borre approved service
Warranty	2 years
General information	Manufactured by Établissements Darty & fils; country of origin not specified

Frequently Asked Questions - PRI122F4F PROLINE

How to reverse the door opening direction?

Door reversal is possible but must be carried out by an approved technician. Detailed instructions are in the manual (page FR-9). You will need a Phillips screwdriver and a wrench (not supplied).

What is the ideal ambient temperature for this appliance?

The appliance is designed to operate between 16°C and 38°C. Outside this range, performance may be reduced.

How to adjust the refrigerator temperature?

Press the Adjust button repeatedly to select a level from 1 (least cold) to 5 (coldest). The corresponding indicator lights up. For normal use, use the Medium setting.

What to do in case of a power outage?

Do not open the door. Frozen food remains safe for up to 6.5 hours. Do not refreeze completely thawed food.

How to defrost the freezer compartment?

Defrost manually when the frost layer exceeds 3 mm. Remove food, set thermostat to 0, unplug the appliance and wipe off condensation. Do not scrape with sharp objects.

The appliance makes noise, is that normal?

Yes, the noises come from the motor operation and refrigerant circulation. If the appliance is unstable, check its leveling.

How to clean the inside of the refrigerator?

Unplug the appliance, remove food and shelves. Wash interior parts with a soft cloth dampened with warm water and liquid detergent. For stubborn stains, use baking soda. Do not use abrasive solvents.

What to do if the door alarm sounds?

The alarm triggers if the door remains open for more than 90 seconds. Close it properly to stop it.

Which foods should not be placed in the coldest zone?

Avoid storing below 7°C: citrus fruits, melons, eggplants, pineapples, papayas, zucchini, cucumbers, peppers and tomatoes. Unripe bananas and avocados should not be refrigerated.

How to contact after-sales service?

For repairs and spare parts, contact Darty (www.darty.com) or Vanden Borre (www.vandenborre.be, 02 334 00 00). The warranty is 2 years.

USER MANUAL PRI122F4F PROLINE

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1073895

SERVICE DE RÉPARATION ET PIEÇES DE RECHANGE

IMPORTANT SAFETY INSTRUCTIONS 7

NAMES OF PARTS. 8

DOOR CONVERSION 8

BEFORE INSTALLING THE APPLIANCE 11

INSTALLATION 11

AMBIENT TEMPERATURE 15

BEFORE PLACING FOOD IN THE APPLIANCE 15

POWER FAILURE 15

TEMPERATURE CONTROL 16

MOVING YOUR APPLIANCE 16

STORING FROZEN FOOD IN THE FREEZER COMPARTMENTT 17

STORING FOOD IN THE FRIDGE COMPARTMENT 18

DEFROSTING 19

TIPS FOR SAVING ENERGY 23

OPERATINGNOISES 23

CLEANING AND MAINTENANCE 23

TROUBLESHOOTING 24

SPECIFICATIONS 24

PRODUCT INFORMATION SHEET 25

REPAIR AND SPARE PARTS SERVICE 27

DISPOSAL 28

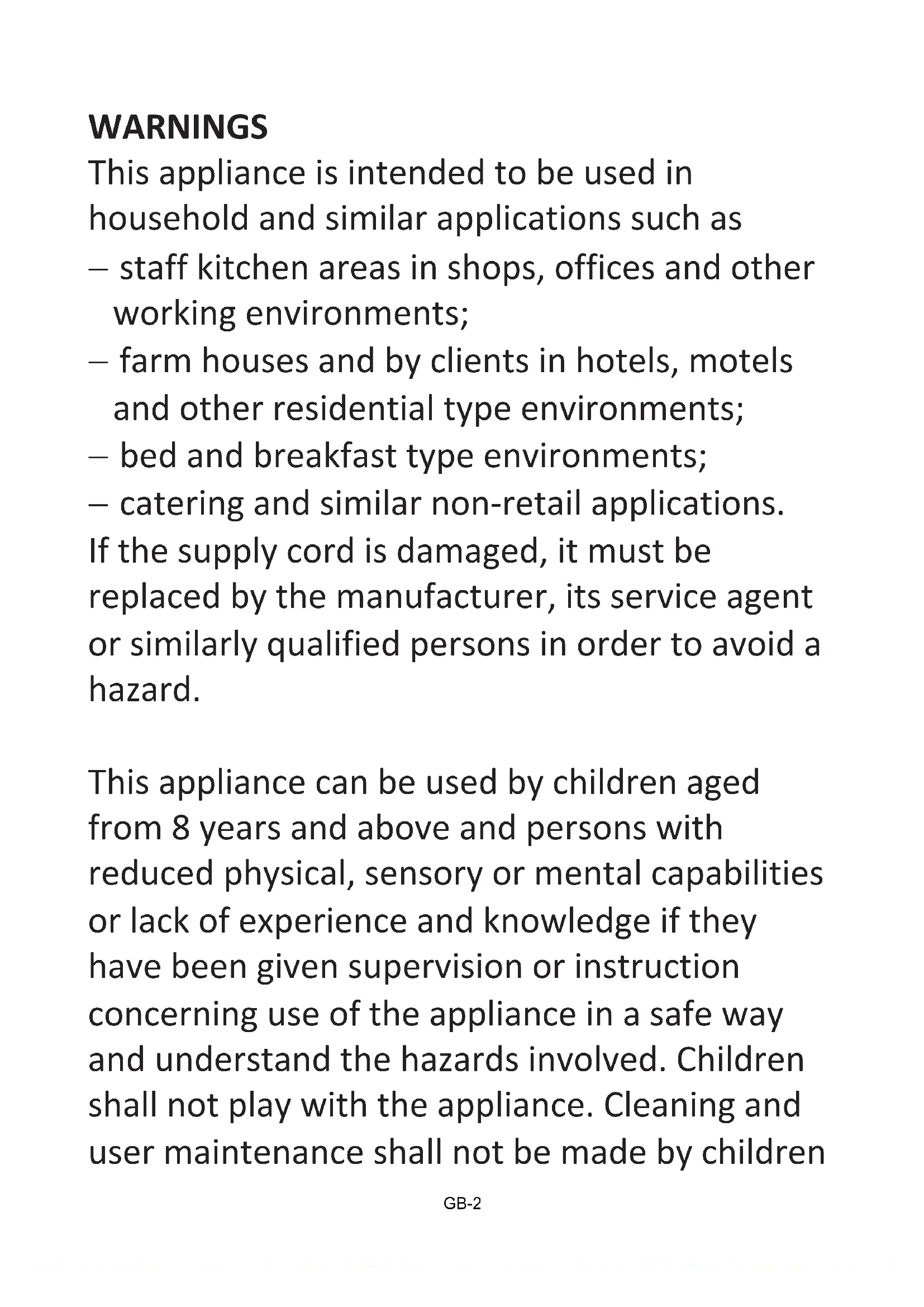

WARNING

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children

without supervision.

For the details concerning the method of cleaning, please see section "Cleaning and maintenance" on page GB-24.

The appliance shall not be exposed to rain.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type

recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.

INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.

For disposal of the appliance:

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should

only be done through public collection points; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

For installation, servicing:

Appliance should be placed on a horizontal floor and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

For handling:

Always handle the appliance to avoid any damage.

WARNING: For making ice (ice cubes), use potable water only.

Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

Regarding the instructions for the method of fixing and the correct dimensions, refer to the section "INSTALLATION".

The plug must be remained easily accessible after installation of the appliance.

Warning; Risk of fire / flammable materials

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
  Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

One-, two- and three-star compartments are not suitable for the freezing of fresh food.

If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

IMPORTANT SAFETY INSTRUCTIONS

• If you are discarding an old fridge freezer with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
• Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving the appliance.
• Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause 'freeze burns' on the lips.
• Do not stand or support yourself on the base or door, etc.

Dispose of your old appliance

Fridge freezers contain refrigerant and gases in the insulation.

Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

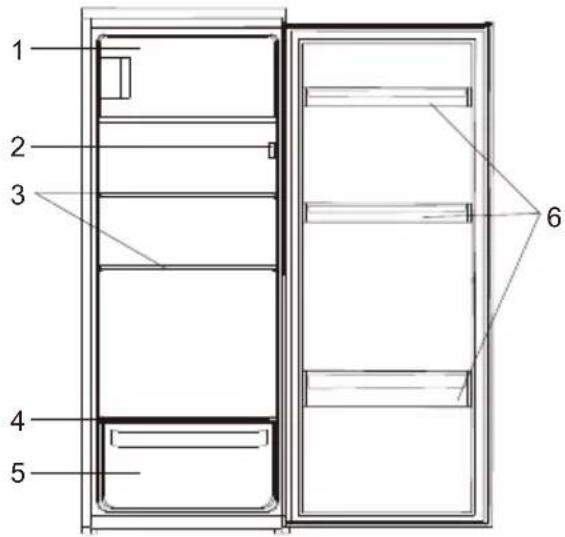

NAMES OF PARTS

Recommended food arrangement

Refrigerator compartment (4^)

Cold air sinks so the bottom part is the coldest.
Store your food in the optimal space to enjoy the fresh taste.

Top section:	canned food, bread, cake...
Middle section:	dairy products, readymade food, desserts...
Bottom section:	meat, meat products, delicatesen ...

1. Freezer compartment
2. Temperature control knob with light assembly
3. Glass shelf
4. Vegetable container cover
5. Vegetable container
6. Door shelves

Refrigerator door shelves (2^ 8^)

Top section:	eggs, butter, cheese...
Middle section:	beverages, cans, bottles...
Bottom section:	beverages, cans, bottles...

Installation accessories

Guide x 2

Slider cover x 2

Guide cover x 2

Slider x 2

Short screw x 13 ~ 20 Long screw x 2

Rubber seal x 1

DOOR CONVERSION

If you need to hinge the doors on the opposite sides it is recommended that you call your local authorised service agent to make this conversion or ask a technician.

Before you reverse the doors, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied).

1. Remove the upper support plate by removing the screws from the top of the appliance.

1. Unscrew the three screws and then remove the top hinge.

1. Lift the door off the appliance and then place it on a padded surface to avoid scratching.
2. Remove the hinge of freezer compartment door.
3. Lift the freezer compartment door off the hinge pin and place the door on a soft pad to avoid scratching.

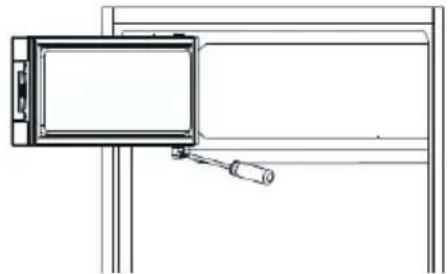

1. Remove screw covers and unscrew the freezer compartment door holder. Then refit them to the opposite side.

1. Transfer and fit the hinge hole covers to the opposite side.

1. Secure the hinge on the opposite side. Reverse the freezer compartment door and set it on the hinge.

1. Remove the bottom hinge and refit it on the opposite side.

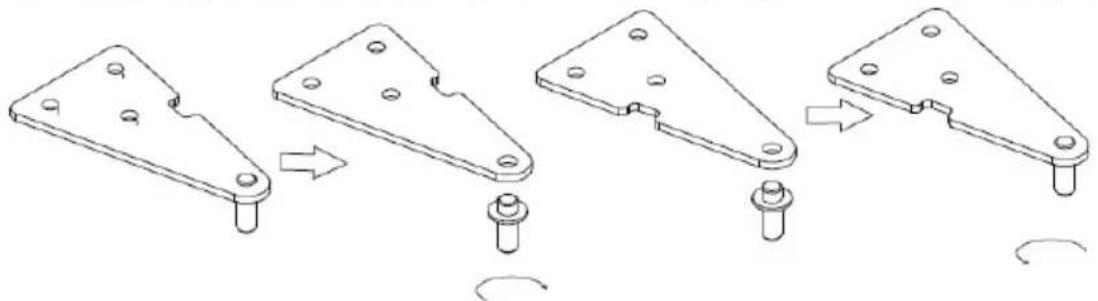

10.Unscrew top hinge pin from the top hinge. Turn over the top hinge and fit the top hinge pin.

1. Refit the refrigerator door and secure the top hinge with three screws. Refit the upper support plate.

2. Ensure that the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the screws.

BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

It is recommended that installation may be performed by the authorised service agent or a similarly qualified person.

In order for the appliance to function properly, the following installation conditions must be observed.

Install the appliance in a dry, well ventilated room. Keep your appliance away from heat sources, humid places and direct sunlight.

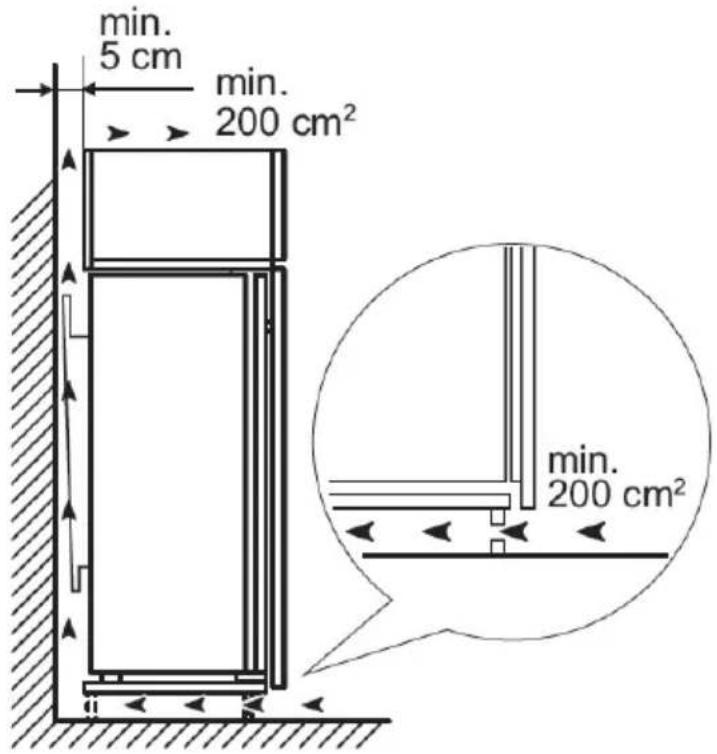

There must be appropriate air ventilation around the appliance in order to achieve an efficient operation.

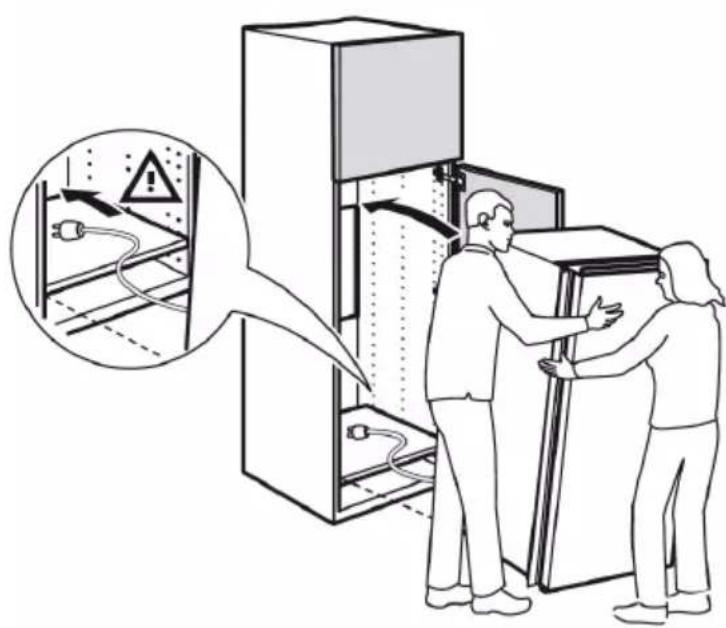

1. Raise the appliance and slide into the cabinet.

Make sure that the mains plug is accessible after the installation of the appliance.

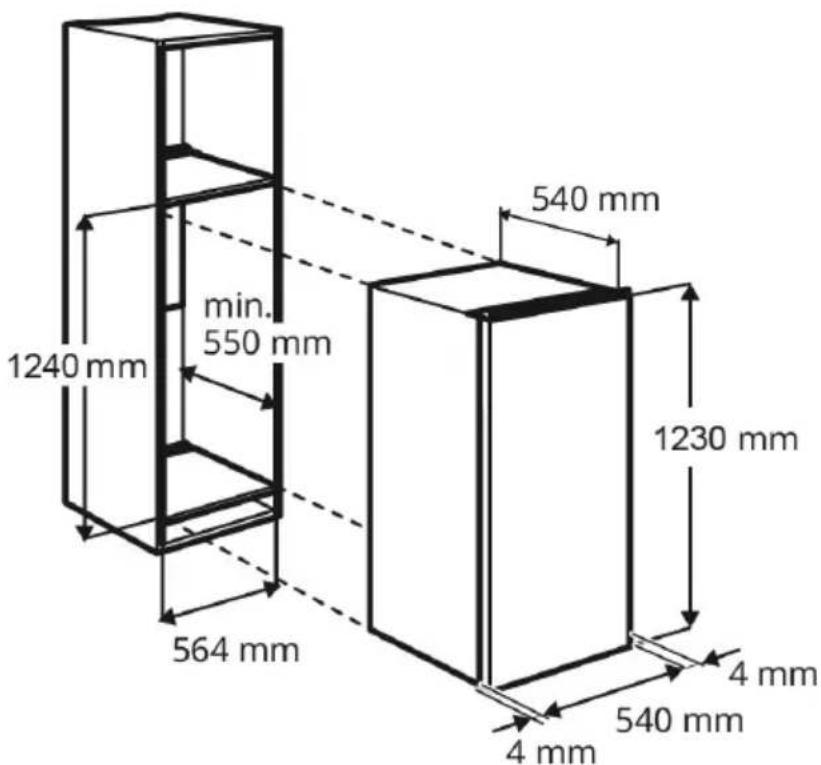

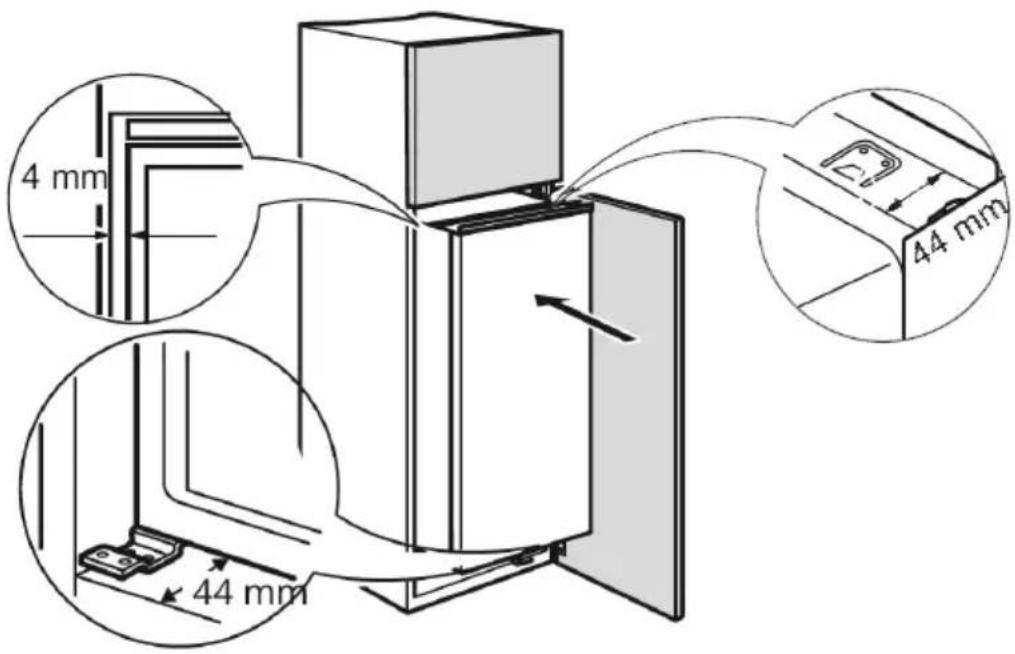

Make sure that the clearance between the appliance and cabinet is 4mm

1. Adjustthe appliance in the cabinet.

For a correct alignment make sure that the distance between the appliance and the cabinet front-edge is of 44mm .

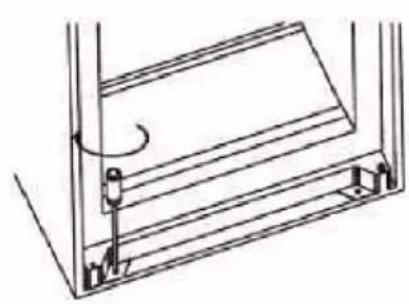

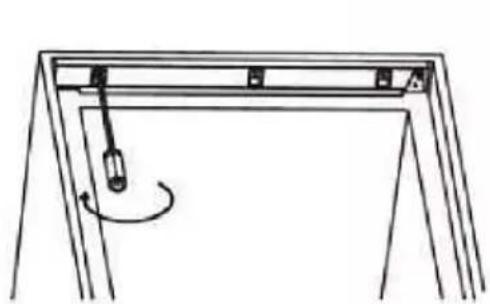

1. Attach the appliance to the cabinet using the supplied screws.

Align the holes in the side of the appliance door with the guide holes.

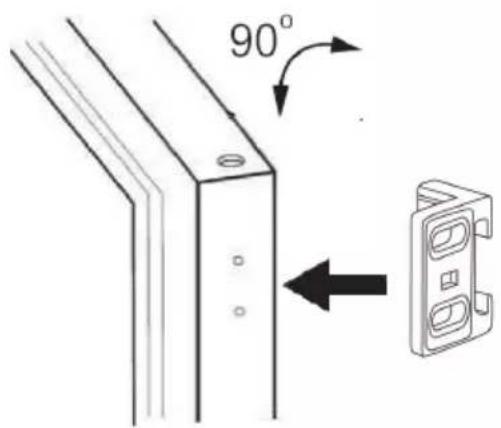

1. Open the appliance door and the cabinet door at an angle of 90^ . Place the supplied guide on the side of the appliance door.

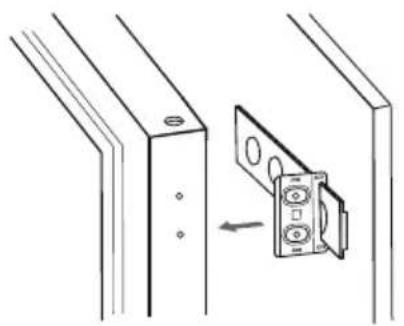

1. Insert the supplied slider into the slot of the guide.
   Put together the appliance door and the cabinet door.

Remove the guide.

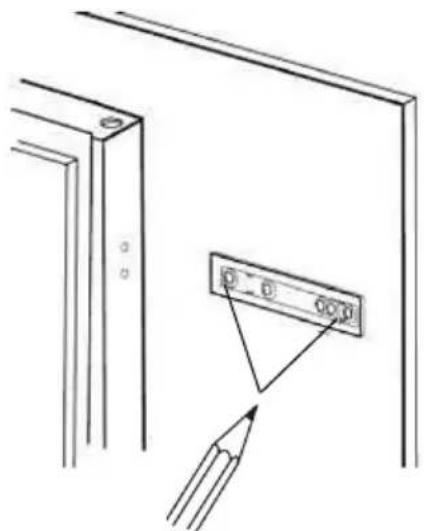

Mark the position of the slider holes and then drill the holes.

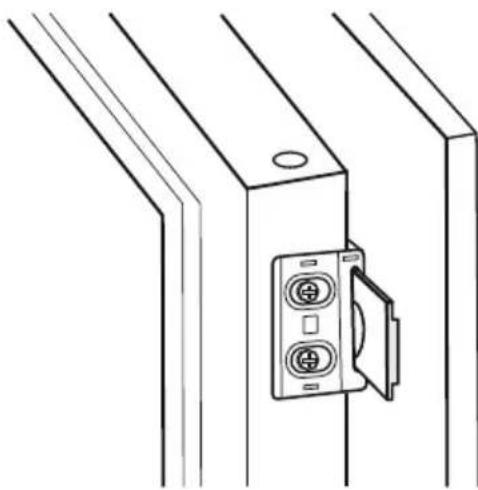

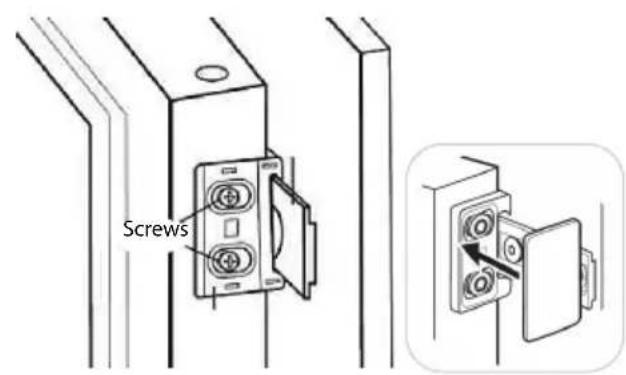

1. Fix the slider on the cabinet door with the supplied screws.

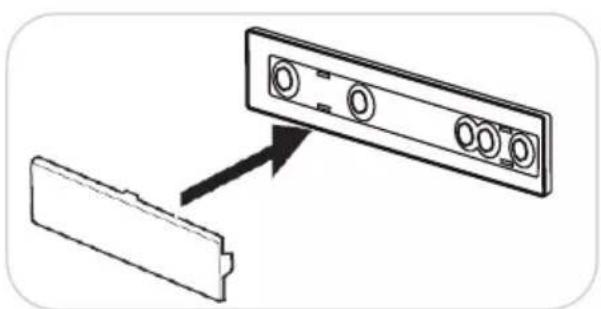

Attach the supplied slider cover onto the slider until it clicks into place.

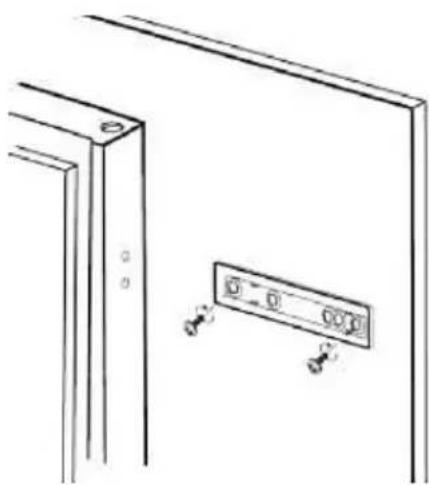

1. Insert the slider into the slot of the guide. Fix the guide on the appliance door with the supplied screws.

Attach the supplied guide cover onto the guide until it clicks into place.

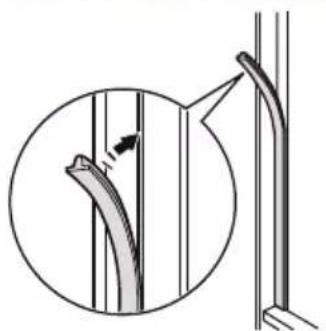

1. Fit the supplied rubber seal to the non-hinge side of the appliance.

Do a final check to make sure that :

All screws are tightened.
The rubber seal is attached tightly to the cabinet.
The appliance door opens and closes correctly.

AMBIENT TEMPERATURE

This appliance is designed to operate in ambient temperature between 16^ and 38^ . If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18^ and food spoilage may occur.

BEFORE PLACING FOOD IN THE APPLIANCE

• Remove all packaging.
• Allow the appliance to run empty for 2 - 3 hours so the compartments can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

POWER FAILURE

If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than 6,5 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat. GB-15

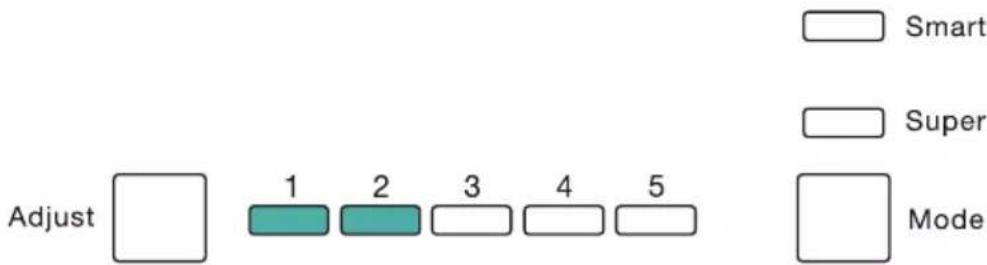

TEMPERATURE CONTROL

This appliance is equipped with a control panel inside the refrigerator compartment.

You can regulate the temperature by repeatedly pressing Adjust. The corresponding temperature indicator light (1 to 5) will illuminate.

1 is cold setting 5 is coldest setting

The running time and temperature are affected by where the appliance is located, how often the door is opened and the temperature of the room the appliance is located in.

When you use the appliance for the first time or after defrosting, adjust the temperature to the coldest setting for at least 2 hours before introducing food to be stored, and then readjust to the middle setting.

To turn off the appliance, press and hold Adjust for about 5 seconds. To turn it on, press and hold Adjust for about 5 seconds again.

Smart mode

To activate this mode, repeatedly press Mode until the Smart indicator light illuminates.

The temperature inside the fridge freezer will be automatically adjusted to the best refrigerating and freezing conditions according to ambient temperature.

Super mode

This mode will help food to freeze quickly and retain its nutrients, vitamins, flavours and appearance. To activate this mode, repeatedly press Mode until the Super indicator light illuminate.

This mode will be automatically deactivated after 54 hours of operation and the appliance will restore to the original temperature setting.

Door open alarm

When the doors are left open or have not been closed properly for about 90 seconds, an alarm will beep. To stop the alarm, close the doors properly.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the appliance to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your appliance from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

STORING FROZEN FOOD IN THE FREEZER COMPARTMENT

Use the freezer compartment

• To store deep - frozen food.
• To make ice cubes.

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by /best before/best by/' date.
• If possible, transport deep frozen food in an insulated bag and place quickly in the freezer compartment.

Storing frozen food

Store at -18^ or colder. Avoid opening the freezer door unnecessarily.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
   2.Remove air.
   3.Seal the wrapping.
   4.Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18^ ).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
• Once defrosted, food should be consumed quickly.

Making ice cubes

Fill the ice cube tray (not supplied) with 34 full of drinking water and place in the freezer compartment. If the ice cube tray is stuck to the freezer compartment, loosen with a blunt tool only.

To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

STORING FOOD IN THE FRIDGE COMPARTMENT

The appliance helps to extend the storage times of fresh perishable foods.

Fresh food care

For best results:

• Store foods that are very fresh and of good quality.

• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.

• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as
• butter, milk and cream which can be tainted by strong odours. Cool hot foods down before placing them in the fridge compartment.

Dairy foods and eggs

• Most pre-packed dairy foods have a recommended 'use by /best before/best by/' date stamped on them. Store them in the fridge compartment and use within the recommended time.
  Butter can become tainted by strong smelling foods so it is best stored in asealed container.
• Eggs can be stored in the fridge compartment.

Red meat

• Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.
• Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

Poultry

• Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil.
• Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.
• Cool and refrigerate cooked poultry quickly. Remove stuffing from poultry and store separately.

Fish and seafood

Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.
- If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels.
- Place whole fish or fillets in a sealed plastic bag. Keep shellfish chilled at all times. Use within 1 - 2 days.

Precooked foods and leftovers

These should be stored in suitable covered containers so that the food will not dry out.
- Keep for only 1 – 2 days.
- Reheat leftovers only once and until steaming hot.

Vegetable and fresh fruit

• The vegetable container is the optimum storage location for fresh fruit and vegetables. Take care not to store the following at

• temperatures of less than 7^ C for long periods: Citrus fruit, melons, aubergines, pineapple papaya, courgettes, passion fruit, cucumpeppers, tomatoes

• Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.

• Do not refrigerate avocados (until they are ripe), bananas, and mangoes.

Recommended Food Arrangement

Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste.

Refrigerator compartment:

Top section: canned food, bread, cake...
Middle section: dairy products, readymade food, desserts...
Bottom section: meat, meat products, delicatessen ...
Containers: fresh fruit, vegetables, salads...

Refrigerator door shelves:

Top/middle section: eggs, butter, cheese... Bottom section: beverages, cans, bottles...

Freezer compartment:

Freezing, storage of frozen food

DEFROSTING

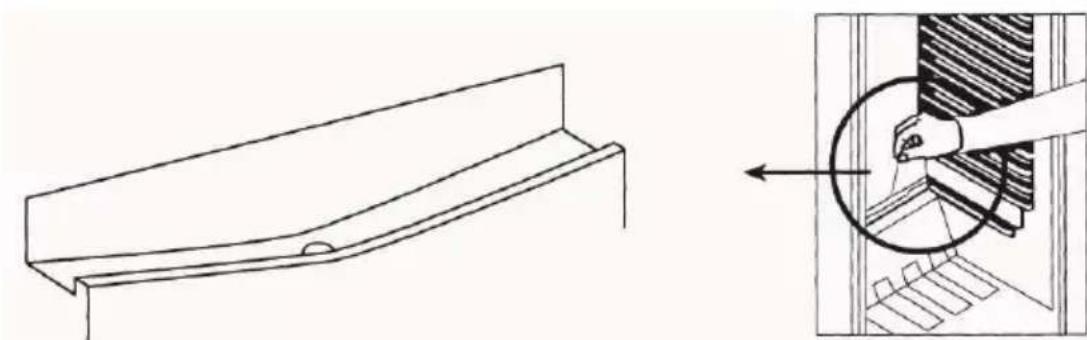

The fridge compartment defrosting process is carried out automatically every time the compressor stops. The defrost water is automatically routed to the drain port and into a tray placed on the top of the compressor to the rear of the appliance from which it evaporates.

Make sure the drain port on the fridge at the rear of the appliance is kept clear.

Freezer compartment defrosting

The freezer compartment will need defrosting periodically or when the frost is more than 3mm thick.

Do not scrape off hoarfrost or ice with a knife or pointed object. Doing this may damage the ant tubes.

1. Remove the frozen food and place temporarily in a cool location.
2. Set the temperature control knob to the 0 position and disconnect the mains plug from the mains socket.
3. Wipe up condensation with a cloth or sponge.
4. Wipe dry the freezer compartment.
5. Plug in the appliance and adjust the temperature control knob as desired.

TIPS FOR SAVING ENERGY

For the most energy efficient use of your appliance:

• Ensure your appliance has adequate ventilation as recommended in the installation instructions.
• Allow warm food and drinks to cool down before placing in the appliance.
• Thaw frozen food in the fridge compartment and use the low temperature of the frozen food to cool refrigerated food.
• Keep door openings to a minimum.
• Open the appliance as briefly as possible.
• Ensure that the doors are always closed properly.

OPERATING NOISES

Normal noises

• Motors are running.
• Refrigerant is flowing through the tubing.

CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents.

1. Unplug the appliance from the mains socket.
2. Take out the food and store in a cool location.
3. Clean the appliance with a soft cloth, warm water and detergent.
4. Wipe the door seal with clear water only and then wipe dry thoroughly.
5. After cleaning, reconnect and adjust the temperature as desired.
6. Put the food back into the appliance.

The LED lights in the fridge cannot be replaced by the user. If the LED lights stop working, please contact the local authorised service agent.

Cleaning Tips

• Remove all shelves, door shelves and drawers from the appliance. Wash them in warm soapy water with a soft sponge. Rinse and dry thoroughly.
• Wipe the interior parts (including door switch and lamp cover) with a damp cloth soaked in a mixture of warm water and dishwashing liquid. For stubborn stains, use baking soda.
• Wipe down the doors, including edges, with a microfiber cloth dampened with a mild dishwashing liquid and water. Use a wet sponge and soft brush (such as toothbrush) to remove any stuck-on food.

TROUBLESHOOTING

If there is a problem with your appliance, please check the following points before contacting customer service.

Problem Possible causes Possible solution
Appliance does not operate.	No electricity at power outlet. Check that the plug is correctly connected and power switched on.
Appliance is noisy.	Cabinet not stable or level. See “Installation” section.
Appliance not cool	Temperature setting not correct. Frequent door openings. Large amount of food recently added.	See “Temperatures Control” section. Minimise door openings to allow temperatures to stabilise.

SPECIFICATIONS

Electric shock protection class I
Rated voltage and frequency 220-240V~	50Hz
Rated current 0.75A
Rated power input 100W
Maximum lamp power 1,5W
Refrigerant/Amount	R600a/ 29 g
Net weight	37kg
Insulation blowing gas	Cyclopentane
Temperature rise time	Power cut safe 6,5 h

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: Etablissements Darty & fils © | Proline
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: PRI122-F-4F
Type of refrigerating appliance:
Low-noise appliance:		no	Design type:		built-in
Wine storage appliance:		no	Other refrigerating appliance:		yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimeter)	Height	1230	Total volume (dm3or l)		181
	Width	540
	Depth 540
EEI		125	Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		182	Climate class:		temperate/subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		38
Winter setting		no
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Volume (dm3or l)	Recommended temperature setting for optimised food storage (°C)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	no	—	—	—	—
Wine storage	no	—	—	—	—
Cellar	no	—	—	—	—
Fresh food	yes	167,0	4	—	A
Chill	no	—	—	—	—
0-star or ice-making	no —	— —
1-star no — —	— —
2-star no — —	— —
3-star no — —	— —
4-star	yes	14,0	-18	2,0	M
2-star section no	— — —
Variable temperature compartment	no	— —		—	—
For 4-star compartments
Fast freeze facility			yes
For wine storage appliances
Number of standard wine bottles —
Light source parameters (a):
Type of light source			LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

Climate class:

Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 32^ .
- Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 38^ C' .

This refrigerating appliance is not suitable for freezing foodstuffs.

To find the model information in the product database :

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1073895

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G.

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at:

DARTY www.darty.com	Vanden Borre in alle vertrouwen www.vandenborre.be
0978 970 970 24 Hours 7 Days a week	02 334 00 00 8 AM – 6 PM Mon to Sat
9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France	Slesbroekstraat 101 1600 Sint-Pieters-Leeuw Belgium

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf.

In pulsed air refrigerators (equipped with a fan) or No Frost models, the coldest area symbol is not shown because the temperature is uniform throughout the interior.

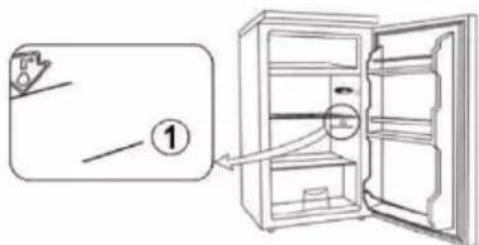

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

WARNING: This Indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose.

TEMPERATURE INDICATOR: THE COLDEST PART OF YOUR REFRIGERATOR

CHECKING THE TEMPERATURE IN THE COLDEST AREA

• Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance.

When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct.

If the indicator is white it means the temperature is too high, so you should

increase the thermostat and wait for 12 hours before checking the indicator

again.

After loading the refrigerator or opening the door, the indicator may turn

white for a few seconds.

Correct setting

Temperature too high -adjust the thermostat

Inhoudsopgave

WAARSCHUWINGEN 2

BELANGRIJKVEILIGHEIDSINSTRUCTIES 7

BESCHRIJVING VAN DE ONDERDELEN 8

UW APPARAAT VERPLAATSEN 17

BEVROREN VOEDSEL IN HET VRIEZERRUIMTE BEWAREN 17

LEVENSMIDDELEN IN DE KOELKAST BEWAREN 20

ONTDOOIER 24

ENERGIEBESPARINGSTIPS 25

WERKINGSGELUIDEN 25

REINIGING EN ONDERHOUD 25

PROBLEEMOPISSING 26

WAARSCHUWING: Houd alle

UW APPARAAT VERPLAATSEN

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1073895

EU Declaration of Conformity

Product Description:

The object of the declaration described above is in conformity with the relevant Union

harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

LVD:

EN 60335-1:2012+A11:2014+A13:2017+A14:2019+A1:2019+A2:2019

EN 60335-2-24:2010+A1:2019+A2:2019

EN 62233:2008

ErP:

(EU) 2019/2019 (EU) 2019/2016

(EU) 2021/340 (EU) 2021/341

EN 62552-1:2020 EN 62552-2:2020 EN 62552-3:2020

EN 60704-1:2010+A11:2012 EN 60704-2-14:2013+A11:2015+A1:2019

(EU) 2019/2020 (EU) 2019/2015

The person responsible for this declaration is:

Place, Date / Lieu :

Ivry-sur-Seine, mars 23, 2022
