Technical Specifications	32 cm speakers, 2000 W power, frequency response from 20 Hz to 20 kHz, Bluetooth connectivity, RCA and 6.35 mm jack inputs.
Usage	Ideal for parties, outdoor events, and dance evenings. Easy to carry thanks to its lightweight design.
Maintenance and Repair	Regular cleaning of grills and connectors. Check cables and connections before each use.
Safety	Use only with compliant cables and plugs. Avoid exposure to moisture and extreme temperatures.
General Information	2-year warranty, technical support available, compatibility with various audio devices.

Frequently Asked Questions - DJMonitor 32 Party HERCULES

How can I connect my HERCULES DJMonitor 32 Party to my computer?

To connect your HERCULES DJMonitor 32 Party to your computer, use a 3.5 mm jack audio cable or an RCA cable. Plug one end into your computer's audio output and the other into the corresponding input of the system.

The sound is low, what can I do?

Check the volume level on your HERCULES DJMonitor 32 Party as well as on your computer or audio source. Also ensure that the cables are properly connected and in good condition.

How do I adjust the bass and treble on the HERCULES DJMonitor 32 Party?

Use the tone controls located on the front panel of the device to adjust the bass and treble according to your preferences.

My HERCULES DJMonitor 32 Party won't turn on, what should I do?

Check that the device is properly plugged into a working power outlet. Make sure the power button is in the "ON" position. If the problem persists, try another power cable.

Is it possible to connect multiple audio devices to my HERCULES DJMonitor 32 Party?

Yes, you can connect multiple audio devices using the different available inputs, but you will need to select the appropriate input to listen to the sound from the desired device.

How can I clean my HERCULES DJMonitor 32 Party?

To clean your HERCULES DJMonitor 32 Party, use a soft, dry cloth. Avoid using chemicals or abrasive cleaners that could damage the surface.

What should I do if the sound is distorted?

Sound distortion can be caused by too high a volume level. Reduce the volume to a moderate level and check that the equalizer is set correctly.

My HERCULES DJMonitor 32 Party makes strange noises, what does this mean?

Strange noises may indicate a connection problem or hardware fault. Check all connection cables and if the problem persists, contact customer service.

Can I use my HERCULES DJMonitor 32 Party for outdoor events?

Yes, the HERCULES DJMonitor 32 Party can be used for outdoor events, but make sure it is protected from the weather and that you have an adequate power source.

USER MANUAL DJMonitor 32 Party HERCULES

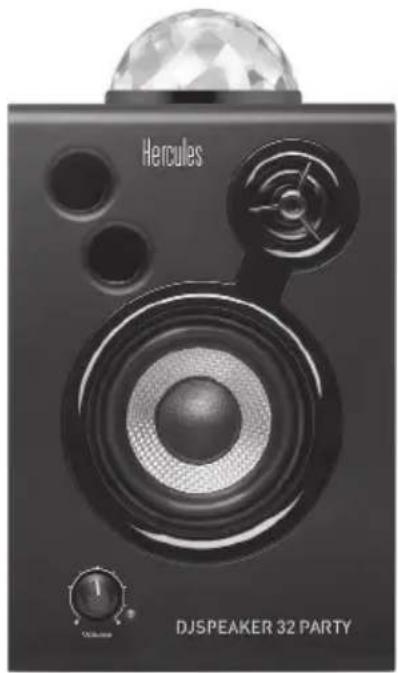

Black DSPEAKER 32 Party audio speaker with a spherical head and sound waves (no text or symbols on the device body)

Hercules DJSEPEAKER 32 PARTY

Europe, Middle East

ENGLISH

FRANÇAIS

DEUTSCH

NEDERLANDS

ITALIANO

ESPAÑOL

PORTUGUÊS

РУССКИЙ

ČESTINA

TÜRKÇE

POLSKI

SVENSKA

SUOMI

SLOVENCINA

MAGYAR NYELV

תַעְרָה

North America/

Norteamérica

ENGLISH

FRANÇAIS

ESPAÑOL

Latin America/

América Latina

ENGLISH

ESPAÑOL

PORTUGUÊS

Asia Pacific

日本語

繁體中文

한국어

ENGLISH

Hercules®

DJSPEAKER 32 PARTY

CONTENTS

1. INTRODUCTION ....3

2. INSTALLING THE DJSPEAKER 32 PARTY SPEAKER KIT ....4

1.1. Package contents ....3
1.2. Specifications....3
1.3. Recommendations....4
2.1. Positioning the speakers ....4
2.2. Connecting the speaker kit....5

2.2.1. Connection to a PC....6

2.2.2. Connection to a television set equipped with a headphone jack....6

2.2.3. Connection to a DVD player/television set equipped with Left and Right audio outputs....6

3. USING YOUR DJSPEAKER 32 PARTY SPEAKER KIT....7

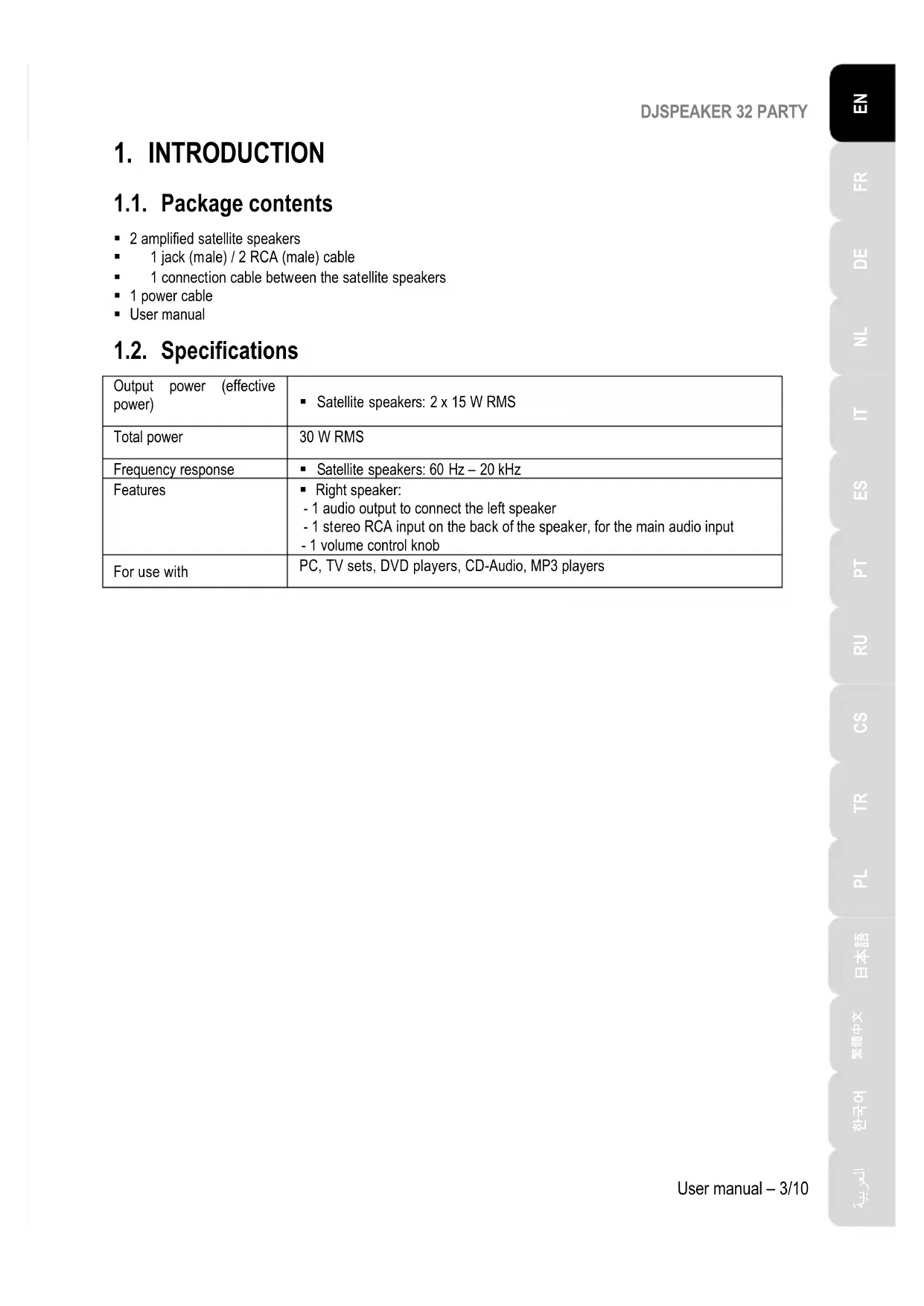

1. INTRODUCTION

1.1. Package contents

■ 2 amplified satellite speakers
■ 1 jack (male) / 2 RCA (male) cable
■ 1 connection cable between the satellite speakers
■ 1 power cable
■ User manual

1.2. Specifications

Output power (effective power)	▪ Satellite speakers: 2 x 15 W RMS
Total power	30 W RMS
Frequency response	▪ Satellite speakers: 60 Hz – 20 kHz
Features	▪ Right speaker:- 1 audio output to connect the left speaker- 1 stereo RCA input on the back of the speaker, for the main audio input- 1 volume control knob
For use with	PC, TV sets, DVD players, CD-Audio, MP3 players

1.3. Recommendations

• Place your satellite speakers on a flat surface to avoid the risk of the speakers falling.
• Never open up your speaker kit, as you risk damaging its internal components.
• This speaker kit is intended for use in a temperate environment.
• To prevent the risk of fire or electrical discharge, keep your speaker kit away from:
• rain or humidity, as well as all fluids (water, chemical products or any other liquids),
• sources of heat such as heaters, stoves or any other heat-producing devices (including amplifiers), direct sunlight.
• Do not expose your speaker kit to drips or splashes of water.
• Never place any object filled with liquid (a glass, vase...) on your speaker kit.
• Unplug the power cable if you do not plan on using your speaker kit for an extended period of time. To disconnect the power cable, take hold of and pull on the plug; never pull on the cable itself.
• Make sure that the speaker kit's power plug connected to an electrical outlet remains easily accessible.
• Disconnect the speaker kit before cleaning. Use a damp cloth and avoid using aerosol cleaners.
• The speaker kit's power plug serves to power off the device and must therefore be easily accessible at all times.
• Markings are located on the back of the speakers.

2. INSTALLING THE DJSPEAKER 32 PARTY SPEAKER KIT

2.1. Positioning the speakers

1. Place the satellite speakers on a desk to either side of your monitor, keeping them at least 50 cm away from the side walls.
2. Place the speakers at an equal distance from the listener and direct them towards the listening position.

2.2. Connecting the speaker kit

1. Switch off the audio source (PC, television set, DVD player) to which you wish to connect your speaker kit.

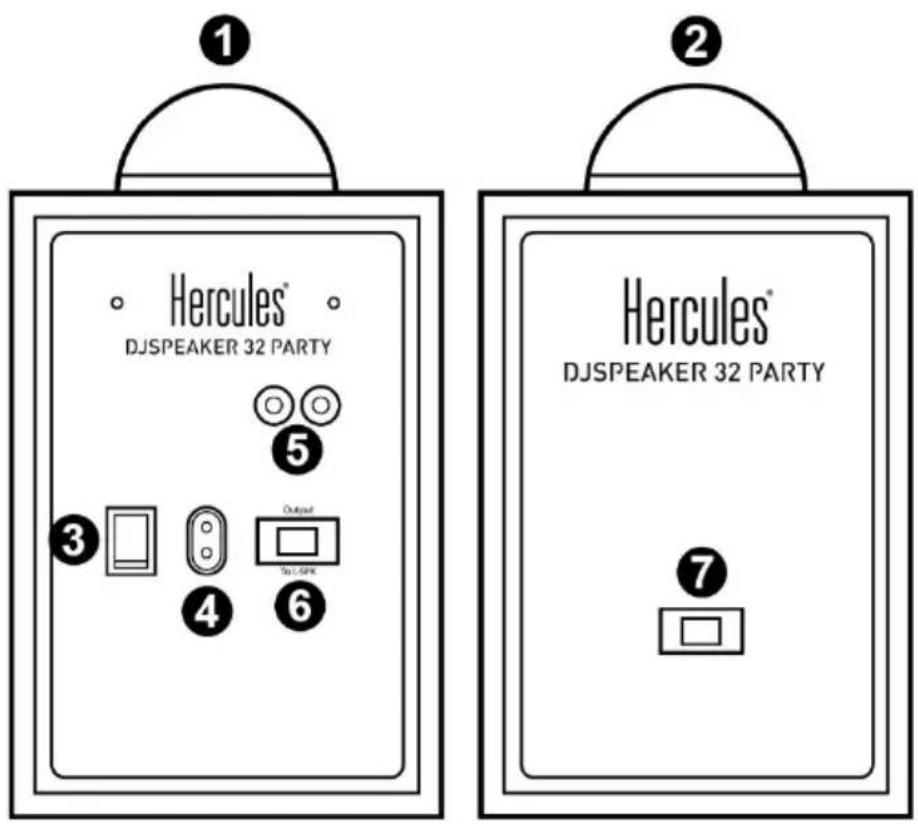

- General connection diagram:

Hercules® DJSPEAKER 32 PARTY ① ② ③ ④ ⑤ Output To1.6PK ⑦ Hercules® DJSPEAKER 32 PARTY

1: Right speaker
2: Left speaker
3: On/Off switch
4: Power connector
5: Connectors for main audio input
6: Right satellite speaker connector
7: Left satellite speaker connector

DJSPEAKER 32 PARTY

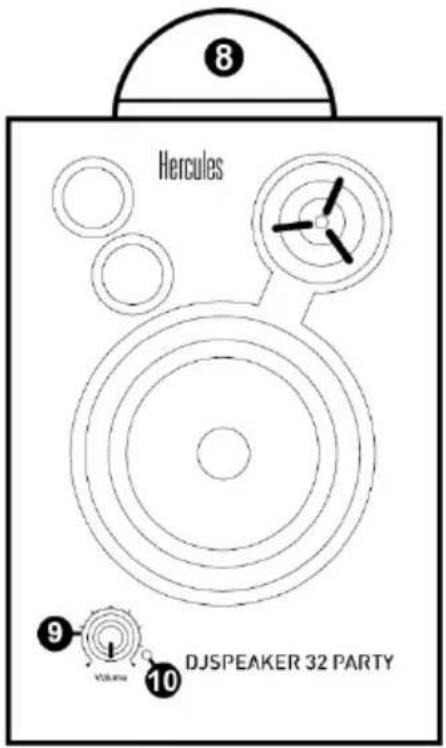

- Right speaker with controls/Infrared remote control:

Hercules DJSEPEAKER 32 PARTY

8: Built-in LED light show

9: Master volume control knob

10: Power LED

11: On/Off button

12: Permanent mode

13: Auto mode

14: Flash mode

2.2.1. Connection to a PC

- Connect your speaker kit's main input (RCA connectors on the back of the right satellite speaker) to the green FRONT SPEAKERS or FRONT OUT connector on your sound card or on the sound card integrated into your computer's motherboard, using the included jack (male) / 2 RCA (male) cable.

2.2.2. Connection to a television set equipped with a headphone jack

- Connect your speaker kit's main input (RCA connectors on the back of the right satellite speaker) to the headphone jack on your television set.

2.2.3. Connection to a DVD player/television set equipped with Left and Right audio outputs

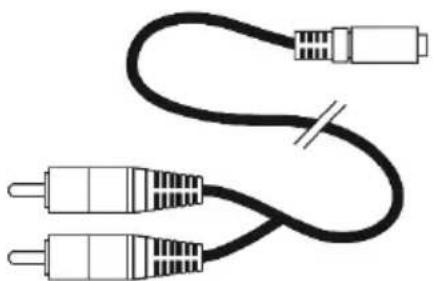

Requires a female jack / 2 male RCA cable (not included – please see diagram A, below).

1. Connect your male jack / 2 male RCA cable to the female jack / 2 male RCA cable.
2. Connect the white RCA connector on the female jack / 2 male RCA cable to the corresponding audio output on your DVD player/television set.
3. Connect the red RCA connector on the female jack / 2 male RCA cable to the corresponding audio output on your DVD player/television set.

Line drawing of a three-pin audio jack connected in a coiled cable (no text or symbols)

A

Pure diagram of three connected USB cables without any text, numbers, or symbols

B

3. USING YOUR DJSPEAKER 32 PARTY SPEAKER KIT

1. Switch on the audio source you wish to use (PC, television set, DVD player).
2. Plug your speaker kit's power cable (4) into an electrical outlet.
3. Set the On/Off switch (3) to ON.
4. Adjust the master volume.

DJSPEAKER 32 PARTY

CONSUMER WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143, 35571 Chantepie, France (hereinafter "Guillemot") warrants to the consumer that this Hercules product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from delivery of the Hercules product. In other countries, the warranty period corresponds to the time limit to bring an action for conformity with respect to the Hercules product according to applicable laws of the country in which the consumer was domiciled on the date of purchase of the Hercules product (if no such action exists in the corresponding country, then the warranty period shall be one (1) year from the original date of purchase of the Hercules product).

Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6) months from the date of original purchase.

Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer's defective product shall, at Technical Support's option, be either replaced or returned to working order. If, during the warranty period, the Hercules product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer's request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Hercules product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose.

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Hercules product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product); (2) if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product's lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction.

This warranty is nontransferable.

The consumer's legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.

Additional warranty provisions

During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical Support is the only party authorized to open and/or recondition any Hercules product (with the exception of any reconditioning procedures which Technical Support may request that the consumer carry out, by way of written instructions – for example, due to the simplicity and the lack of confidentiality of the reconditioning process – and by providing the consumer with the required spare part(s), where applicable).

Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall not provide, in principle, any reconditioning notification or spare parts for any Hercules product whose warranty period has expired.

In the United States of America and in Canada, this warranty is limited to the product's internal mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any third party for any consequential or incidental damages resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of liability for consequential or incidental damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or Province to Province.

Liability

If permitted under applicable law, Guillemot Corporation S.A. (hereinafter "Guillemot") and its subsidiaries disclaim all liability for any damages caused by one or more of the following: (1) the product has been modified, opened or altered; (2) failure to comply with assembly instructions; (3) inappropriate or abusive use, negligence, an accident (an impact, for example); (4) normal wear; (5) the use of the product for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example). If permitted under applicable law, Guillemot and its subsidiaries disclaim all liability for any damages unrelated to a material or manufacturing defect with respect to the product (including, but not limited to, any damages caused directly or indirectly by any software, or by combining the Hercules product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product).

FCC STATEMENT

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
   (1) This device may not cause harmful interference, and
   (2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

DJSPEAKER 32 PARTY

COPYRIGHT

© 2019 Guillemot Corporation S.A. All rights reserved. Hercules® is a registered trademark of Guillemot Corporation S.A. All other trademarks and brand names are hereby acknowledged and are property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another.

ENVIRONMENTAL PROTECTION RECOMMENDATION

In the European Union: At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.

This is confirmed by the symbol found on the product, user manual or packaging.

Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment.

Please contact your local authorities for information on the collection point nearest you.

For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.

Retain this information. Colours and decorations may vary.

Plastic fasteners and adhesives should be removed from the product before it is used.

www.hercules.com

*Applicable to EU and Turkey only

Hercules TECHNICAL SUPPORT https://support.hercules.com i
