MOG730MI - Microwave Oven AYA - Free user manual and instructions

Product Type	Microwave Oven
Brand	AYA
Model	MOG730MI
Dimensions (W x D x H)	440 x 343 x 259 mm
Net weight	Approximately 11.0 kg
Power supply	230 V ~ 50 Hz
Microwave power (absorbed)	1050 W
Microwave power (output)	700 W
Grill power (absorbed)	1000 W
Oven capacity	20 L
Turntable diameter	255 mm
Cooking functions	Microwave, Grill, Combination 1/2/3
Control type	Manual (power and timer knobs)
Safety	Door safety lock, mandatory grounding
Maintenance and cleaning	Clean with a damp cloth; avoid abrasive products; use half a lemon with 300 ml of water (10 min at full power) for deep cleaning
Included accessories	Glass tray, turntable ring assembly, user manual
Legal warranty	2 years (conformity)
After-sales service	09 78 97 97 97 (Monday-Friday 9am-7pm, Saturday 9am-6pm)
Minimum installation	Free space above: 30 cm; lateral clearance: 20 cm; minimum height under the oven: 85 cm
Intended use	Household only (heating food and drinks)

Frequently Asked Questions - MOG730MI AYA

What utensils can I use in my AYA MOG730MI microwave oven?

Use only microwave-safe utensils: heat-resistant glass, suitable plastic, parchment paper, etc. Avoid metal, aluminum foil, metal ties, wood, and Styrofoam. When in doubt, perform the test described in the manual: place the utensil with a cup of water (250 ml) and heat for 1 minute at maximum power; if it is hot, do not use it.

How to install the microwave oven correctly?

Place the oven on a flat and stable surface. Ensure at least 30 cm of free space above, 20 cm on the sides, and a minimum height of 85 cm under the oven. Do not install it above a heat source. Plug it into a grounded outlet.

What to do if the oven does not heat?

Check that the power cord is properly plugged in, the door is correctly closed, and the fuse or circuit breaker has not tripped. If the problem persists, contact after-sales service.

Can I heat eggs in their shell?

No, it is not recommended to heat eggs in their shell or whole hard-boiled eggs, as they may explode, even after the end of cooking.

How to clean the interior of the oven?

Regularly clean the cavity with a slightly damp cloth. For deep cleaning, place half a lemon in 300 ml of water and heat for 10 minutes at full power, then wipe with a soft dry cloth. Never use abrasive cleaners or metal scrapers.

The oven emits smoke, what to do?

Stop the oven immediately and unplug it. Keep the door closed to smother any flames. Do not use it until you have removed the cause (burnt food, etc.).

What is the function of the different power levels?

The microwave power levels are: Low (17% for softening ice), Medium-Low (33% for defrosting/soup), Medium (55% for braising), Medium-High (77% for rice/meat), High (100% for reheating/boiling). The grill and combinations (Combi 1/2/3) mix grill and microwave for different cooking.

How to set the timer?

Turn the timer knob to the desired time (power must be set first). The oven starts automatically. After cooking, a sound signal is heard. Always set the timer back to 0 after use.

Can I use metal containers?

No, metal containers are not allowed in microwave mode. They can cause arcing and damage the oven. Use only suitable utensils.

How to maintain the door seals?

Clean the door seals, frame, and adjacent parts with a damp cloth when dirty. Ensure there is no food residue. A damaged seal may cause microwave leakage; in that case, have the oven repaired by a qualified person.

USER MANUAL MOG730MI AYA

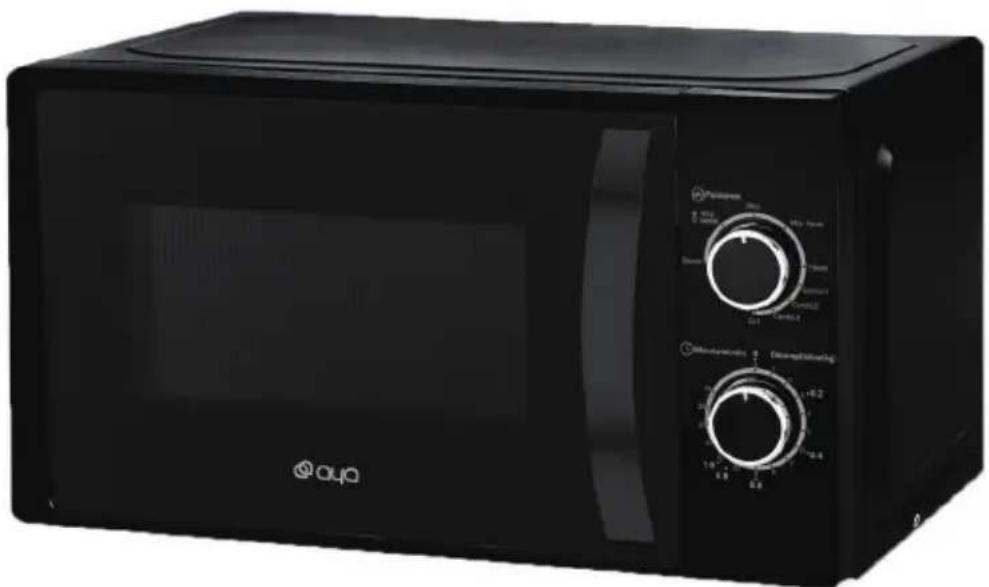

MANUEL D'UTILISATION MOG730MI

FR

Four à Micro-ondes

TABLE DES MATIERES

Specifications techniques

INSTRUCTIONS FOR USE MOG730MI

EN

Microwave Oven

DIRECTORY

Precautionsto avoidpossibleexposureto excessive micro ave energy -23-

Important safety instructions -24-

Grounding installation -29-

Utensils -31-

Setting up your oven 34-

Operation -36-

Trouble shooting -37-

Cleaning and maintenance -38-

Specifications -38-

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury oven energy when using your appliance, follow to persons or exposure to excessive microwave basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. This appliance is intended to be used in household and similar applications such as:

16. staff kitchen areas in shops, offices and other working environments;

17. farm houses;

18. by clients in hotels, motels and other residential type environments;

19. bed and breakfast type environments.

20. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1. Do not store or use this appliance outdoors.
2. Do not use this oven near water, in a wet basement or near a swimming pool.
3. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
4. Do not let cord hang over edge of table or counter.
5. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
6. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
7. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
8. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
   25.Accessible parts may become hot during use. Young children should be kept away.

1. Steam cleaner is not to be used.
2. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
3. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
   Children less than 8 years of age shall be kept away unless continuously supervised.
4. The rear surface of appliance shall be placed against a wall.
5. The microwave oven shall not be placed in a cabinet.
6. It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.
7. This appliance has been incorporated with a grounded plug. Please ensure the outlet in your house is well earthed.
8. Make sure the appliance is switched off before replacing the light.

9. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

10. Regarding the instructions of the details for cleaning door seals, cavities and adjacent parts, thanks to refer to the section "CLEANING".
    36.WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

11. The microwave oven is intended to be used freestanding, it is not intended to be built-in.
12. Metallic containers for food and beverages are not allowed during microwave cooking.
13. The appliance shall not be cleaned with a steam cleaner.
14. The microwave oven must not be installed equal or higher than 900mm above the floor.
15. Replacing certain parts of your household electrical appliance may lead to a danger.

Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional

1. Regarding the cleaning surface in contact with food, please refer to chapter "CLEANING".
2. This appliance is Group 2 Class B equipment.
3. Group 2 equipment: group 2 contains all ISM RF equipment in which radio-frequency energy in the frequency range 9kHz to 400GHz is

intentionally generated and used or only used locally, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material, for inspection/analysis purposes, or for transfer of electromagnetic energy.

Class B equipment is equipment suitable for use in locations in residential environments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified
electrician or serviceman
if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.
If it is necessary to use an extension cord, use only a 3-wire

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance.
   2)The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwaveenergy.

UTENSILS

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain nonmetallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 5mm above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short–term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1
Turntable ring assembly 1
Instruction Manual 1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

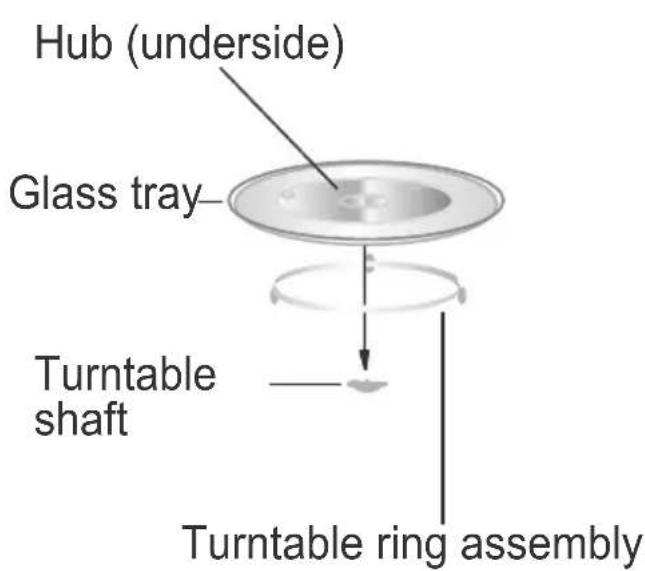

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film foundon the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven ca vity to protect the magnetron.

Installation

1. Select a level surface that provideenough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm .
(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.

(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over arange cooktop or other heat-producing appliance. If installed near or over a heatsource, the oven could be damaged and the warranty would be void.

Control Panel and Features Operation Instructions

1. To set cooking power by turning the power knob to desired level.
   2.To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
2. The microwave oven will automatically start cooking after power level and time are set.
3. After the cooking time is up, the unit will "Dong" to stop.
   5.If the unit is not in use, always set time to "0".

Function/Power	Output	Application
Low	17% power	Soften ice cream
Med. Low (Defrost)	33% power	Soup stew, soften butter or defrost
Med.	55% power	Stew, fish
Med. High	77% power	Rice, fish, chicken, ground meat
High	100% power	Reheat, milk, boil water, vegetables, beverage

Function/Power	Output	Application
Combi.1	80% grill 20% micro	Sausage, Lamb, Kabobs, Seafood, Steak
Combi.2	70% grill 30% micro	Chicken pieces, Chicken breasts, Pork chops
Combi.3	60% grill 40% micro	Whole chicken
Grill	100% grill	Baken bread, Slice food

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, likemixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light.	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating ondoor, hot air out of vents.	In cooking, steam may come out of food. Most willget out from vents. But some may accumulate oncool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can notbe started.	1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuitbreaker(repaired by professionalpersonnel of our company).
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

CLEANING AND MAINTENANCE

Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The dorr frame and seal and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.

Specifications

Model:	MOG730MI
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1050W
Rated Output Power(Microwave):	700W
Rated Input Power(Grill):	1000W
Oven Capacity:	20L
Turntable Diameter:	Ø255mm
Product dimension:	440x343x259mm
Net Weight:	Approx.11.0kg

• We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

CORRECT DISPOSAL OF THIS PRODUCT

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97

Monday to Friday from 9:00 am to 19:00 pm

Saturday from 9:00 am to 18:00 pm (local call price).

LE TRI

FACILE
